Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh

Export reference
From $7,889
MSRP ¥5.68M CNY
Wheelbase:: 2100mm
Cargo box volume:: 3
Cab length:: 3.4m
warranty policy:: 3 years or 60,000 km (whichever comes first) Battery: 5 years or 200,000 km (whichever comes first)
GVWR:: 1.52ton
Max. speed:: 80km/h

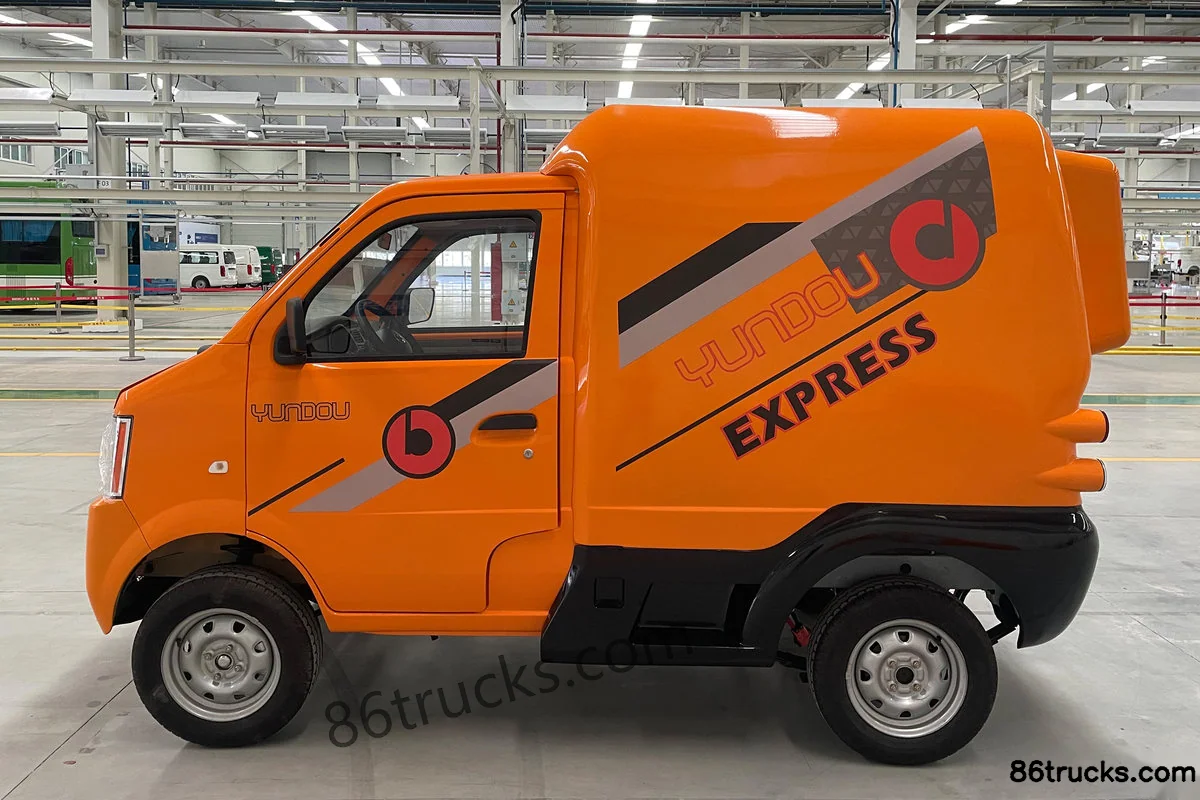

Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh exterior
View more photos (3)
CLTC range: 80km
Motor 1 Brand: Ningbo Shuanglin
Curb Weight: 0.62ton
Rated payload: 0.77ton

Overview

The Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh is a Electric Panel Van featuring 80km battery/range, Ningbo Shuanglin motor, 0.77t payload and 3 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Wheelbase: 2100mm
Cab length: 3.4m
Cab width: 1.58m
Cab height: 2.05m
warranty policy: 3 years or 60,000 km (whichever comes first) Battery: 5 years or 200,000 km (whichever comes first)
CLTC range: 80km
Curb Weight: 0.62ton
Rated payload: 0.77ton
GVWR: 1.52ton
Max. speed: 80km/h
Version: Standard version
Energy Type: Electric
electric motor
Motor 1 Brand: Ningbo Shuanglin
Motor 1 Model: TZ155X020
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 13kW
Peak power: 20kW
total rated torque: 25N·m
total peak torque: 85N·m
Electronic Control
ECU Brand: Wuhan Yuanfeng
Battery/Charging
Battery Brand: Tianneng New Energy
Charging method: Constant pressure constant flow
Battery type: Lithium Iron Phosphate Battery
fast charge time: 3h
Battery capacity: 9.6kWh
Battery total voltage: 96V
Body parameters
Cargo box volume: 3
Max body depth: 1.5
Max body width: 1.5
Cargo Box Height: 1.27
Body Parameters
Seat count: 2Seats
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 165/70R13LT 6PR
Rear Wheel Specification: 165/70R13LT 6PR
Cab parameters
Seat rows:
Control configuration
ABS:

Photos

Exterior3

Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh Exterior (1) | 86Trucks Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh Exterior (2) | 86Trucks Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh Exterior (3) | 86Trucks

3 photos

FAQ

What is the export price of Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh, and what does it include?

Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh export reference is about From $7,889; MSRP is ¥5.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh suited for?

Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh differ from other variants in the same series?

Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh belongs to Yundou Auto Yundou 01 Series (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yundou Auto 01 Standard Edition 1.52T 3.4m Pure Electric Panel Van 9.6kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
