Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh

Export reference
MSRP N/A
Rated payload:: 0.98ton
Wheelbase:: 3490mm
Cargo box width:: 2.1m
Model code (announced):: FD5042XLCW78BEV-1
Cab length:: 5.995m
GVWR:: 4.495ton
Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh exterior
View more photos (12)
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Hande, Shaanxi
Curb Weight: 3.32ton

Overview

The Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh is a Electric Refrigerated Truck featuring CATL battery/range, Hande, Shaanxi motor, 4X2 (6 wheels) drive and 0.98t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): FD5042XLCW78BEV-1
Drive type: 4X2
Wheelbase: 3490mm
Cab length: 5.995m
Cab width: 2.26m
Cab height: 3.26m
Curb Weight: 3.32ton
Rated payload: 0.98ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Rizhao, Shandong
Energy Type: Electric
electric motor
Motor 1 Brand: Hande, Shaanxi
Motor 1 Model: TZ230XS-HD002
Motor Type: Permanent magnet synchronous motor
total rated power: 70kW
Peak power: 140kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 140kWh
Cargo box parameters
Box volume: 18m³
Cargo box width: 2.1m
Cargo box height: 2.1m
Chassis Specs
Chassis Series: FeidiEW7
Chassis Model: FD1042W78BEV
Leaf spring count: 3/3+2
Safety features
Remote key:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Electric
Reverse Camera:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

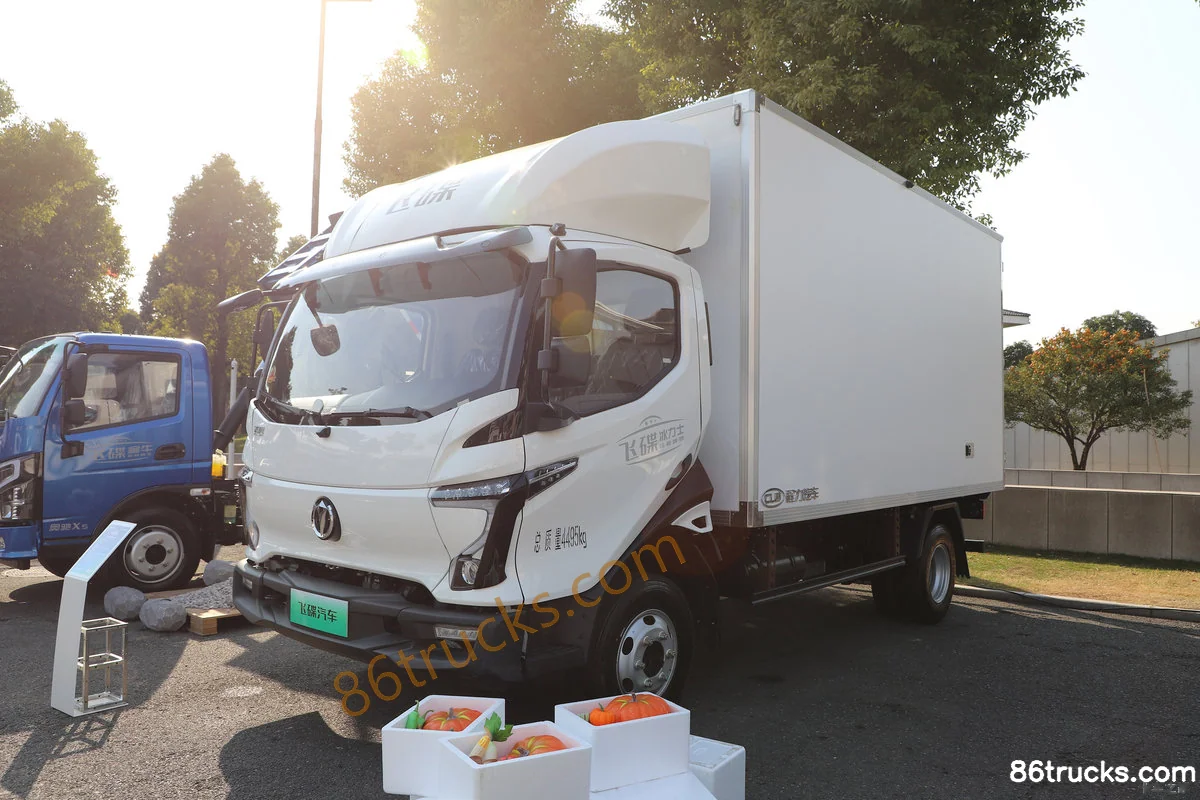

Exterior3

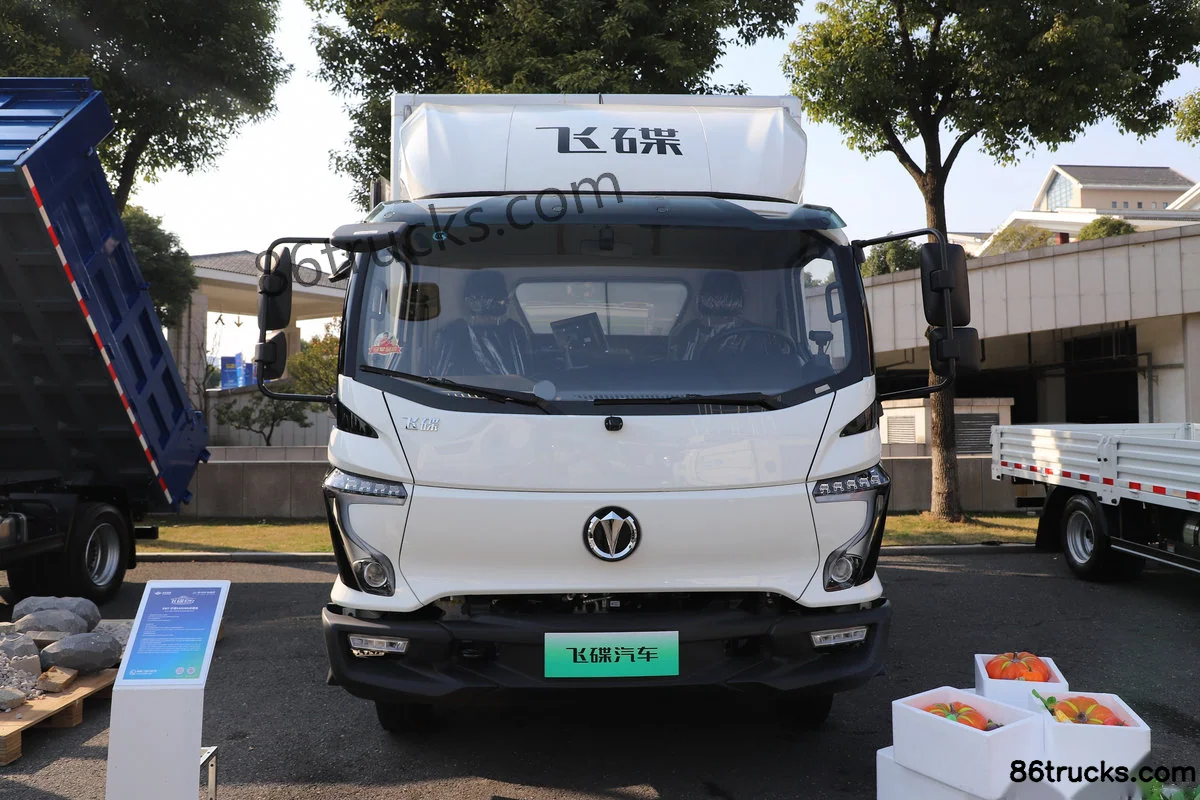

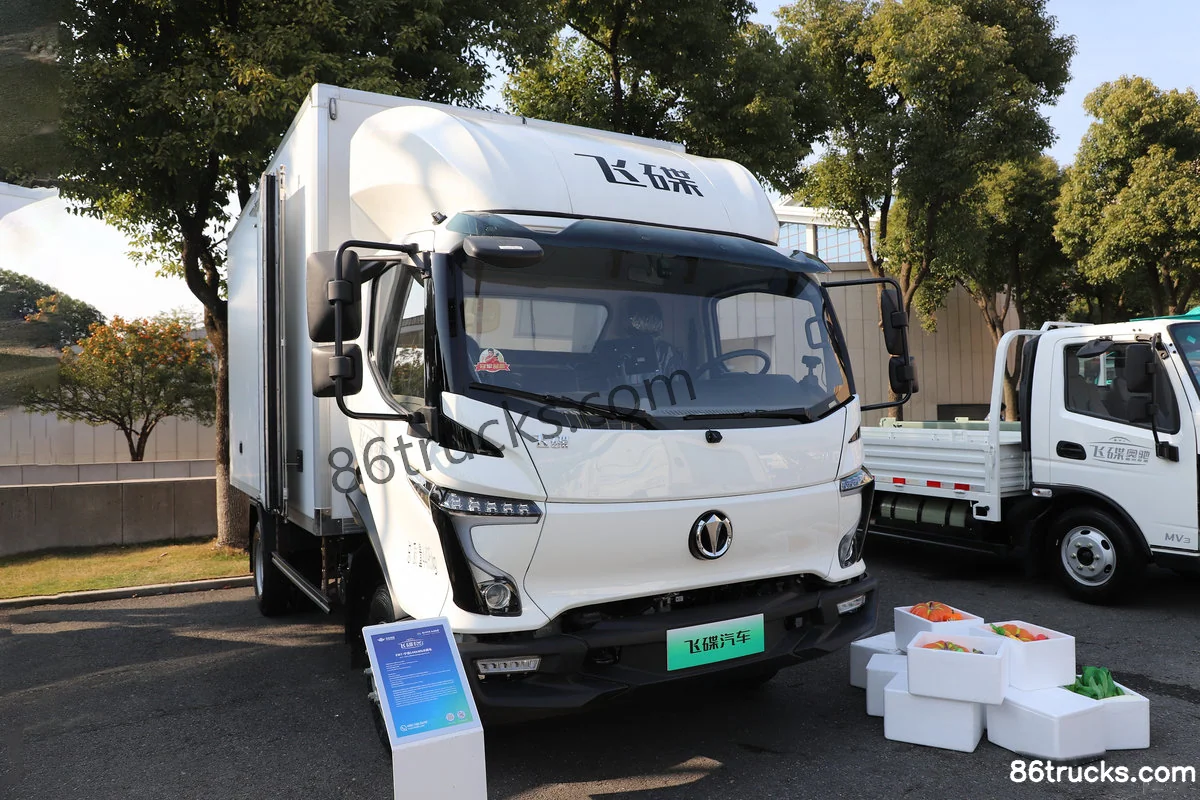

Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Exterior (1) | 86Trucks Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Exterior (2) | 86Trucks Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Exterior (3) | 86Trucks

Cab3

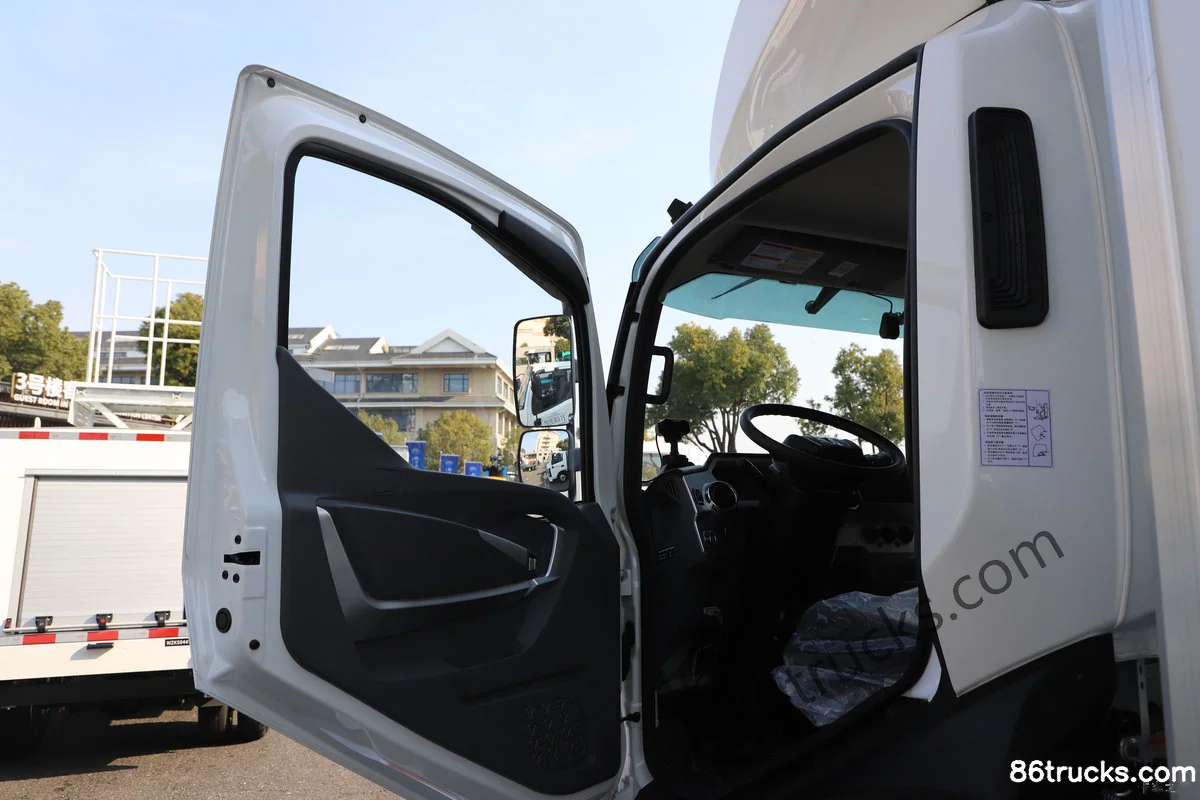

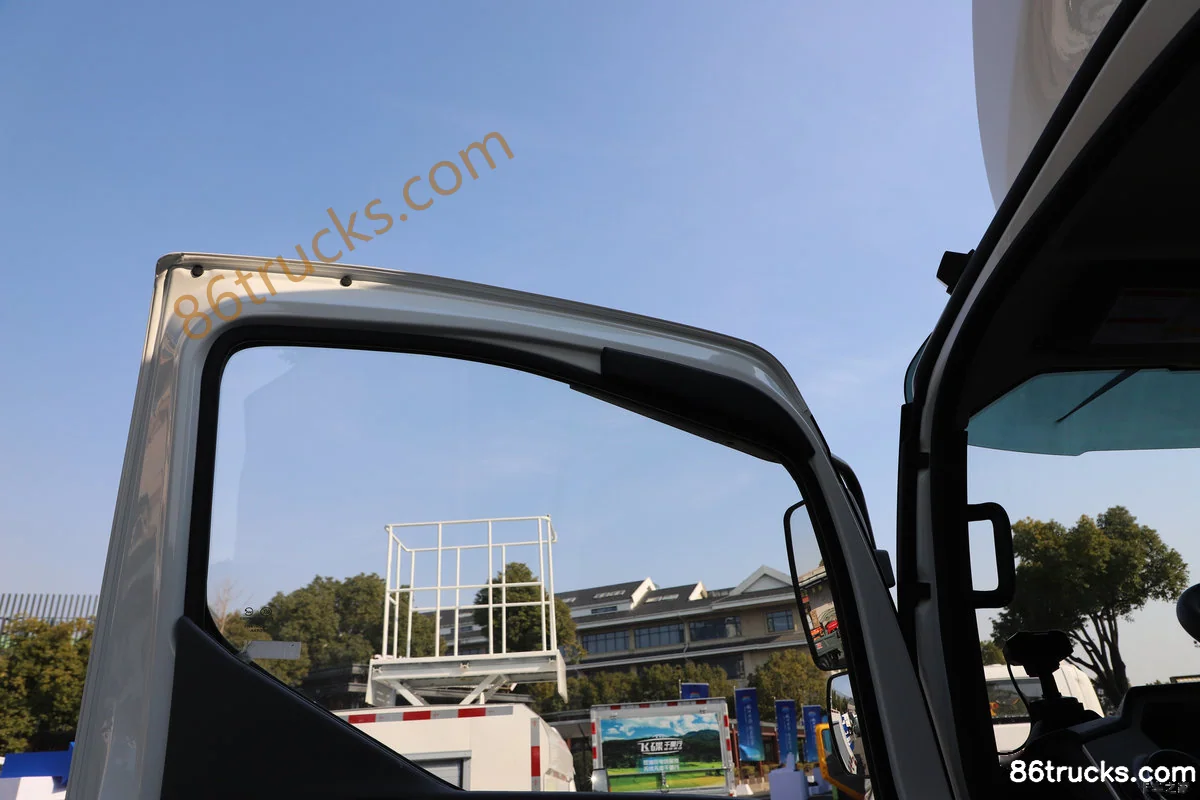

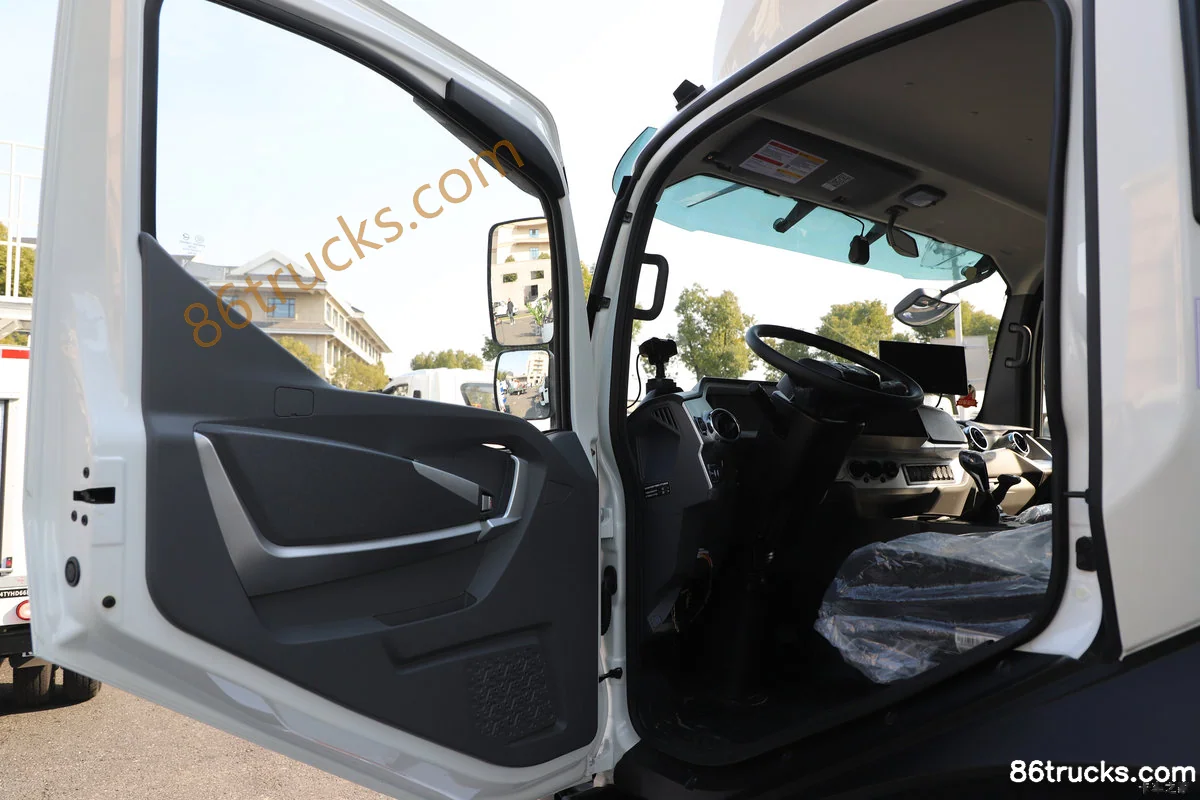

Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Cab (1) | 86Trucks Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Cab (2) | 86Trucks Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Cab (3) | 86Trucks

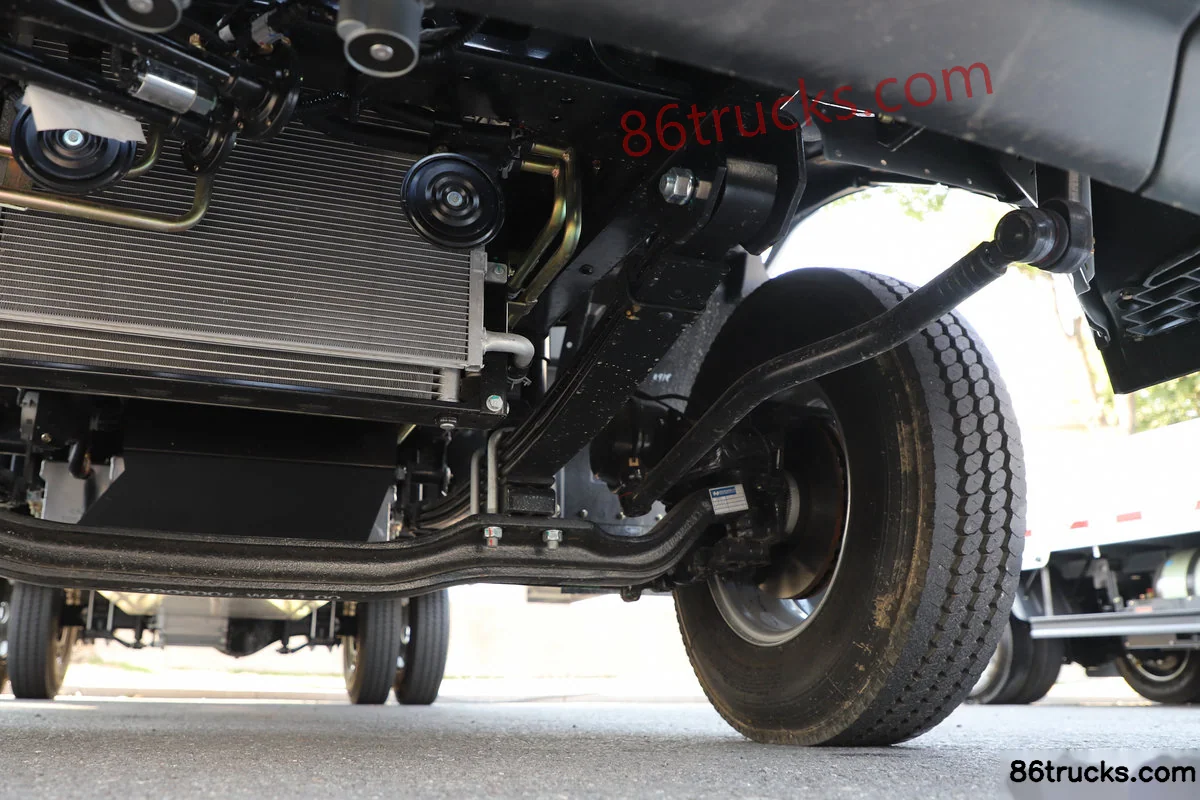

Chassis3

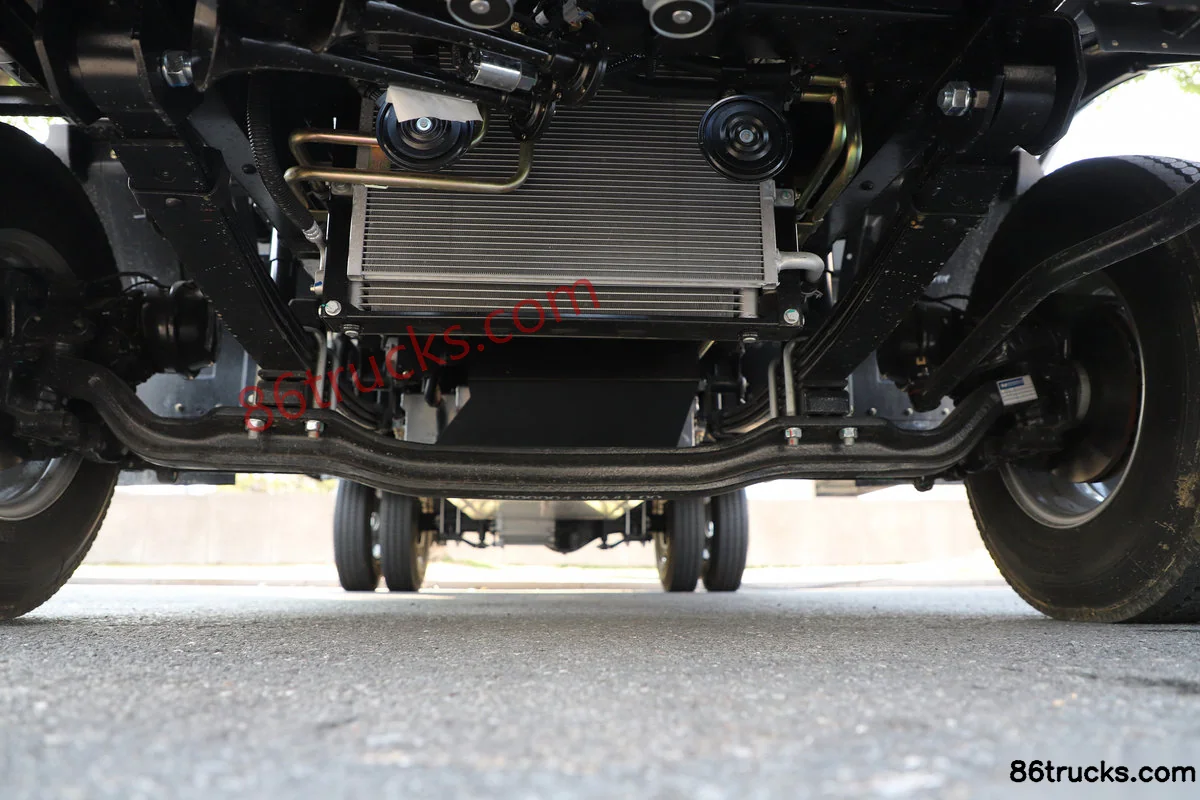

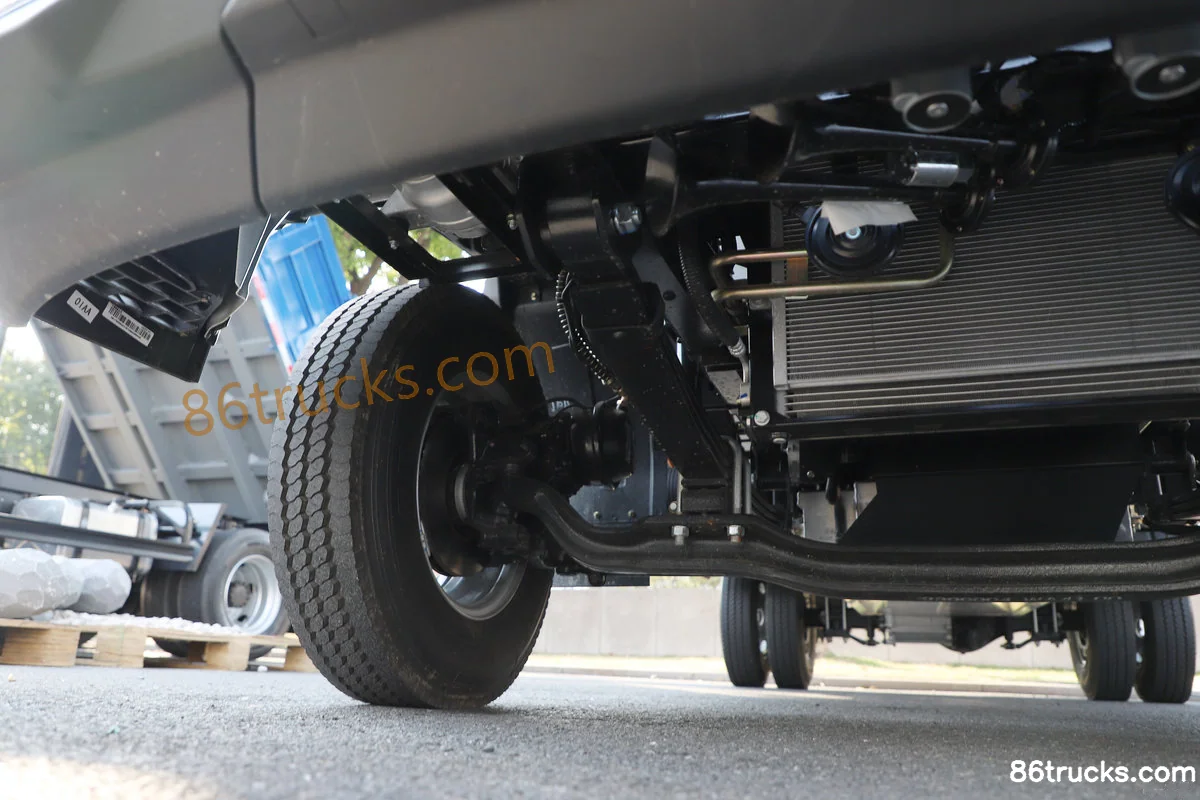

Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Chassis (1) | 86Trucks Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Chassis (2) | 86Trucks Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Chassis (3) | 86Trucks

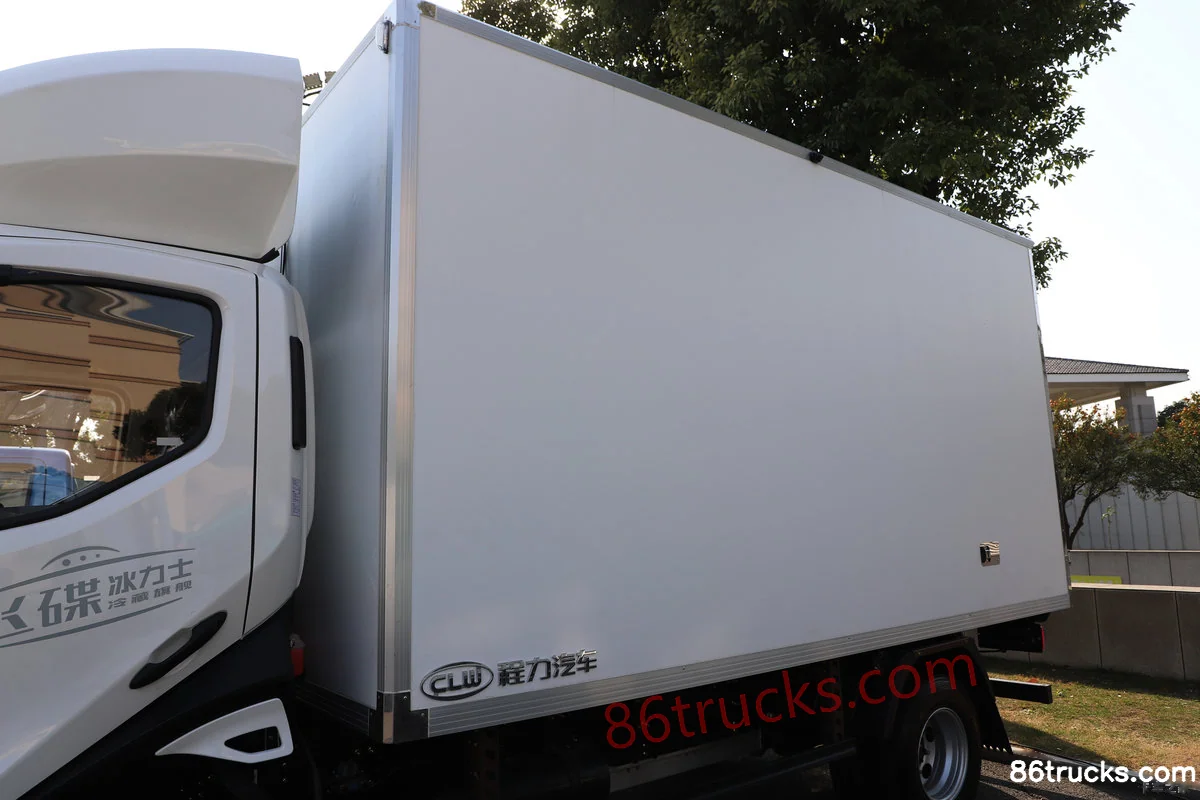

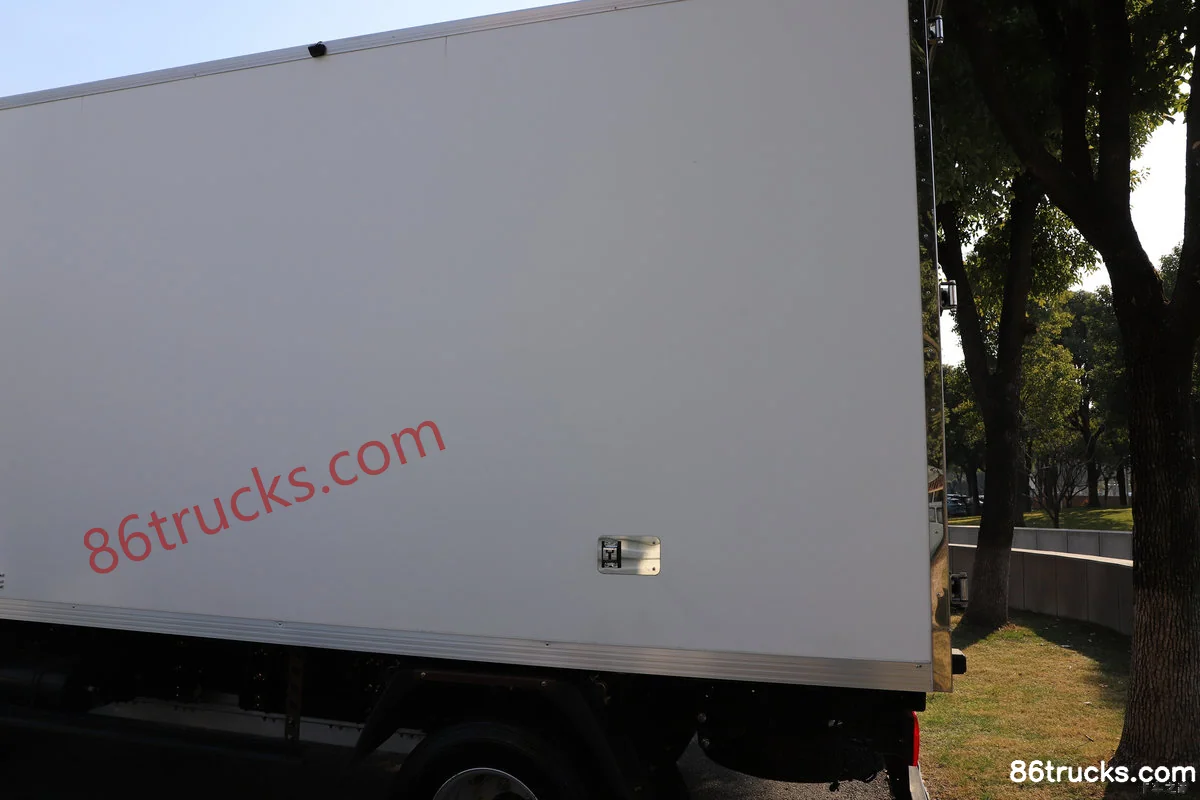

Body3

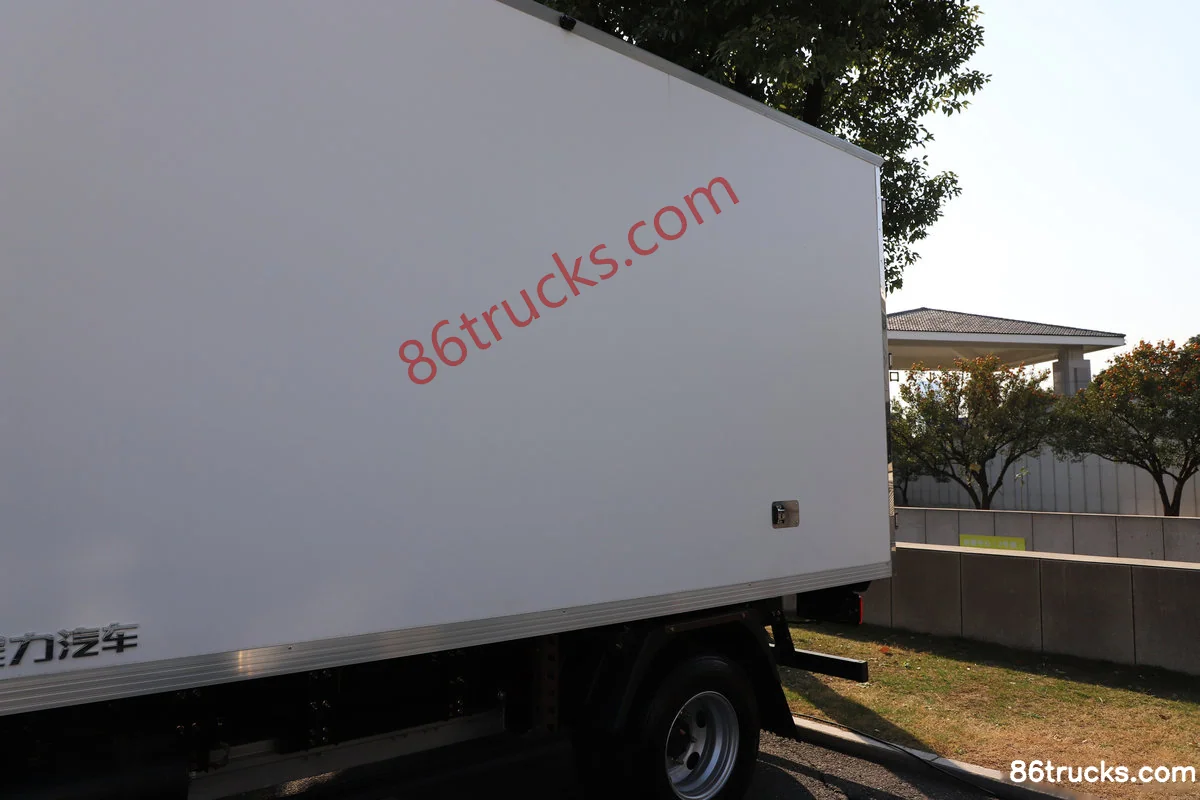

Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Body (1) | 86Trucks Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Body (2) | 86Trucks Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh?

Key specs of Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh suited for?

Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh differ from other variants in the same series?

Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh belongs to FeidiEW7 (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi EW7 4X2(6 wheels) 4.16m Single Row Pure Electric Refrigerated Truck CATL 140kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
