Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty

Export reference
From $4,167
MSRP ¥3M CNY
Horsepower: 54
Emission: China III / Euro III
Fuel: Diesel
Engine: Quanchai480
Curb Weight:: 1.7ton
Wheelbase:: 2600mm
seating capacity: 5Personnel
Rated payload: 0.795ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty is a Light Truck featuring 2.27m cargo length, stake body cargo body, 5Personnel volume and 0.795t payload. On the powertrain side, it comes with a Quanchai480 engine, 54 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 54 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC1038S3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2600mm
Box length class: 2.3m
engine: Quanchai4D18F
Cab length: 5.05m
Cab width: 1.77m
Cab height: 2.2m
Front track width: 1390mm
rear track: 1380mm
Curb Weight: 1.7ton
Rated payload: 0.795ton
GVWR: 2.82ton
Max. speed: 95km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Remarks: Optional Huayuan Laidong 4D18F and Changchai 4D20DTCI engines. Without OBD. Vehicle width 1770mm corresponds to cargo compartment inner width 1640mm; vehicle width 1850mm corresponds to cargo compartment inner width 1720mm. Optional 2011 model door.
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4D18F
Engine info: Quanchai480
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.809L
Emission standard: China III / Euro III
Max output power: 40kW
Max hp: 54Horsepower
Max torque: 135N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Direct injection, turbocharged & intercooled, electronic VE pump, water-cooled EGR
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.27m
Cargo box width: 1.64m
Cargo box height: 0.39m
*Cargo box interior width: 1.6399999856949
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
rear axle description: 1700
Leaf spring count: 9/8+4,9/7+5
Tire
Tire Size: 6.00-14,6.00-15
Number of tires: 6pcs

Photos

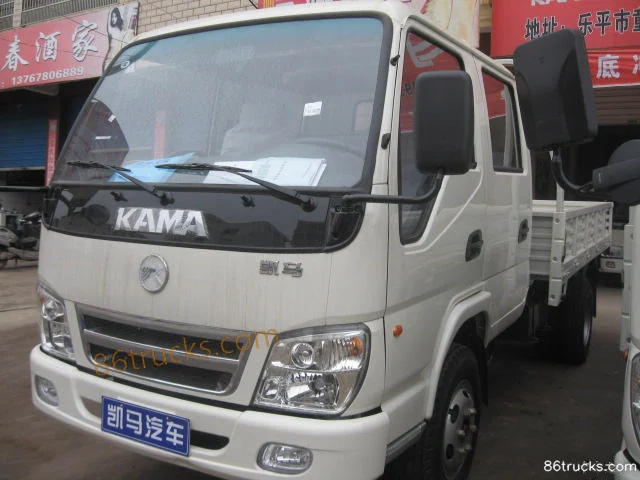

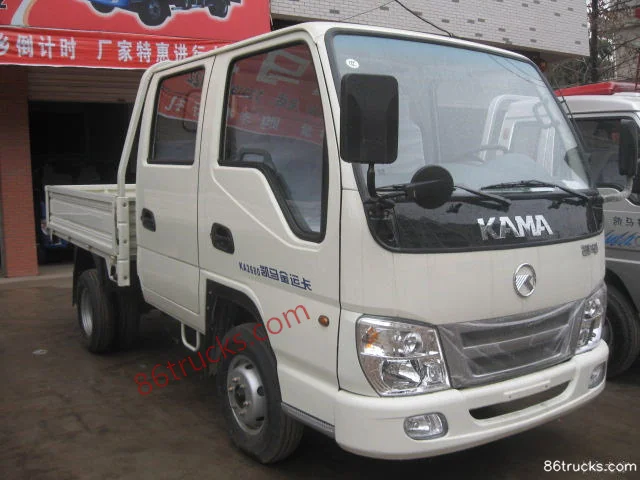

Exterior2

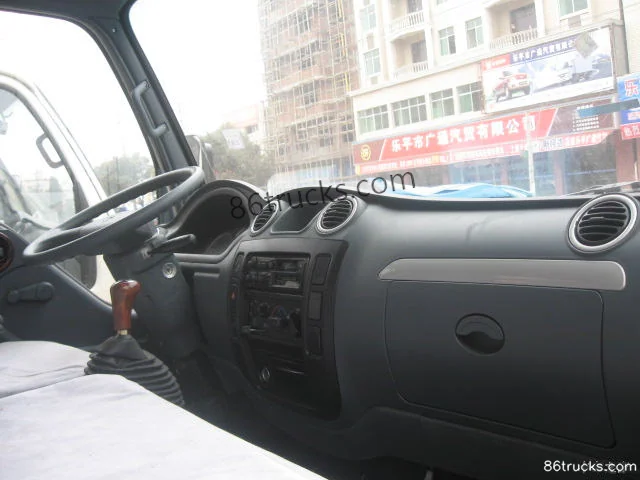

Cab1

3 photos

FAQ

What is the export price of Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty, and what does it include?

Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty export reference is about From $4,167; MSRP is ¥3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty?

Key specs of Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty: Drive: 4x2; Horsepower: 54 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Quanchai480. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty suited for?

Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty differ from other variants in the same series?

Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty belongs to Kama K3 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Jinyunka 54hp 4X2(6 wheels) 2.3m double-row flatbed truck light-duty?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
