Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh

Export reference
From $13,097
MSRP ¥9.43M CNY
Wheelbase:: 2900mm
Cargo box volume:: 5.3
Model code (announced):: SQR5031XXYBEVH77
Cab length:: 4.48m
GVWR:: 2.51ton
Max. speed:: 75km/h

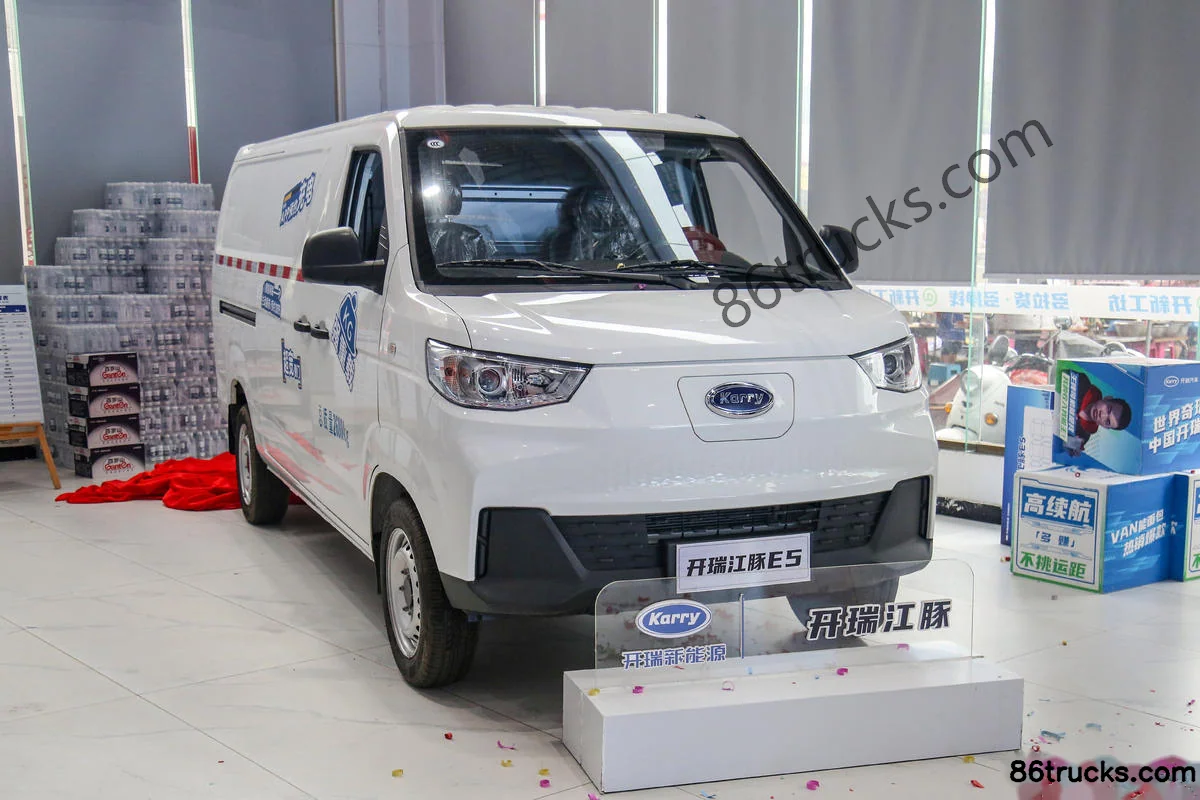

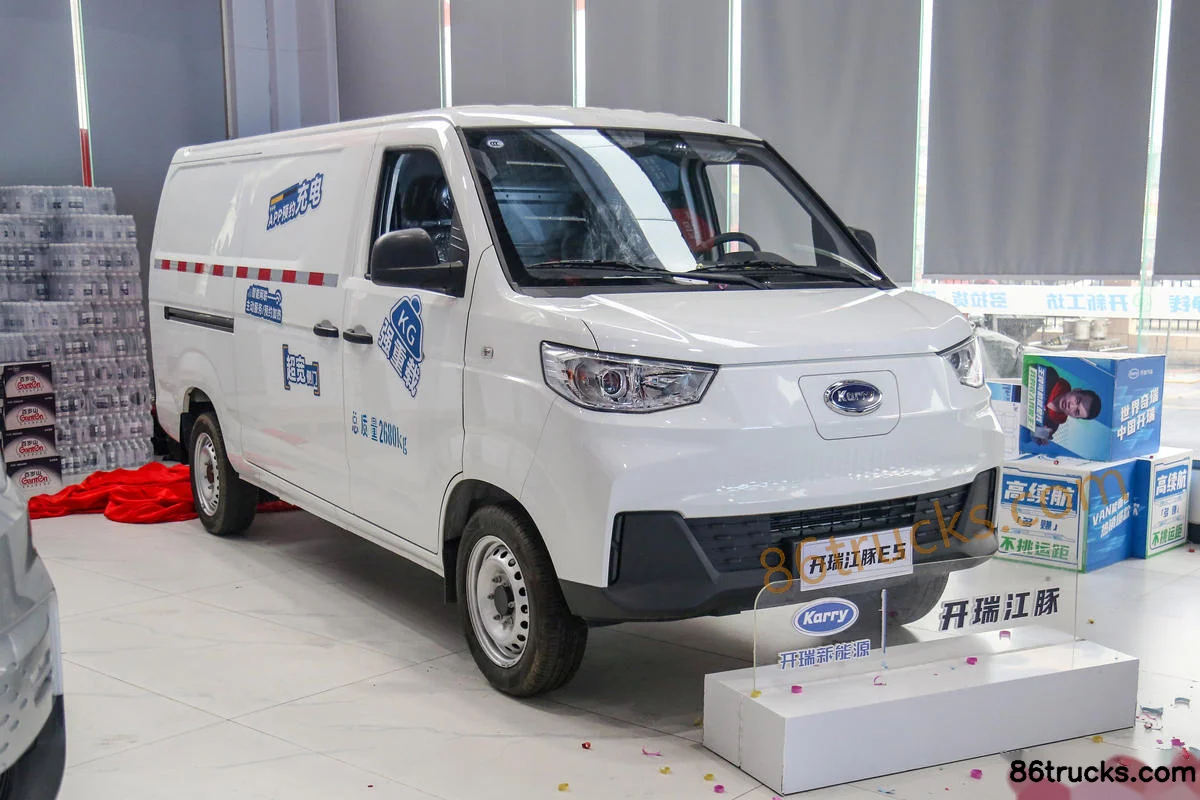

Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh exterior
View more photos (12)
CLTC range: 260km
Motor 1 Brand: Inovance
Curb Weight: 1.425ton
Rated payload: 0.955ton

Overview

The Chery Commercial Vehicle Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh is a Electric Panel Van featuring 260km battery/range, Inovance motor, 0.955t payload and 5.3 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SQR5031XXYBEVH77
Wheelbase: 2900mm
Cab length: 4.48m
Cab width: 1.76m
Cab height: 1.995m
CLTC range: 260km
Curb Weight: 1.425ton
Rated payload: 0.955ton
GVWR: 2.51ton
Max. speed: 75km/h
Front/rear suspension: 0.71/0.87m
Version: Chuangyeban
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XS136
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
Peak power: 50kW
total peak torque: 160N·m
Battery/Charging
Battery Brand: CALB
Charging method: DC fast charge / slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 36.8kWh
Body parameters
Cargo box volume: 5.3
Max body depth: 2.515
Max body width: 1.595
Cargo Box Height: 1.31
Chassis Specs
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters

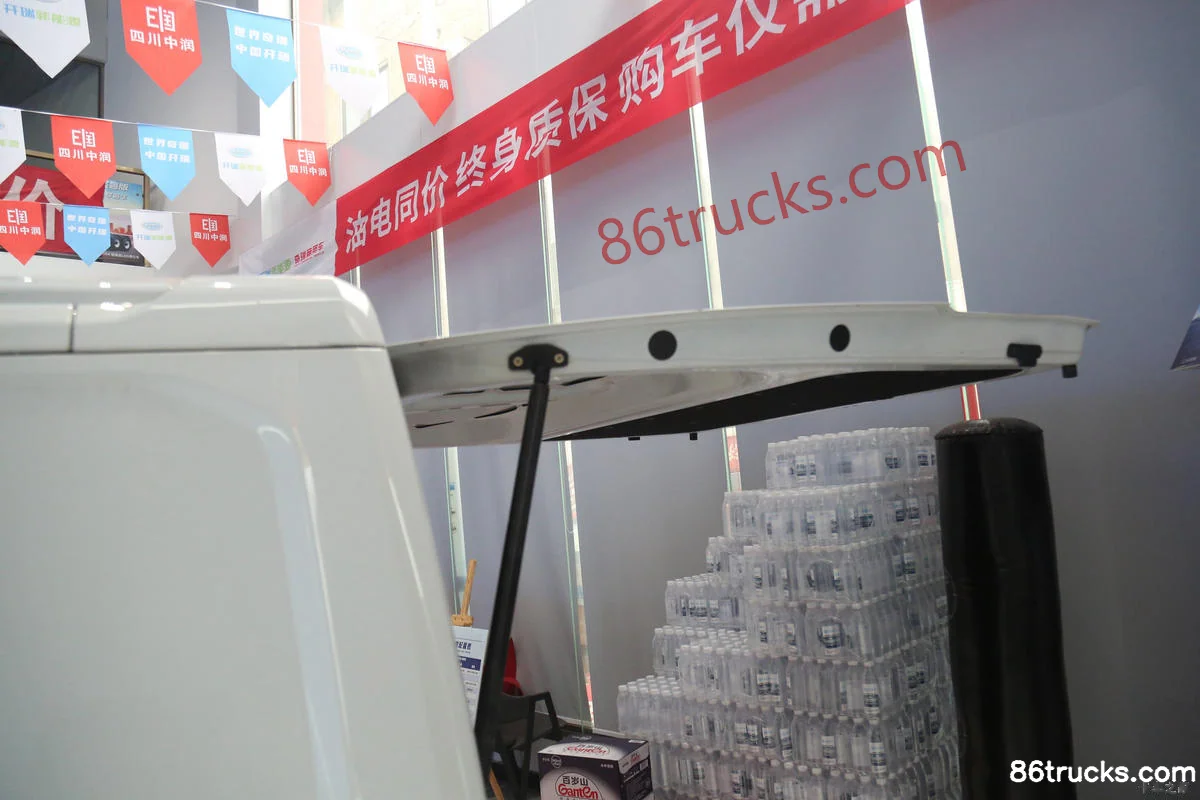

Tailgate type: top-hinged door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185R14LT 8PR
Rear Wheel Specification: 185R14LT 8PR
Safety features
Tire Pressure Monitoring:
Remote key:
Control configuration
ABS:
interior configuration
AC control type: Manual

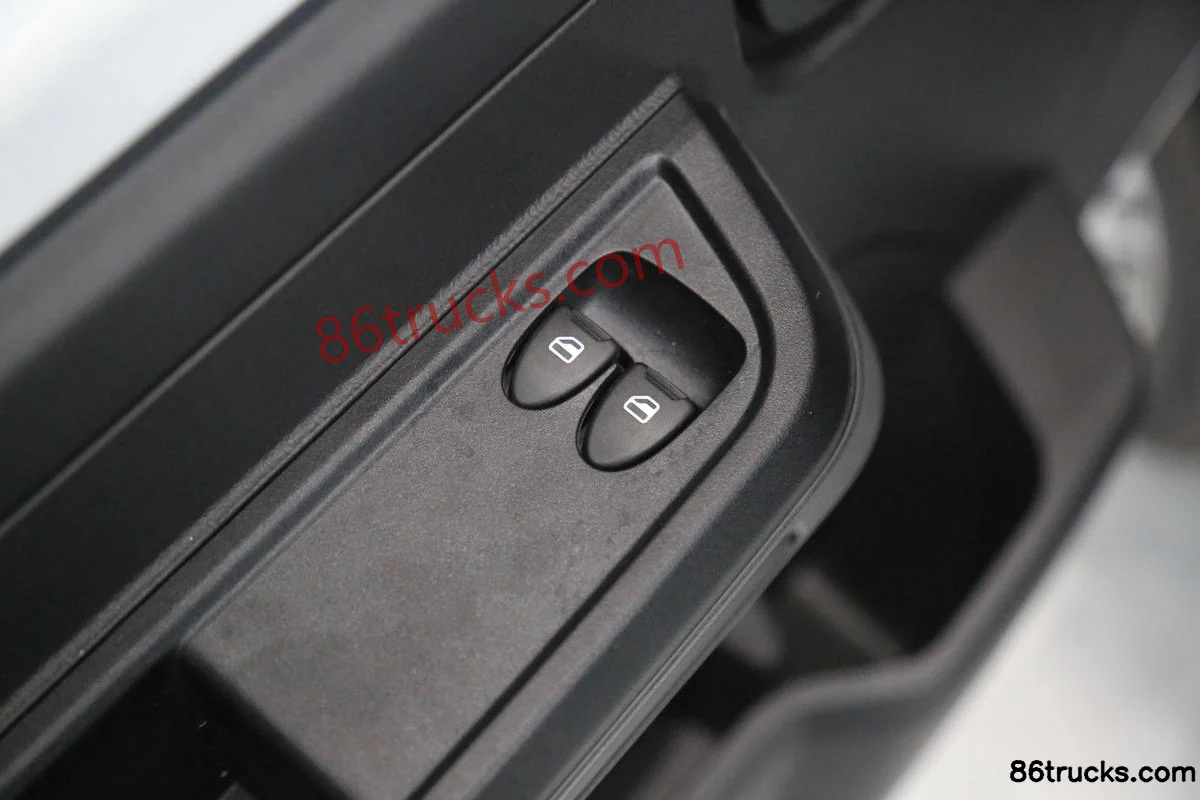

Power Windows:
Reverse Radar:
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):

Photos

Exterior3

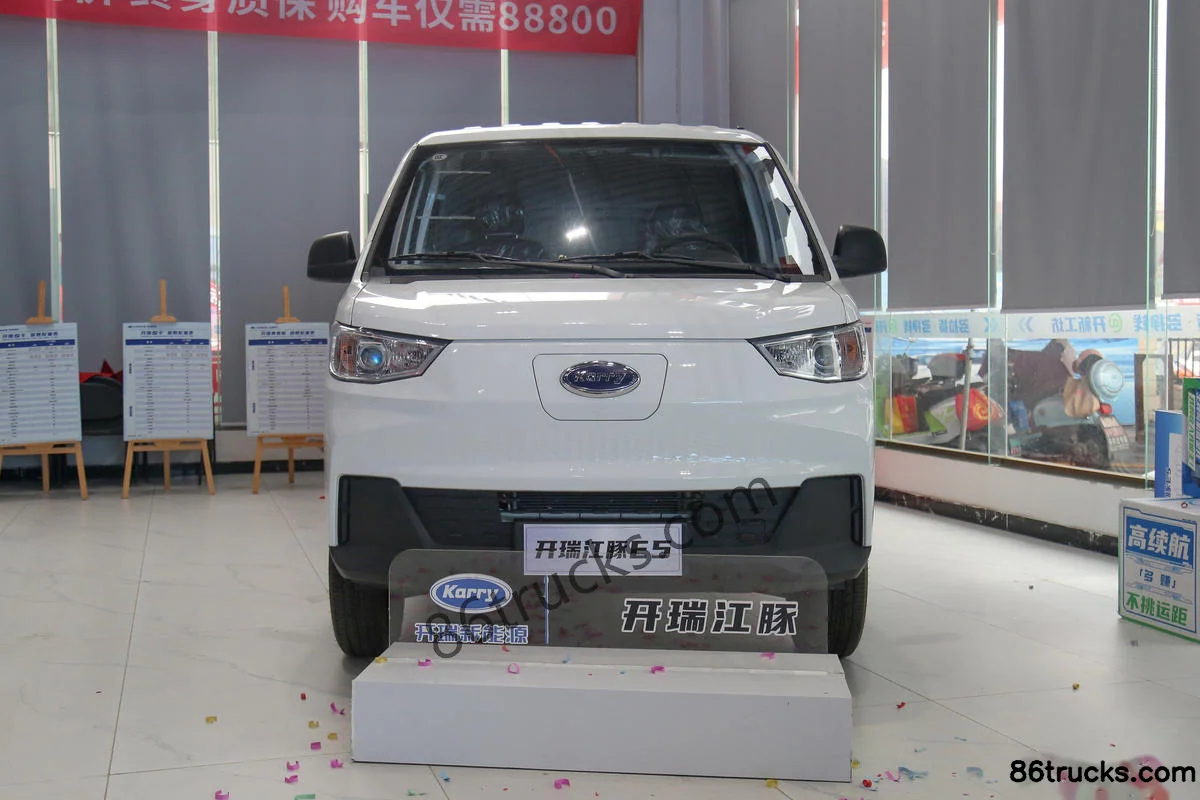

Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Exterior (1) | 86Trucks Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Exterior (2) | 86Trucks Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Exterior (3) | 86Trucks

Cab3

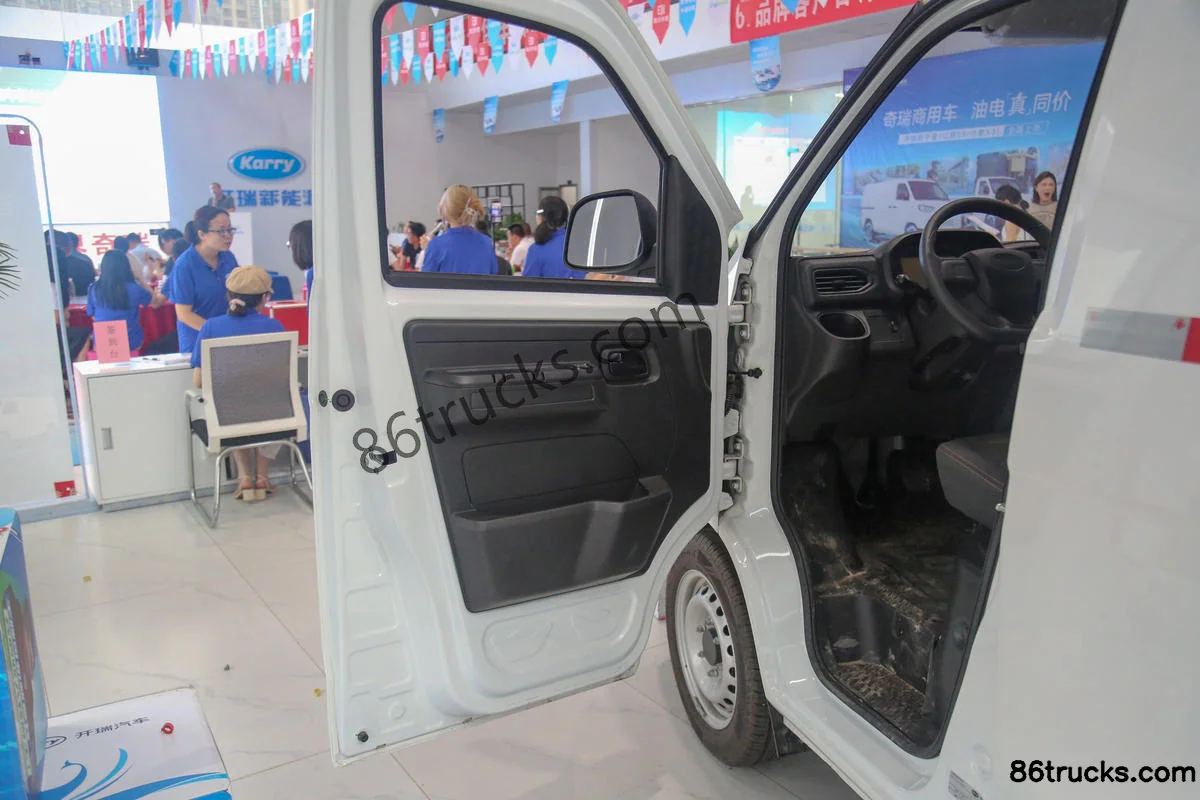

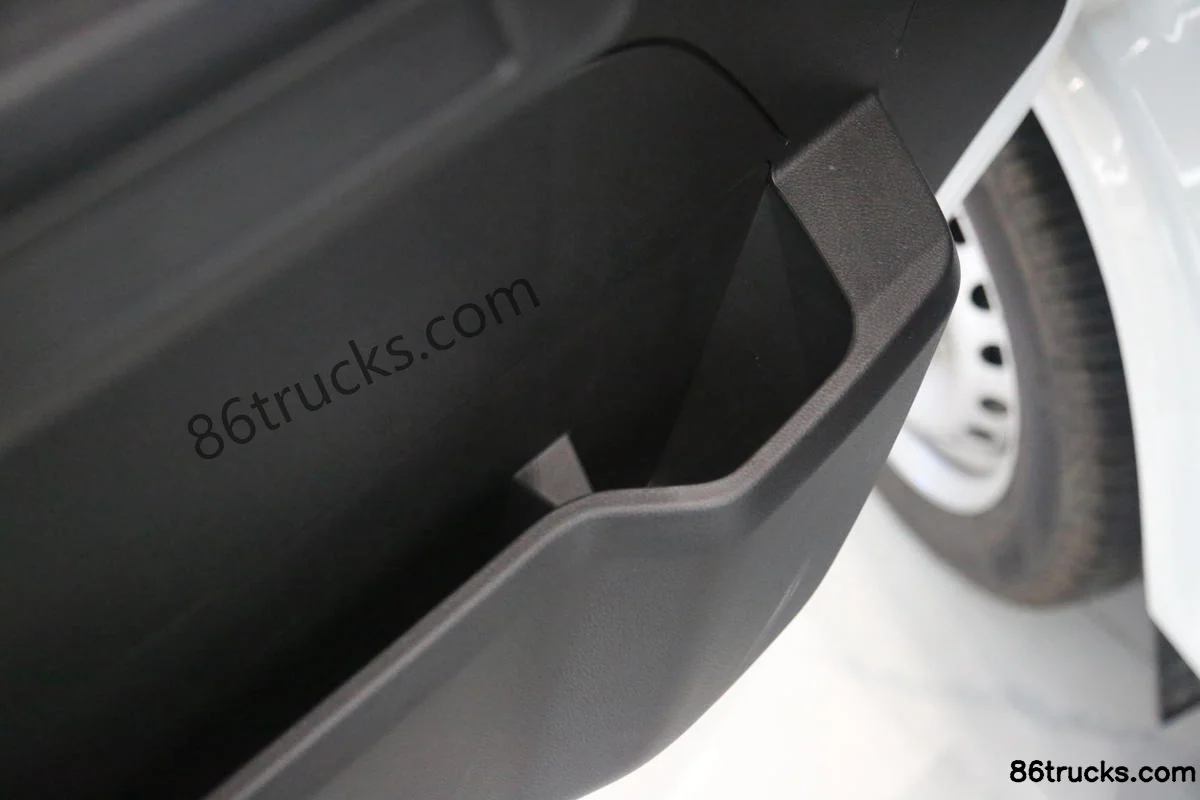

Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Cab (1) | 86Trucks Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Cab (2) | 86Trucks Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Cab (3) | 86Trucks

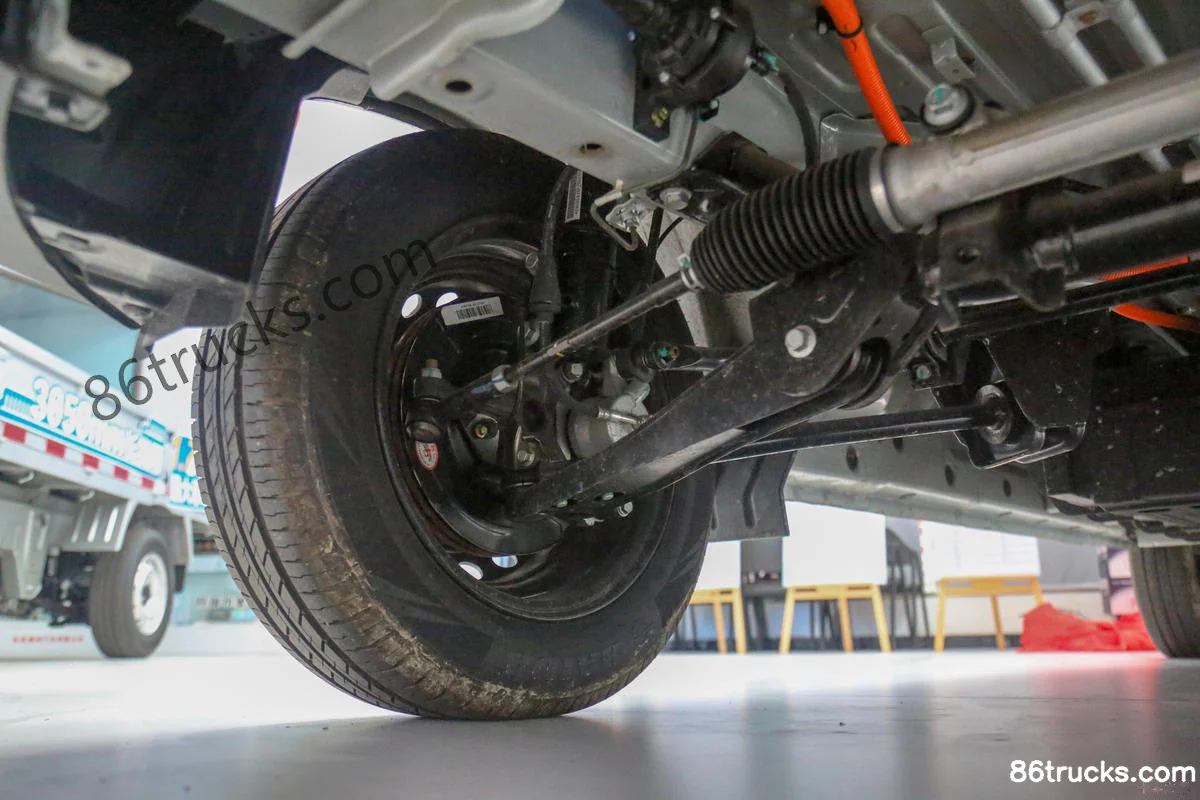

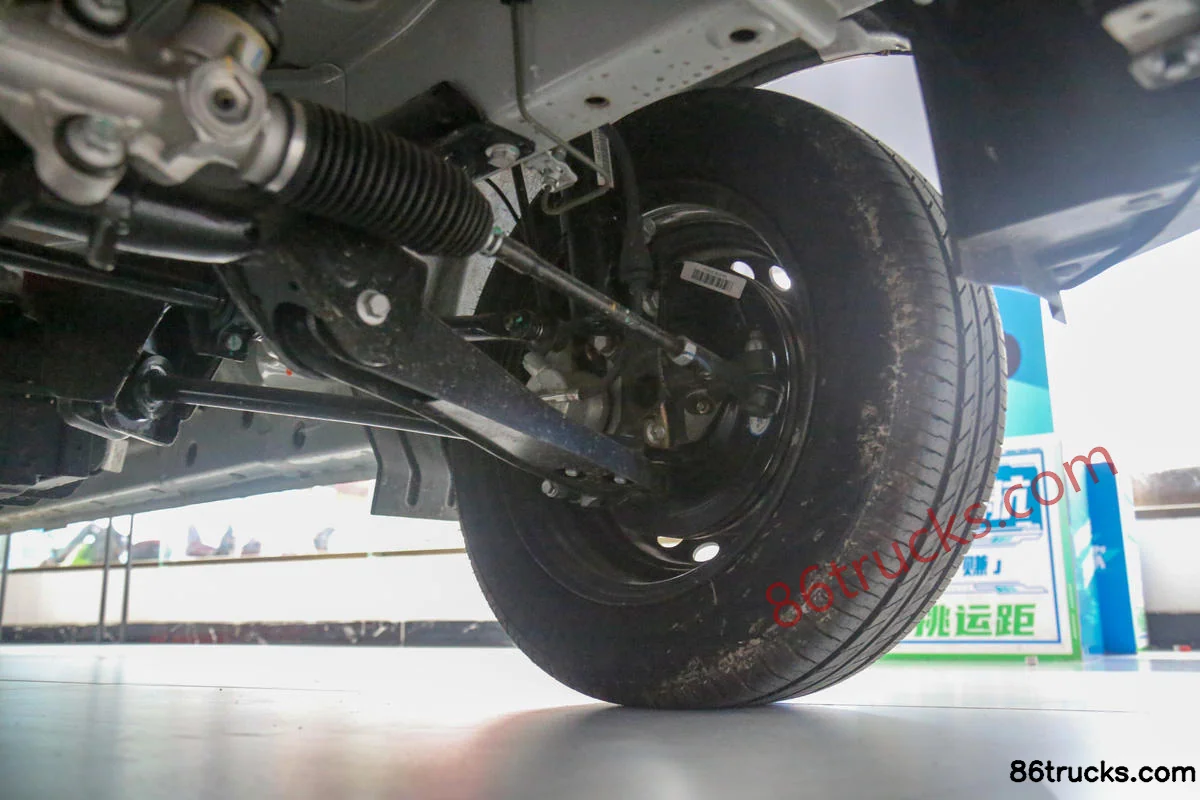

Chassis3

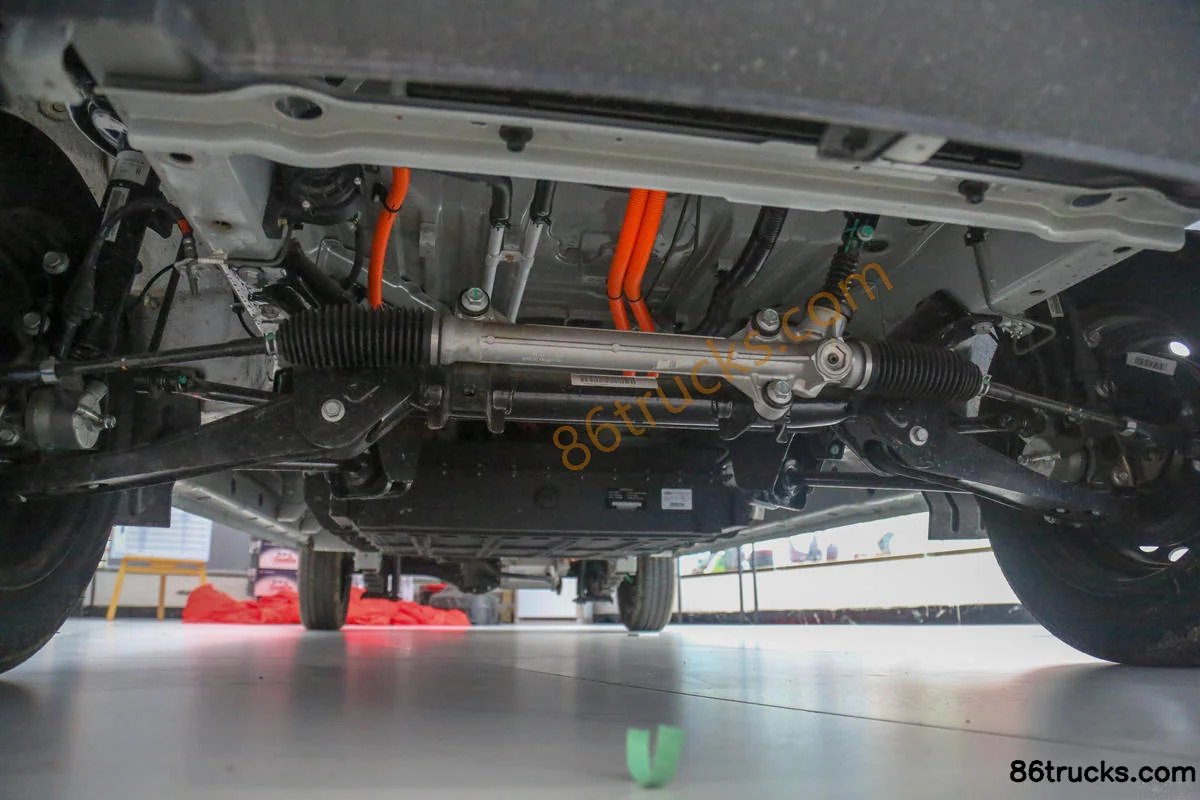

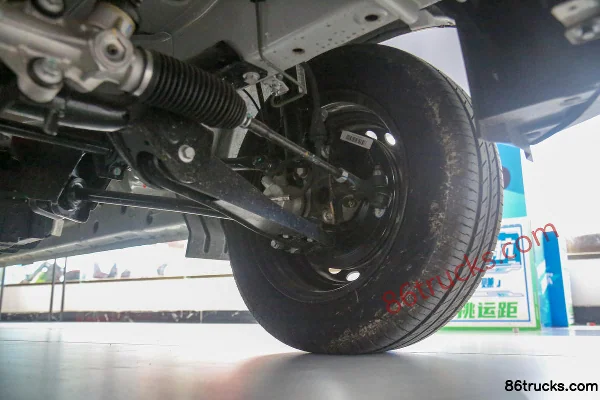

Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Chassis (1) | 86Trucks Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Chassis (2) | 86Trucks Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Chassis (3) | 86Trucks

Cargo Box3

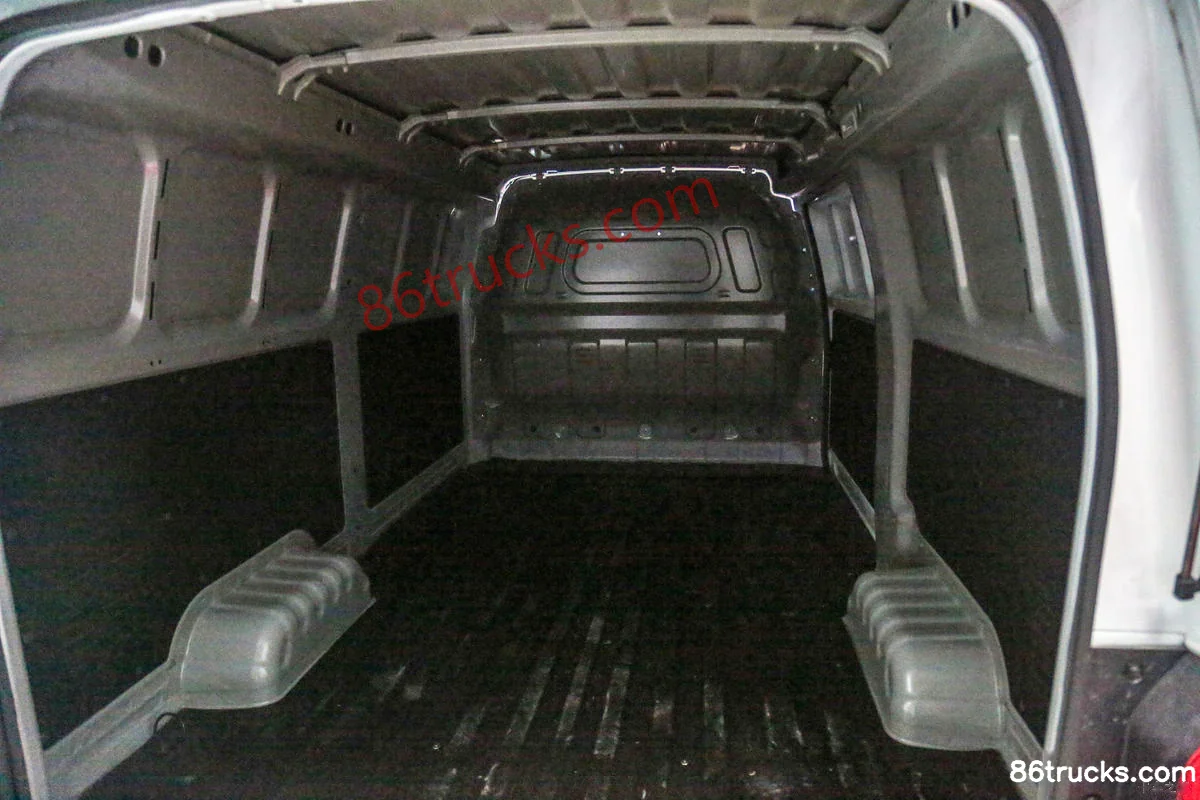

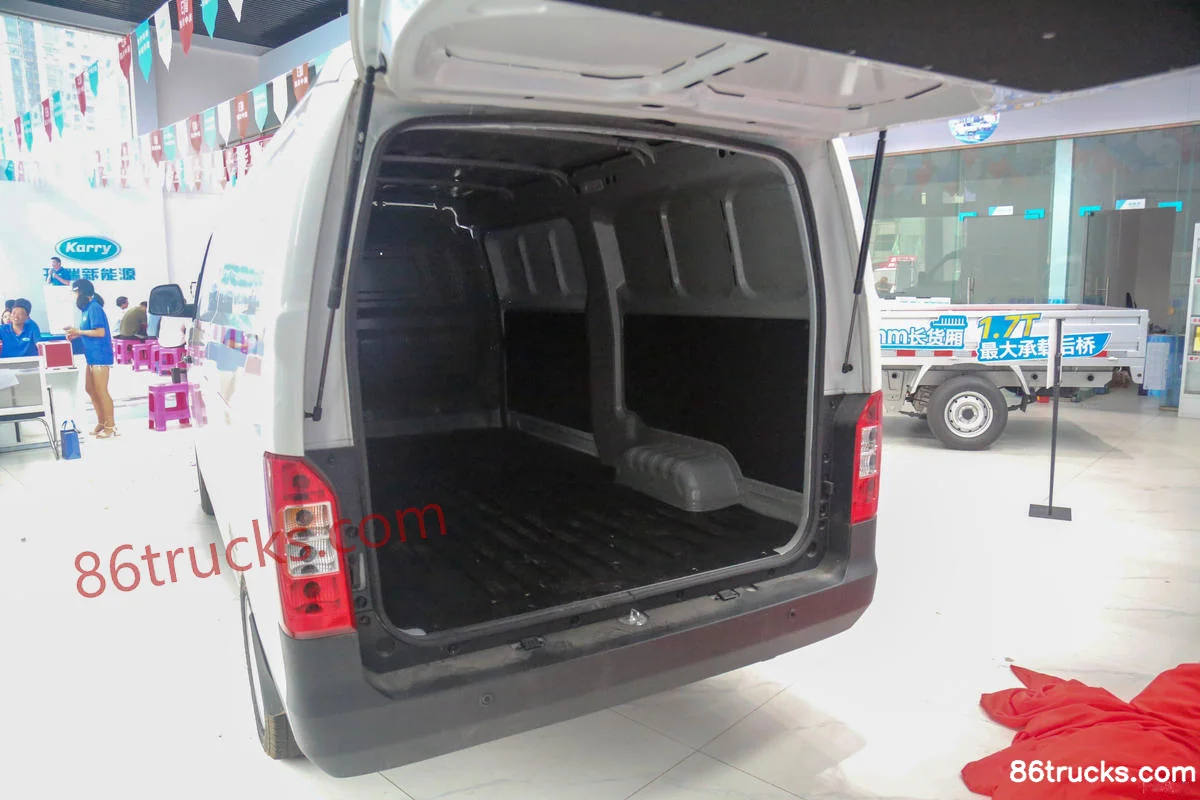

Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Cargo Box (1) | 86Trucks Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Cargo Box (2) | 86Trucks Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh, and what does it include?

Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh export reference is about From $13,097; MSRP is ¥9.43M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh suited for?

Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh differ from other variants in the same series?

Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh belongs to Karry Auto Jiangtun (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Jiangtun E5 Pioneer 2.5T 2 Seats 4.48m Electric Cargo Van 36.8kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
