JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van

Export reference
From $13,875
MSRP ¥9.99M CNY
Curb Weight:: 2.075ton
Wheelbase:: 2933mm
Front tire specification:: 215/75R16C
Rated payload:: 1.53ton
Displacement:: 2L
Model code (announced):: JX5045XXYTD-L6
Drive rear-wheel drive
Horsepower 146
Emission China VI
Fuel Diesel

Overview

The JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van is a Van/Light Bus featuring rear-wheel drive drive, 146 hp, 3.8t GVW and China VI emissions. On the powertrain side, it comes with Diesel fuel.

China VI 146 Diesel rear-wheel drive

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5045XXYTD-L6
Truck Type: Enclosed Van
Drive type: rear-wheel drive
Vehicle origin: Nanchang, Jiangxi
Wheelbase: 2933mm
Cab length: 4.95m
Cab width: 1.974m
Cab height: 2.08m
Front track width: 1740mm
rear track: 1708mm
Curb Weight: 2.075ton
Rated payload: 1.53ton
GVWR: 3.8ton
Max. speed: 160km/h
grade: Medium VAN (light bus).
Model Year: 2023 Model
Driver's license: A1,A2,B1,B2,C1
Front/rear suspension: 0.98/1.037m
Version: Underground Garage Version Commercial Transport Type
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX4D20A6H
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2L
Emission standard: China VI
Max output power: 107kW
Max hp: 146Horsepower
Max torque: 355N·m
Transmission Parameters
Number of gears: 6Gear
shift type: Manual
Transmission Model: 6-speed transmission
shift method: Manual
Forward gears: 6Gear
Chassis Specs
Front suspension type: MacPherson independent suspension
rear suspension type: Hotchkiss suspension
Body Parameters
Seat count: 3Seats
Fuel tank volume: 80L
Door Parameters
Number of Doors: 5
side door type: Sliding side door
Tailgate type: double rear doors
Body parameters
Max body depth: 2.41
Max body width: 1.748
Cargo Box Height: 1.7
Cab parameters
Cab: Ultra-Low Roof
Seat rows:
Wheel brake
Front brake type: Disc
rear brake type: Disc
Front tire specification: 215/75R16C
Rear Wheel Specification: 215/75R16C
Safety features
Driver airbag:
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
lighting configuration
Headlight height adjustment:

Photos

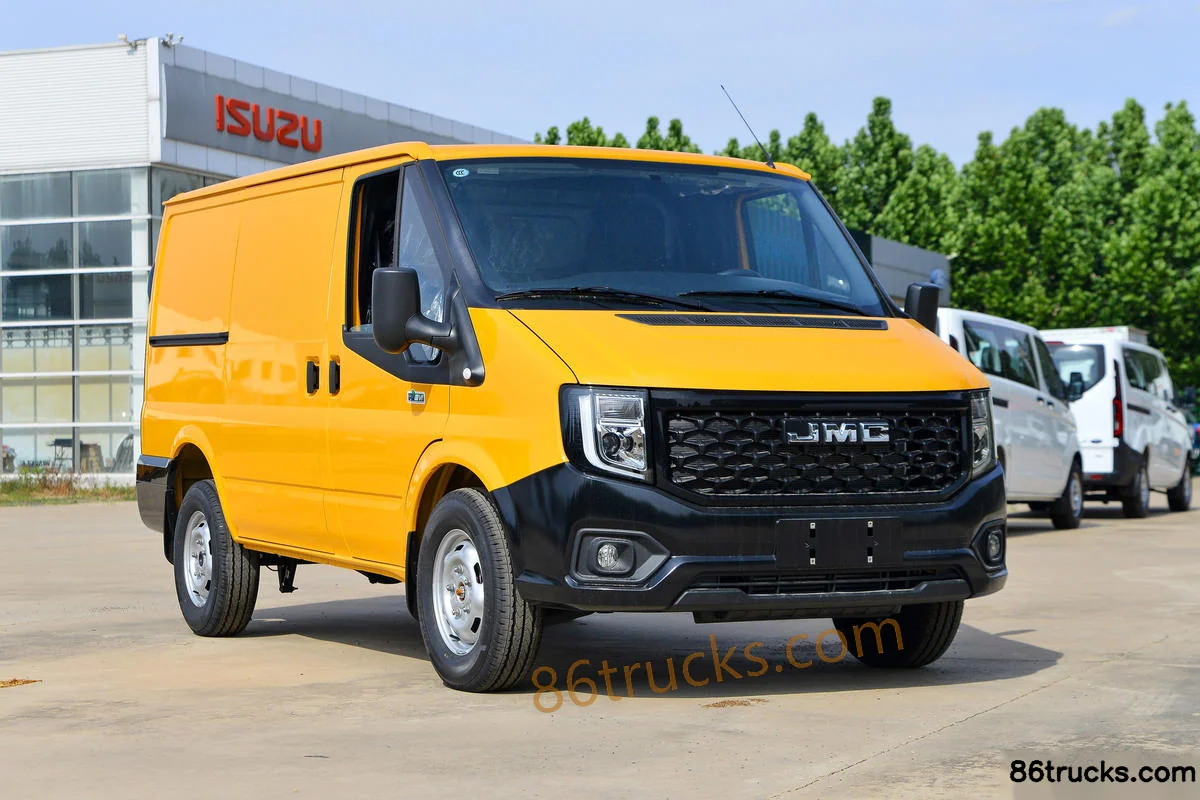

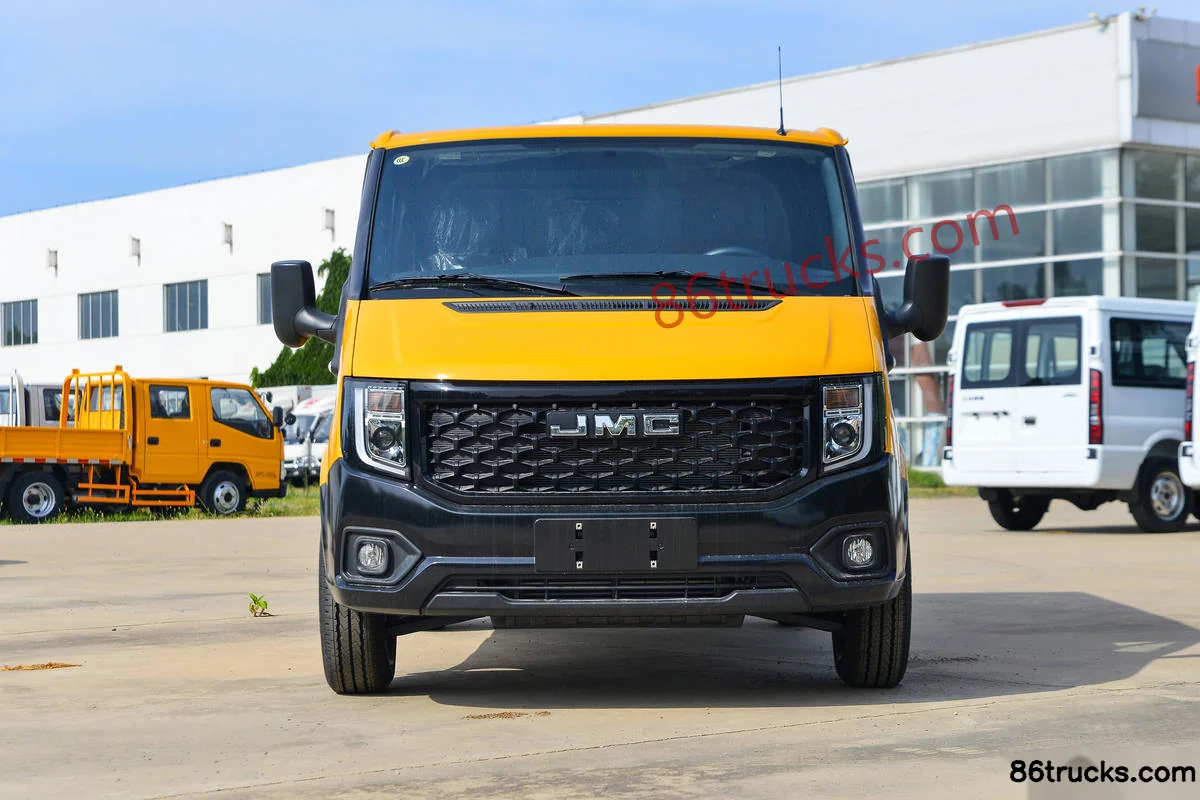

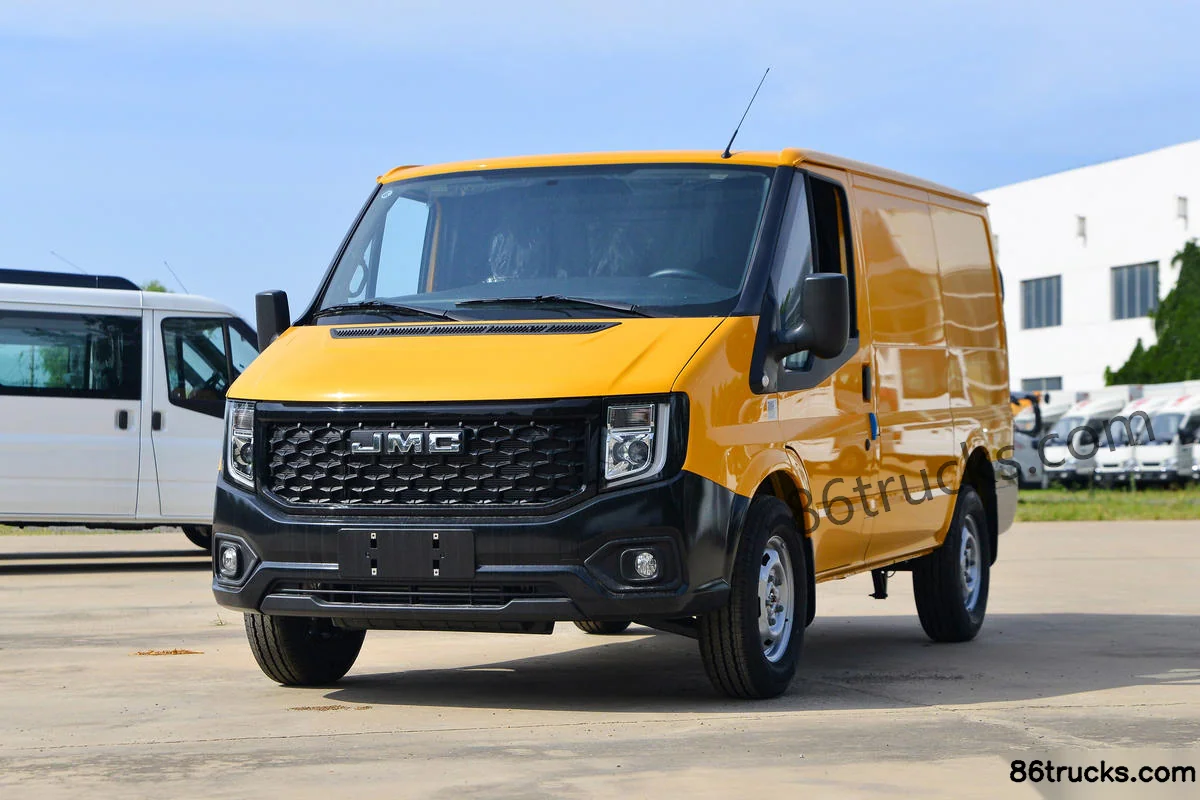

Exterior3

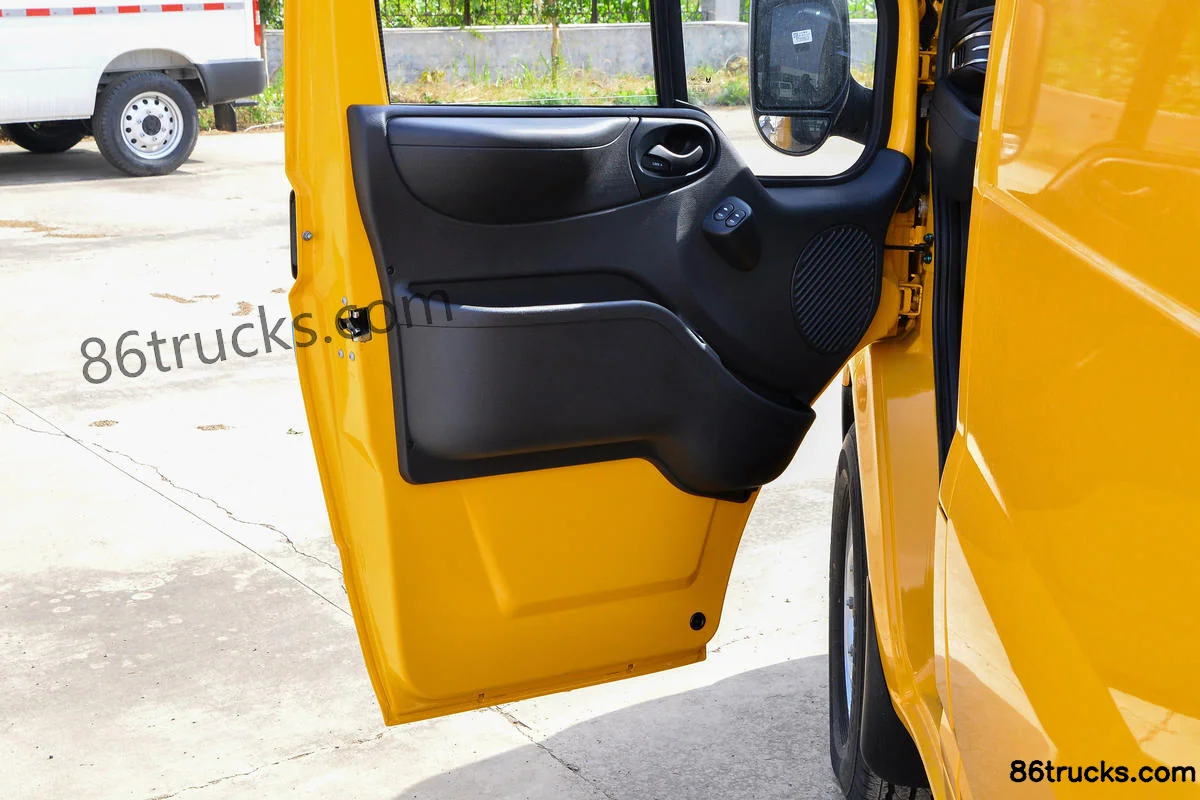

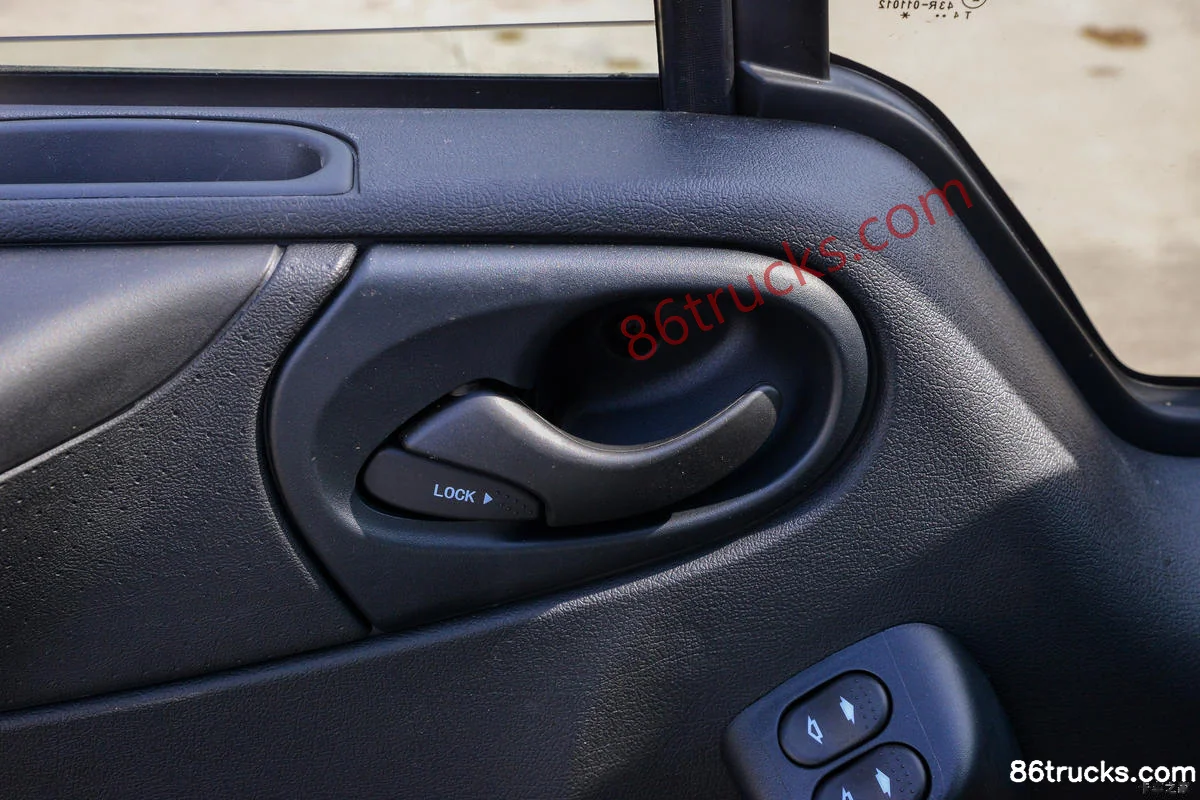

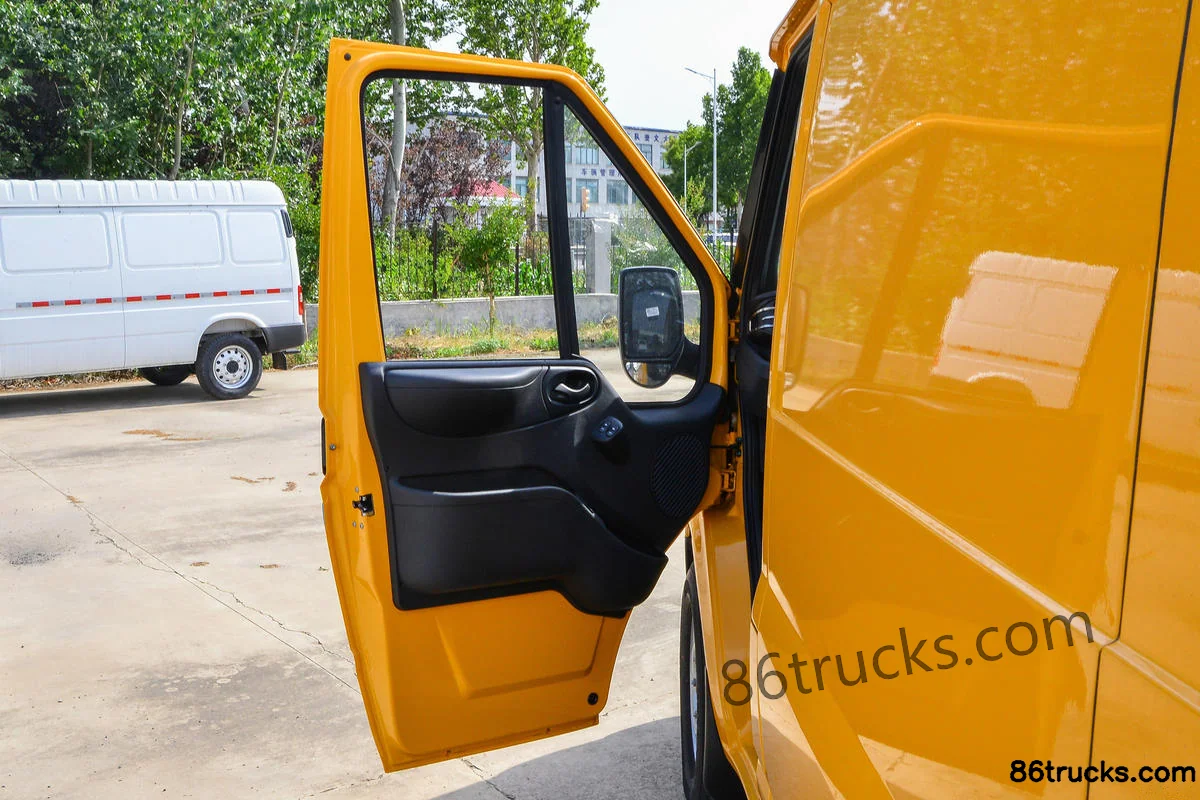

Cab3

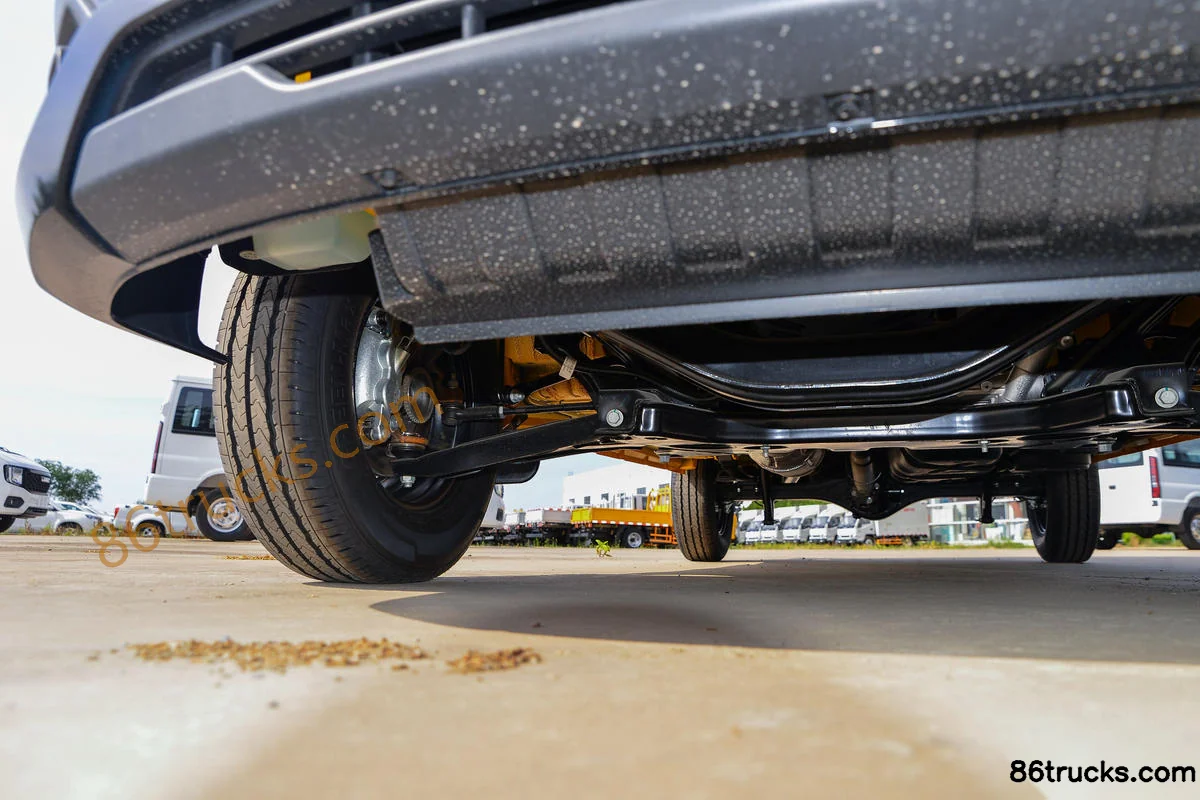

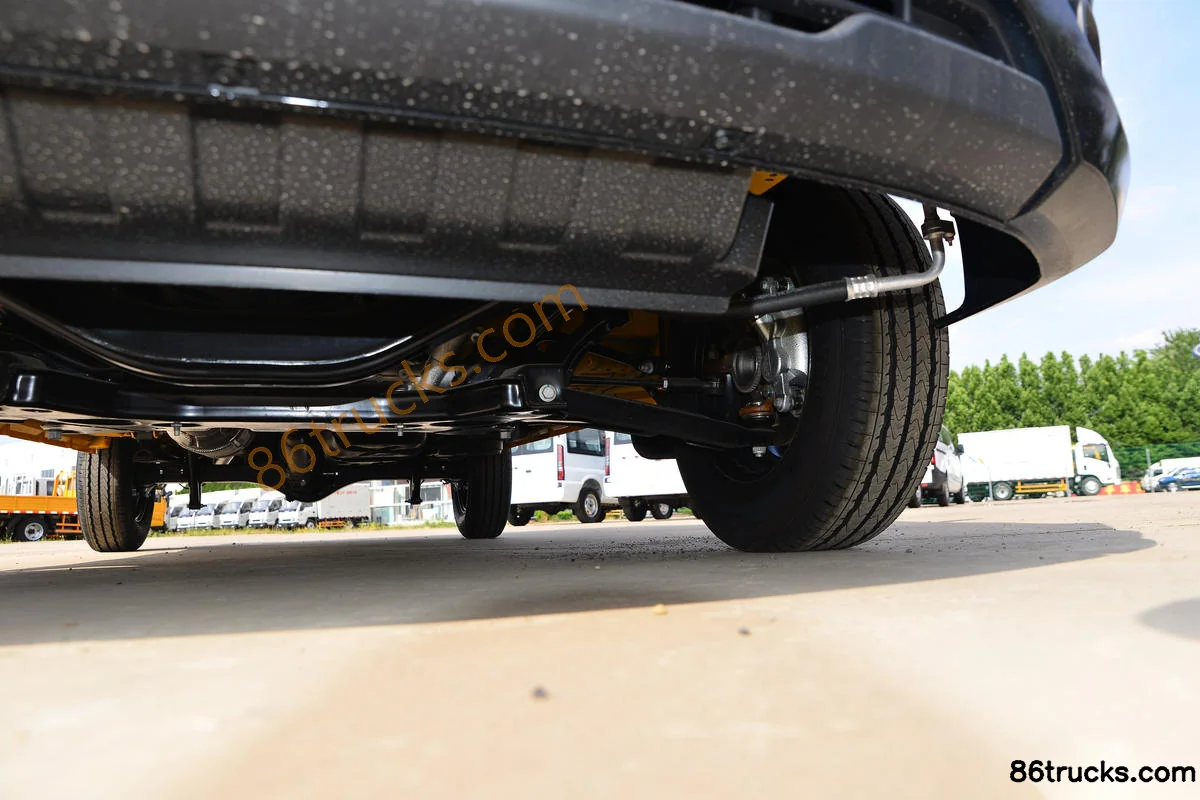

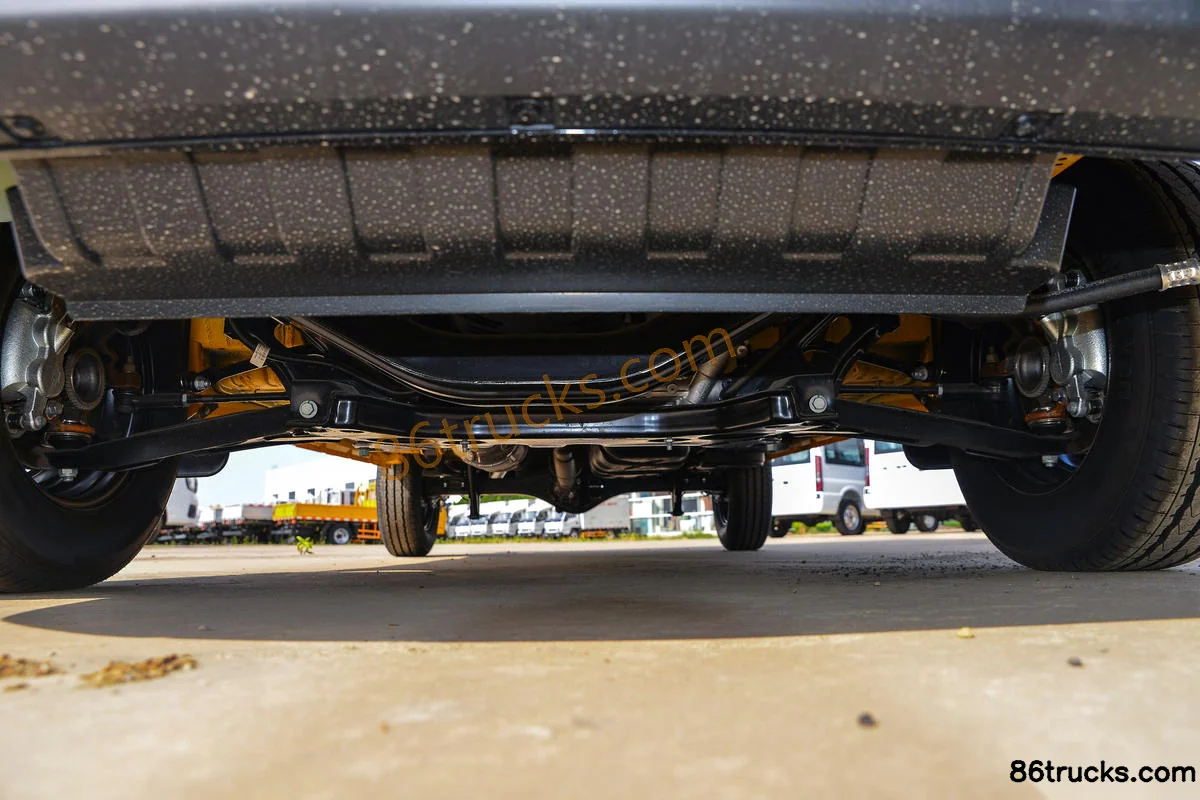

Chassis3

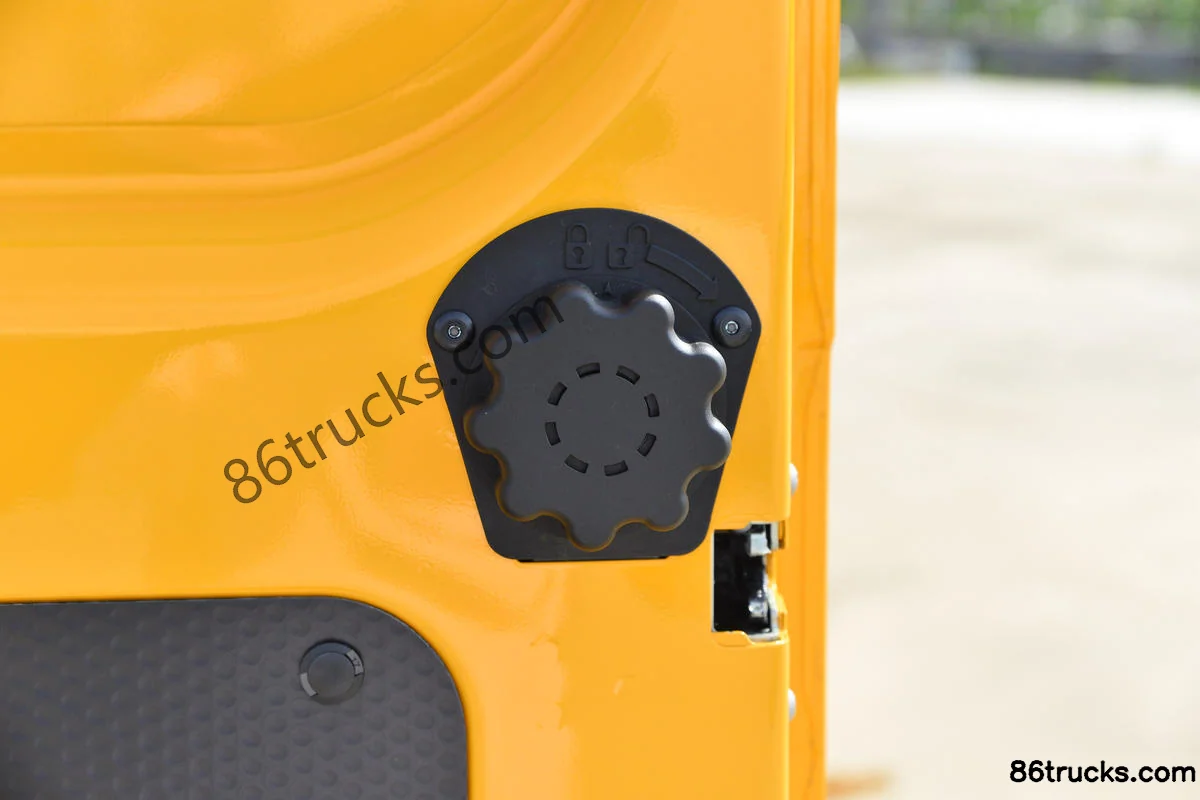

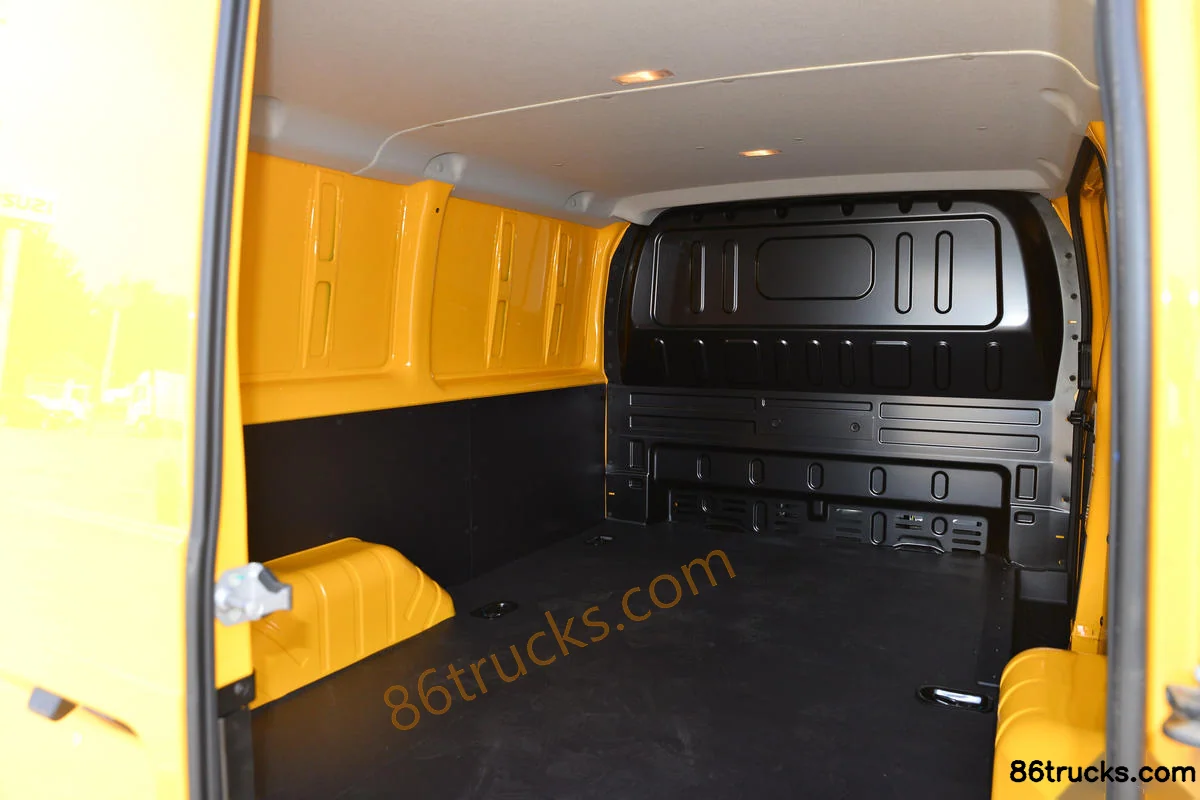

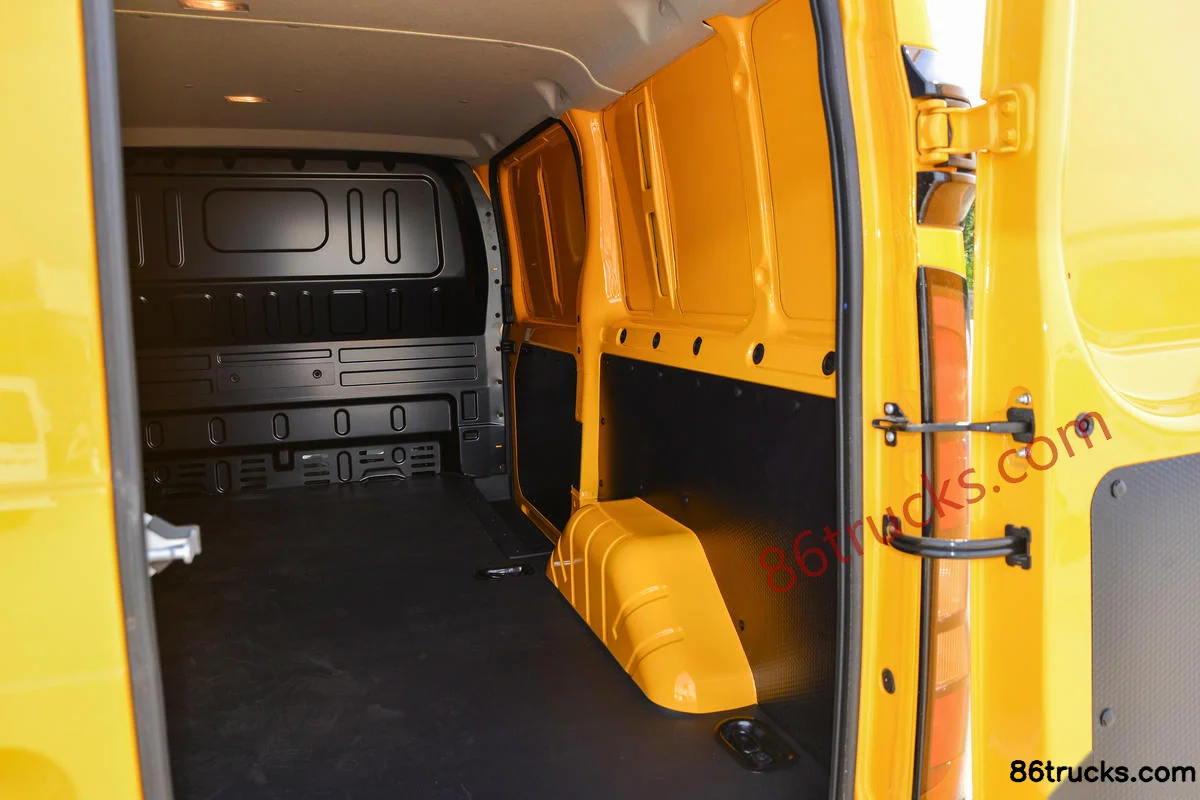

Cargo Box3

12 photos

FAQ

What is the export price of JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van, and what does it include?

JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van export reference is about From $13,875; MSRP is ¥9.99M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van?

Key specs of JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van: Drive: rear-wheel drive; Horsepower: 146 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van suited for?

Match JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van differ from other variants in the same series?

JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van belongs to JMC Fushun (Van/Light Bus). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Fushun 2023 Model Underground Edition Commercial 2.0T Diesel 146hp 3-Seat Short-Wheelbase Ultra-Low-Roof Panel Van?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
