SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Wheelbase:: 1800+4575+1400mm
Tire Size:: Front: 385/65R22.5; Rear: 315/80R22.5
Type:: Chassis
engine:: WeichaiWP12.460E62

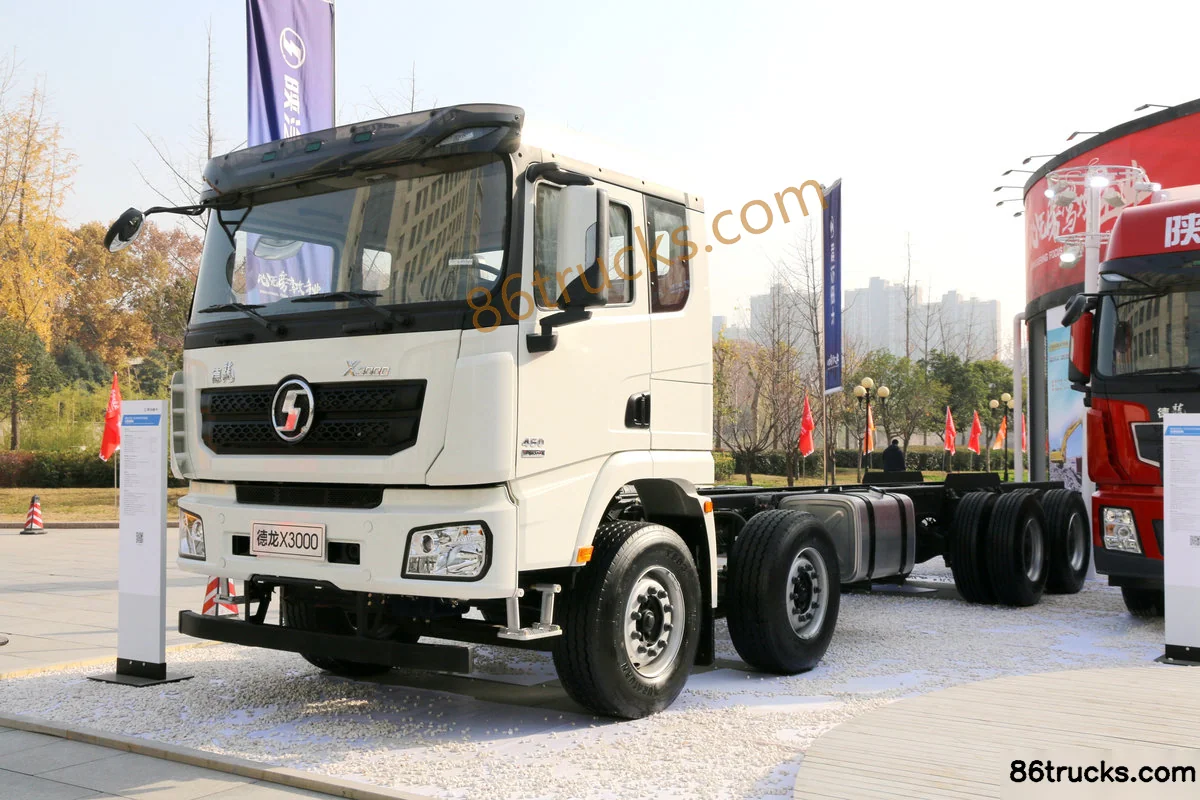

SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) exterior
View more photos (9)
Fuel tank capacity: 400L
Drive 8X4 (12 wheels)
Horsepower 460
Emission China VI

Overview

The SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) is a Heavy-duty cargo trucks featuring 400L volume, 11.7m cab and 1800+4575+1400mm wheelbase. On the powertrain side, it comes with a WeichaiWP12.460E62 engine, 460 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 460 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Type: Chassis
Drive type: 8X4
Wheelbase: 1800+4575+1400mm
engine: WeichaiWP12.460E62
transmission: Fast Gear12JSDX220T-B
Cab length: 11.7m
Cab width: 2.55m
Cab height: 3.19m
Origin: Xi'an, Shaanxi
tonnage class: Heavy-duty cargo trucks
Remarks: Tianxingjian Zhiya Edition, electronically controlled automatic constant temperature AC, 180Ah maintenance-free battery, under-vehicle start/stop function, reserved FARIZON throttle harness interface; optional onboard water dispenser
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.460E62
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.6L
Emission standard: China VI
Max output power: 338kW
Max hp: 460Horsepower
Max torque: 2200N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: CR DOC DPF Hi_SCR
Transmission Parameters
Transmission Model: Fast Gear12JSDX220T-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab suspension: Four-point air suspension
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: Hande 9.5-ton MAN technology front axle
Frame Dimensions: 850×300(8+7)mm
rear axle description: Hande 16T MAN-technology double reduction cast axle
Tire
Tire Size: Front: 385/65R22.5; Rear: 315/80R22.5
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Electronic Central Lock:
lighting configuration
daytime running lights:

Photos

Exterior3

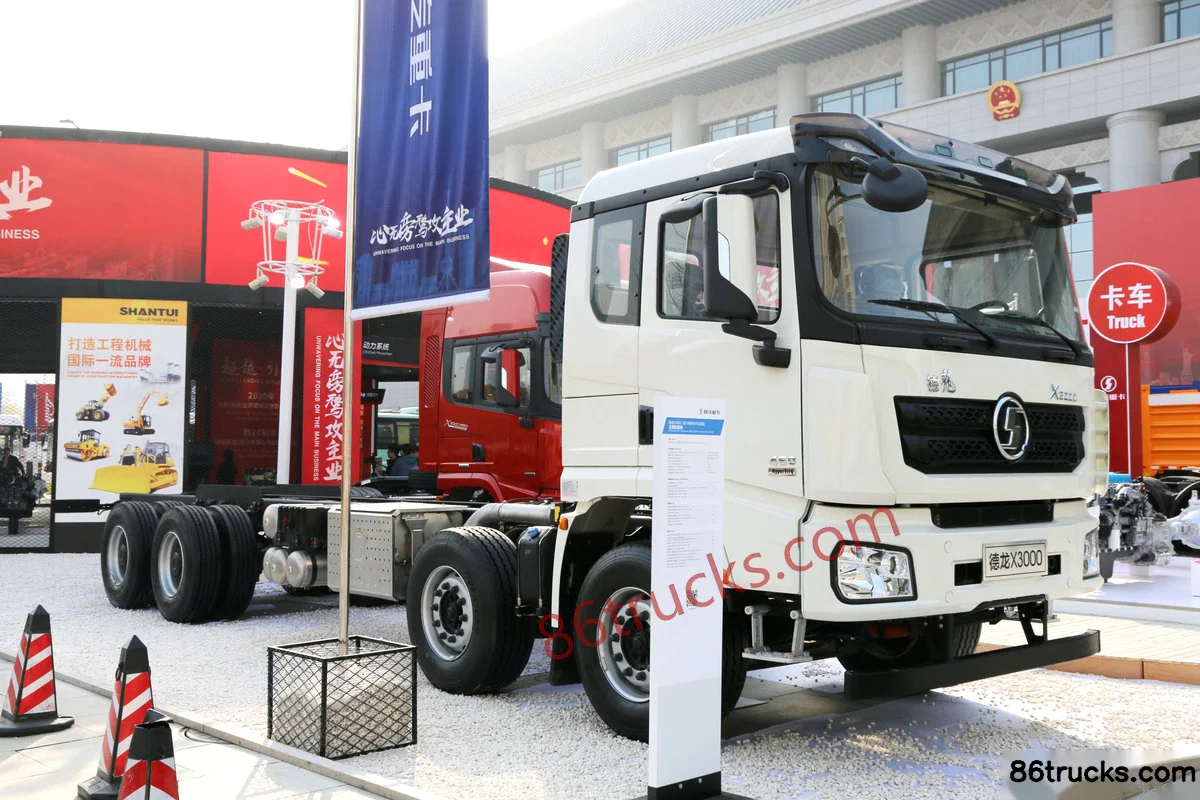

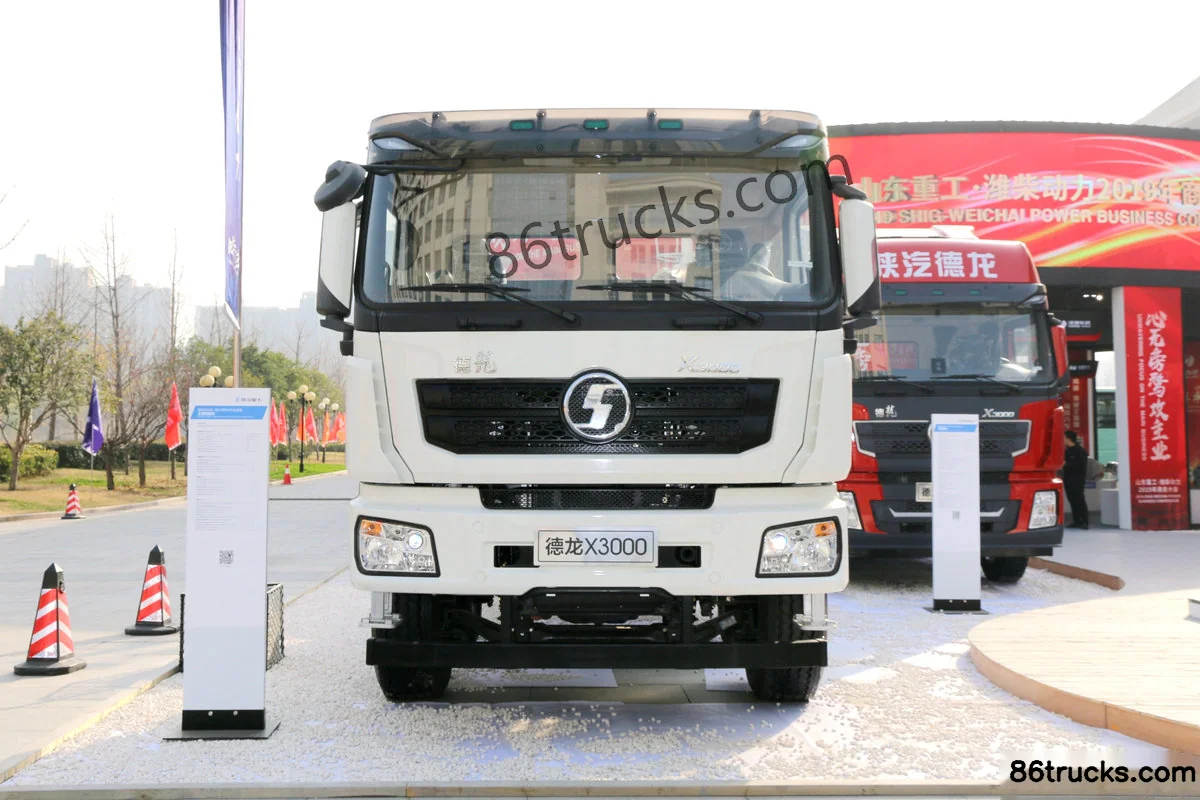

SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) Exterior (1) | 86Trucks SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) Exterior (2) | 86Trucks SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) Exterior (3) | 86Trucks

Cab3

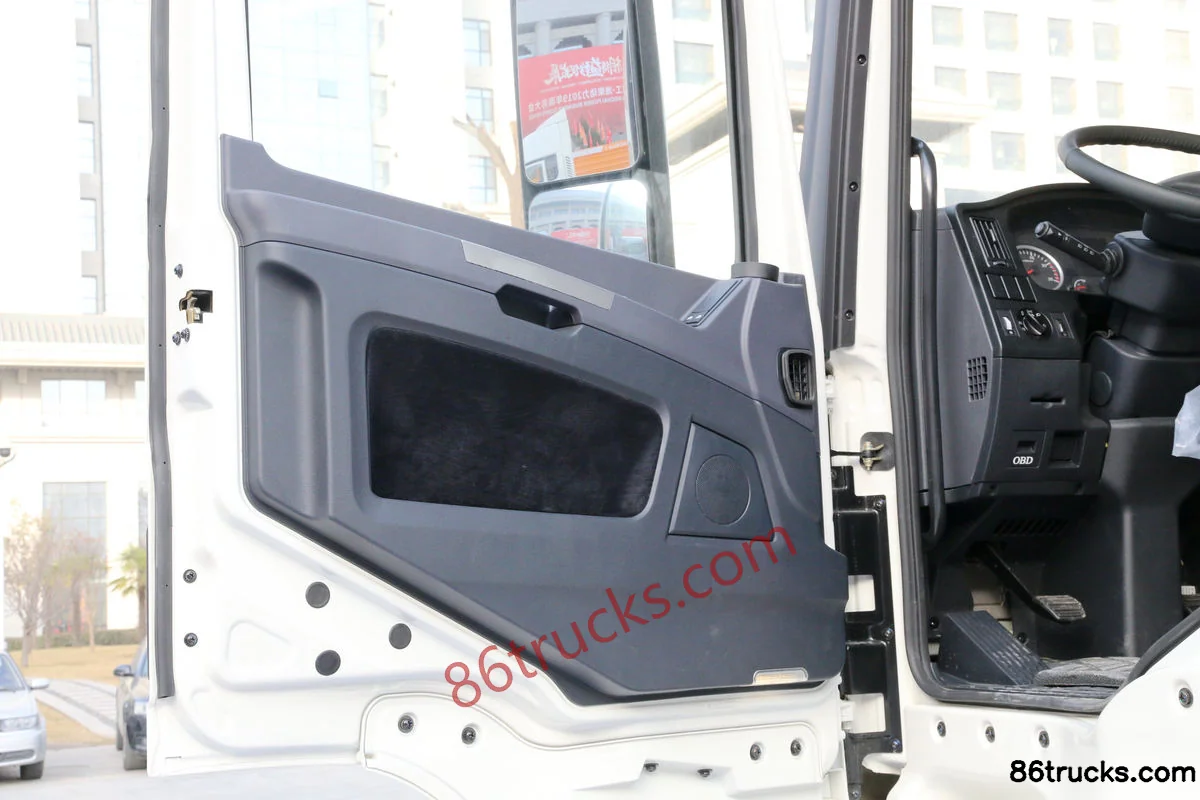

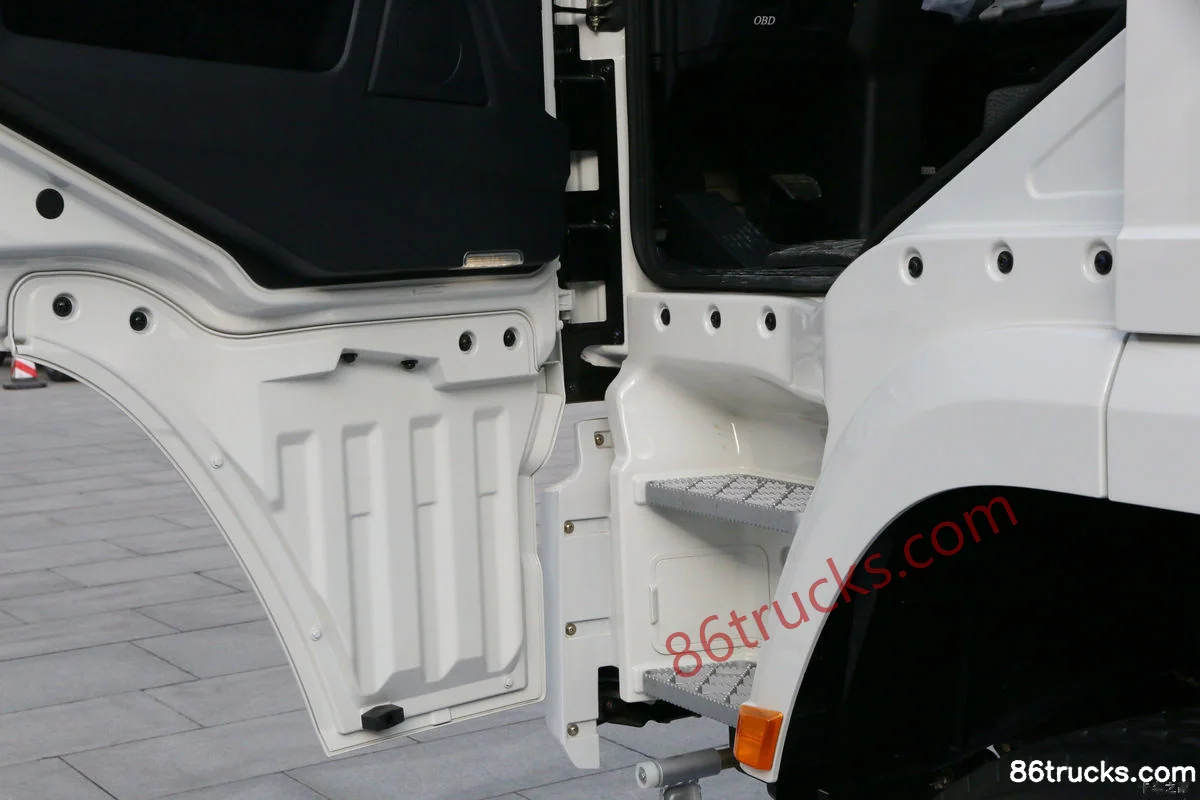

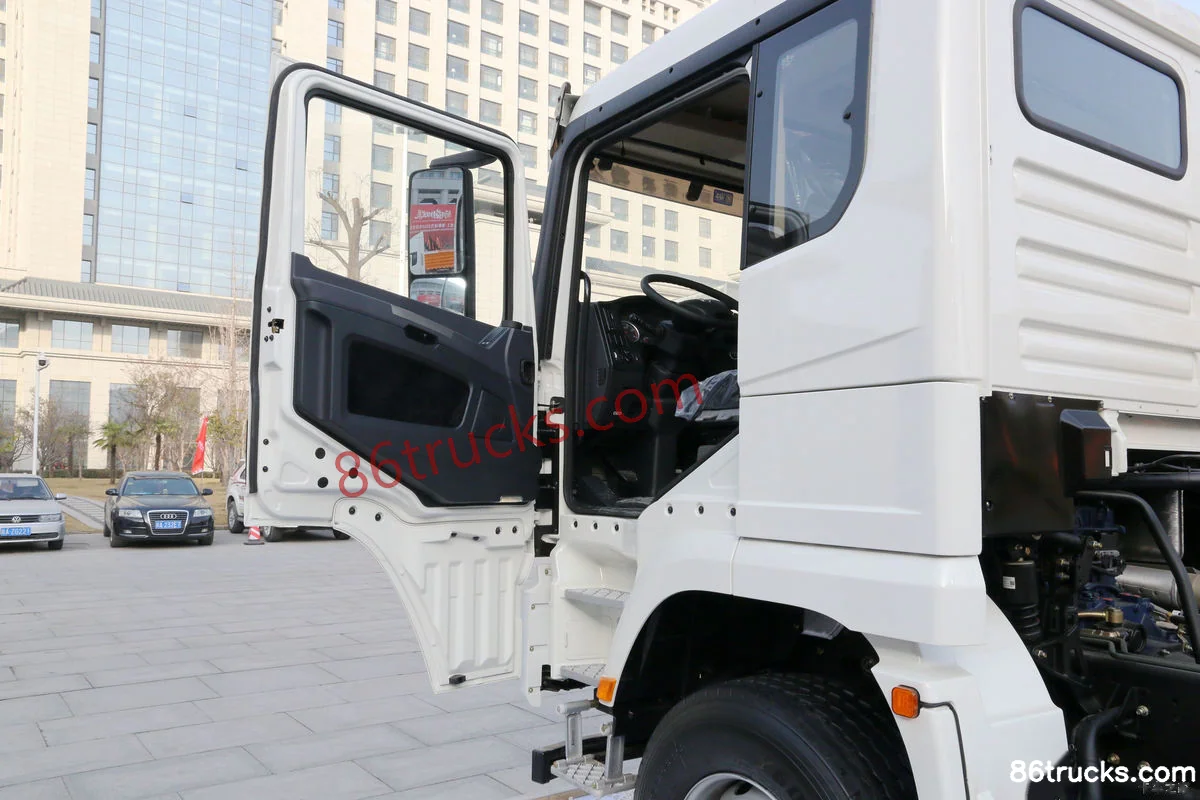

SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) Cab (1) | 86Trucks SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) Cab (2) | 86Trucks SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) Cab (3) | 86Trucks

Chassis3

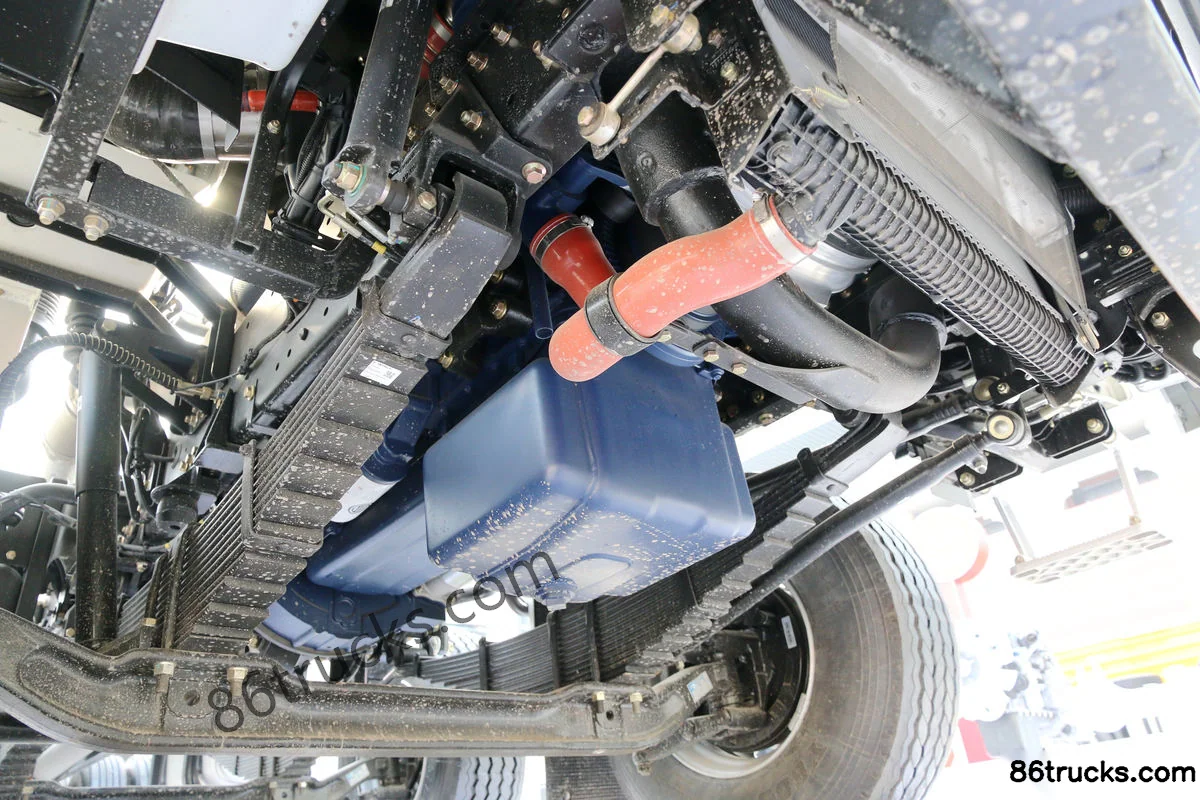

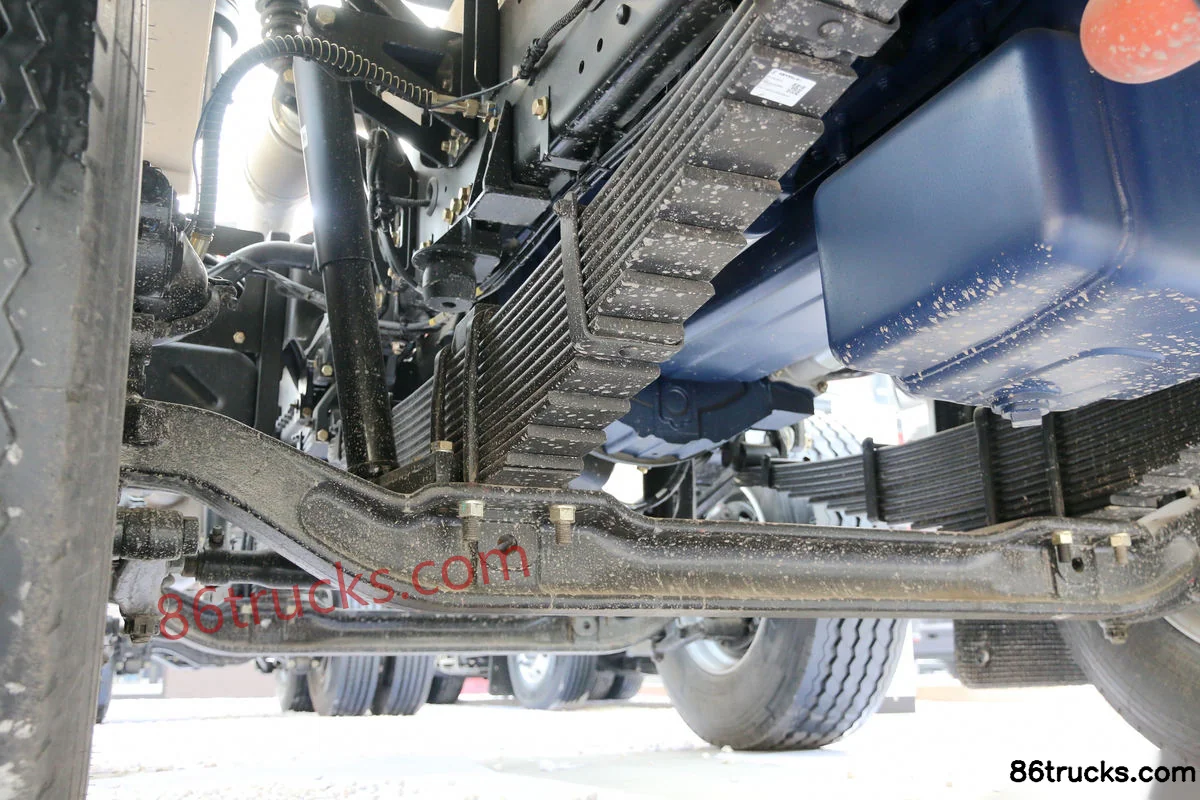

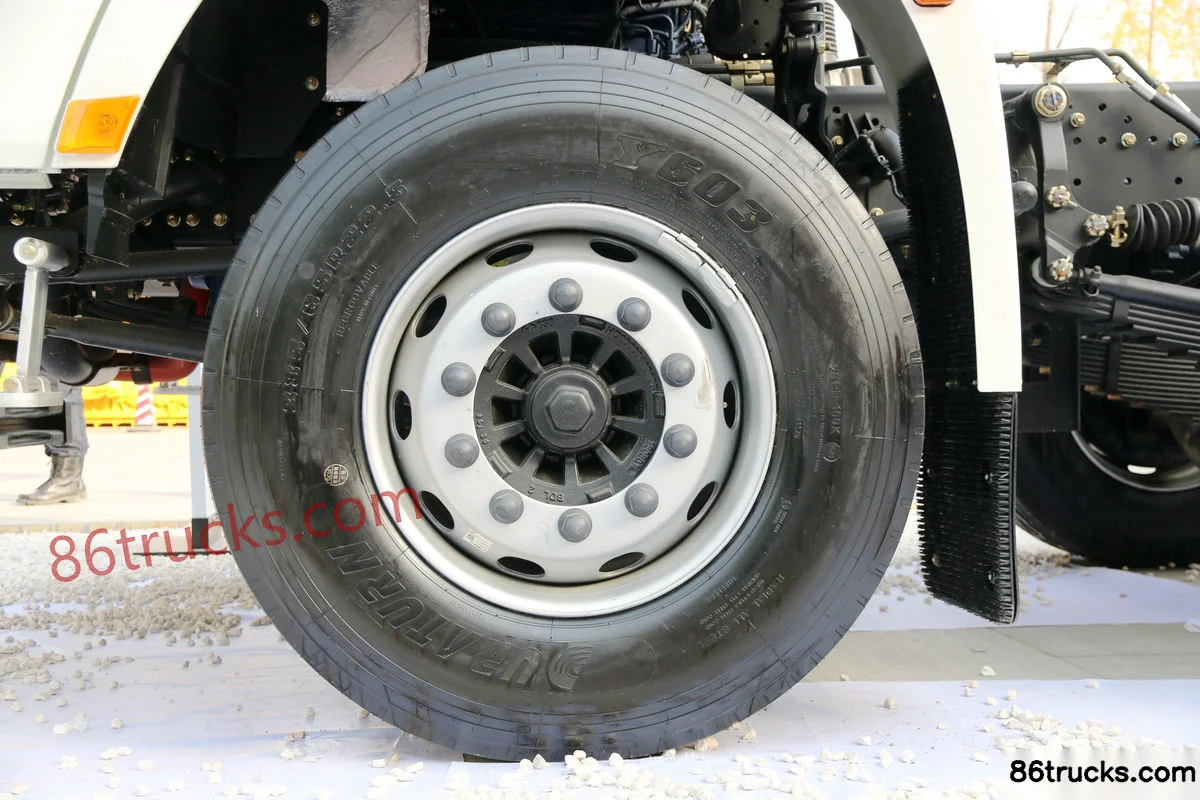

SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) (1) | 86Trucks SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) (2) | 86Trucks SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) (3) | 86Trucks

9 photos

FAQ

What emission standard does SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI)?

Key specs of SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI): Drive: 8x4; Horsepower: 460 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) suited for?

SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) differ from other variants in the same series?

SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI) belongs to SHACMAN Delong X3000 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 460 hp 8X4(12 wheels) Special Vehicle Operation Chassis (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
