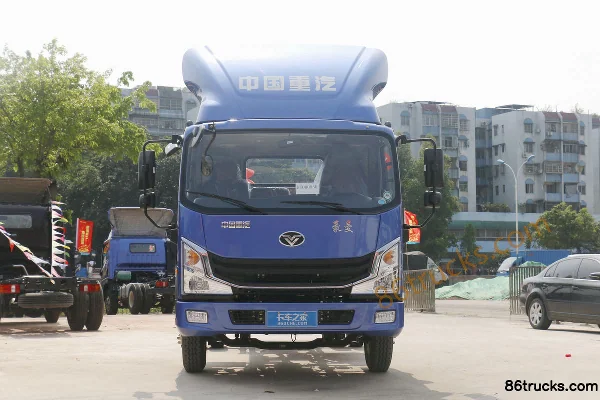

Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck

Export reference
From $26,389
MSRP ¥19M CNY
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: Yuchai4102
Transmission: Fast Gear
Curb Weight:: 2.805ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck is a Light Truck featuring 3.85m cargo length, Van body cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Yuchai4102 engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5048XXYG17EB2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3650mm
Box length class: 3.8m
engine: YuchaiYC4S160-50
transmission: Fast Gear8JS85TE
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.498m
Cab height: 3.55m
Front track width: 1825mm
rear track: 1790mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 88km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 17°
market segment: Urban Distribution
Front/rear suspension: 1.175/1.46m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4S160-50
Engine info: Yuchai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.767L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85TE
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.85m
Cargo box width: 2.3m
Cargo box height: 2.45m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Sleeper cab
Cab width: 2080mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 150L
Chassis Specs
Front axle description: 3.2T
Front axle allowable load: 1785kg
rear axle description: 8T
rear axle allowable load: 2710kg
Axle ratio: 4.875
Leaf spring count: 3/5+3,8/9+6,11/9+7,9/12+9,11/11+7,9/10+8,4/6+7
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR,8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck, and what does it include?

Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck export reference is about From $26,389; MSRP is ¥19M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck?

Key specs of Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai4102; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck suited for?

Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck differ from other variants in the same series?

Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HaoMAN H3 160 hp 4X2(6 wheels) 3.85m Crew Cab Box Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
