Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck

Export reference
From $12,056
MSRP ¥8.68M CNY
Horsepower: 117
Emission: China V
Fuel: Diesel
Engine: Chaochai4BK
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck is a Light Truck featuring 4.15m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Chaochai4BK engine, 117 hp, 4X2 (6 wheels) drive and China V emissions.

China V 117 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1040JDD6V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: ChaochaiCY4BK451
transmission: WLYWLY6TS40
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.22m
Cab height: 2.46m
Front track width: 1650mm
rear track: 1600mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Zibo, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 15°
market segment: Building materials, agricultural products
Front/rear suspension: 1.14/1.495m
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4BK451
Engine info: Chaochai4BK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.707L
Emission standard: China V
Max output power: 86kW
Max hp: 117Horsepower
Max torque: 320N·m
Max torque speed: 1000-2200rpm
Rated speed: 2800rpm
Engine Type: Vertical water-cooled, four-stroke, turbocharged intercooled, electronic control high-pressure common rail, SCR
Transmission Parameters
Transmission Model: WLYWLY6TS40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.15m
Cargo box width: 2.05m
Cargo box height: 0.46m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab: 700P
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Steel
Fuel tank capacity: 120L
Chassis Specs
Front axle description: Zhucheng Isuzu air brake extended
Front axle allowable load: 1500kg
rear axle description: Zhongli Isuzu copy
rear axle allowable load: 2995kg
Axle ratio: 4.875
Leaf spring count: 6/9+5
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

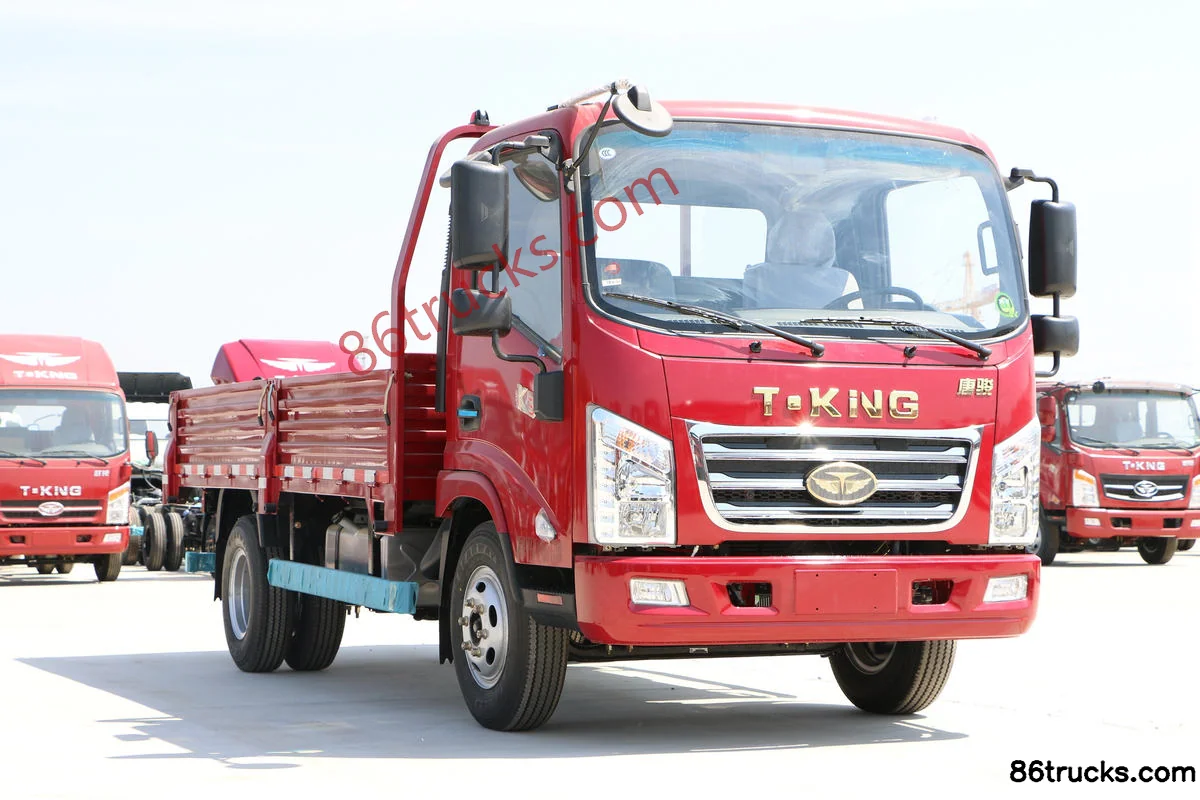

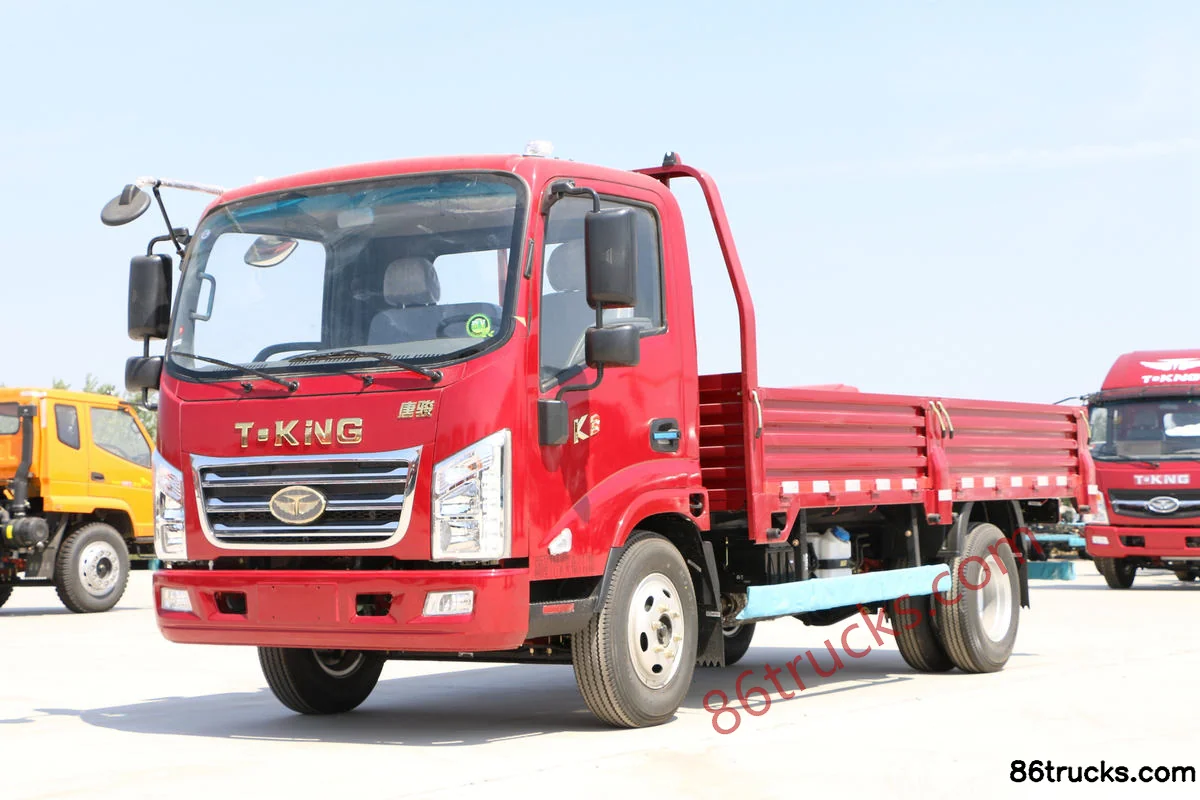

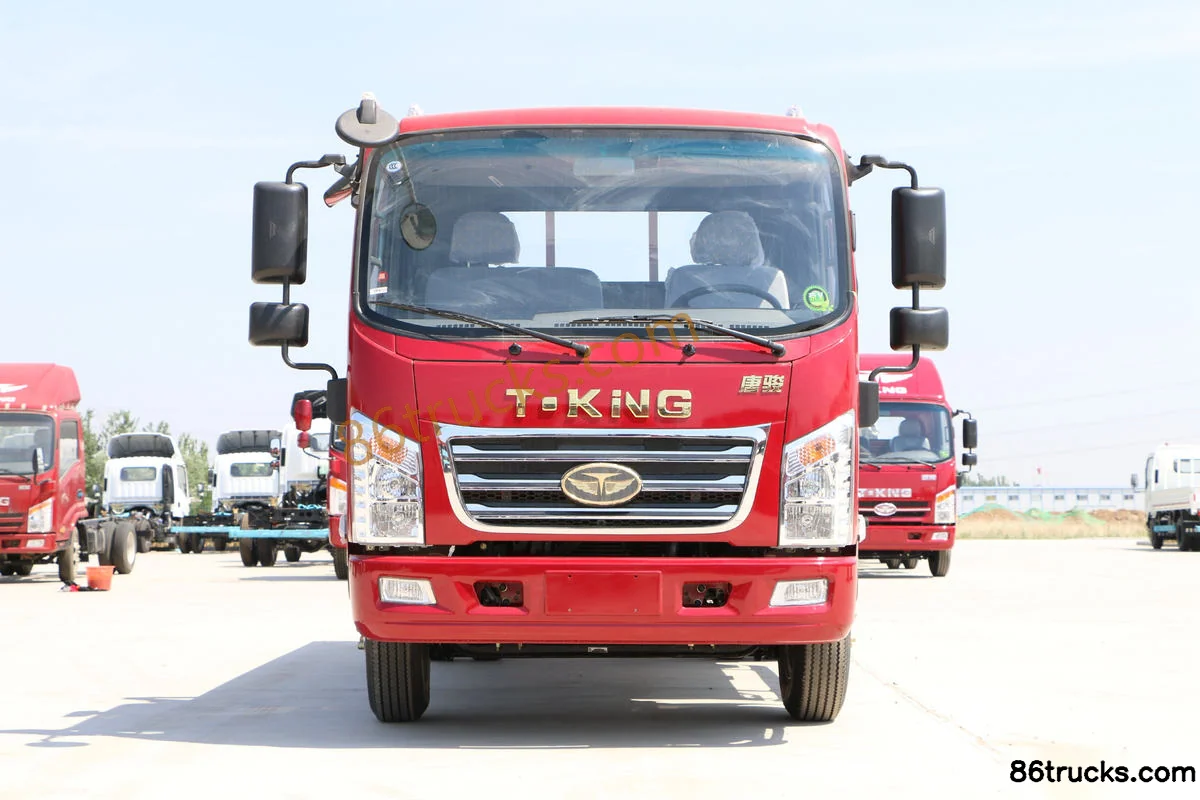

Exterior3

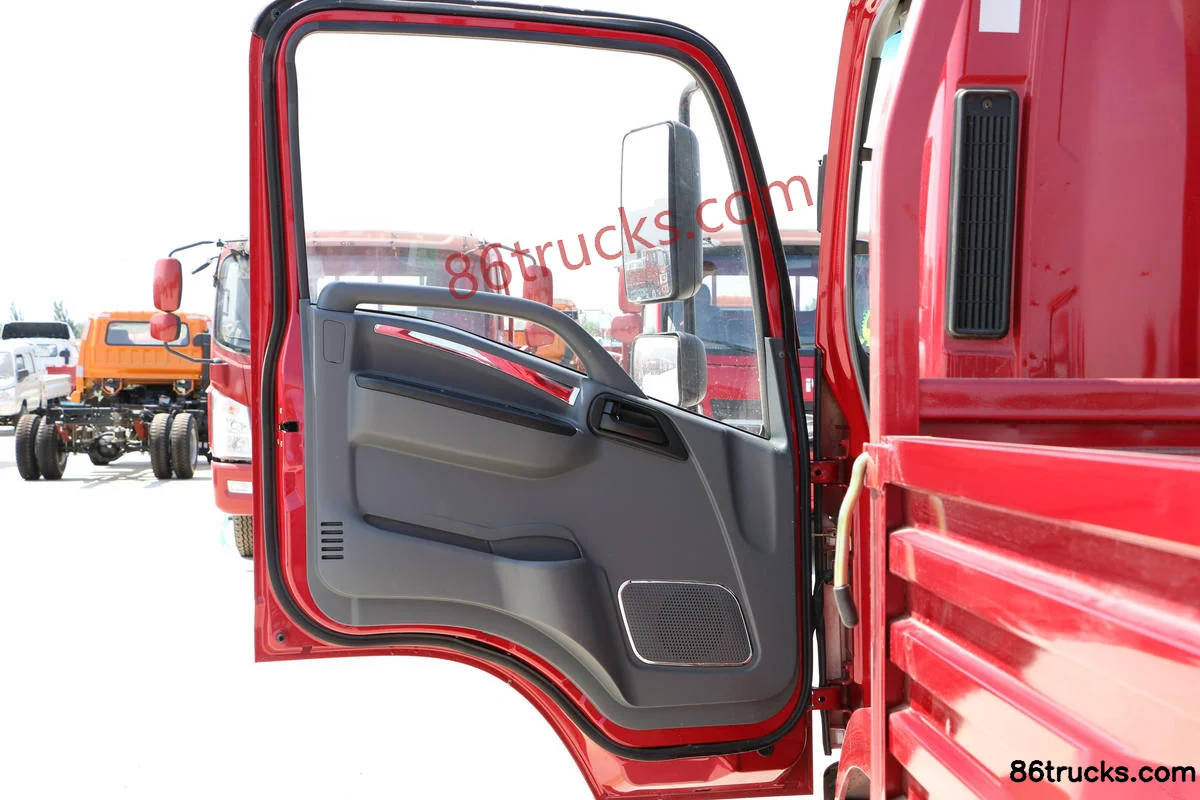

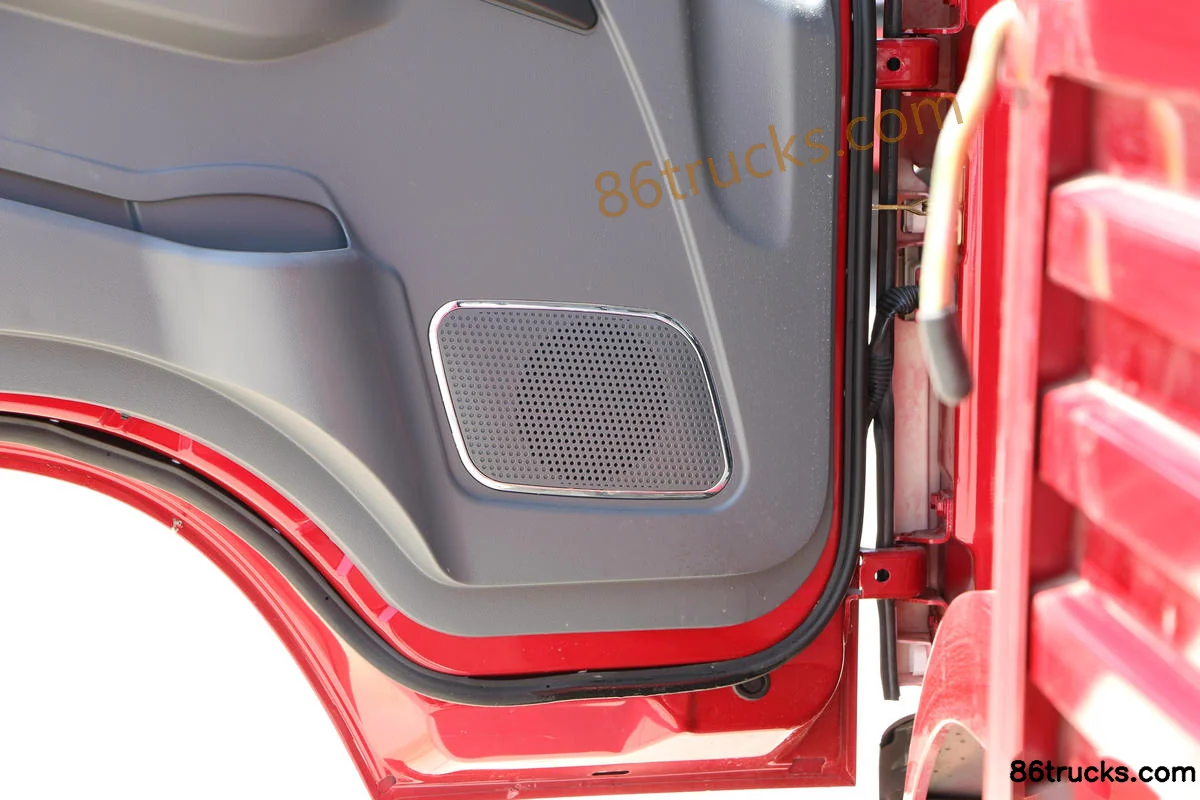

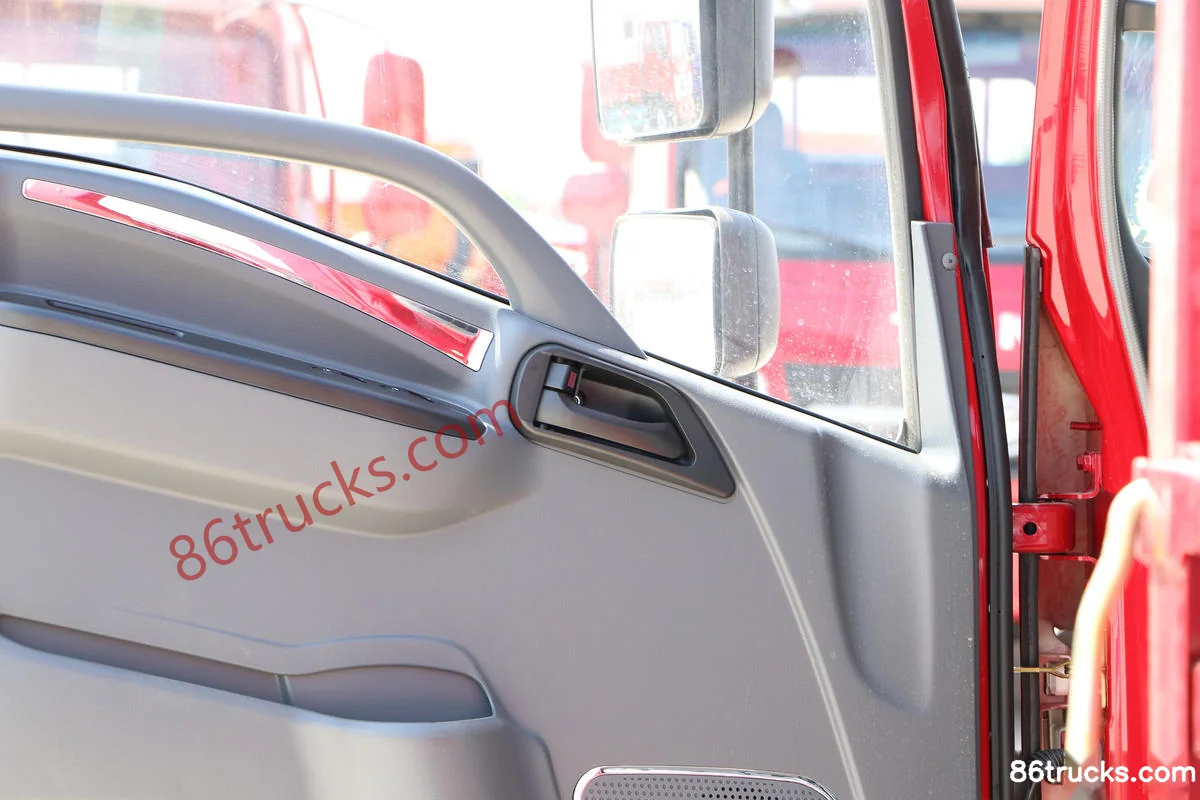

Cab3

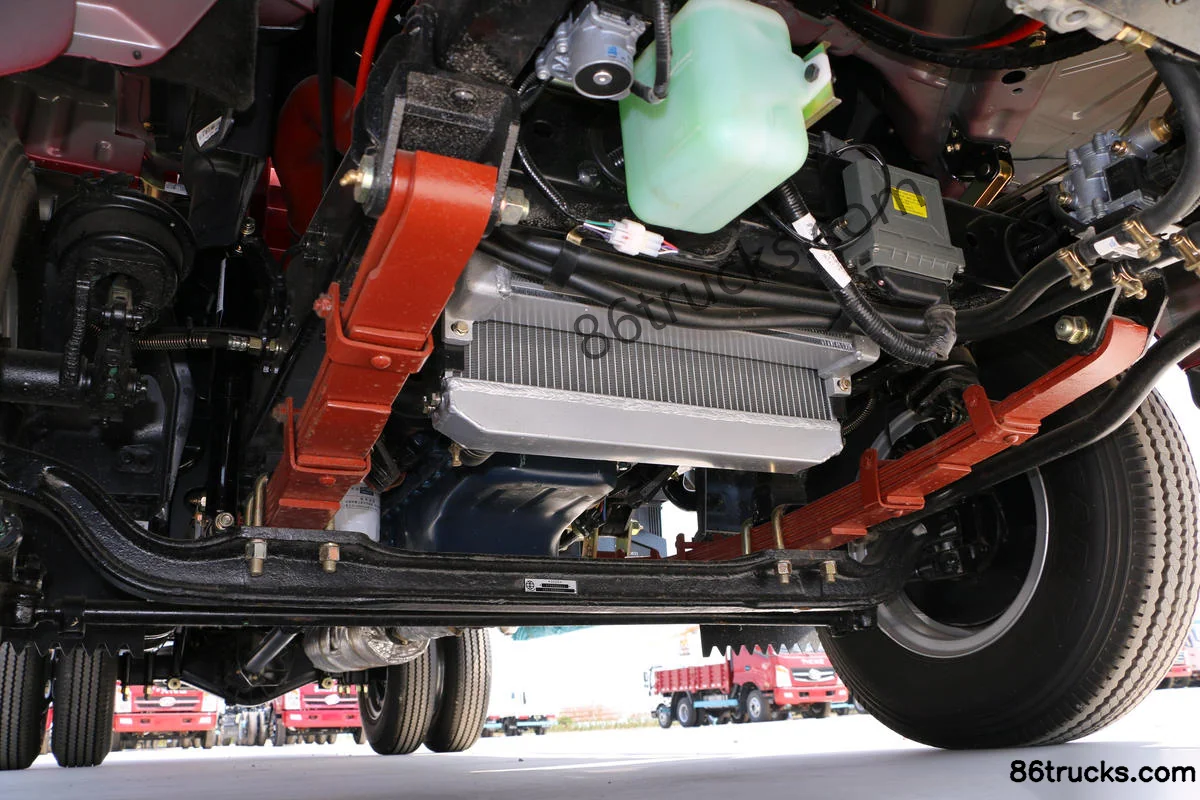

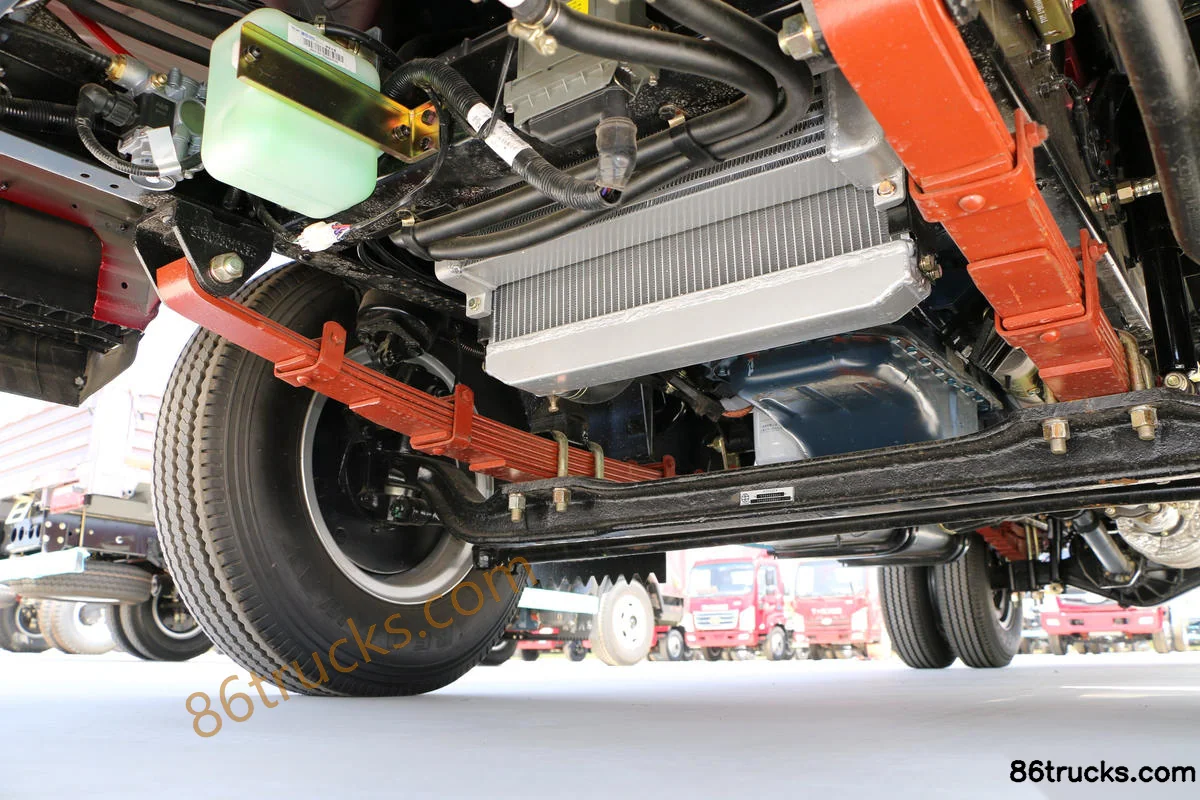

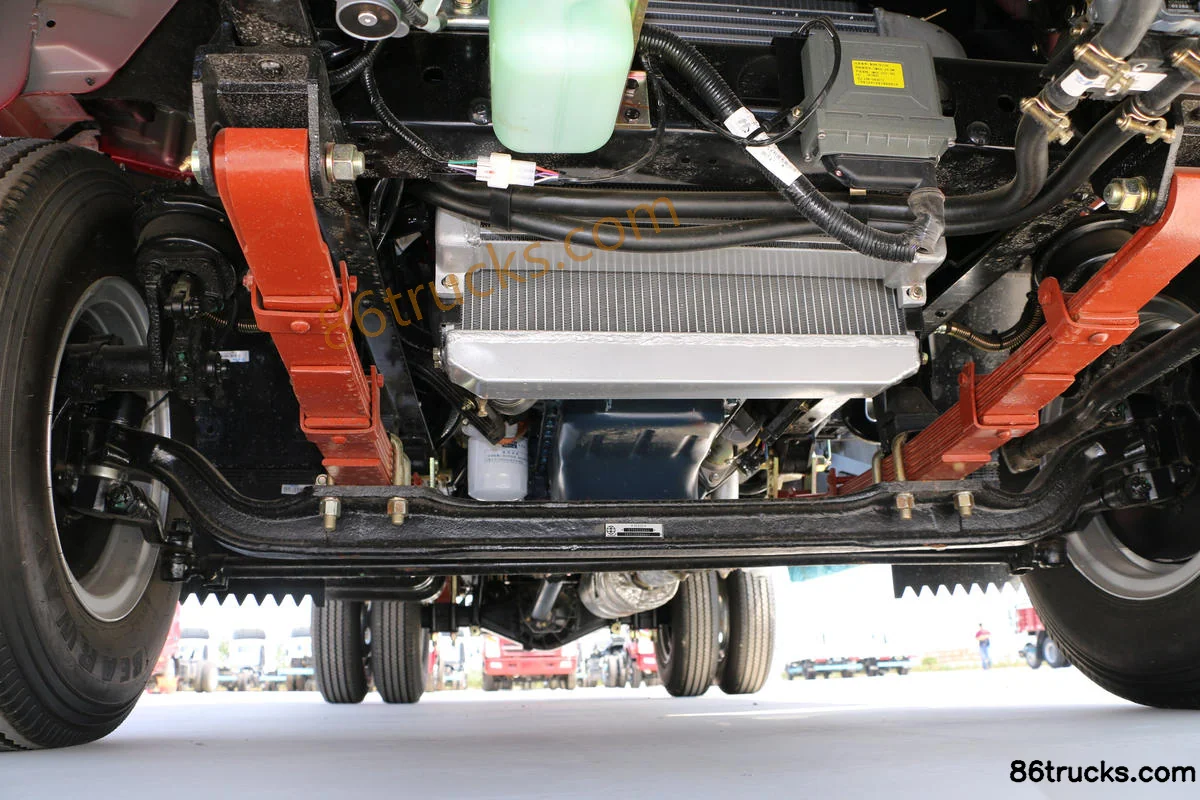

Chassis3

9 photos

FAQ

What is the export price of Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck, and what does it include?

Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck export reference is about From $12,056; MSRP is ¥8.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck?

Key specs of Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck: Drive: 4x2; Horsepower: 117 hp; Emission: China V; Fuel: Diesel; Engine: Chaochai4BK; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck suited for?

Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck differ from other variants in the same series?

Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck belongs to Ouling K3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling K3 Series 117 hp 4X2(6 wheels) 4.15m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
