JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI)

Export reference
MSRP N/A
Horsepower: 490
Emission: China VI
Fuel: Diesel
Engine: Fukang 12L
Transmission: ZF
Curb Weight:: 13ton
seating capacity: 3Personnel
Rated payload: 17.87ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI) is a Heavy-duty cargo trucks featuring 9.4m cargo length, Stake type cargo body, 3Personnel volume and 17.87t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Fukang 12L engine, 490 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 490 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5311CCYP1K5H45CS
Type: stake truck
Drive type: 8X4
Wheelbase: 2100+4300+1350mm
Box length class: 9.6m
engine: FotonX12NS6B490
transmission: ZF12TX2420TD
Rear Axle Ratio: 2.846
Cab length: 12m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 2030/2030mm
rear track: 1860/1860mm
Curb Weight: 13ton
Rated payload: 17.87ton
GVWR: 31ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 11°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.495/2.755m
Version: Flagship Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX12NS6B490
Engine info: Fukang 12L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.8L
Emission standard: China VI
Max output power: 360kW
Max hp: 490Horsepower
Max torque: 2300N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZF12TX2420TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 4pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.4m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: A5W
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.846
Leaf spring count: 3/3/12
Maintenance-free wheel end:
Tire
Tire Size: 12R22.5 16PR
Number of tires: 12pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights: none
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:

Photos

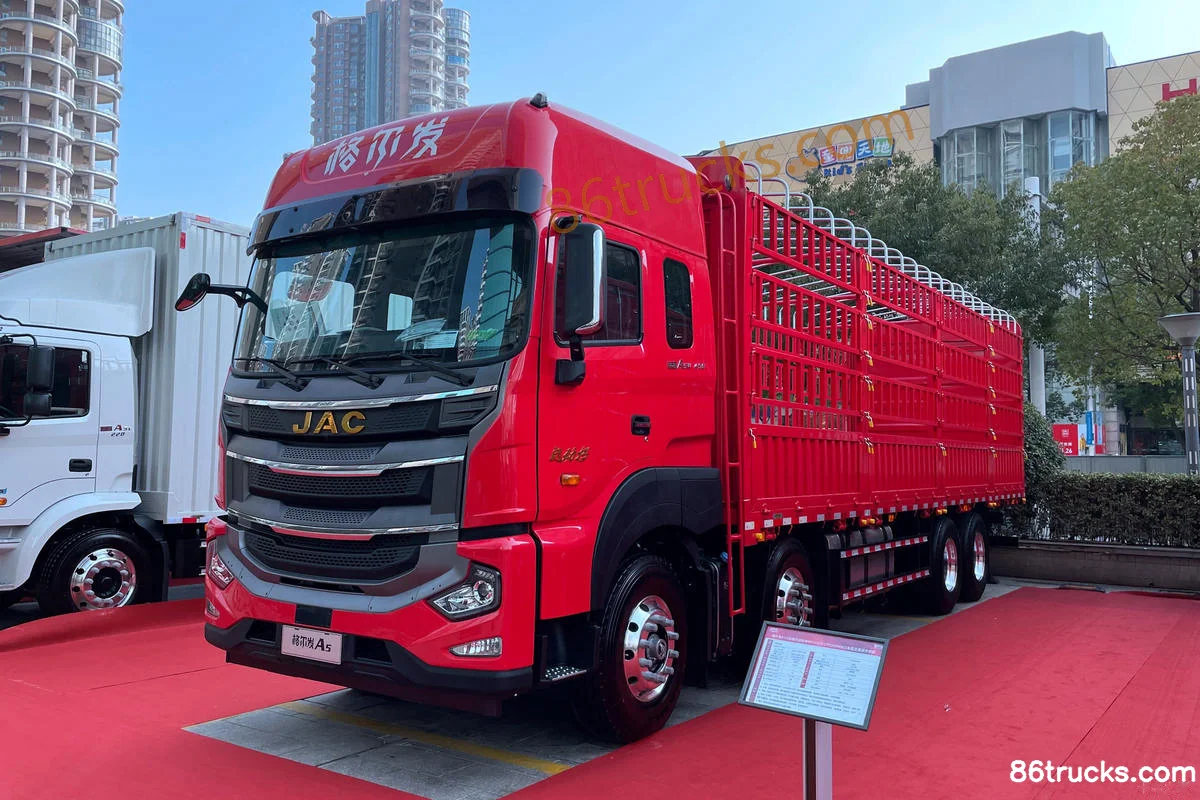

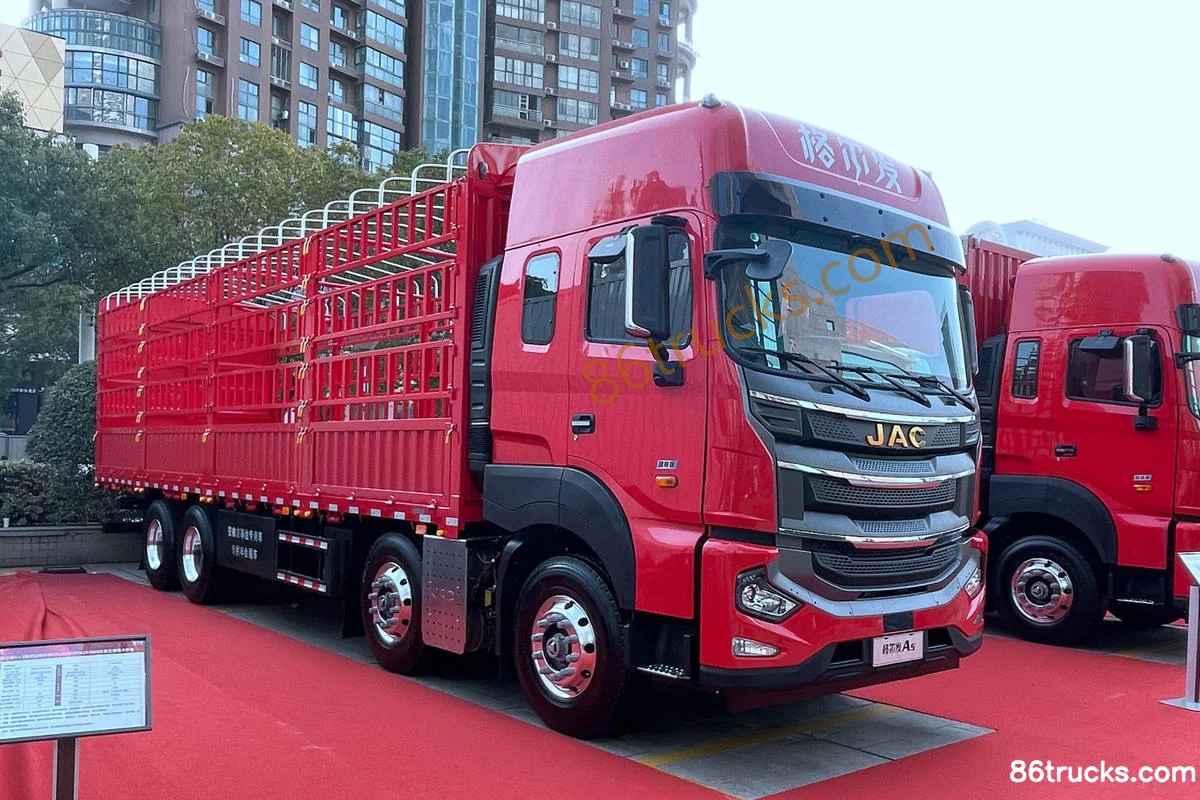

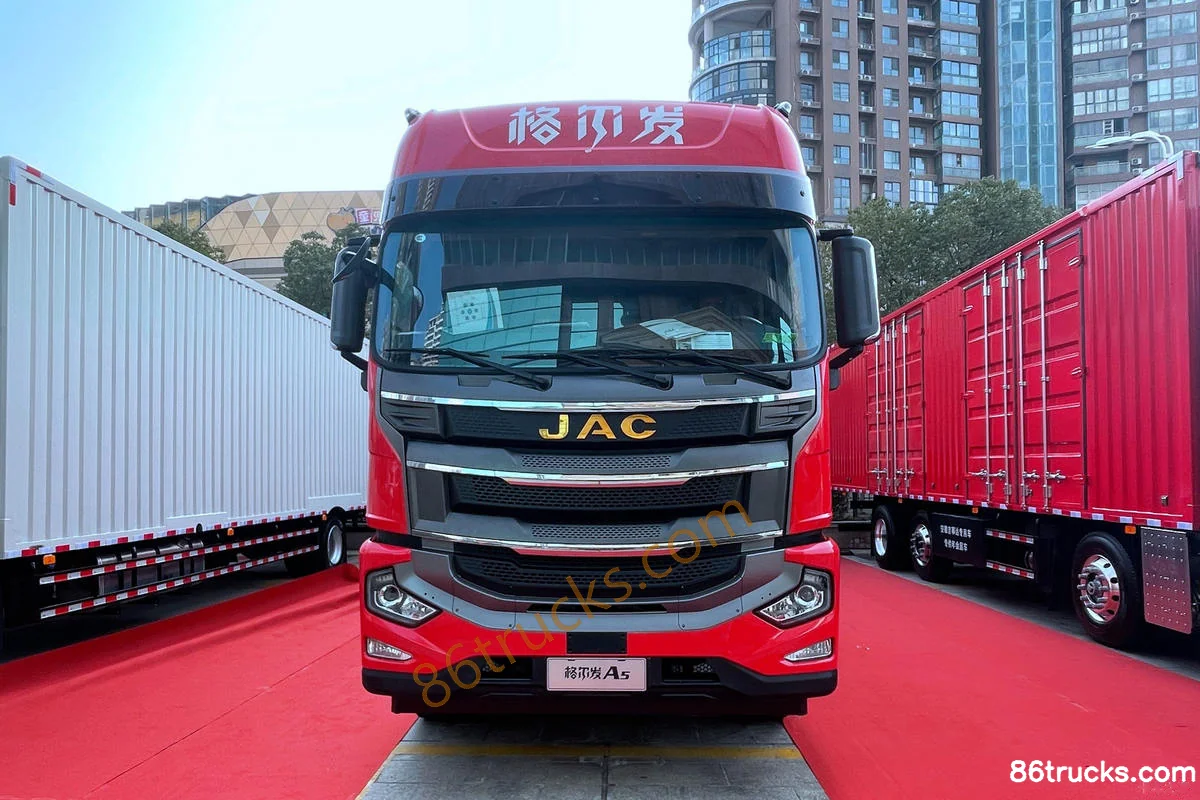

Exterior3

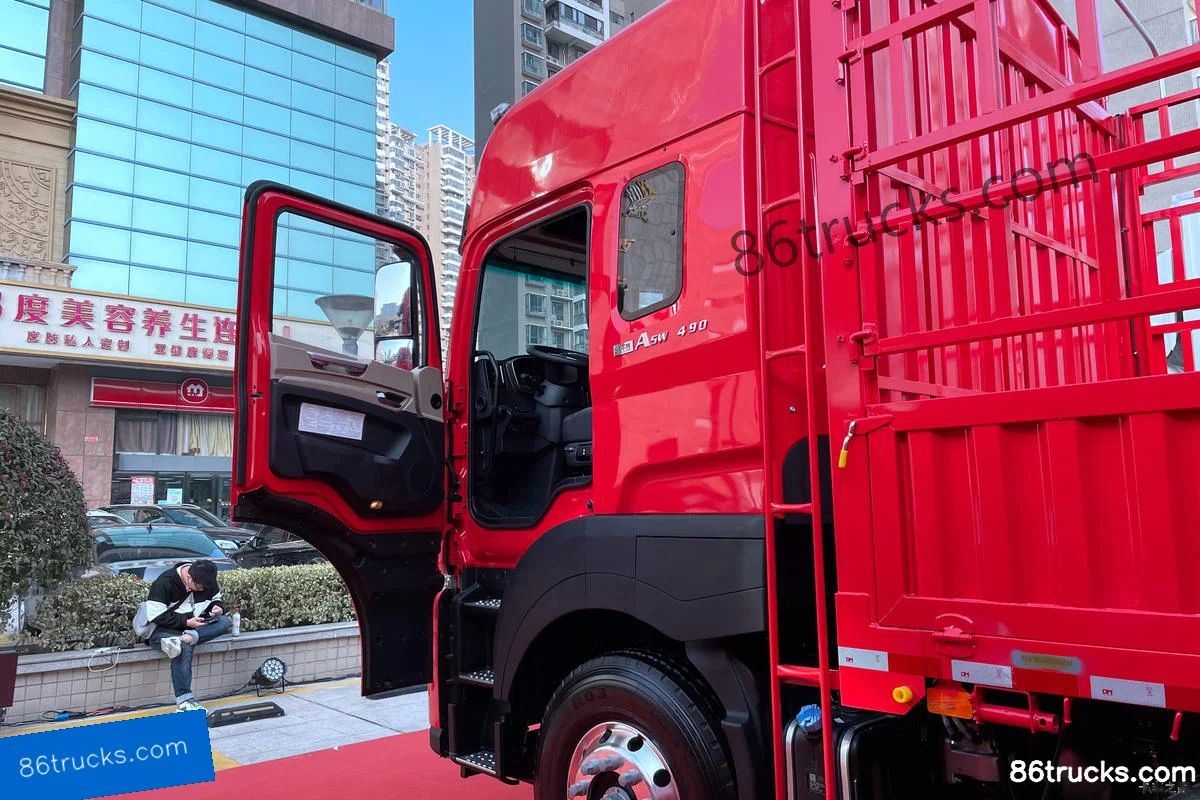

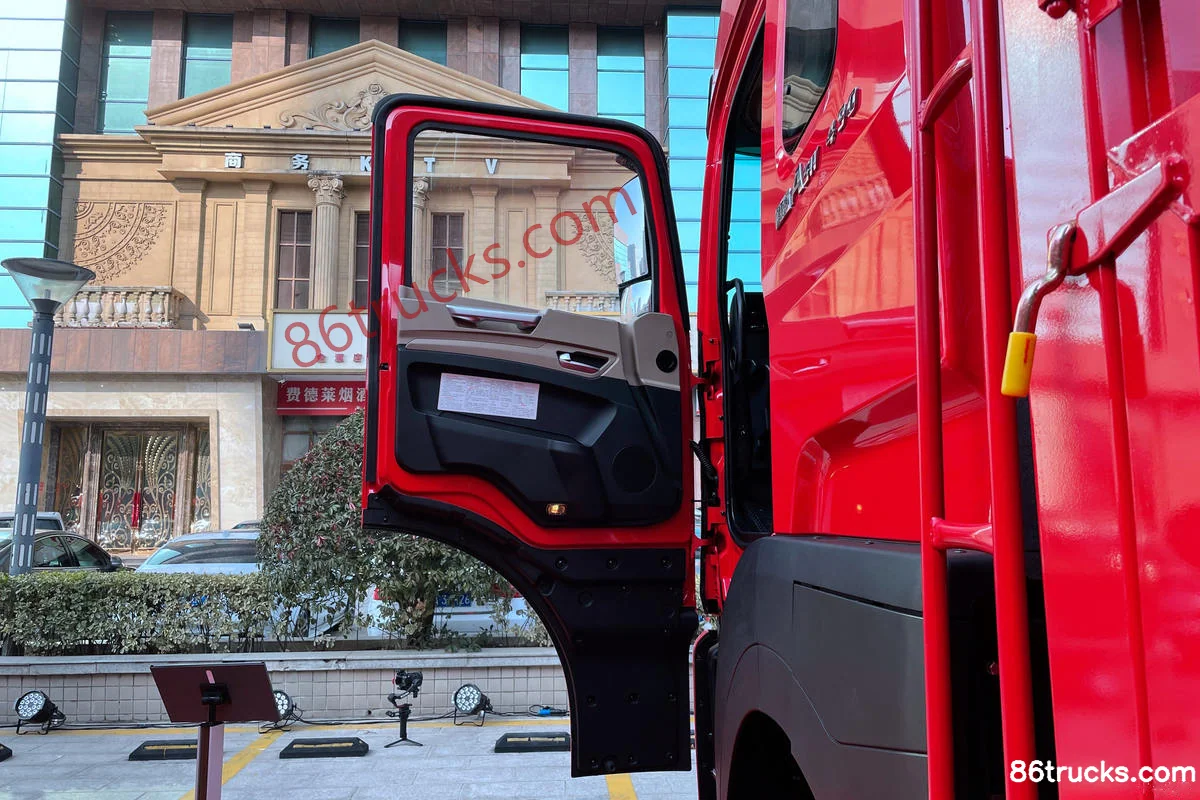

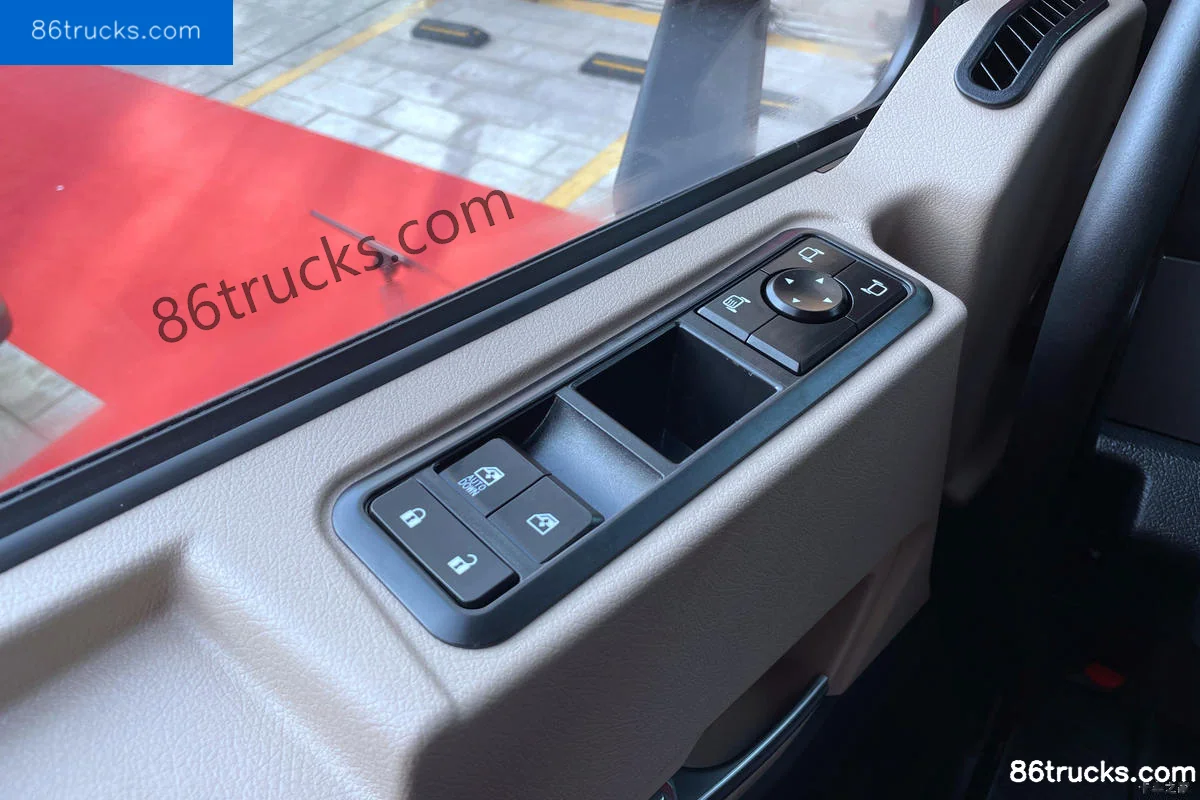

Cab3

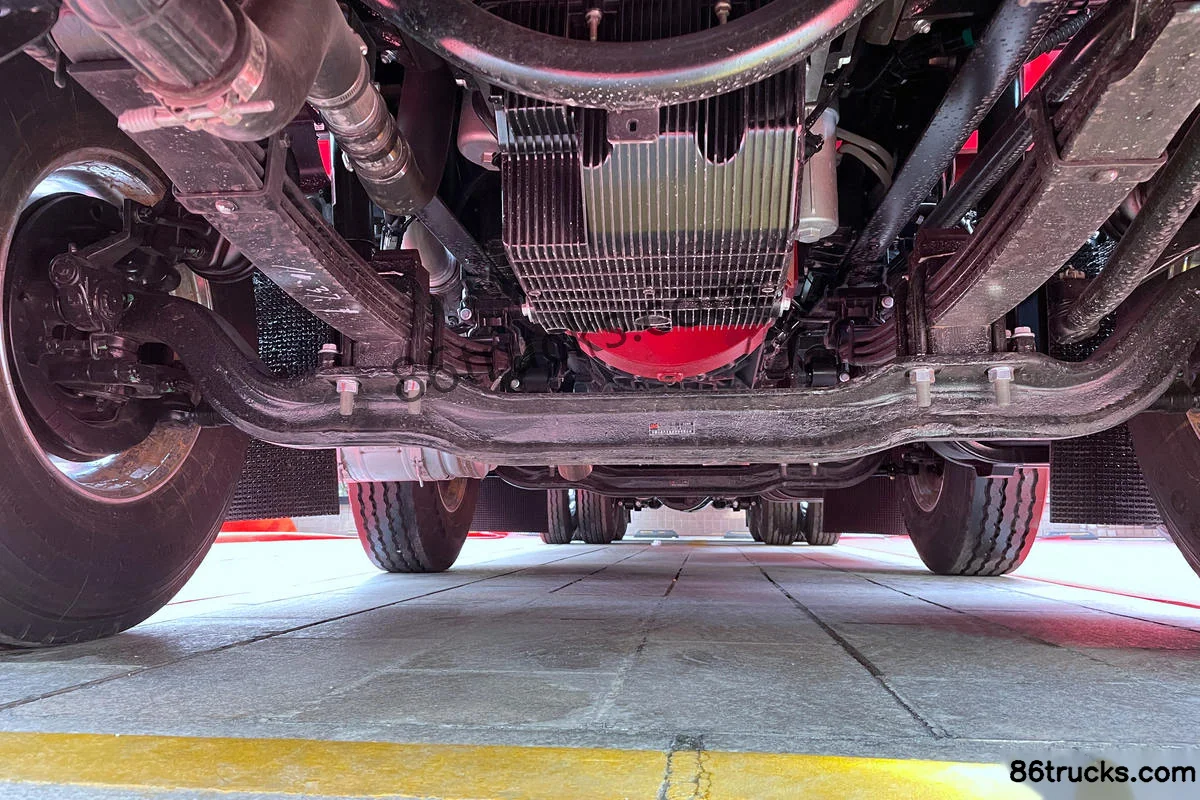

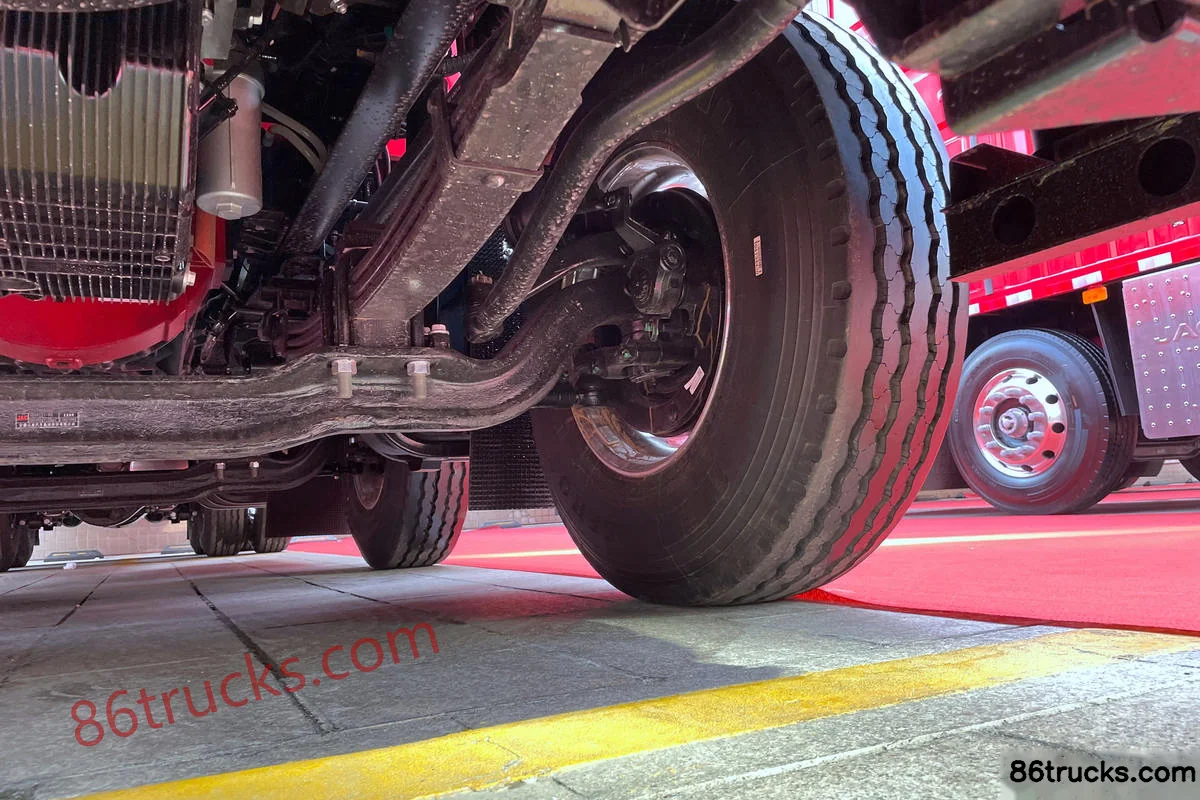

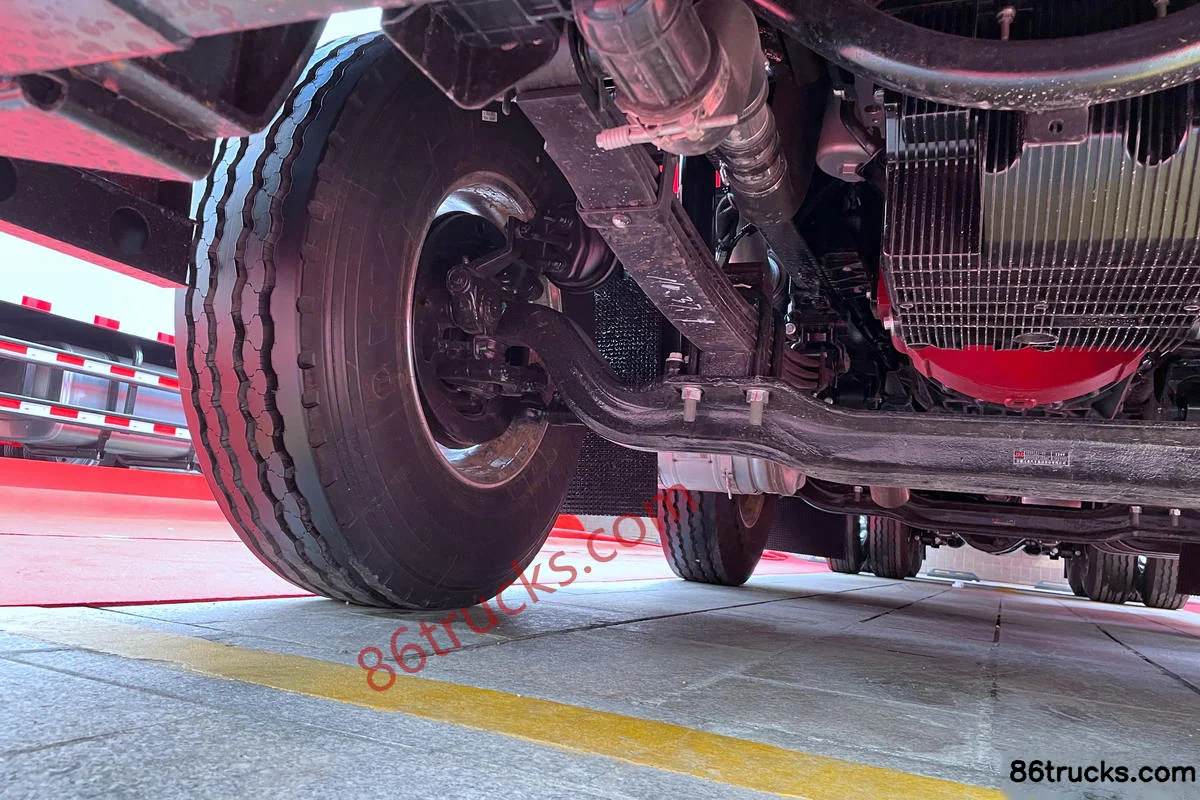

Chassis3

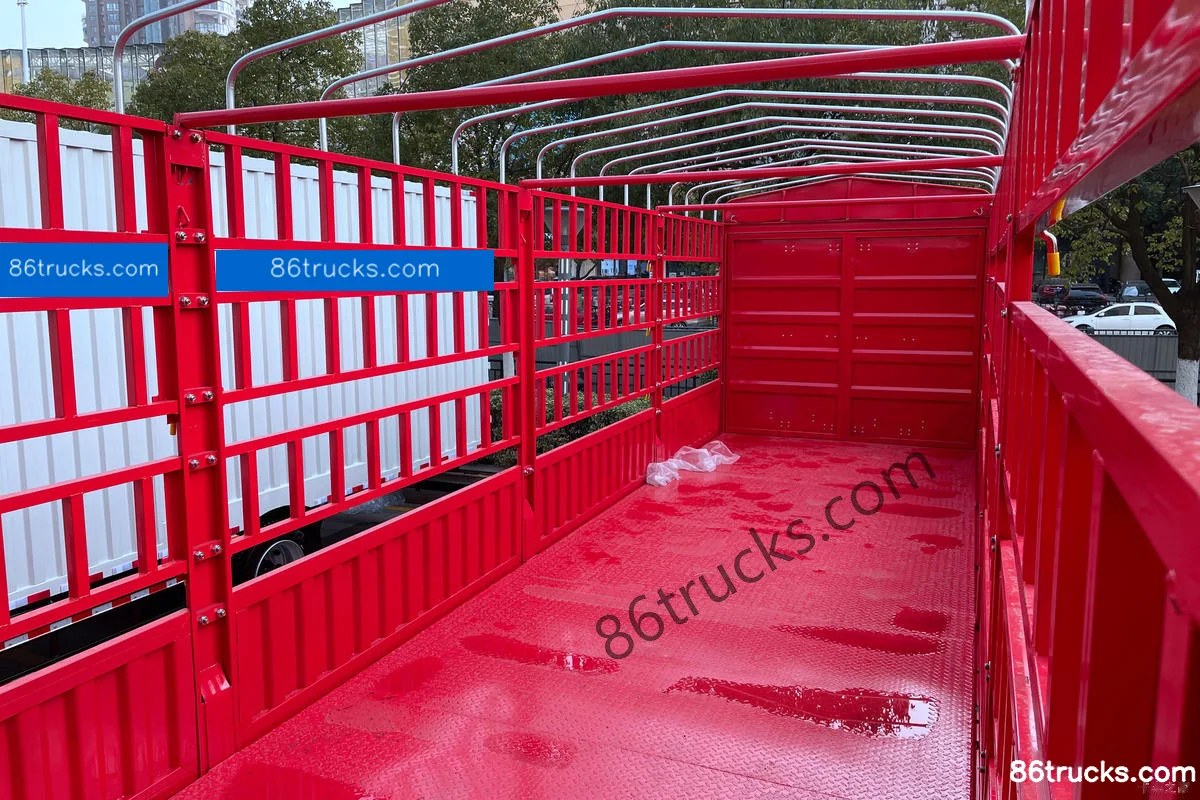

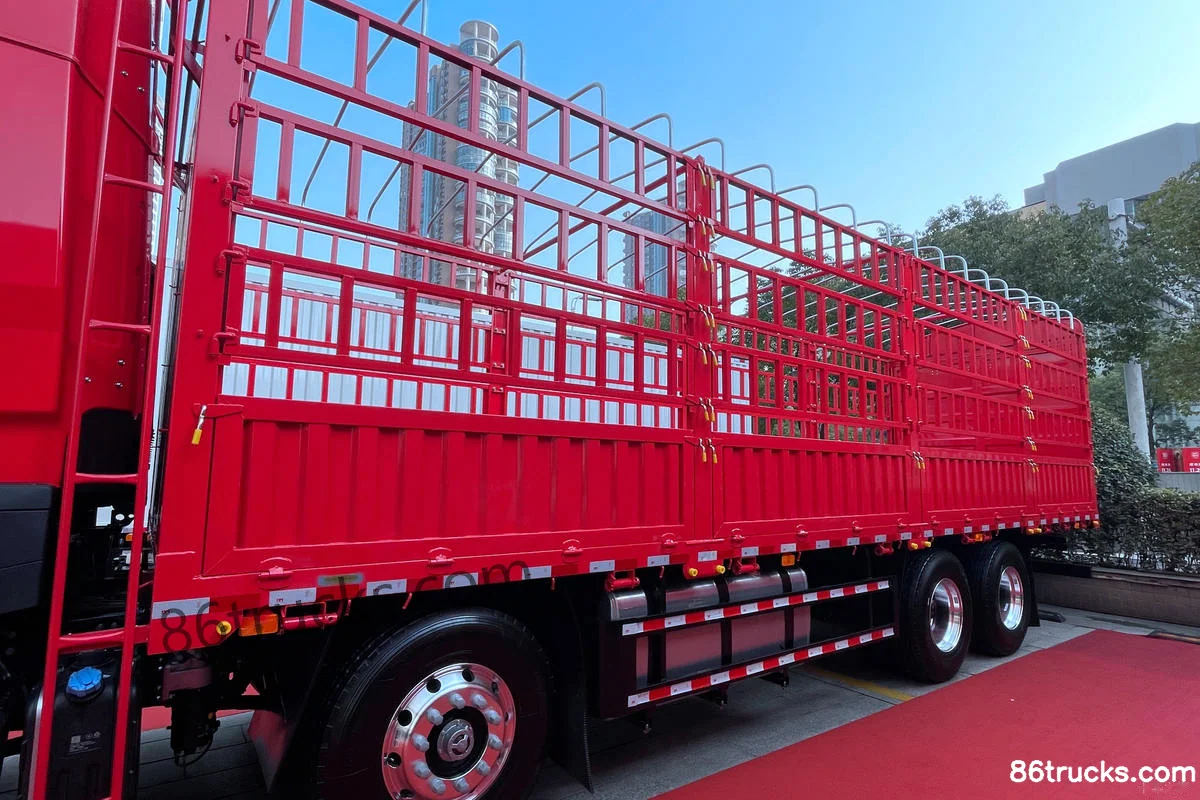

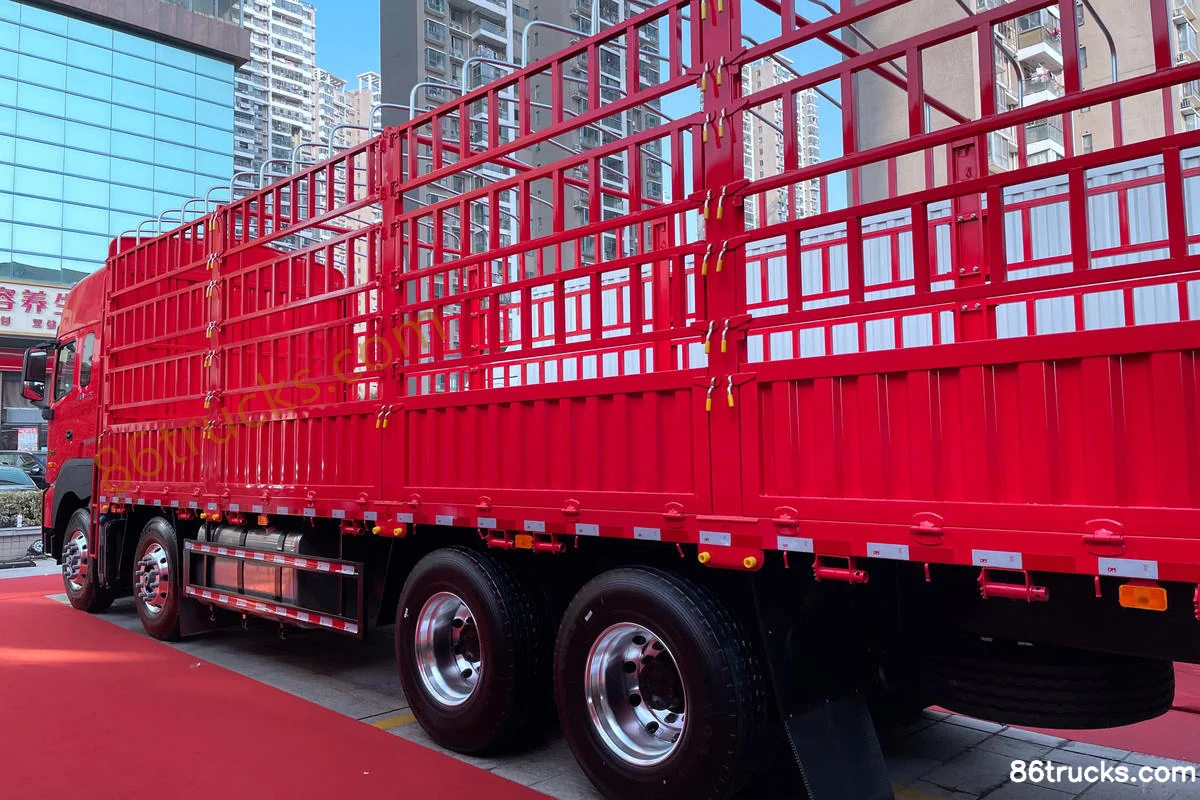

Body3

12 photos

FAQ

What emission standard does JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI)?

Key specs of JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI): Drive: 8x4; Horsepower: 490 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang 12L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI) suited for?

JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI) differ from other variants in the same series?

JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI) belongs to JAC Gallop A5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5W Heavy Truck Flagship Edition 490hp 8X4(12 wheels) 9.4m AMT Automatic Gearbox Stake Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
