FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh

Export reference
MSRP N/A
Rated payload:: 16.37ton
Wheelbase:: 1900+4100+1350mm
Cargo box type:: Dump type
Model code (announced):: CA3310P28L5T4BEVA80
Cab length:: 10.685m
GVWR:: 31ton
FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh exterior
View more photos (12)
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: FAW
Curb Weight: 14.5ton

Overview

The FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh is a Heavy truck featuring CATL battery/range, FAW motor, 8X4 (12 wheels) drive and 16.37t payload.

8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA3310P28L5T4BEVA80
Drive type: 8X4
Wheelbase: 1900+4100+1350mm
Cab length: 10.685m
Cab width: 2.55m
Cab height: 3.27m
Curb Weight: 14.5ton
Rated payload: 16.37ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: FAW
Motor 1 Model: CAM400PT52
Motor Type: Permanent magnet synchronous motor
total rated power: 270kW
Peak power: 420kW
Motor 1 Peak Power: 420kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 350kWh
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Raised Floor
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

Exterior3

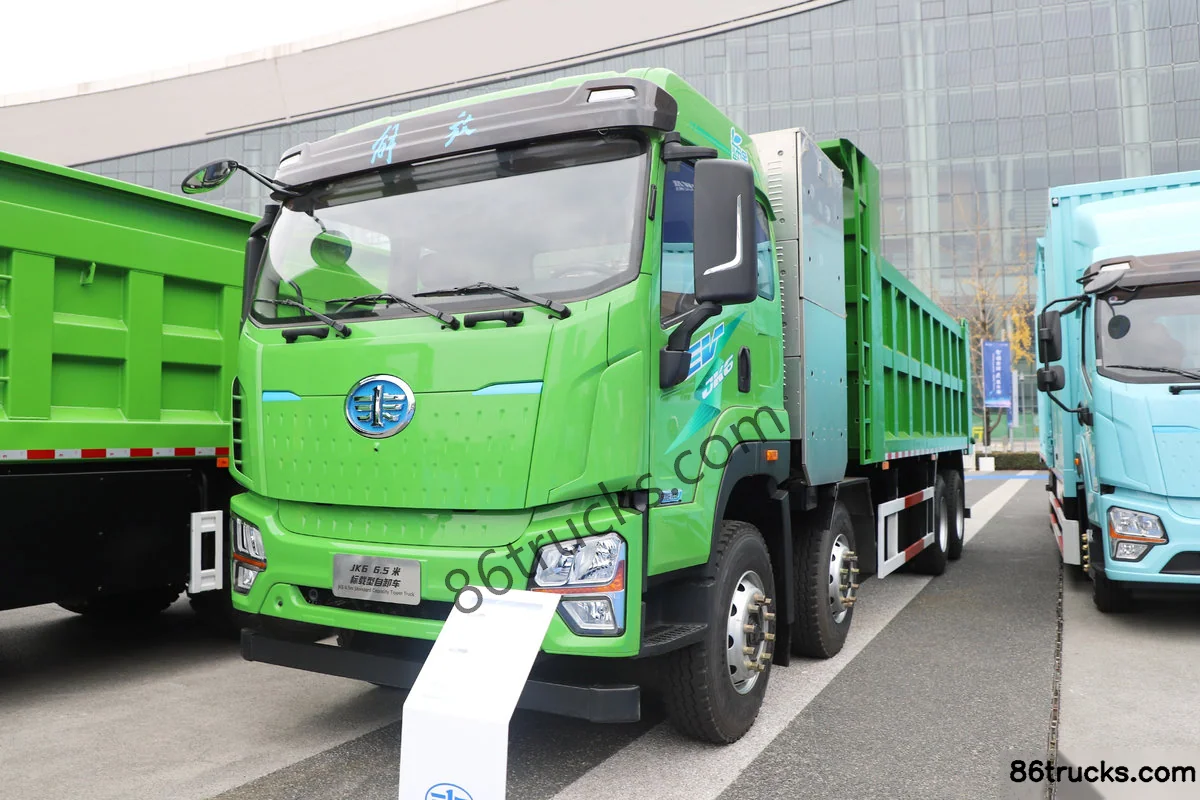

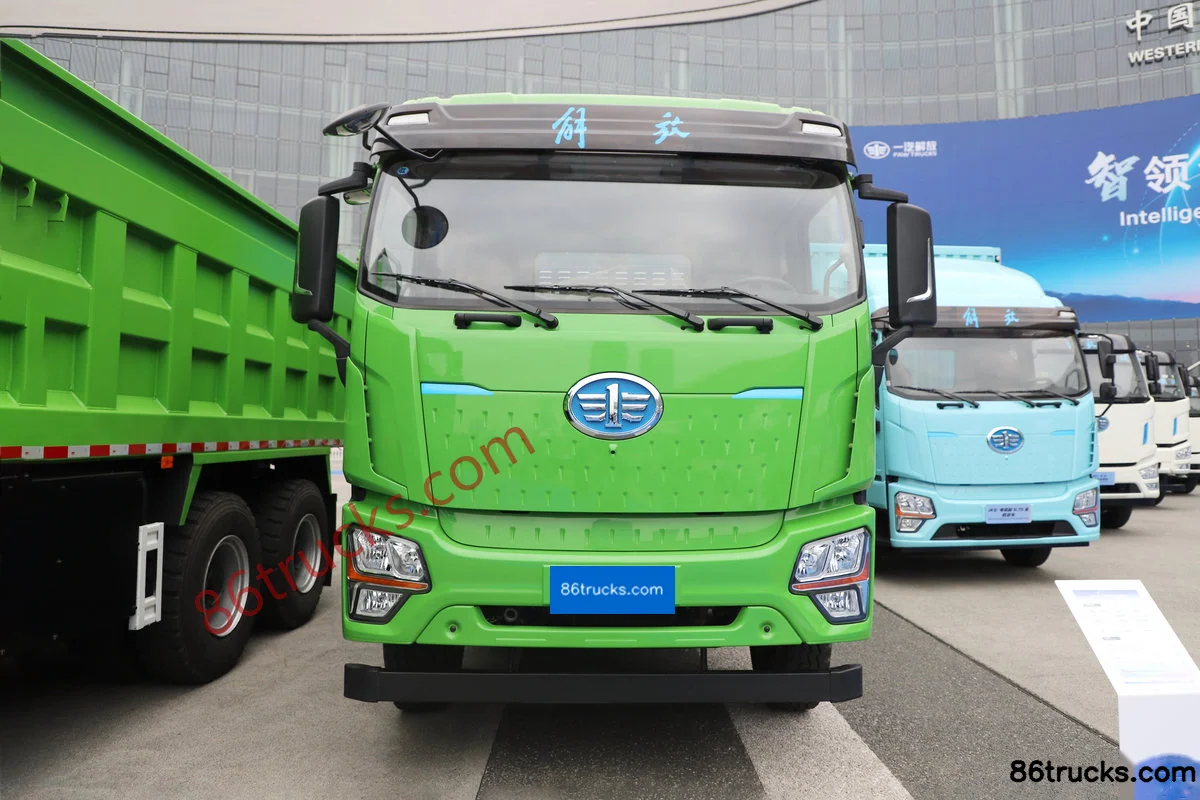

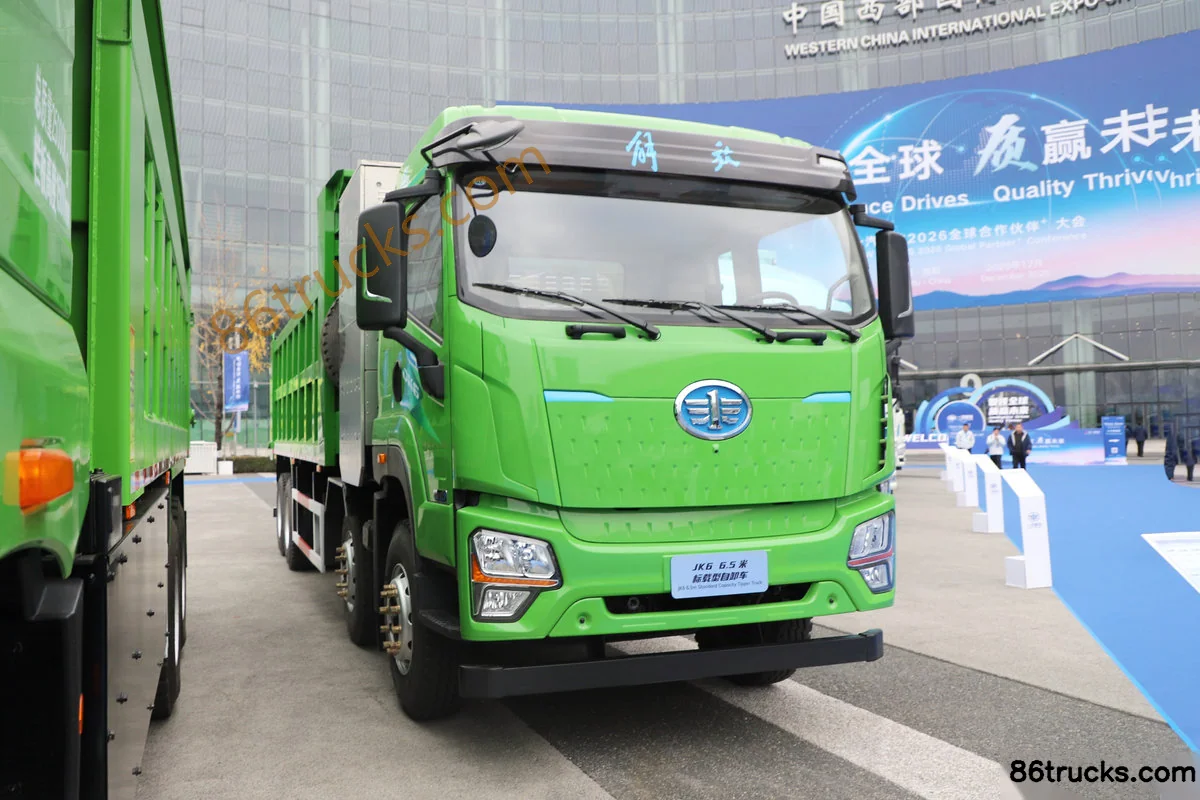

FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Exterior (1) | 86Trucks FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Exterior (2) | 86Trucks FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Exterior (3) | 86Trucks

Cab3

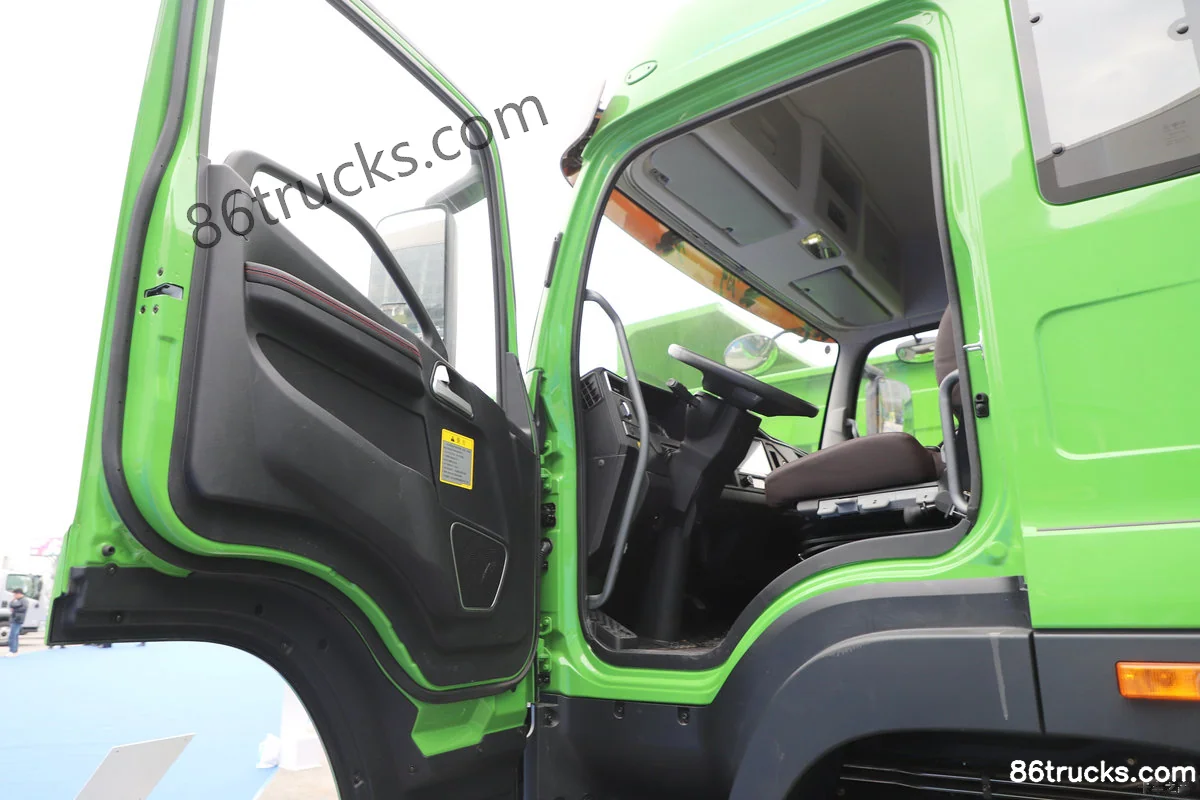

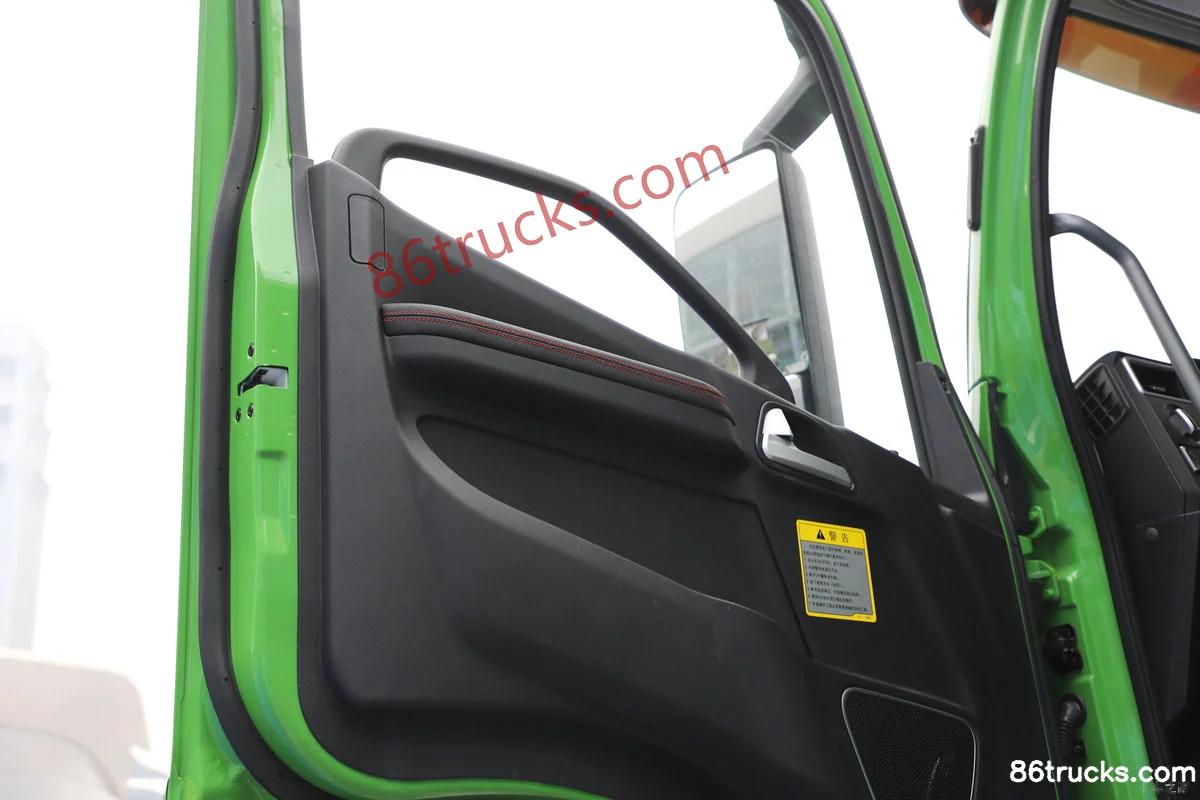

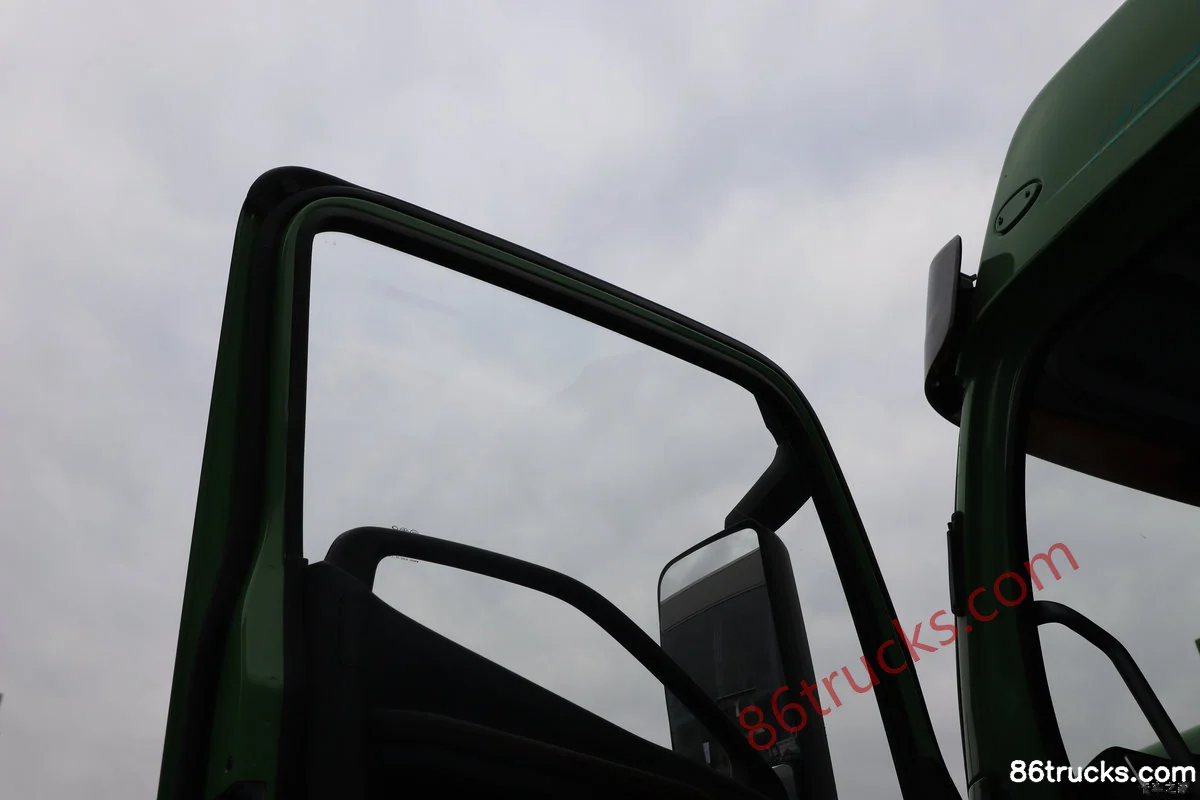

FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Cab (1) | 86Trucks FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Cab (2) | 86Trucks FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Cab (3) | 86Trucks

Chassis3

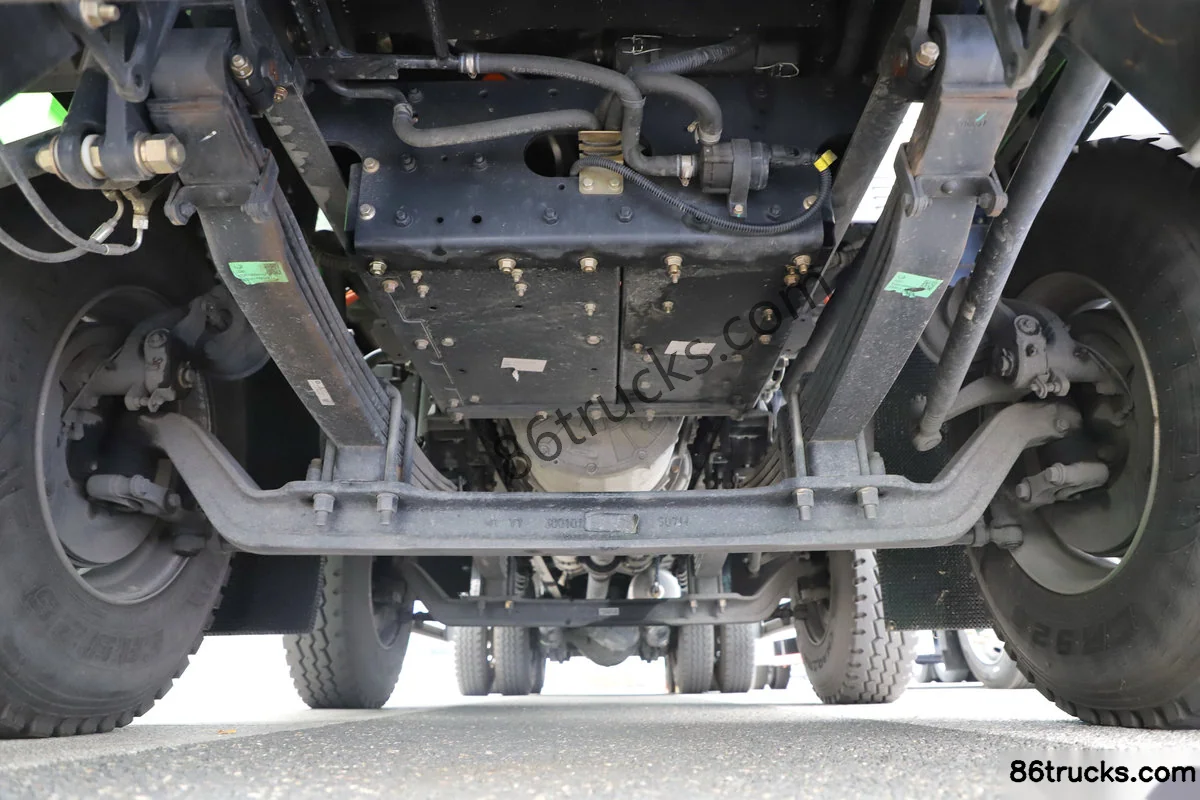

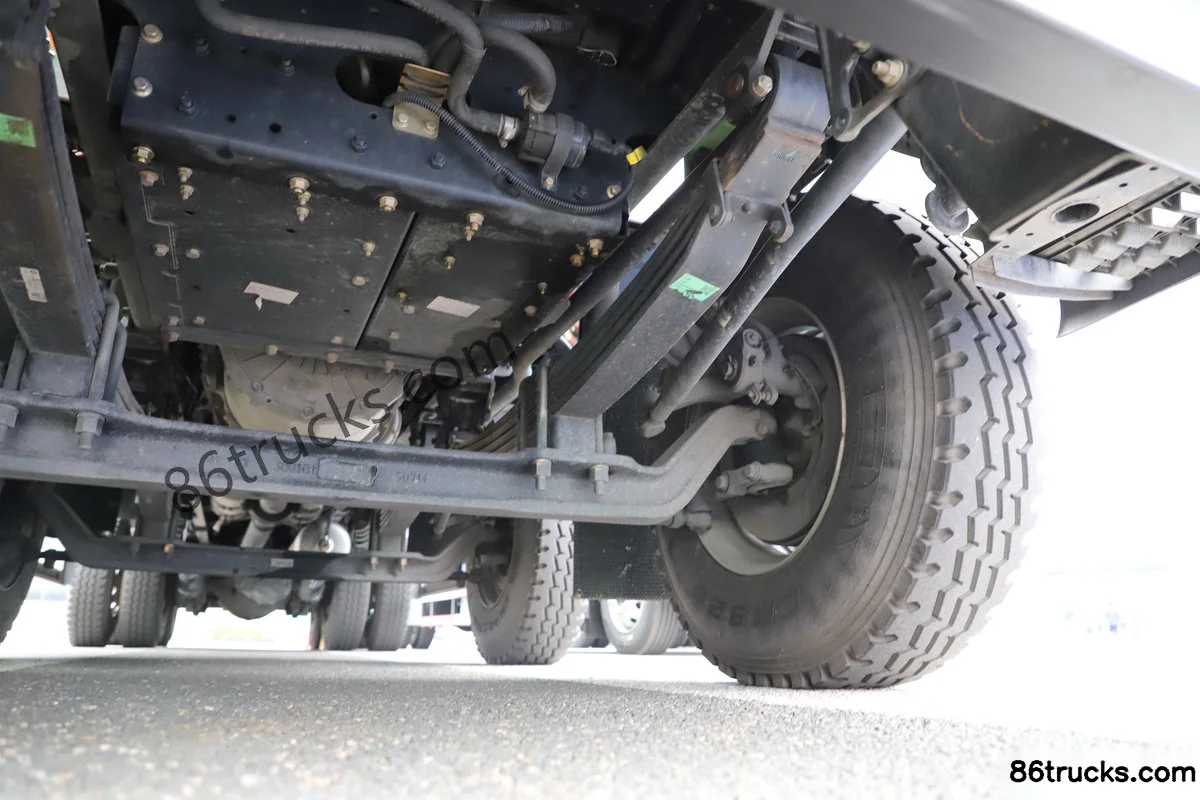

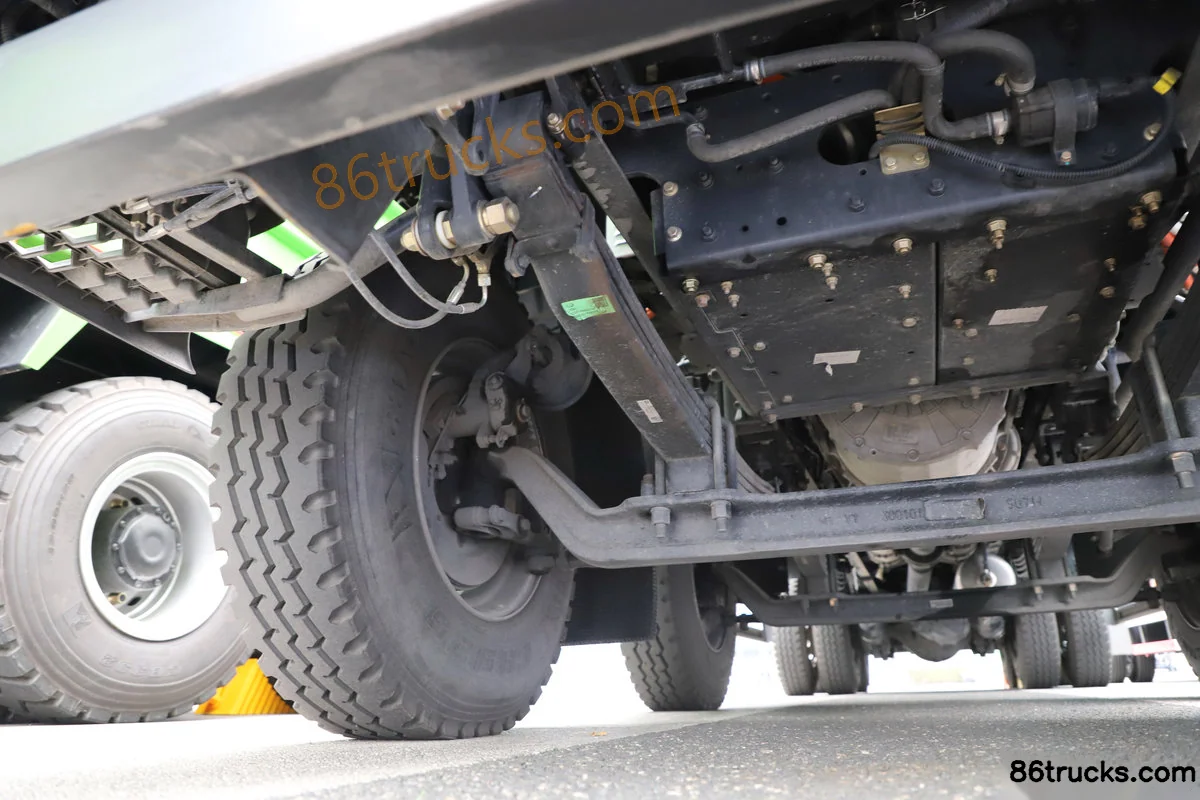

FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Chassis (1) | 86Trucks FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Chassis (2) | 86Trucks FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Chassis (3) | 86Trucks

Body3

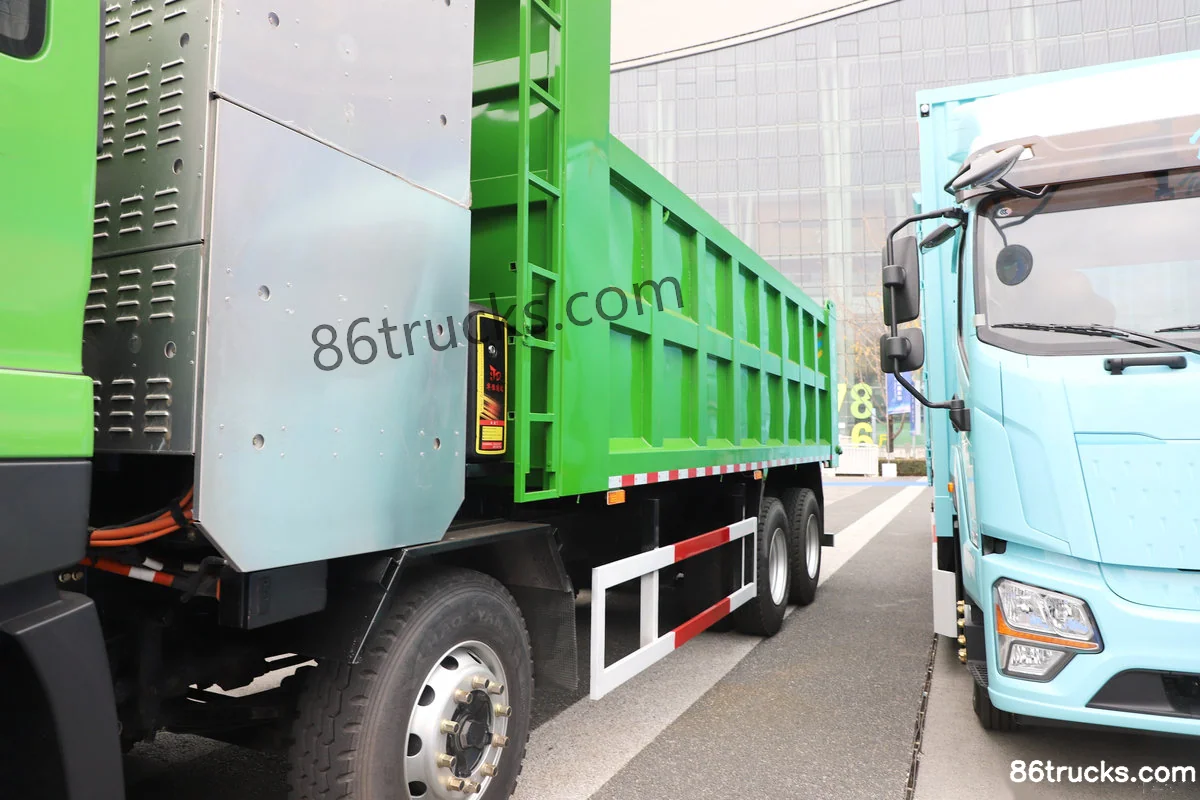

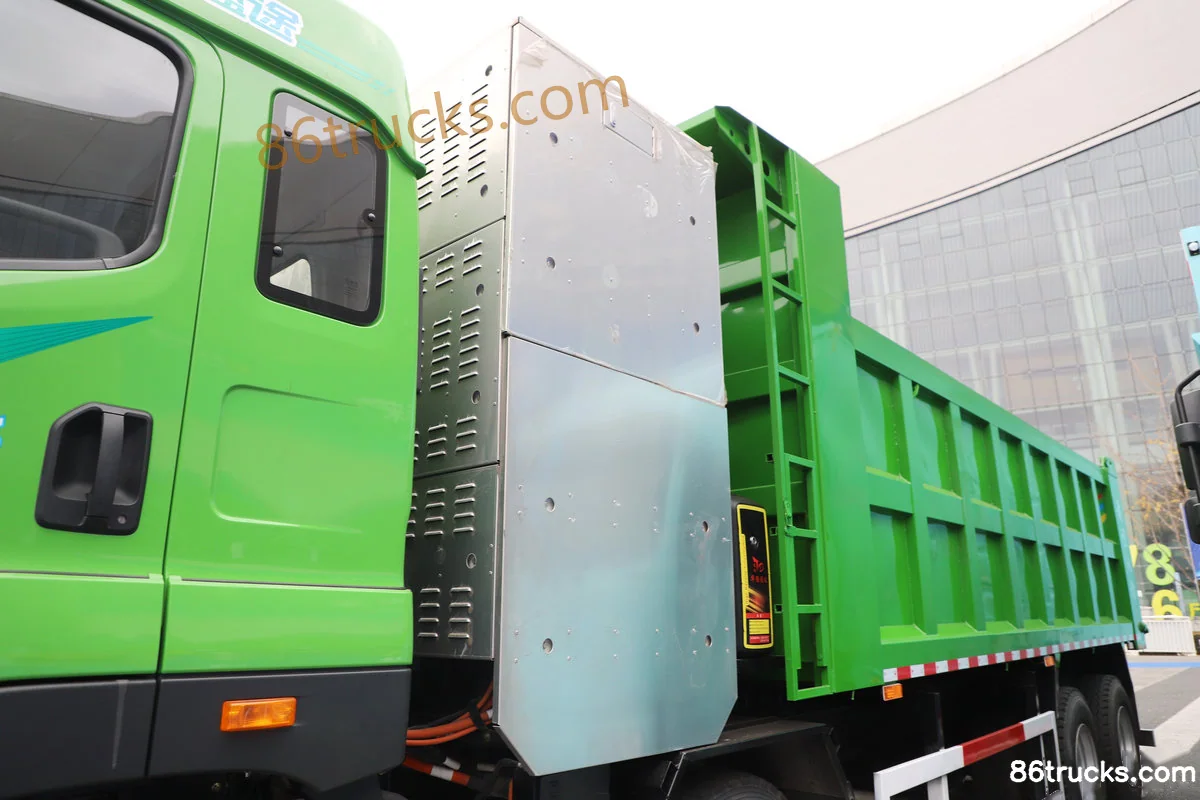

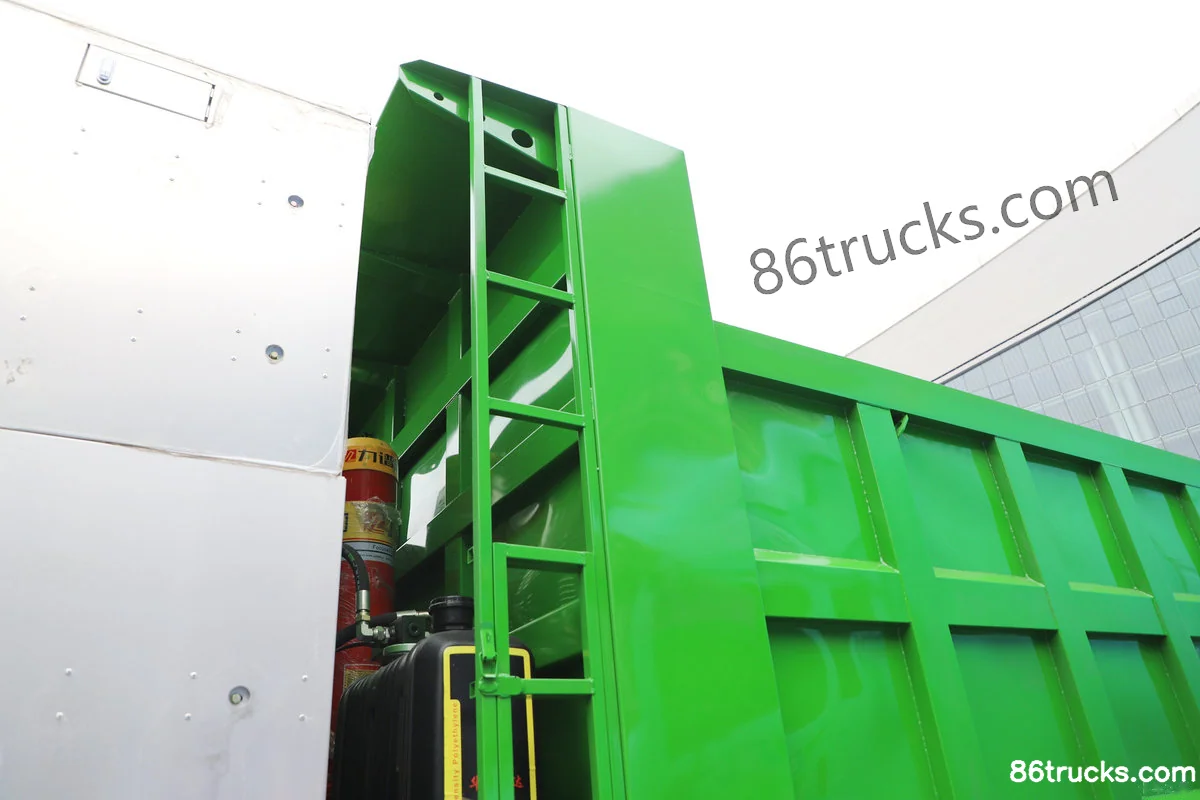

FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Body (1) | 86Trucks FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Body (2) | 86Trucks FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh?

Key specs of FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh suited for?

FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh differ from other variants in the same series?

FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh belongs to FAW Jiefang QingdaoJK6 (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 8X4(12 wheels) 6.5m Electric Dump Truck CATL 350kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
