JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 34.905ton
Wheelbase:: 3500mm
Tire Size:: 11.00R20,12.00R20,12R22.5
Front axle allowable load:: 7000kg
Displacement:: 9.726L
Drive 4X2 (6 wheels)
Horsepower 310
Emission China V
Transmission Fast Gear

Overview

The JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof) is a Heavy truck featuring 4X2 (6 wheels) drive, 310 hp, 18t GVW and China V emissions. On the powertrain side, it comes with a SinotrukD10.31-50 engine, Fast Gear transmission and Diesel fuel.

China V 310 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4181P1K4A35S4V
Drive type: 4X2
Wheelbase: 3500mm
engine: SinotrukD10.31-50
transmission: Fast Gear10JSD140
Rear Axle Ratio: 4.03
Cab length: 5.975m
Cab width: 2.5m
Cab height: 3.72m
Front track width: 2040mm
Gross Trailer Weight: 34.905ton
rear track: 1870mm
Curb Weight: 6.9ton
GVWR: 18ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukD10.31-50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1390N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear10JSD140
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring
Fifth wheel: 50#,90#
Front axle allowable load: 7000kg
Frame Dimensions: 280×80×(8+5)mm
rear axle description: Anben
rear axle allowable load: 11000kg
Axle ratio: 4.03
Leaf spring count: 3/11+9,10/11+9,3/4+3
Tire
Tire Size: 11.00R20,12.00R20,12R22.5
Number of tires: 6pcs

Photos

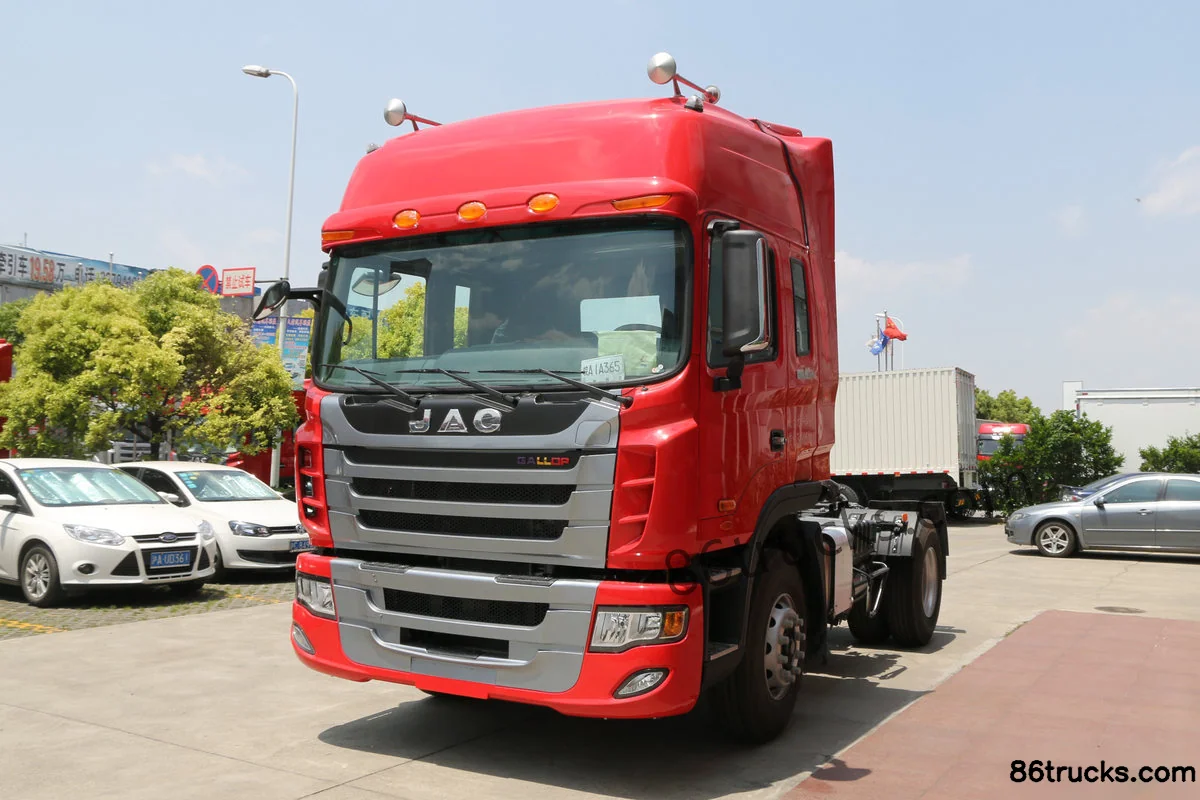

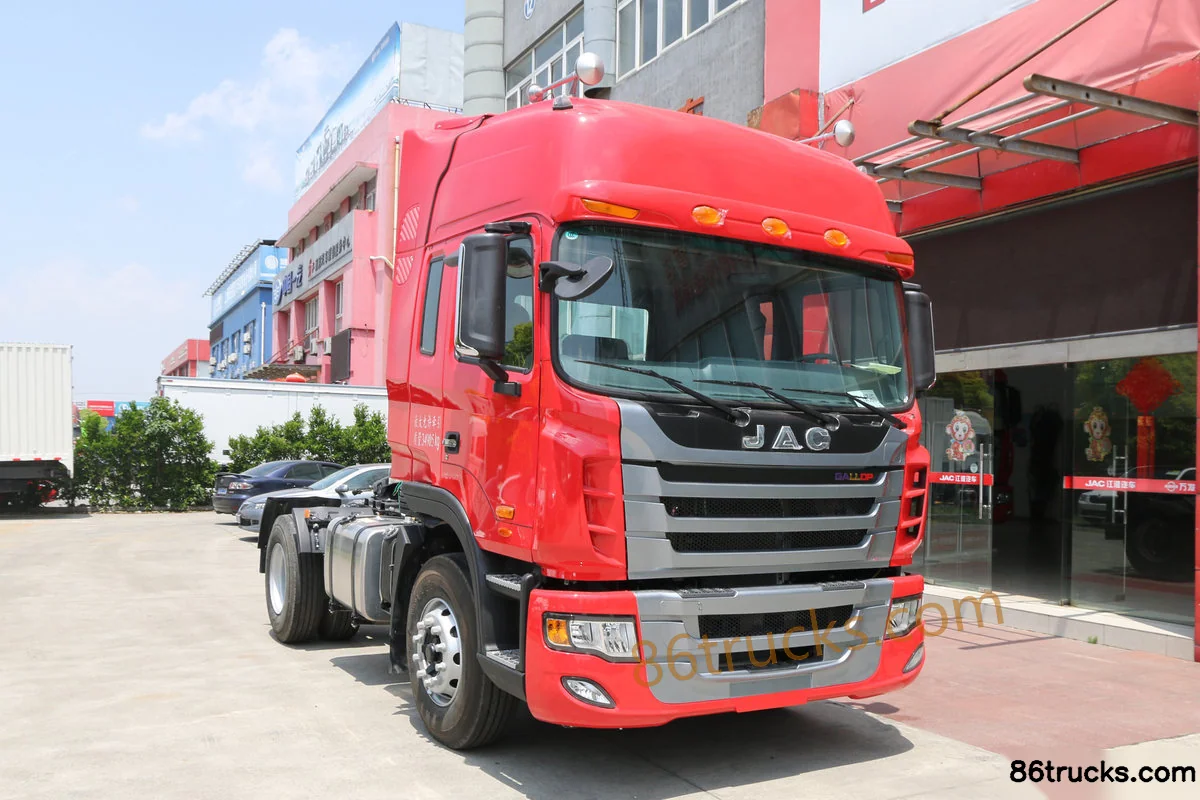

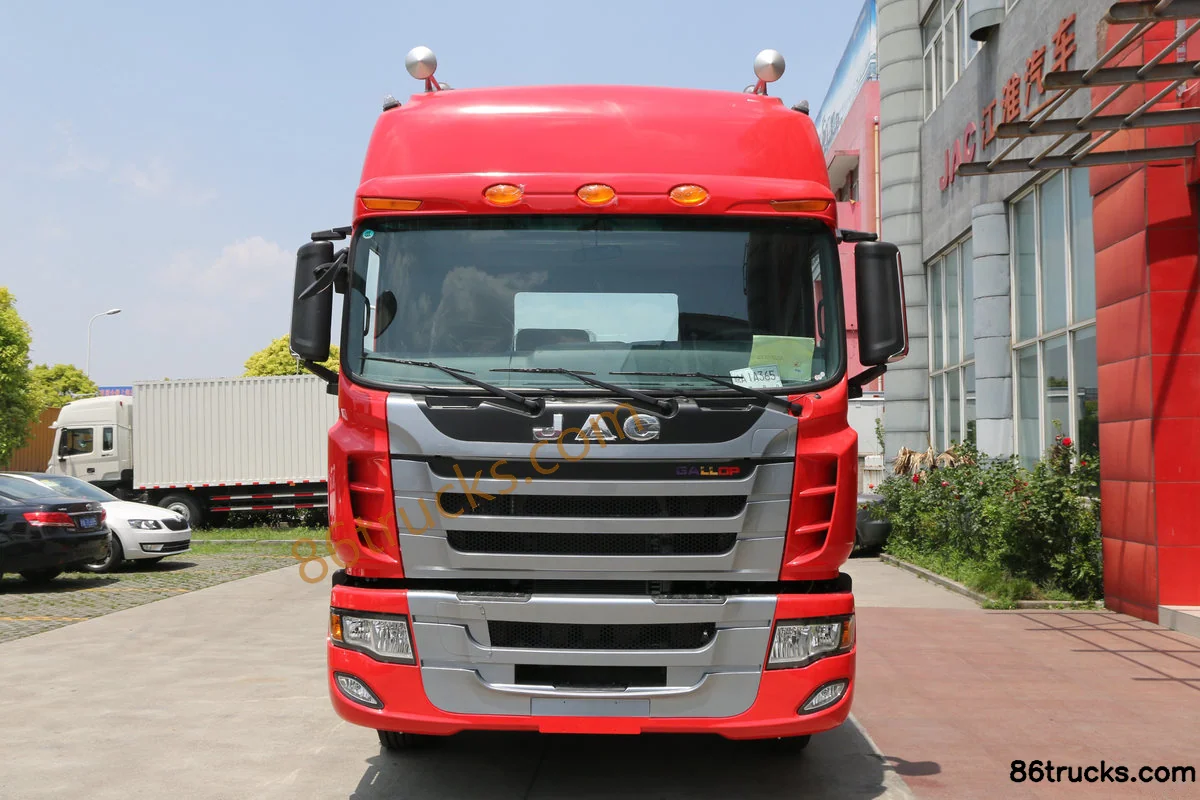

Exterior3

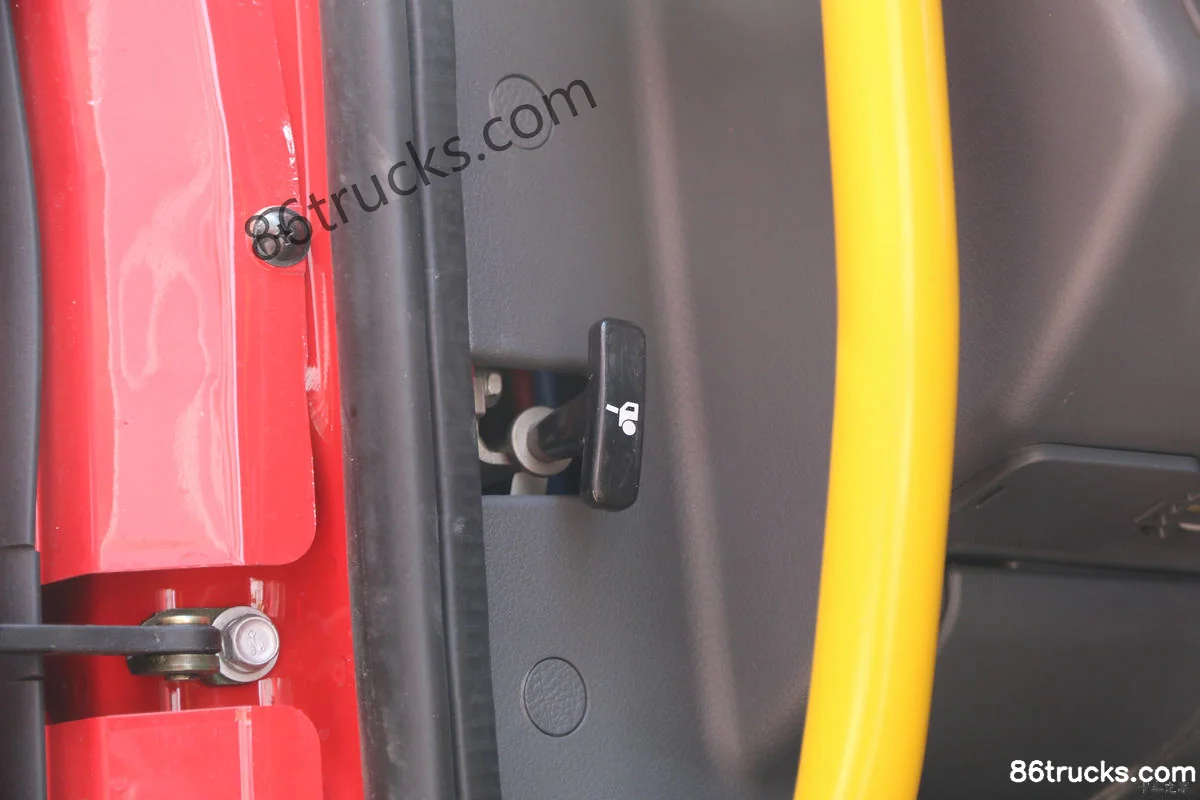

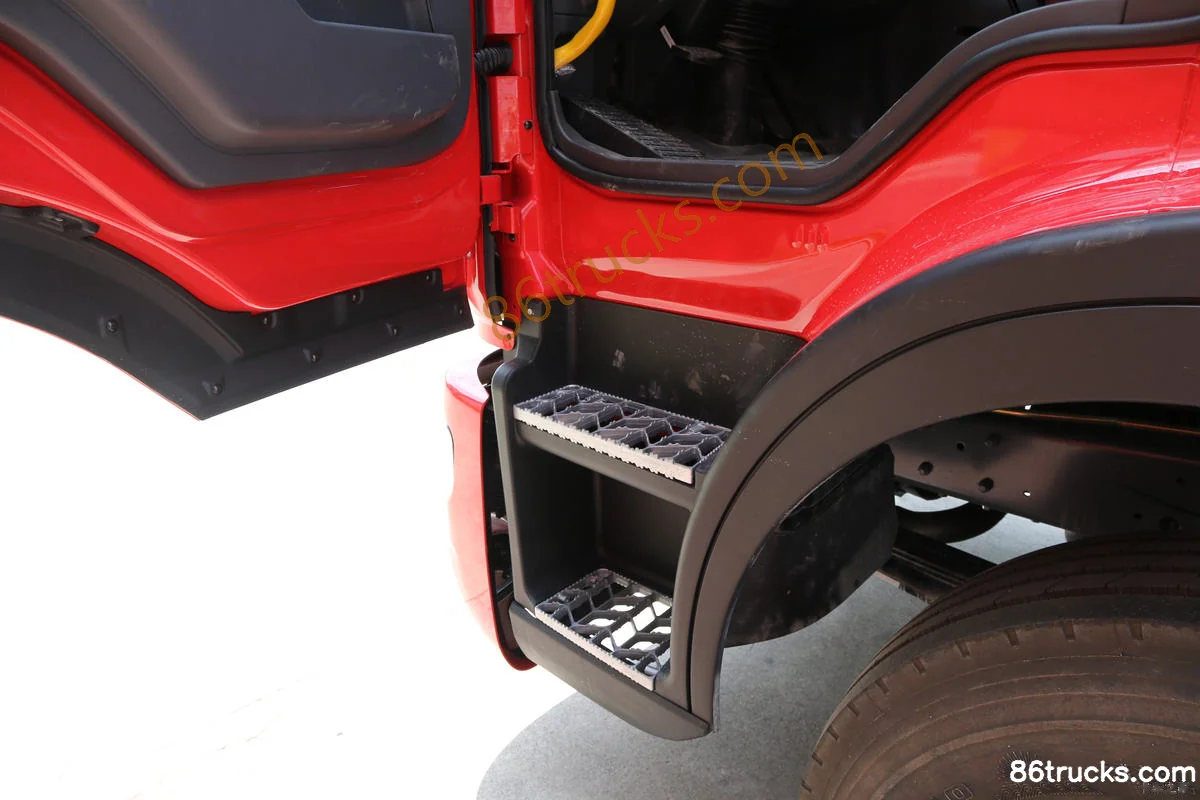

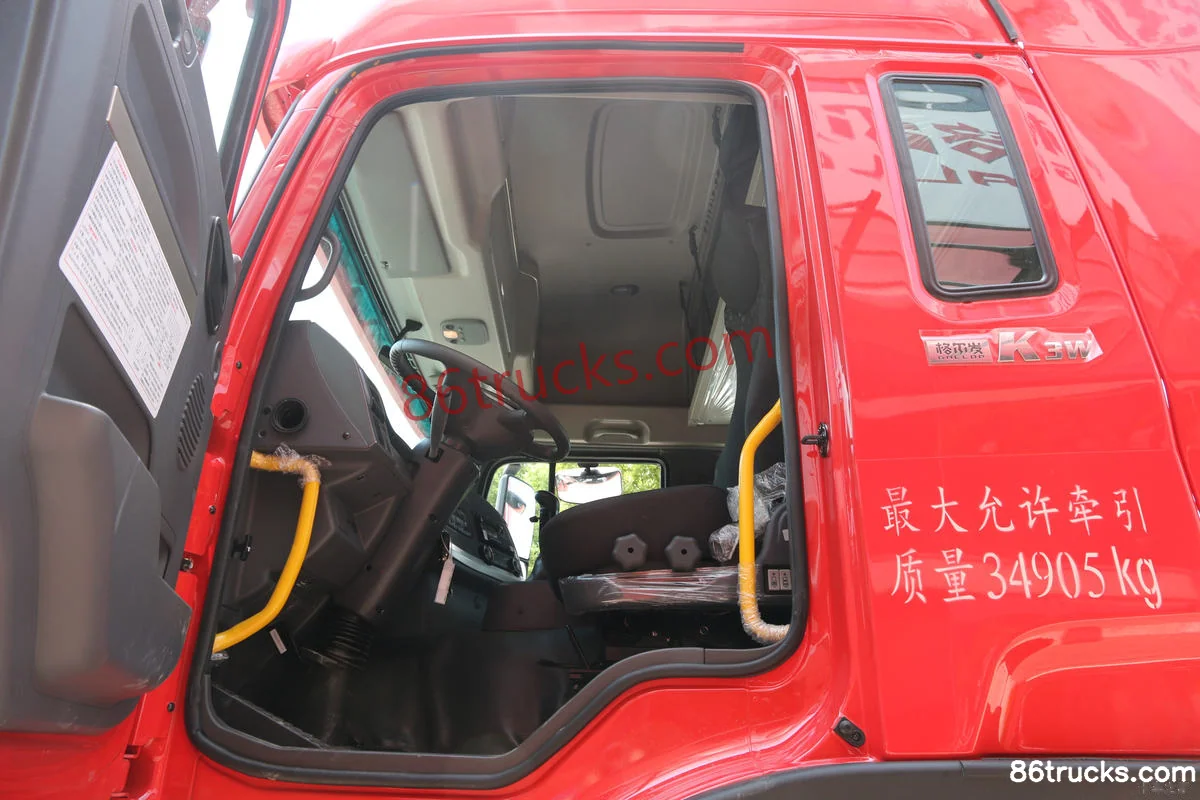

Cab3

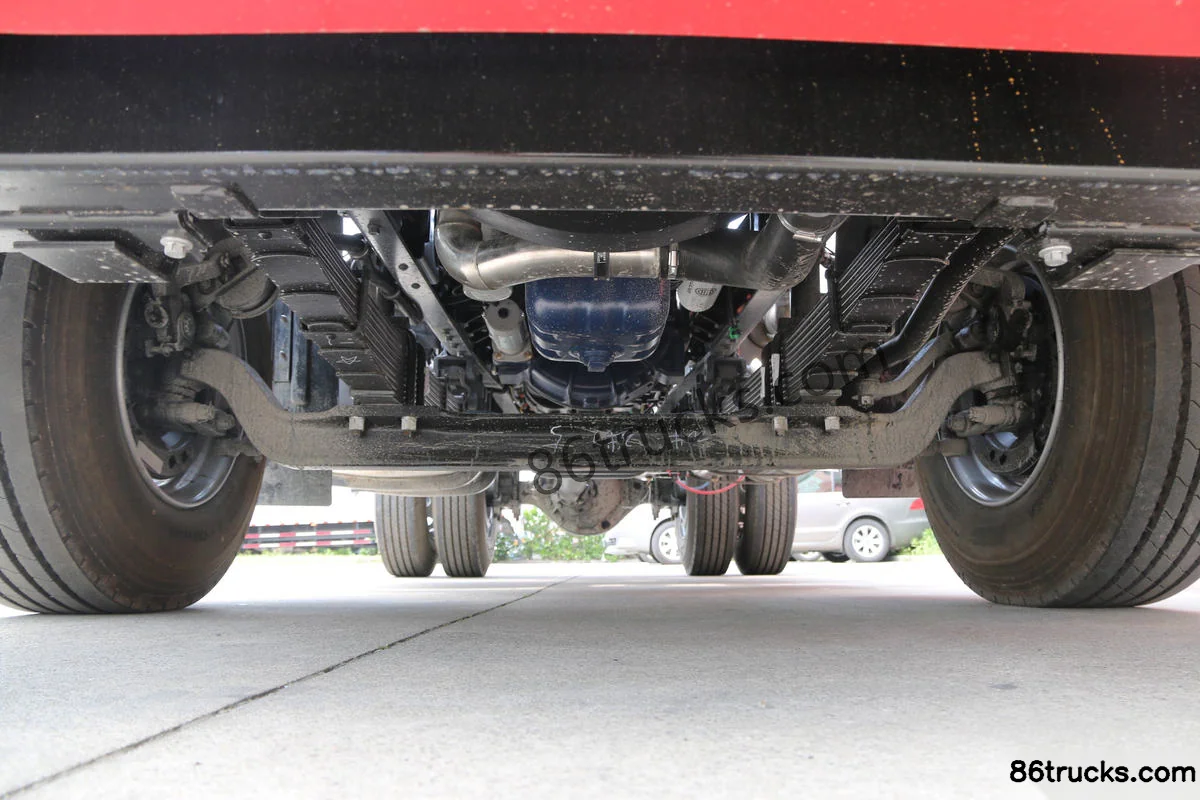

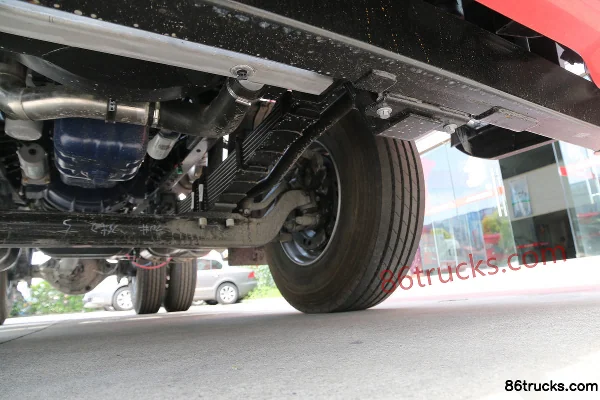

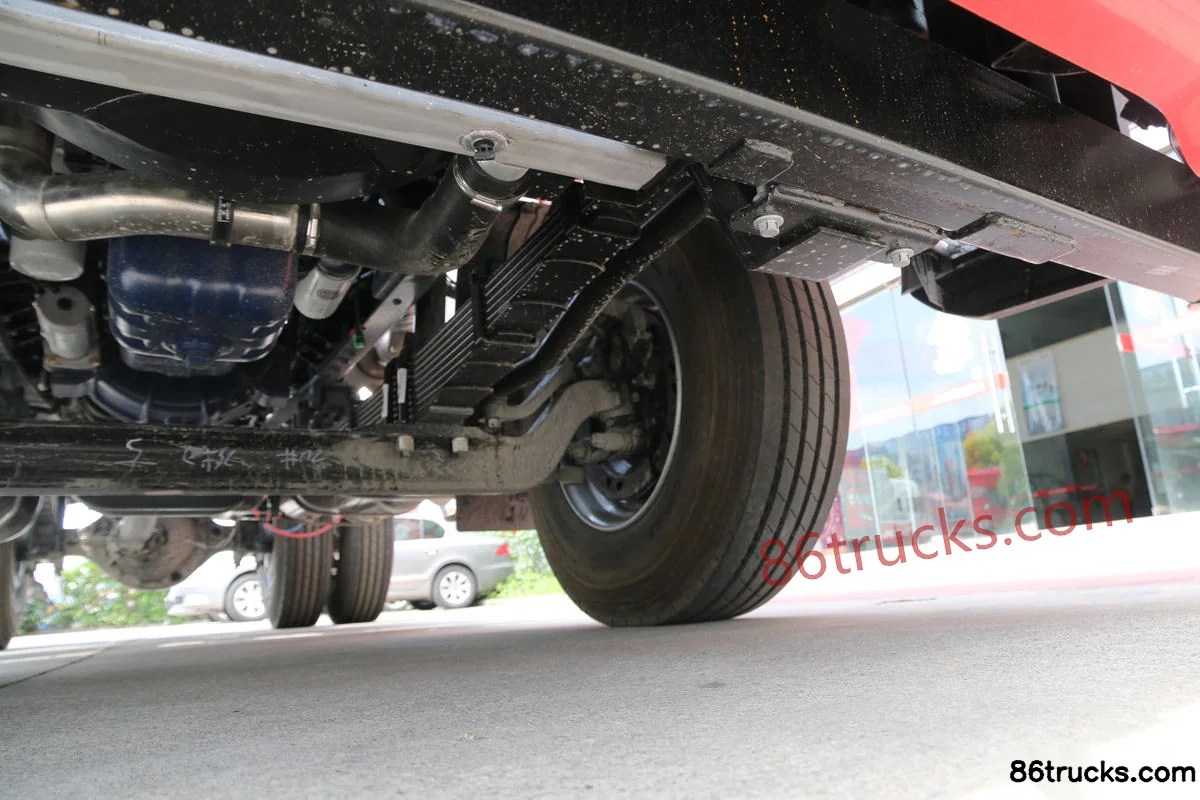

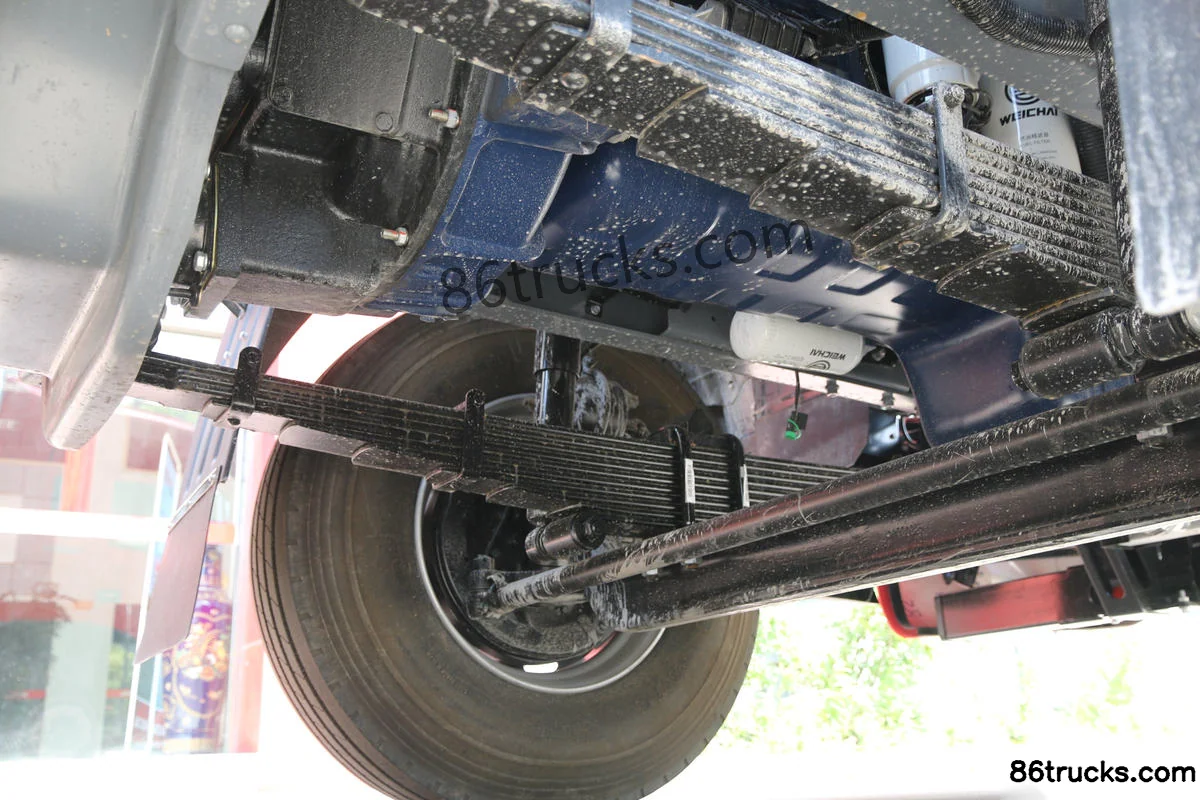

Chassis3

9 photos

FAQ

What emission standard does JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof)?

Key specs of JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof): Drive: 4x2; Horsepower: 310 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof) suited for?

JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof) differ from other variants in the same series?

JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof) belongs to JAC Gallop K3 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3W Heavy Truck Standard Load Edition 310 hp 4X2(6 wheels) Tractor Truck (High Roof)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
