Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck

Export reference
MSRP N/A
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: Yuchai6.5L
Transmission: Fast Gear
Curb Weight:: 9.815ton
seating capacity: 3Personnel
Rated payload: 14.99ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck is a Medium-duty truck featuring 9.6m cargo length, Stake type cargo body, 3Personnel volume and 14.99t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai6.5L engine, 220 hp, 6X2 (8 wheels) drive and China V emissions.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5200XYKM3CB
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1800+5600mm
Box length class: 9.6m
engine: YuchaiYC6J220-50
transmission: Fast Gear 8-speed
Rear Axle Ratio: 4.44
Cab length: 11.995m
Cab width: 2.5m
Cab height: 3.995m
Front track width: 2040/2040mm
rear track: 1860mm
Curb Weight: 9.815ton
Rated payload: 14.99ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 13°
market segment: Agricultural product transport, green channel, industrial product transport
Remarks: Leather seats, metallic paint, WABCO valves, external sun visor
Front/rear suspension: 1.445/3.15m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J220-50
Engine info: Yuchai6.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.494L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection
Technology route: BOSCH high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.42m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle allowable load: 6750/6750kg
rear axle description: 13T
Steering gear: Domestic
rear axle allowable load: 11500kg
Axle ratio: 4.44
Leaf spring count: 10/10/12+9
clutch: Φ395
Tire
Tire Size: 12R22.5
Number of tires: 8pcs
Control configuration
ABS:
Multimedia features
GPS/Beidou driving recorder:

Photos

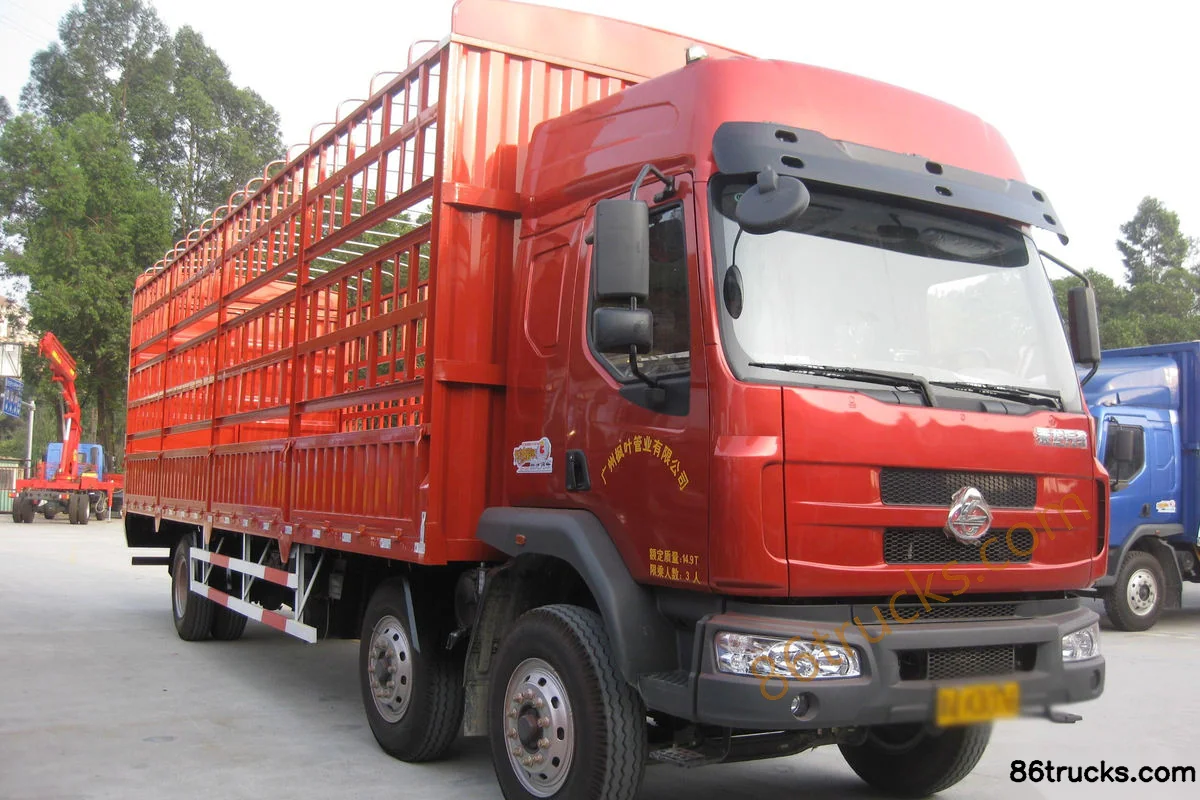

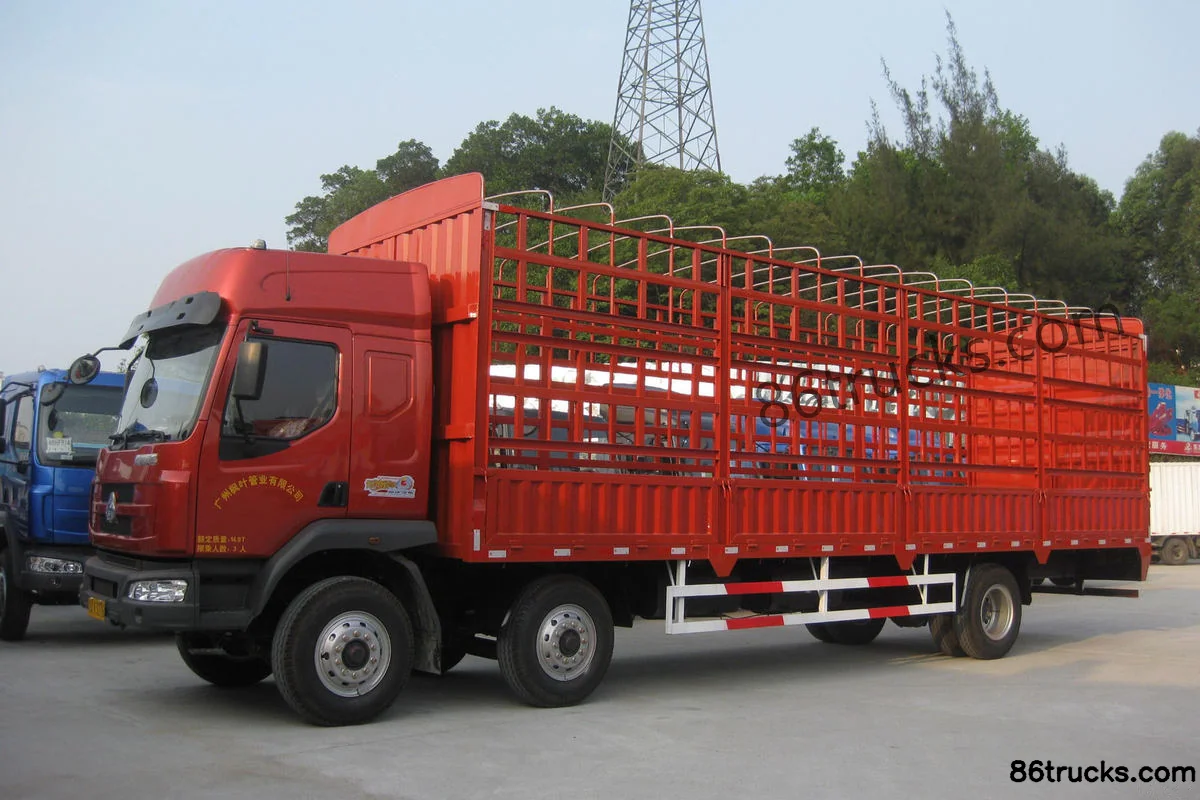

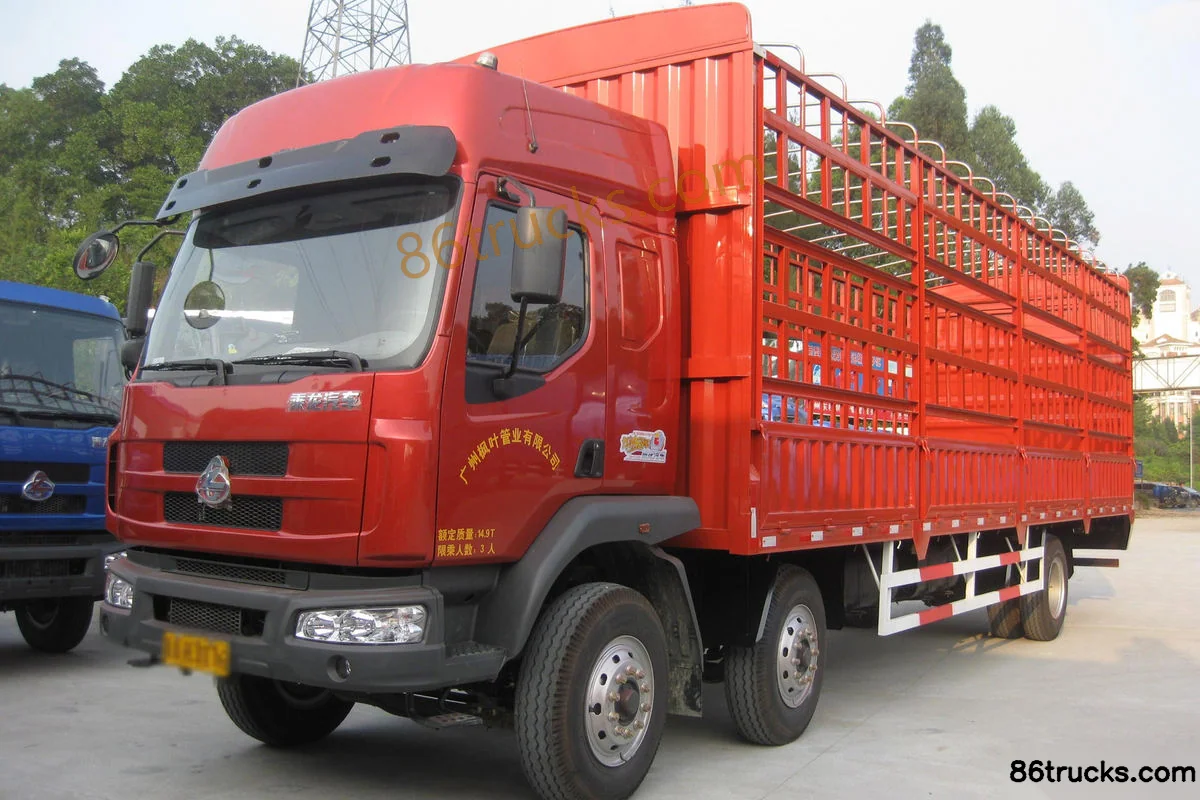

Exterior3

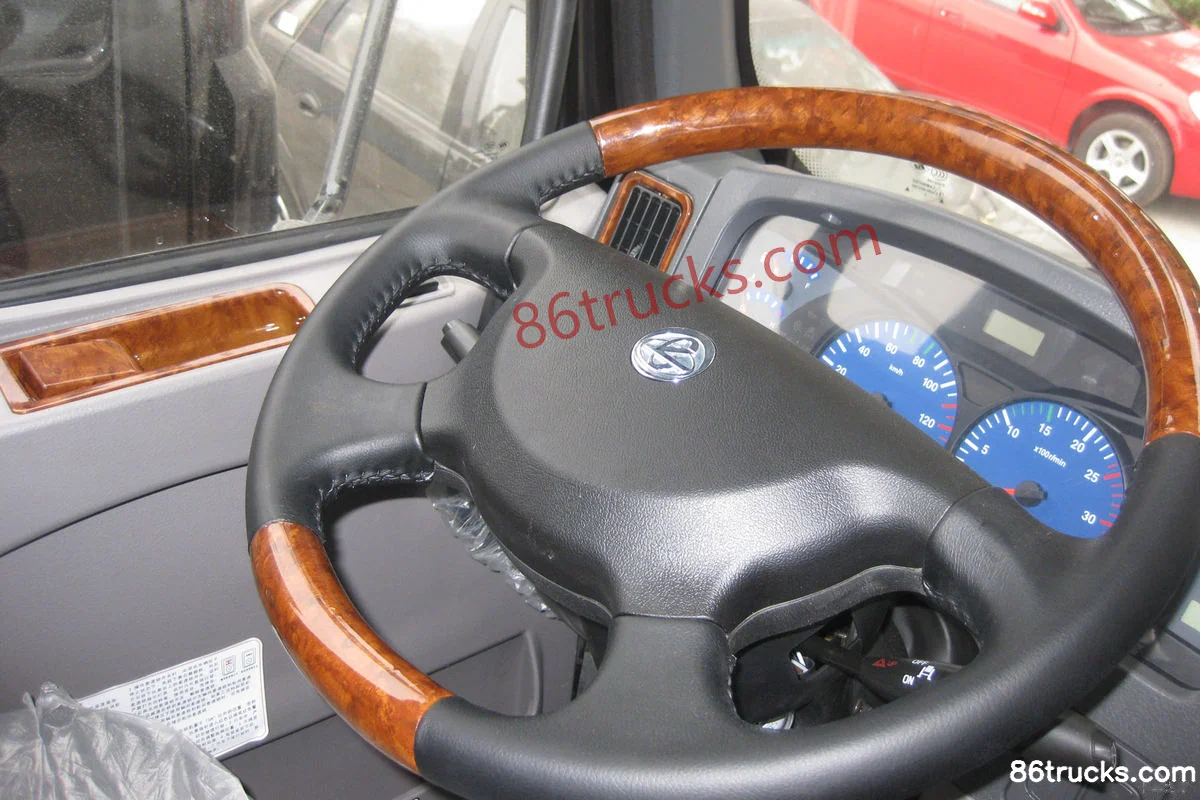

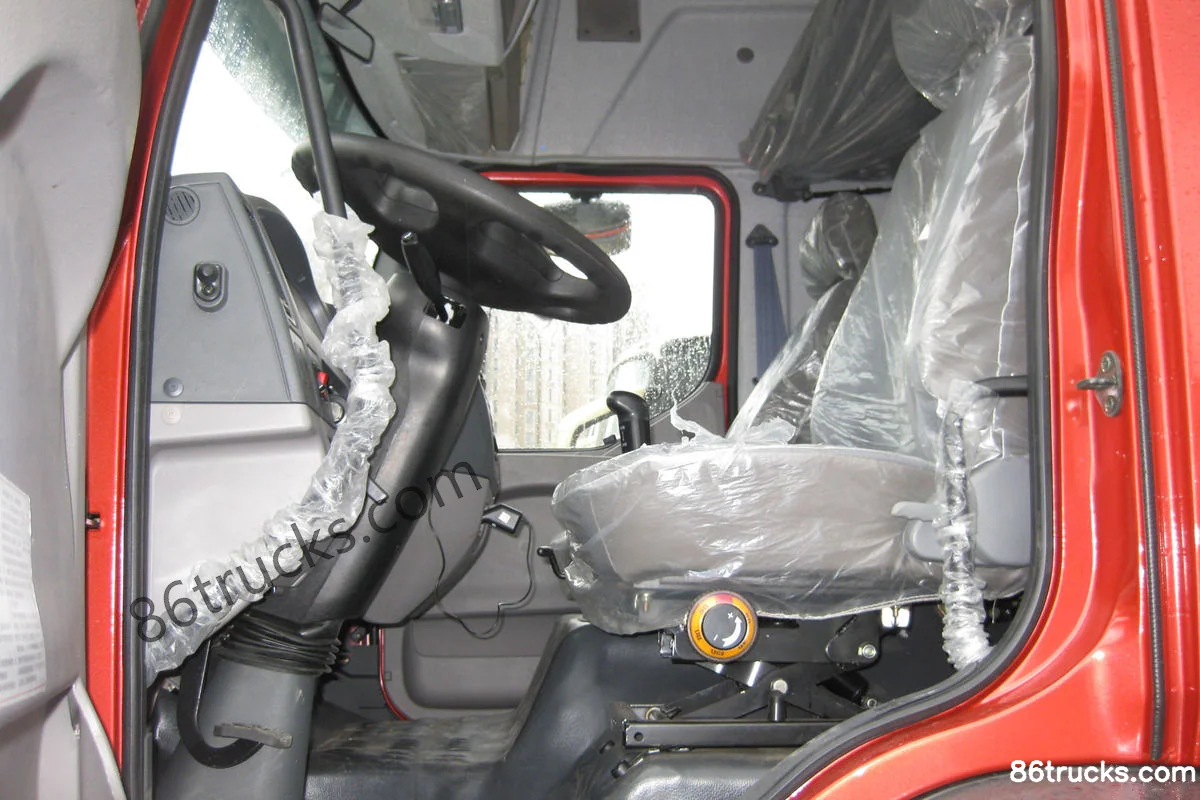

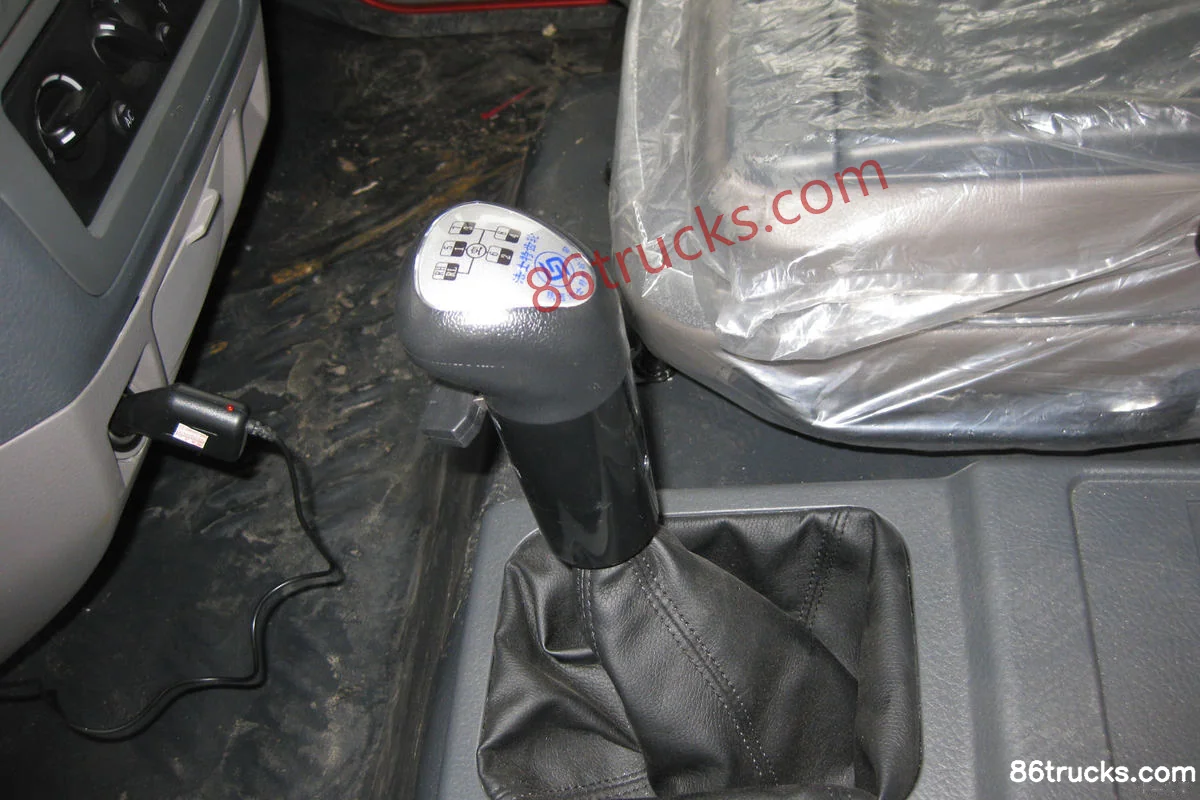

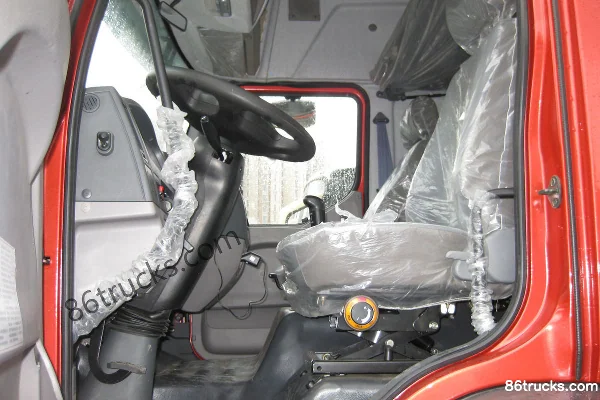

Cab3

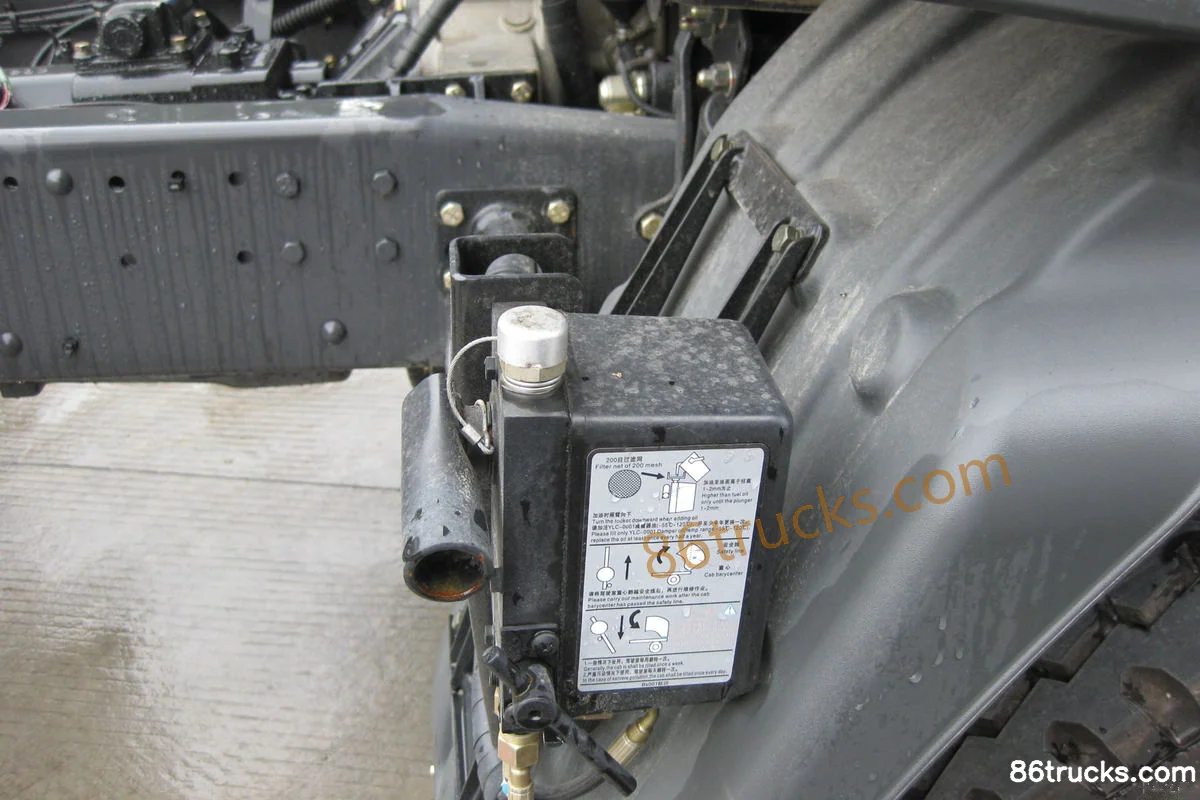

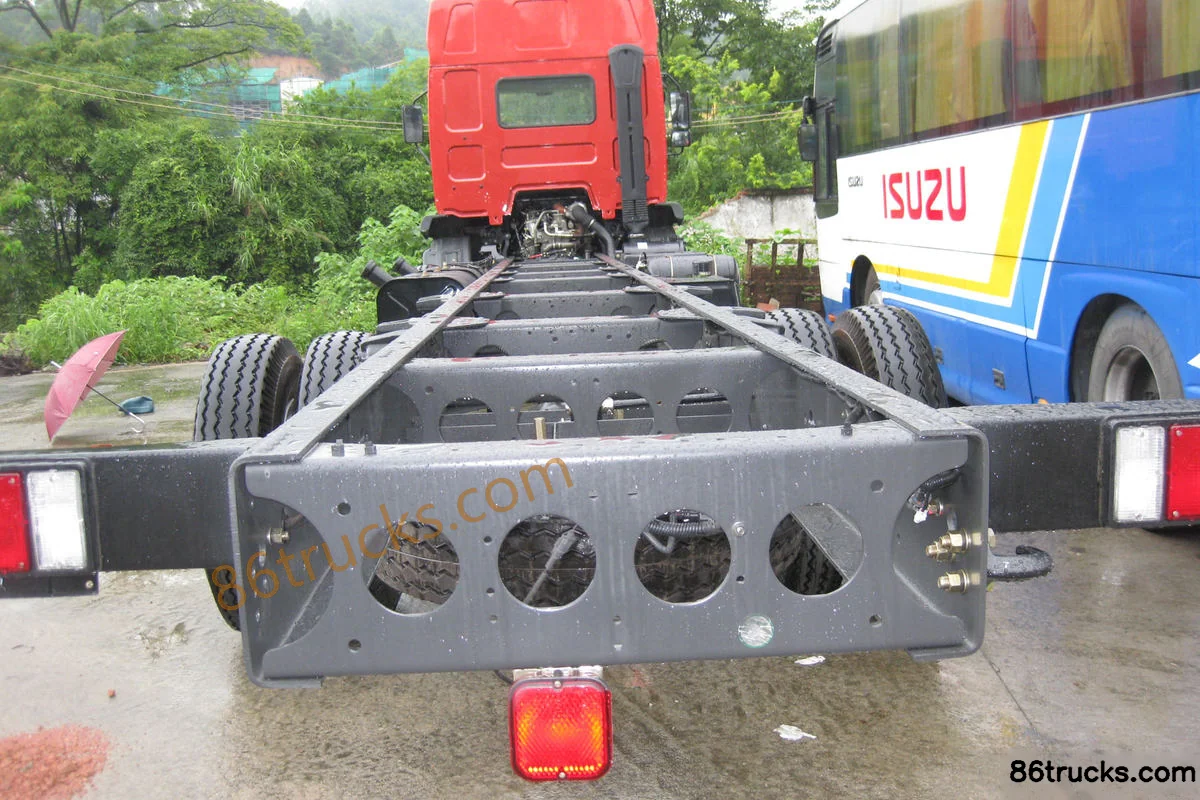

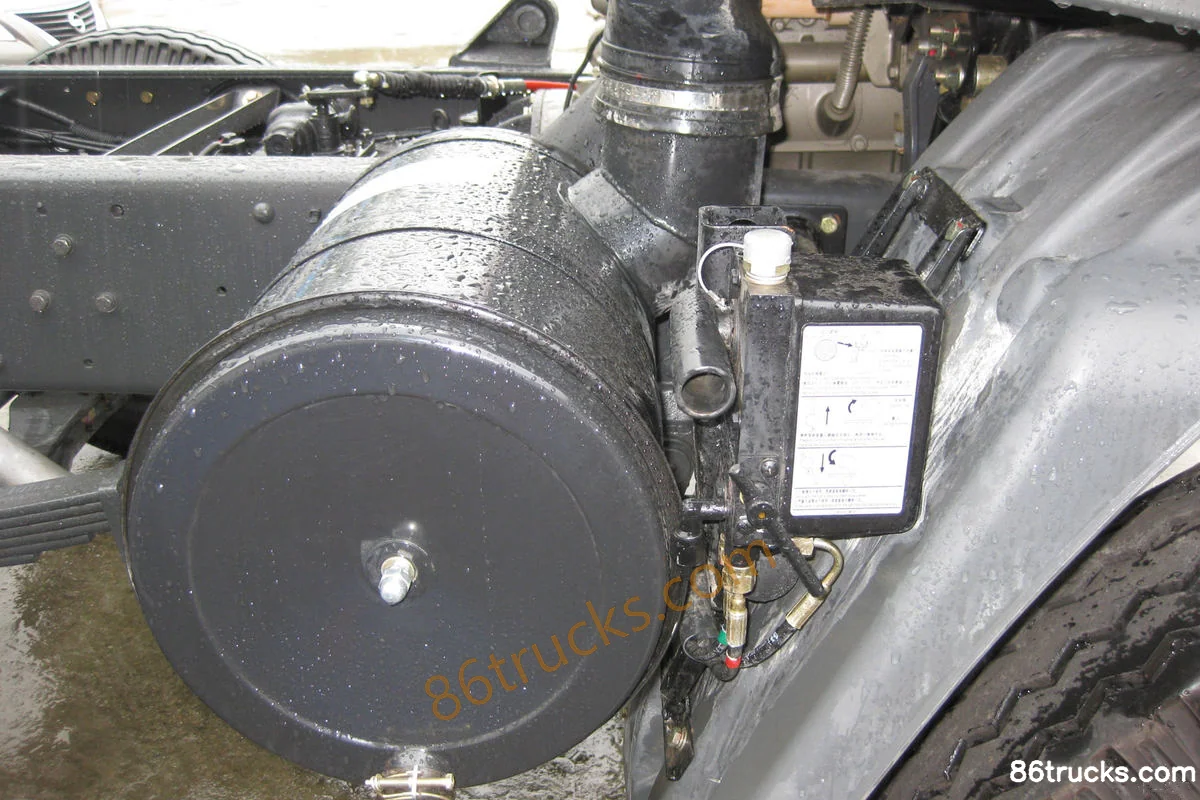

Chassis3

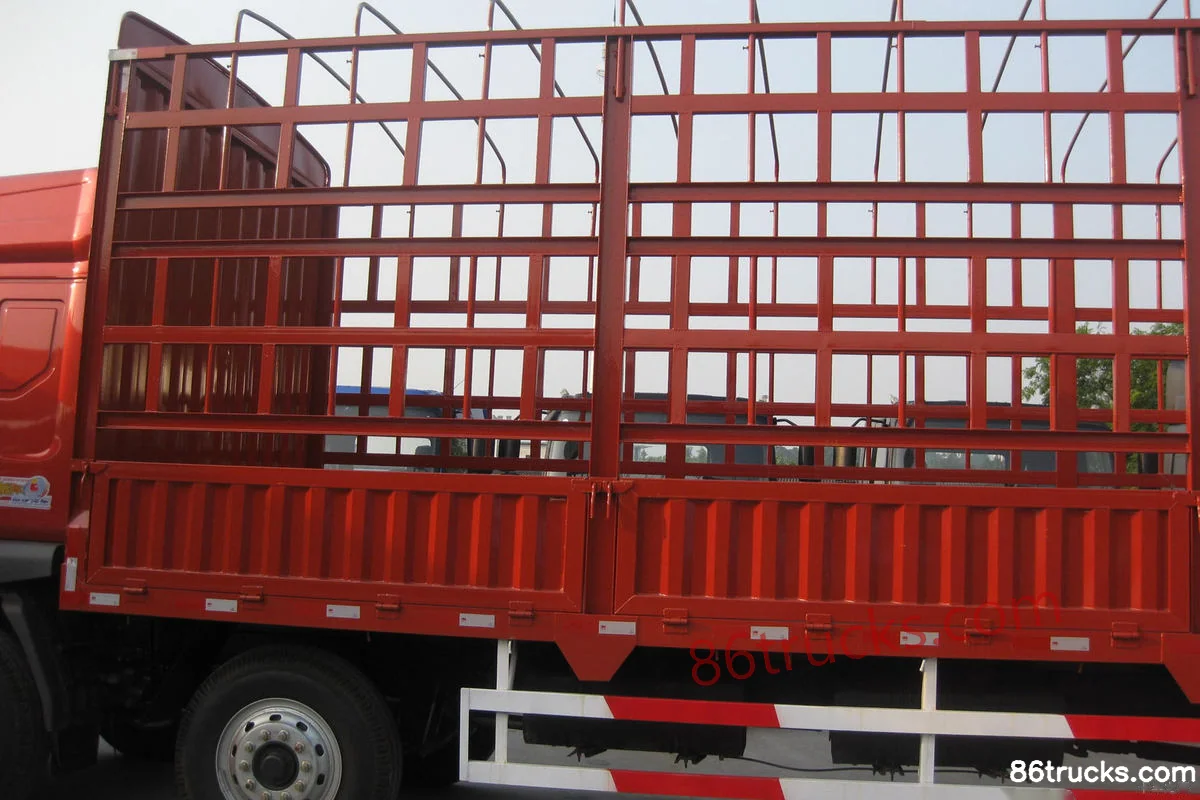

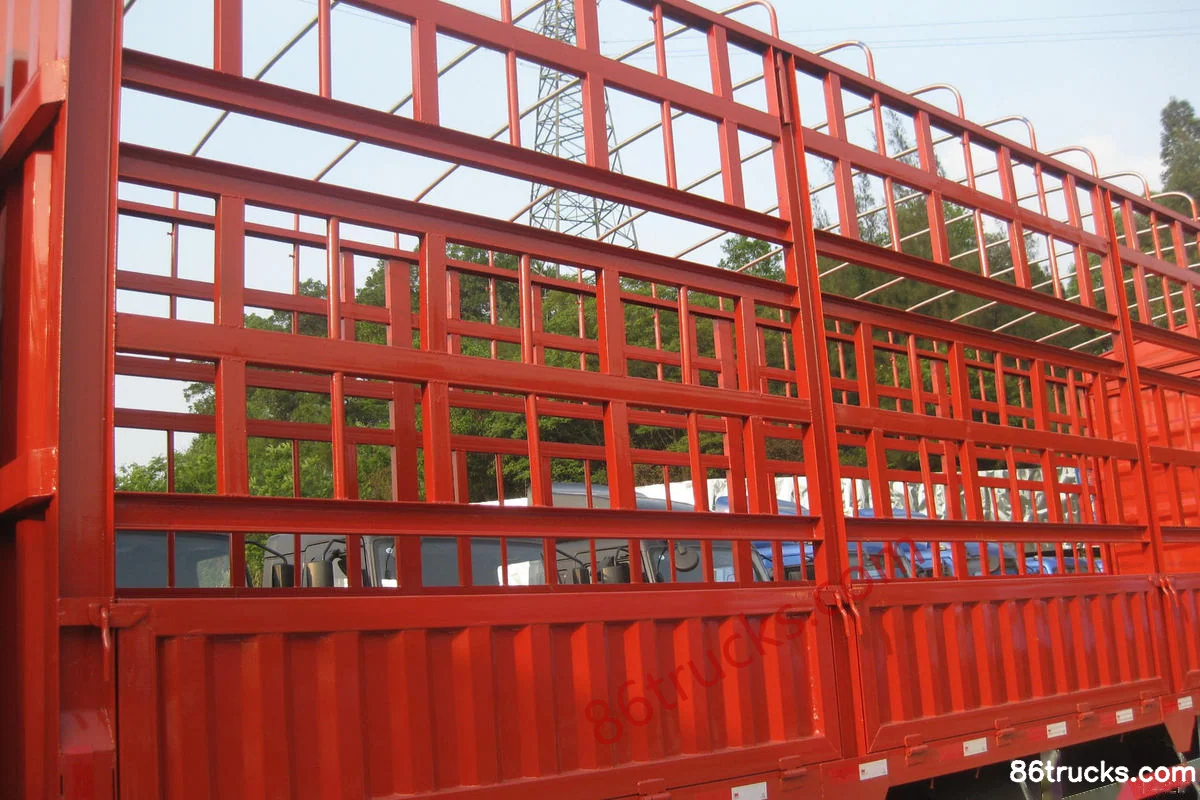

Body2

11 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck?

Key specs of Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai6.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck suited for?

Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck belongs to Dongfeng M3 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong M3 Medium Truck 220 hp 6X2(8 wheels) 9.6m Cage Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
