Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels)

Export reference
From $37,222
MSRP ¥26.8M CNY
Rated payload:: 1.195ton
Wheelbase:: 3300mm
Cargo box width:: 2.1m
Model code (announced):: STQ5049XLCNBEV6
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 340km
Motor 1 Brand: Fast Gear
Curb Weight: 3.17ton

Overview

The Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring 340km battery/range, Fast Gear motor, 4X2 (6 wheels) drive and 1.195t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ5049XLCNBEV6
Drive type: 4X2
Wheelbase: 3300mm
Cab length: 5.995m
Cab width: 2.28m
Cab height: 3.22m
CLTC range: 340km
Curb Weight: 3.17ton
Rated payload: 1.195ton
GVWR: 4.495ton
Max. speed: 80km/h
Origin: Shiyan, Hubei
Energy Type: Electric
electric motor
Motor 1 Brand: Fast Gear
Motor 1 Model: TZ260XSSFZ03
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 120kW
Battery/Charging
Battery Brand: Guoxuan High-Tech
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 96.76kWh
Energy Density: 130.33
Chassis Specs
Chassis Series: Chuangke
Chassis Model: STQ1049L02Y1NBEV6
Leaf spring count: 8/10+7
Cargo box parameters
Cargo box width: 2.1m
Cargo box height: 2.05m
Tire
Tire Size: 6.50R16LT 12PR,7.00R16LT 10PR
Number of tires: 6pcs

Photos

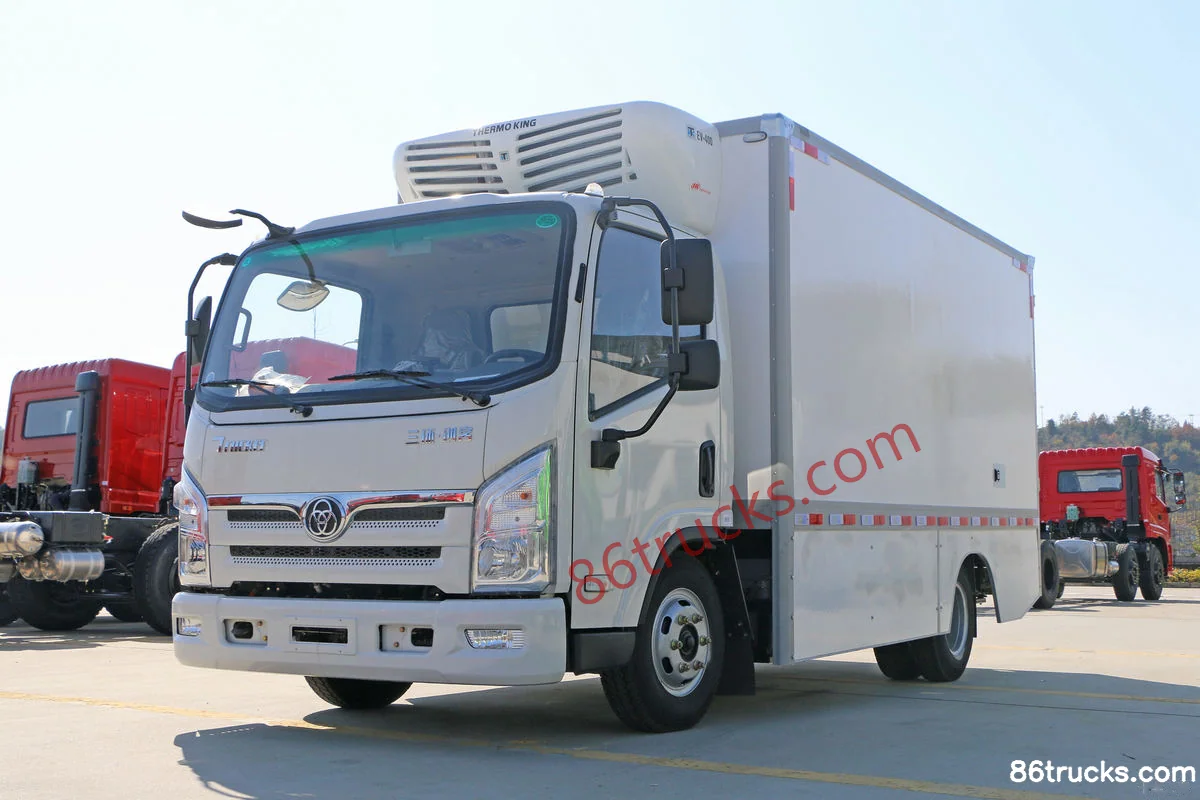

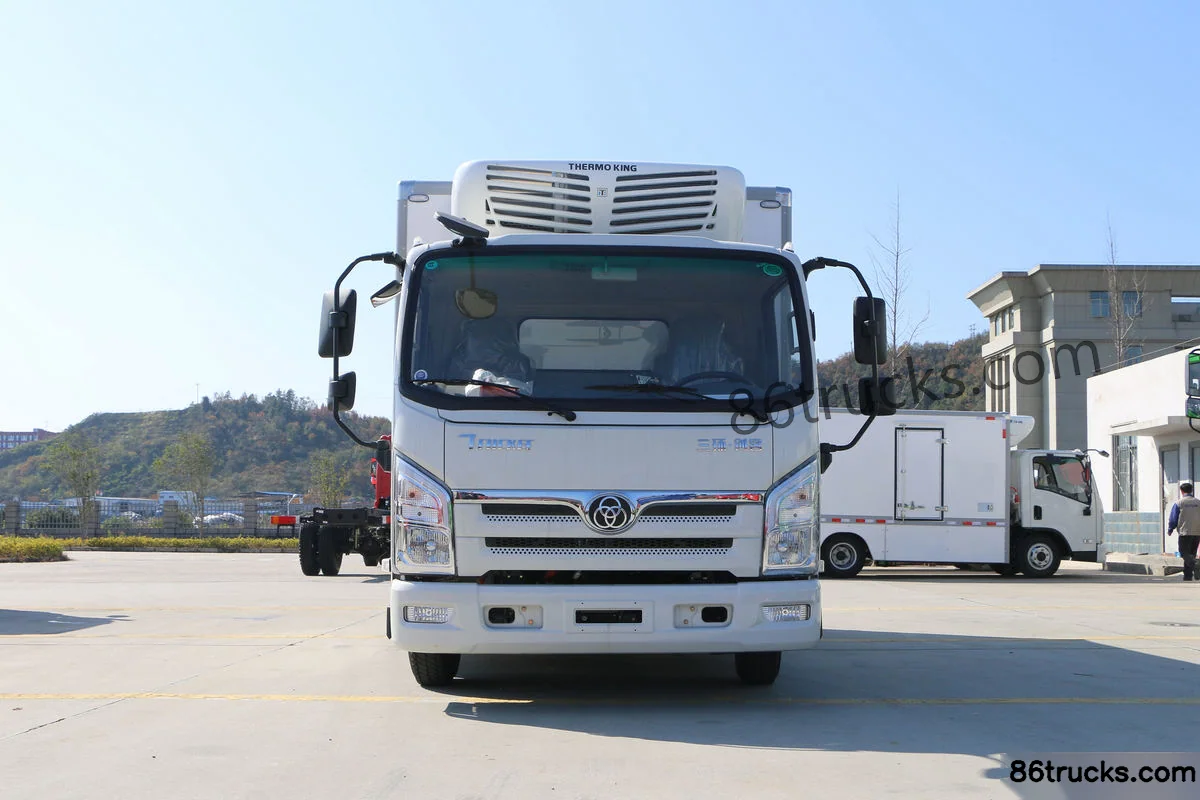

Exterior3

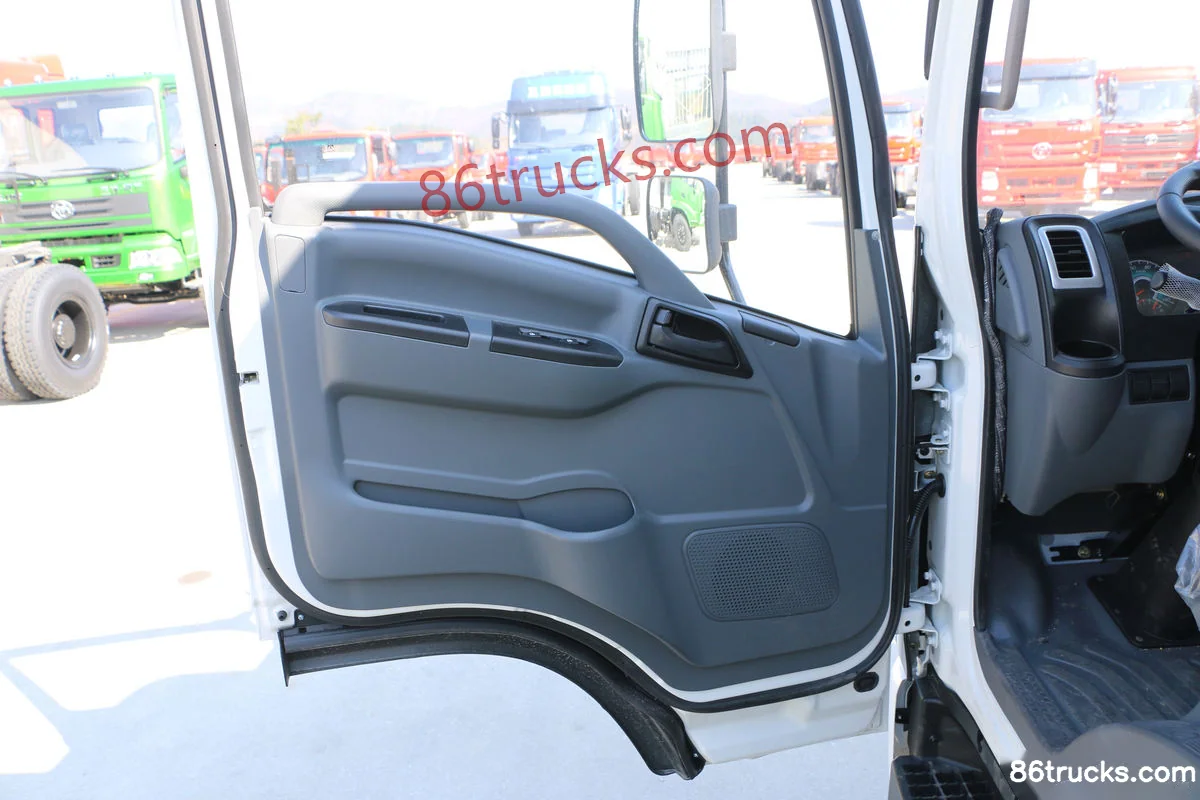

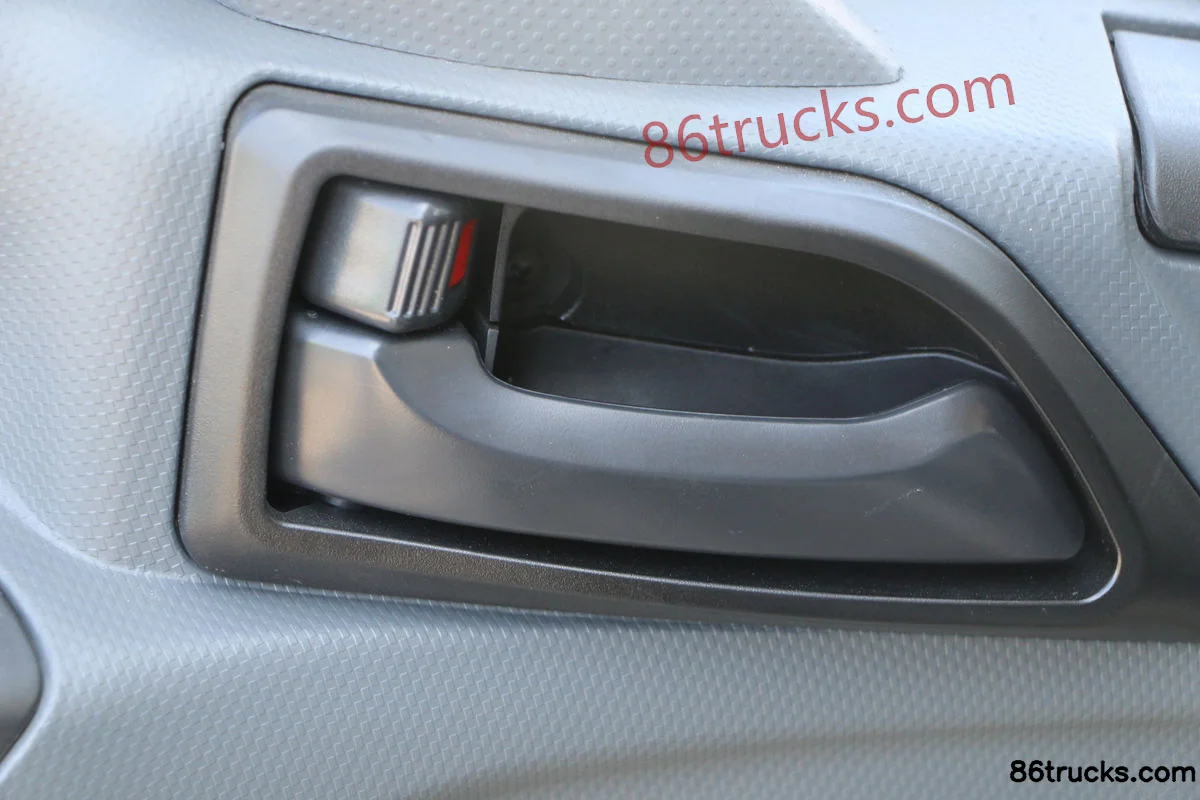

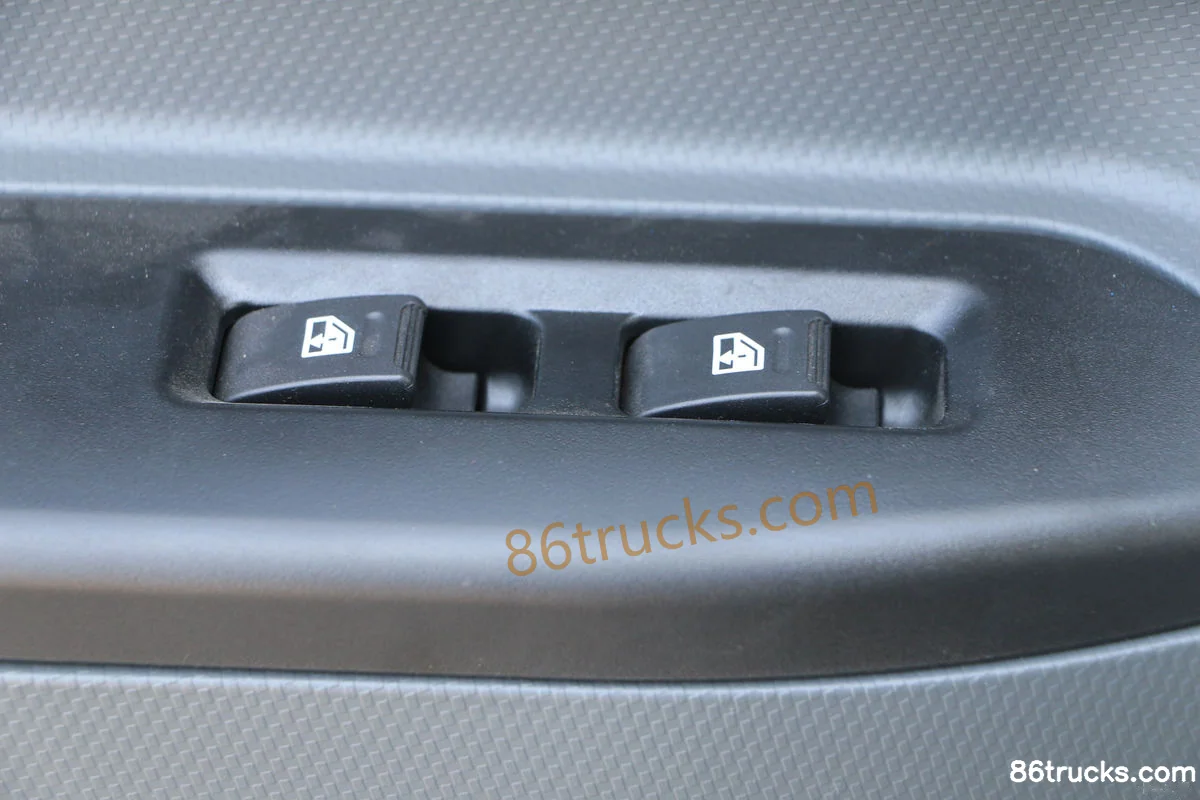

Cab3

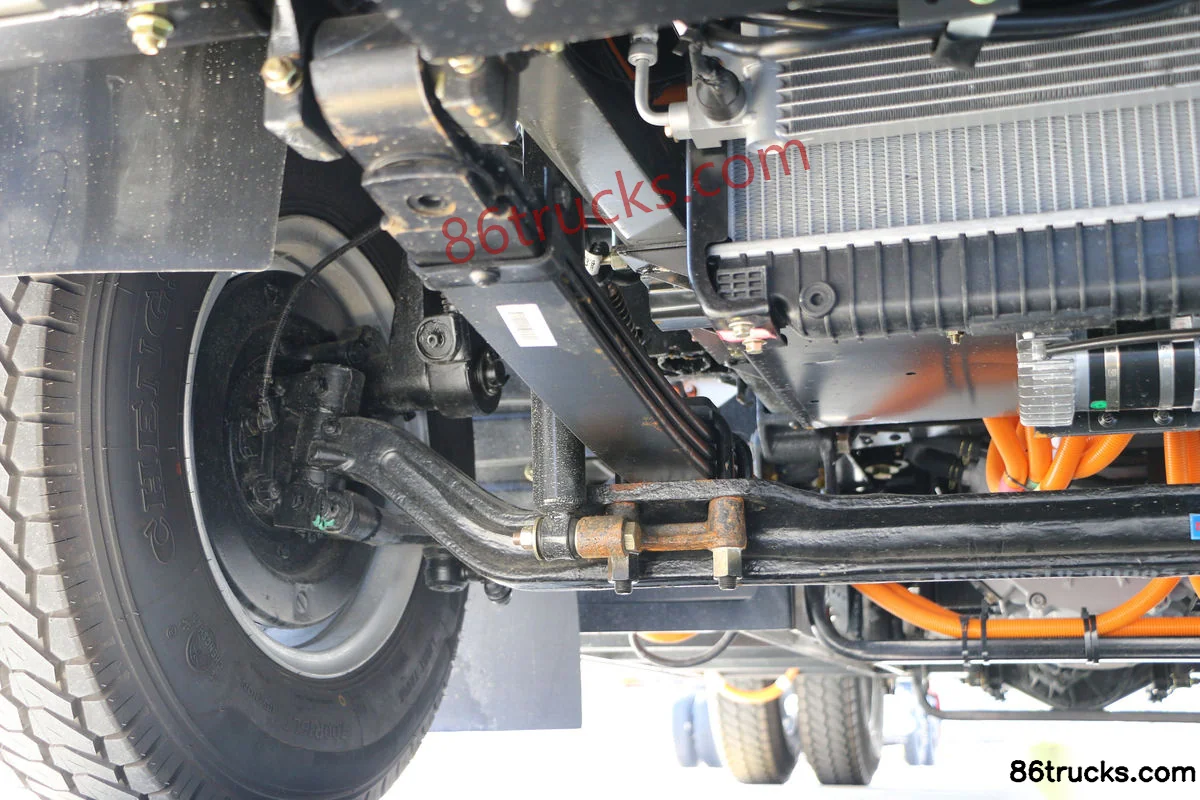

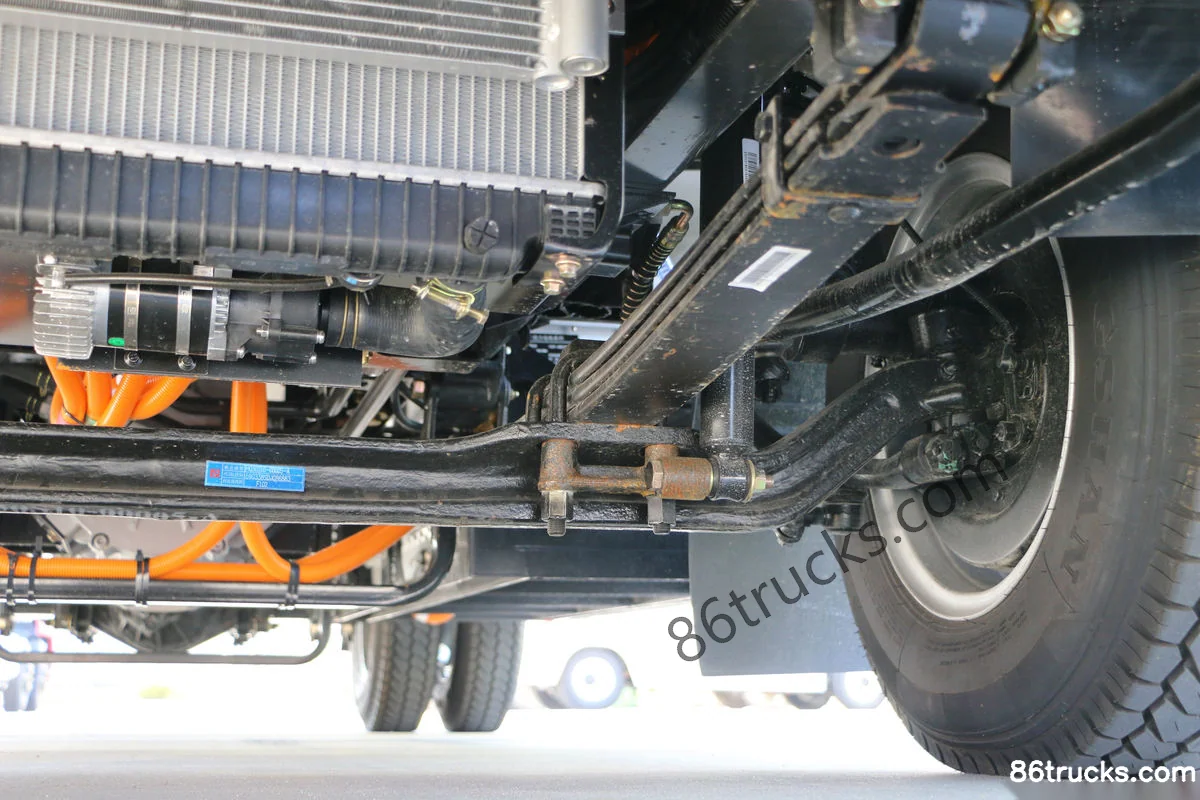

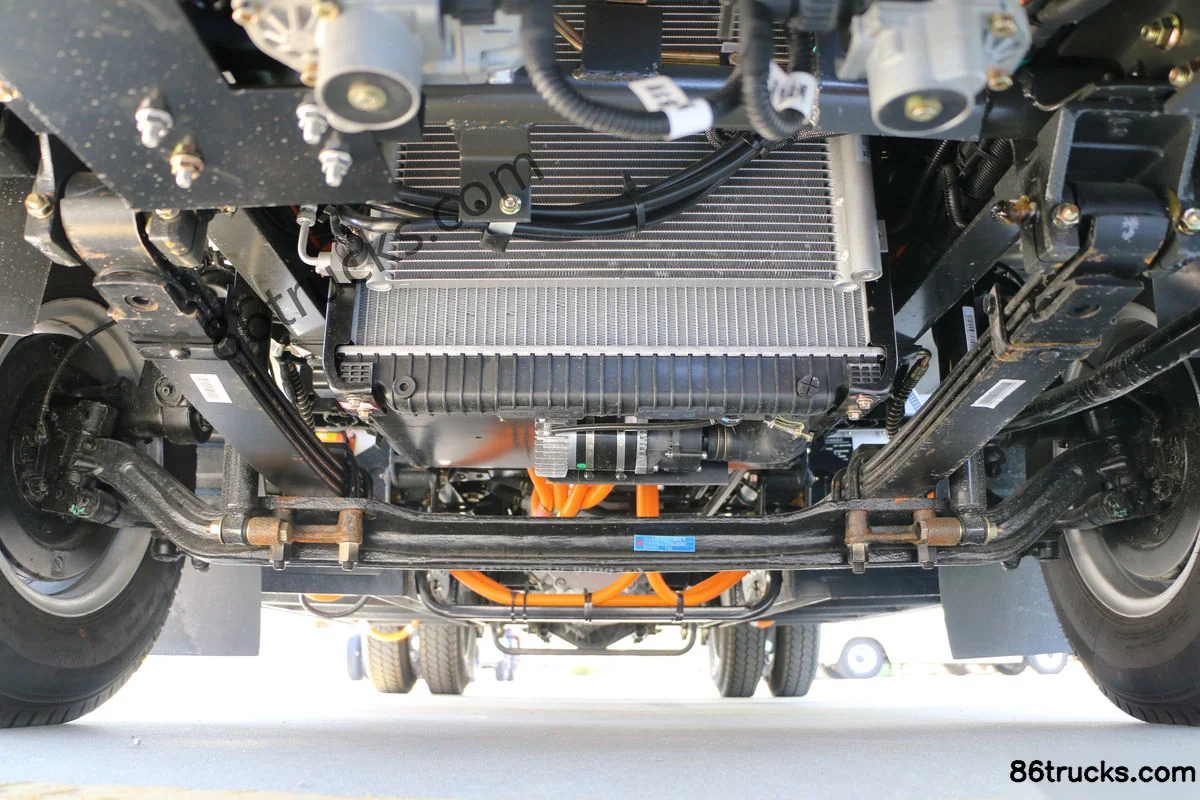

Chassis3

9 photos

FAQ

What is the export price of Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels), and what does it include?

Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels) export reference is about From $37,222; MSRP is ¥26.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels)?

Key specs of Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels) suited for?

Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels) differ from other variants in the same series?

Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels) belongs to Sanhuan Shitong Chuanke Light Truck (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Chuangke 4.5T 4.1m Single Row Pure Electric Refrigerated Truck 96.76kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
