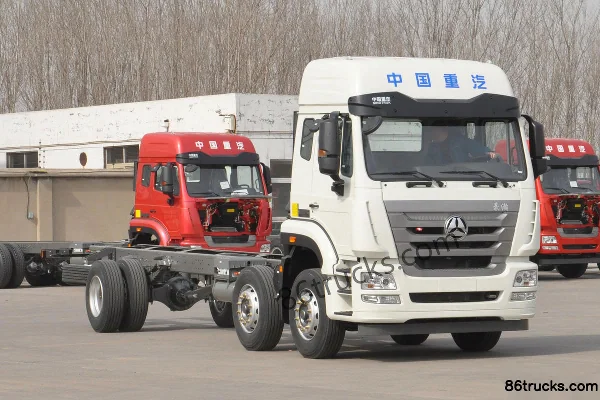

Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis

Export reference
MSRP N/A
Horsepower: 280
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 9.73ton
seating capacity: 3Personnel
Rated payload: 15.075ton
Drive 6X2 (8 wheels)
Cargo box type: Chassis

Overview

The Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis is a Heavy-duty cargo trucks featuring 8.65m cargo length, Chassis cargo body, 3Personnel volume and 15.075t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a SinotrukMAN7L engine, 280 hp, 6X2 (8 wheels) drive and China V emissions.

China V 280 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1255M56C3E1
Type: Chassis
Drive type: 6X2
Wheelbase: 1800+4800mm
engine: SinotrukMC07.28-50
transmission: SinotrukHW13709XSTC
Rear Axle Ratio: 4.44
Cab length: 11.195m
Cab width: 2.496m
Cab height: 3.28m
Front track width: 2022/2022mm
rear track: 1830mm
Curb Weight: 9.73ton
Rated payload: 15.075ton
GVWR: 25ton
Max. speed: 102km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 14°
market segment: Building materials, agricultural products
Remarks: Rear axle ratio optional (4.875, 5.143), front underrun protection, automatic slack adjuster, reflective vest, Triangle warning triangle, wheel chock, A/C
Front/rear suspension: 1.55/3.045m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13709XSTC
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 8.65m
Cargo box width: 2.4m
Cargo box height: 0.55m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: H18 Cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 153 front axle
Front axle allowable load: 6500/7000kg
Frame Dimensions: 850×280×80×(8+5)mm
rear axle description: 457 rear axle
rear axle allowable load: 15000kg
Axle ratio: 4.44
Leaf spring count: 4/4/5
Tire
Tire Size: 12R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis?

Key specs of Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis: Drive: 6x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis suited for?

Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis differ from other variants in the same series?

Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis belongs to Sinotruk J7B Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haohan J7B Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
