JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh

Export reference
From $14,792
MSRP ¥10.65M CNY
Rated payload:: 1.285ton
Wheelbase:: 3100mm
Cargo box type:: Stake type
Model code (announced):: JX5030CCYTEA2BEV
Type:: stake truck
Box length class:: 3.8m
Drive 4X2 (6 wheels)
CLTC range: 235km
Motor 1 Brand: Bosch
Curb Weight: 2.08ton

Overview

The JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh is a Light Truck featuring 235km battery/range, Bosch motor, 4X2 (6 wheels) drive and 1.285t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5030CCYTEA2BEV
Type: stake truck
Drive type: 4X2
Wheelbase: 3100mm
Box length class: 3.8m
Cab length: 5.595m
Cab width: 1.945m
Cab height: 2.775m
CLTC range: 235km
Curb Weight: 2.08ton
Rated payload: 1.285ton
GVWR: 3.495ton
Max. speed: 90km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Version: 2025 Model
Energy Type: Electric
electric motor
Motor 1 Brand: Bosch
Motor 1 Model: TZ185XS001
Motor Type: Permanent magnet synchronous motor
total rated power: 45kW
Peak power: 90kW
total peak torque: 240N·m
Battery/Charging
Battery Brand: CALB
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery capacity: 50.38kWh
fast charge range: 30% - 80%
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.8m
Cargo box width: 1.8m
Cab parameters
Cab width: 1550mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1415kg
rear axle allowable load: 2080kg
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
AC control type: Manual
Power Windows:
Reverse Radar:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

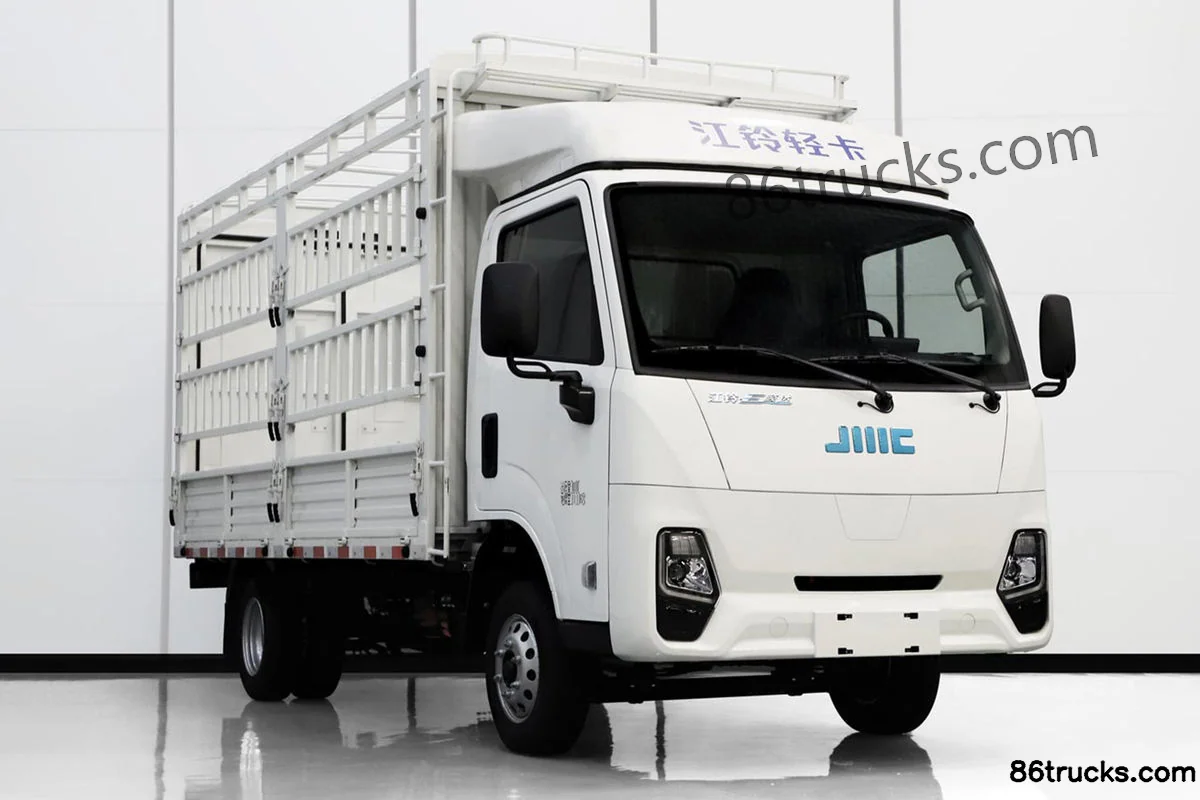

Exterior1

1 photos

FAQ

What is the export price of JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh, and what does it include?

JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh export reference is about From $14,792; MSRP is ¥10.65M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh?

Key specs of JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh suited for?

JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh differ from other variants in the same series?

JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh belongs to JMC E Shunda (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda 2025 Electric 4X2(6 wheels) Hydraulic Brake 3.8m Single Row Stake Light Truck CALB 50.38kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
