Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck

Export reference
From $14,278
MSRP ¥10.28M CNY
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Isuzu493
Curb Weight:: 2.565ton
Wheelbase:: 3360mm
seating capacity: 2Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck is a Light Truck featuring 4.155m cargo length, stake body cargo body, 2Personnel volume and 1.735t payload. Its segment focus covers Daily industrial goods transport, matching those duty cycles. On the powertrain side, it comes with a Isuzu493 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JXW1040BDJ2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Jiangxi IsuzuJE493ZLQ5
transmission: 5-speed transmission
Cab length: 5.995m
Cab width: 2.18m
Cab height: 2.315m
Front track width: 1565mm
rear track: 1508mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
market segment: Daily industrial goods transport
Remarks: Optional driver's seat with shock absorber
Front/rear suspension: 1.09/1.545m
Version: Standard version
Energy Type: Diesel
Engine parameters
Engine Brand: Jiangxi Isuzu
Engine Model: Jiangxi IsuzuJE493ZLQ5
Engine info: Isuzu493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3800rpm
Engine Type: Inline, water-cooled, common rail, turbocharged intercooled, four-stroke
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.155m
Cargo box width: 1.94m
Cargo box height: 0.4m
*Cargo box interior width: 1.9400000572205
Cab parameters
Cab width: 1880mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1840kg
rear axle allowable load: 2655kg
Leaf spring count: 3/2+2
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: leather
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Service brake
Exhaust brake:
smart configuration
Cruise control (CCS):

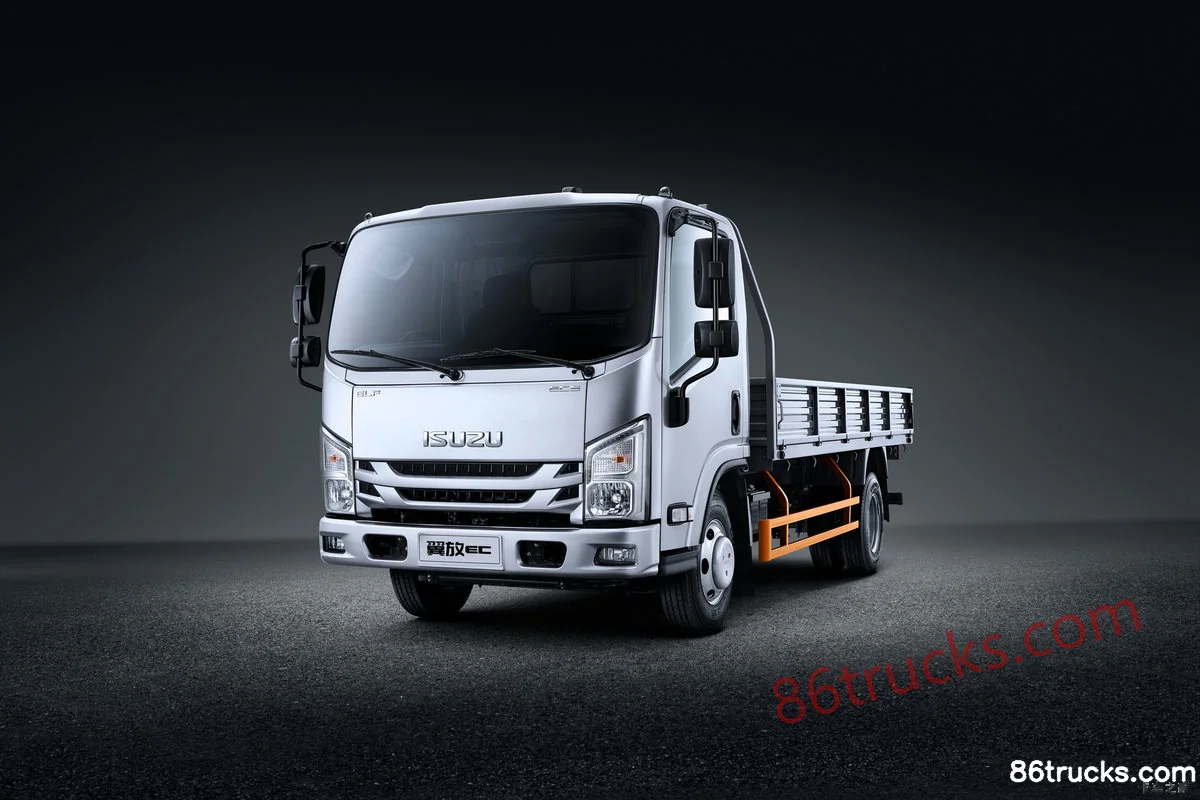

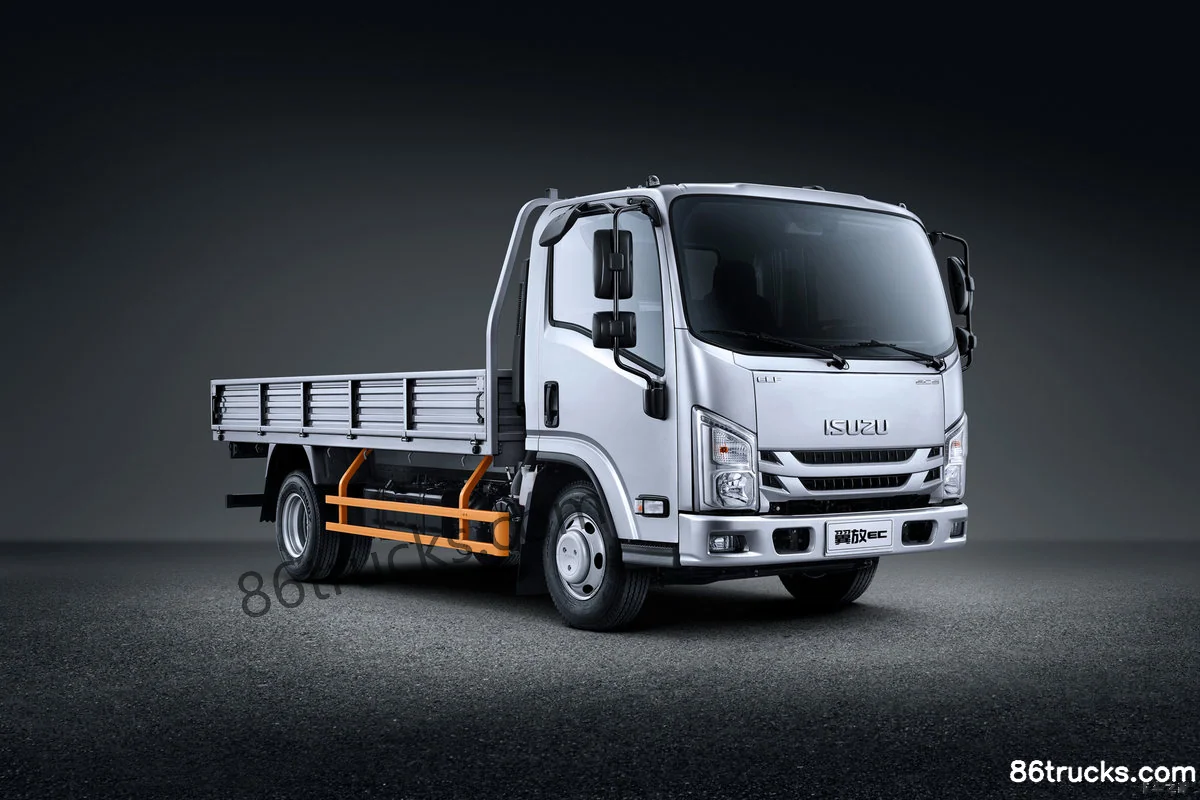

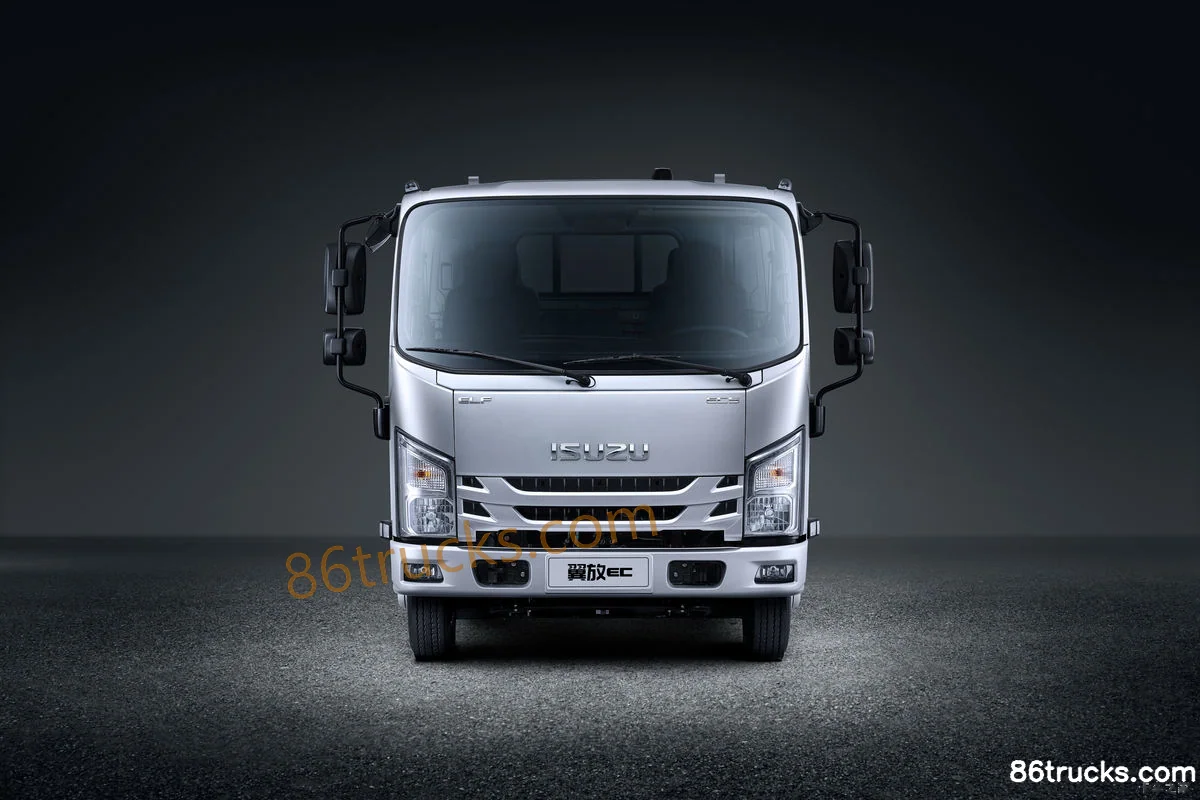

Photos

Exterior3

3 photos

FAQ

What is the export price of Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck, and what does it include?

Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck export reference is about From $14,278; MSRP is ¥10.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck?

Key specs of Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu493. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck suited for?

Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck differ from other variants in the same series?

Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck belongs to Jiangxi Isuzu Yifang EC Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jiangxi Isuzu Elf EC5 Standard Edition 116 hp 4X2(6 wheels) 4.155m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
