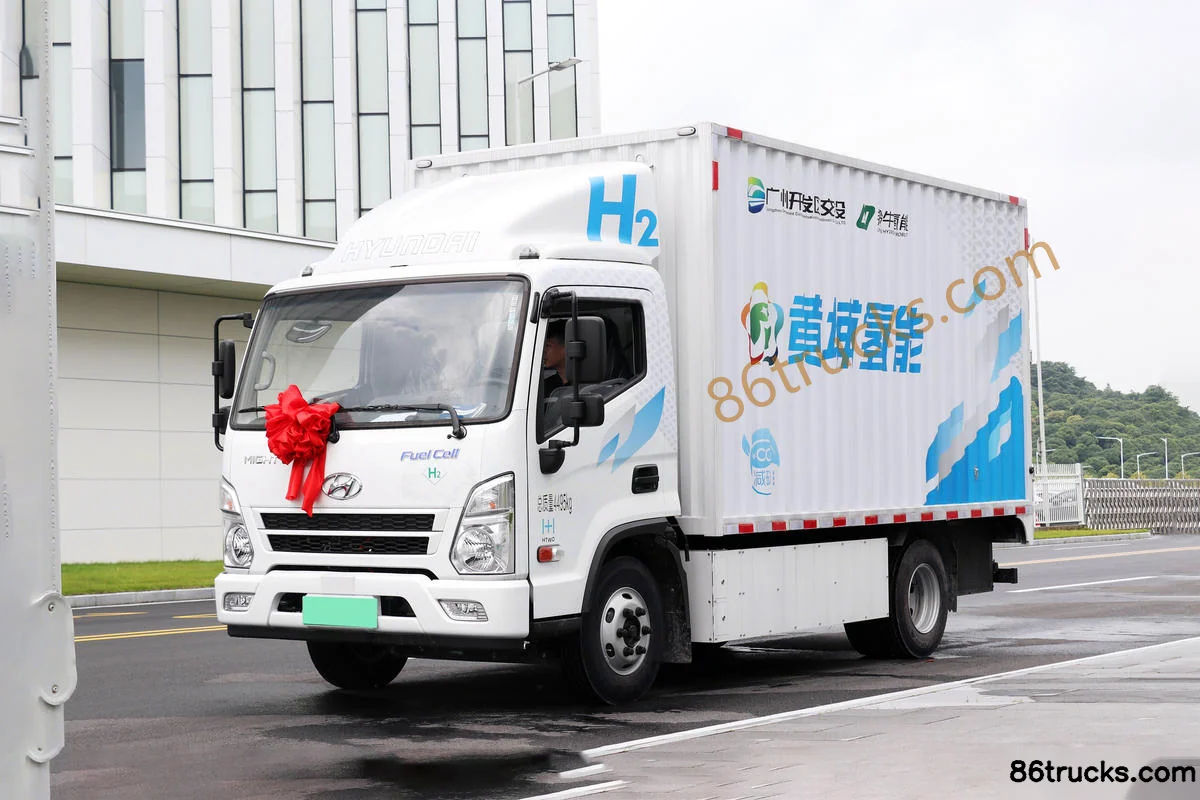

Hyundai Commercial Vehicle Shengtu 4.5T 4.14m single row fuel cell van light truck 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 0.77ton
Wheelbase:: 3300mm
Cargo box type:: Van body
Model code (announced):: CHM5040XXYGDC33FCEV
Type:: enclosed cargo truck
Box length class:: 4.1m
Drive 4X2 (6 wheels)
Battery type: Lithium manganate battery
Motor 1 Brand: Hande
Curb Weight: 3.53ton

Overview

The Hyundai Commercial Vehicle Shengtu 4.5T 4.14m single row fuel cell van light truck 4X2(6 wheels) is a Light Truck featuring Lithium manganate battery battery/range, Hande motor, 4X2 (6 wheels) drive and 0.77t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CHM5040XXYGDC33FCEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.1m
Cab length: 5.995m
Cab width: 2.145m
Cab height: 3.13m
Curb Weight: 3.53ton
Rated payload: 0.77ton
GVWR: 4.495ton
Max. speed: 92km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Energy Type: Hydrogen
electric motor
Motor 1 Brand: Hande
Motor 1 Model: TZ220XS-HD002
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hydrogen
total rated power: 65kW
Peak power: 140kW
Battery/Charging
Battery type: Lithium manganate battery
Battery capacity: 21.024kWh
Battery rated voltage: 526V
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.13m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2005kg
rear axle allowable load: 2490kg
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

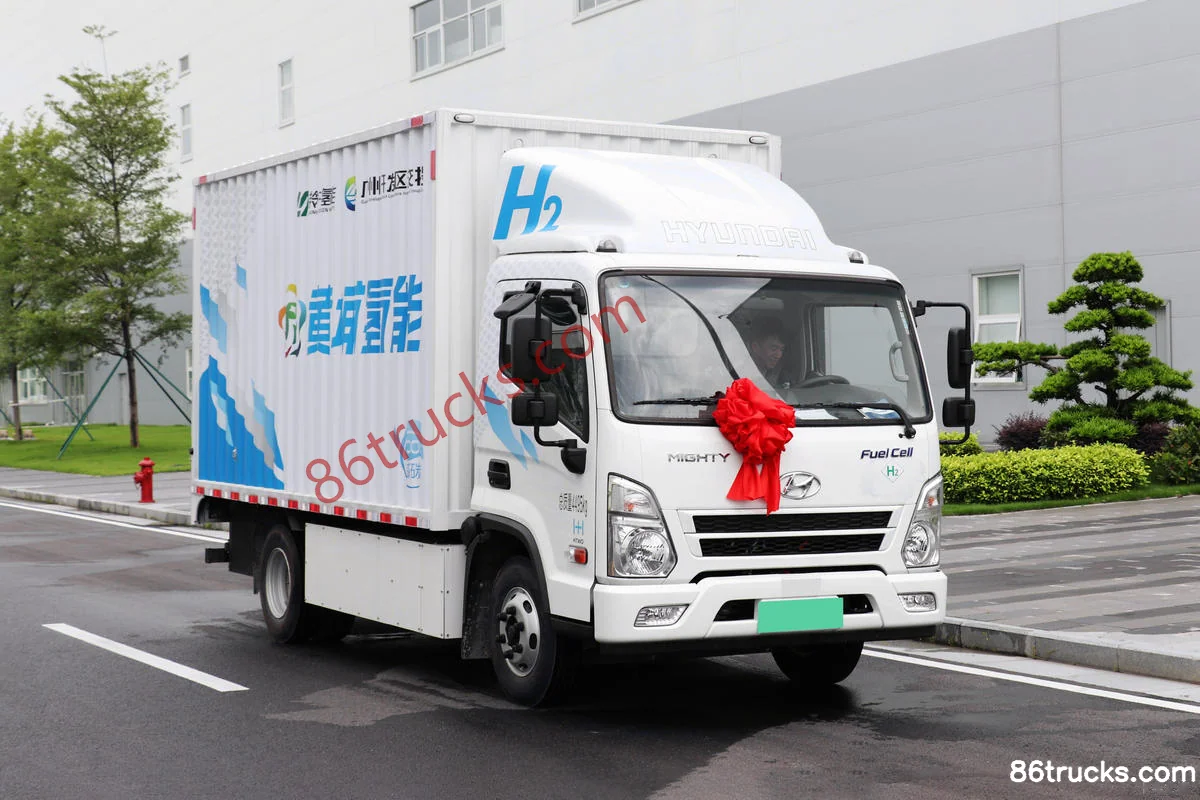

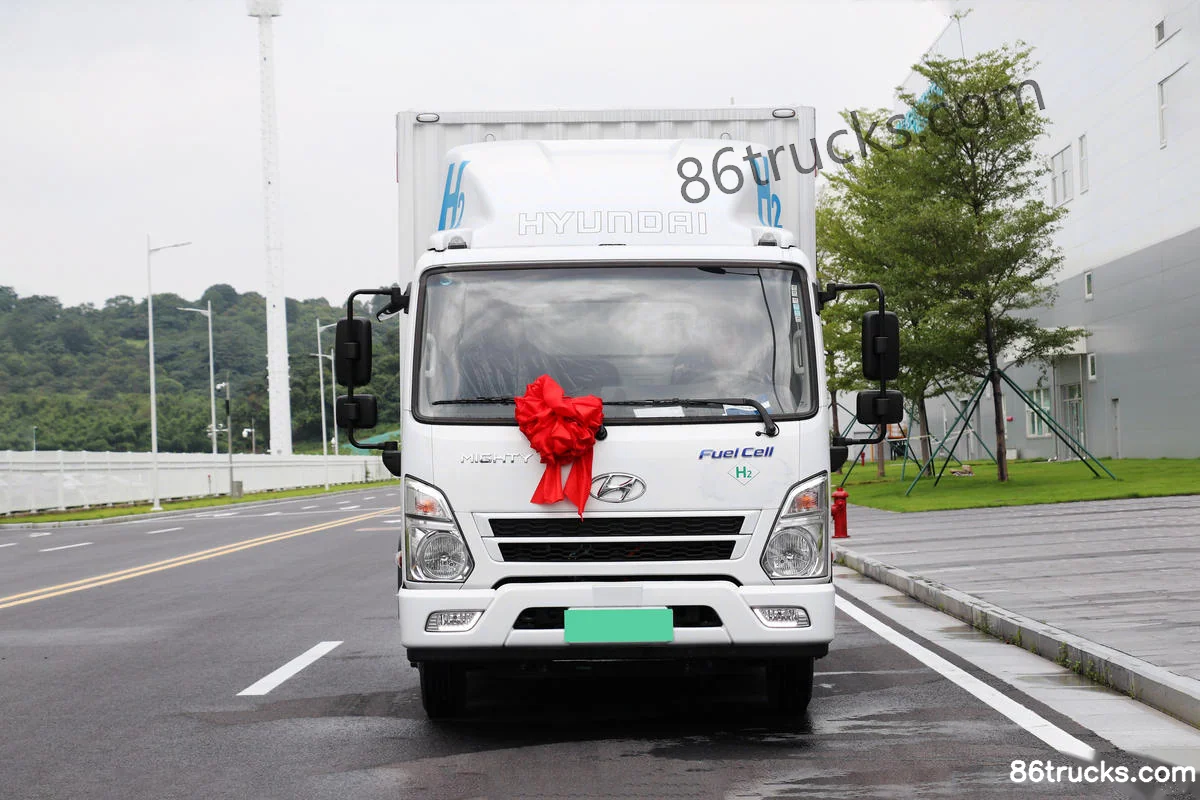

Exterior3

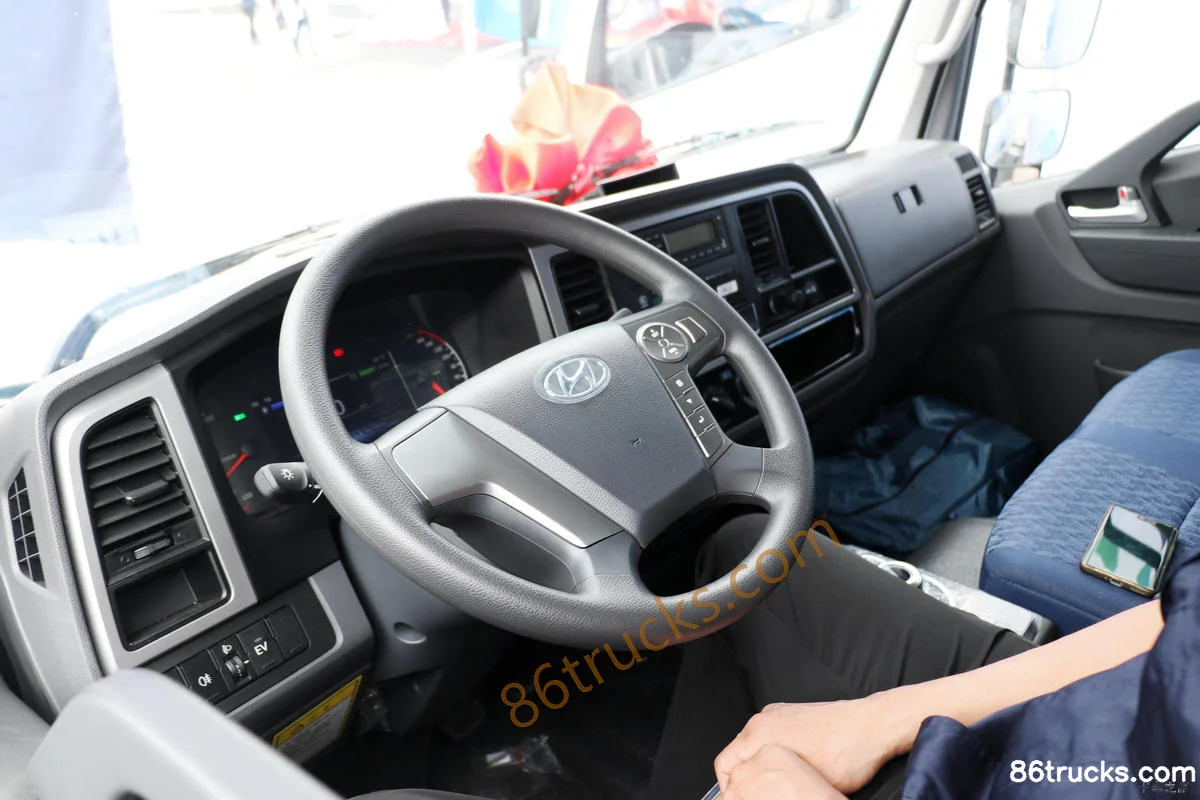

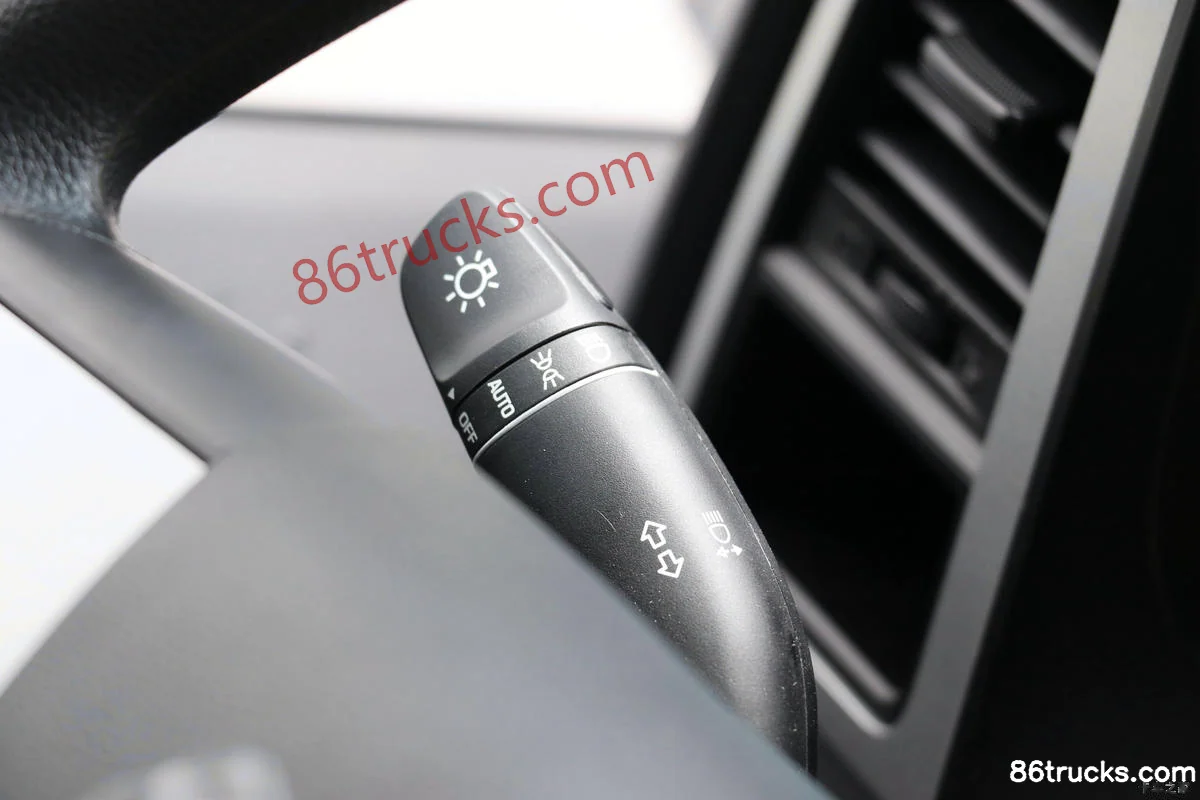

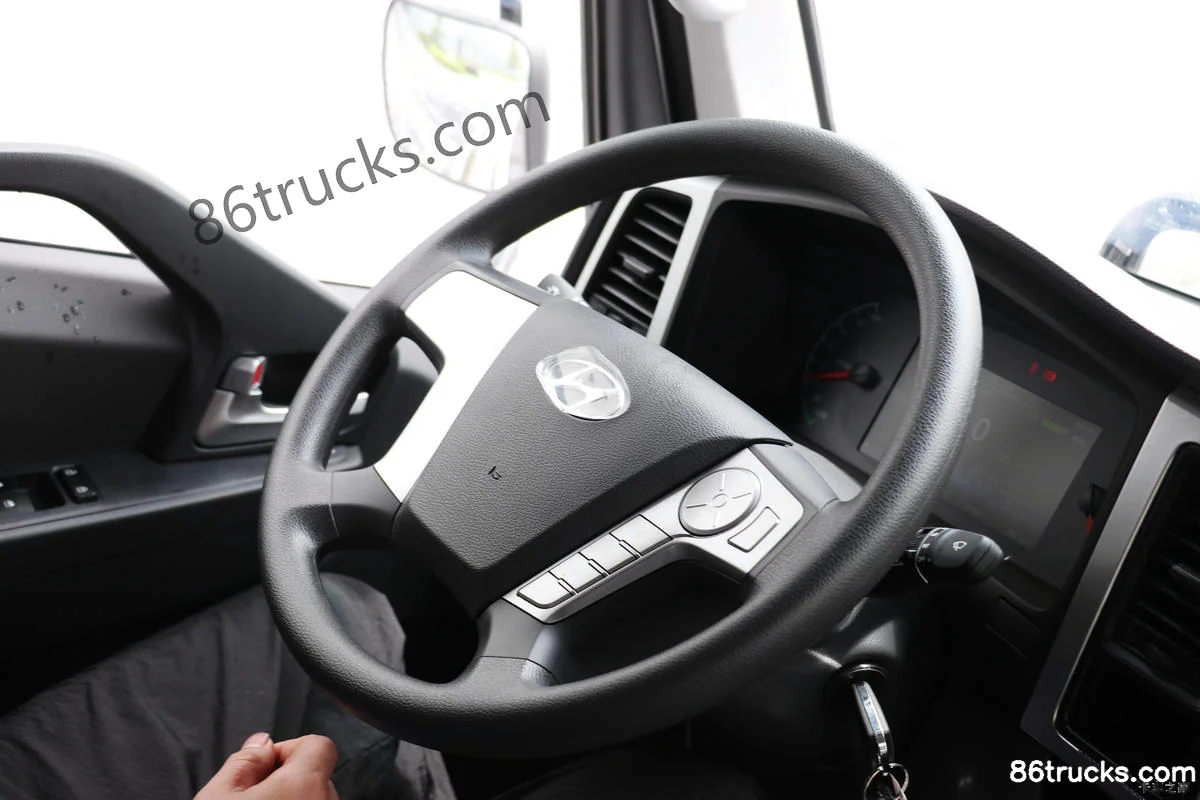

Interior3

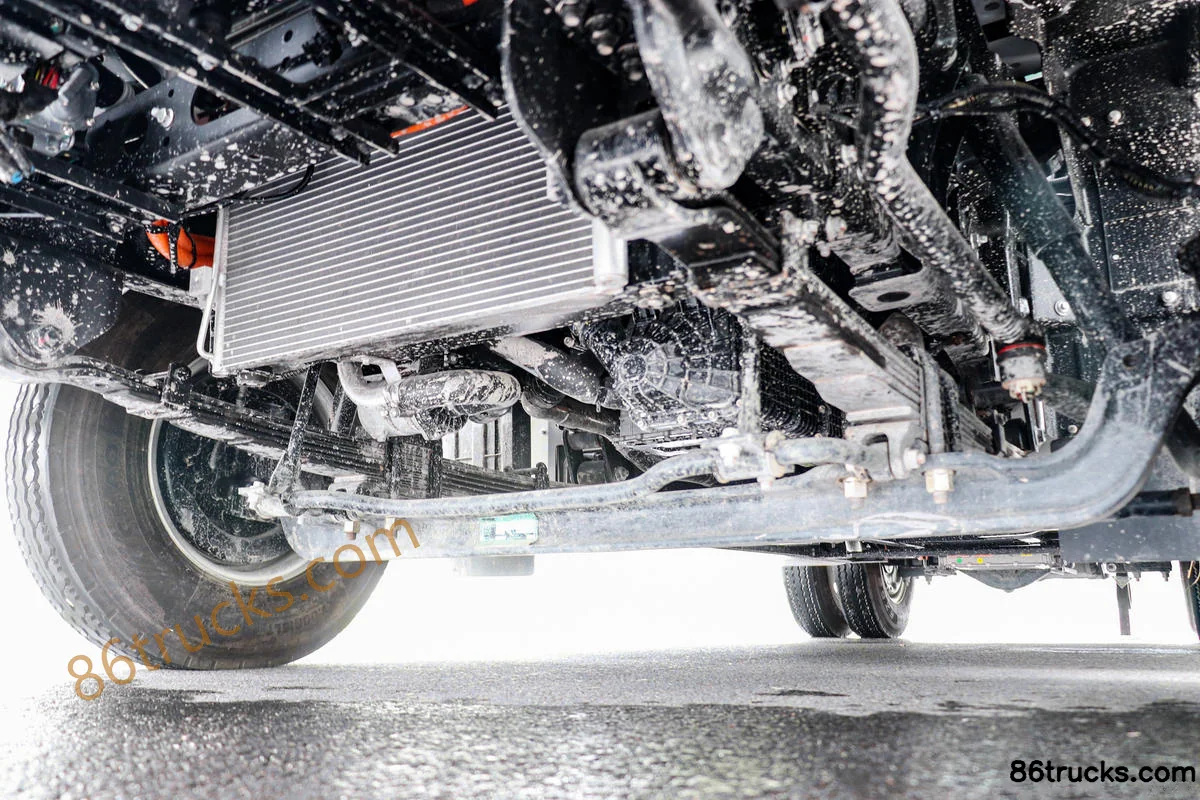

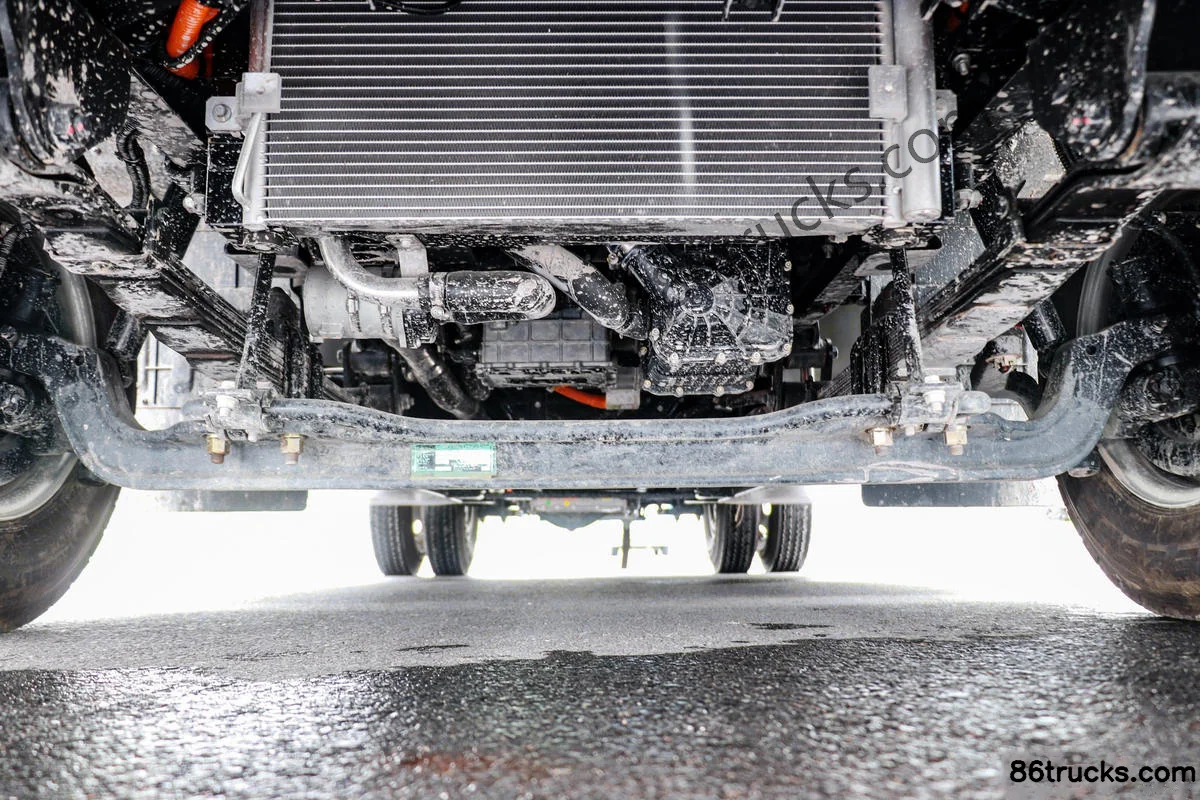

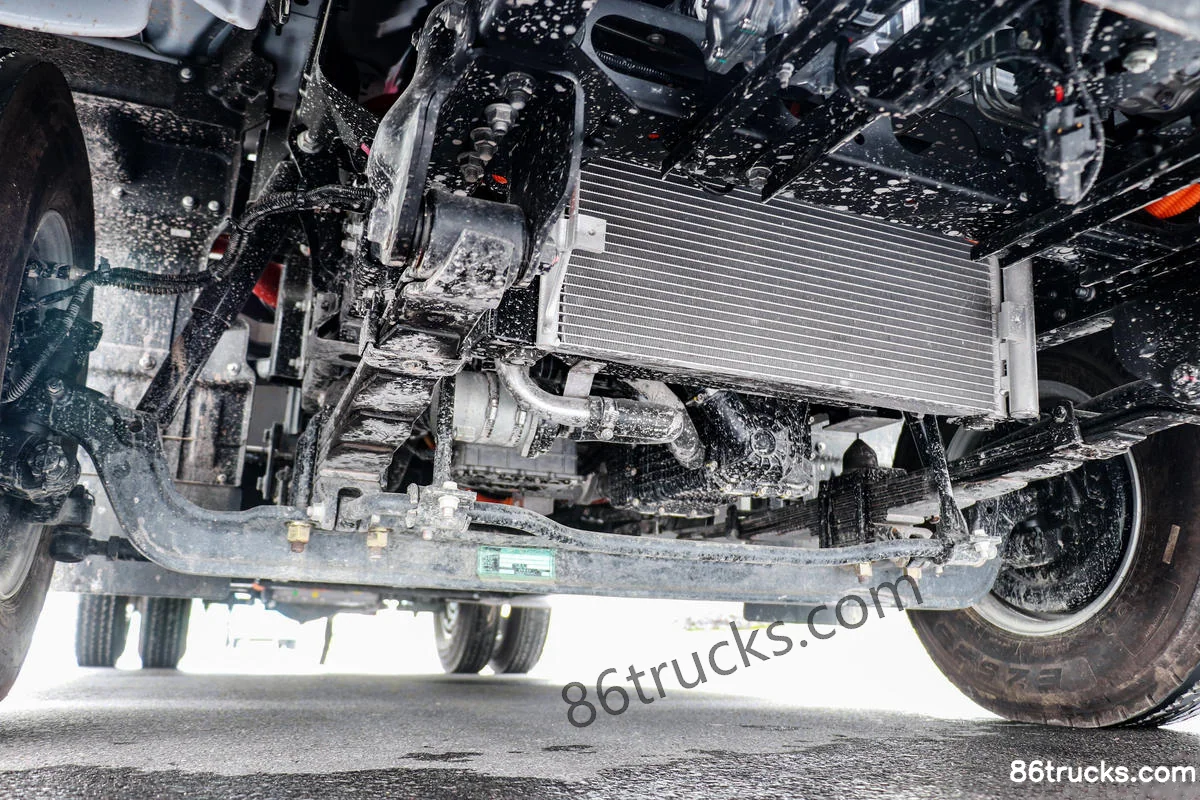

Chassis3

9 photos
