SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck

Export reference
MSRP N/A
Gross Trailer Weight:: 40ton
Wheelbase:: 3850+1350mm
Tire Size:: 11.00R20,12.00R20 16PR
Front axle allowable load:: 7000kg
Displacement:: 11.81L
Model code (announced):: CQ4256HTG384TVU
Drive 6X4 (10 wheels)
Horsepower 390
Emission China V
Fuel LNG (liquefied natural gas)

Overview

The SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 390 hp, 25t GVW and China V emissions. Its segment focus covers dangerous goods transport, matching those duty cycles. On the powertrain side, it comes with a SDECSC12ET390Q5 engine, 12-speed transmission transmission and LNG (liquefied natural gas) fuel.

China V 390 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ4256HTG384TVU
Drive type: 6X4
Wheelbase: 3850+1350mm
engine: SDECSC12ET390Q5
transmission: 12-speed transmission
Cab length: 7.48m
Cab width: 2.5m
Cab height: 3.839m
Front track width: 2006mm
Gross Trailer Weight: 40ton
rear track: 1800/1800mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 80km/h
Origin: Chongqing
tonnage class: Heavy truck
market segment: dangerous goods transport
Version: LNG Hazardous Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: SDEC
Engine Model: SDECSC12ET390Q5
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 11.81L
Emission standard: China V
Max output power: 287kW
Max hp: 390Horsepower
Max torque: 1750N·m
Max torque speed: 1100-1300rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: 12-speed transmission
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Lower Bunk Width: 800mm
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 3/4,5/6,8/12
Tire
Tire Size: 11.00R20,12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

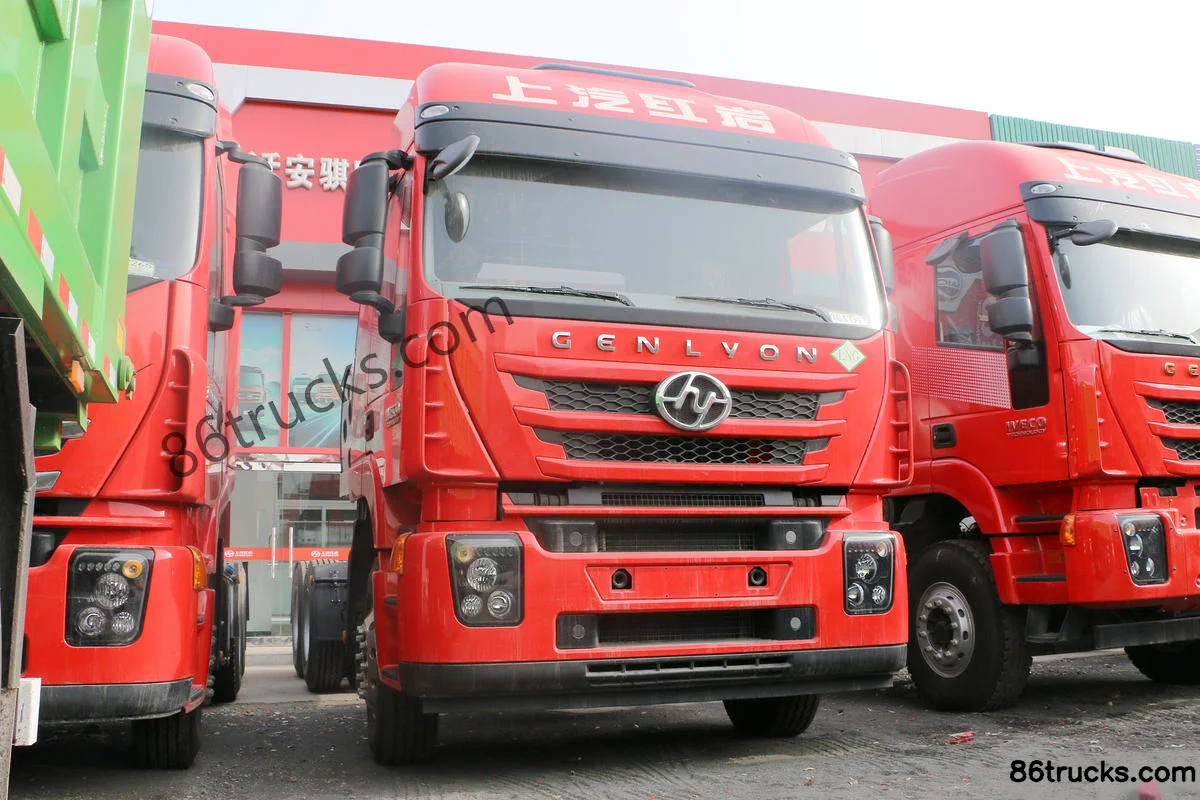

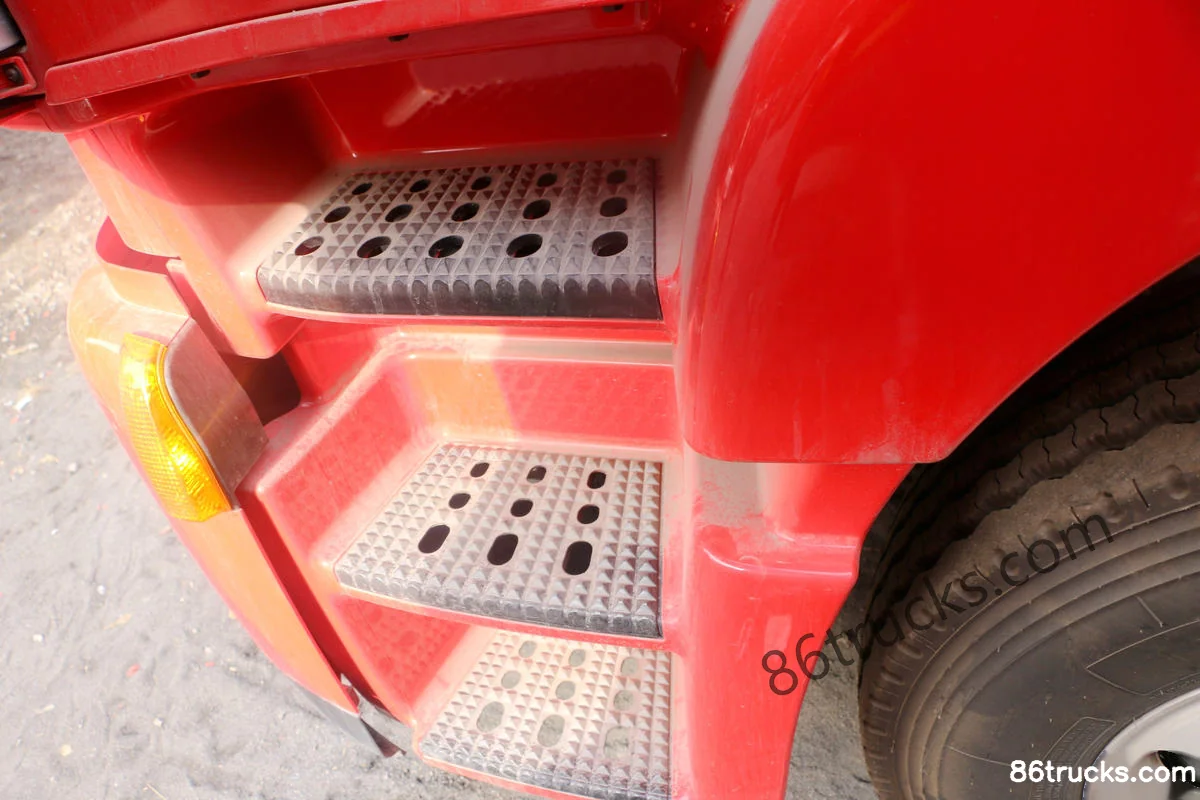

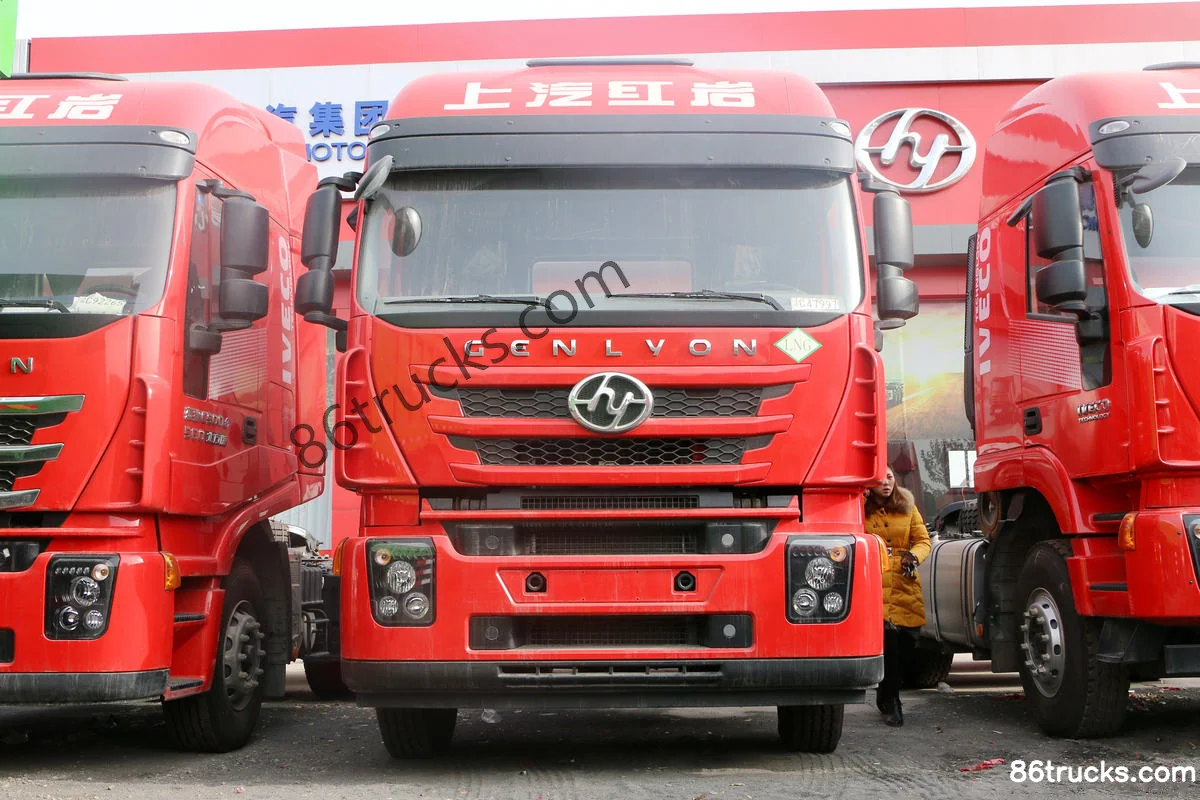

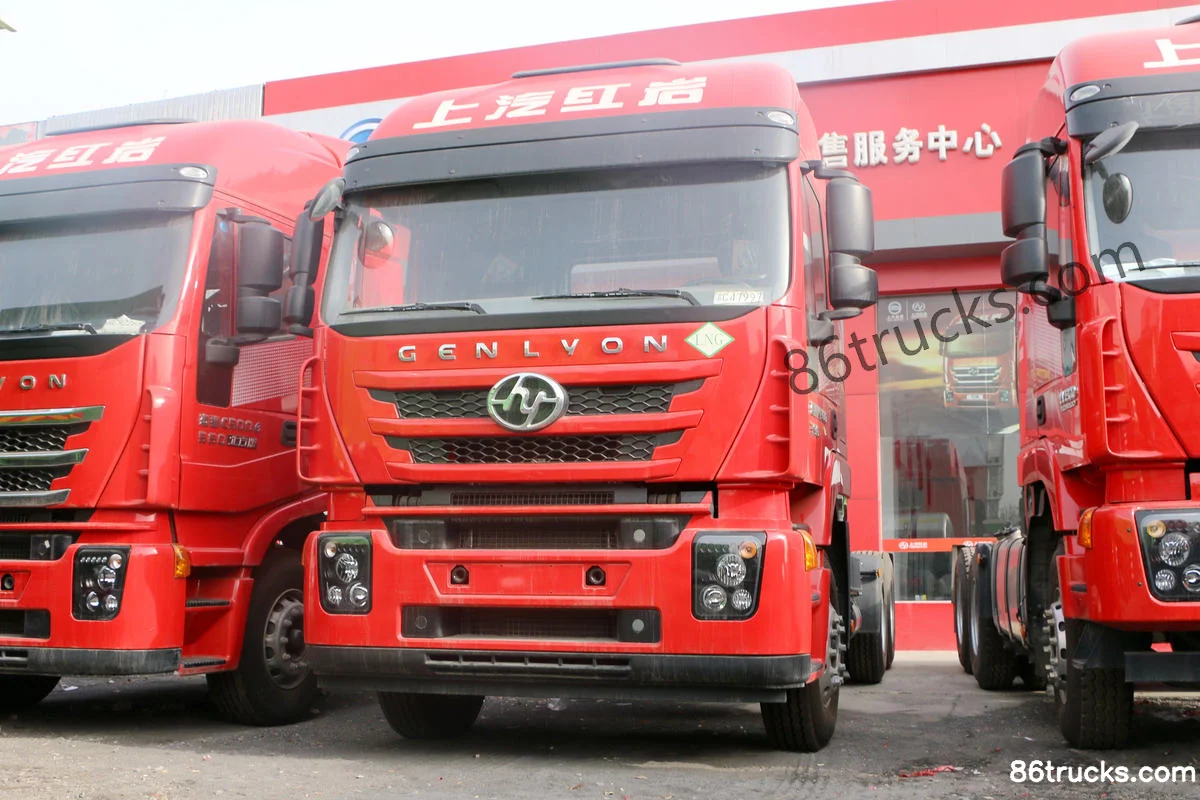

Exterior3

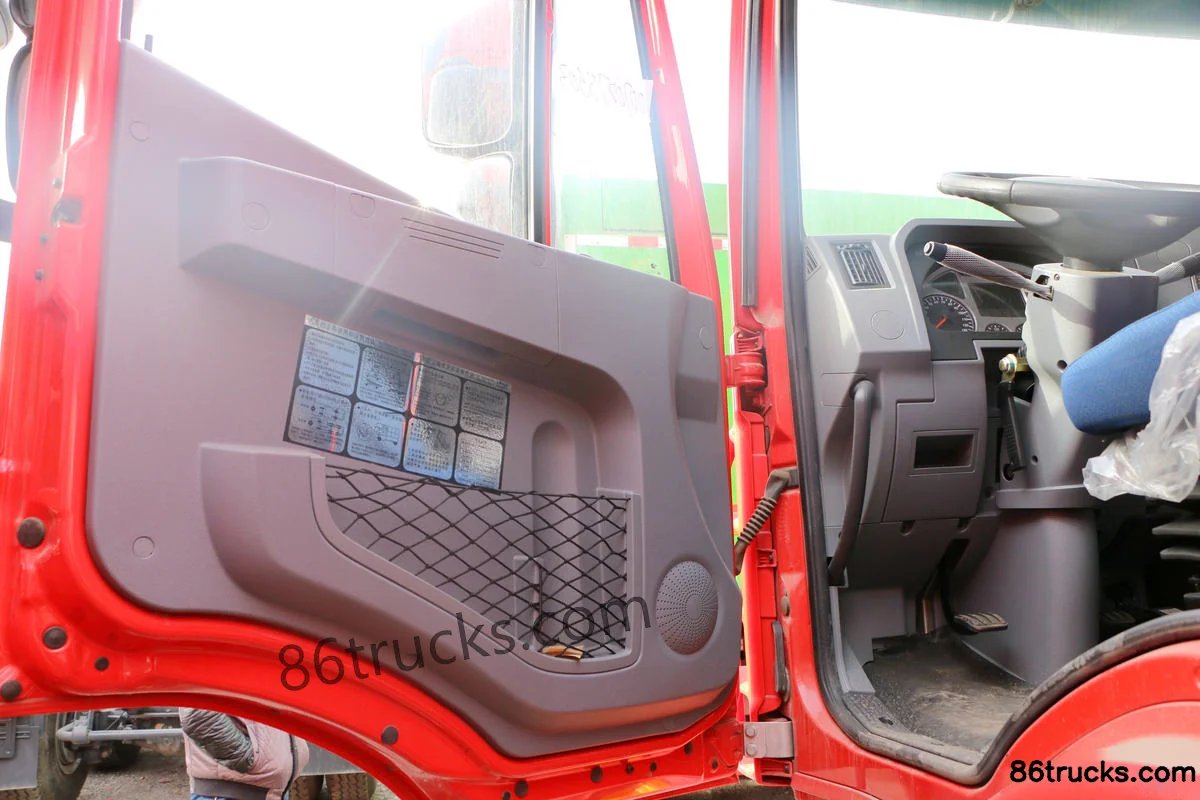

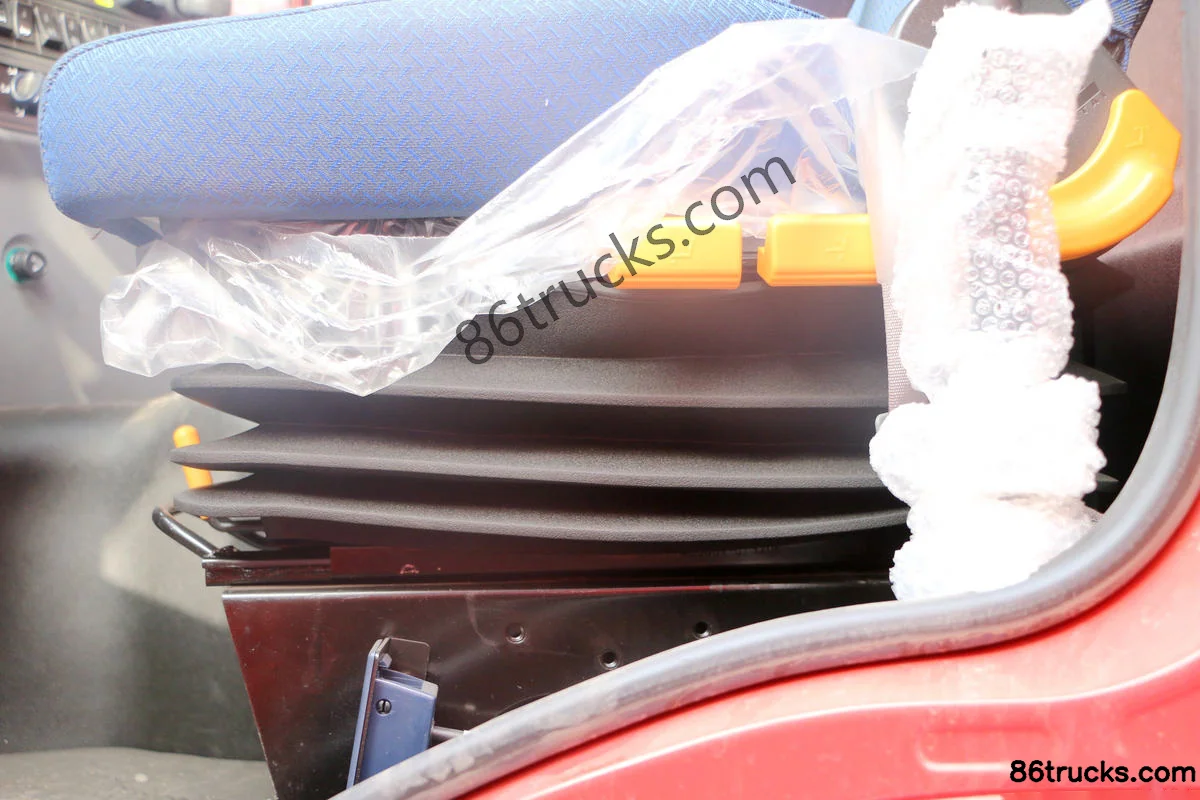

Cab3

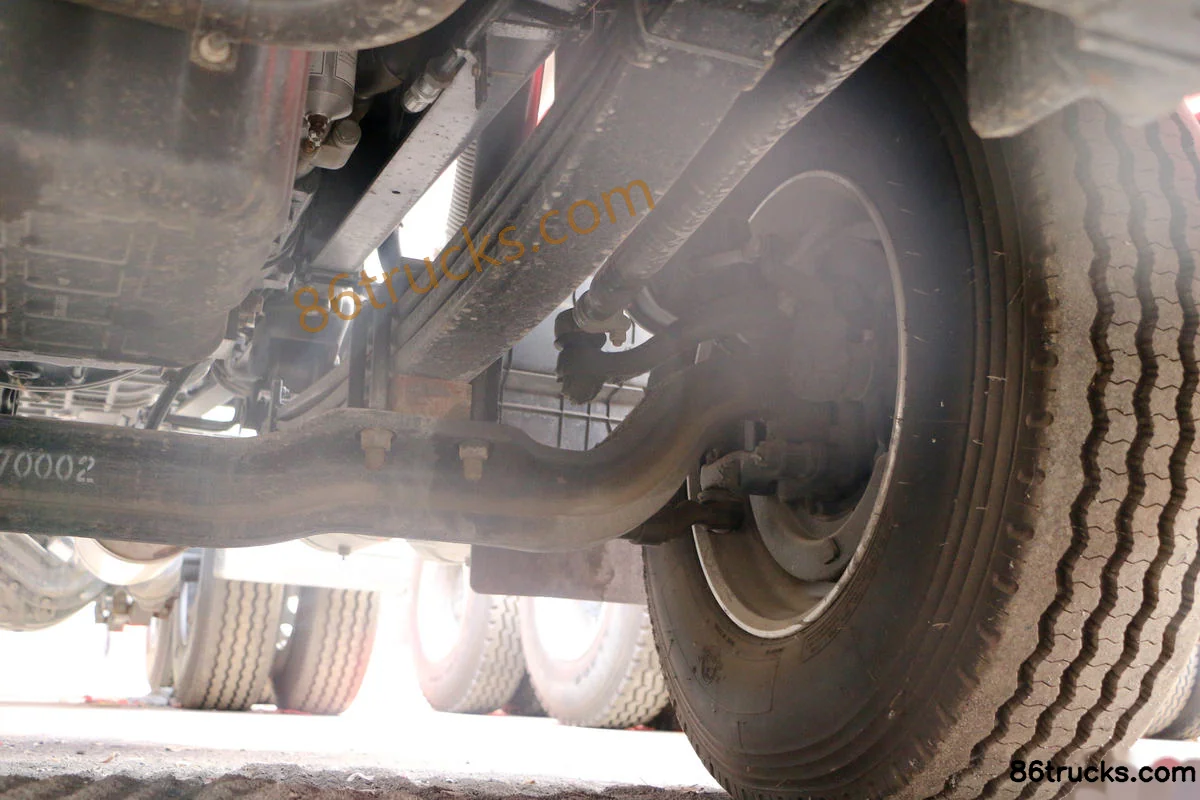

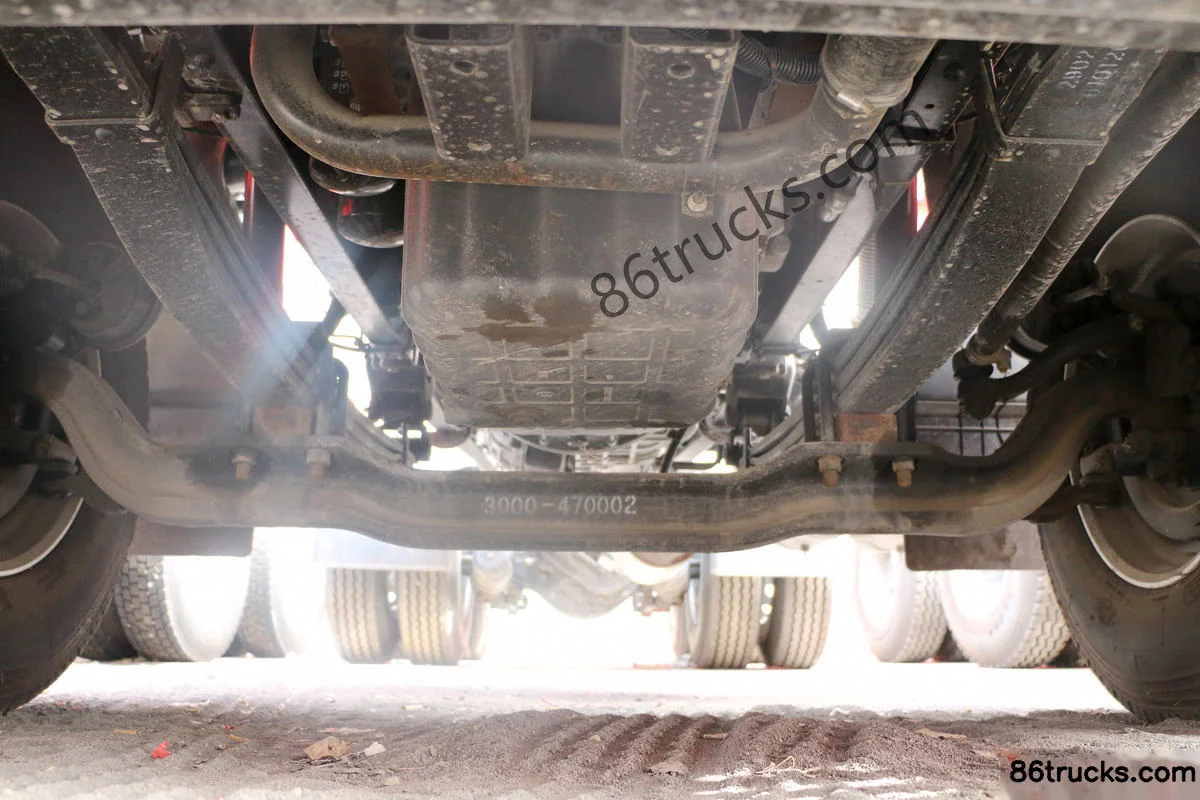

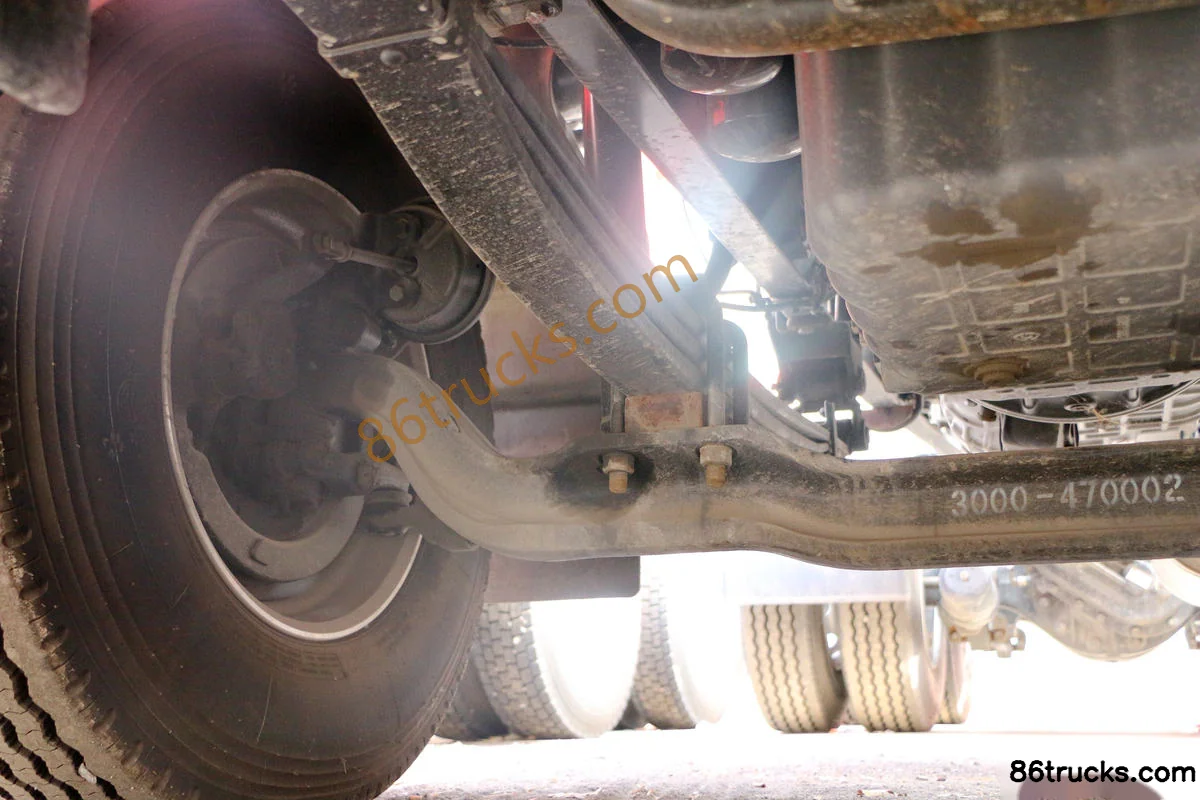

Chassis3

9 photos

FAQ

What emission standard does SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck?

Key specs of SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck: Drive: 6x4; Horsepower: 390 hp; Emission: China V; Fuel: LNG (liquefied natural gas). See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck suited for?

SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck differ from other variants in the same series?

SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck belongs to SAIC Hongyan Genlyon Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon 390hp 6X4(10 wheels) LNG Dangerous Goods Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
