SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Tire Size:: 12R22.5
Front axle allowable load:: 7000kg
Displacement:: 12.54L
engine:: WeichaiWP13.550E62
SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI) exterior
View more photos (2)
Drive 6X4 (10 wheels)
Horsepower 550
Emission China VI
Transmission Fast Gear

Overview

The SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI) is a Heavy truck featuring 6X4 (10 wheels) drive, 550 hp, 40ton GVW and China VI emissions. On the powertrain side, it comes with a WeichaiWP13.550E62 engine, Fast Gear transmission and Diesel fuel.

China VI 550 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Drive type: 6X4
engine: WeichaiWP13.550E62
transmission: Fast Gear12JSDX240TA
Gross Trailer Weight: 40ton
Max. speed: 110km/h
Origin: Changsha, Hunan
tonnage class: Heavy truck
Remarks: Hydraulic lifting, telematics/fleet management function, automatic slack adjuster, standard microwave oven, standard refrigerator; steel rims (aluminum alloy rims optional), ratio optional 3.727
Version: Yingjie Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP13.550E62
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.54L
Emission standard: China VI
Max output power: 405kW
Max hp: 550Horsepower
Max torque: 2550N·m
Max torque speed: 950-1400rpm
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear12JSDX240TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Lower Bunk Width: 1200mm
Chassis Specs
Front axle description: Hande front axle
Front axle allowable load: 7000kg
Fifth wheel: 90#
Frame Dimensions: 300×80×8mm
rear axle description: Hande
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
Exterior features
integrated mudguard:
Air deflector:
Aluminum air tank:
interior configuration
AC control type: Automatic
Power Windows:
Electric Heated Rearview Mirror:
Independent AC:
Multimedia features
Center Console Color Screen:
lighting configuration
daytime running lights:
Service brake
Front wheel brake: Disc
smart configuration
Cruise control (CCS):

Photos

Exterior2

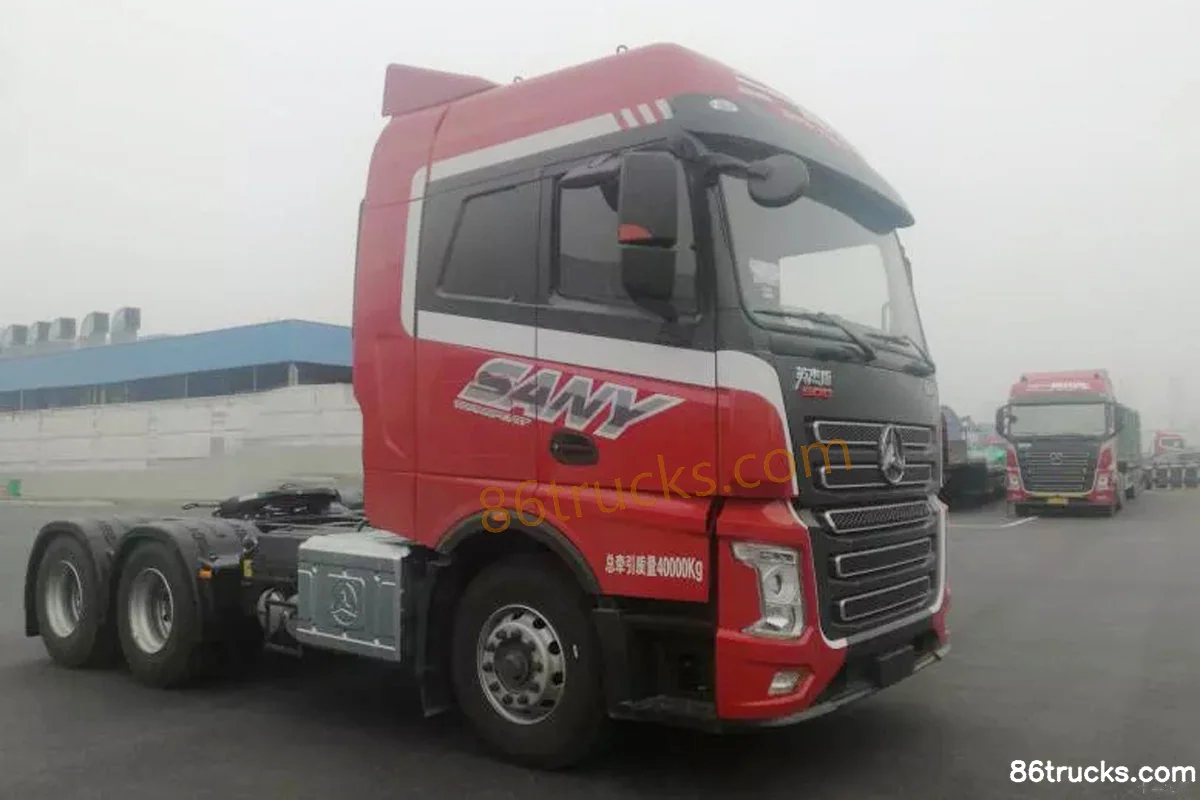

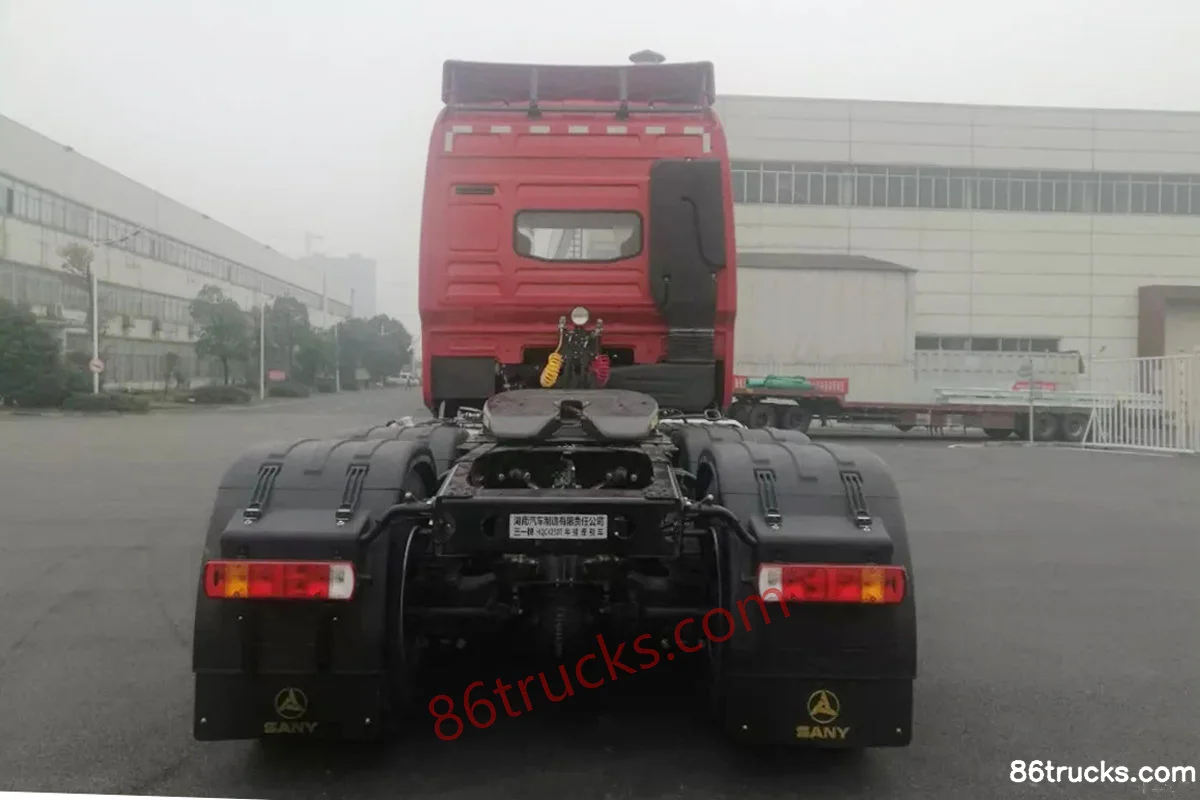

SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI) Exterior (1) | 86Trucks SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI) Exterior (2) | 86Trucks

2 photos

FAQ

What emission standard does SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI)?

Key specs of SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI): Drive: 6x4; Horsepower: 550 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI) suited for?

SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI) differ from other variants in the same series?

SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI) belongs to SANY Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY Truck Yingjie Edition 550 hp 6X4(10 wheels) tractor truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
