Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck

Export reference
From $16,389
MSRP ¥11.8M CNY
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: ChaochaiNGD3.0
Transmission: Lu'an
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck is a Light Truck featuring 4.1m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a ChaochaiNGD3.0 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1041UDD6V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.1m
engine: ChaochaiNGD3.0-CS5D
transmission: Lu'an 6T450B
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.39m
Cab height: 2.58m
Front track width: 1790mm
rear track: 1660mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Zibo, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 22°
market segment: Building materials, agricultural products
Front/rear suspension: 1.175/1.46m
Version: Suda
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiNGD3.0-CS5D
Engine info: ChaochaiNGD3.0
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.968L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 430N·m
Max torque speed: 1400-2600rpm
Rated speed: 3200rpm
Engine Type: Vertical water-cooled, four-stroke, turbocharged intercooled, electronic control high-pressure common rail, SCR
Transmission Parameters
Transmission Model: Lu'an 6T450B
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.1m
Cargo box width: 2.3m
Cargo box height: 0.46m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Wide-body Cab
Cab width: 2150mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 150L
Chassis Specs
Front axle description: 1061 front axle
Front axle allowable load: 1800kg
Frame Dimensions: 200mm
rear axle description: 1061 rear axle
rear axle allowable load: 2695kg
Leaf spring count: 10/10+6
Tire

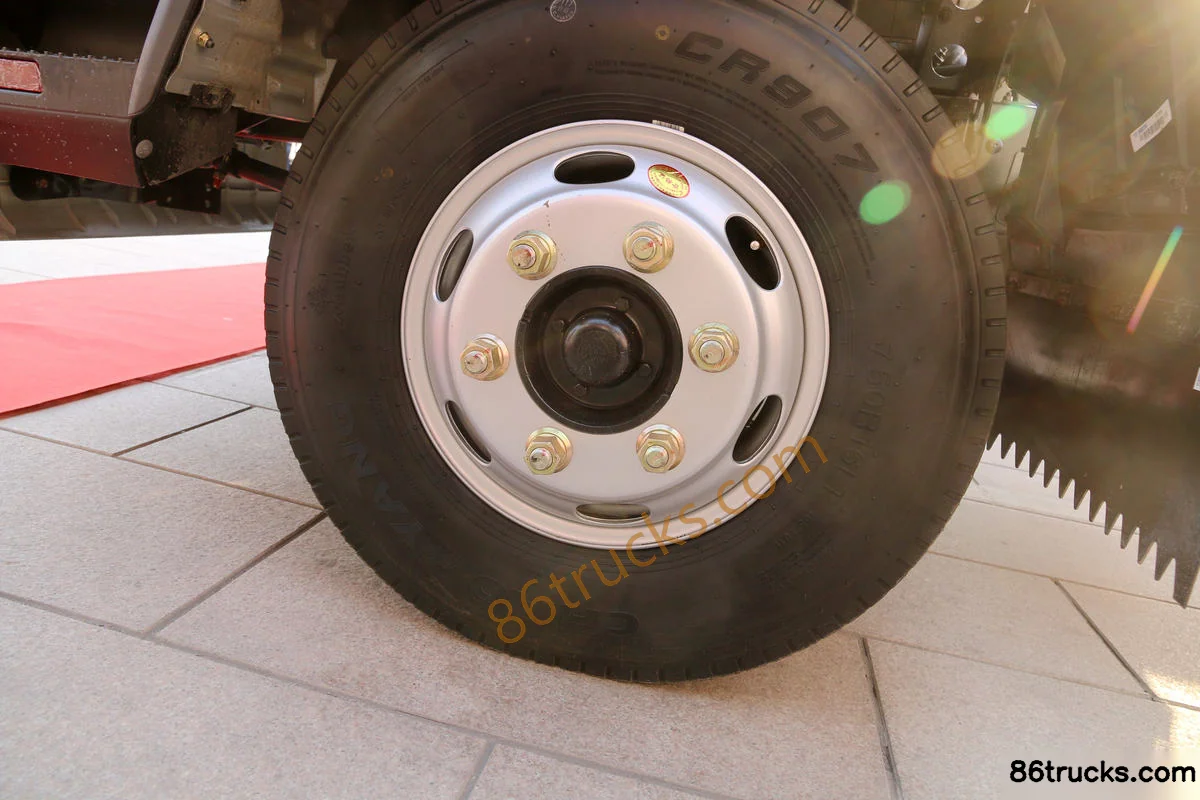

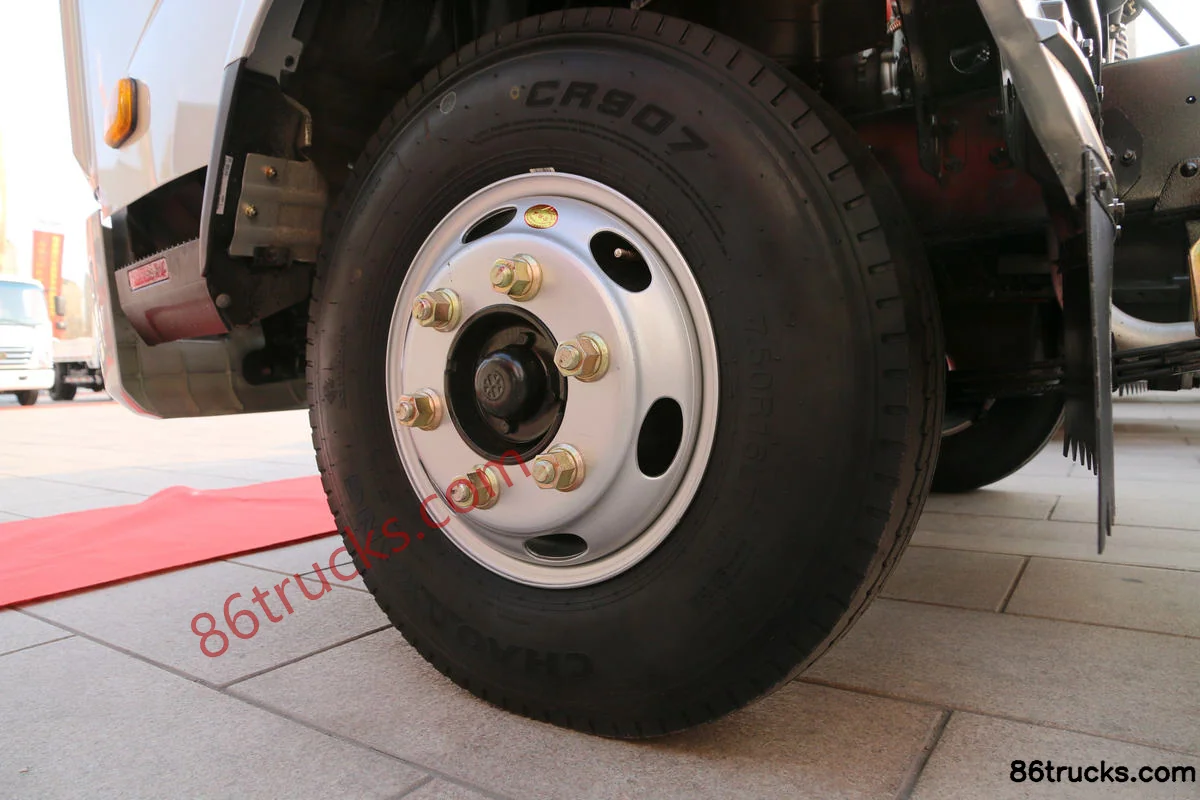

Tire Size: 7.50R16 LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

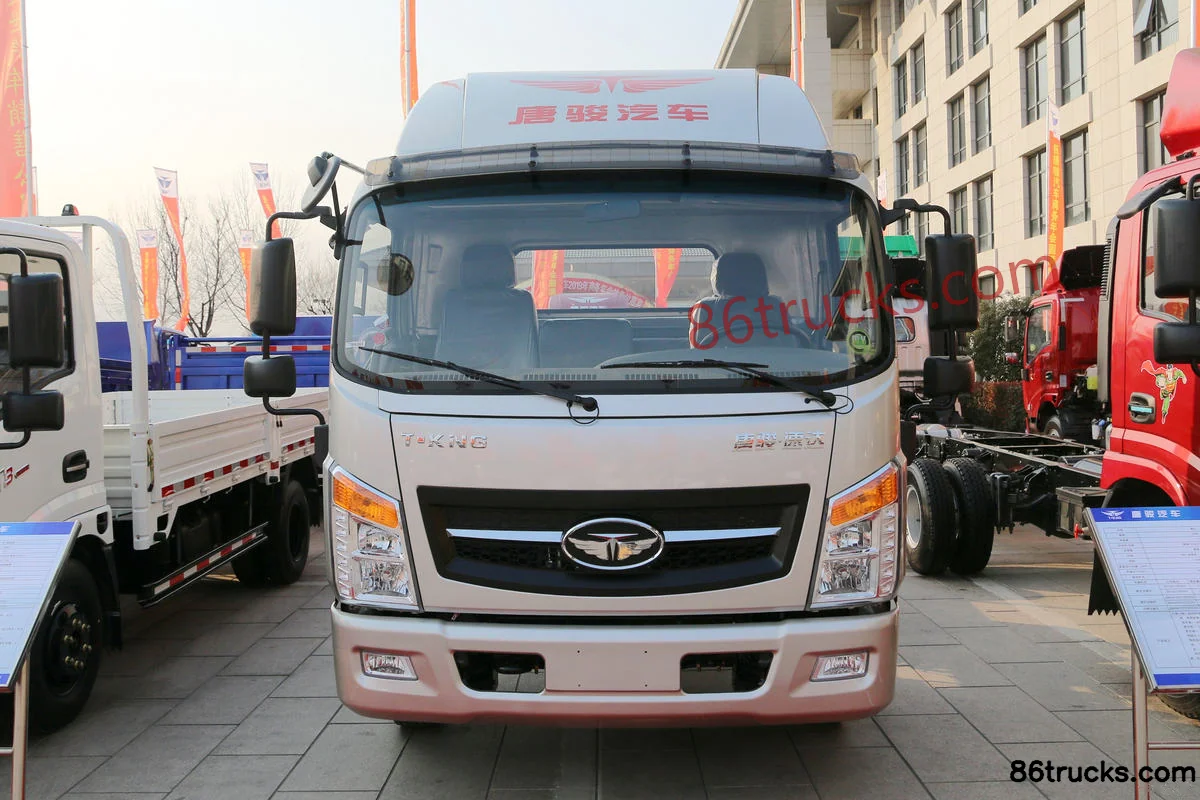

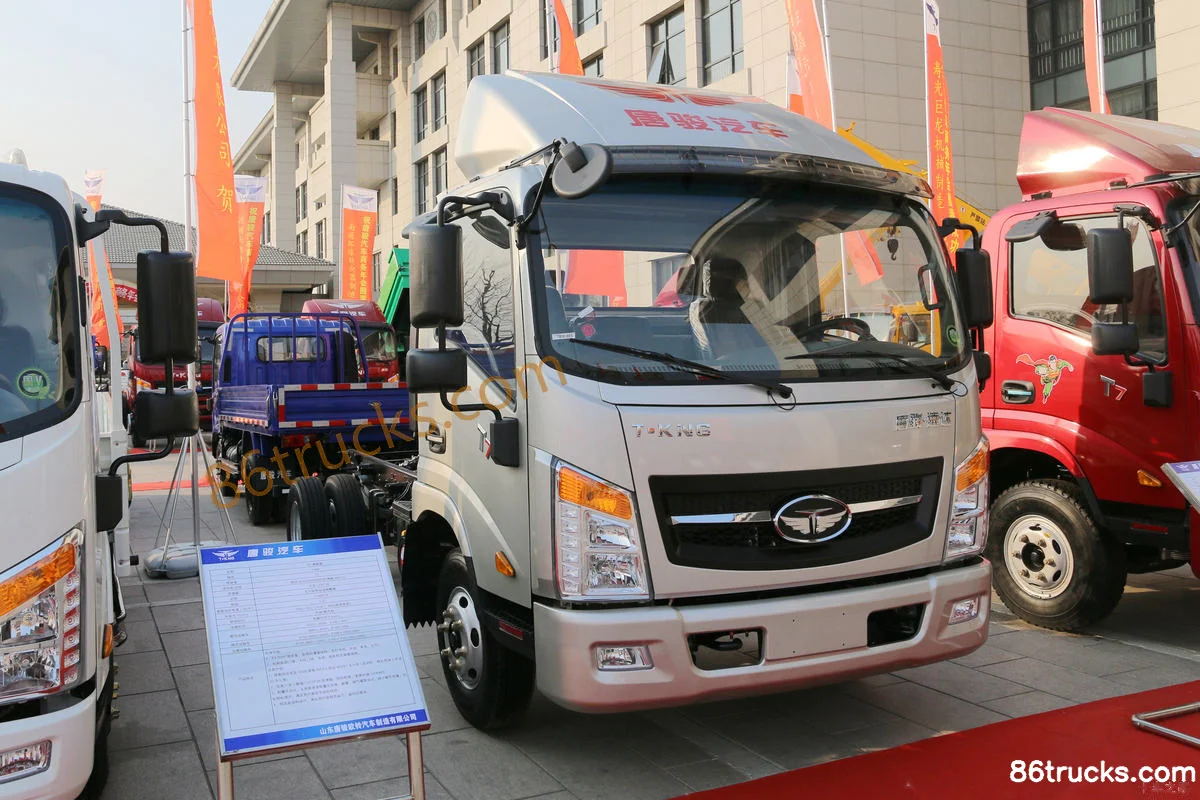

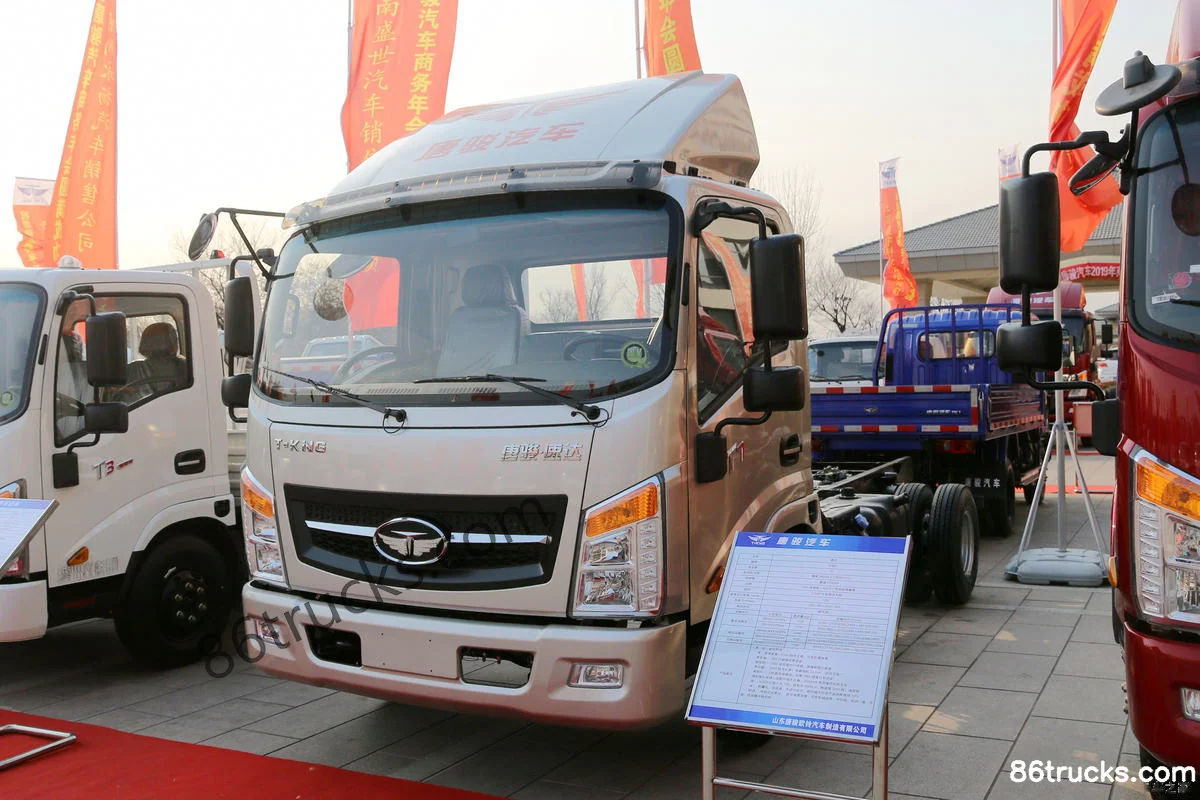

Exterior3

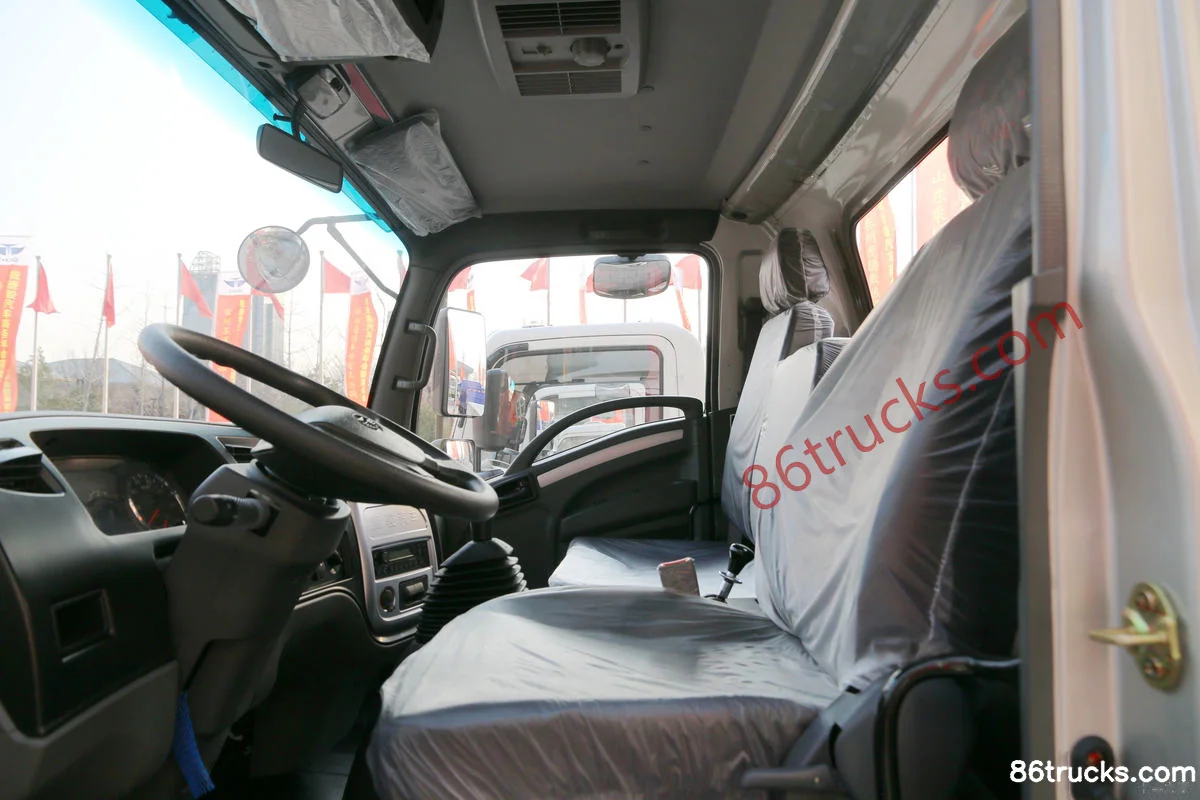

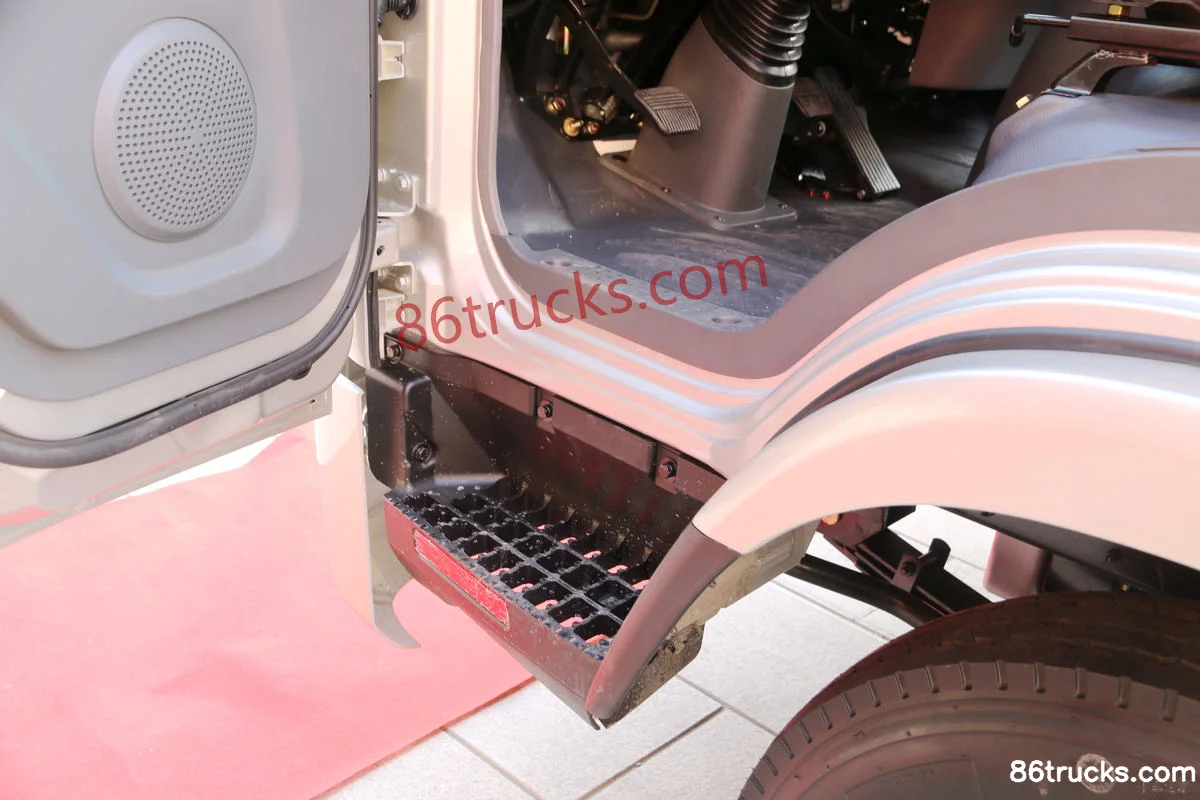

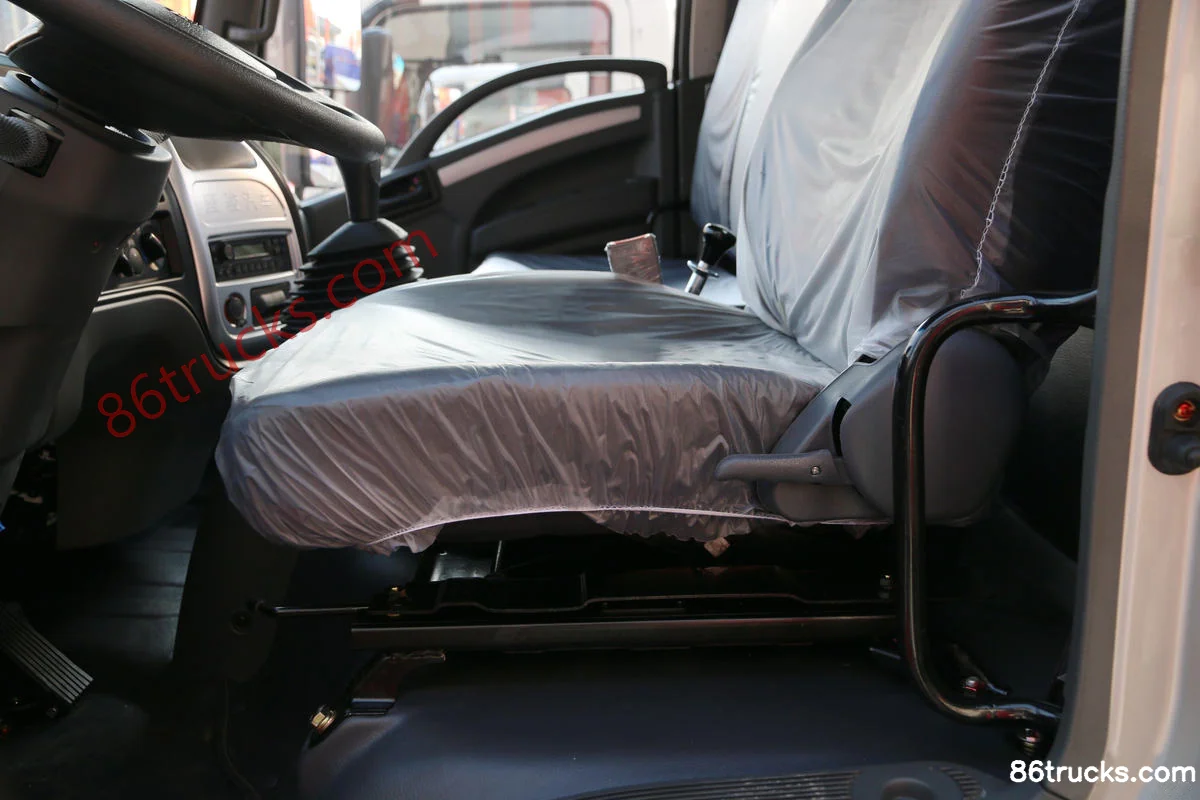

Cab3

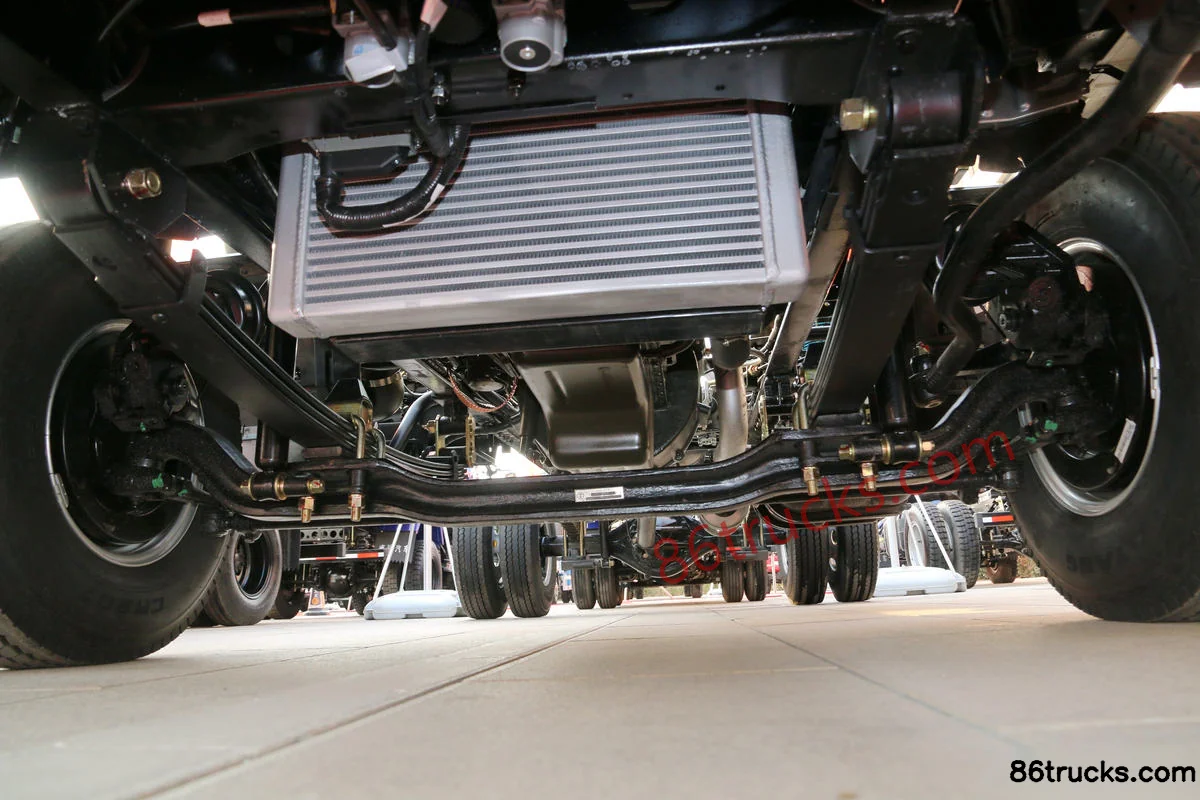

Chassis3

9 photos

FAQ

What is the export price of Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck, and what does it include?

Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck export reference is about From $16,389; MSRP is ¥11.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck?

Key specs of Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: ChaochaiNGD3.0; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck suited for?

Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck differ from other variants in the same series?

Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck belongs to T7 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling T7 Series Sudakechuang Edition 156 hp 4X2(6 wheels) 4.1m Single Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
