Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13)

Export reference
From $55,000
MSRP ¥39.6M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 315/80R22.5
Displacement:: 12.88L
Model code (announced):: CQ4255HXG334
Drive 6X4 (10 wheels)
Horsepower 480
Emission China IV
Transmission Fast Gear

Overview

The SAIC Hongyan Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13) is a Heavy truck featuring 6X4 (10 wheels) drive, 480 hp, 25t GVW and China IV emissions. On the powertrain side, it comes with a SAIC Fiat Powertrain HongyanC13 480 C4(F3BEE681A*T) engine, Fast Gear transmission and Diesel fuel.

China IV 480 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ4255HXG334
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: SAIC Fiat Powertrain HongyanC13 480 C4(F3BEE681A*T)
Cab length: 6.81m
Cab width: 2.5m
Cab height: 3.797m
Front track width: 2006mm
rear track: 1800/1800mm
Gross Trailer Weight: 40ton
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Chongqing
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanC13 480 C4(F3BEE681A*T)
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.88L
Emission standard: China IV
Max output power: 353kW
Max hp: 480Horsepower
Max torque: 2200N·m
Max torque speed: 1100rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear16JS240TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Front/rear disc brakes, dual-circuit air brake system, ABS
rear axle description: H6A tandem intermediate axle, with disc brake
Leaf spring count: Front & rear: multi-leaf spring
fuel tank
Fuel tank capacity: 550L
Tire
Tire Size: 315/80R22.5
Number of tires: 10pcs

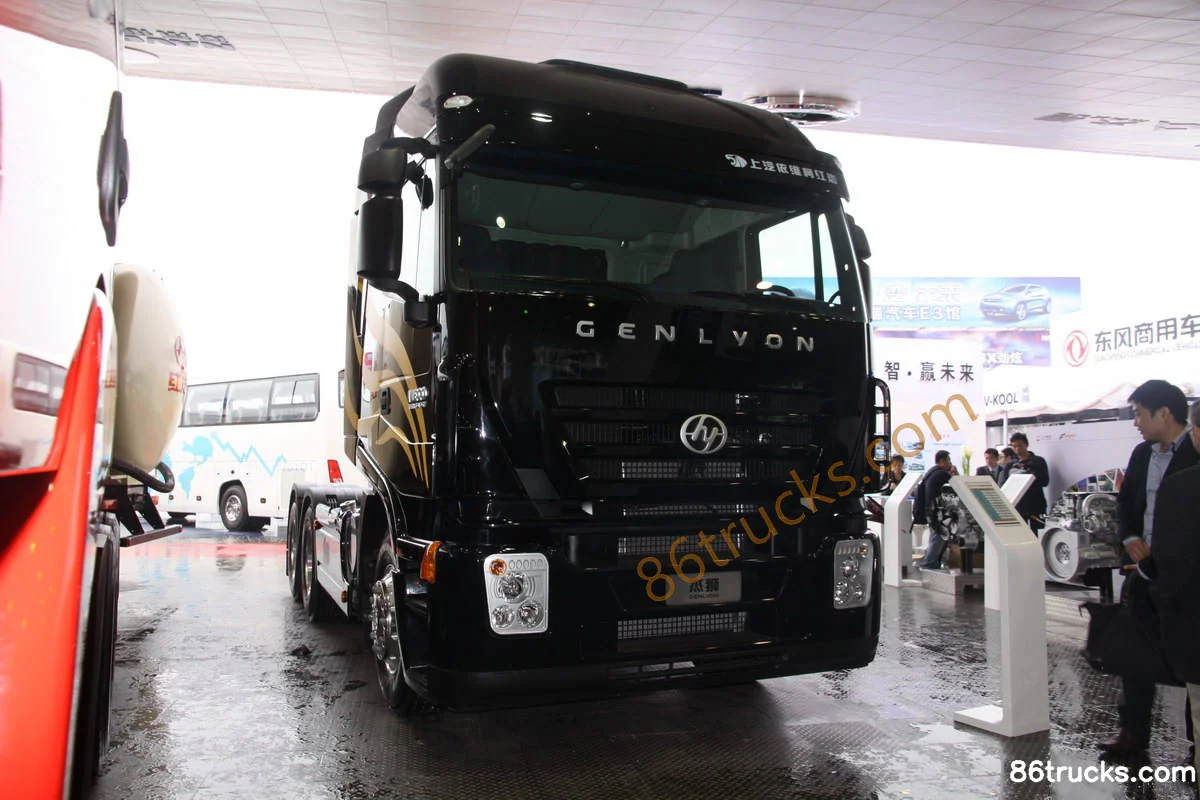

Photos

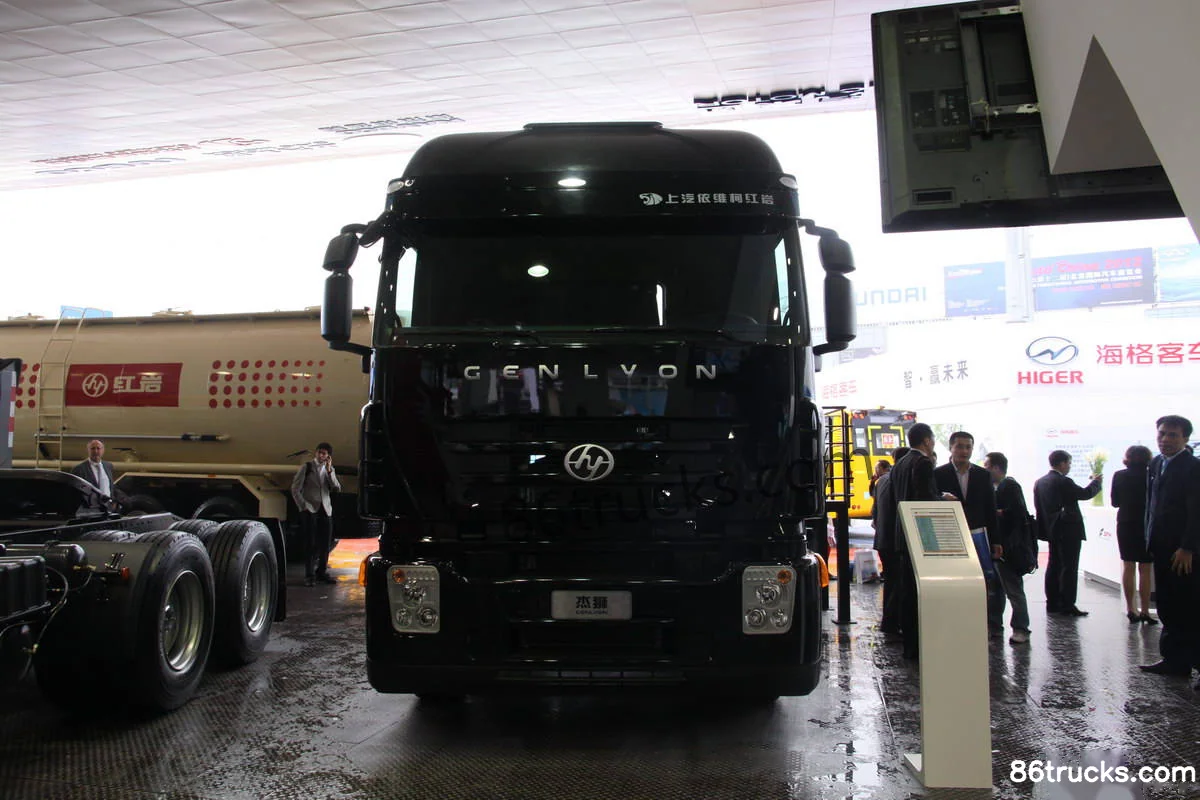

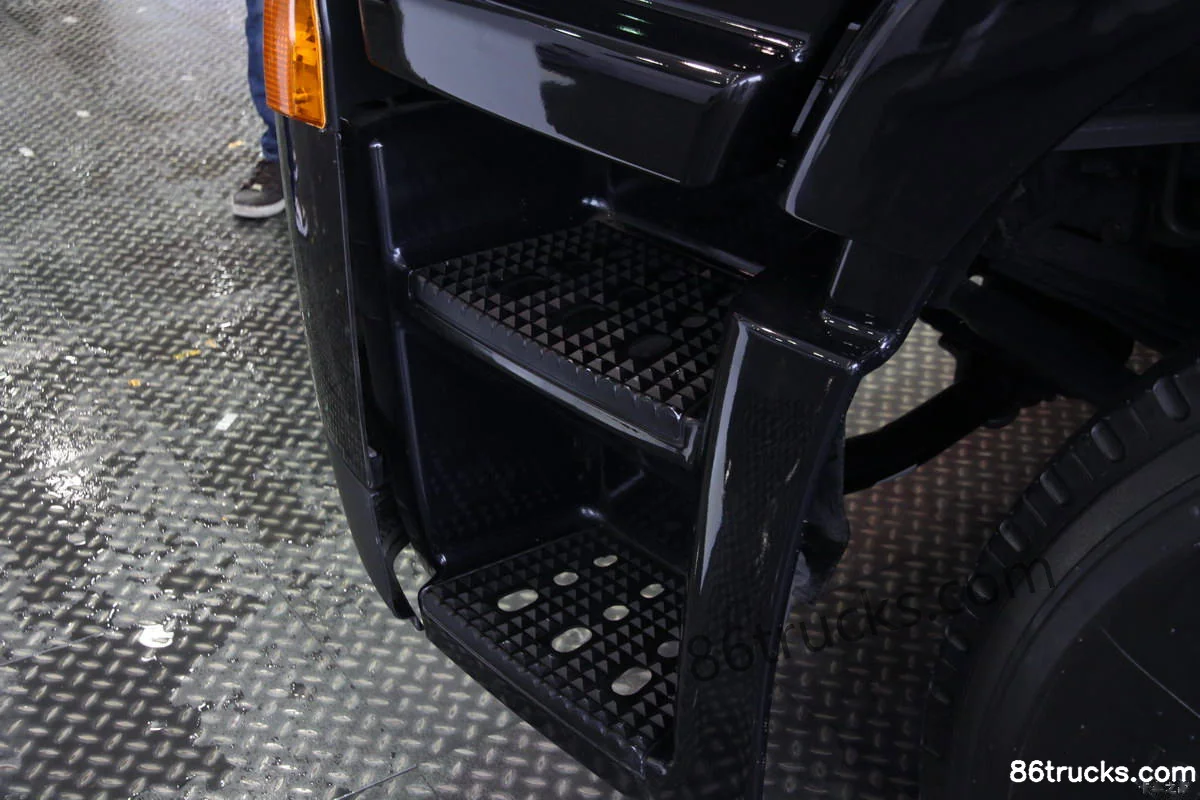

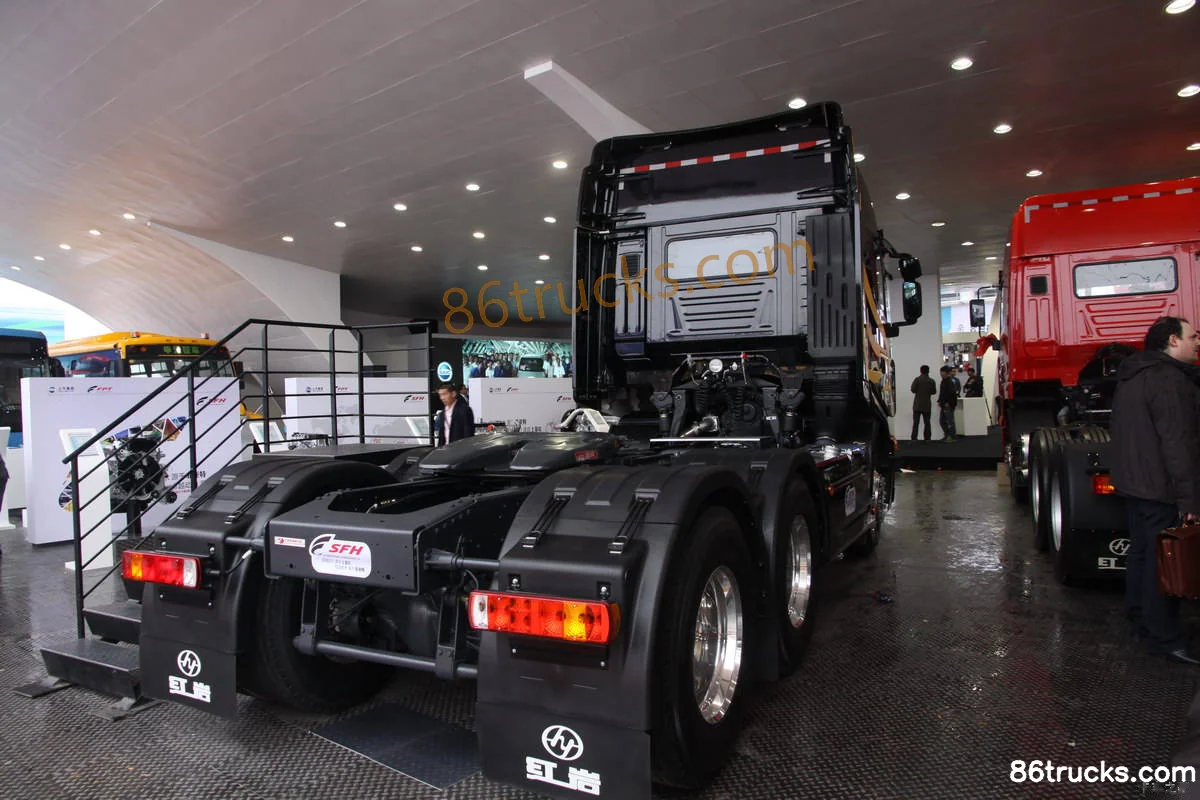

Exterior3

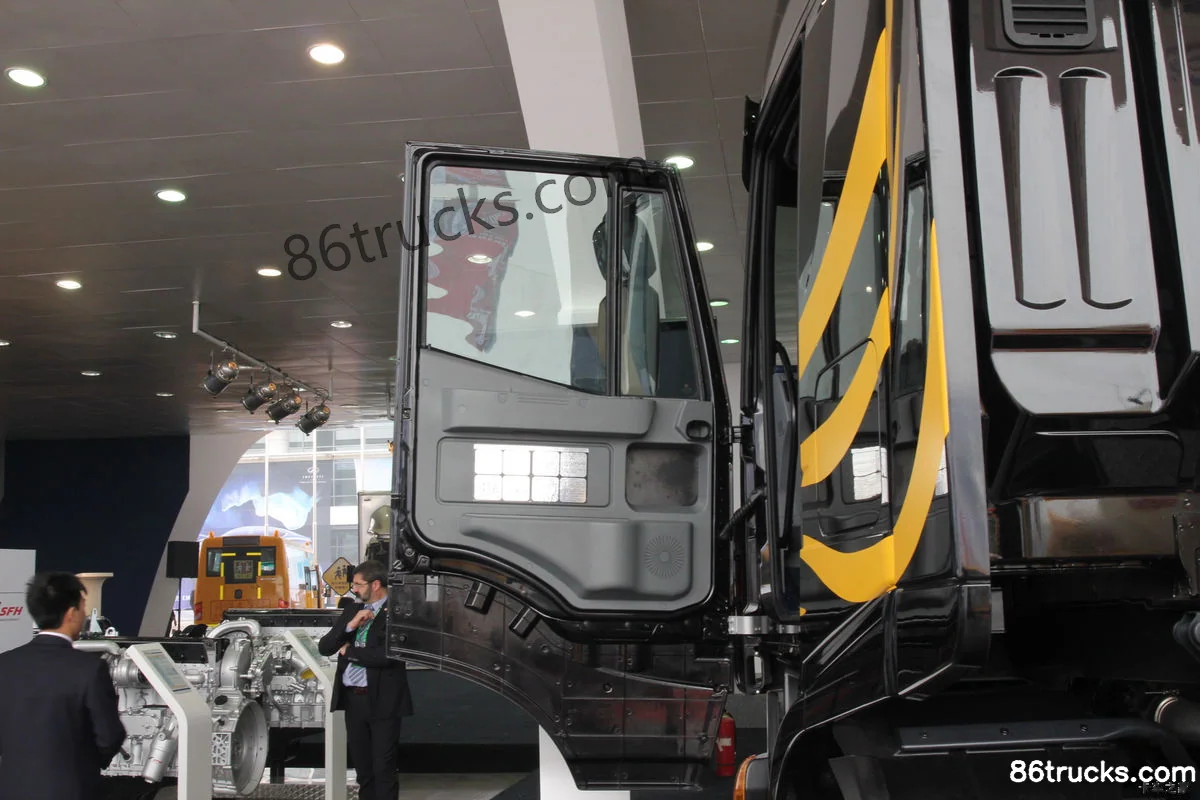

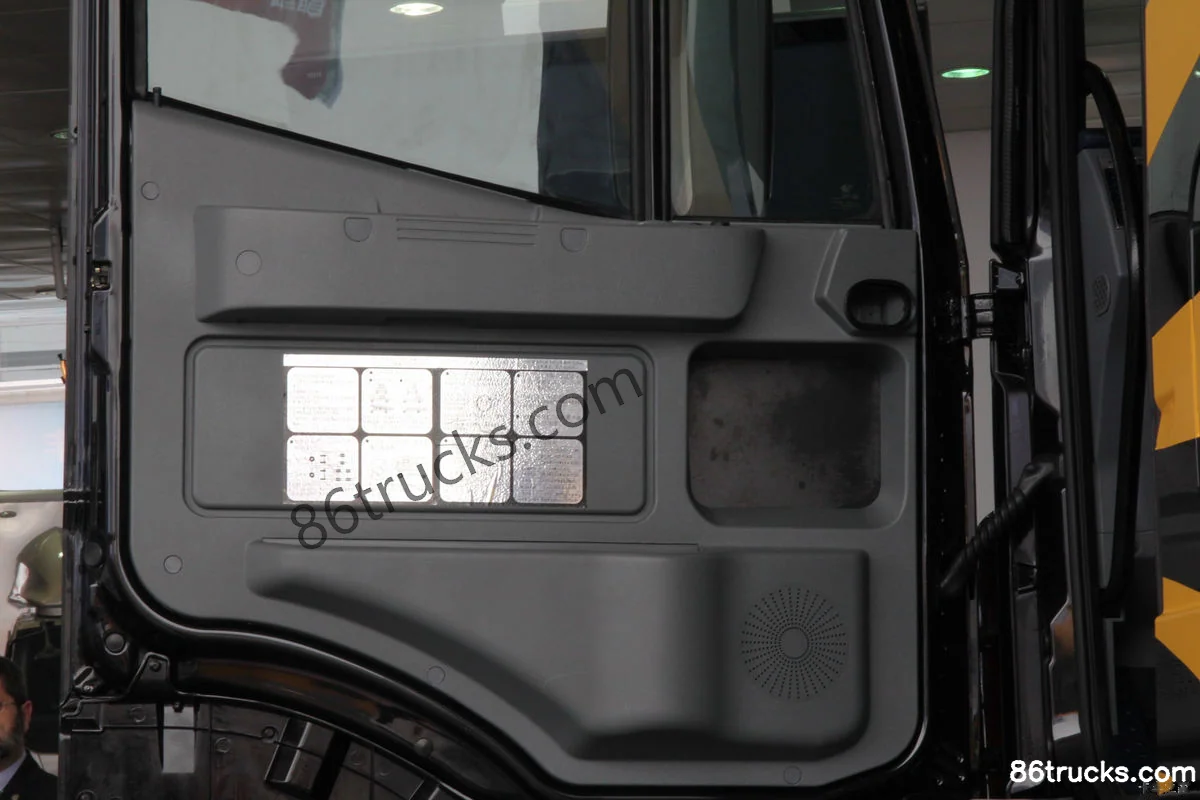

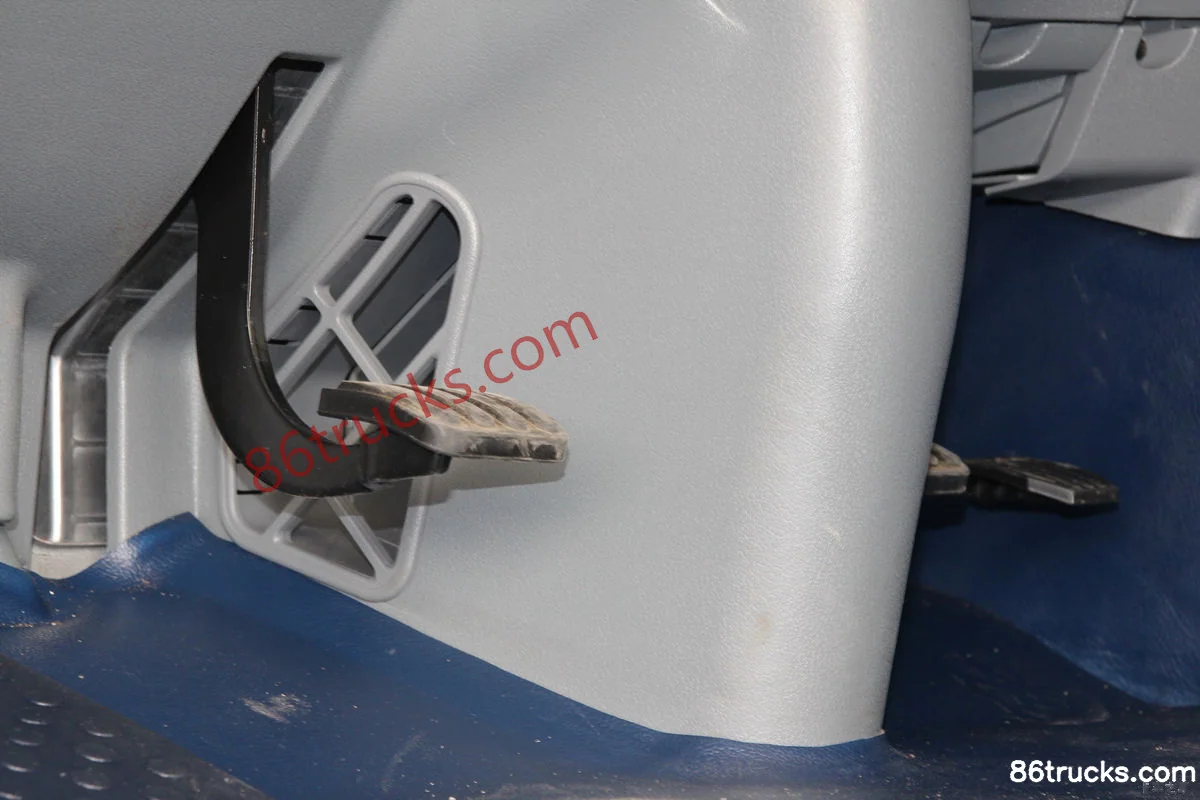

Cab3

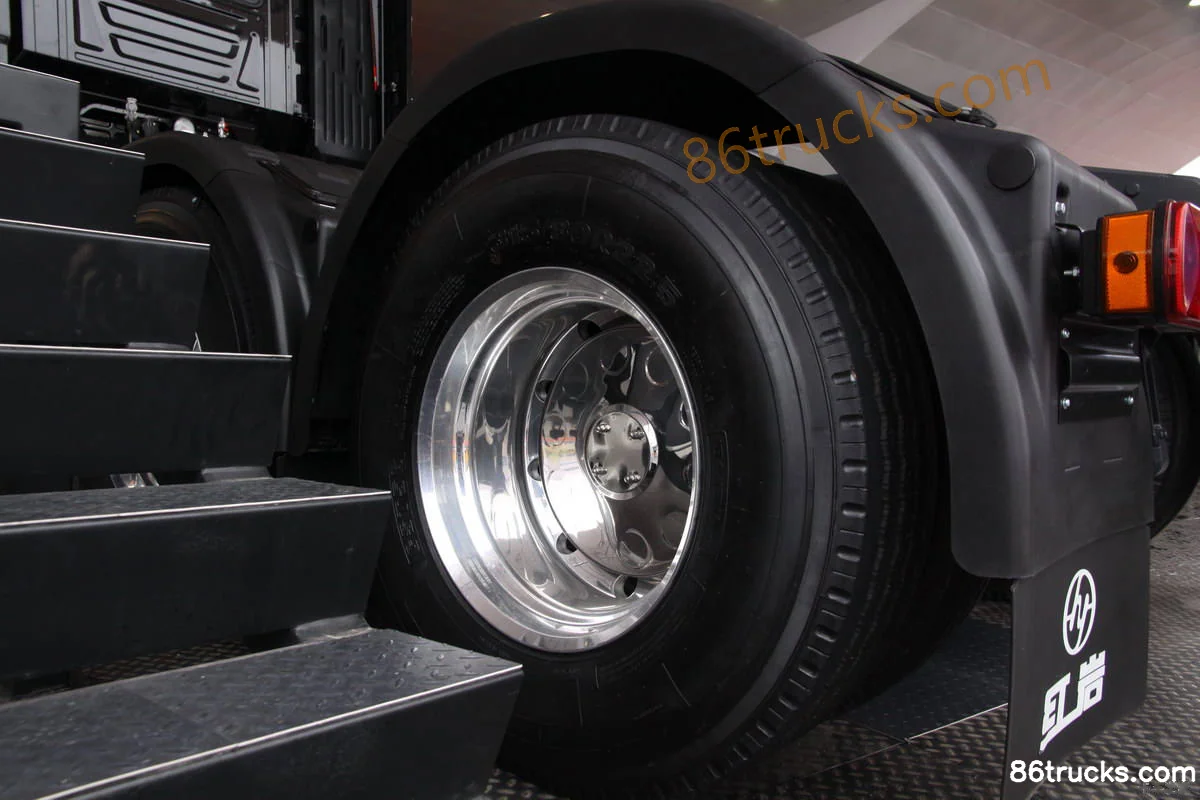

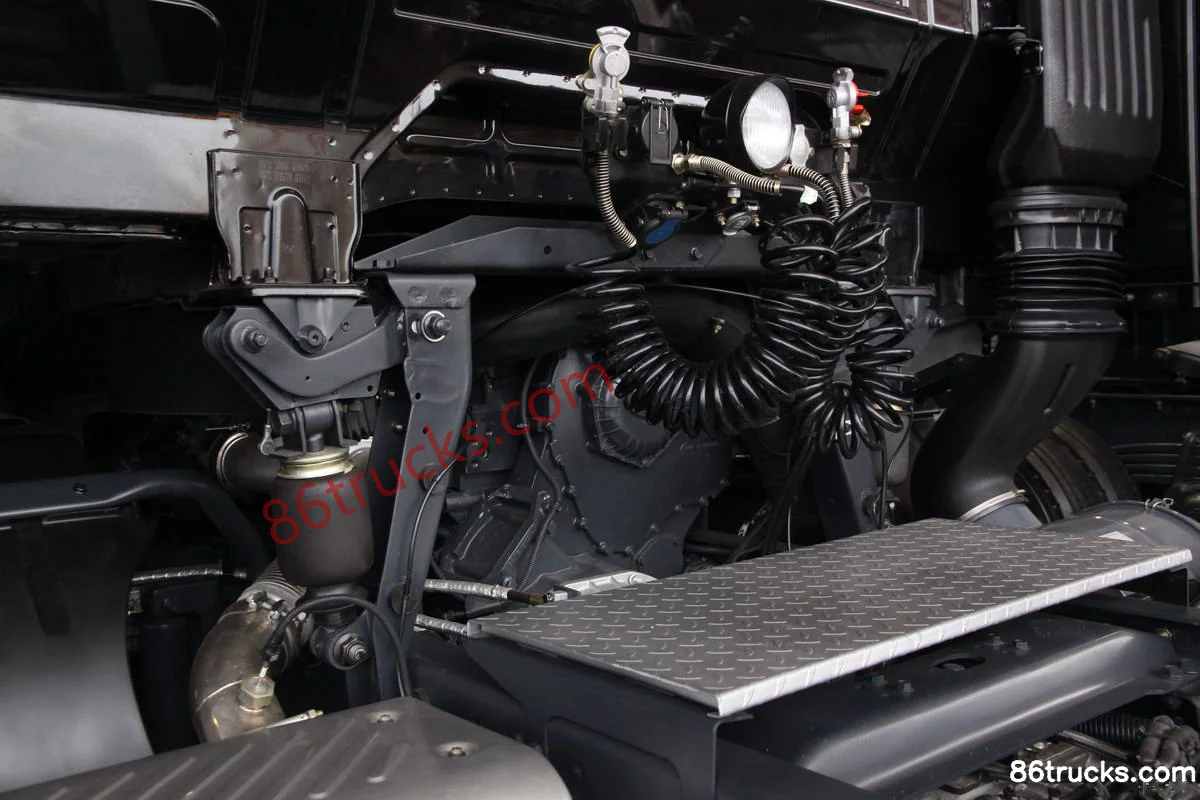

Chassis3

9 photos

FAQ

What is the export price of Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13), and what does it include?

Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13) export reference is about From $55,000; MSRP is ¥39.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13)?

Key specs of Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13): Drive: 6x4; Horsepower: 480 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13) suited for?

Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13) differ from other variants in the same series?

Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13) belongs to SAIC Hongyan Genlyon Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongyan Genlyon S100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (SAIC Fiat Powertrain Hongyan C13)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
