SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck

Export reference
MSRP N/A
Horsepower: 350
Emission: China IV
Fuel: Diesel
Engine: SAIC Fiat Powertrain HongyanC9
Transmission: Fast Gear
Curb Weight:: 13.8ton
seating capacity: 3Personnel
Rated payload: 17.07ton
Drive 8X4 (12 wheels)
Cargo box type: Van body

Overview

The SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck is a Heavy-duty cargo trucks featuring 9.4m cargo length, Van body cargo body, 3Personnel volume and 17.07t payload. Its segment focus covers Agricultural product transport, cold chain transport and logistics distribution, matching those duty cycles. On the powertrain side, it comes with a SAIC Fiat Powertrain HongyanC9 engine, 350 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ5315XXYHTG466
Type: enclosed cargo truck
Drive type: 8X4
Wheelbase: 1800+4625+1350mm
Box length class: 9.4m
engine: SAIC Fiat Powertrain HongyanC9.350 C4(F2CE3681G*P)
transmission: Fast Gear12JSD160TA
Cab length: 11.99m
Cab width: 2.5m
Cab height: 3.92m
Front track width: 2006/2006mm
rear track: 1850/1850mm
Curb Weight: 13.8ton
Rated payload: 17.07ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Chongqing
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 12°
market segment: Agricultural product transport, cold chain transport, logistics distribution, LTL transport, daily bulk cargo, daily industrial product transport
Front/rear suspension: 1.435/2.755m
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanC9.350 C4(F2CE3681G*P)
Engine info: SAIC Fiat Powertrain HongyanC9
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.709L
Emission standard: China IV
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1500N·m
Max torque speed: 1100-1700rpm
Rated speed: 2100rpm
Engine Type: Electronic high-pressure common rail system
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.4m
Cargo box width: 2.41m
Cargo box height: 2.4m
*Cargo box interior width: 2.4100000858307
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/6500kg
Frame Dimensions: 940-865/305 8mm
rear axle description: 457
rear axle allowable load: 18000 (twin axle)kg
Leaf spring count: 8/8/12
Tire
Tire Size: 11.00 R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

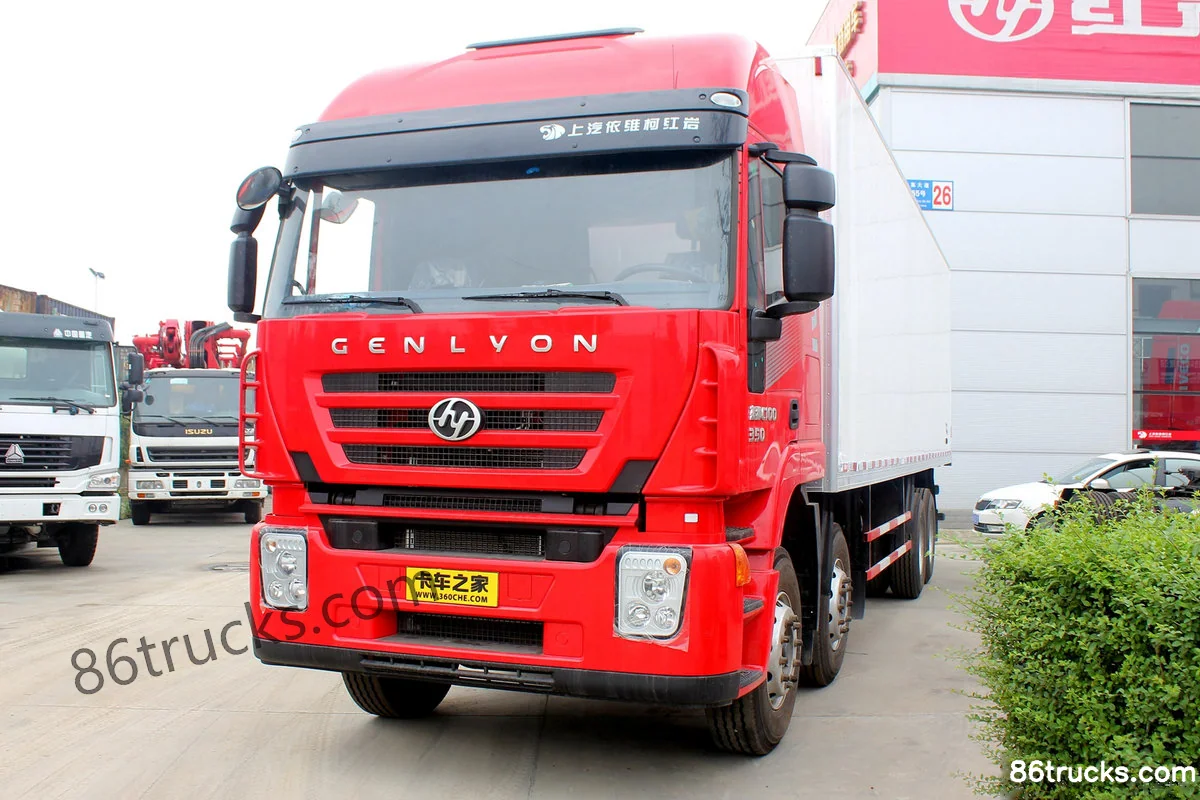

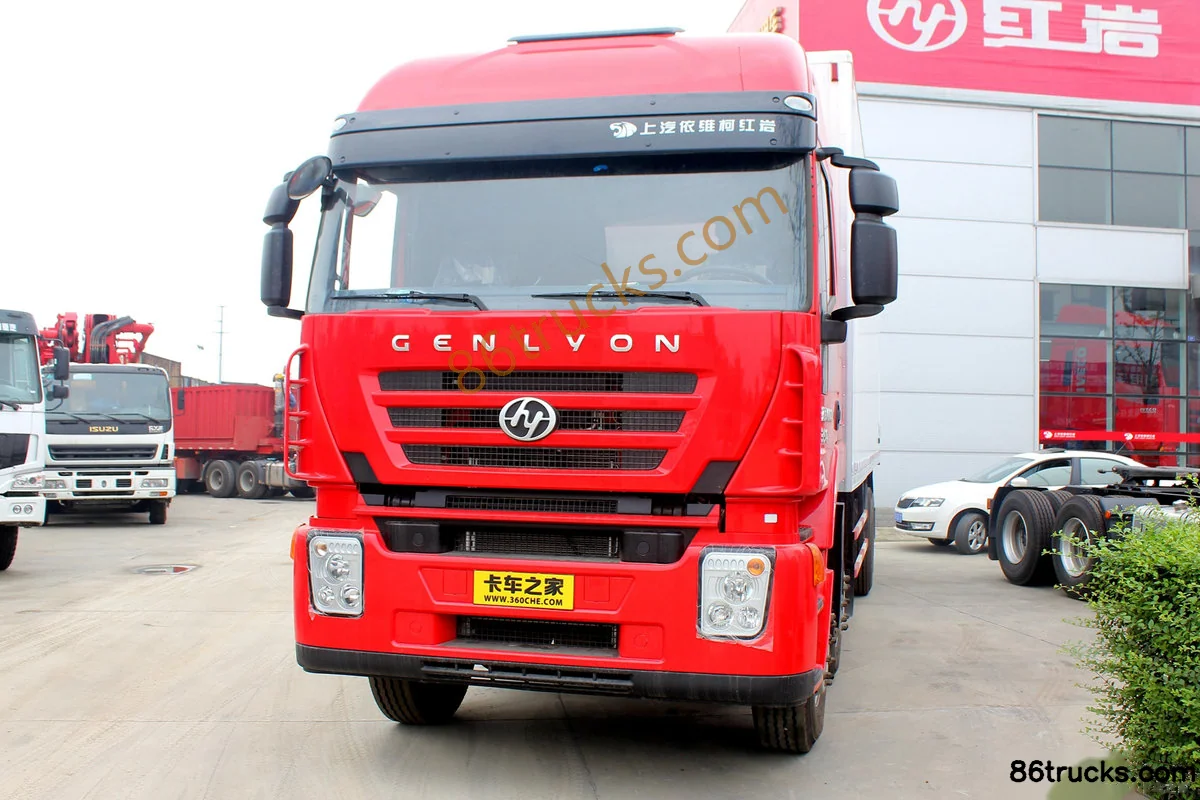

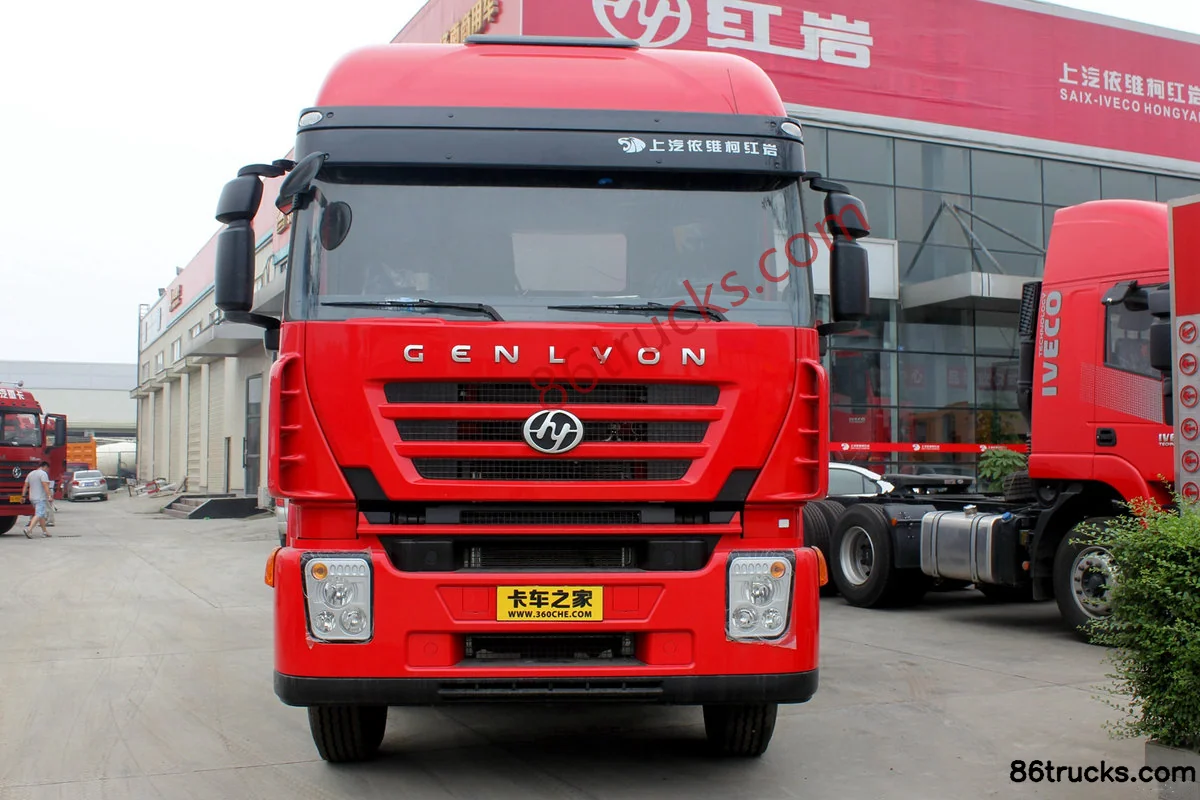

Exterior3

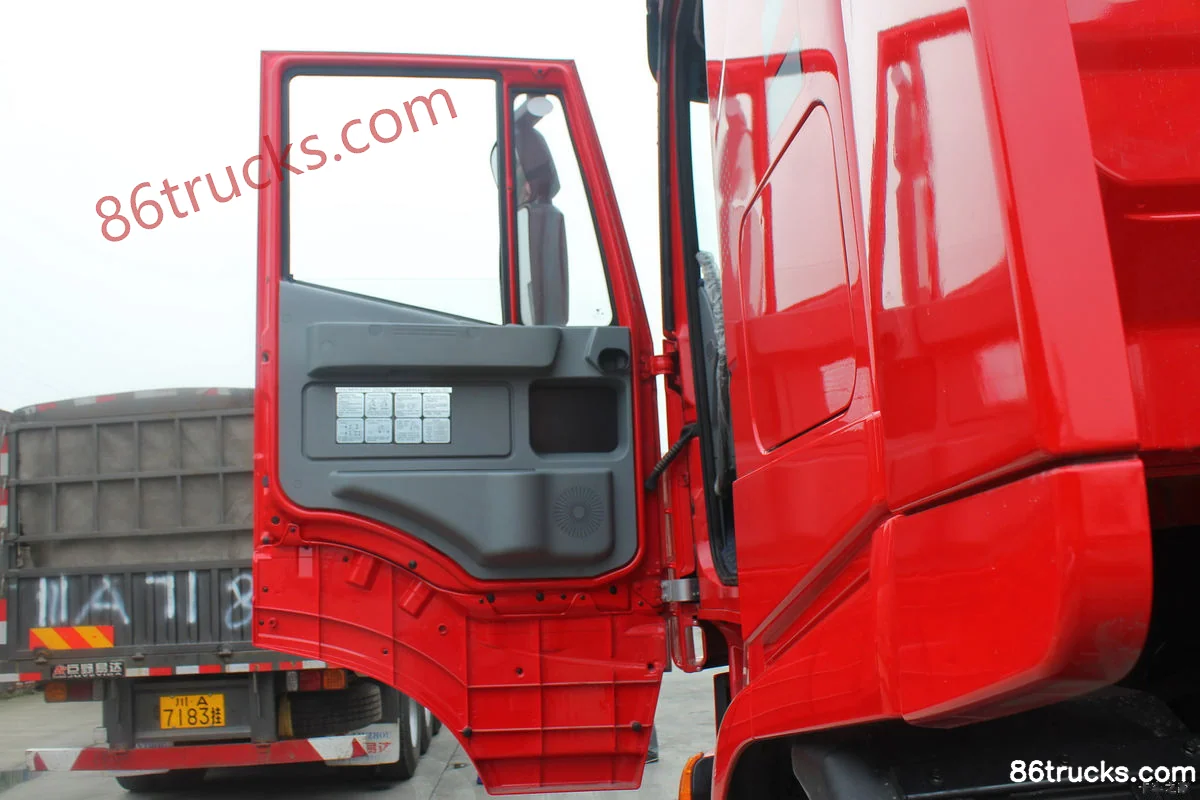

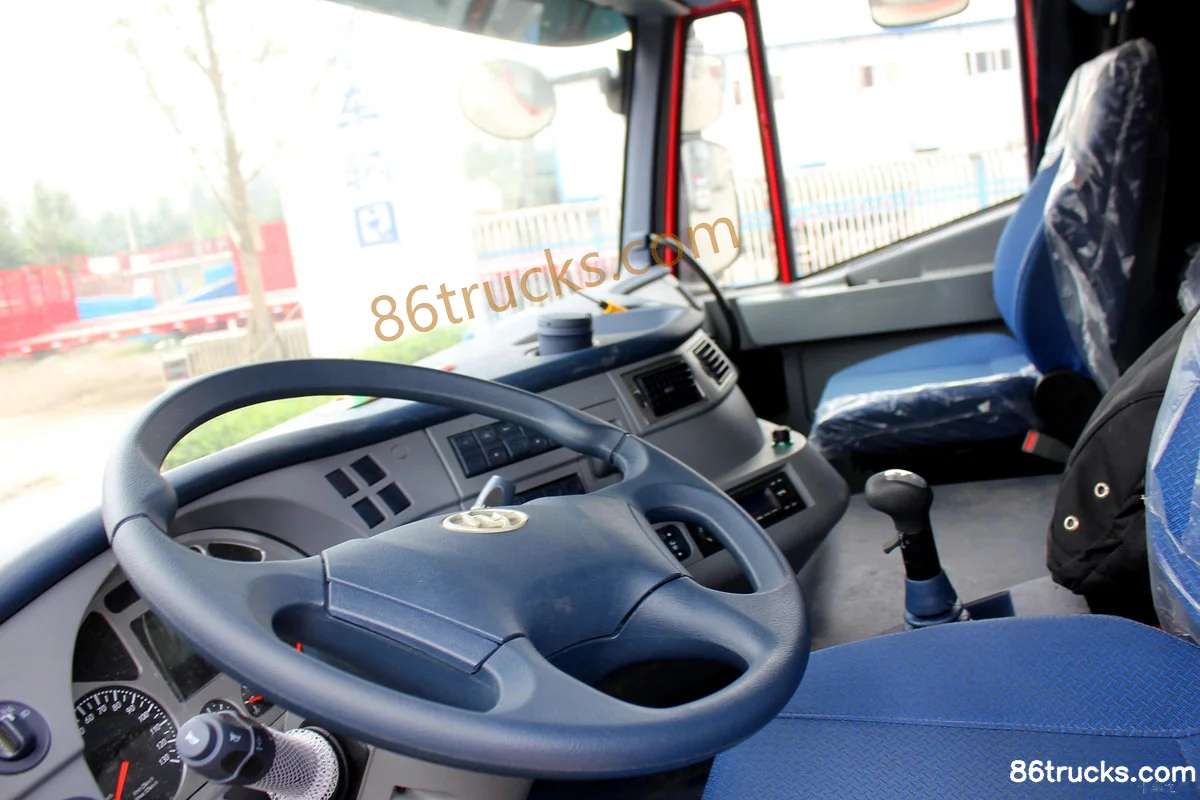

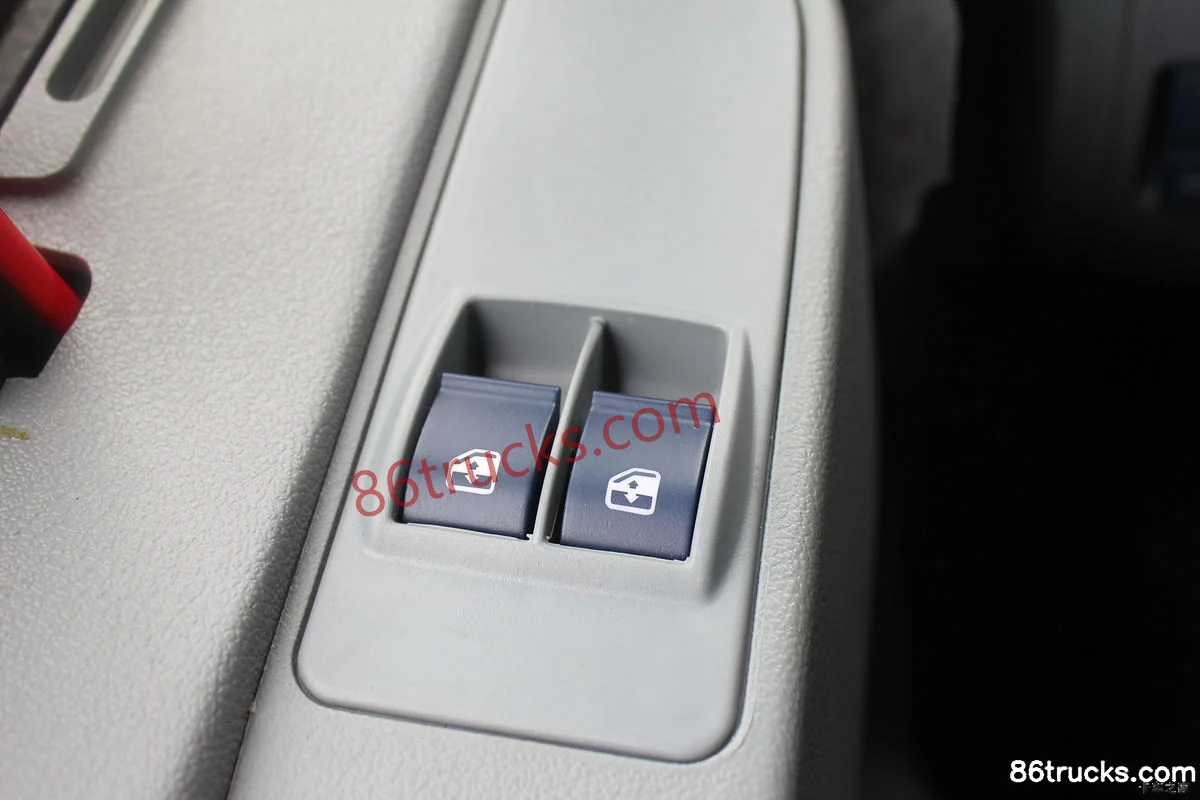

Cab3

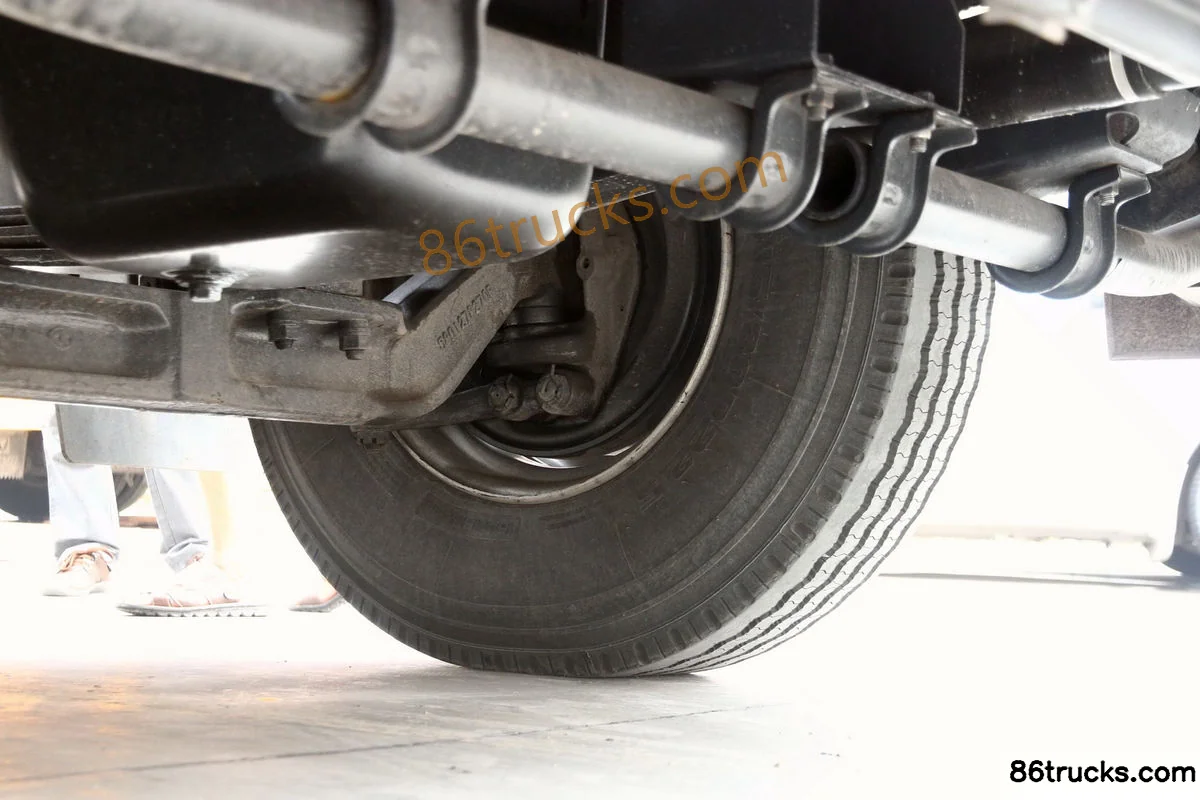

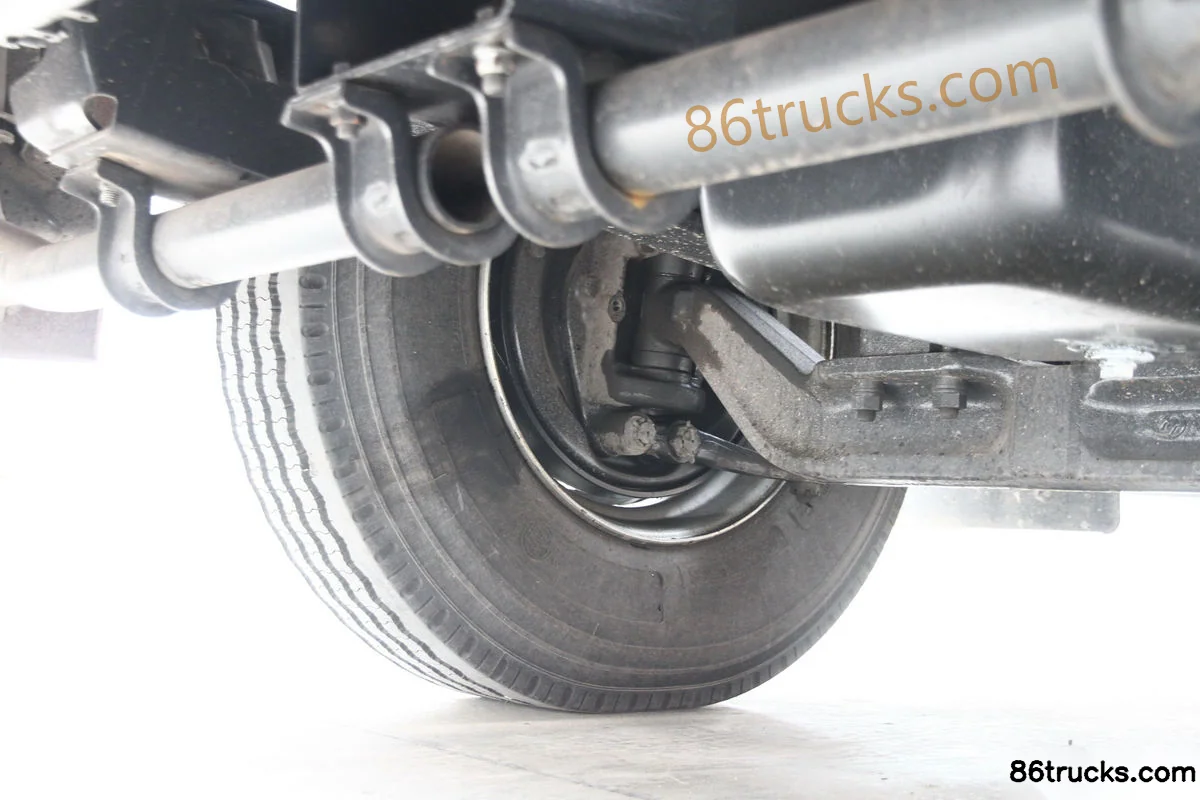

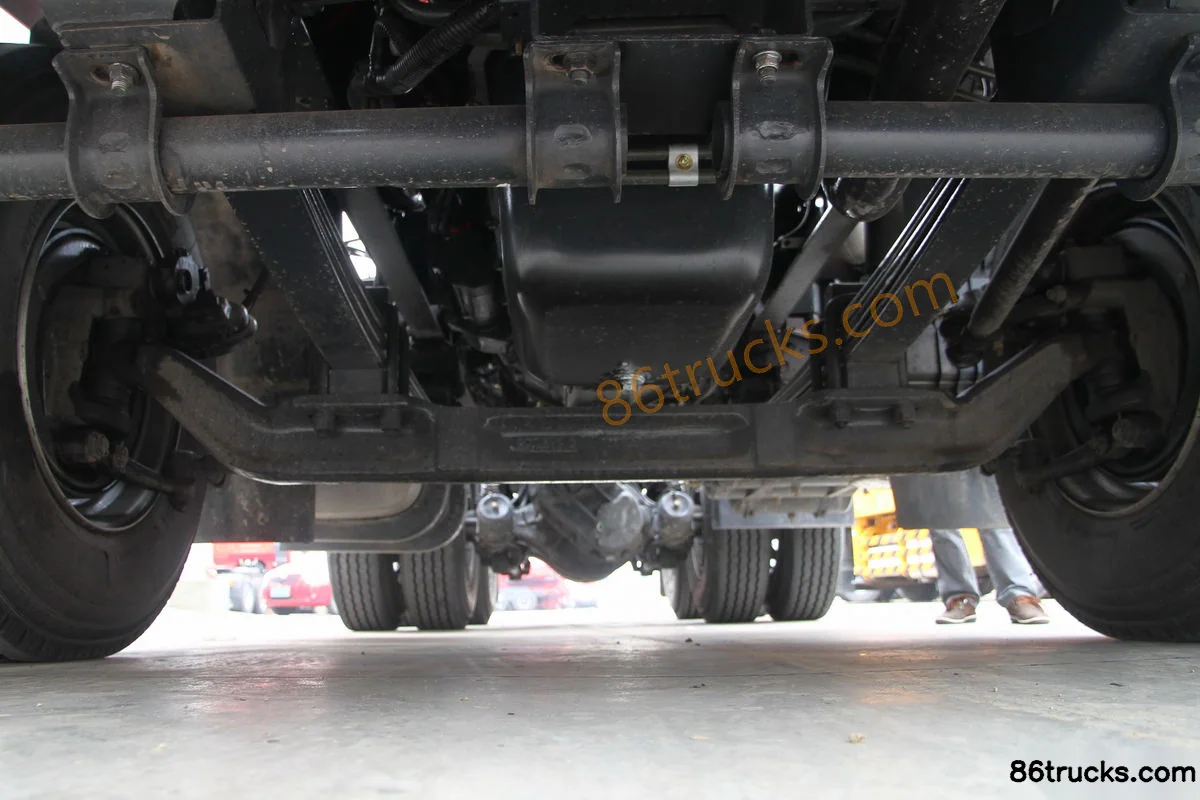

Chassis3

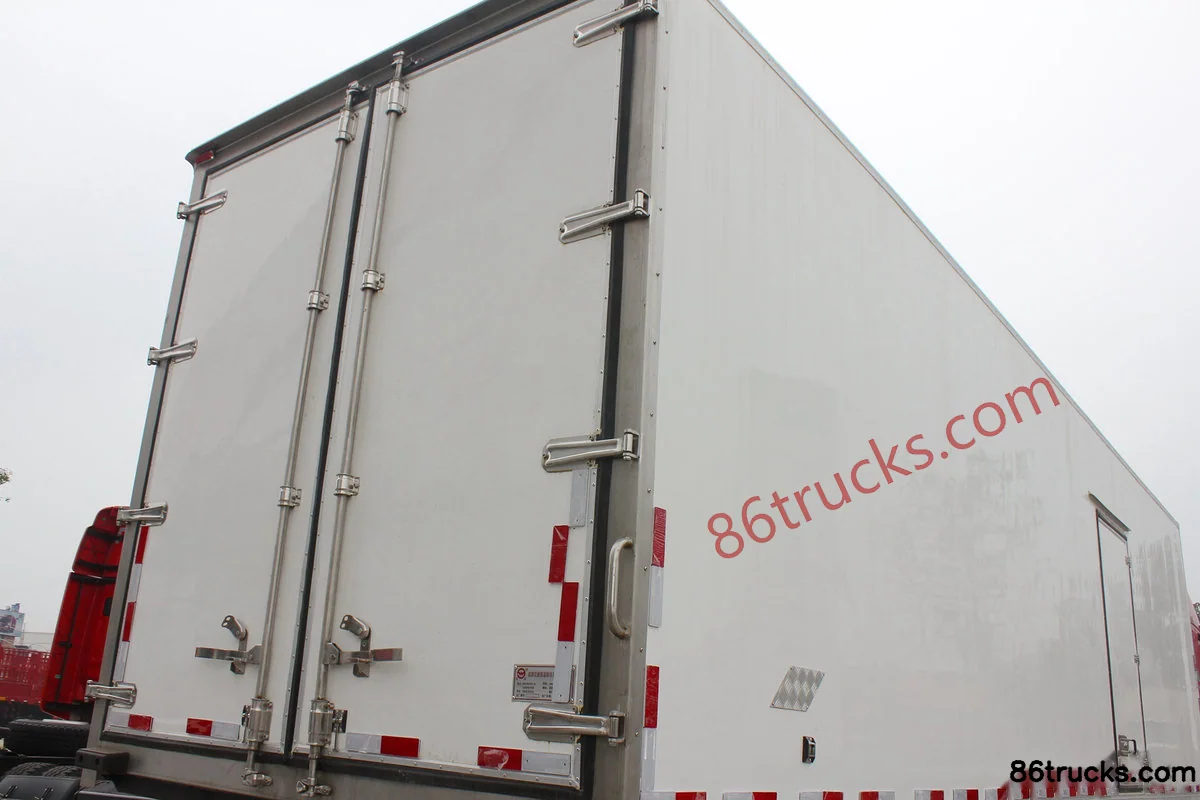

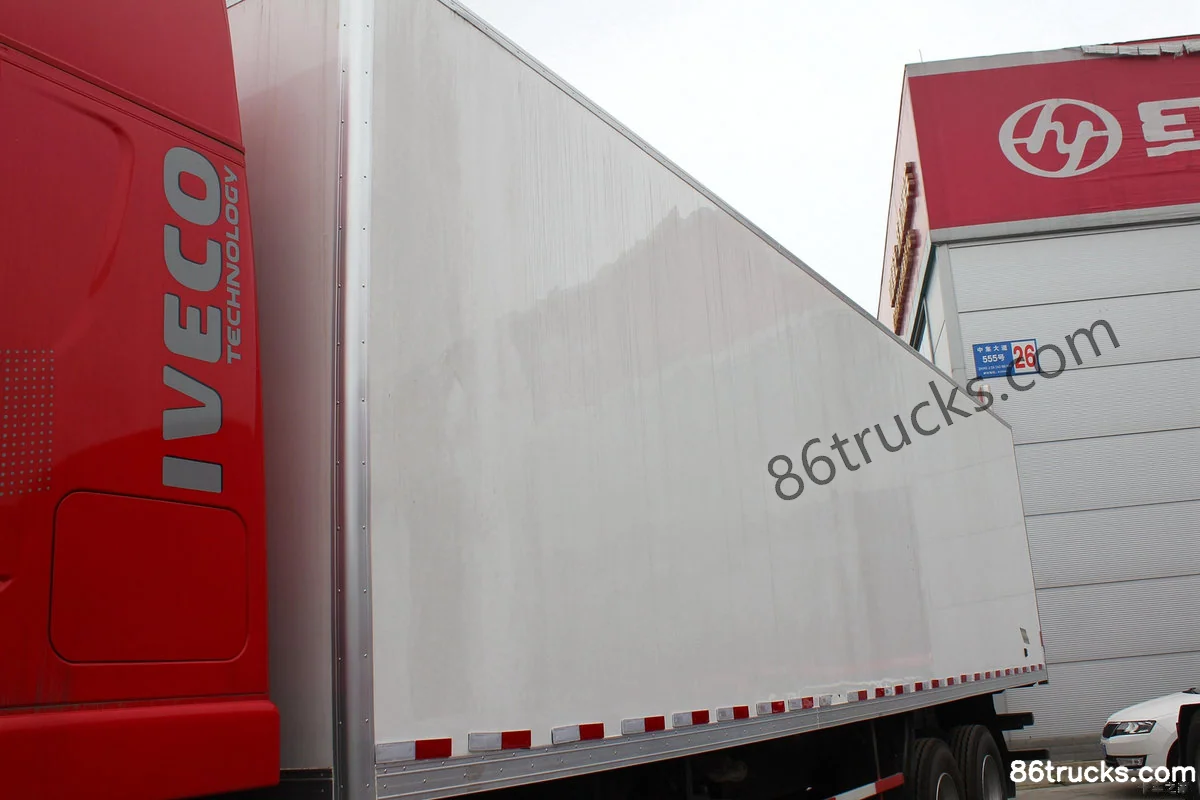

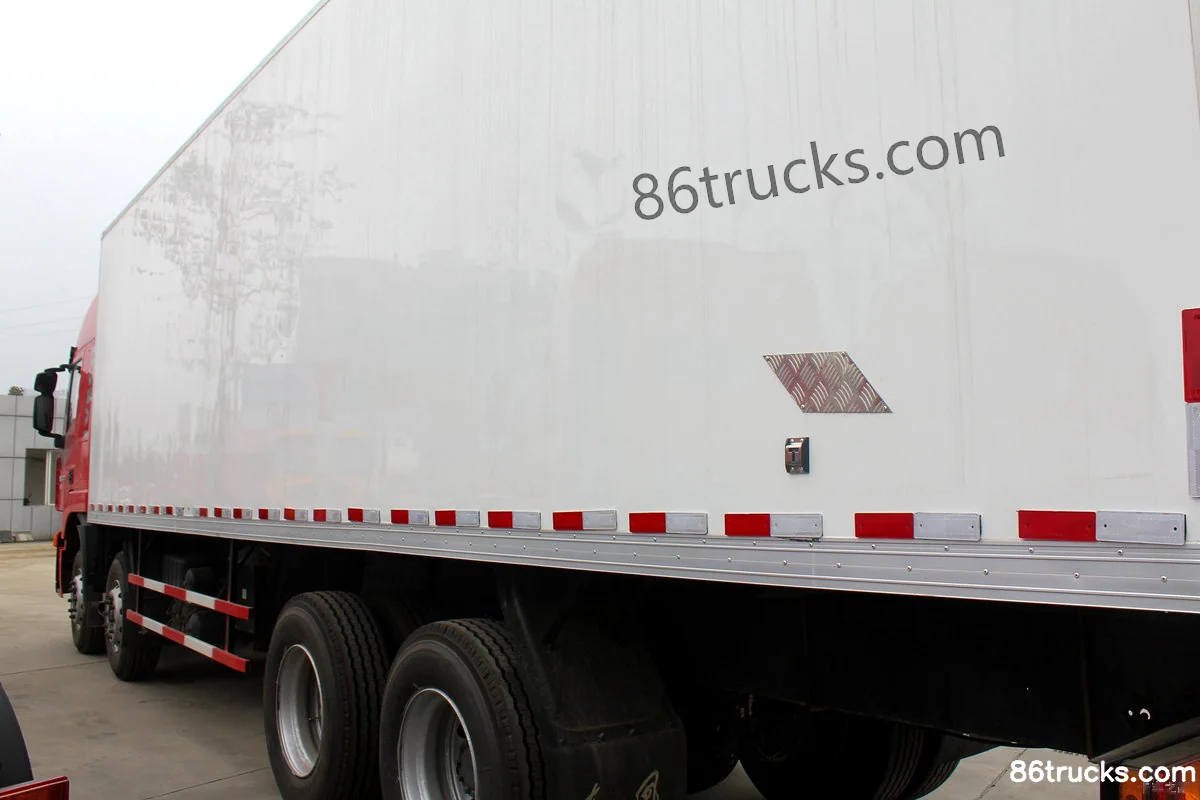

Body3

12 photos

FAQ

What emission standard does SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck?

Key specs of SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel; Engine: SAIC Fiat Powertrain HongyanC9; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck suited for?

SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck differ from other variants in the same series?

SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck belongs to SAIC Hongyan Genlyon Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon C100 Heavy Truck 350 hp 8X4(12 wheels) 9.4m Van Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
