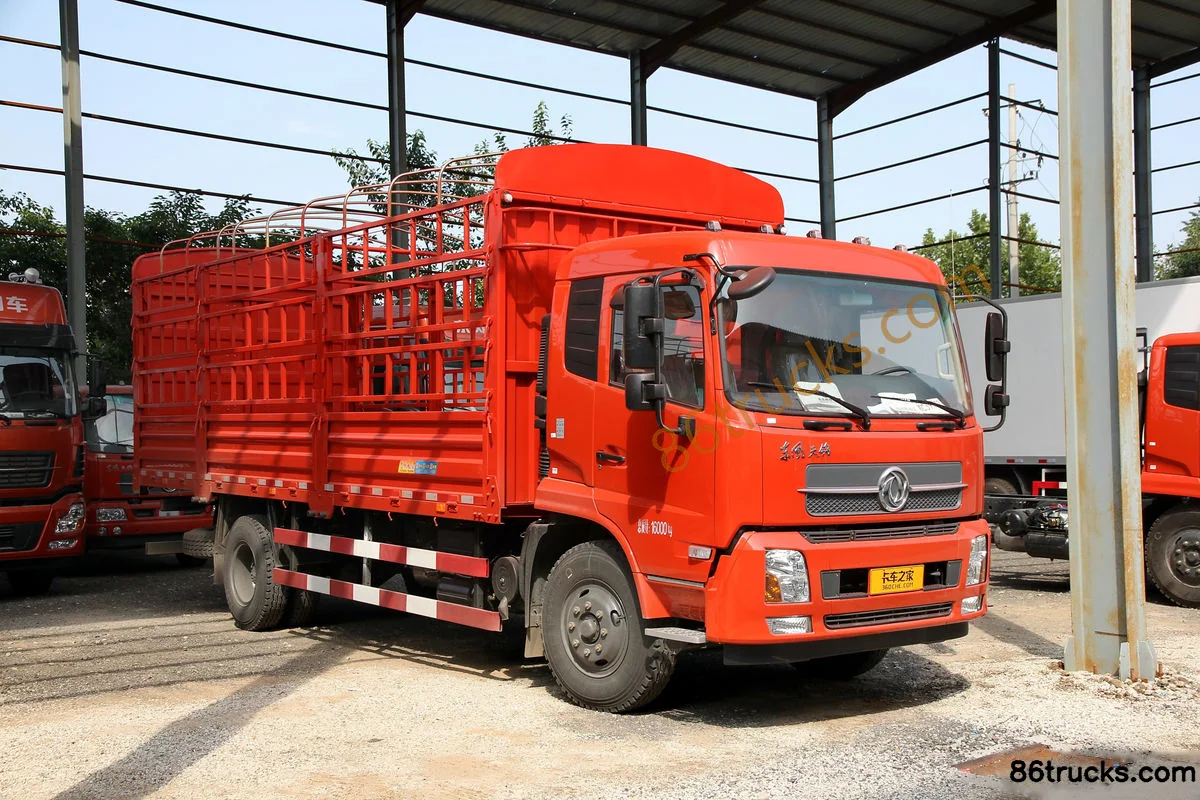

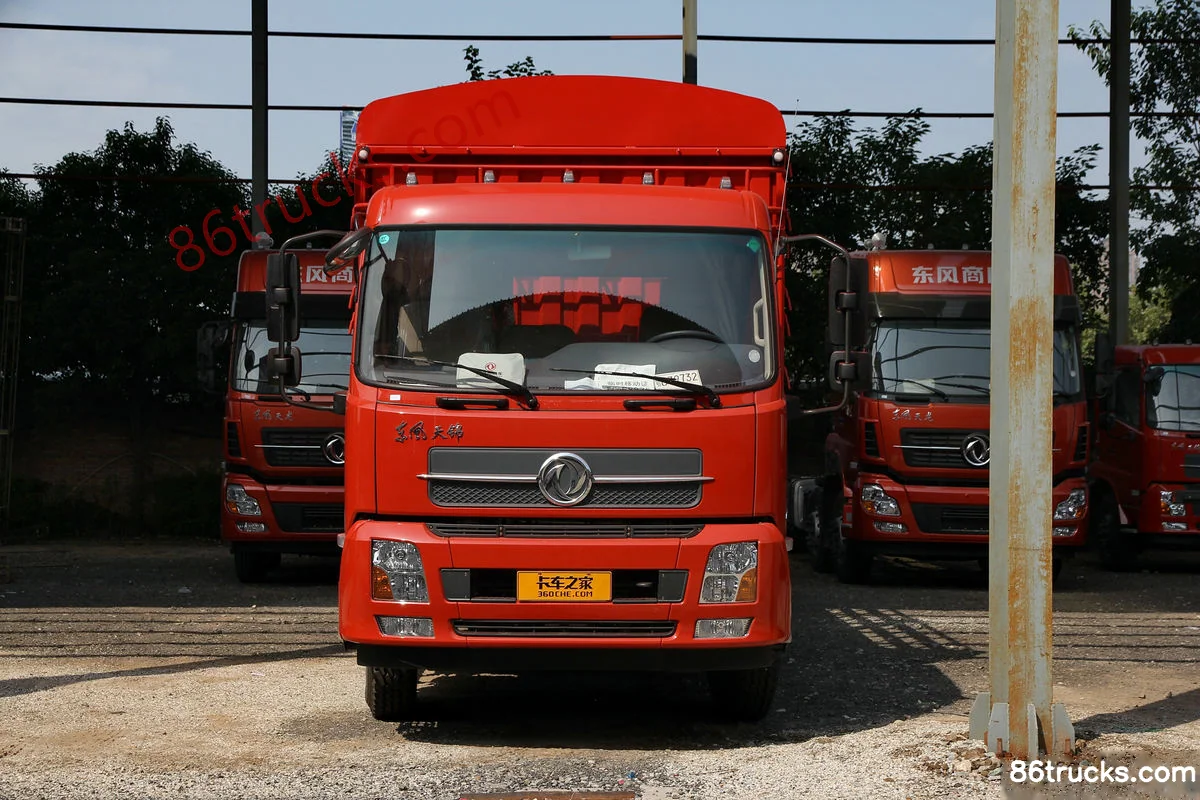

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck

Export reference
From $23,333
MSRP ¥16.8M CNY
Horsepower: 180
Emission: China IV
Fuel: Diesel
Engine: Dongkang 6-cyl
Transmission: Dongfeng
Curb Weight:: 6.105ton
seating capacity: 3Personnel
Rated payload: 9.7ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck is a Medium-duty truck featuring 6.75m cargo length, Stake type cargo body, 3Personnel volume and 9.7t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Dongkang 6-cyl engine, 180 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL5160CCQBX5
Type: stake truck
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: DongfengISB180 40
transmission: DongfengDF6S900
Rear Axle Ratio: 4.56
Cab length: 9m
Cab width: 2.5m
Cab height: 3.76m
Front track width: 1880,1920mm
rear track: 1860,1800mm
Curb Weight: 6.105ton
Rated payload: 9.7ton
GVWR: 16ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 11°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.43/2.57m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISB180 40
Engine info: Dongkang 6-cyl
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.9L
Emission standard: China IV
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 630N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: Inline 6-cylinder, turbocharged intercooled, electronically controlled common rail
Transmission Parameters
Transmission Model: DongfengDF6S900
Transmission Brand: Dongfeng
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:

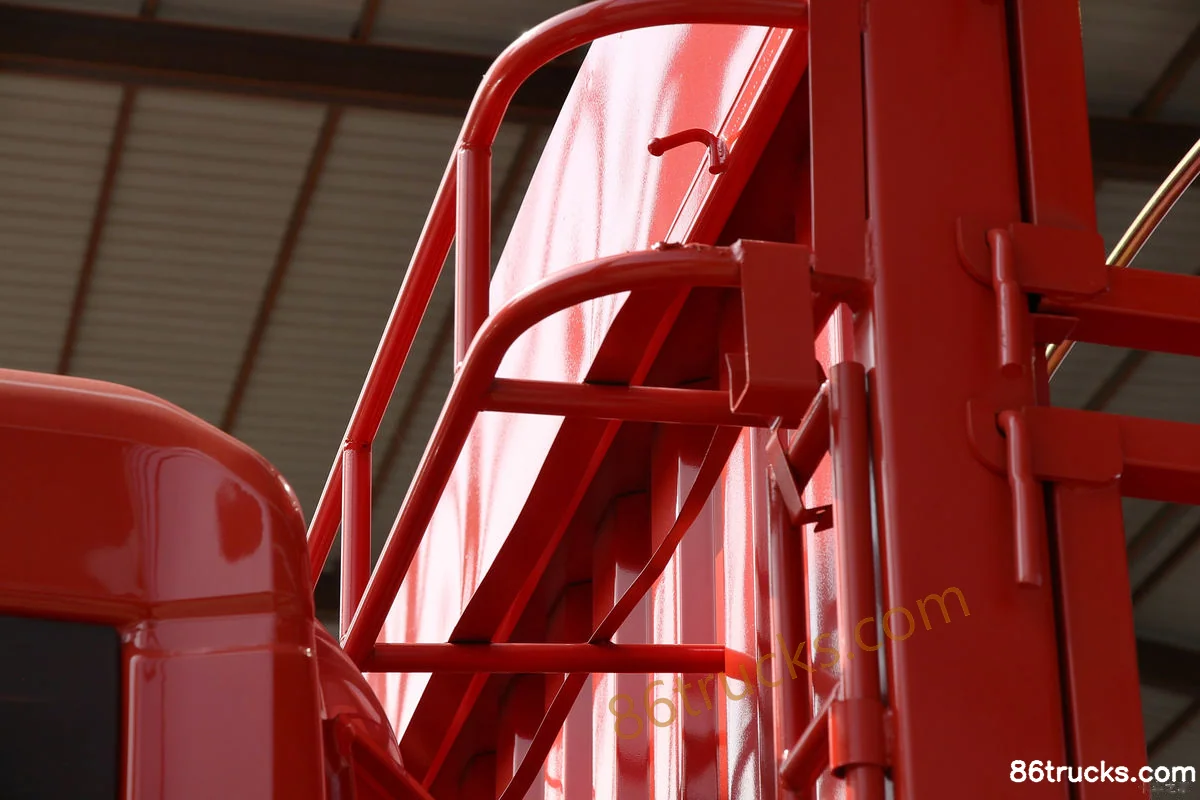

Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: D530 flat-front single-row sleeper standard-roof cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 200L
Chassis Specs

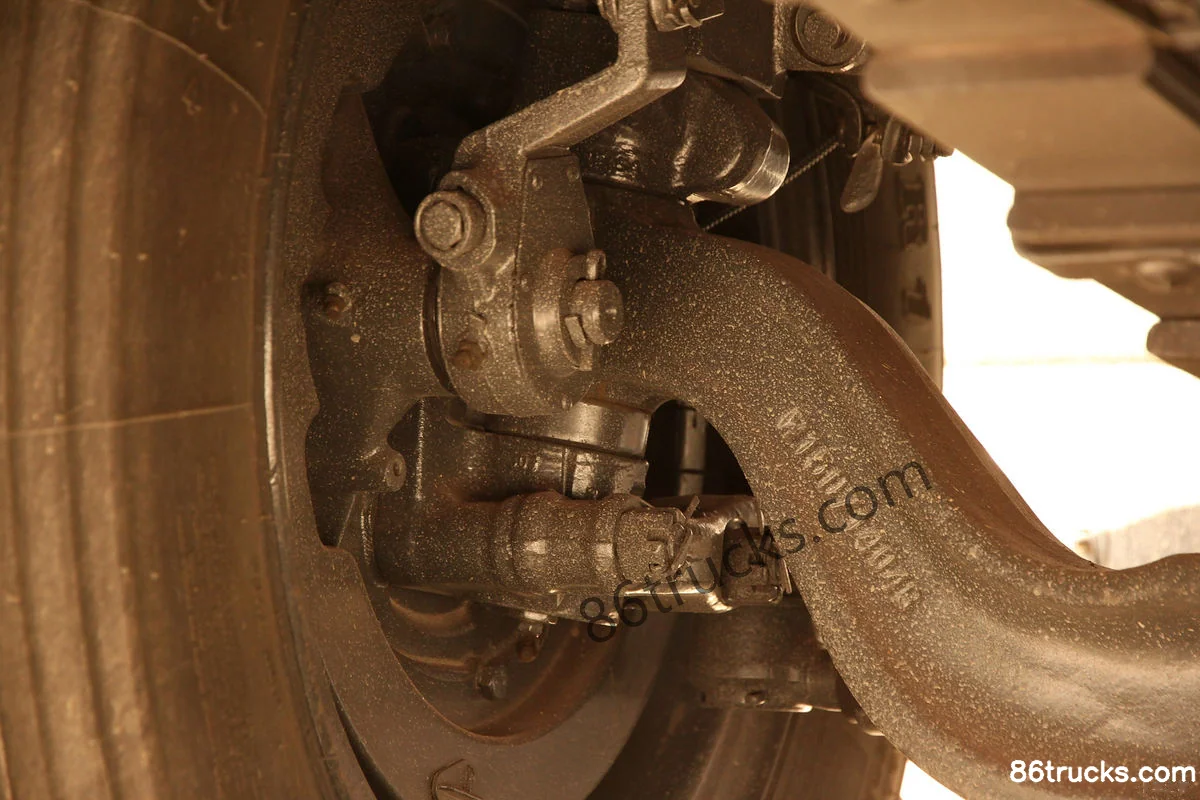

Front axle description: 4.5T front axle
Front axle allowable load: 6000kg
rear axle description: 9T single reduction rear axle
rear axle allowable load: 10000kg
Axle ratio: 4.56
Leaf spring count: 8/10+8
Tire
Tire Size: 275/80R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

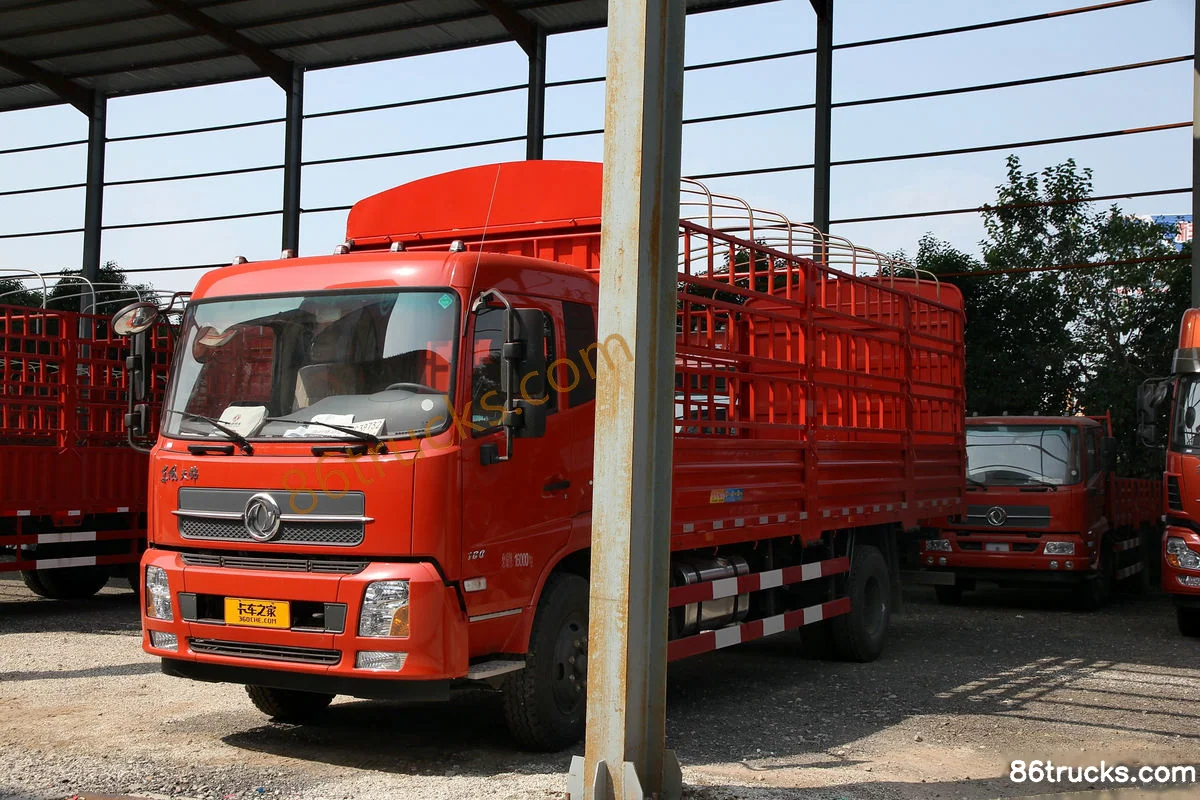

Exterior3

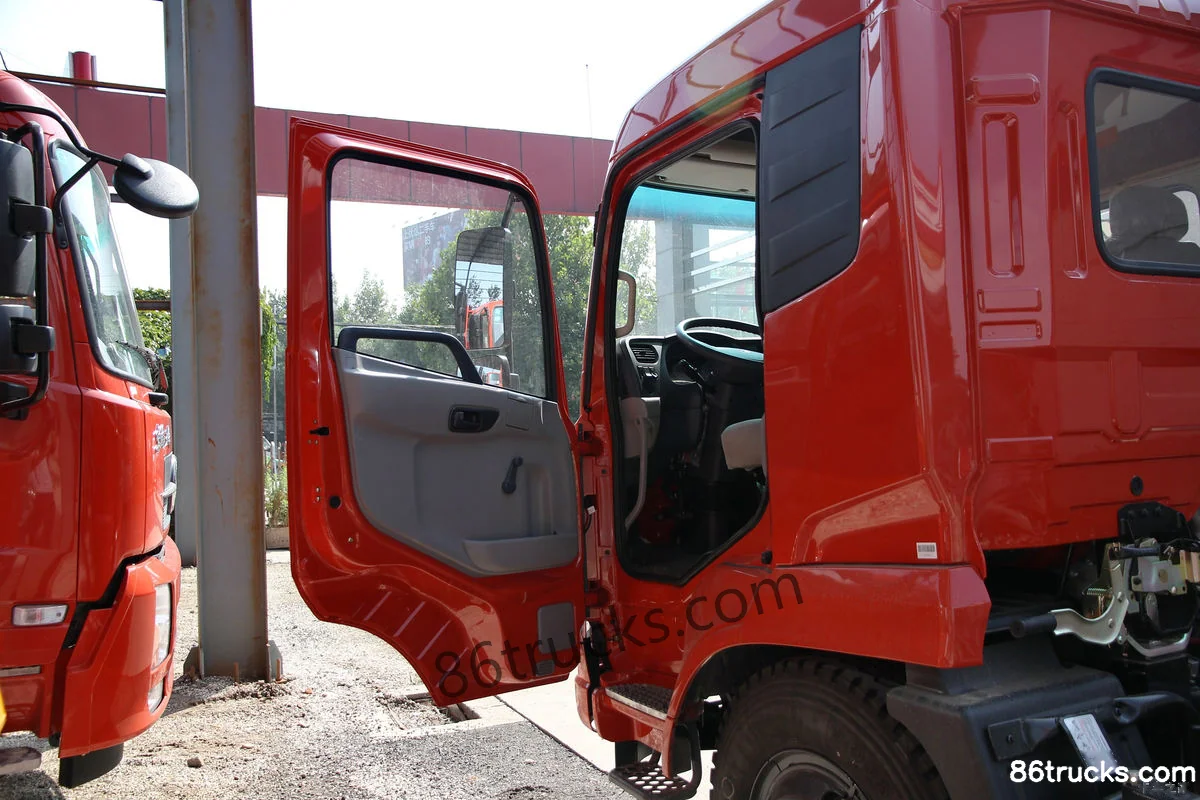

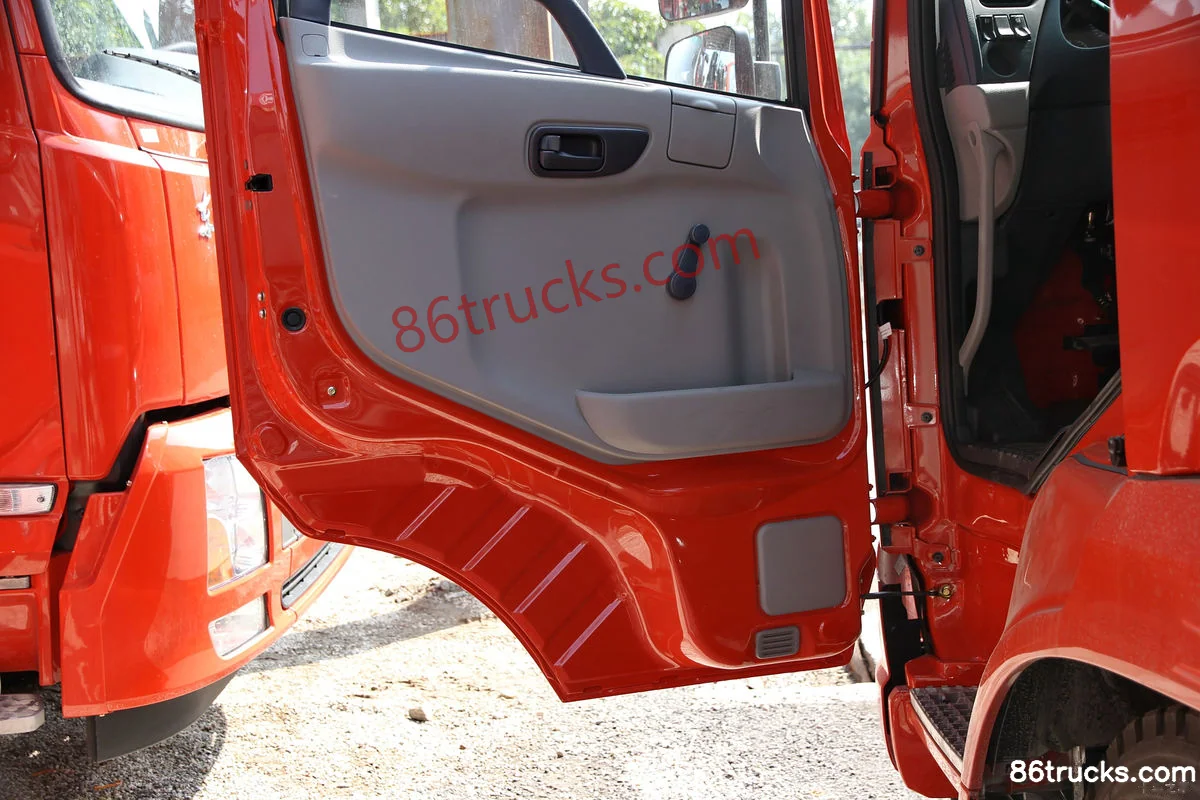

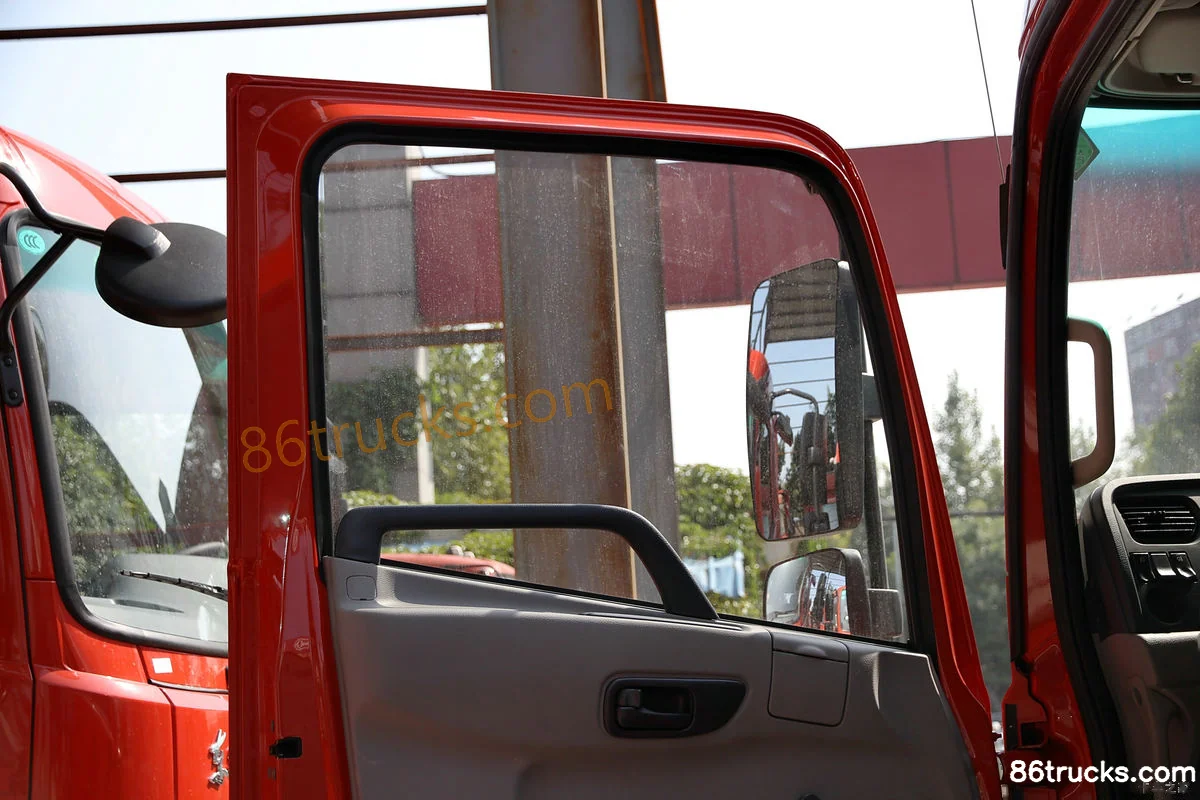

Cab3

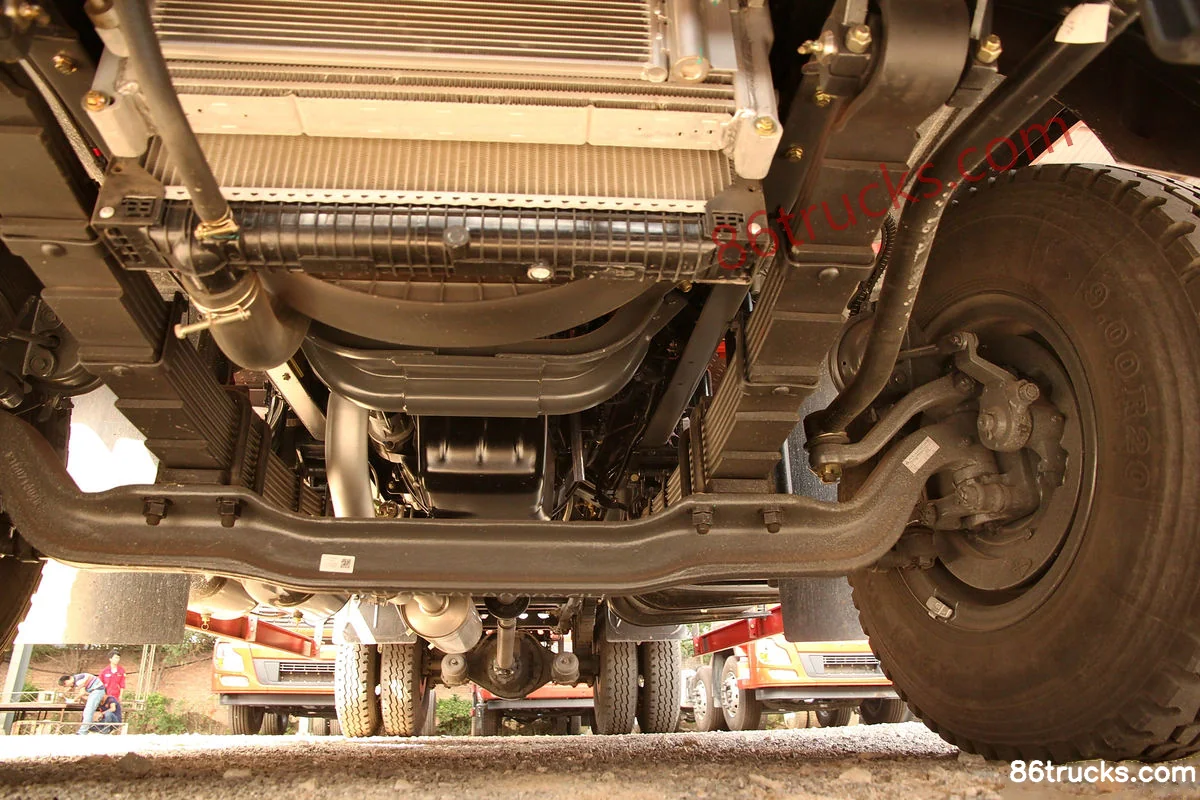

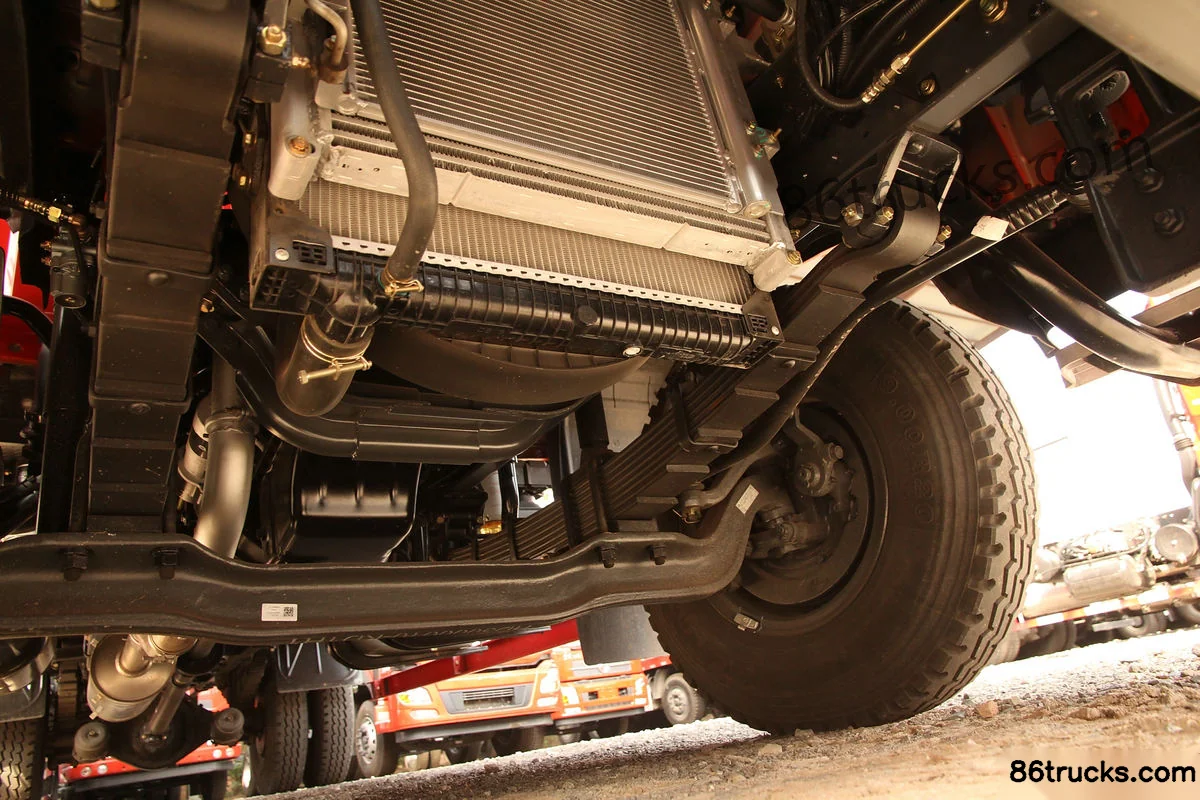

Chassis3

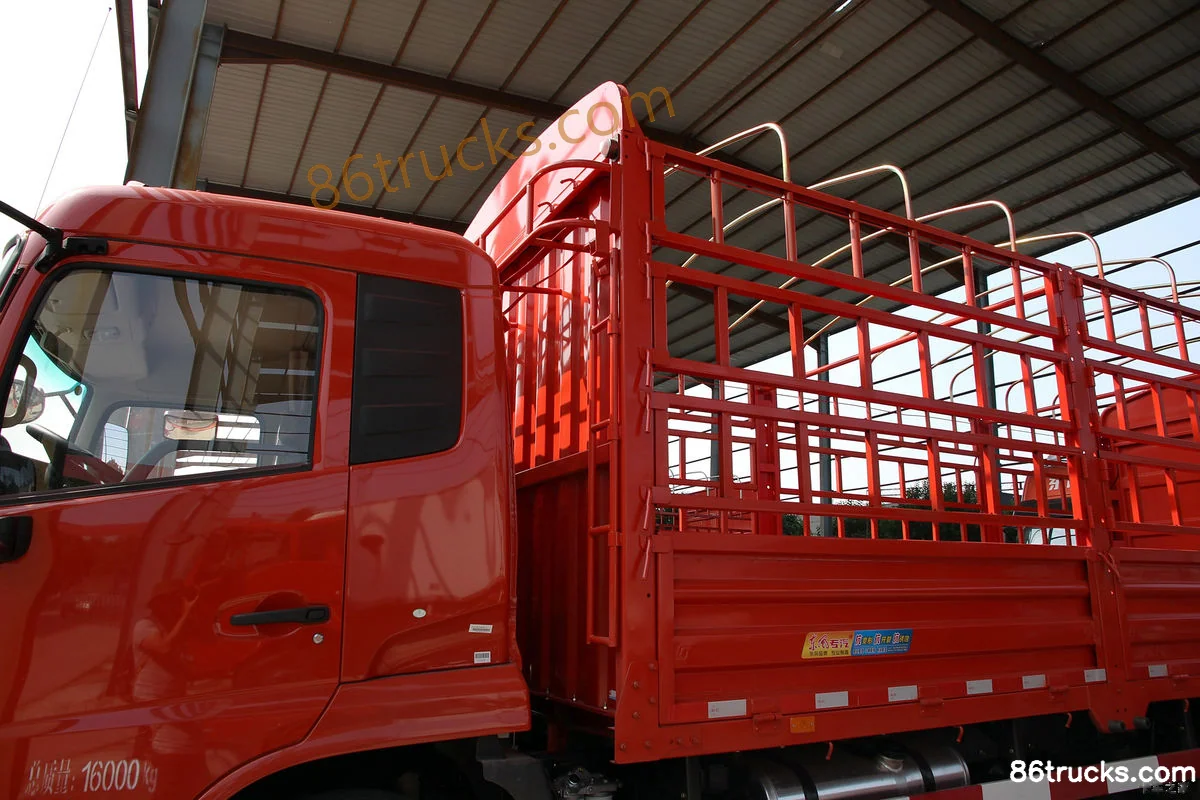

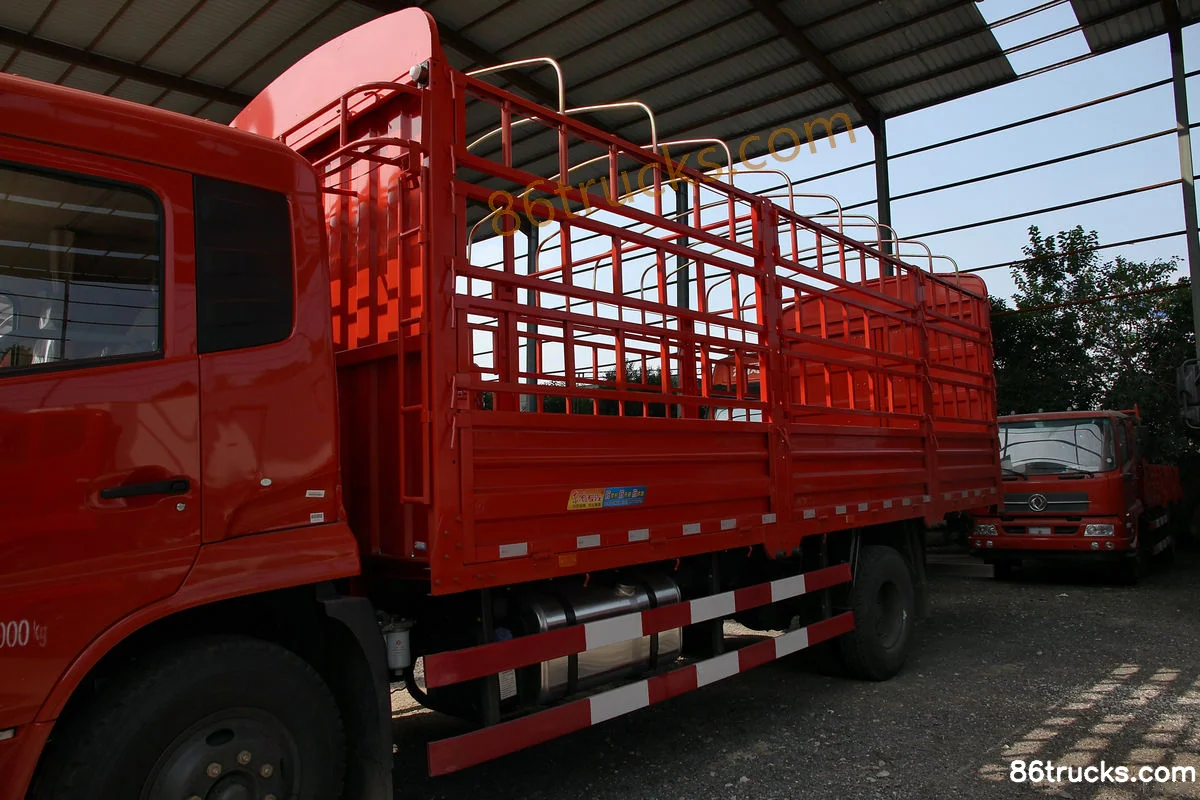

Body3

12 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck, and what does it include?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck export reference is about From $23,333; MSRP is ¥16.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck?

Key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel; Engine: Dongkang 6-cyl; Transmission: Dongfeng. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck suited for?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck belongs to Dongfeng Tianjin Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cab-forward with Side Panels Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
