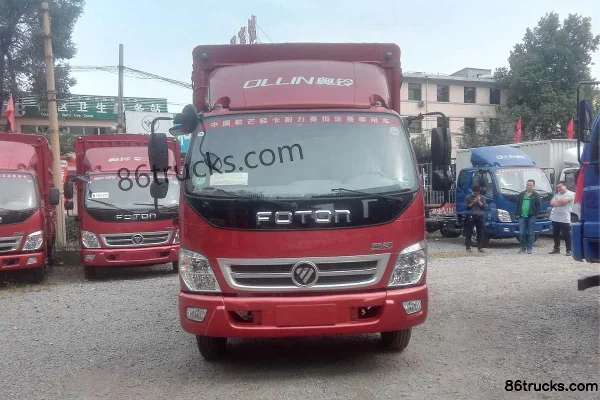

Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake)

Export reference
From $12,222
MSRP ¥8.8M CNY
Horsepower: 110
Emission: China V
Fuel: Diesel
Engine: Foton Eco 2.8L
Transmission: JMC
Curb Weight:: 2.67ton
seating capacity: 3Personnel
Rated payload: 1.64ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake) is a Light Truck featuring 3.8m cargo length, Stake type cargo body, 3Personnel volume and 1.64t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Foton Eco 2.8L engine, 110 hp, 4X2 (6 wheels) drive and China V emissions.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5049CCY-C1
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: Foton4J28TC3
transmission: JMCJC5-28
Rear Axle Ratio: 6.142
Cab length: 5.995m
Cab width: 2m
Cab height: 2.9m
Front track width: 1530mm
rear track: 1485mm
Curb Weight: 2.67ton
Rated payload: 1.64ton
GVWR: 4.44ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Agricultural product transport, green channel
Remarks: No airbag/no PTO/base ratio/manual tilt/no stabilizer bar/MP3/knitted standard seat
Front/rear suspension: 1.085/1.55m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: Foton4J28TC3
Engine info: Foton Eco 2.8L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Inline, vertical, water-cooled, SCR
Technology route: SCR
Transmission Parameters
Transmission Model: JC528
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.8m
Cargo box width: 1.9m
*Cargo box interior width: 1.9
Cab parameters
Cab: Single Row Cab L1800
Cab width: 1800mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 1775kg
Frame Dimensions: 170×60×5mm
rear axle description: 5T
rear axle allowable load: 2665kg
Axle ratio: 6.142
Leaf spring count: 3+1/6+7
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Power Windows:
Electronic Central Lock:
Exterior features
Air deflector:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake), and what does it include?

Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake) export reference is about From $12,222; MSRP is ¥8.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake)?

Key specs of Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake): Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel; Engine: Foton Eco 2.8L; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake) suited for?

Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake) differ from other variants in the same series?

Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake) belongs to Foton TX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling TX 110hp 4X2(6 wheels) 3.8m Extended Cab Stake Truck (Hydraulic Brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
