Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 35ton
Wheelbase:: 3500mm
Tire Size:: 12R22.5
Front axle allowable load:: 6505kg
Displacement:: 8.424L
Drive 4X2 (6 wheels)
Horsepower 330
Emission China V
Transmission Fast Gear

Overview

The Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle) is a Heavy truck featuring 4X2 (6 wheels) drive, 330 hp, 17.995t GVW and China V emissions. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a YuchaiYC6L330-50 engine, Fast Gear transmission and Diesel fuel.

China V 330 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ4183M5AB
Drive type: 4X2
Wheelbase: 3500mm
engine: YuchaiYC6L330-50
transmission: Fast Gear9JS135B
Rear Axle Ratio: 4.444
Cab length: 6m
Cab width: 2.495m
Cab height: 3.67m
Front track width: 2040mm
rear track: 1820mm
Gross Trailer Weight: 35ton
Curb Weight: 6.8ton
GVWR: 17.995ton
Max. speed: 100km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
market segment: Logistics Freight
Remarks: (1) Optional four-airbag cab suspension (2) Optional electric-hydraulic tilt cab (3) Optional 600L aluminum alloy fuel tank (4) Optional 4.111 ratio (5) Optional electric heated urea hose (6) Optional 165Ah battery (7) Optional color-matched bumper (8) Optional 220V power outlet (9) Optional hot-weather package: independent AC + ventilated seat + rain guard
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L330-50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.424L
Emission standard: China V
Max output power: 243kW
Max hp: 330Horsepower
Max torque: 1280N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Transmission Parameters
Transmission Model: Fast Gear9JS135B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 350L
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6505kg
Frame Dimensions: 282 single-layer framemm
rear axle description: FS160 rear axle
rear axle allowable load: 11490kg
Axle ratio: 4.444
Leaf spring count: 2/3+3
clutch: Φ430
Tire
Tire Size: 12R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Cruise control (CCS):

Photos

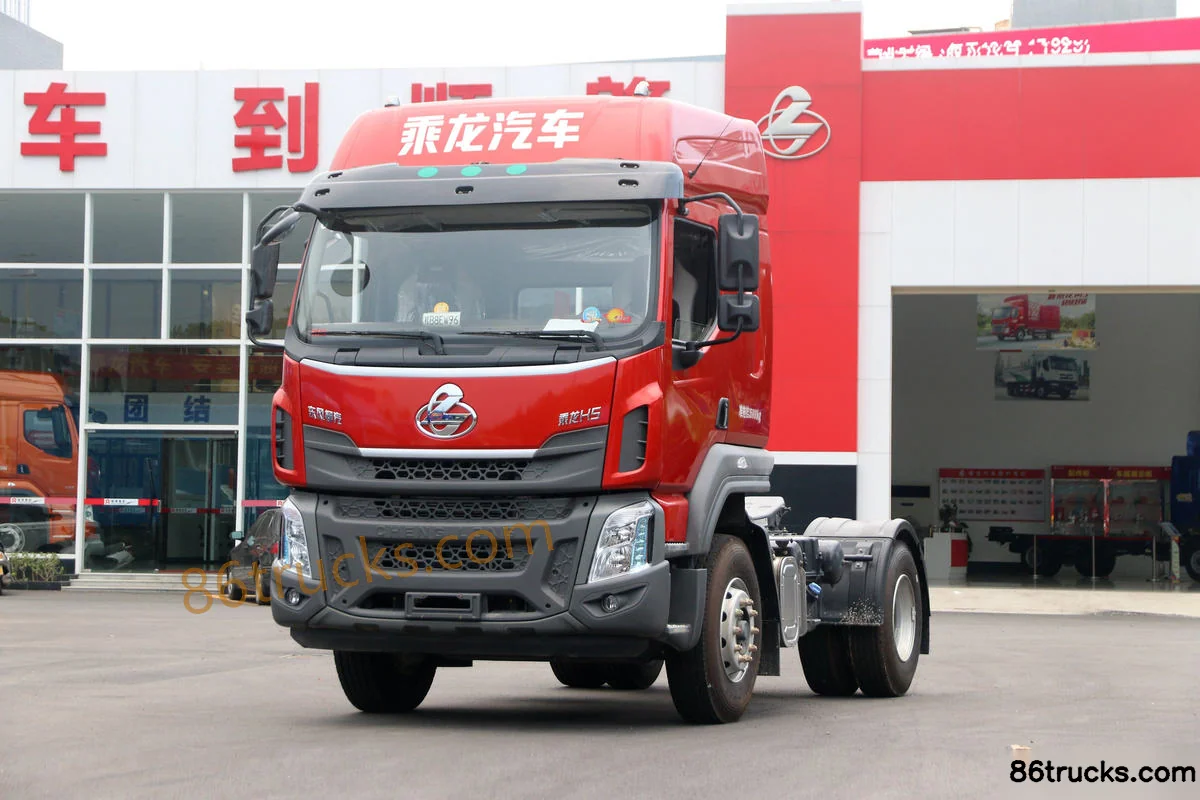

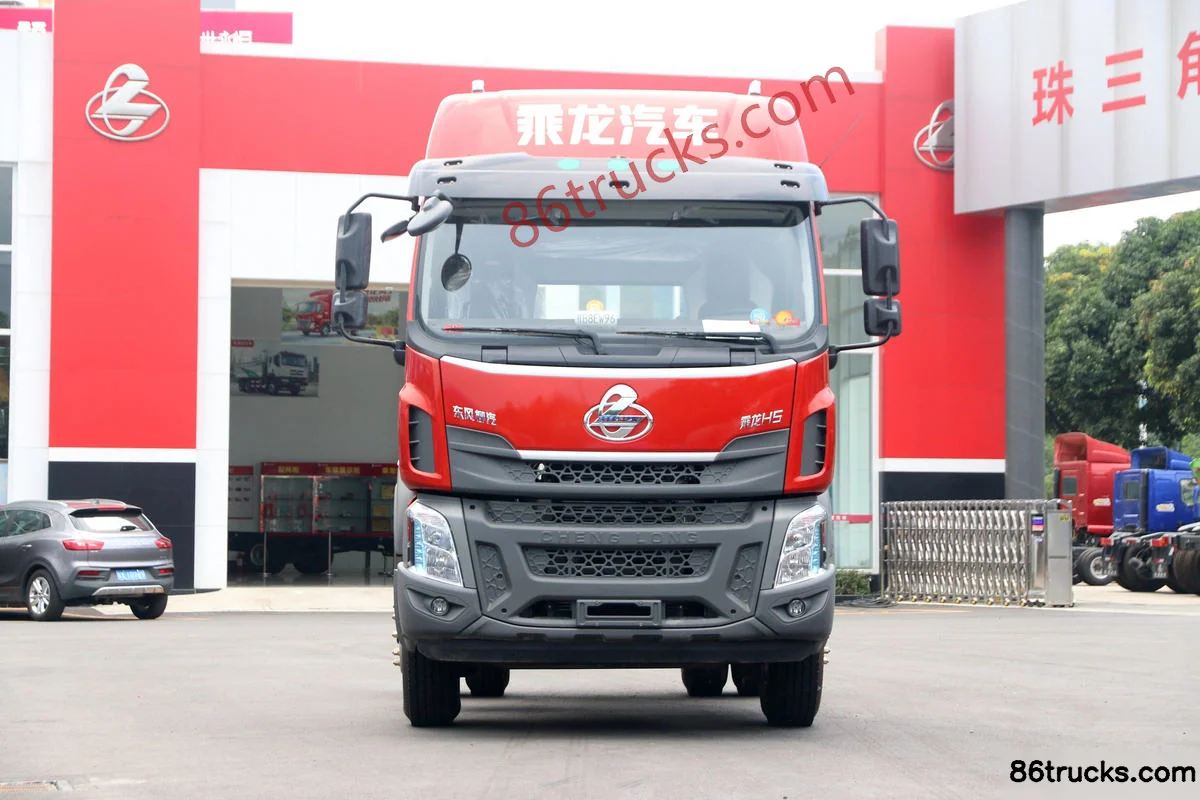

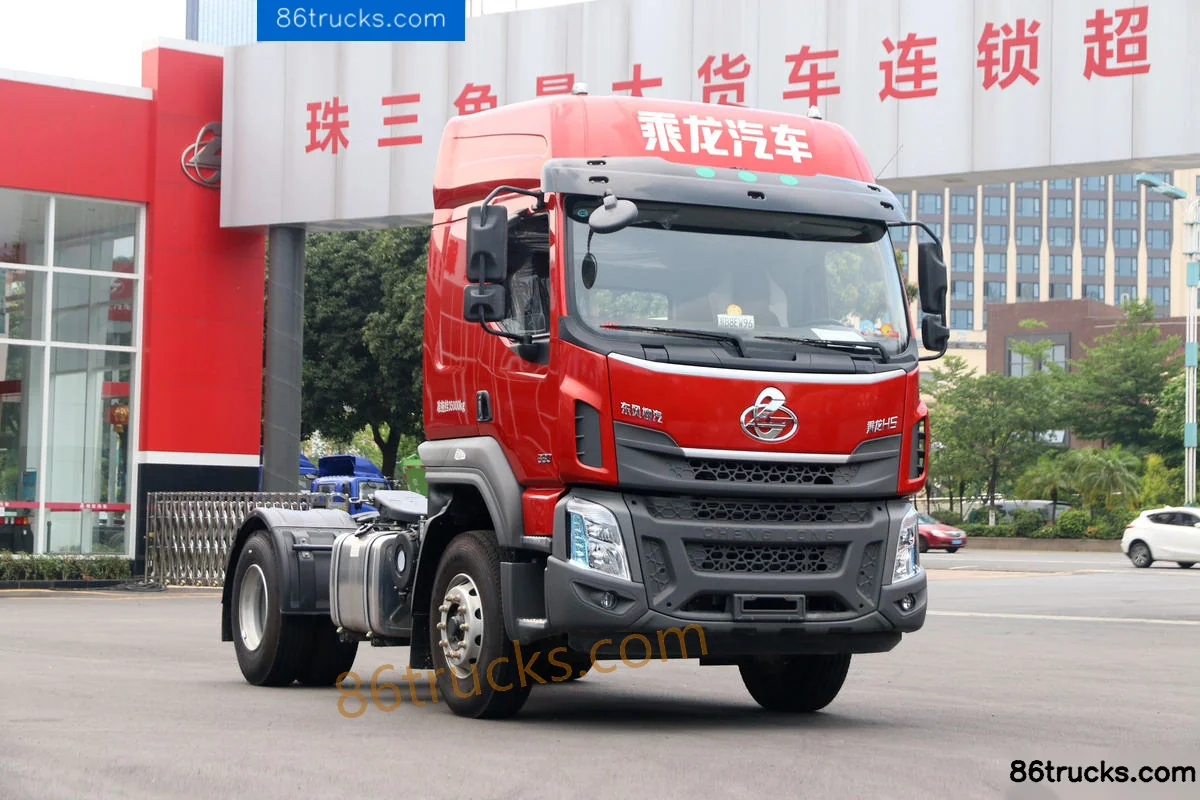

Exterior3

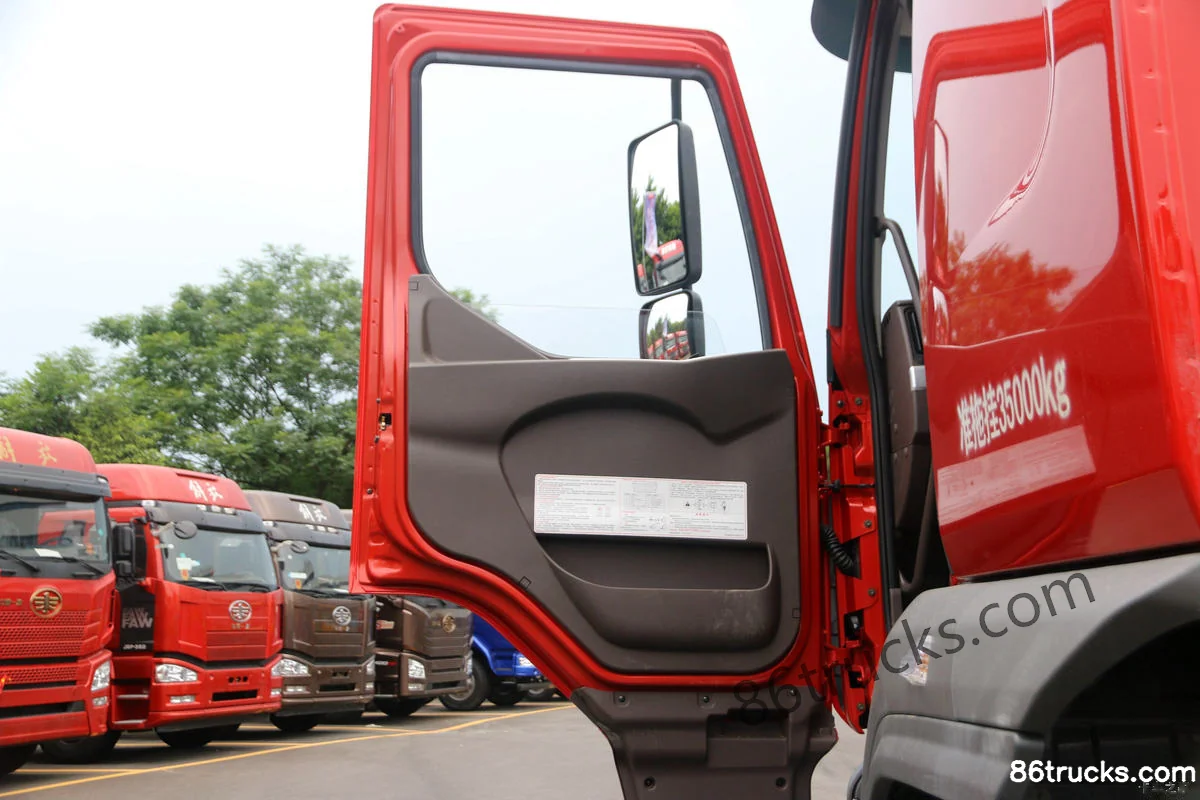

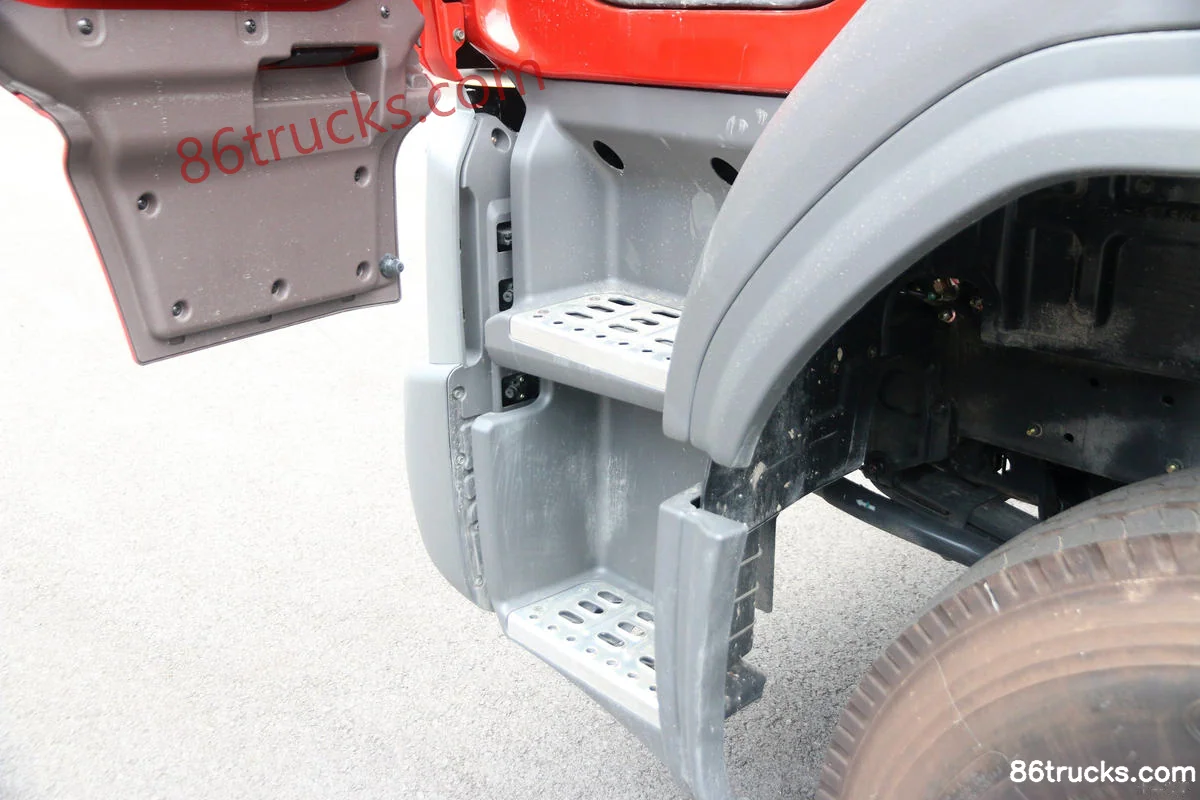

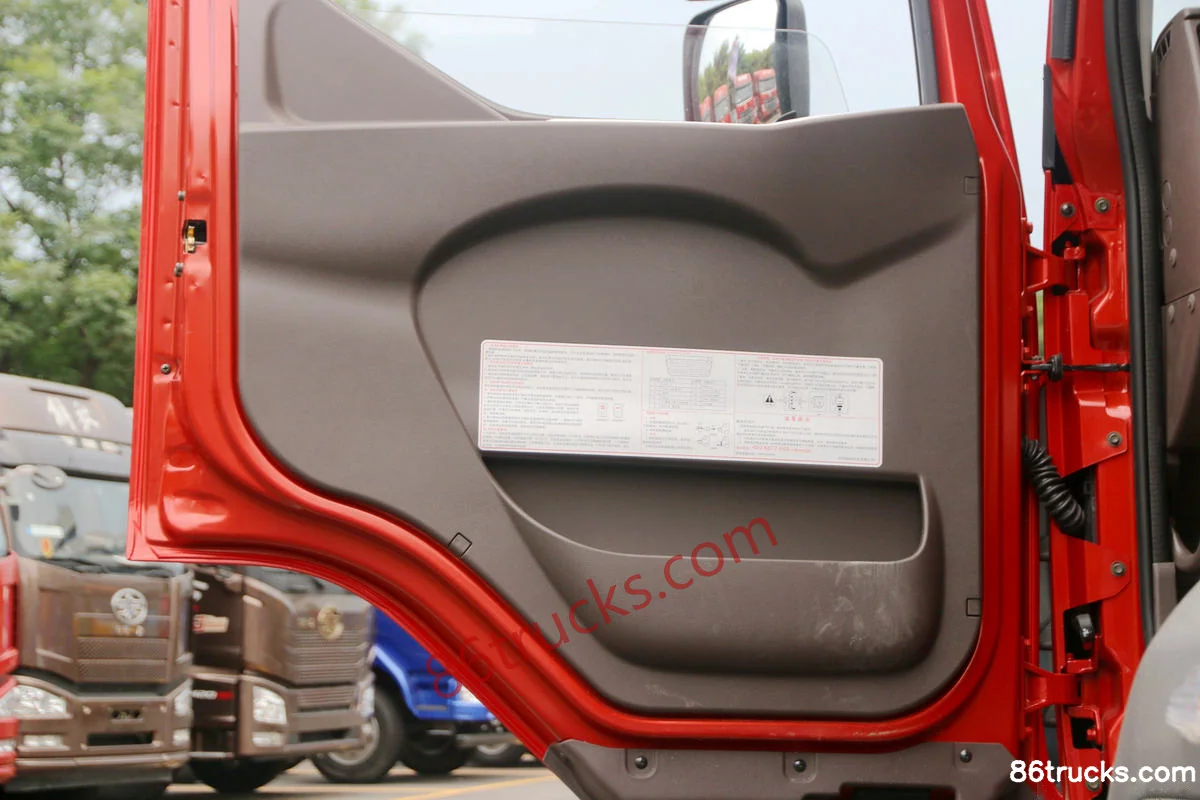

Cab3

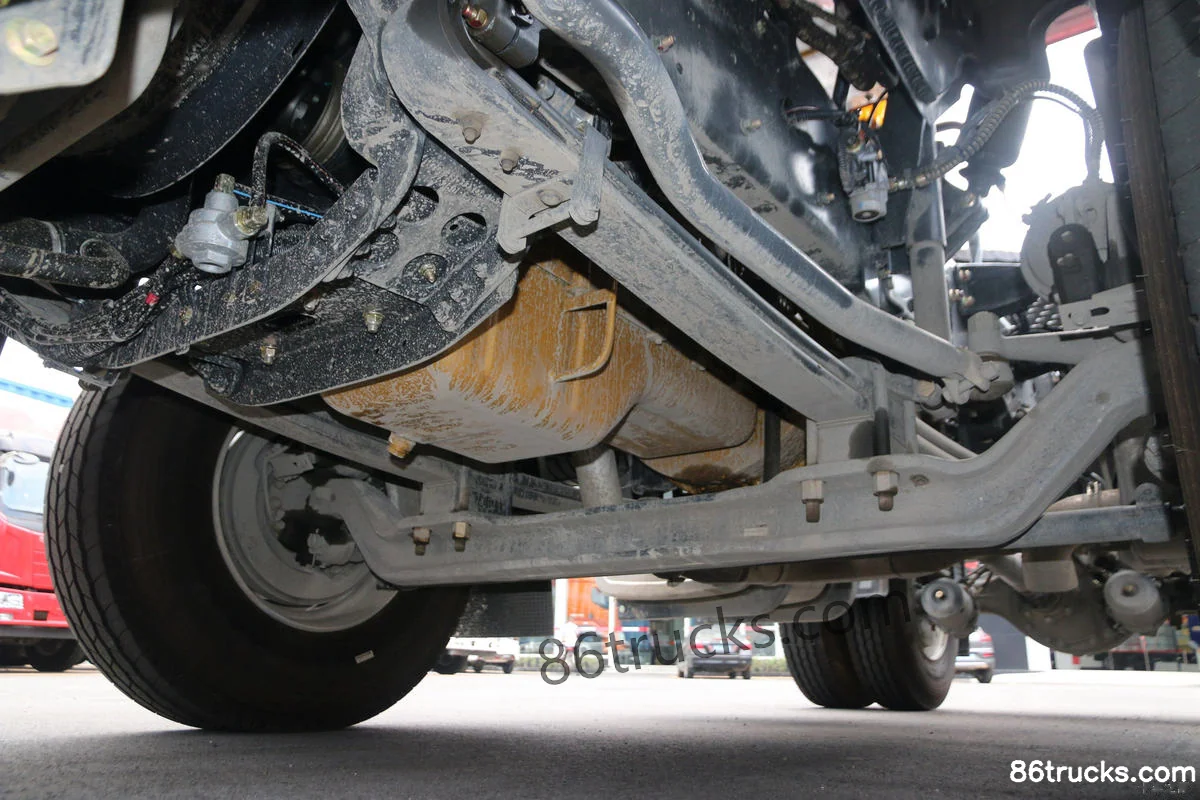

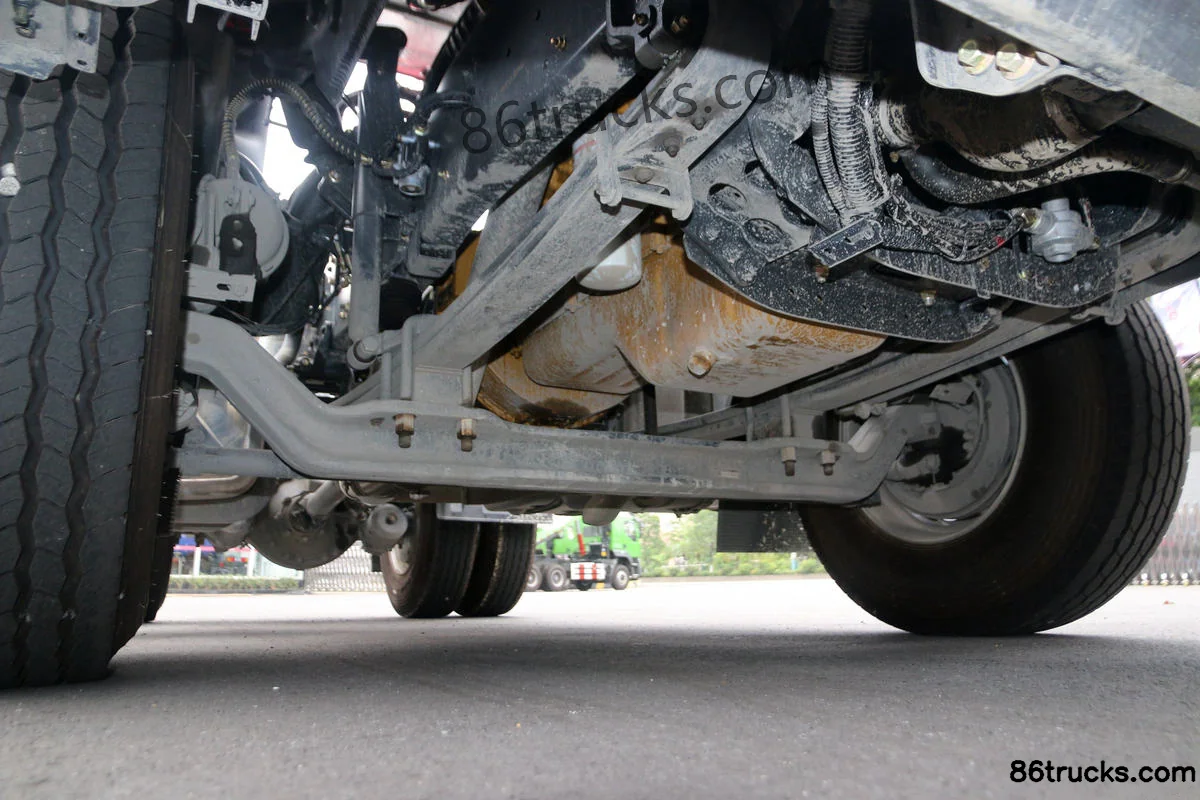

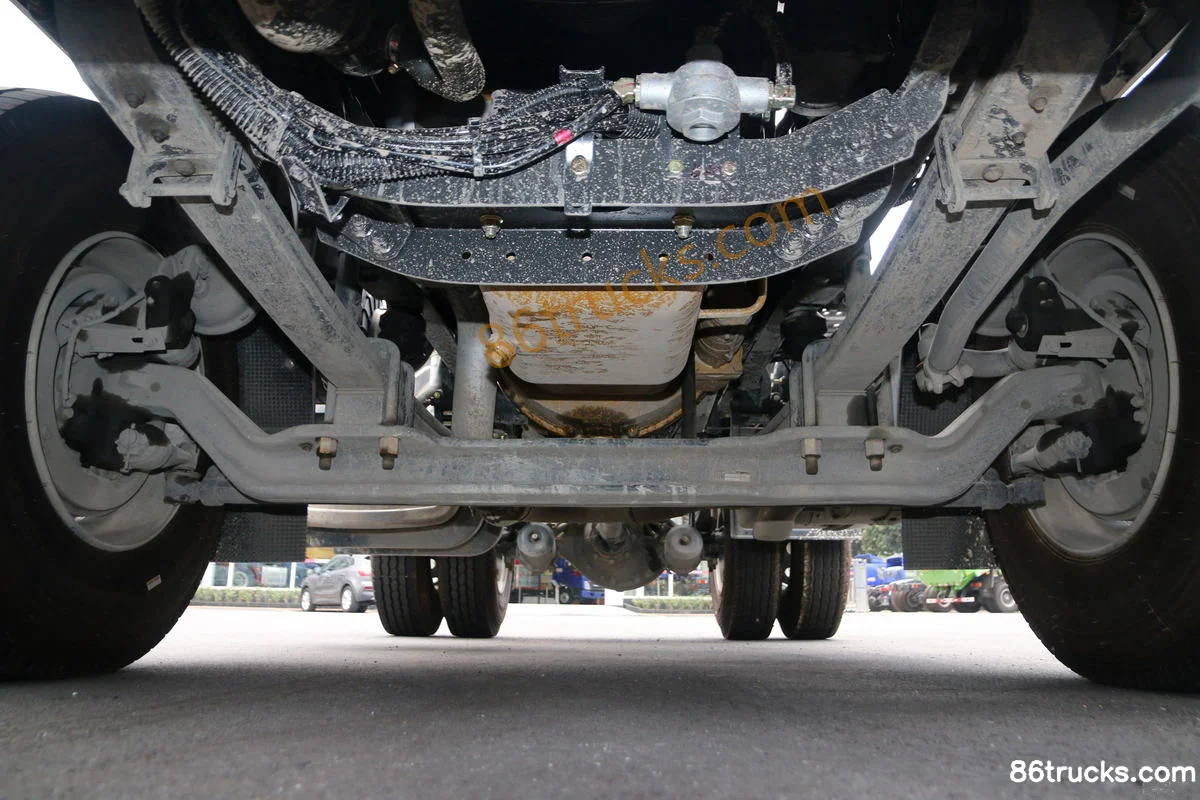

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle)?

Key specs of Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle): Drive: 4x2; Horsepower: 330 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle) suited for?

Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle) differ from other variants in the same series?

Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle) belongs to Dongfeng H5 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H5 Heavy Truck 330 hp 4X2(6 wheels) Tractor Truck (160 rear axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
