JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 160
Emission: China IV
Fuel: Diesel
Engine: MaxxForce 3.2L
Curb Weight:: 4.62ton
Wheelbase:: 4150mm
seating capacity: 3Personnel
Rated payload: 3.685ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck is a Light Truck featuring 5.53m cargo length, Van body cargo body, 3Personnel volume and 3.685t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a MaxxForce 3.2L engine, 160 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5081XXYP71K1D1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 4150mm
Box length class: 5.5m
engine: MaxxForce JND408D160-47
transmission: 6-speed transmission
Cab length: 7.52m
Cab width: 2.26m
Cab height: 3.315m
Front track width: 1695mm
rear track: 1610mm
Curb Weight: 4.62ton
Rated payload: 3.685ton
GVWR: 8.5ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 25°
departure angle: 12.7°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.11/2.26m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: MaxxForce JND408D160-47
Engine info: MaxxForce 3.2L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.185L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 450N·m
Max torque speed: 1500-2200rpm
Rated speed: 3000rpm
Engine Type: Turbocharged Intercooled, High-Pressure Common Rail, High-Pressure Direct Injection
Transmission Parameters
Transmission Model: 6-speed transmission
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 5.53m
Cargo box width: 2.3m
Cargo box height: 2.2m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 3060kg
rear axle allowable load: 5440kg
Leaf spring count: 9/6+6

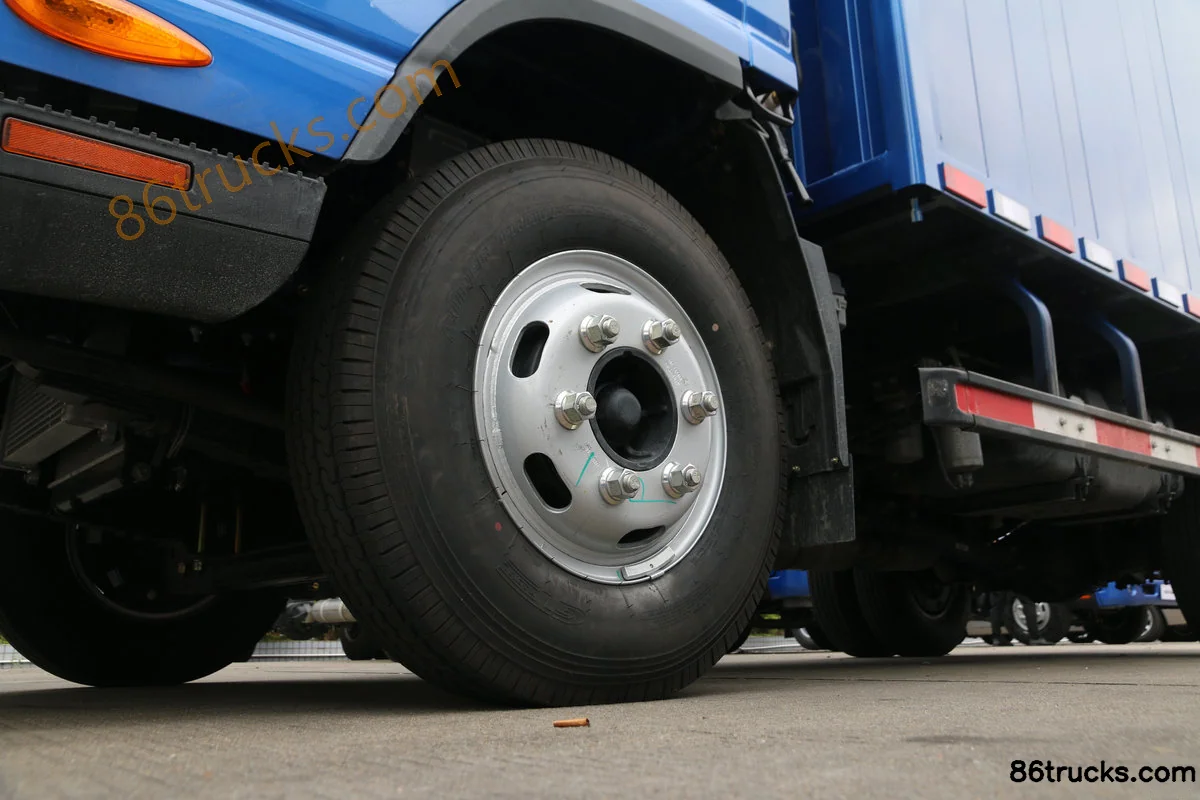

Tire
Tire Size: 8.25R16
Number of tires: 6pcs
Control configuration
Power steering:
clutch booster:
Load-sensing proportioning valve (SABS):
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

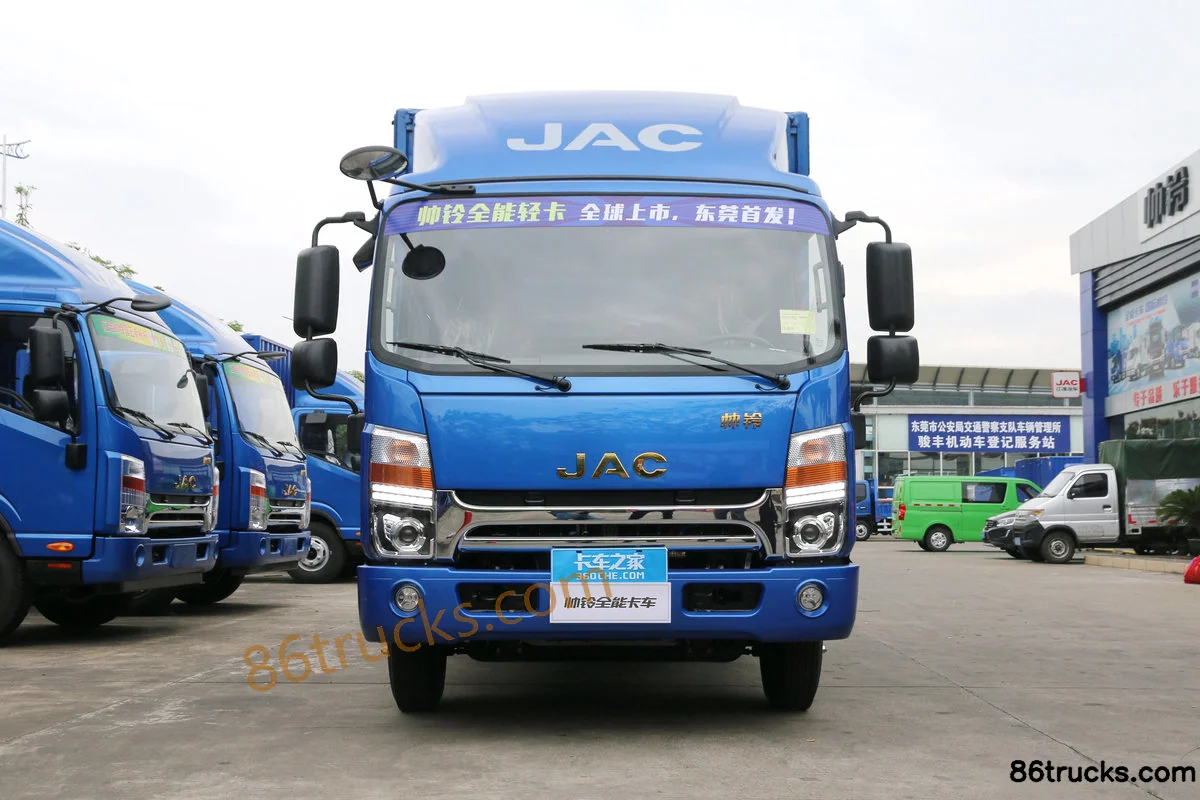

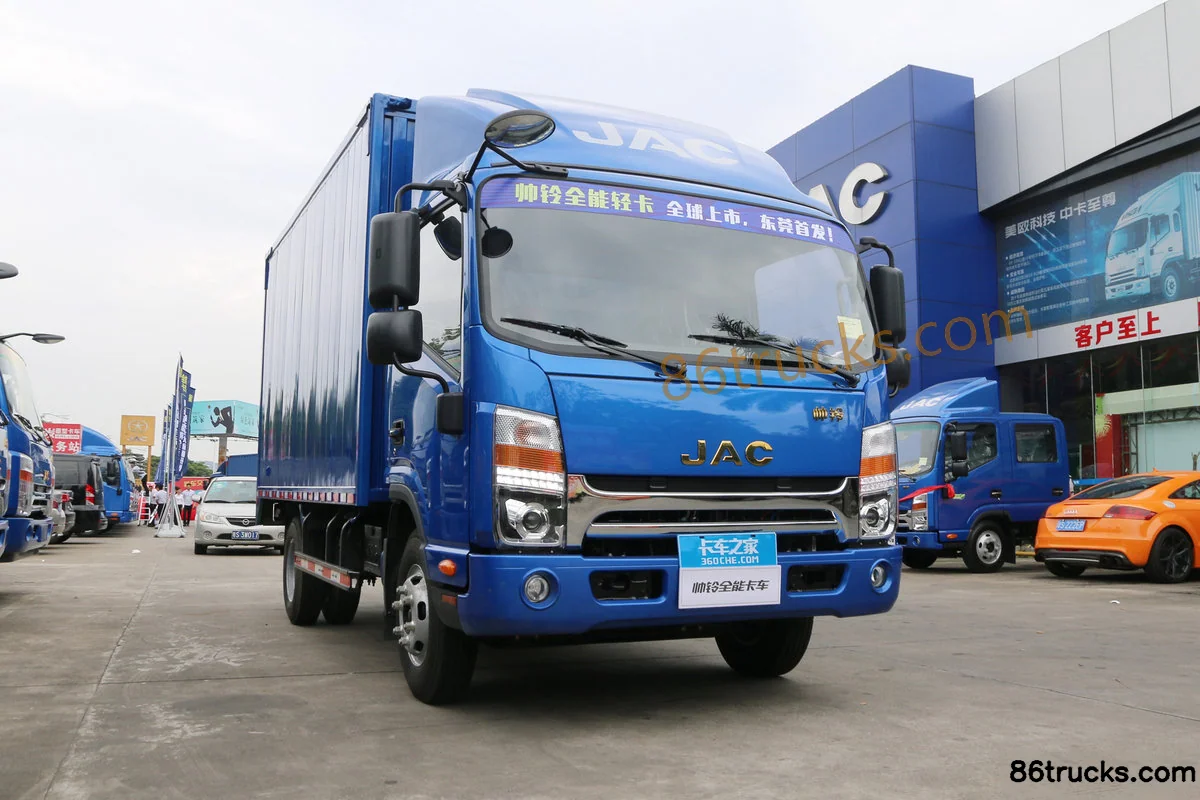

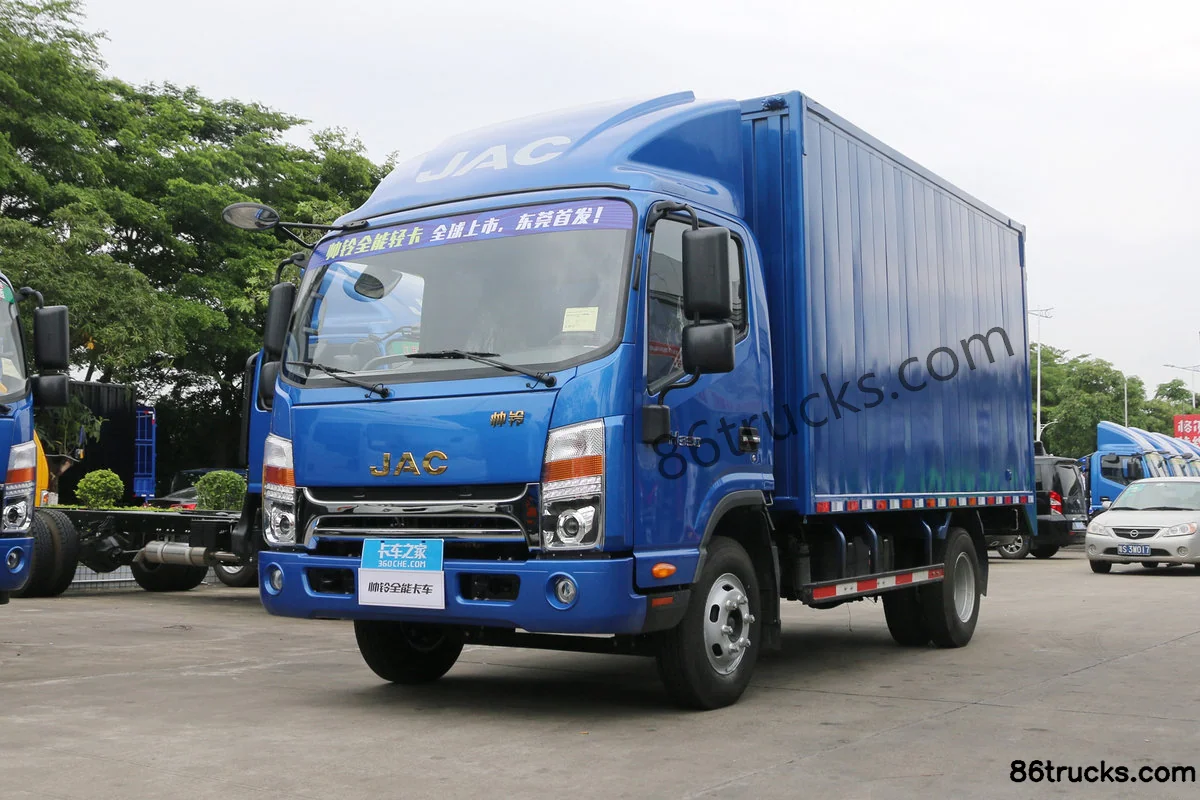

Exterior3

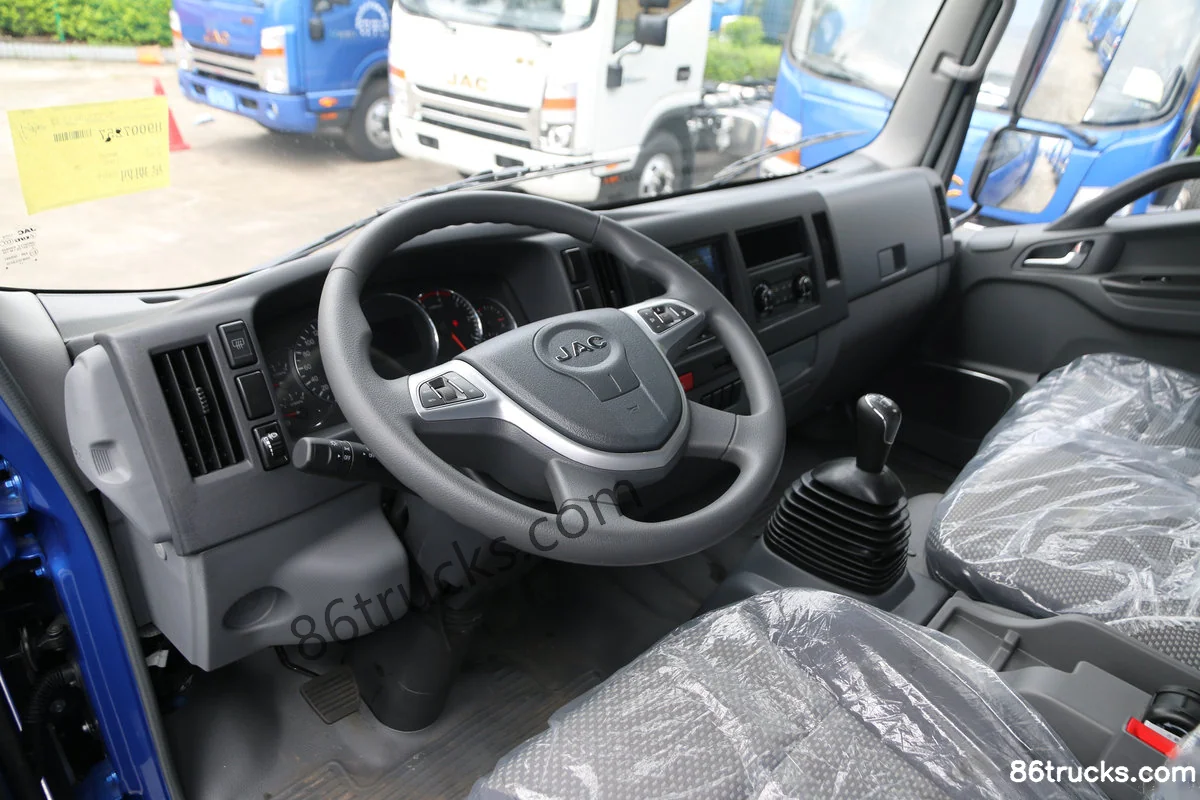

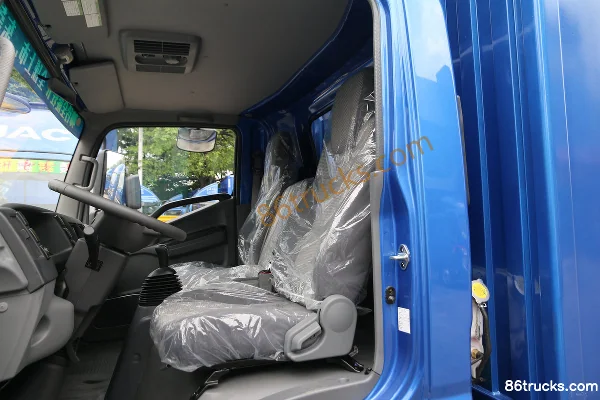

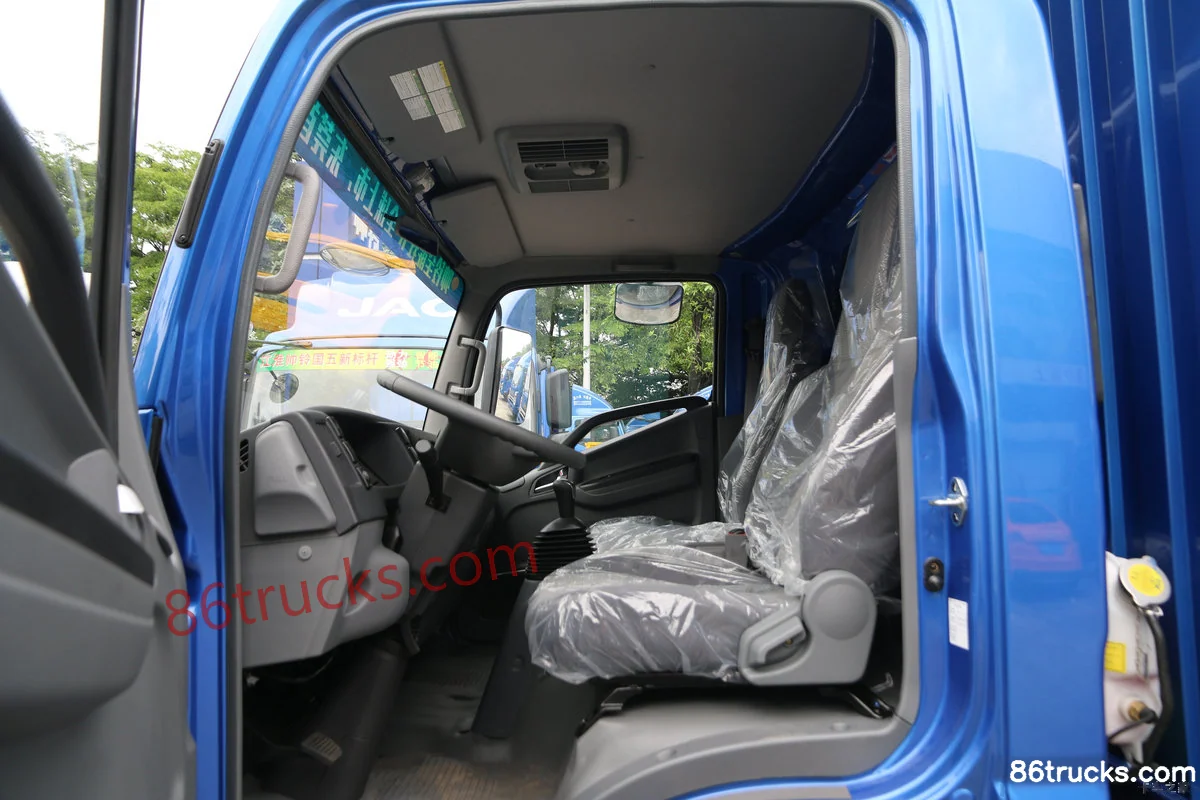

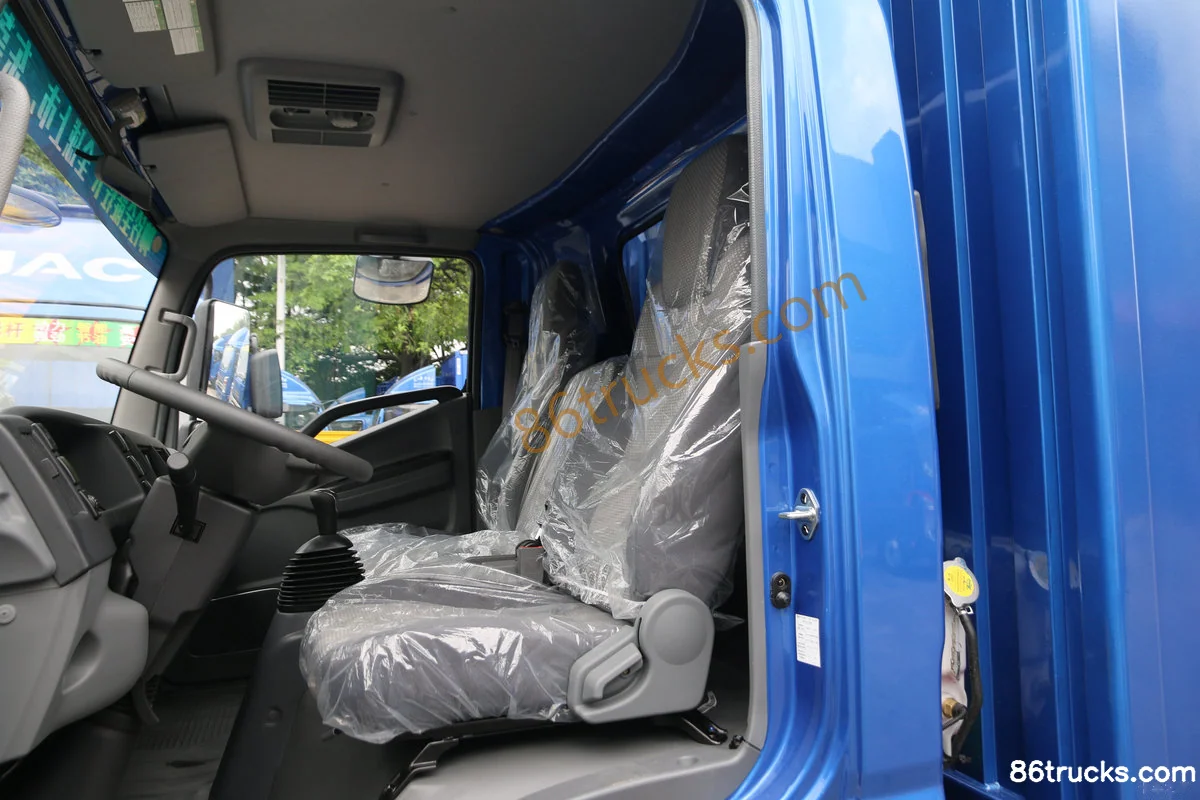

Cab3

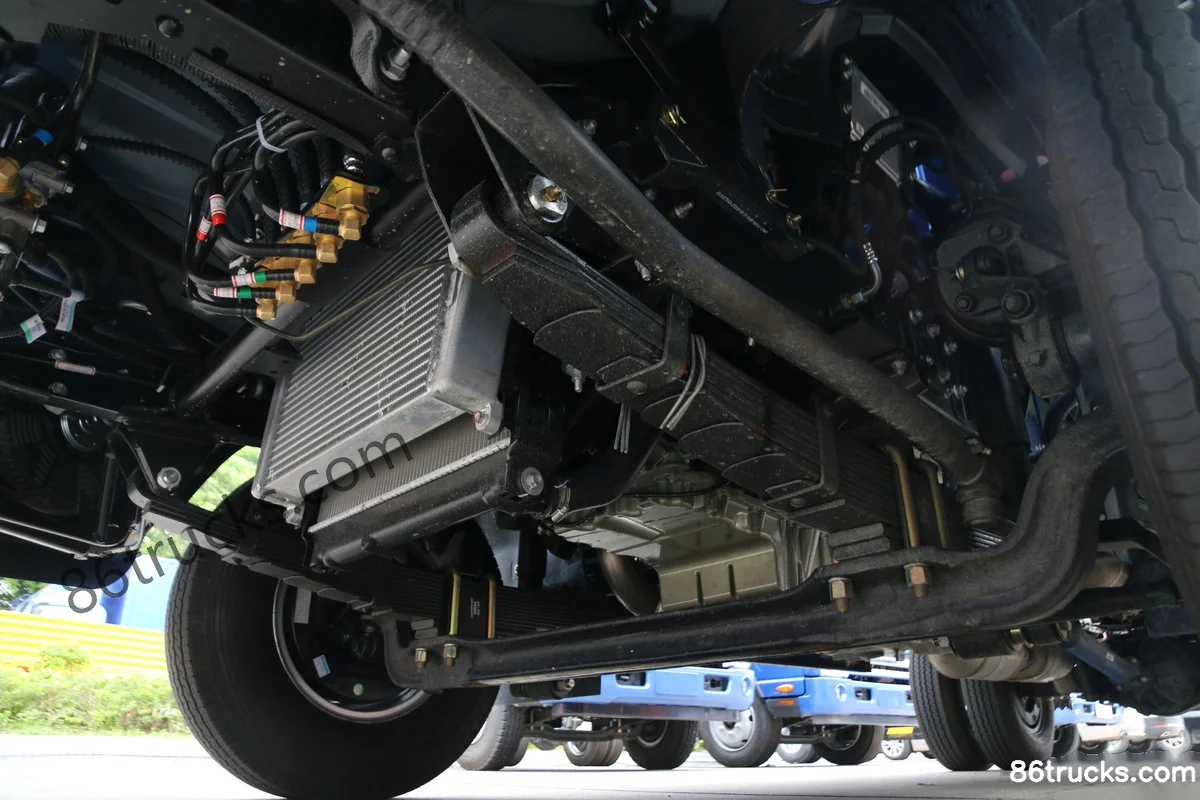

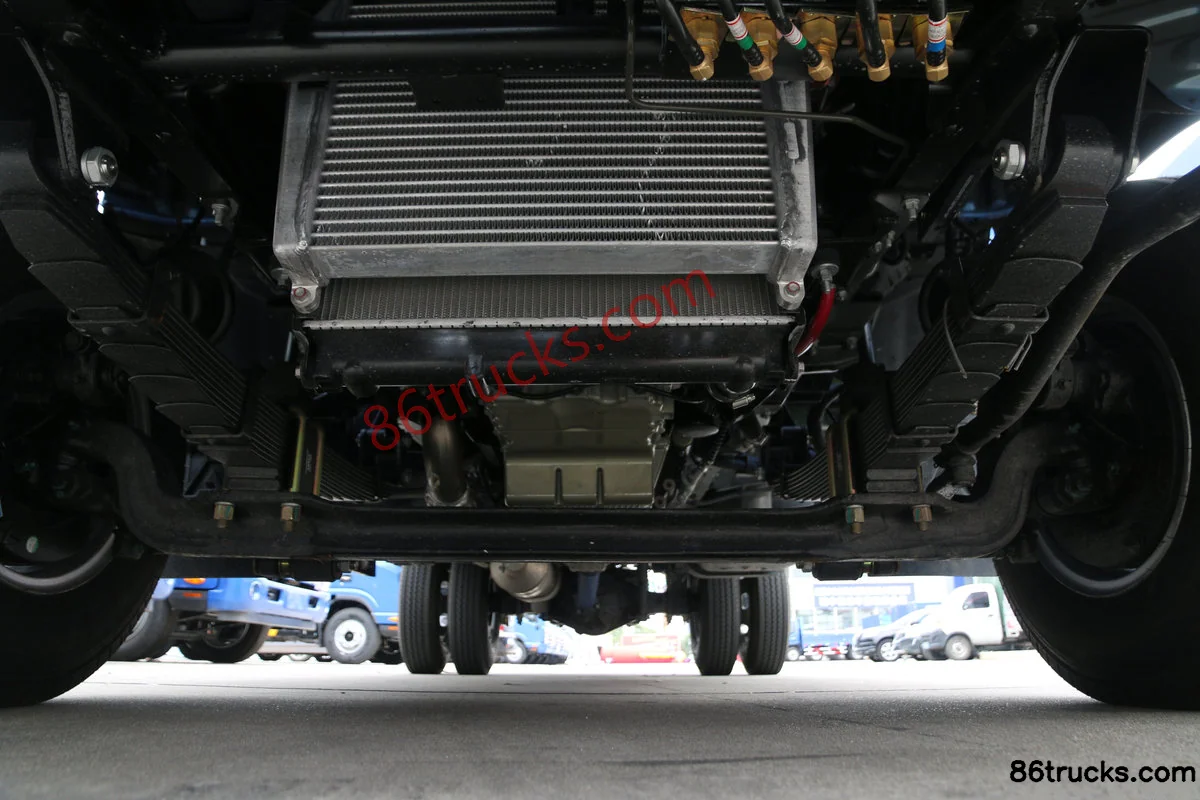

Chassis3

9 photos

FAQ

What emission standard does JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck?

Key specs of JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Engine: MaxxForce 3.2L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck suited for?

JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck differ from other variants in the same series?

JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck belongs to JAC H light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing H415 160hp 4X2(6 wheels) 5.5m Single Row Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
