Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake)

Export reference
MSRP N/A
Horsepower: 112
Emission: China V
Fuel: Diesel
Engine: SOFIM 2.8L
Transmission: NAVECO
Curb Weight:: 2.5ton

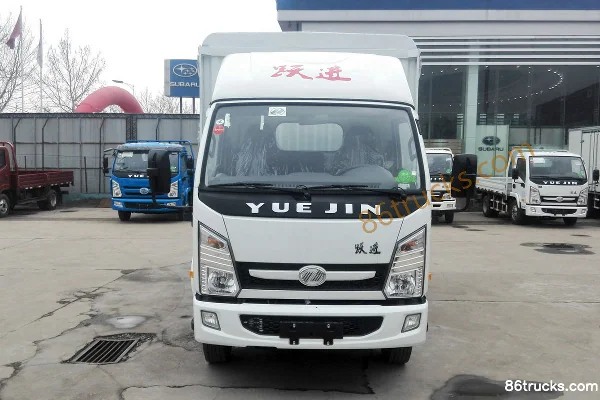

Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake) exterior
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake) is a Light Truck featuring 3.74m cargo length, Stake type cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a SOFIM 2.8L engine, 112 hp, 4X2 (6 wheels) drive and China V emissions.

China V 112 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SH5042CCYKFDCNZ
Type: stake truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: SOFIM 8140.43BV
transmission: NAVECO17H6S300B
Cab length: 5.995m
Cab width: 2.03m
Cab height: 2.985m
Front track width: 1503mm
rear track: 1430mm
Curb Weight: 2.5ton
Rated payload: 1.495ton
GVWR: 4.125ton
Max. speed: 98km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 25°
departure angle: 16°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.124/1.563m
Energy Type: Diesel
Engine parameters
Engine Brand: NAVECO
Engine Model: SOFIM 8140.43BV
Engine info: SOFIM 2.8L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.798L
Emission standard: China V
Max output power: 82kW
Max hp: 112Horsepower
Max torque: 285N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: NAVECO17H6S300B
Transmission Brand: NAVECO
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.74m
Cargo box width: 1.9m
*Cargo box interior width: 1.8999999761581
Cab parameters
Cab: Narrow cab
Cab width: 1695mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 70L
Chassis Specs
Front axle description: 1.5T
Front axle allowable load: 1830kg
Frame Dimensions: 170×70×4.5mm
rear axle description: 3T
rear axle allowable load: 2295kg
Leaf spring count: 8/9+3
Tire
Tire Size: 6.50R16LT 8PR,7.00R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What emission standard does Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake)?

Key specs of Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake): Drive: 4x2; Horsepower: 112 hp; Emission: China V; Fuel: Diesel; Engine: SOFIM 2.8L; Transmission: NAVECO. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake) suited for?

Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake) differ from other variants in the same series?

Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake) belongs to Yuejin Shangjun X Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Shangjun X100-33 112 hp 4X2(6 wheels) 3.74m Crew Cab Stake Truck (Hydraulic Brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
