SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 12.5L
Drive 6X4 (10 wheels)
Horsepower 560
Emission China VI
Transmission Fast Gear

Overview

The SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 560 hp, 25t GVW and China VI emissions. Its segment focus covers bulk material transport, matching those duty cycles. On the powertrain side, it comes with a Xi’an CumminsM13NS6B560 engine, Fast Gear transmission and Diesel fuel.

China VI 560 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4259XE4Q1
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: Xi’an CumminsM13NS6B560
transmission: Fast GearS16AD
Rear Axle Ratio: 2.714
Cab length: 7.225m
Cab width: 2.55m
Cab height: 3.7m
Front track width: 2036mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
market segment: bulk material transport
Version: Elite Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Xi’an Cummins
Engine Model: Xi’an CumminsM13NS6B560
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.5L
Emission standard: China VI
Max output power: 382kW
Max hp: 560Horsepower
Max torque: 2600N·m
Max torque speed: 900-1400rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: Fast GearS16AD
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1100L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: drum front axle
Fifth wheel: 50#
Front axle allowable load: 7000kg
Frame Dimensions: (970-850)×270 (single 8)mm
rear axle description: drum drive axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.714
Leaf spring count: 2/2
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
lighting configuration
LED headlight:
Halogen Headlights:
Exterior features
Air deflector:
Service brake
hydraulic retarder:
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):

Photos

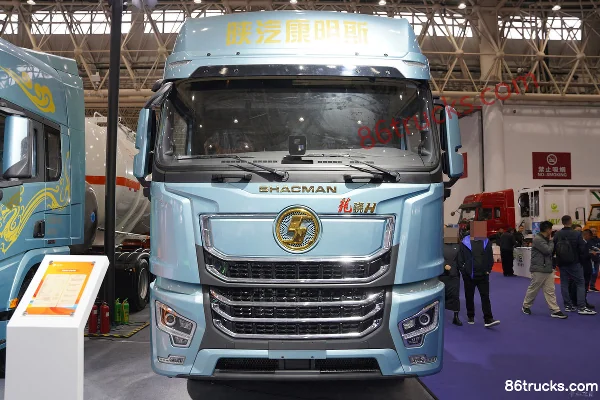

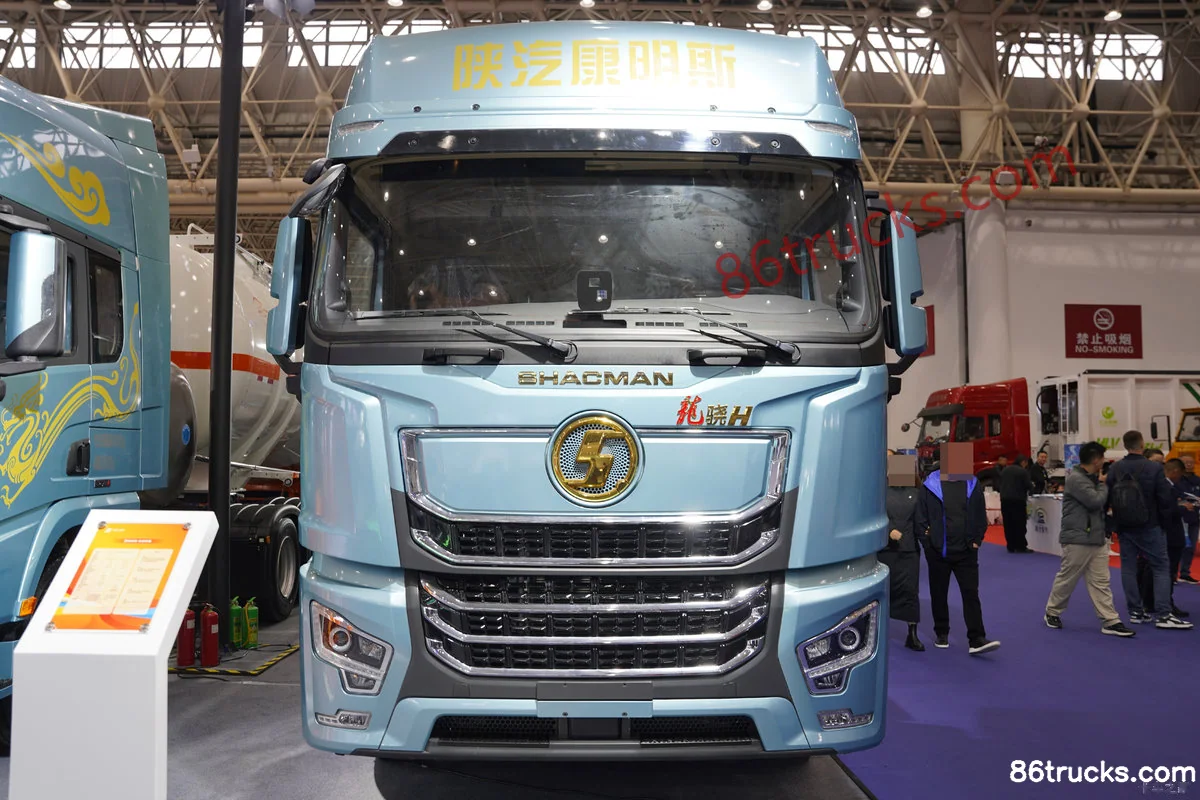

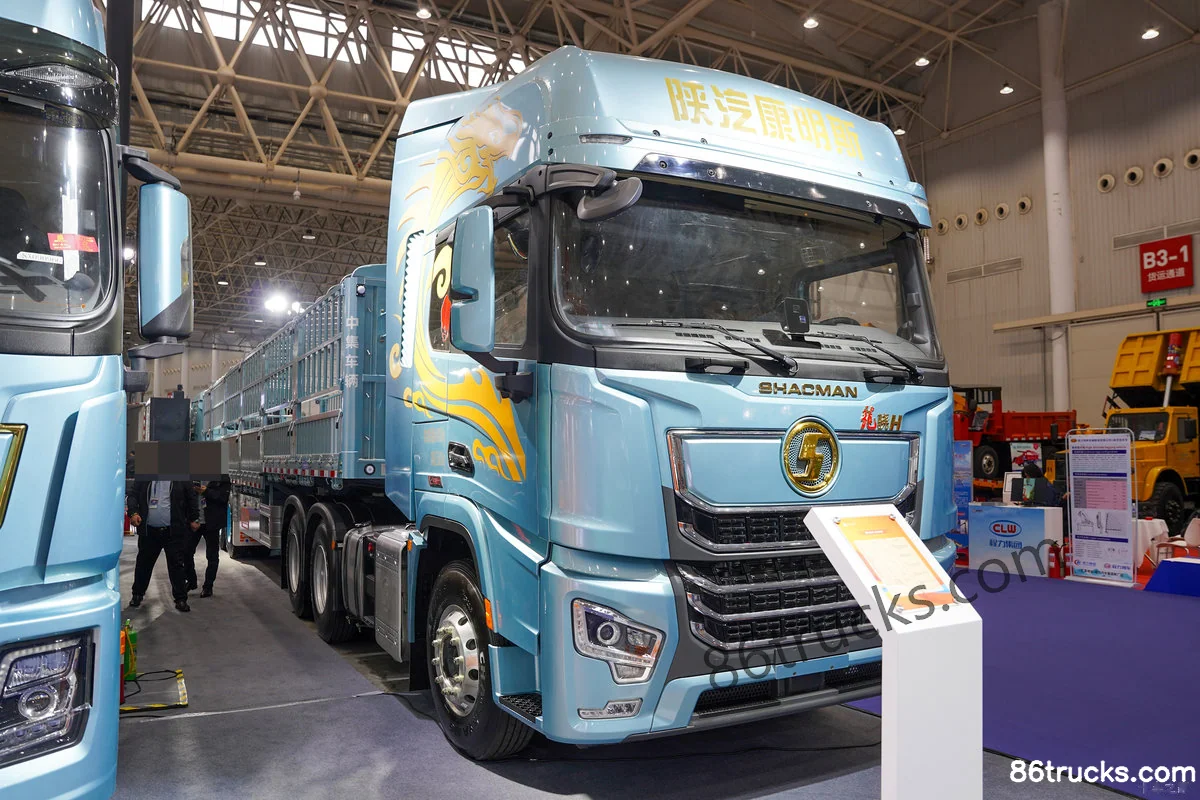

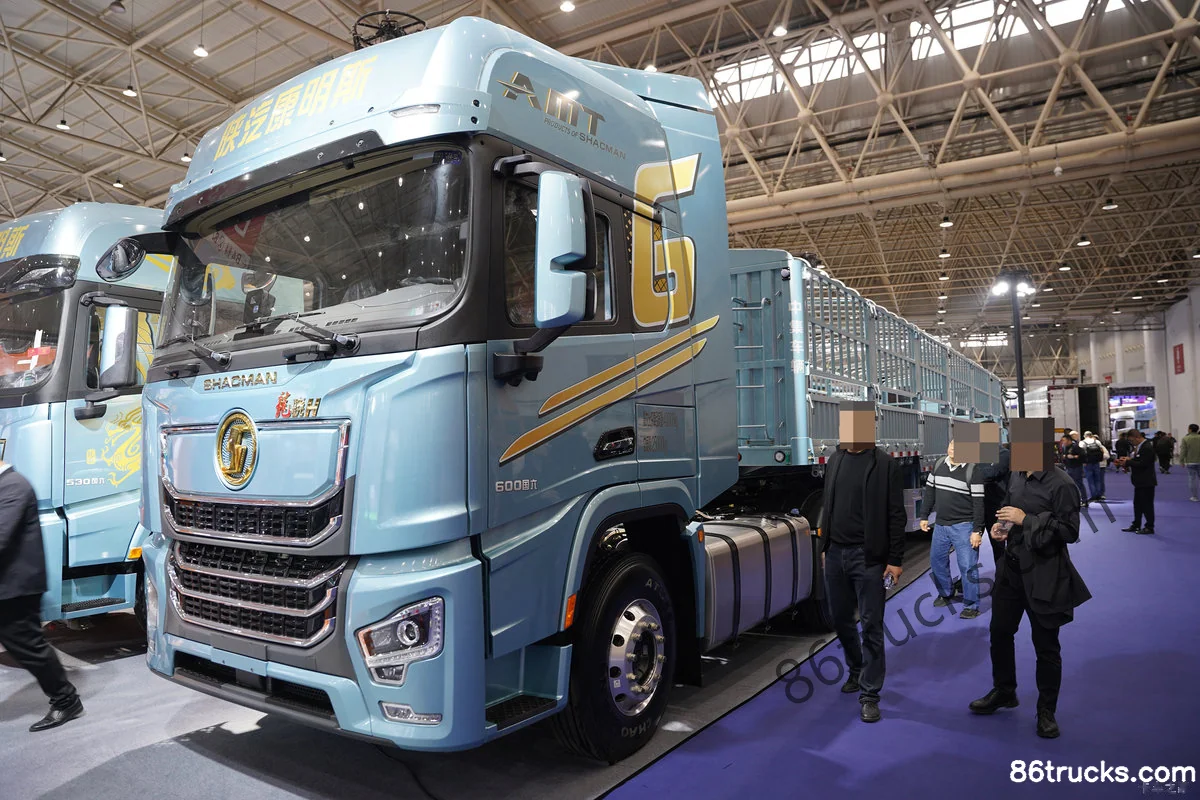

Exterior3

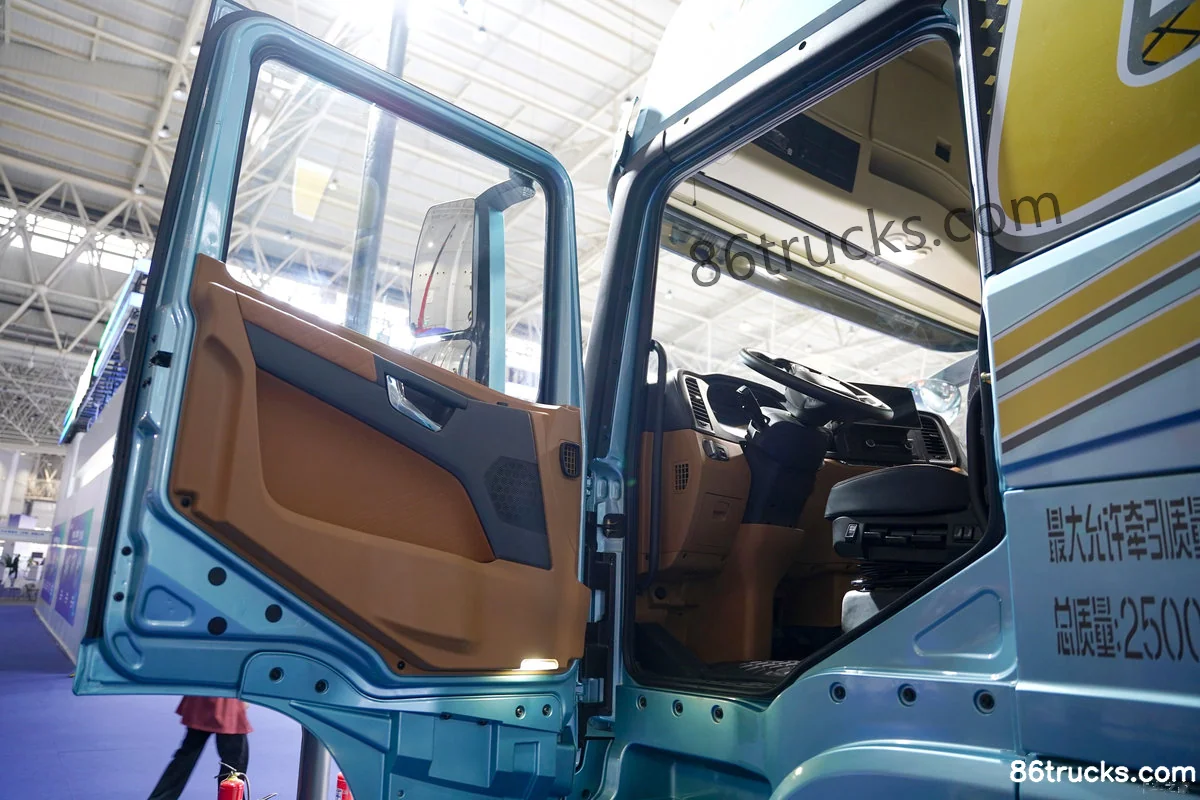

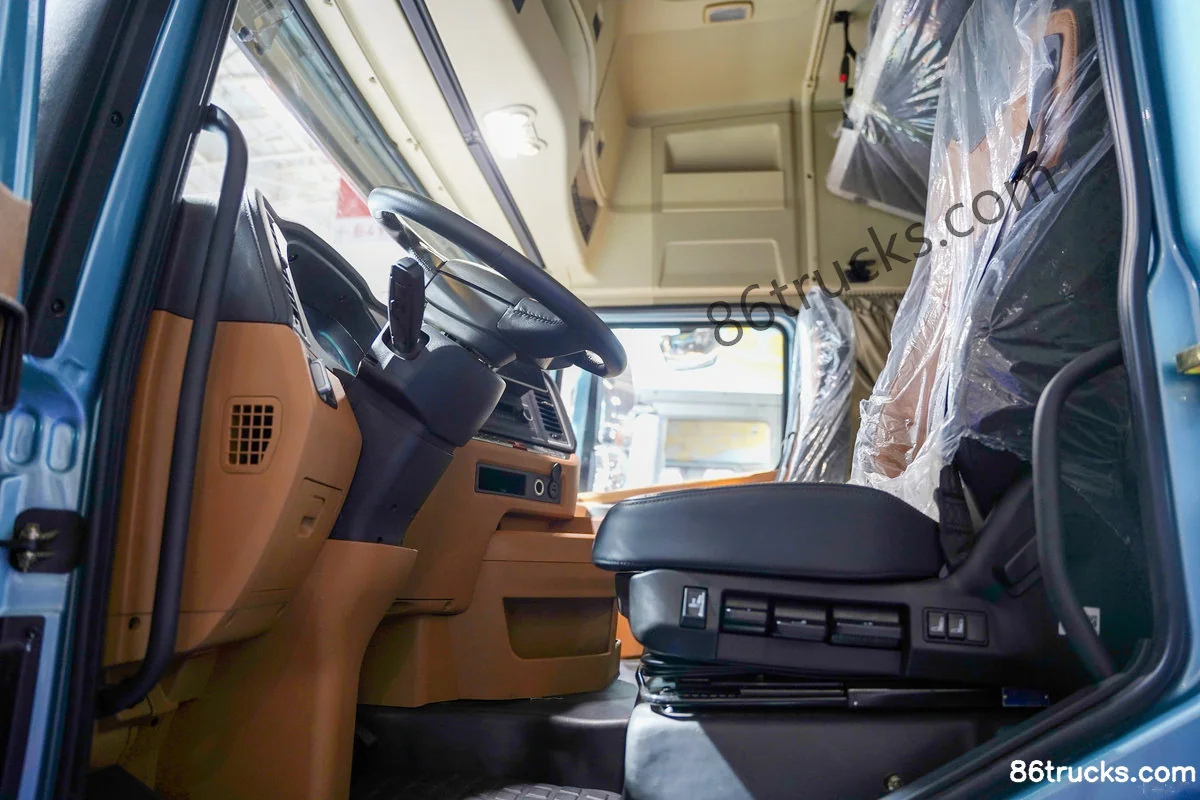

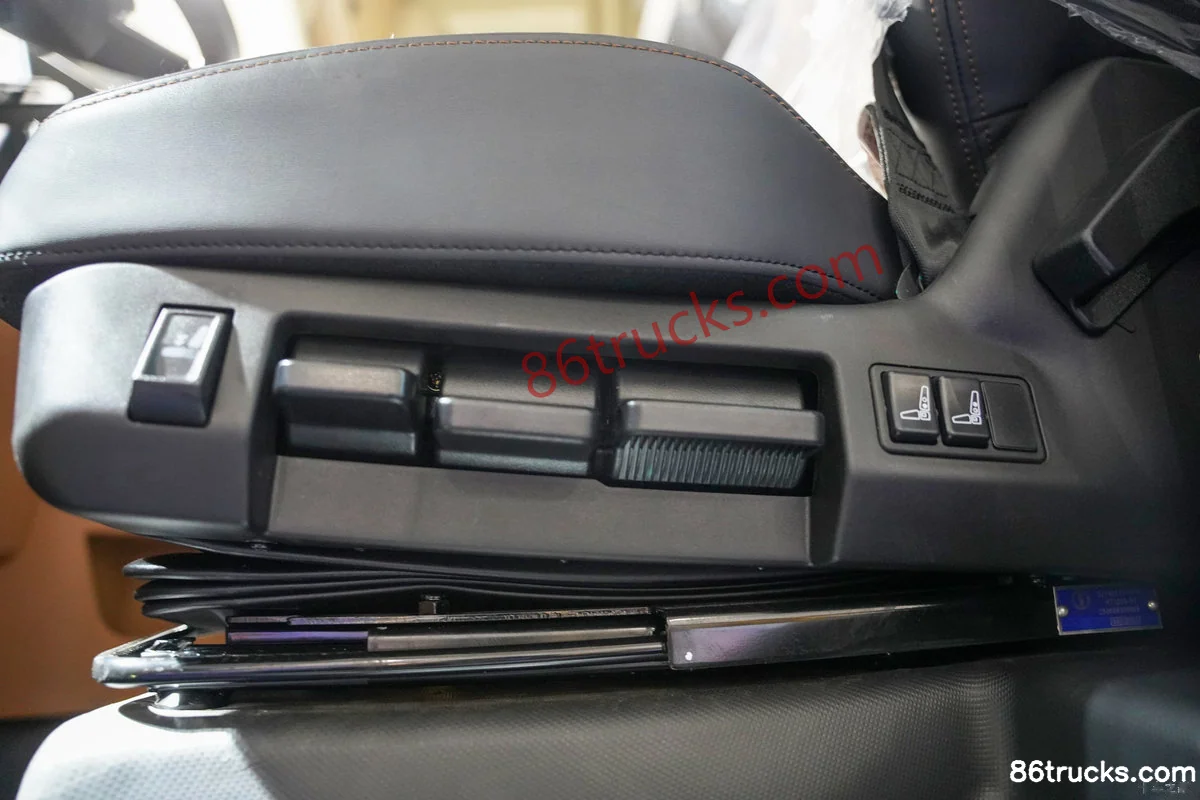

Cab3

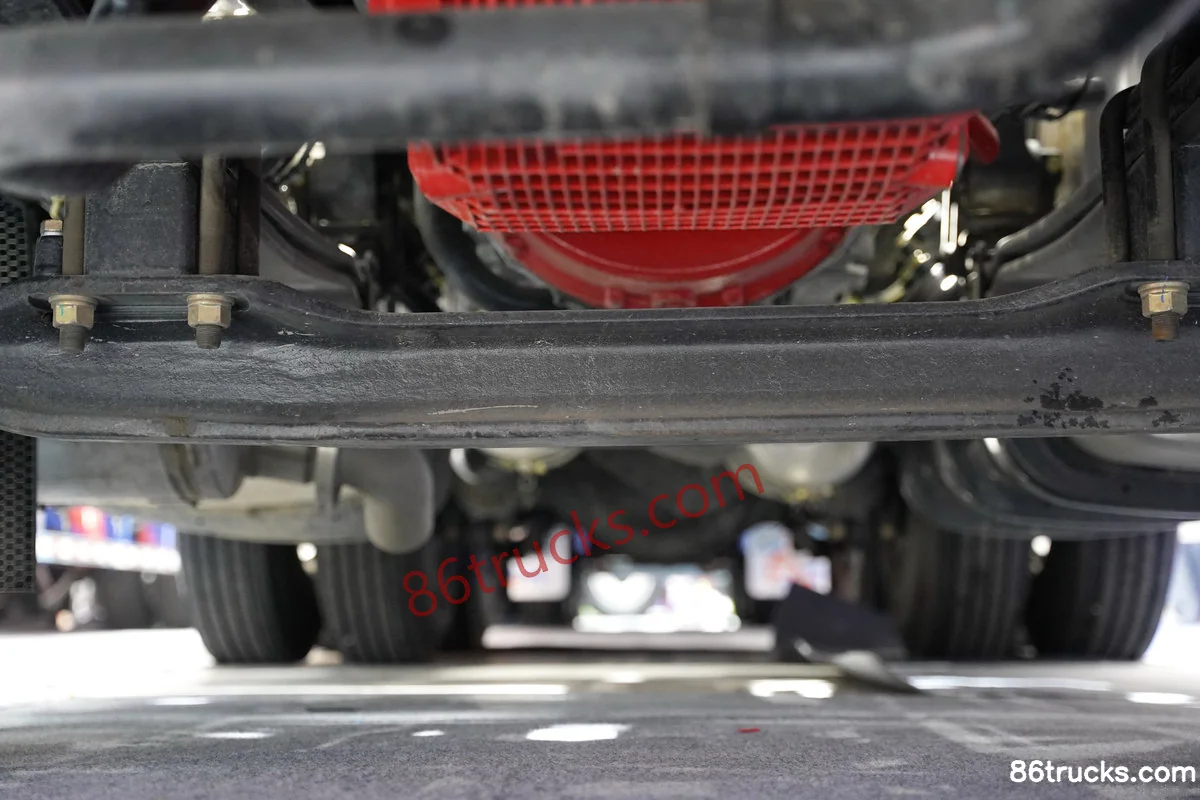

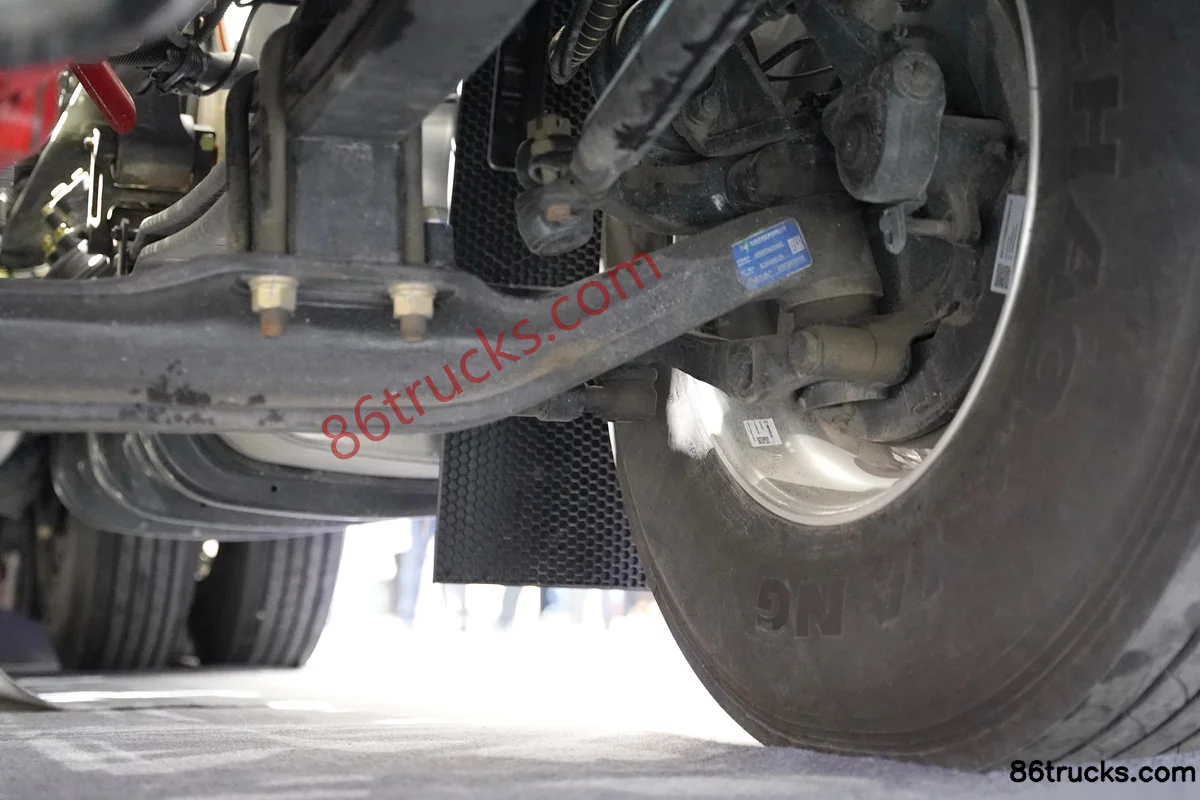

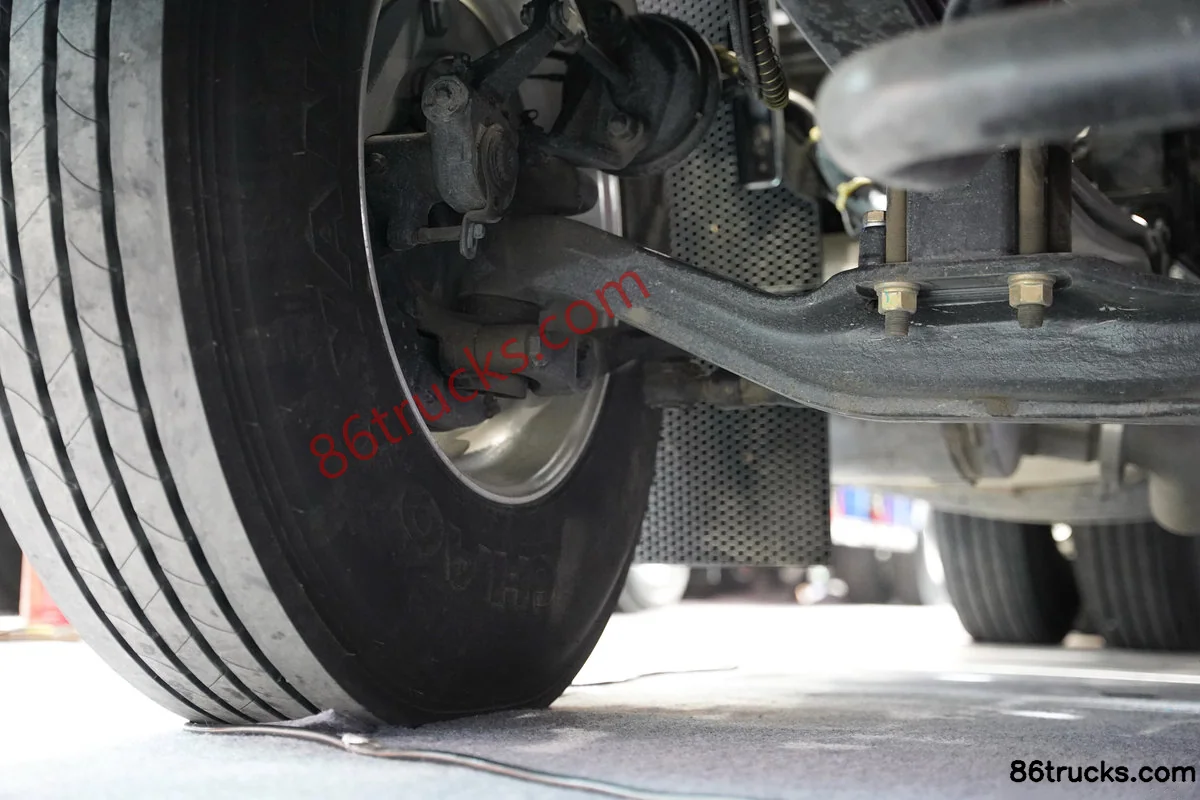

Chassis3

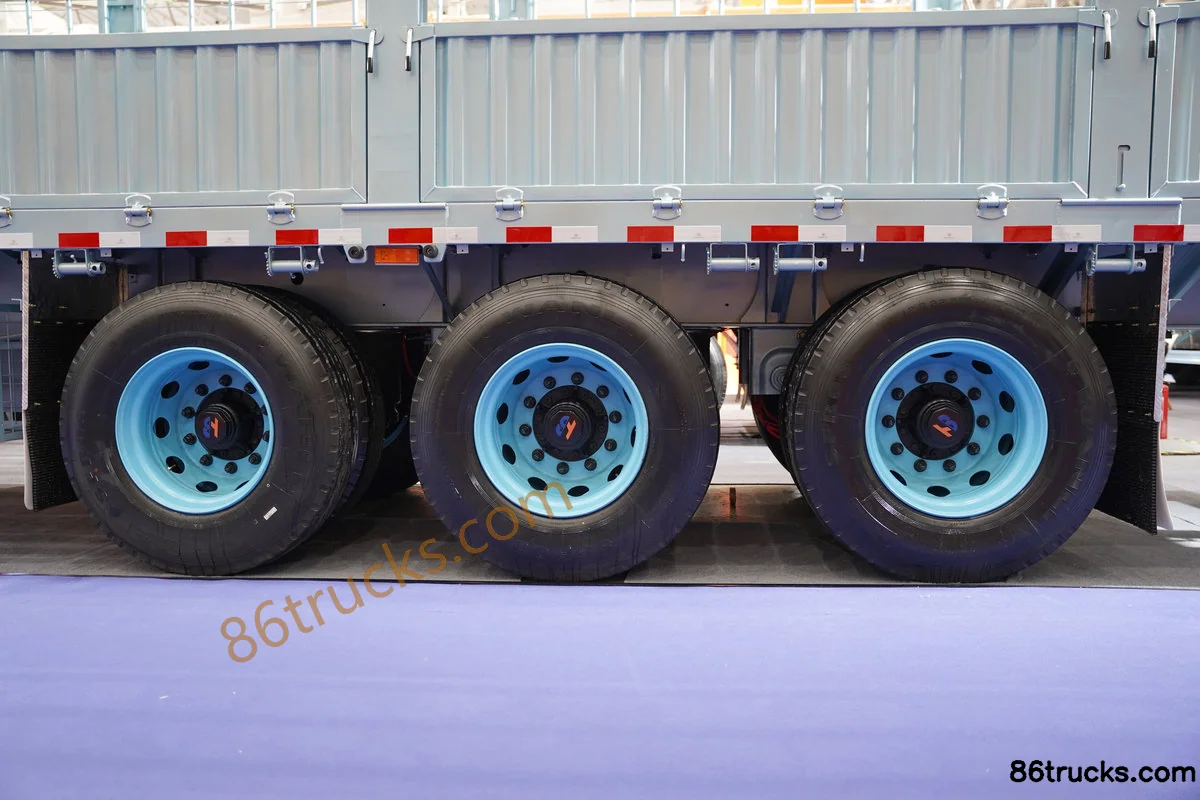

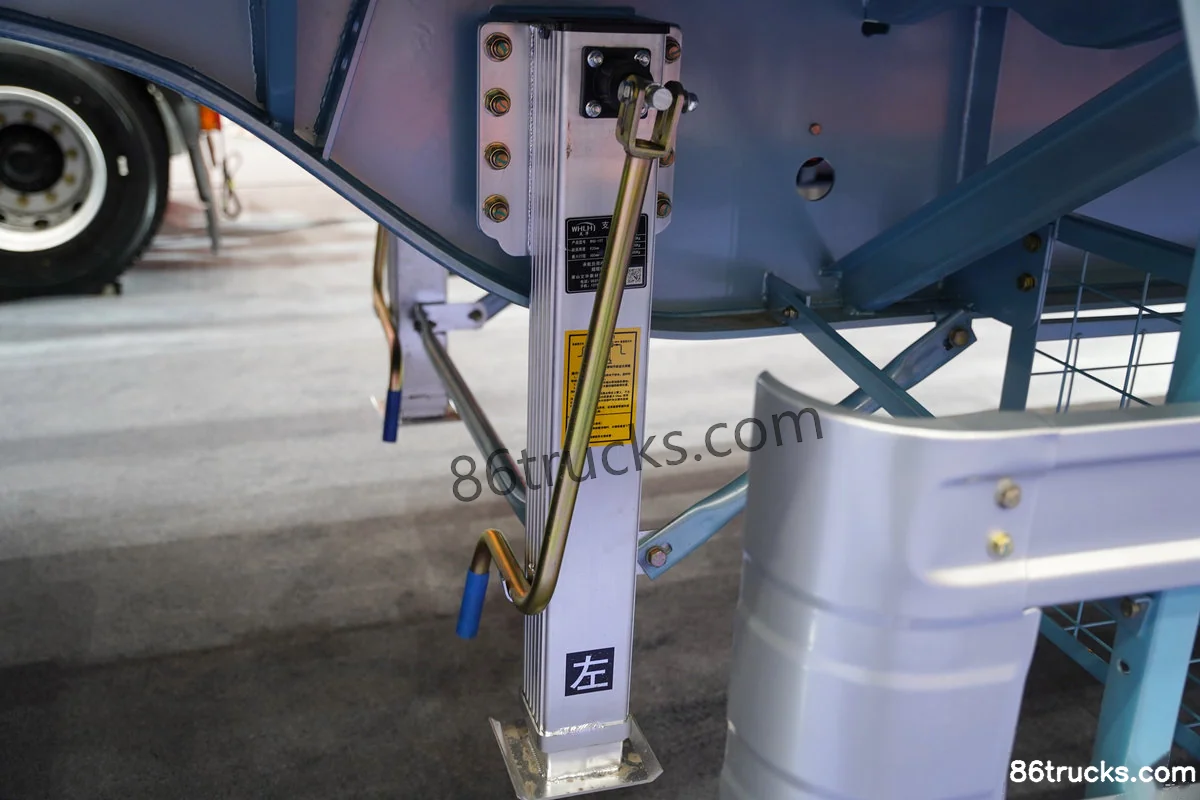

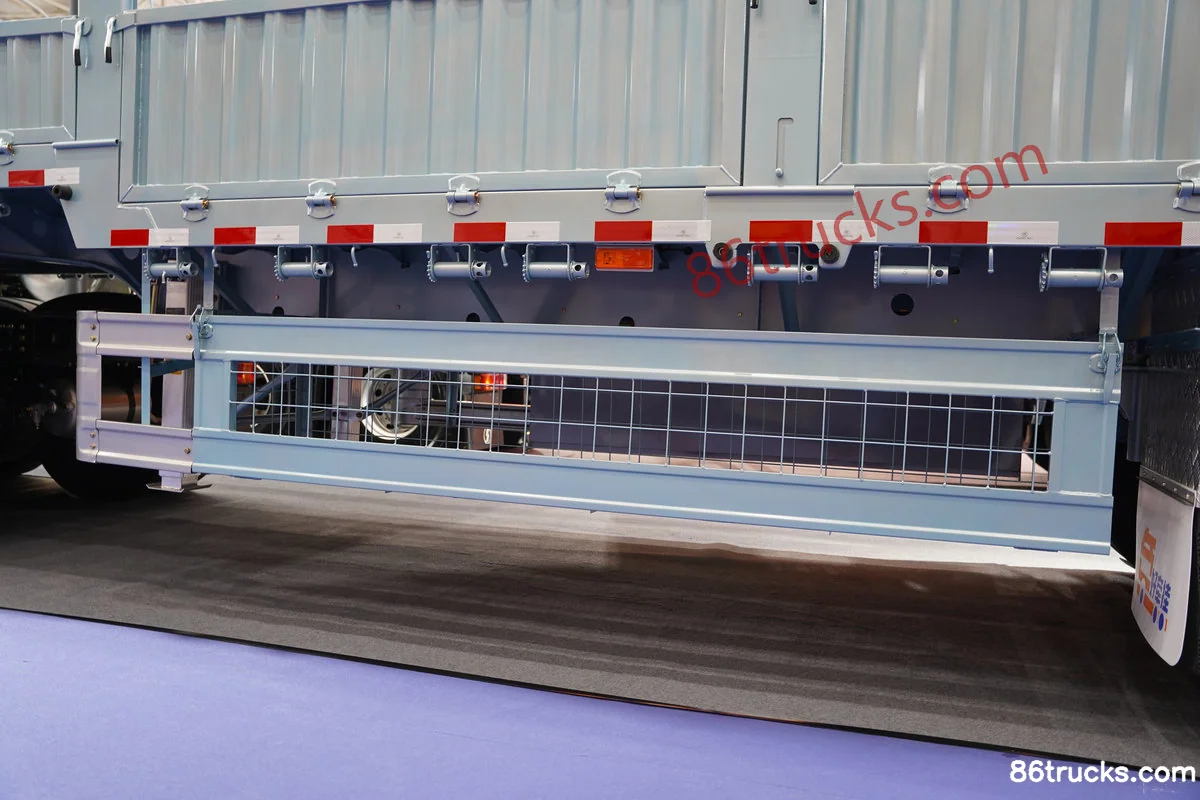

Body3

12 photos

FAQ

What emission standard does SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck?

Key specs of SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck: Drive: 6x4; Horsepower: 560 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck suited for?

SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck differ from other variants in the same series?

SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck belongs to SHACMAN Longxiao (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Cummins Longxiao Elite Edition 560hp 6X4(10 wheels) AMT Automatic Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
