FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand)

Export reference
MSRP N/A
Rated payload:: 9.45ton
Wheelbase:: 4500mm
Model code (announced):: ZBH5180ZXXCABEV
Truck Type:: Battery Electric Hook-Lift Refuse Truck
Cab length:: 7.2m
GVWR:: 18ton
FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) exterior
View more photos (11)
Drive 4X2 (6 wheels)
CLTC range: 218km
Motor 1 Brand: Lv Kong
Curb Weight: 8.42ton

Overview

The FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) is a Electric Garbage Truck featuring 218km battery/range, Lv Kong motor, 4X2 (6 wheels) drive and 9.45t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZBH5180ZXXCABEV
Drive type: 4X2
Truck Type: Battery Electric Hook-Lift Refuse Truck
Wheelbase: 4500mm
Cab length: 7.2m
Cab width: 2.5m
Cab height: 2.95m
CLTC range: 218km
Curb Weight: 8.42ton
Rated payload: 9.45ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Changsha, Hunan
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ370XS-LKM1101
Motor Type: Permanent magnet synchronous motor
Peak power: 160kW
Body Parameters
Special Function Description: This model uses a chassis with a 4500 mm wheelbase. Through the lifting arm device and hydraulic system, it performs garbage loading and unloading operations.
Body Brand: ZOOMLION
Battery/Charging
Battery Brand: CATL
Charging method: Dual-gun charging
Battery type: Lithium Iron Phosphate Battery
Energy Density: 141
Battery Model: MFH3L8
Chassis Specs
Front axle load: 6500ton
Rear Axle Load: 11500ton
Chassis Series: J6L
Chassis Model: CA1181P62L2BEV
Leaf spring count: 10/12+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: LvKong J6S95-AMT 6-speed transmission
Cab parameters
Cab: J6L flat roof small half sleeper cab
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

Photos

Exterior3

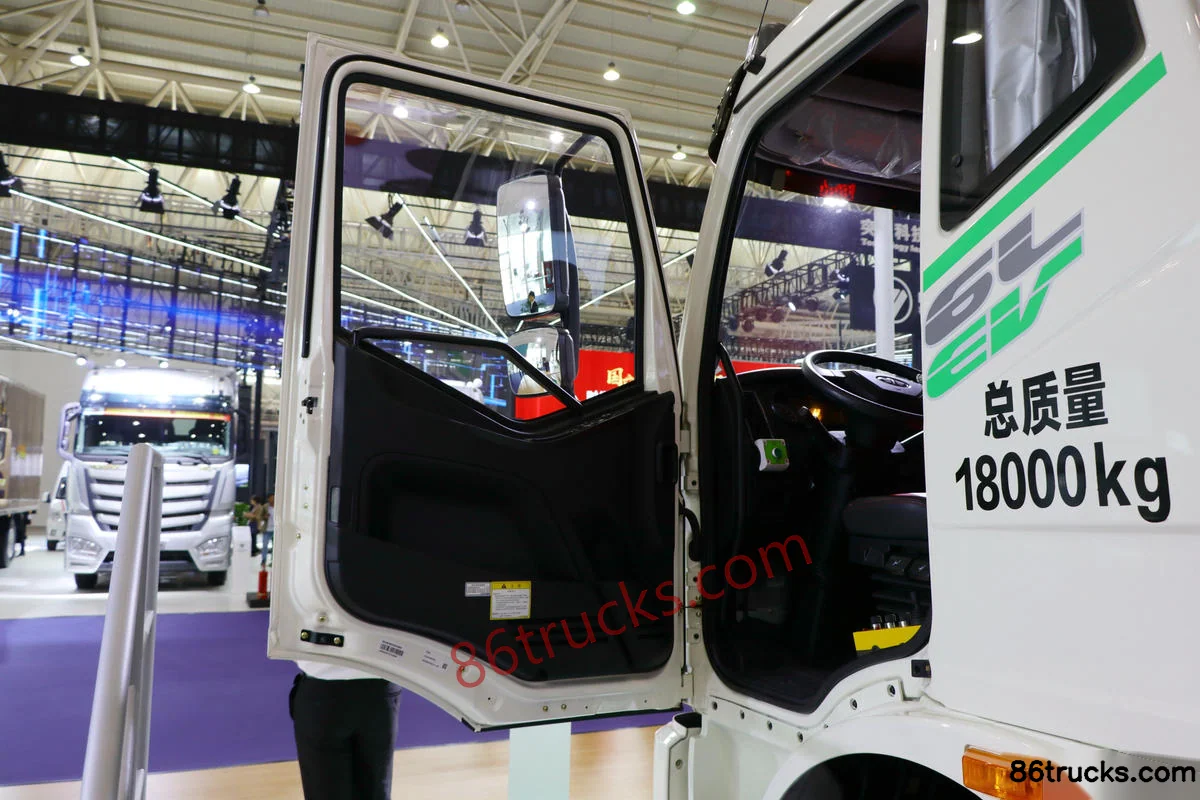

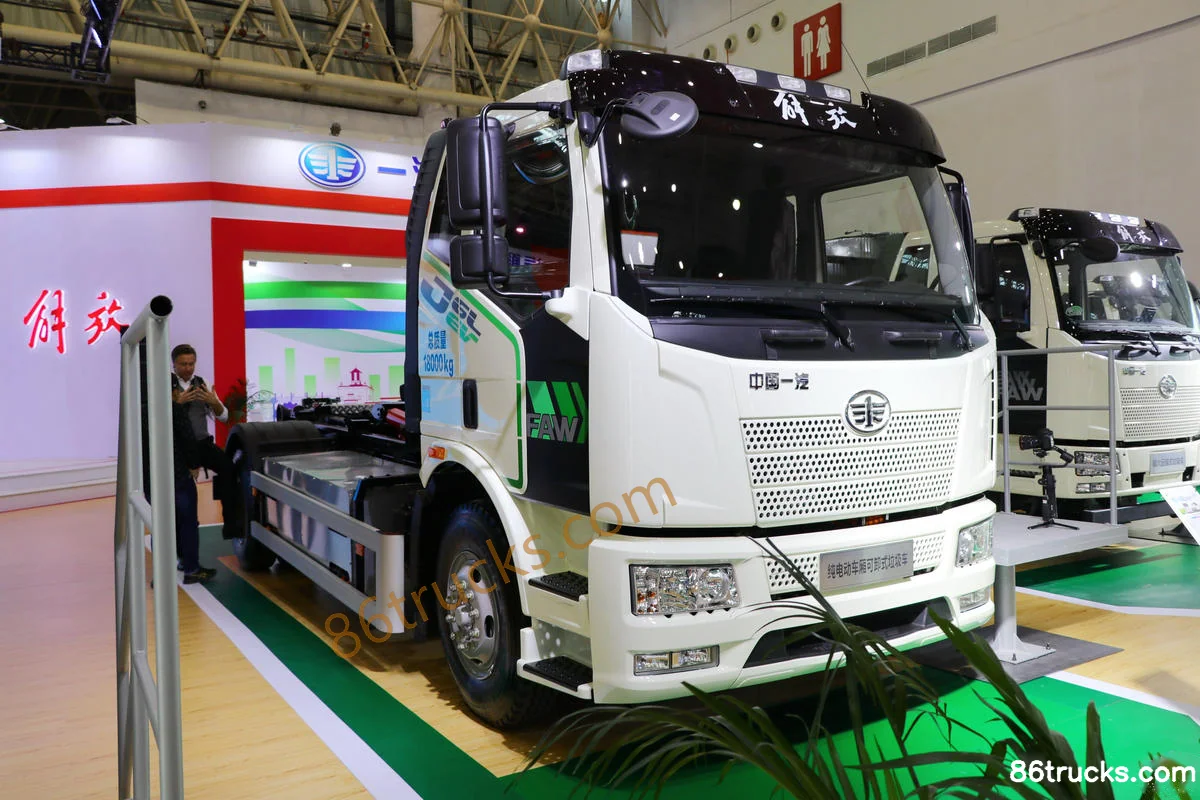

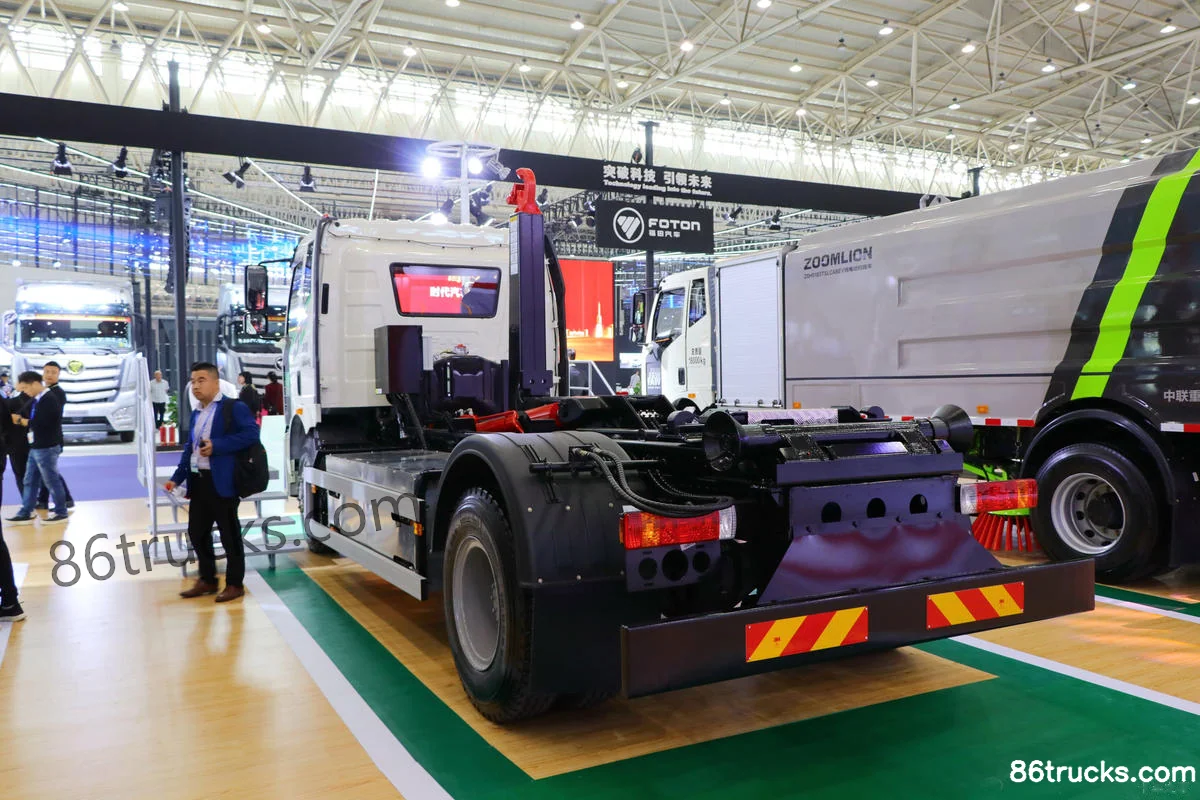

FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) Exterior (1) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) Exterior (2) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) Exterior (3) | 86Trucks

Cab3

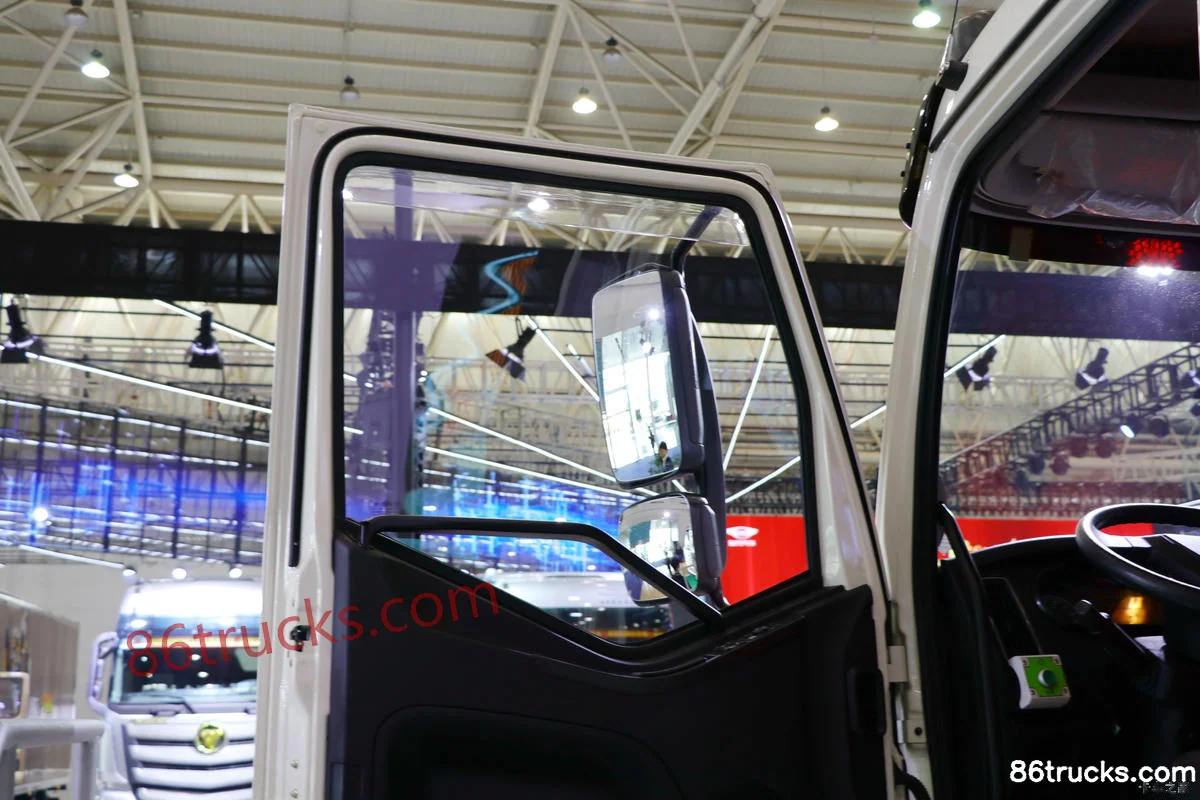

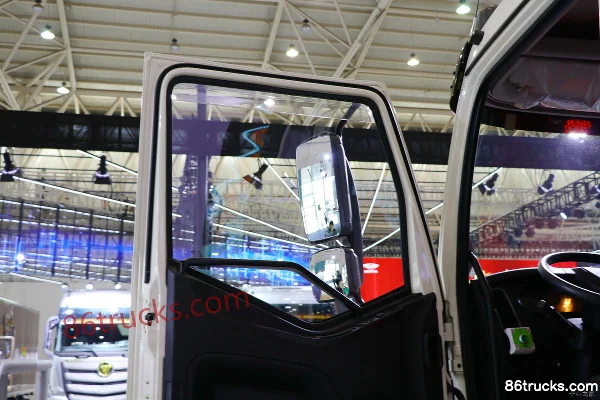

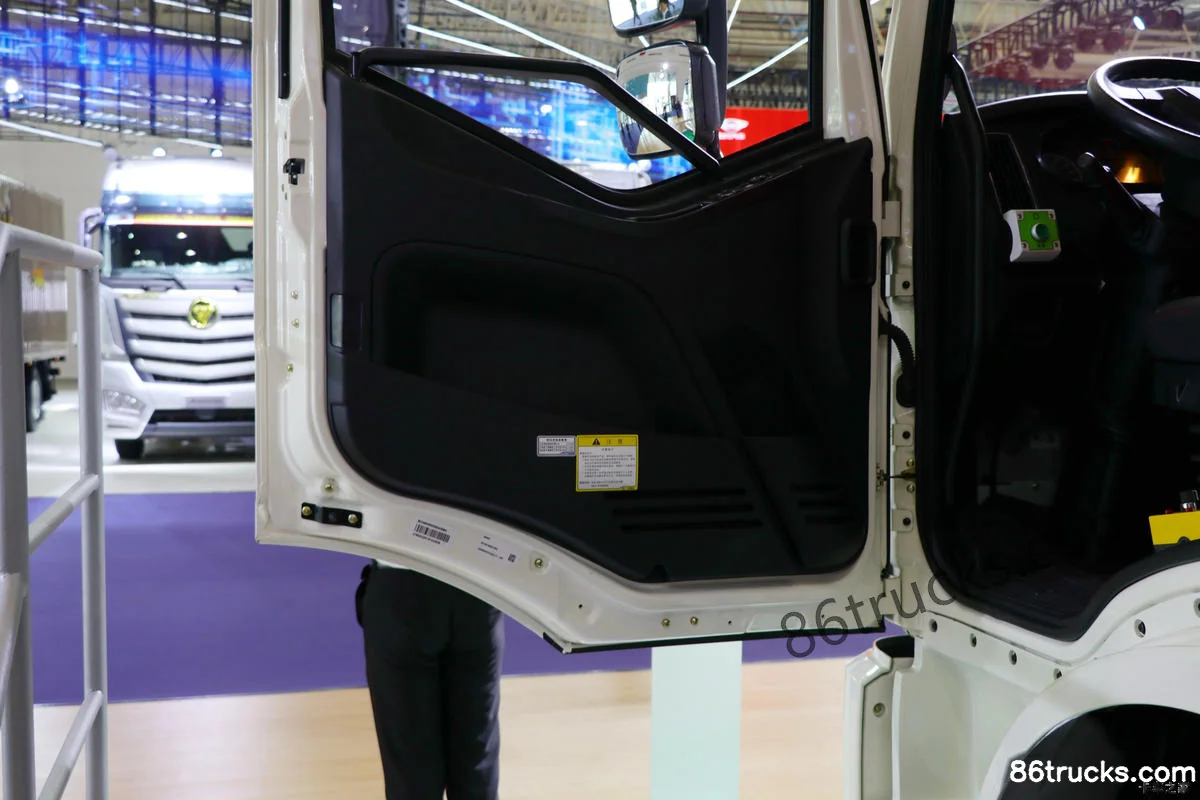

FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) (1) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) (2) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) (3) | 86Trucks

Chassis3

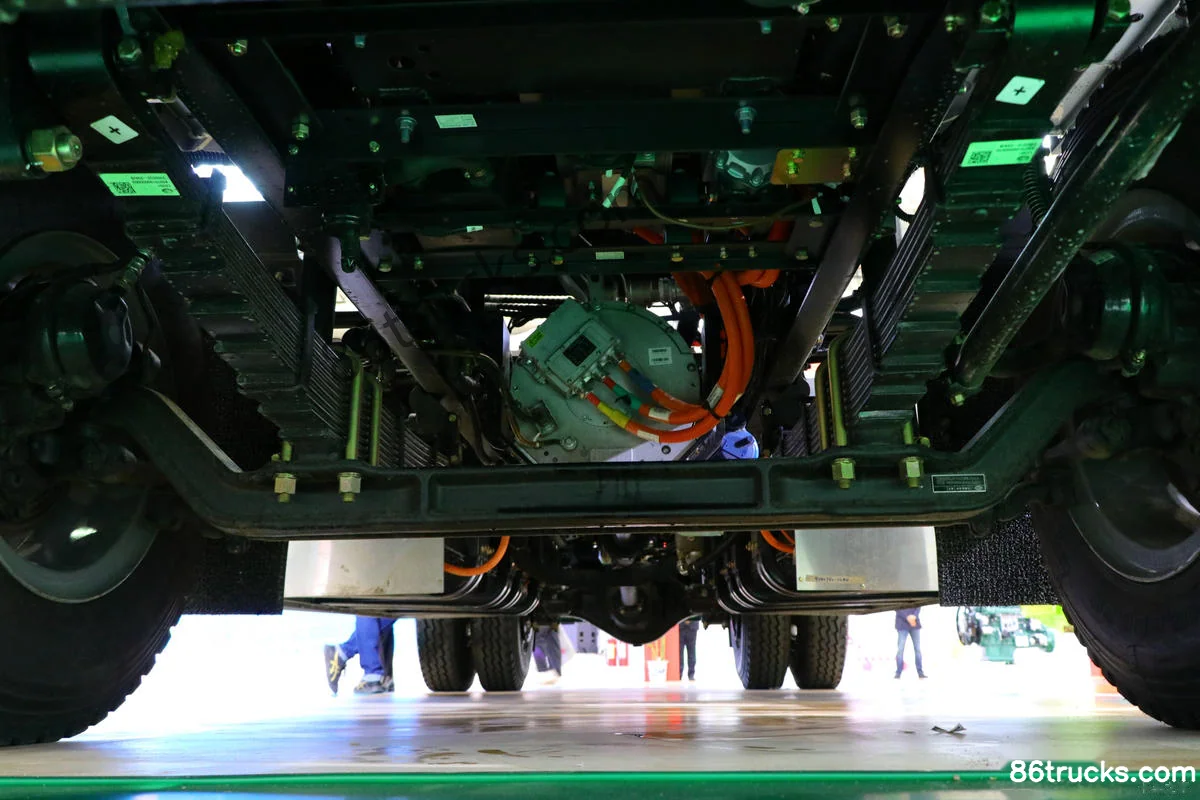

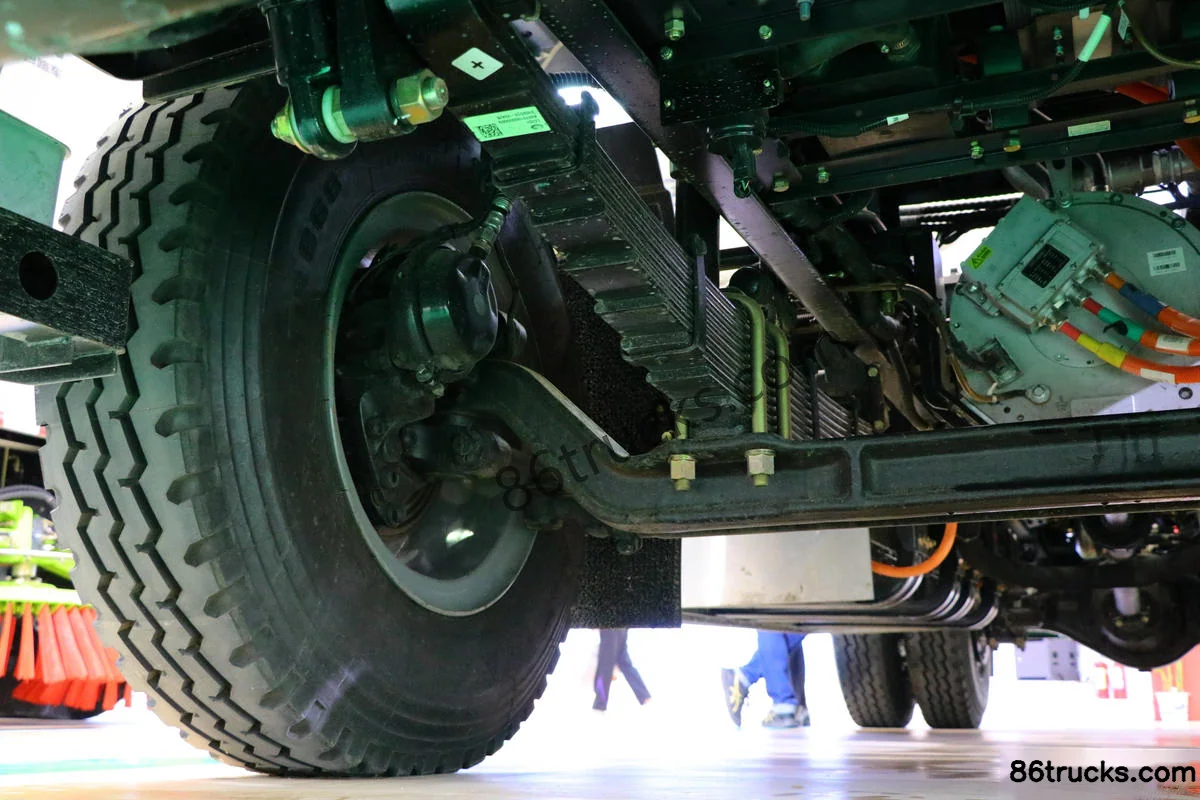

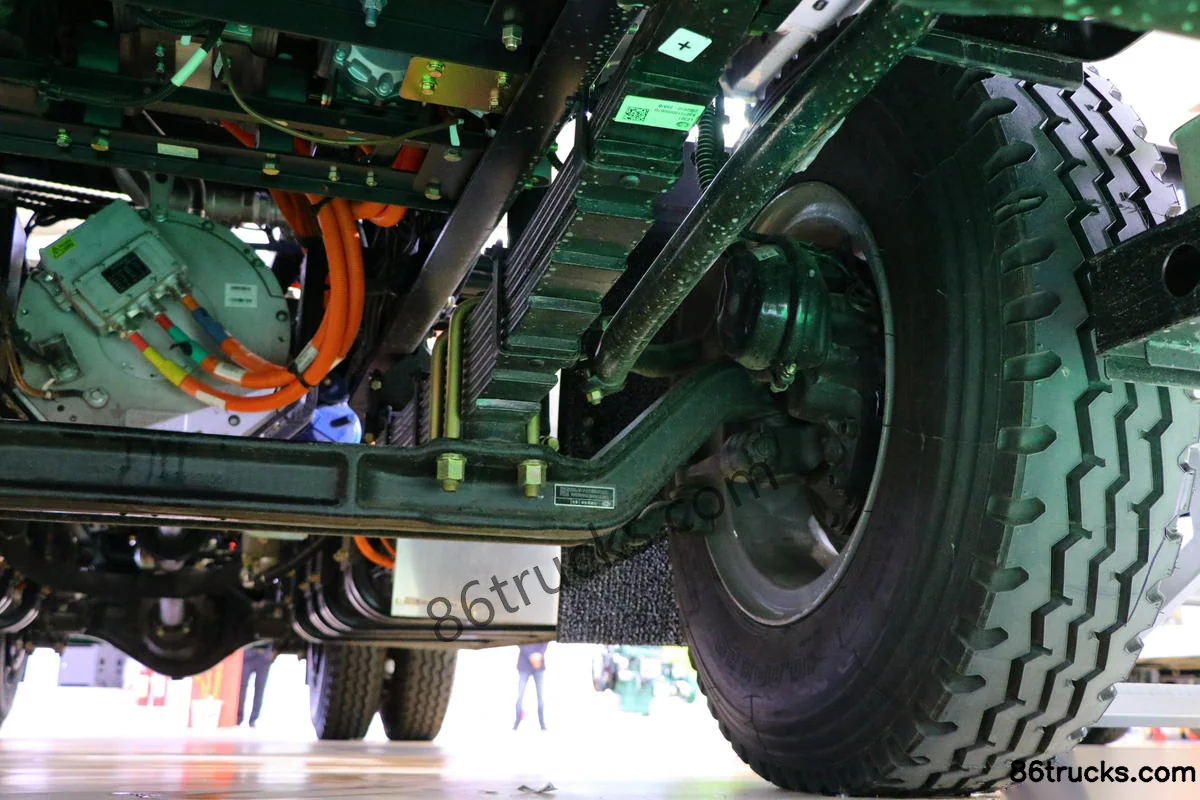

FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) Chassis (1) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) Chassis (2) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) Chassis (3) | 86Trucks

Body2

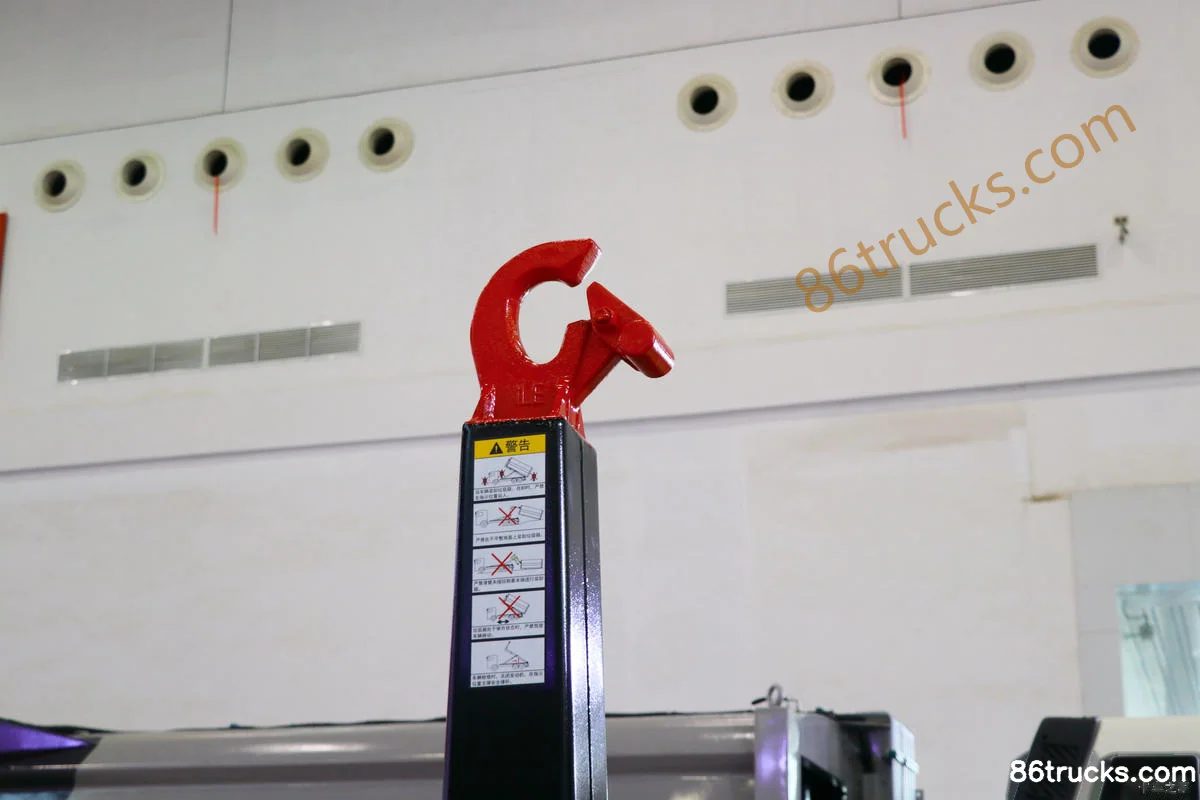

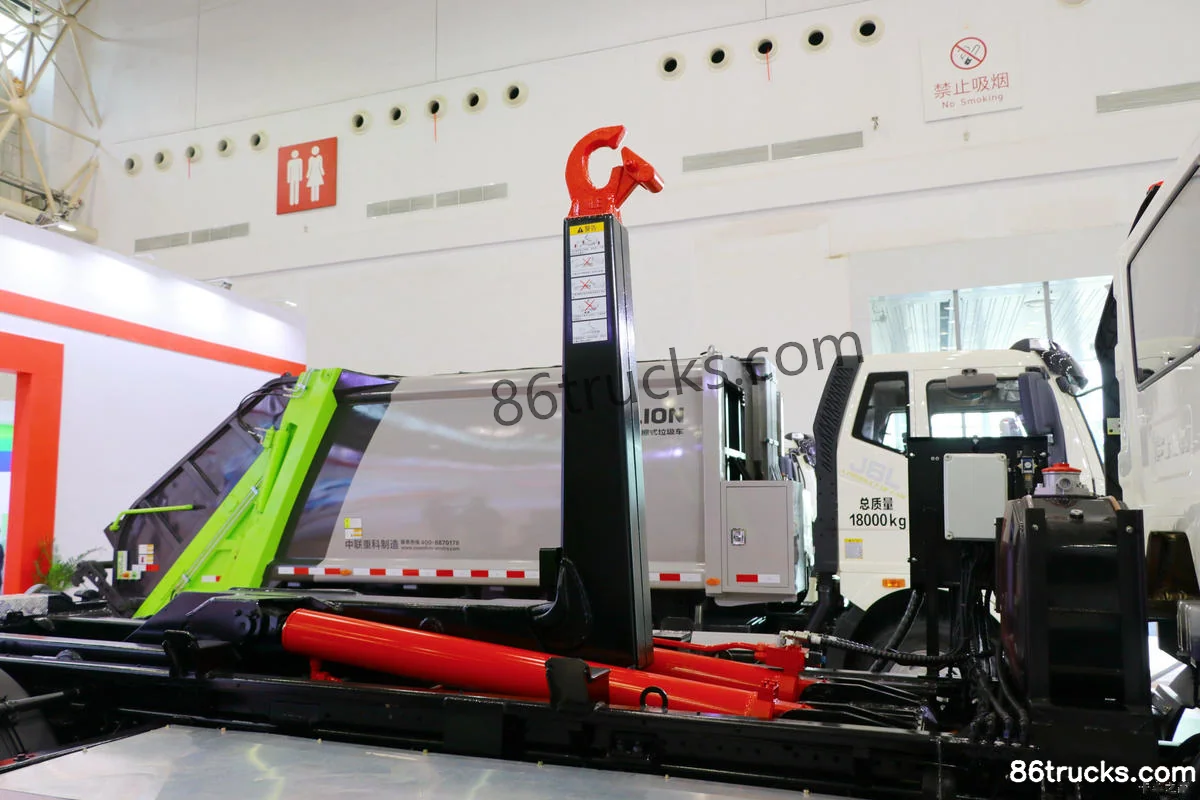

FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) Body (1) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) Body (2) | 86Trucks

11 photos

FAQ

What are the key specs of FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand)?

Key specs of FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) suited for?

FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) is a Electric Garbage Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) differ from other variants in the same series?

FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand) belongs to FAW Jiefang J6L Medium Truck (Electric Garbage Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L 4X2(6 wheels) Electric Cab-Replaceable Garbage Truck (Zhonglian Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
