CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875)

Export reference
From $18,000
MSRP ¥12.96M CNY
Horsepower: 160
Emission: China IV
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 6.005ton
seating capacity: 3Personnel
Rated payload: 9.8ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875) is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 3Personnel volume and 9.8t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CJ5160CCYD48A
Type: stake truck
Drive type: 4X2
Wheelbase: 5200mm
Box length class: 6.8m
engine: YuchaiYC6J160-45
transmission: Fast Gear8JS85E
Rear Axle Ratio: 6.33
Cab length: 8.9m
Cab width: 2.48m
Cab height: 3.85m
Front track width: 1910mm
rear track: 1830mm
Curb Weight: 6.005ton
Rated payload: 9.8ton
GVWR: 16ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 28°
departure angle: 24°
market segment: Agricultural product transport, green channel, industrial product transport
Remarks: Dual hydraulic tilt, right-mounted soft shaft, double nut fixing, with added anti-collision beam
Front/rear suspension: 1.4/2.3m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J160-45
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.26L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cargo box width: 2.3m
Cargo box height: 0.6m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Fangding D913V
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 1094 front axle
Front axle allowable load: 6000kg
rear axle description: 9T rear axle
rear axle allowable load: 10000kg
Axle ratio: 4.875
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20-16
Tire Type: Steel-belted tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Multimedia features
GPS/Beidou driving recorder:

Photos

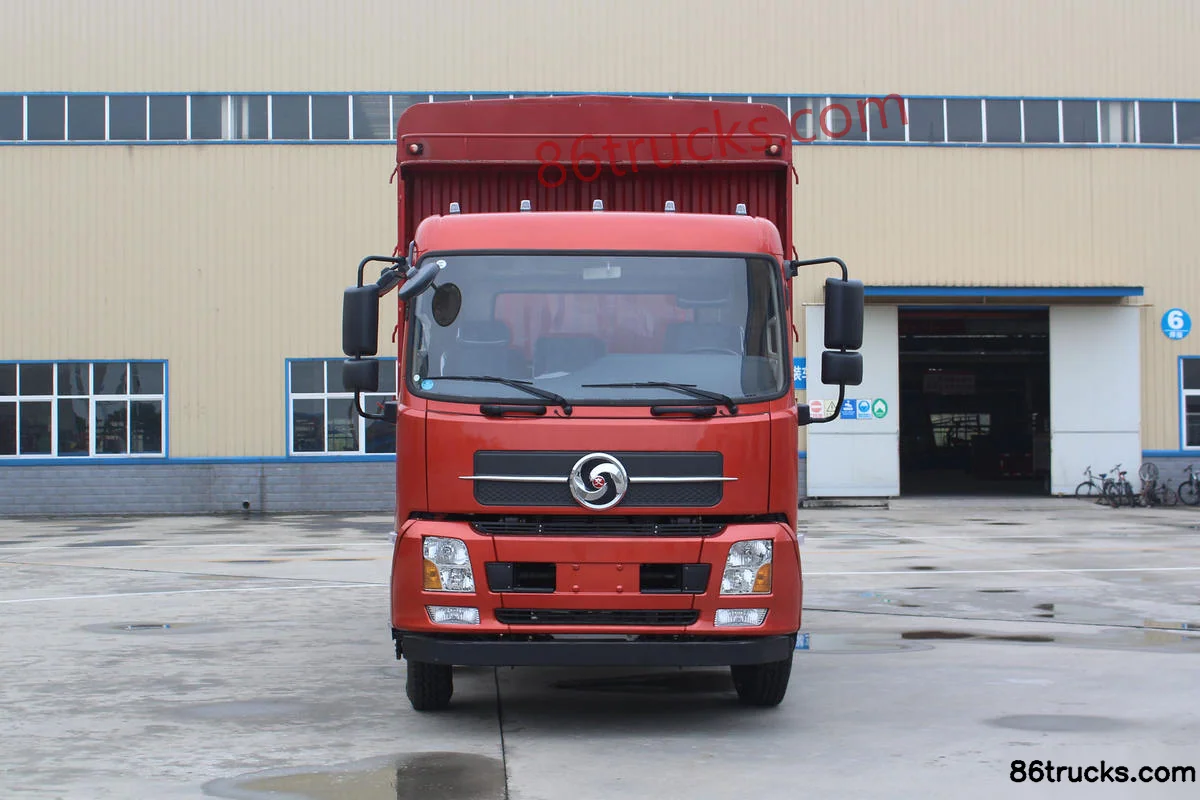

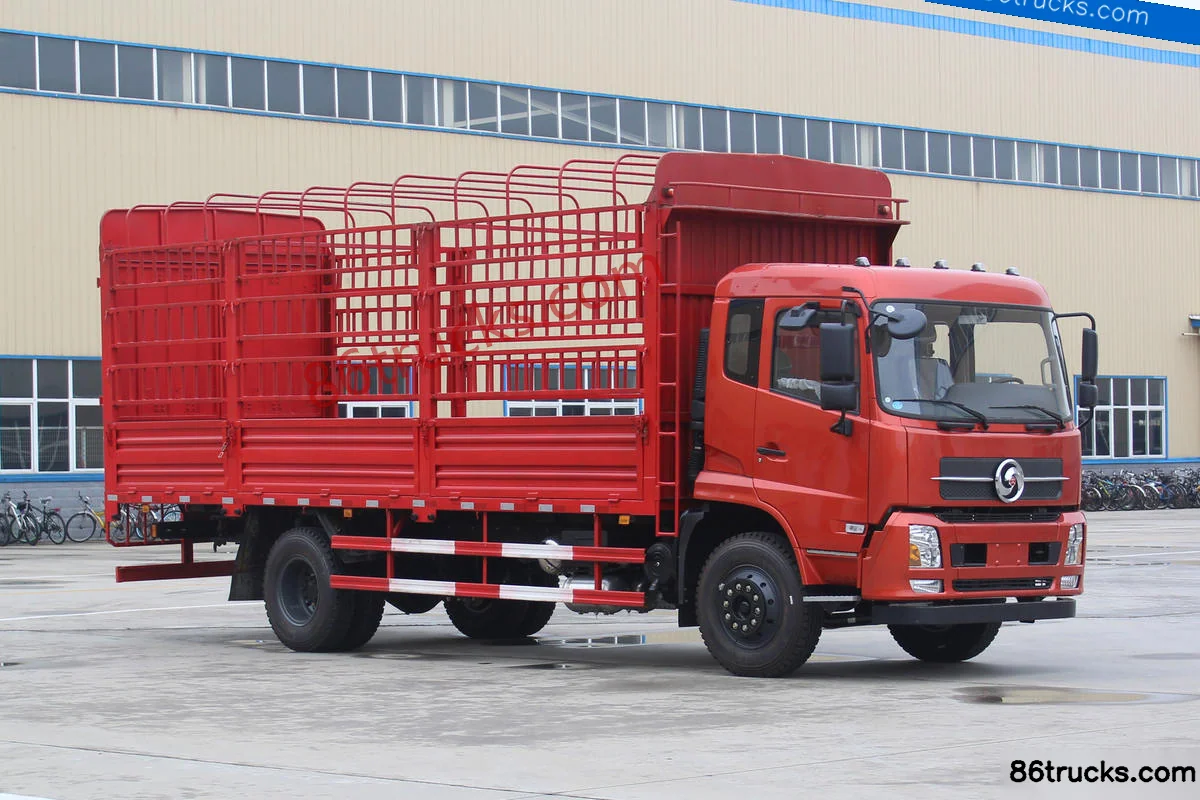

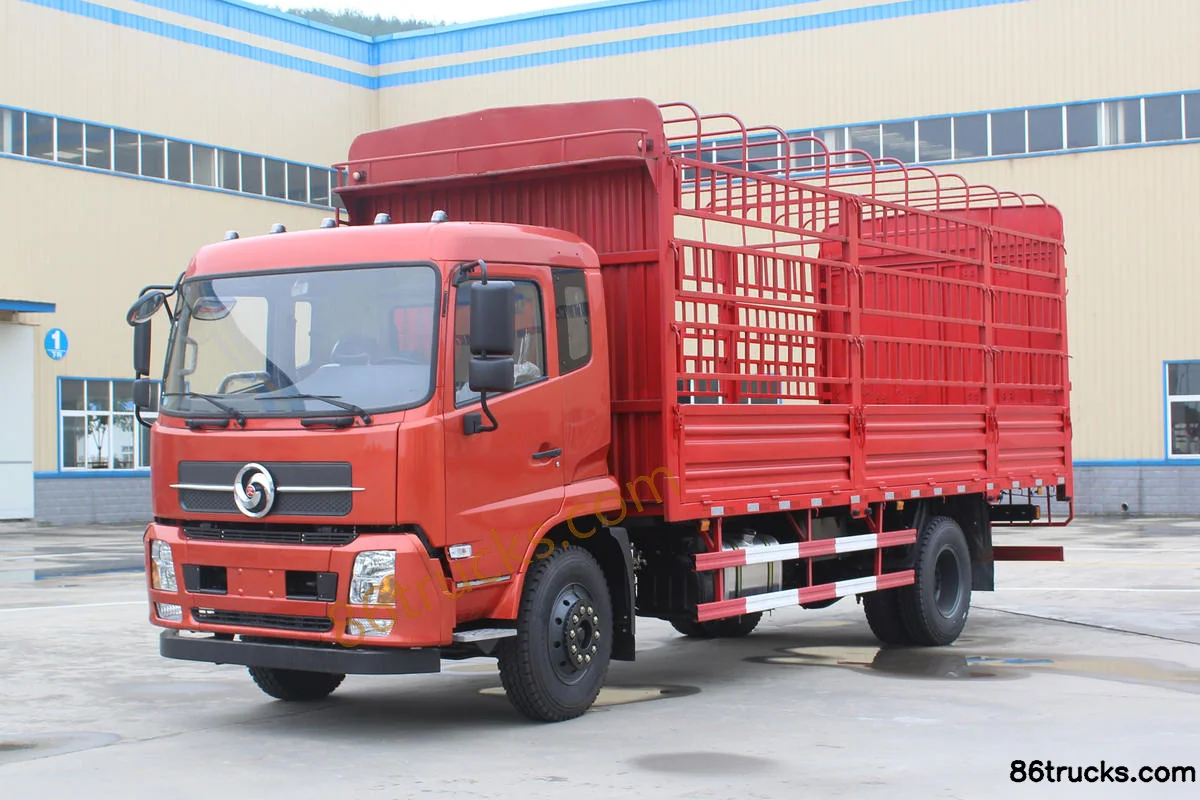

Exterior3

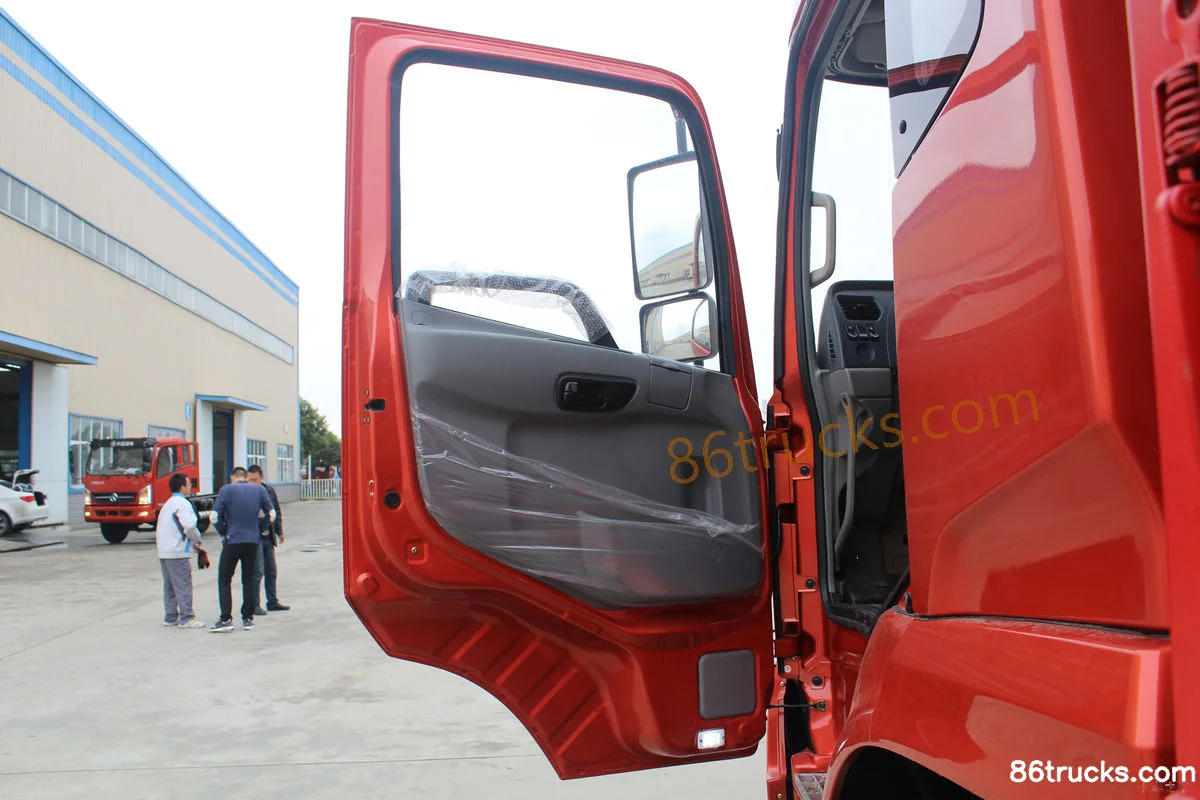

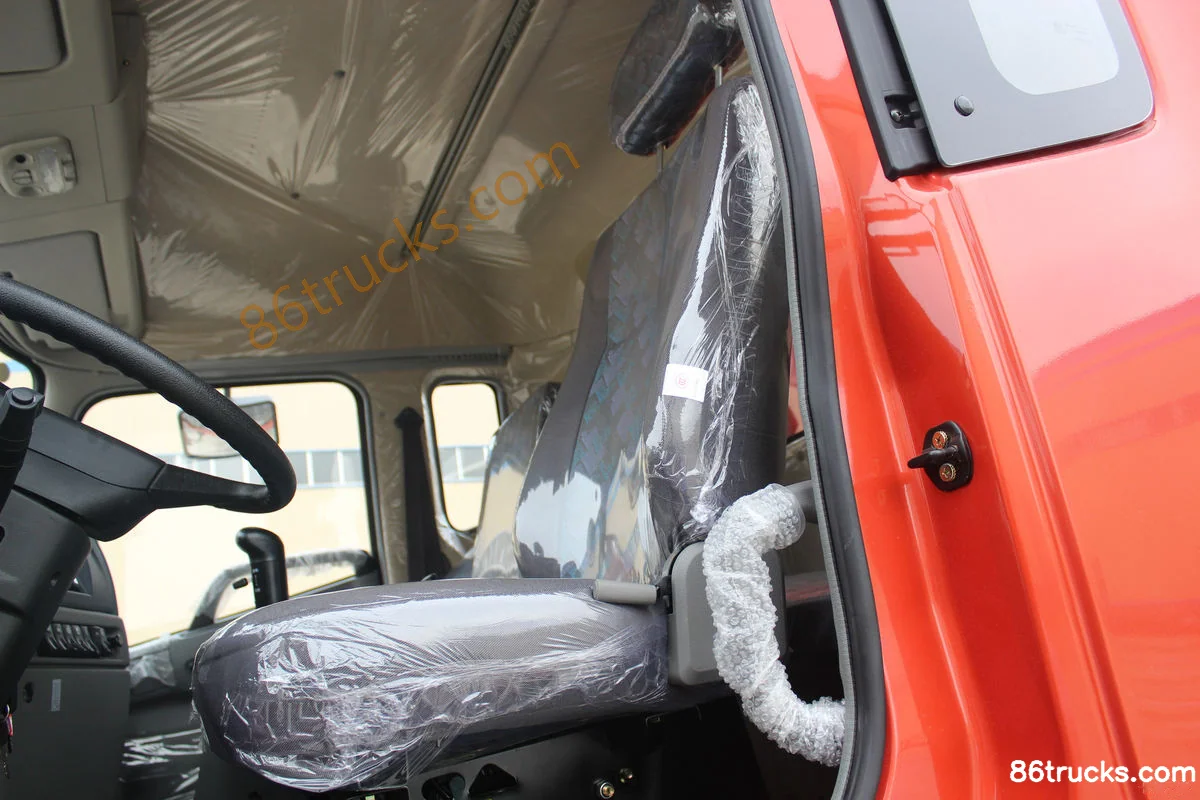

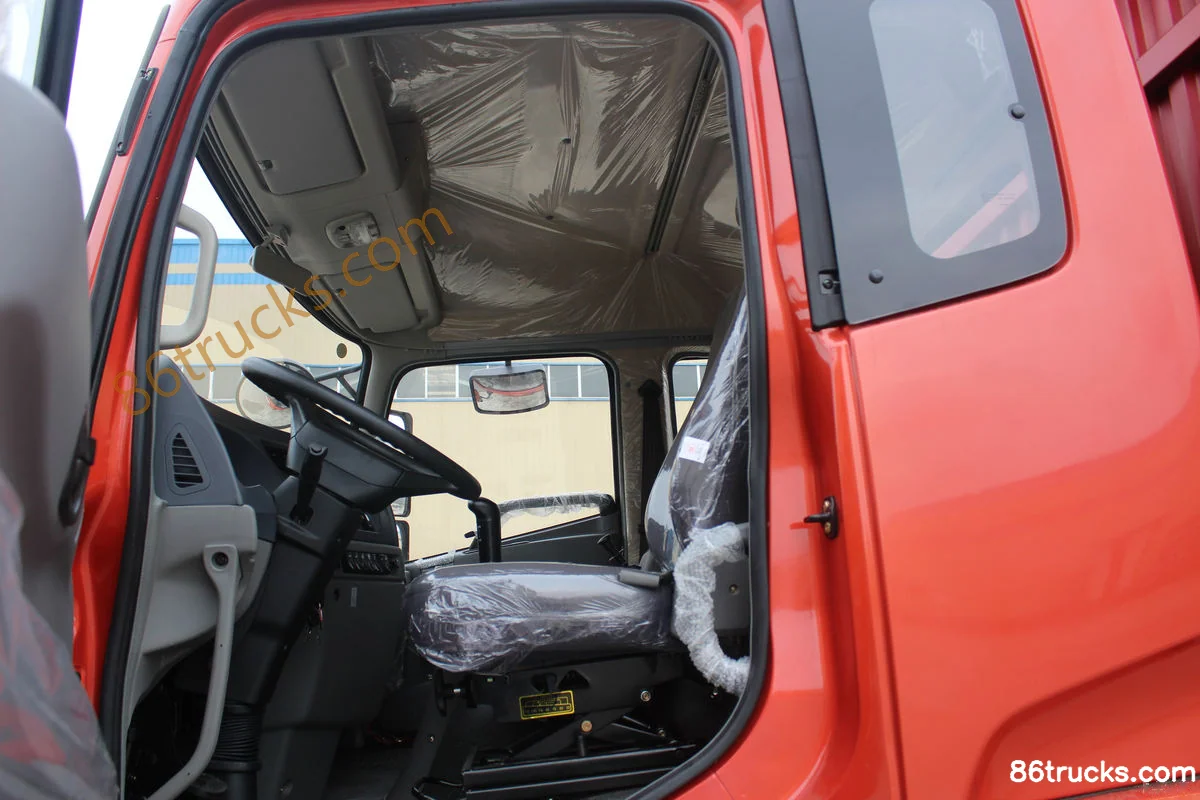

Cab3

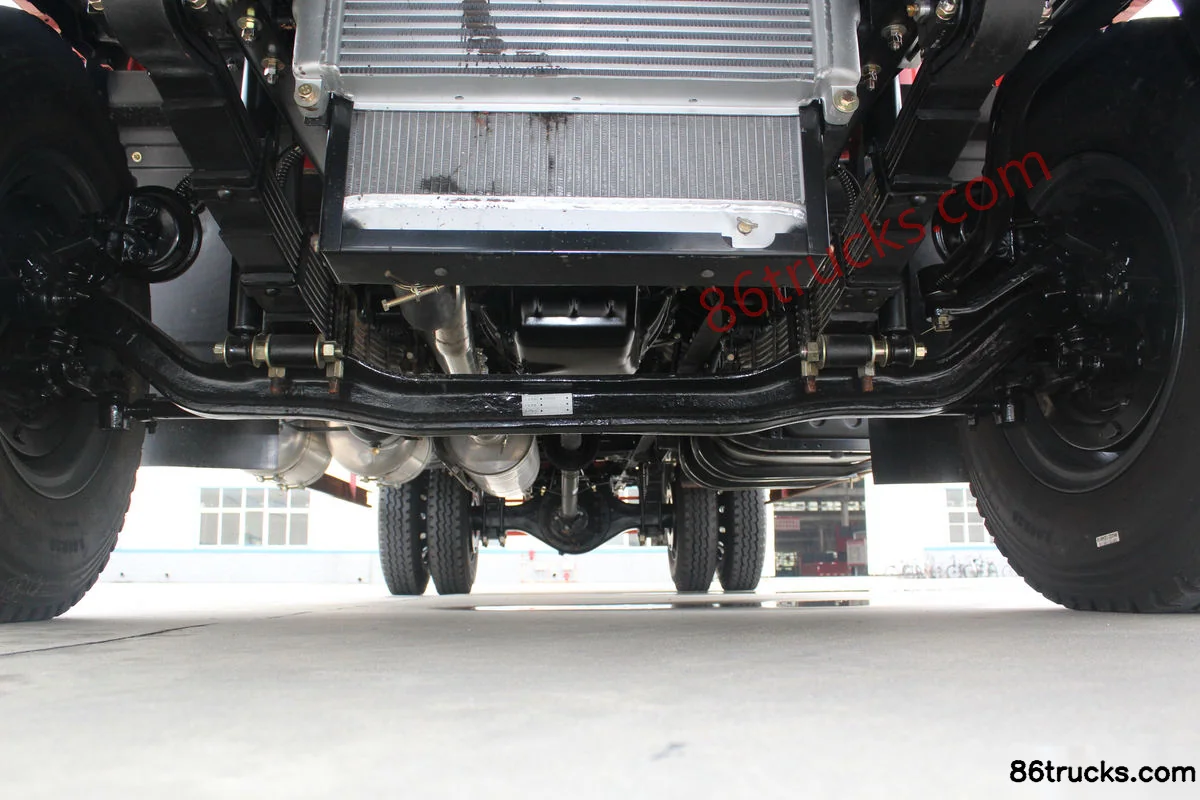

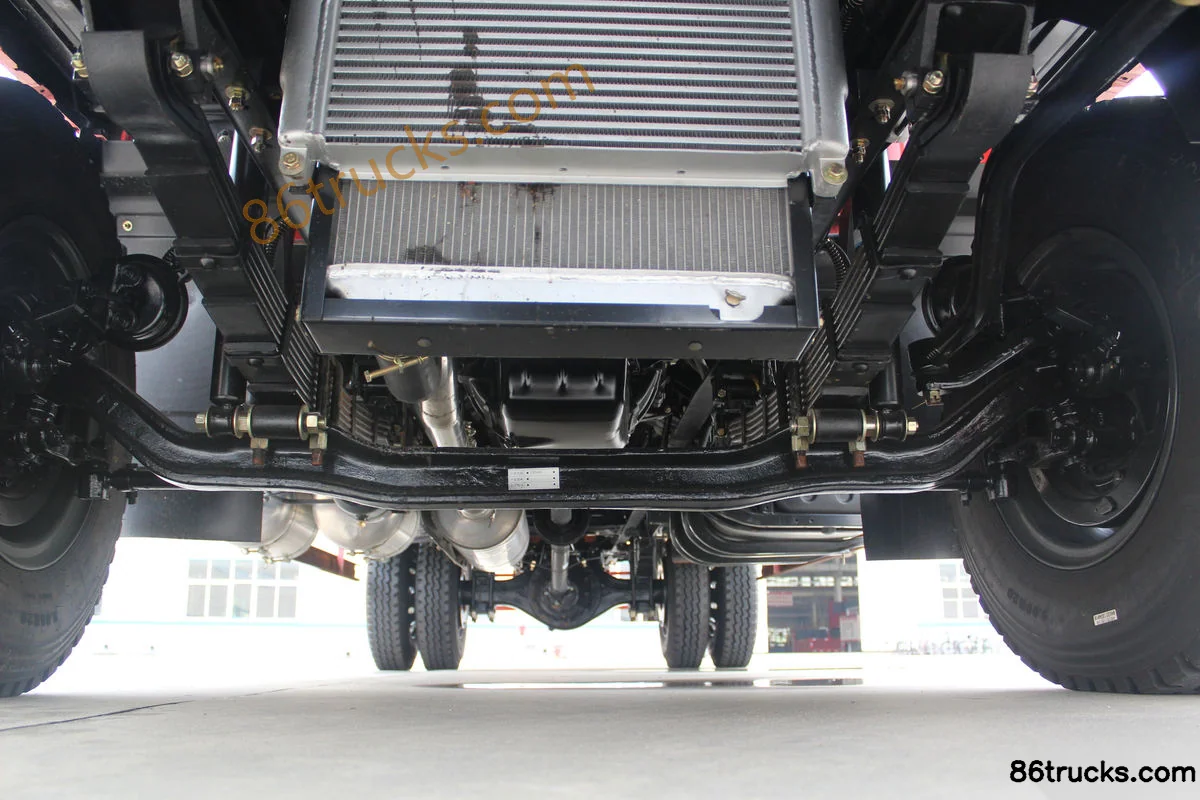

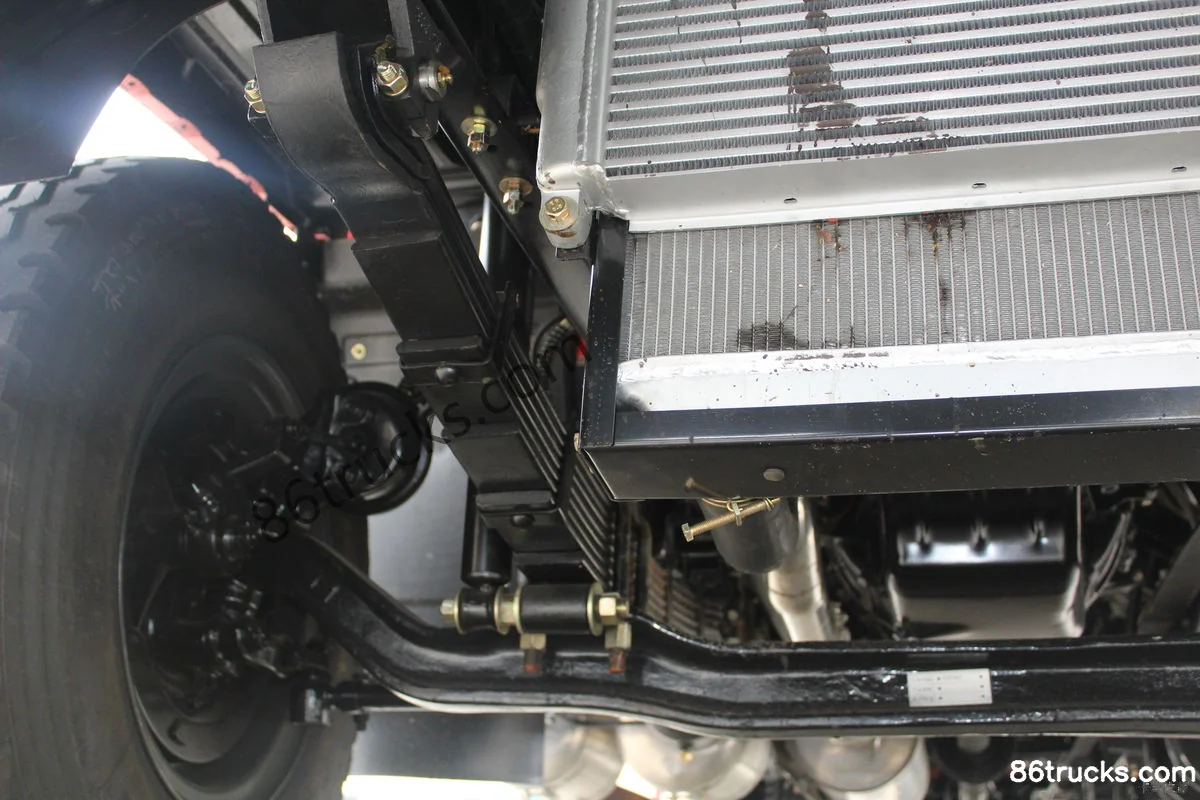

Chassis3

9 photos

FAQ

What is the export price of CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875), and what does it include?

CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875) export reference is about From $18,000; MSRP is ¥12.96M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875)?

Key specs of CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875): Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875) suited for?

CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875) differ from other variants in the same series?

CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875) belongs to CHUANJIAO medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export CHUANJIAO medium truck 160hp 4X2(6 wheels) 6.8m stake truck (axle ratio 4.875)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
