FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck

Export reference
From $30,556
MSRP ¥22M CNY
Horsepower: 190
Emission: China V
Fuel: Diesel
Engine: WeichaiWP4.1N
Transmission: Fast Gear
Curb Weight:: 5.45ton
FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 8.415ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck is a Light Truck featuring 6.2m cargo length, Stake type cargo body, 3Personnel volume and 8.415t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP4.1N engine, 190 hp, 4X2 (6 wheels) drive and China V emissions.

China V 190 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5140CCYP40K62L5E5A85
Type: stake truck
Drive type: 4X2
Wheelbase: 4700mm
Box length class: 6.2m
engine: WeichaiWP4.1NQ190E50
transmission: Fast Gear8JS75C
Cab length: 8.415m
Cab width: 2.55m
Cab height: 3.465m
Front track width: 1820mm
rear track: 1740mm
Curb Weight: 5.45ton
Rated payload: 8.415ton
GVWR: 14.06ton
Max. speed: 115km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 15°
market segment: Agricultural product transport, green channel
Remarks: Complies with 2020 regulations, King Cab, Multifunction steering wheel, Dual air outlets & air horn, Leaf spring 7/10 4, Domestic ABS, Cruise control, Overhead storage box, A/C, Power windows, Central locking, Instrument EOL, Front underrun protection, Anti-spray mudguard, Rear overhang 2395 (suitable for 6200 cargo box), Air deflector (suitable for internal height 2300), Mechanical damping seat with manual lumbar support, Right-turn alarm, BeiDou GPRS tachograph, Speed limiter 89 km/h, Load arrangement identification label
Front/rear suspension: 1.2/2.215m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1NQ190E50
Engine info: WeichaiWP4.1N
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.1L
Emission standard: China V
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 680N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.2m
Cargo box width: 2.43m
*Cargo box interior width: 2.4300000667572
Cab parameters
Cab: Tiger VH Extended Cab
Cab width: 2010mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 4860kg
Frame Dimensions: 216*865mm
rear axle description: 8T
rear axle allowable load: 9200kg
Leaf spring count: 3/4+4
Aluminum wheels:
Tire
Tire Size: 8.25R20,255/70R22.5
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster: none
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Headlight brand: none
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

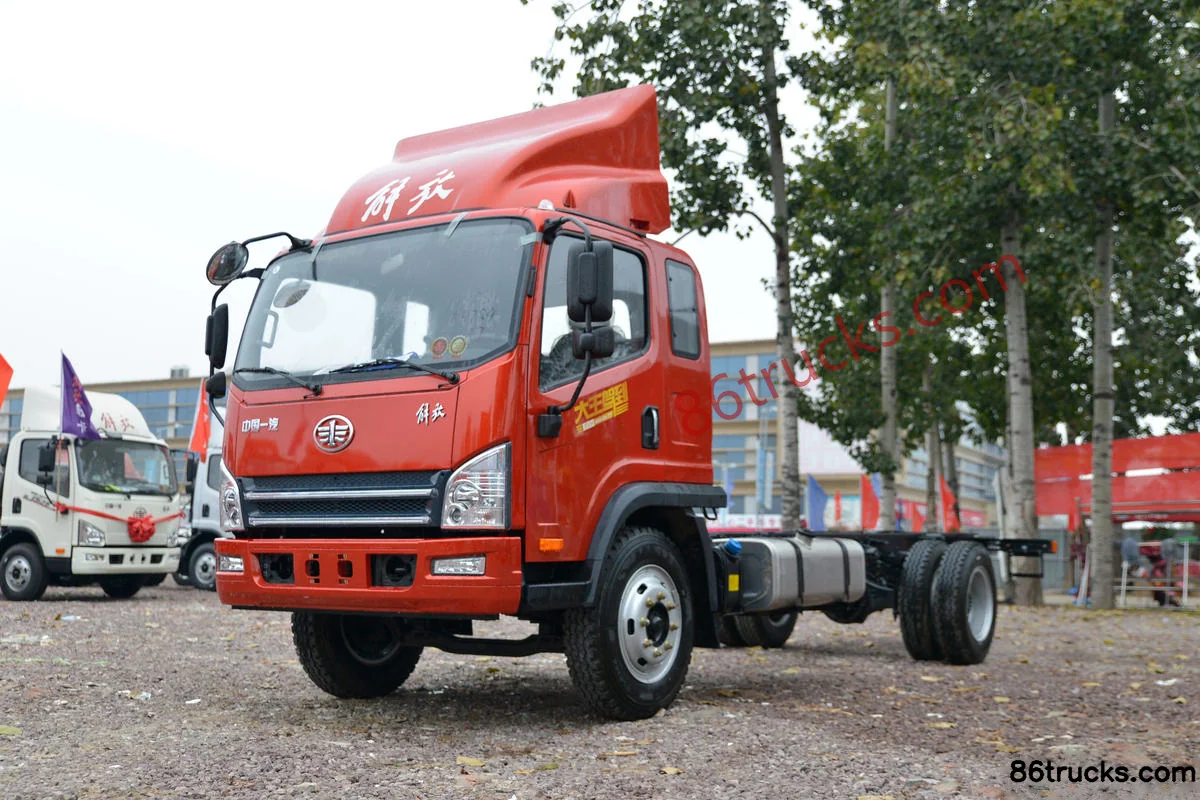

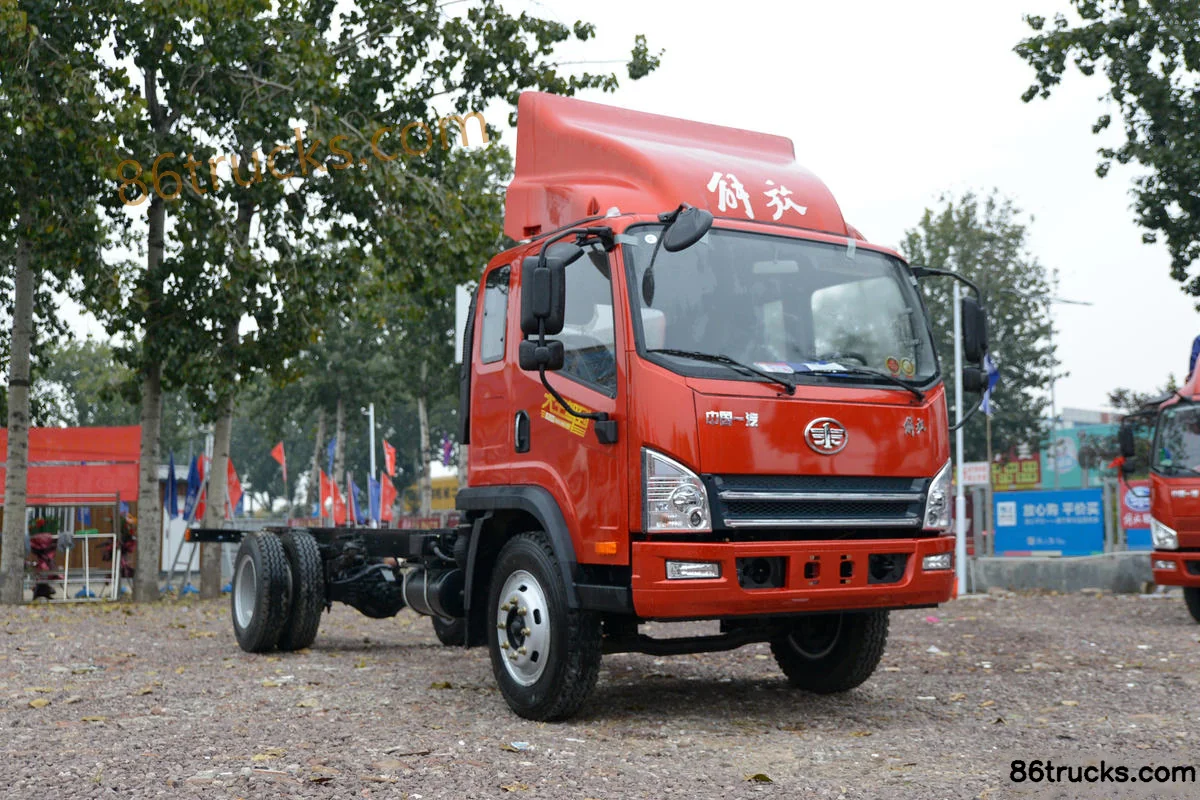

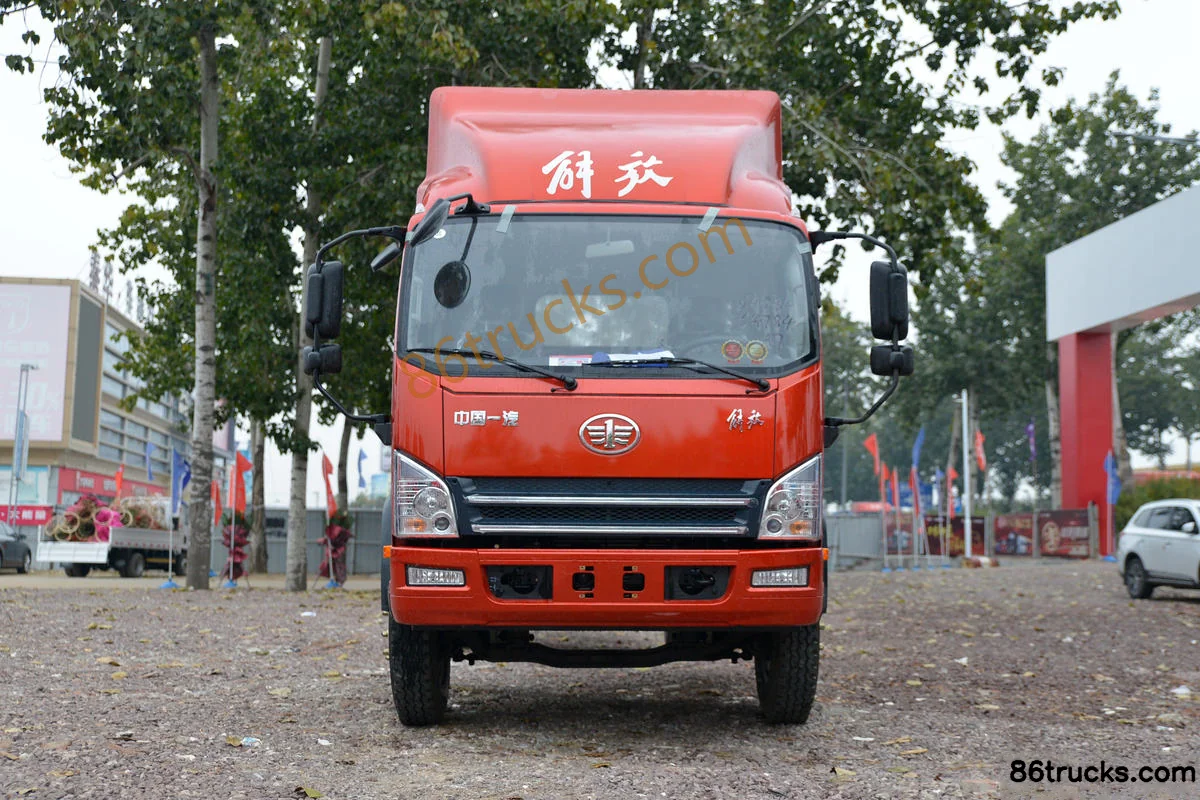

Exterior3

FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck Exterior (1) | 86Trucks FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck Exterior (2) | 86Trucks FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck Exterior (3) | 86Trucks

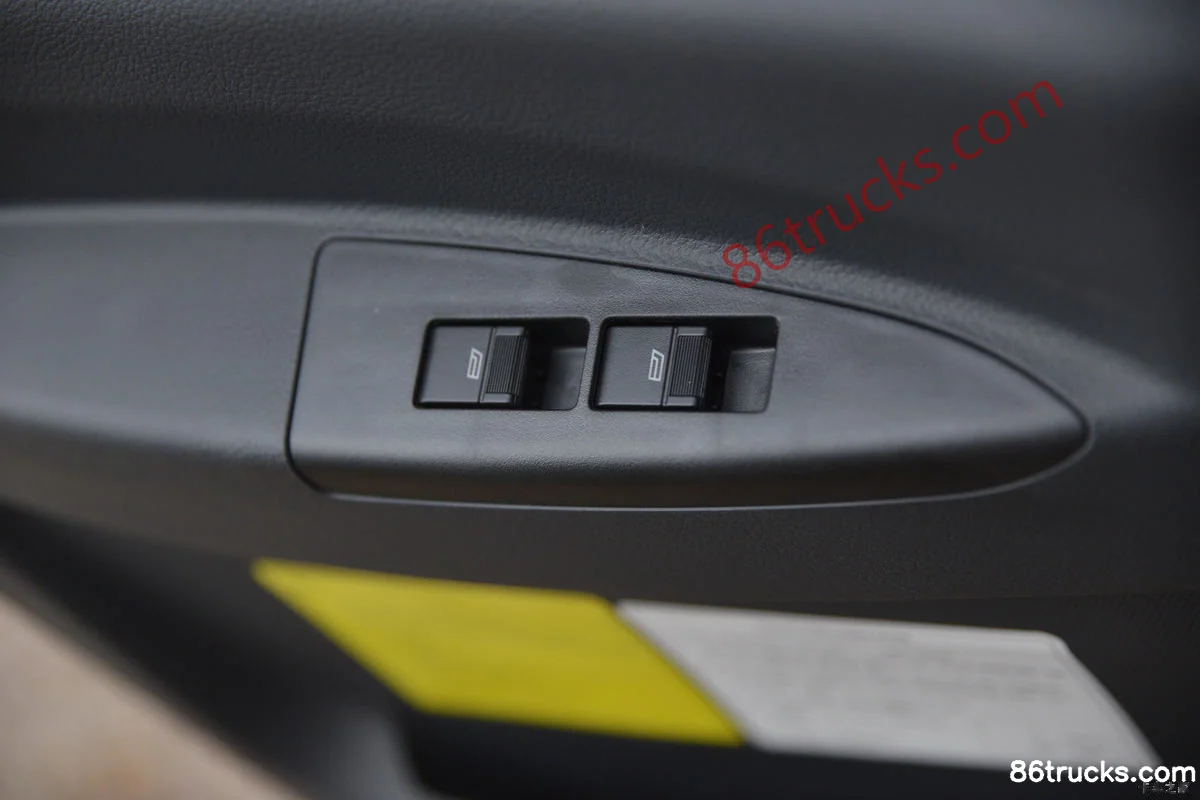

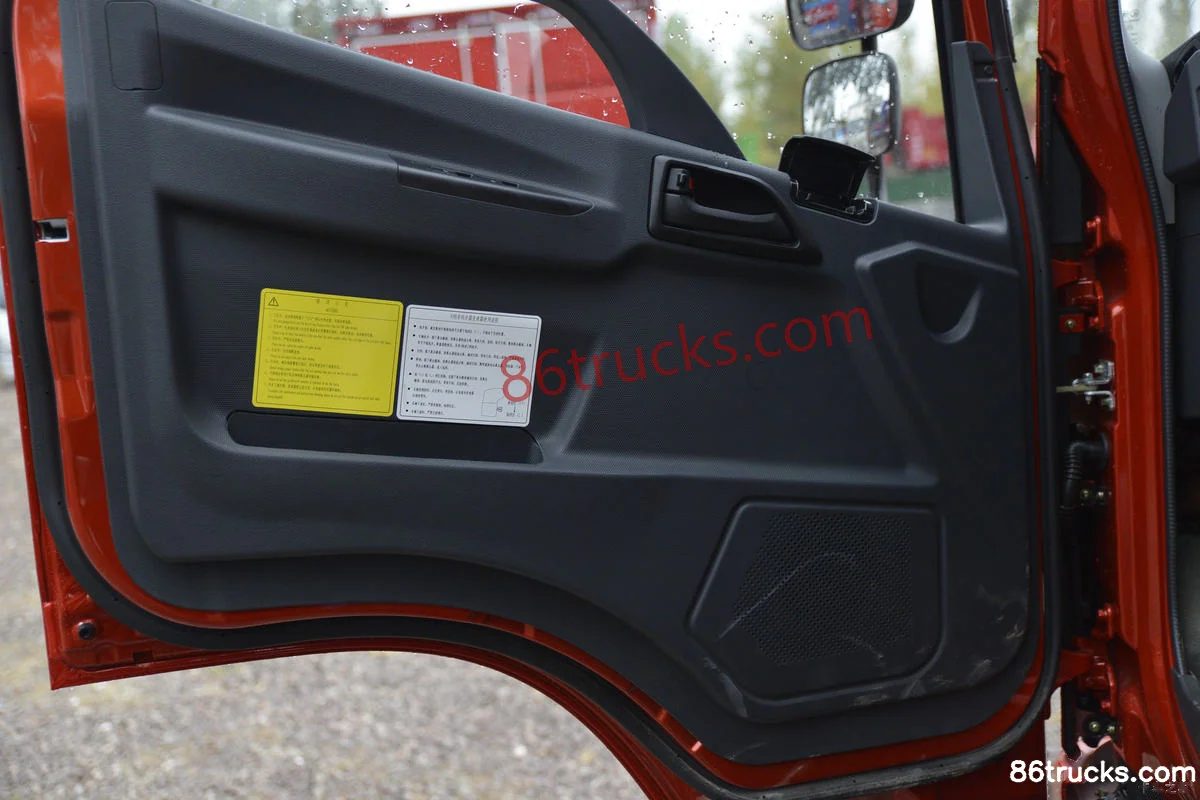

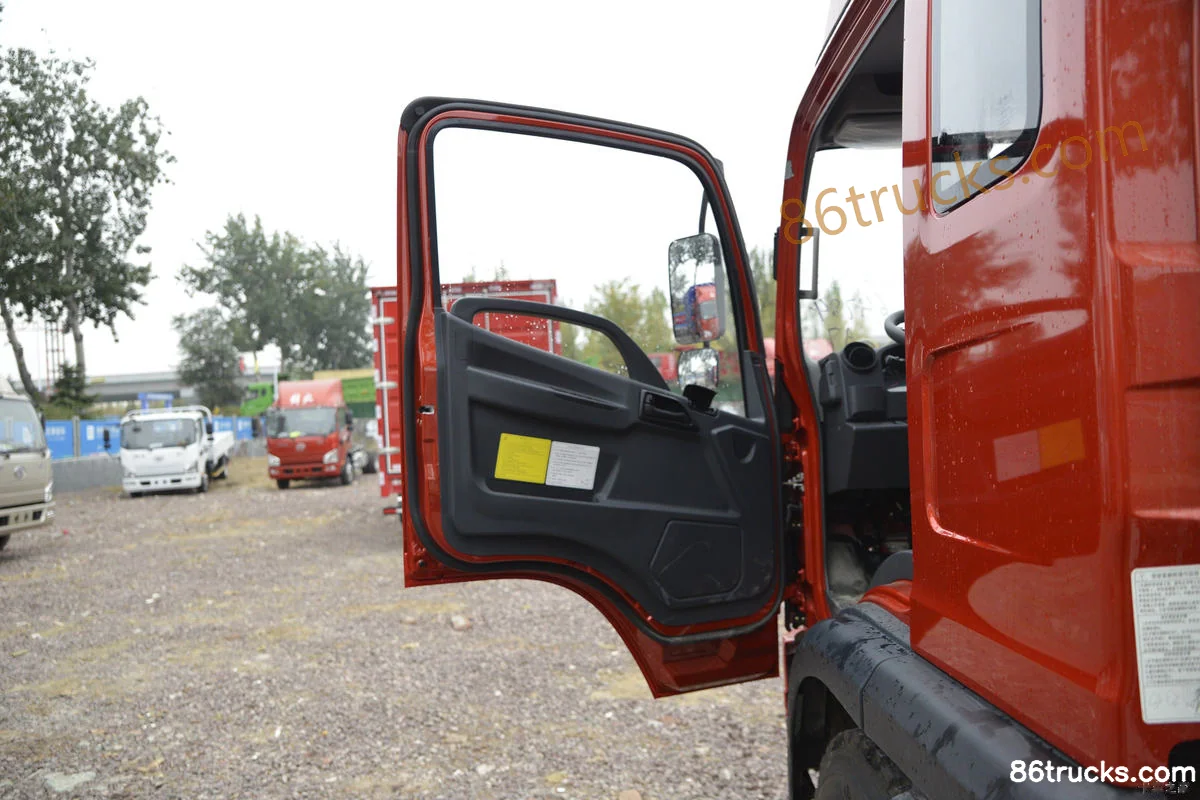

Cab3

FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck Cab (1) | 86Trucks FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck Cab (2) | 86Trucks FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck Cab (3) | 86Trucks

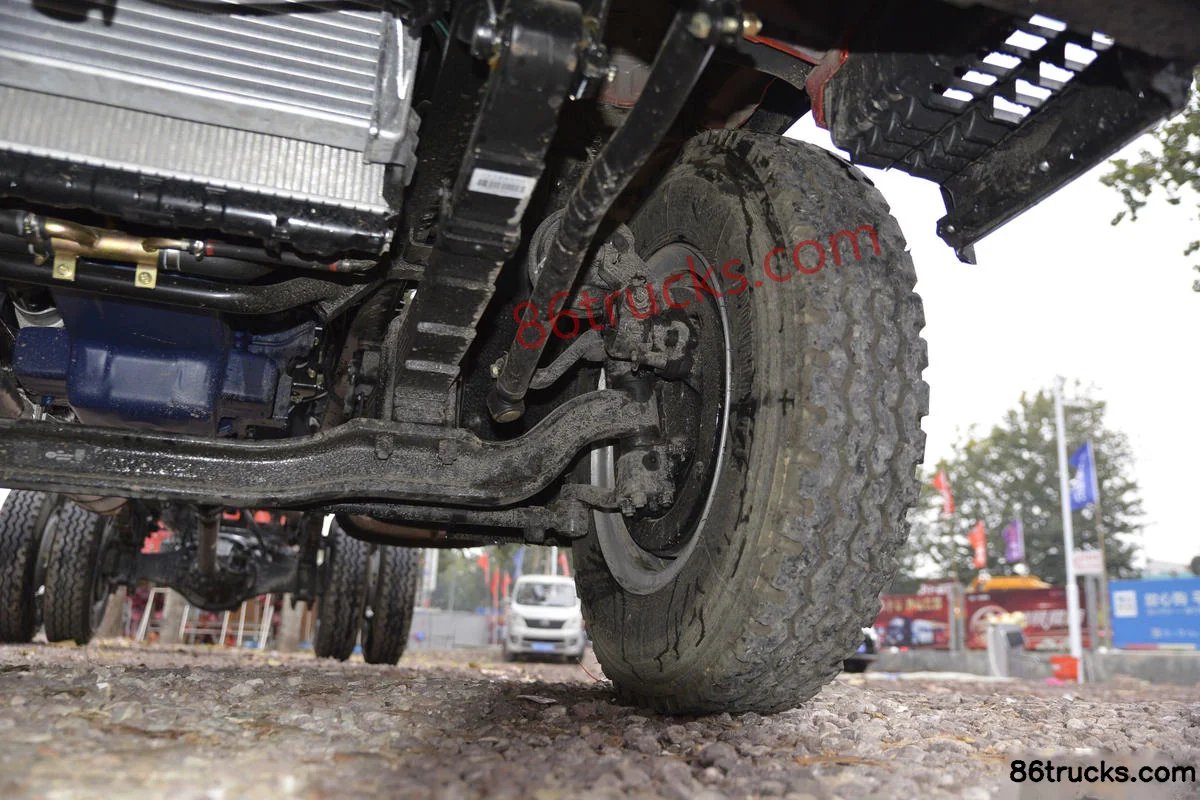

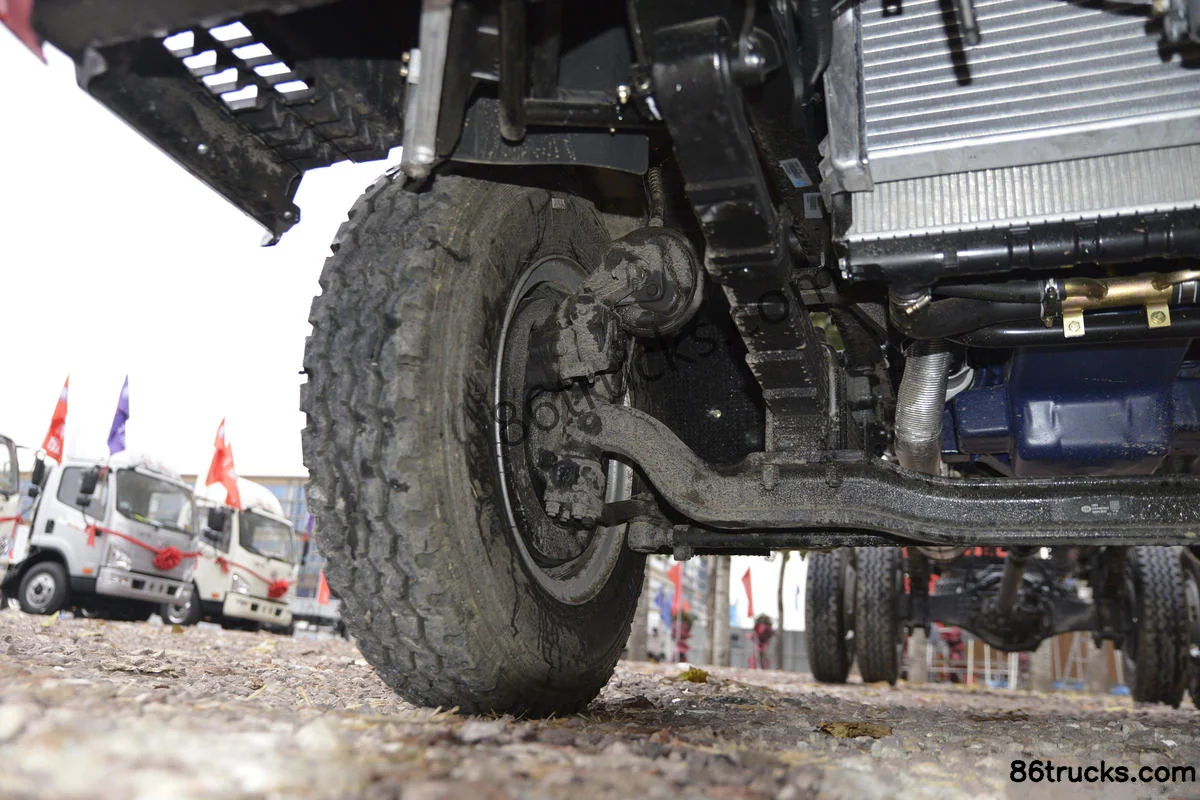

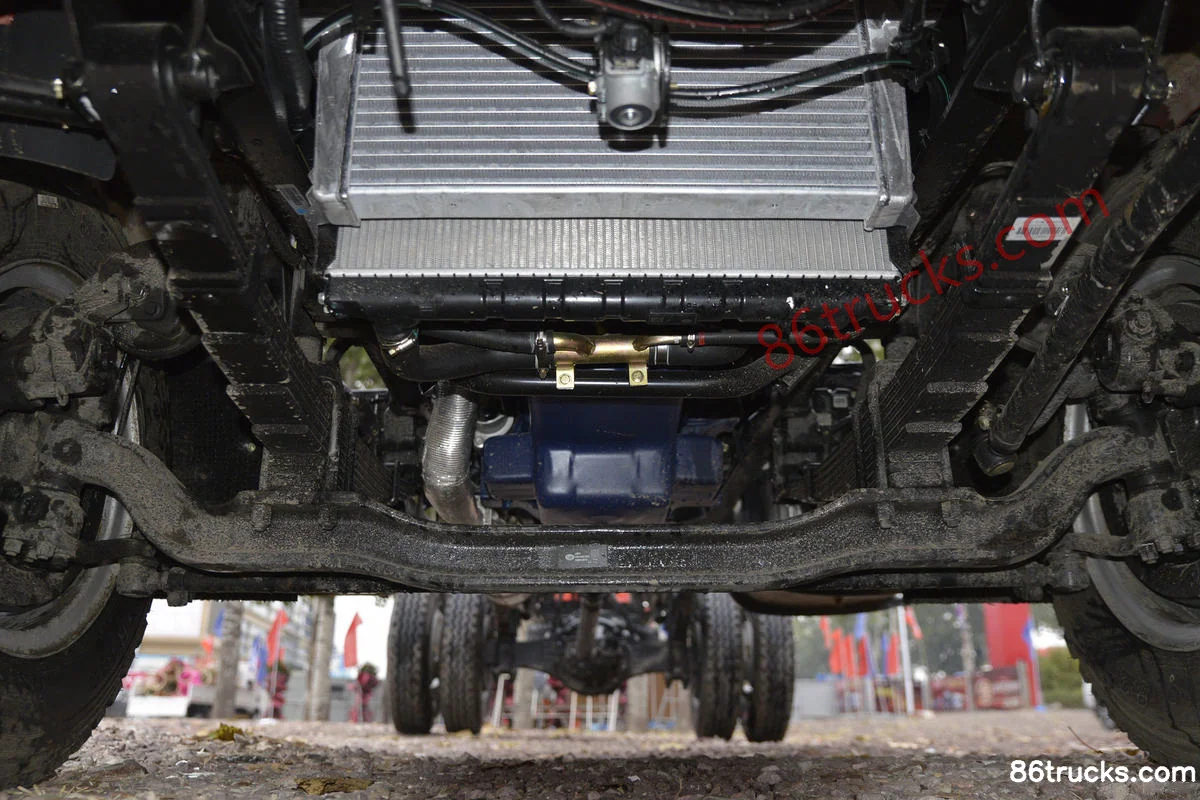

Chassis3

FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck Chassis (1) | 86Trucks FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck Chassis (2) | 86Trucks FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck Chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck, and what does it include?

FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck export reference is about From $30,556; MSRP is ¥22M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck?

Key specs of FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck: Drive: 4x2; Horsepower: 190 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP4.1N; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck suited for?

FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck differ from other variants in the same series?

FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH 190hp 4X2(6 wheels) 6.2m Semi-row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
