Yuejin Chaoyue EC100 3.1T 4m Single Row Pure Electric Dual-Temperature Refrigerated Truck 81.14kWh 4X2(6 wheels)

Export reference
MSRP N/A
GVWR:: 3.127ton
Origin:: Nanjing, Jiangsu
Energy Type:: Electric
total rated power:: 60kW
Peak power:: 100kW
total rated torque:: 400N·m
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Envicool
Cargo box width: 1.93m

Overview

The Yuejin Chaoyue EC100 3.1T 4m Single Row Pure Electric Dual-Temperature Refrigerated Truck 81.14kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring CATL battery/range, Envicool motor, 4X2 (6 wheels) drive and 1.93m cargo length.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 4X2
GVWR: 3.127ton
Origin: Nanjing, Jiangsu
Energy Type: Electric
electric motor
Motor 1 Brand: Envicool
Motor 1 Model: ET500E
total rated power: 60kW
Peak power: 100kW
total rated torque: 400N·m
Battery/Charging
Battery Brand: CATL
Charging method: DC fast charge, AC slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 81.14kWh
Battery total voltage: 270.48V
Energy Density: 146
Battery Model: L150TX8
Body Parameters
Refrigeration temperature: At 30°C ambient temperature, an 18m³ refrigerated box can cool to 2°C within 30 minutes and to -18°C within 90 minutes
Cargo box parameters
Cargo box width: 1.93m
Cargo box height: 1.9m
Chassis Specs
Leaf spring count: 7/4+5
Tire
Tire Size: 195R15
Number of tires: 4pcs

Photos

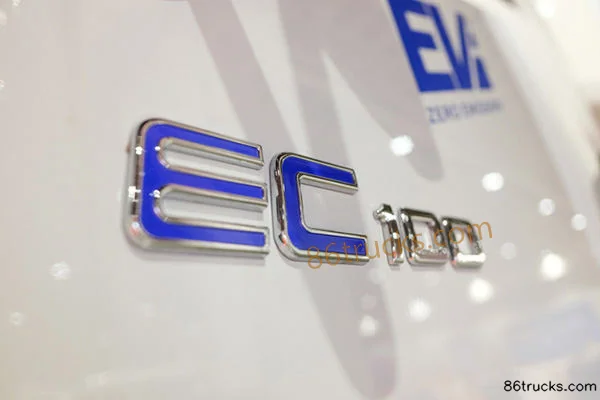

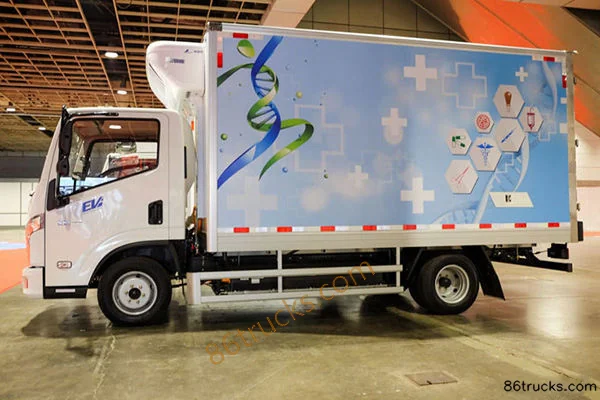

Exterior3

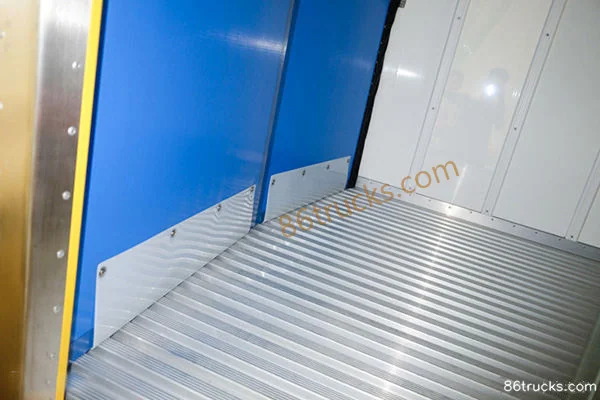

Cab1

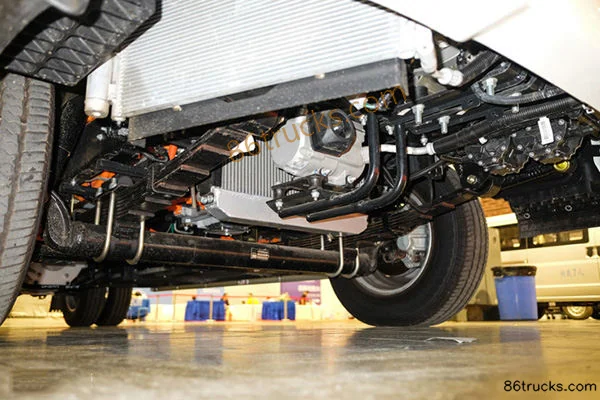

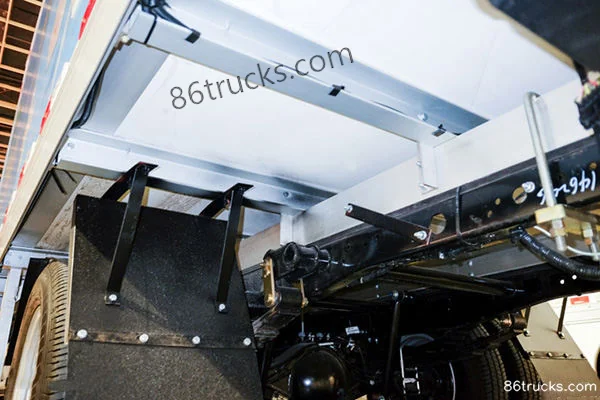

Chassis2

6 photos

FAQ

What are the key specs of Yuejin Chaoyue EC100 3.1T 4m Single Row Pure Electric Dual-Temperature Refrigerated Truck 81.14kWh 4X2(6 wheels)?

Key specs of Yuejin Chaoyue EC100 3.1T 4m Single Row Pure Electric Dual-Temperature Refrigerated Truck 81.14kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Chaoyue EC100 3.1T 4m Single Row Pure Electric Dual-Temperature Refrigerated Truck 81.14kWh 4X2(6 wheels) suited for?

Yuejin Chaoyue EC100 3.1T 4m Single Row Pure Electric Dual-Temperature Refrigerated Truck 81.14kWh 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Yuejin Chaoyue EC100 3.1T 4m Single Row Pure Electric Dual-Temperature Refrigerated Truck 81.14kWh 4X2(6 wheels) differ from other variants in the same series?

Yuejin Chaoyue EC100 3.1T 4m Single Row Pure Electric Dual-Temperature Refrigerated Truck 81.14kWh 4X2(6 wheels) belongs to Yuejin Chaoyue C Series Light-duty Truck (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Chaoyue EC100 3.1T 4m Single Row Pure Electric Dual-Temperature Refrigerated Truck 81.14kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Chaoyue EC100 3.1T 4m Single Row Pure Electric Dual-Temperature Refrigerated Truck 81.14kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
