JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck

Export reference
MSRP N/A
Horsepower: 152
Emission: China V
Fuel: Diesel
Engine: Ruijete 493
Transmission: JMC
Curb Weight:: 3.175ton
seating capacity: 2Personnel
Rated payload: 0.745ton
Drive 4X2 (6 wheels)
Cargo box type: Vending truck.

Overview

The JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck is a Light Truck featuring 4.12m cargo length, Vending truck. cargo body, 2Personnel volume and 0.745t payload. On the powertrain side, it comes with a Ruijete 493 engine, 152 hp, 4X2 (6 wheels) drive and China V emissions.

China V 152 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041XSHP73K4C3V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: JACHFC4DE1-1D
transmission: JMCMSB-5M
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2.05m
Cab height: 3.015m
Front track width: 1440mm
rear track: 1425mm
Curb Weight: 3.175ton
Rated payload: 0.745ton
GVWR: 4.05ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 15°
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DE1-1D
Engine info: Ruijete 493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.746L
Emission standard: China V
Max output power: 112kW
Max hp: 152Horsepower
Max torque: 355N·m
Max torque speed: 1800-2600rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, high-pressure common rail, turbocharged
Transmission Parameters
Transmission Model: JMCMSB-5M
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Vending truck.
Cargo box length: 4.12m
Cargo box width: 2.07m
Cargo box height: 2m
*Cargo box interior width: 2.0699999332428
Cab parameters
Cab: Narrow cab
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1460kg
rear axle allowable load: 2590kg
Axle ratio: 5.571
Leaf spring count: 8/4+6
Tire
Tire Size: 6.50-16LT 10PR,6.50R16LT 10PR,7.00-16LT 8PR,7.00R16LT 8PR,6.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

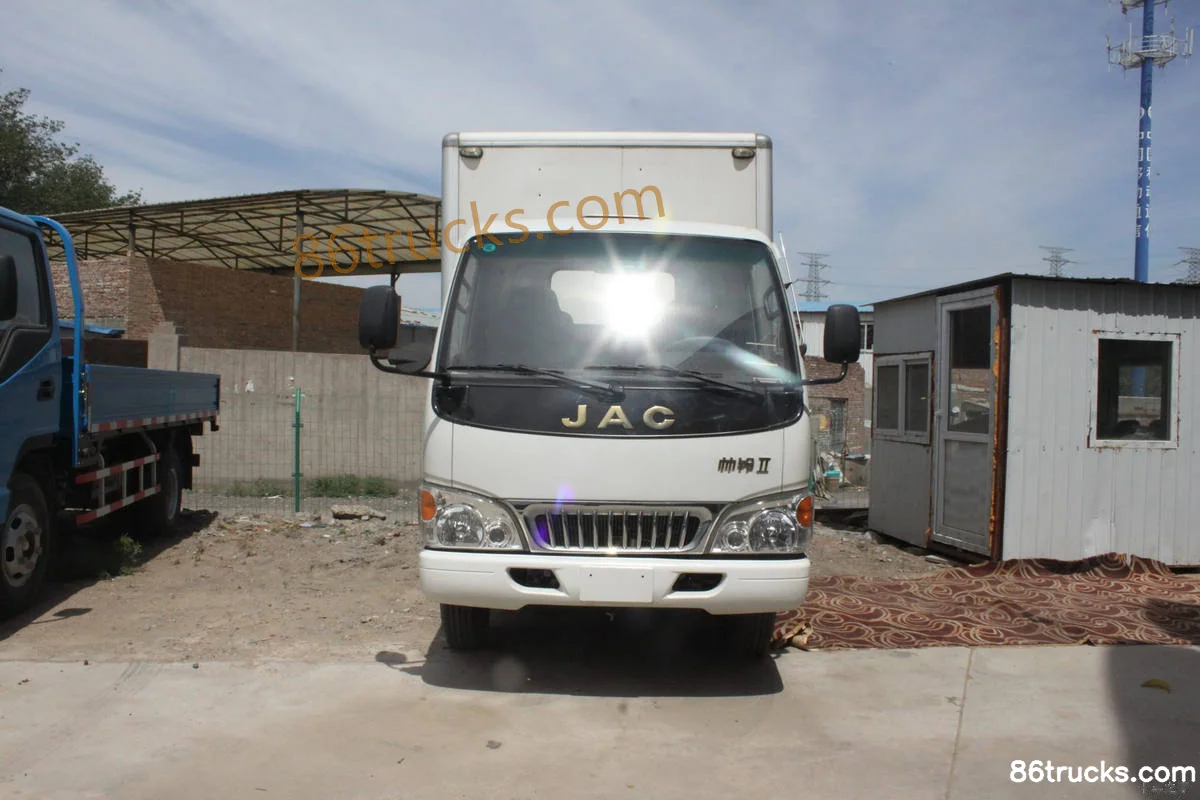

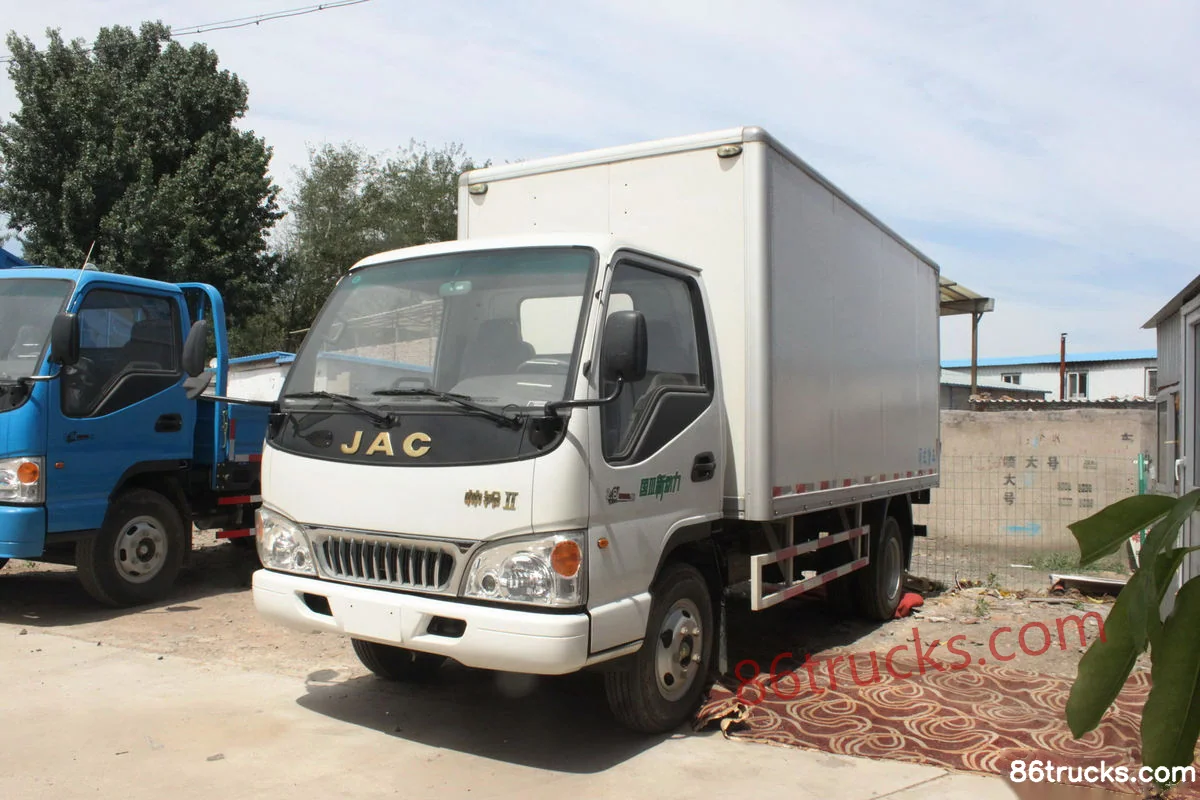

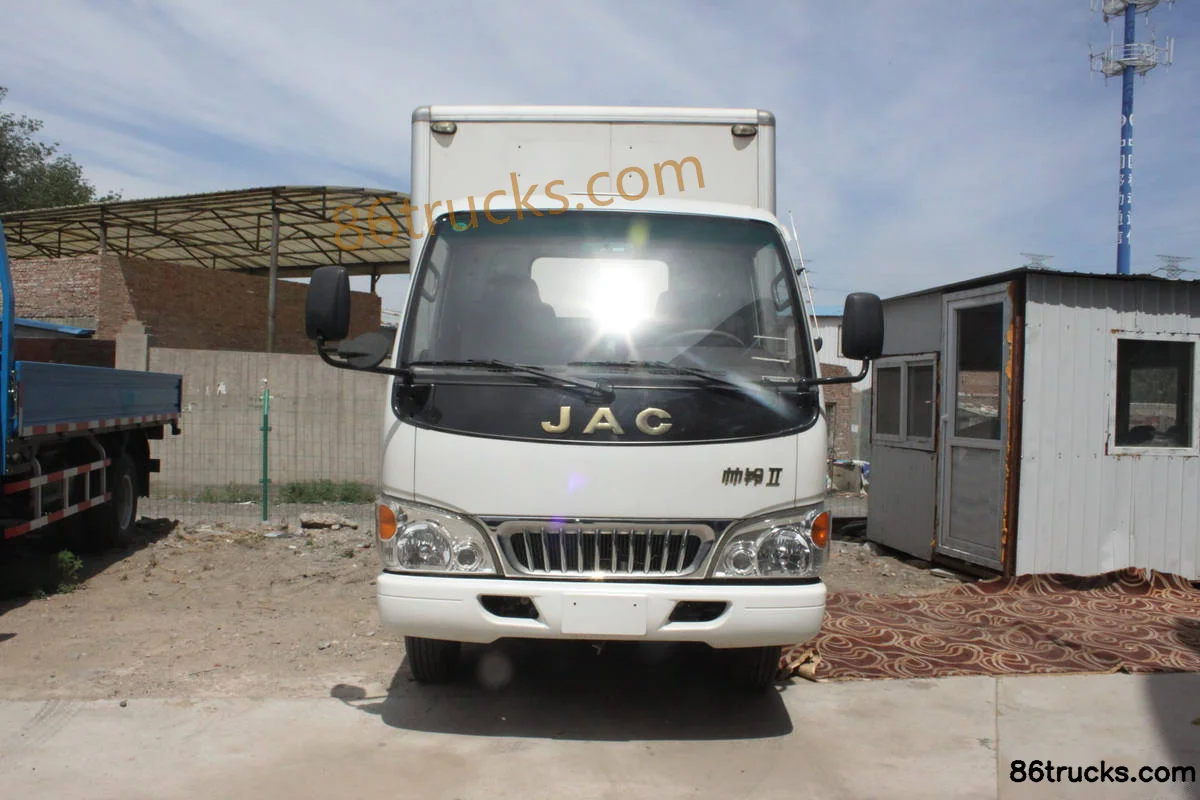

Exterior3

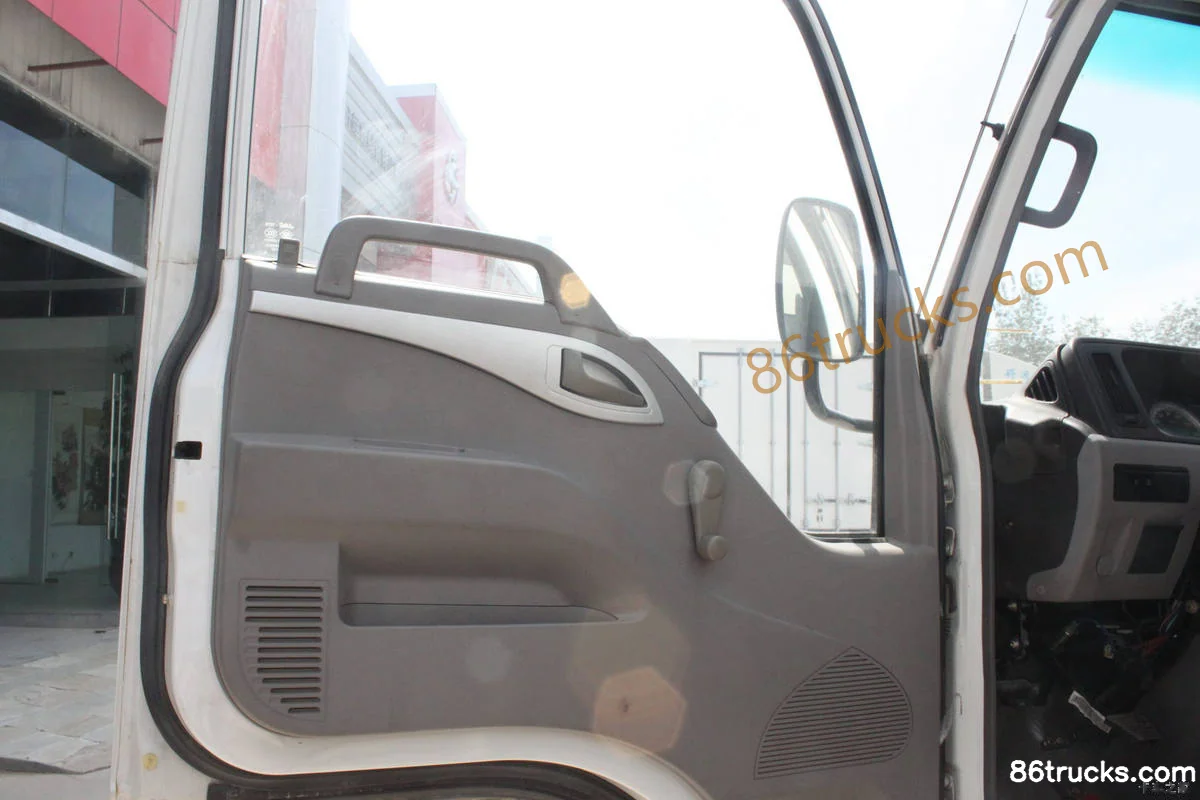

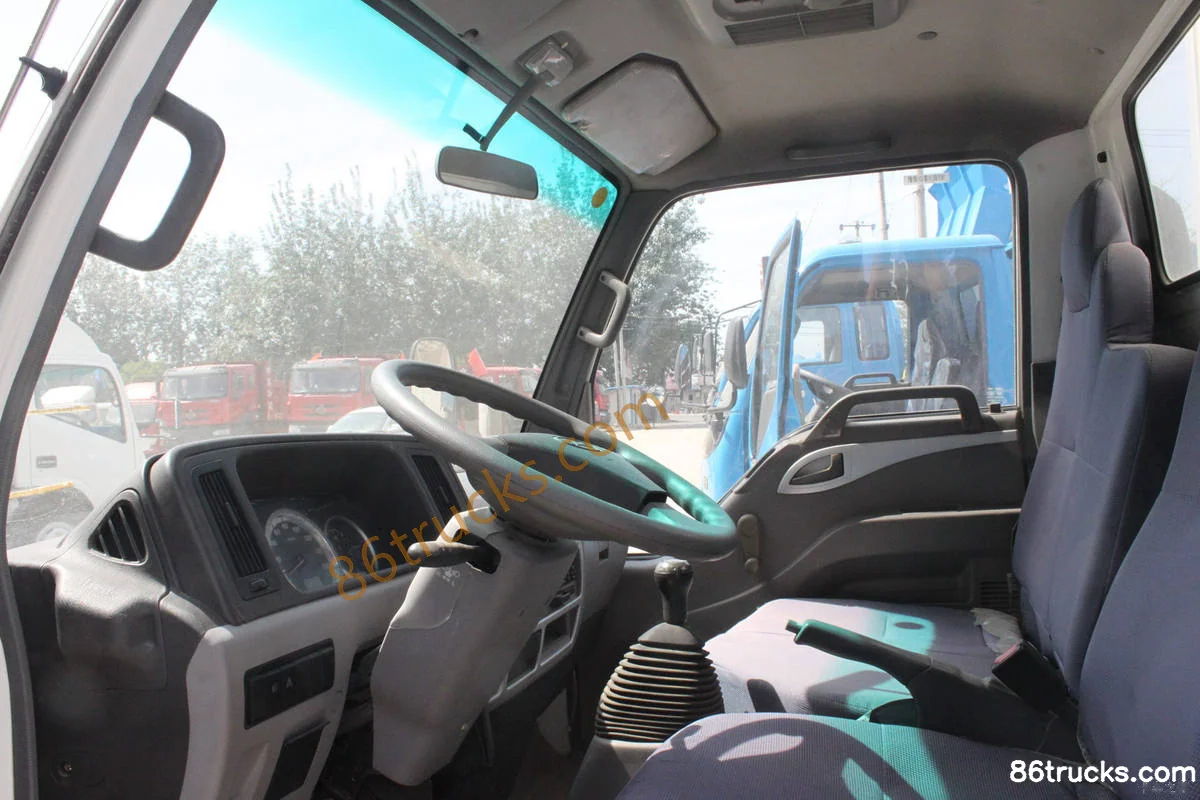

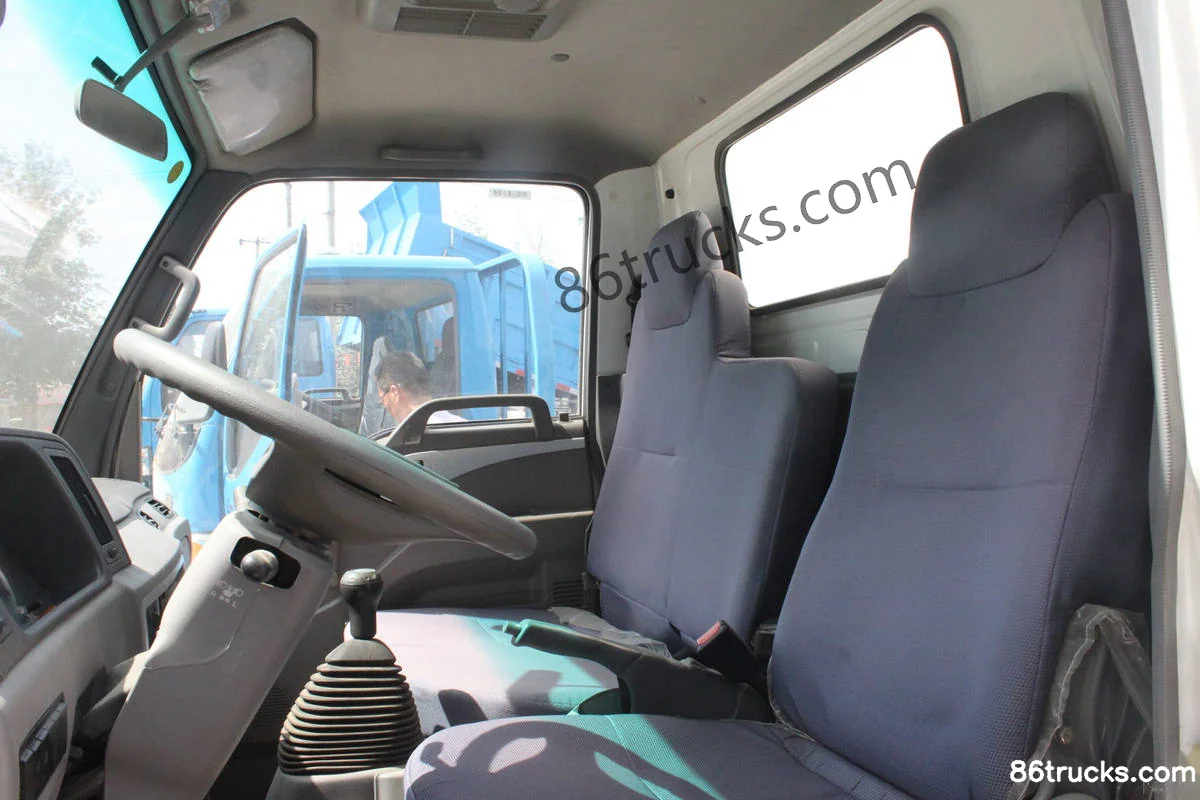

Cab3

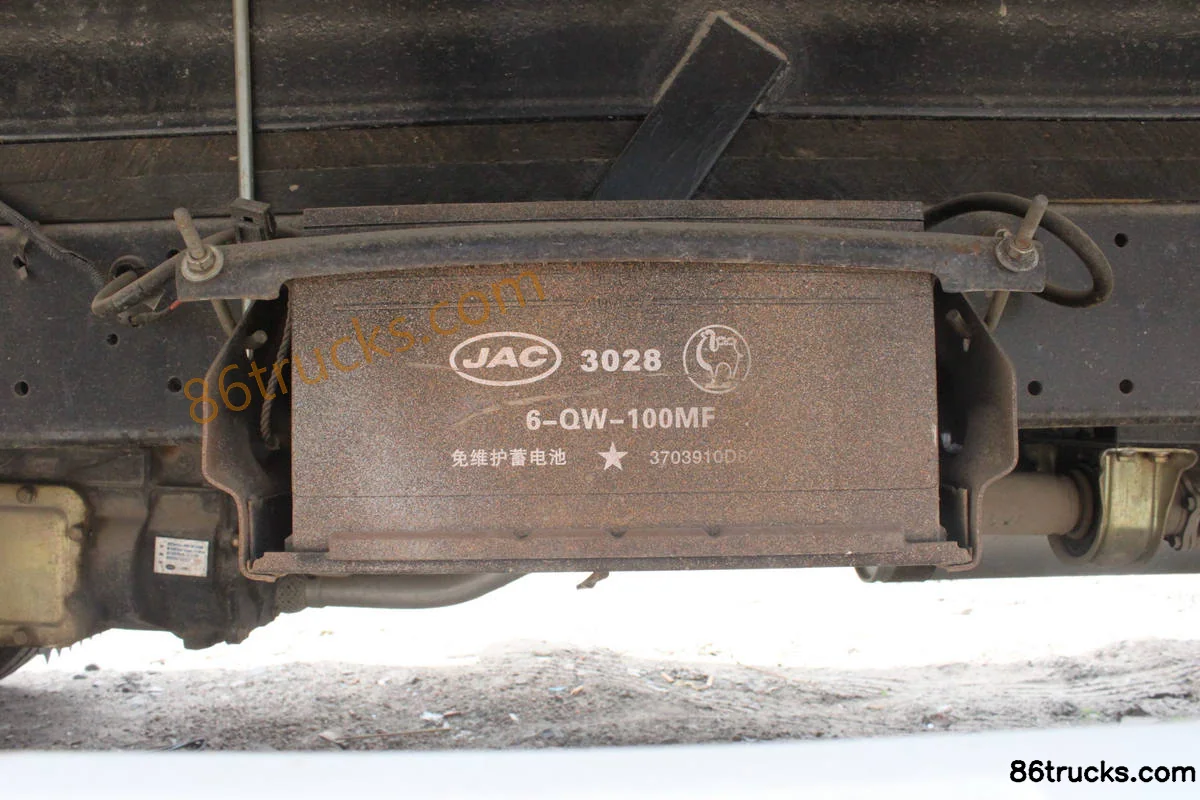

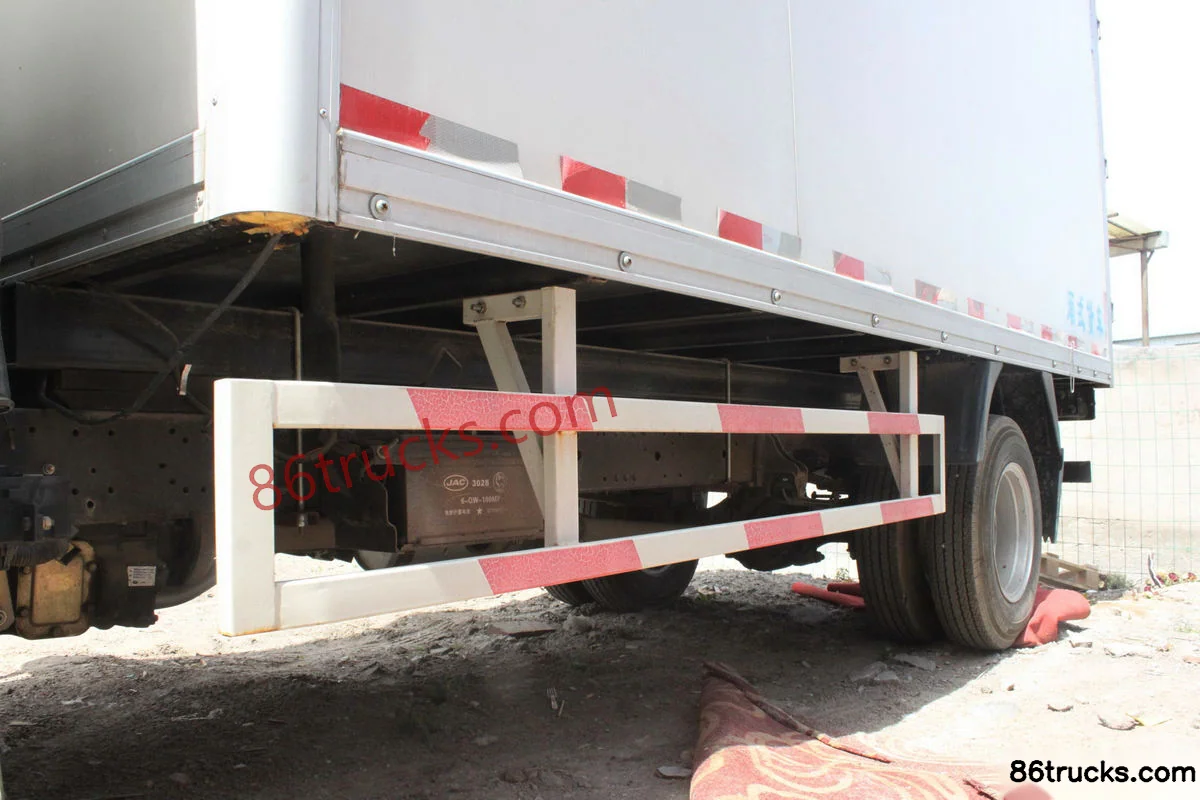

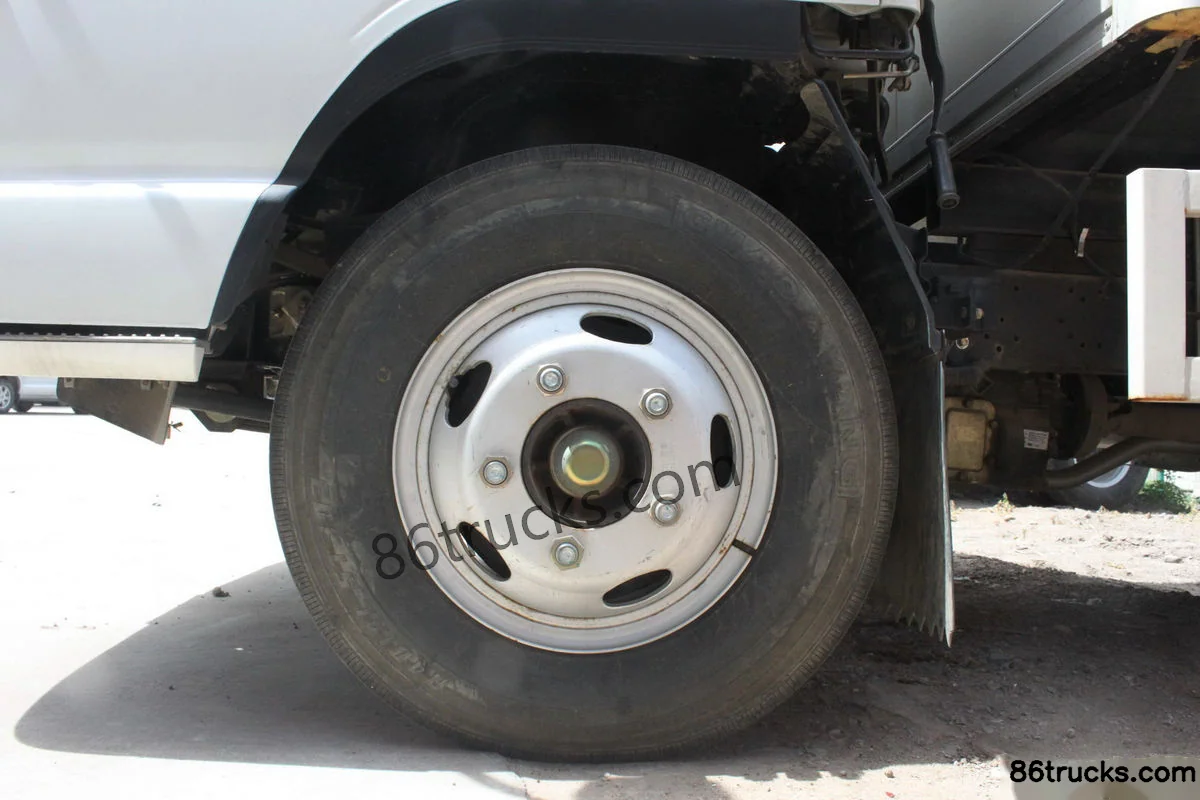

Chassis3

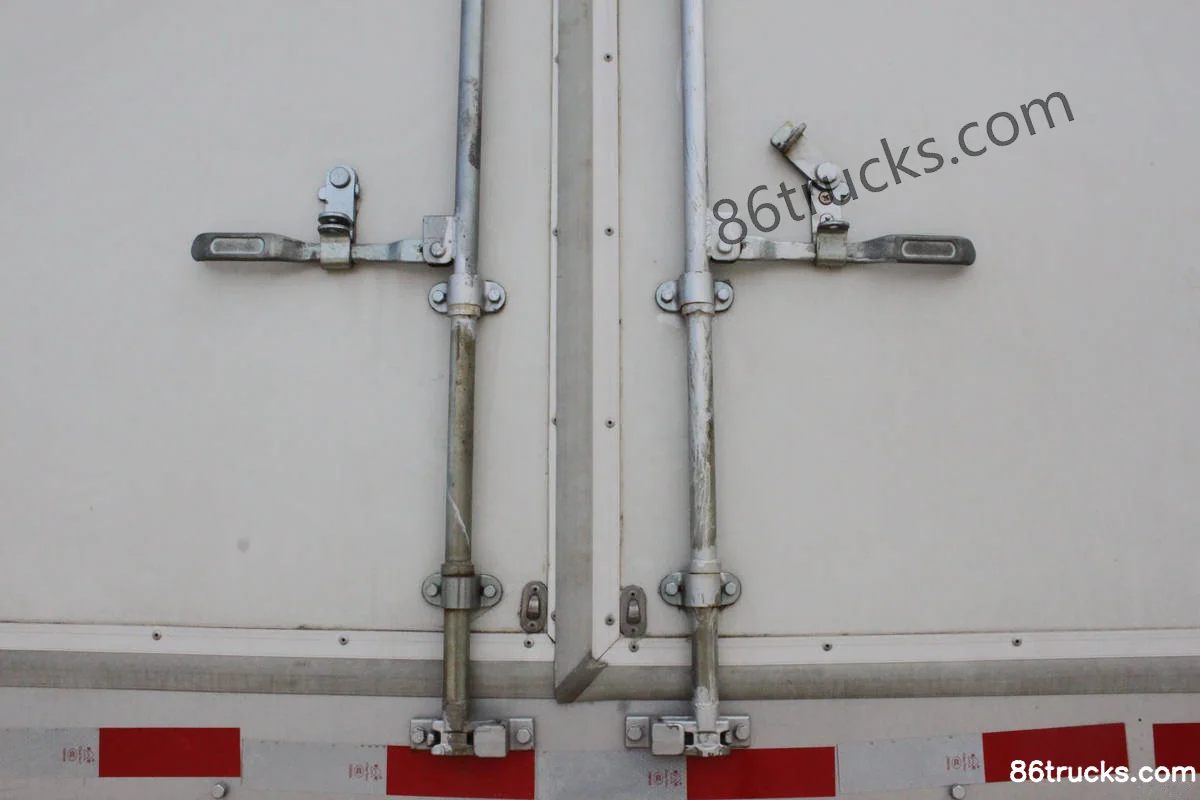

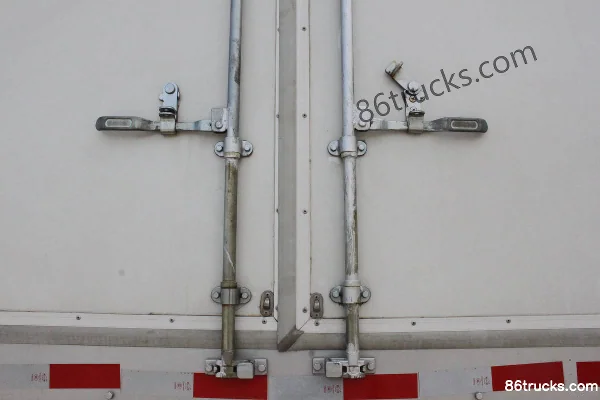

Body1

10 photos

FAQ

What emission standard does JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck?

Key specs of JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck: Drive: 4x2; Horsepower: 152 hp; Emission: China V; Fuel: Diesel; Engine: Ruijete 493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck suited for?

JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck differ from other variants in the same series?

JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck belongs to JAC Q3 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing K340 152 hp 4X2(6 wheels) 4.12m single-row box van truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
