Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed)

Export reference
From $17,778
MSRP ¥12.8M CNY
Horsepower: 154
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: Sinotruk
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed) is a Light Truck featuring 4.165m cargo length, stake body cargo body, 3Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 154 hp, 4X2 (6 wheels) drive and China V emissions.

China V 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1047F341CE145
Type: Chassis
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 4.2m
engine: FotonISF3.8s5154
transmission: SinotrukHW90510C2
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.5m
Cab height: 2.55m
Front track width: 1805mm
rear track: 1796mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 18°
departure angle: 18°
market segment: Building materials, agricultural products
Front/rear suspension: 1.16/1.675m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: SinotrukHW90510C2
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.165m
Cargo box width: 2.3m
Cargo box height: 0.5m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1790kg
rear axle allowable load: 2705kg
Axle ratio: 4.875
Leaf spring count: 11/11+7
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

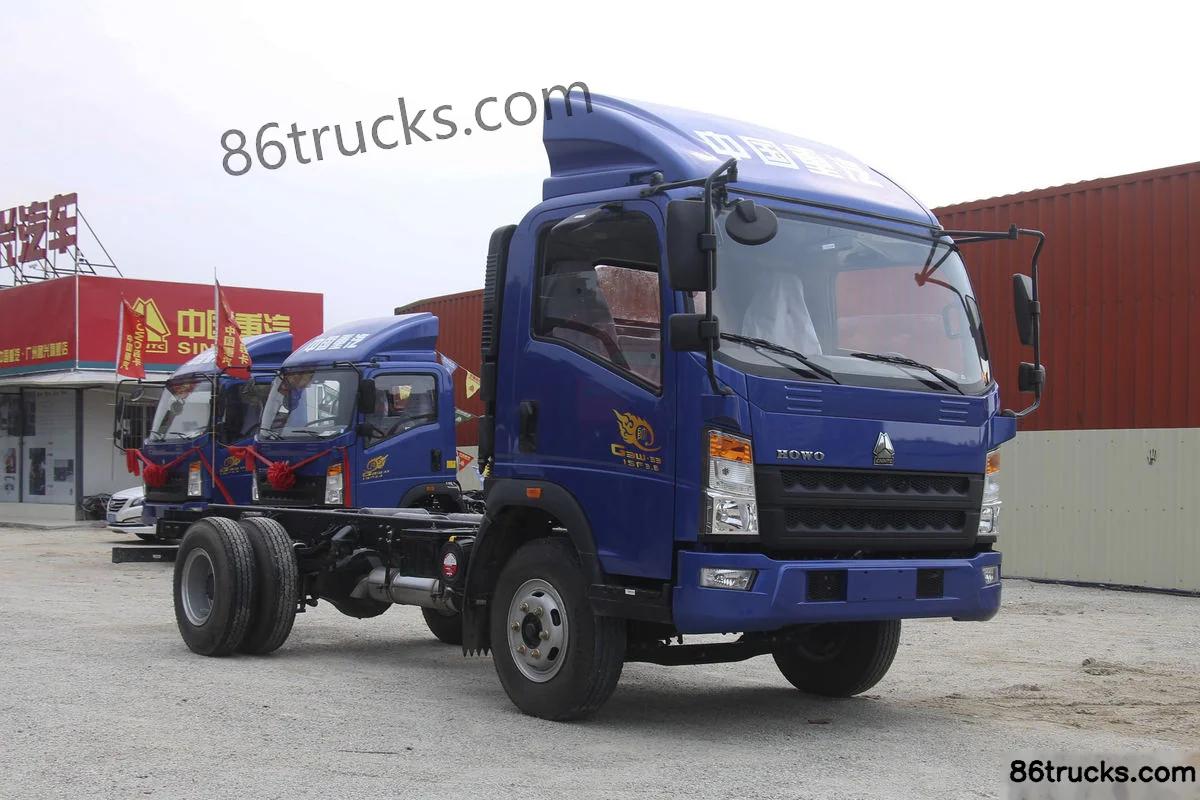

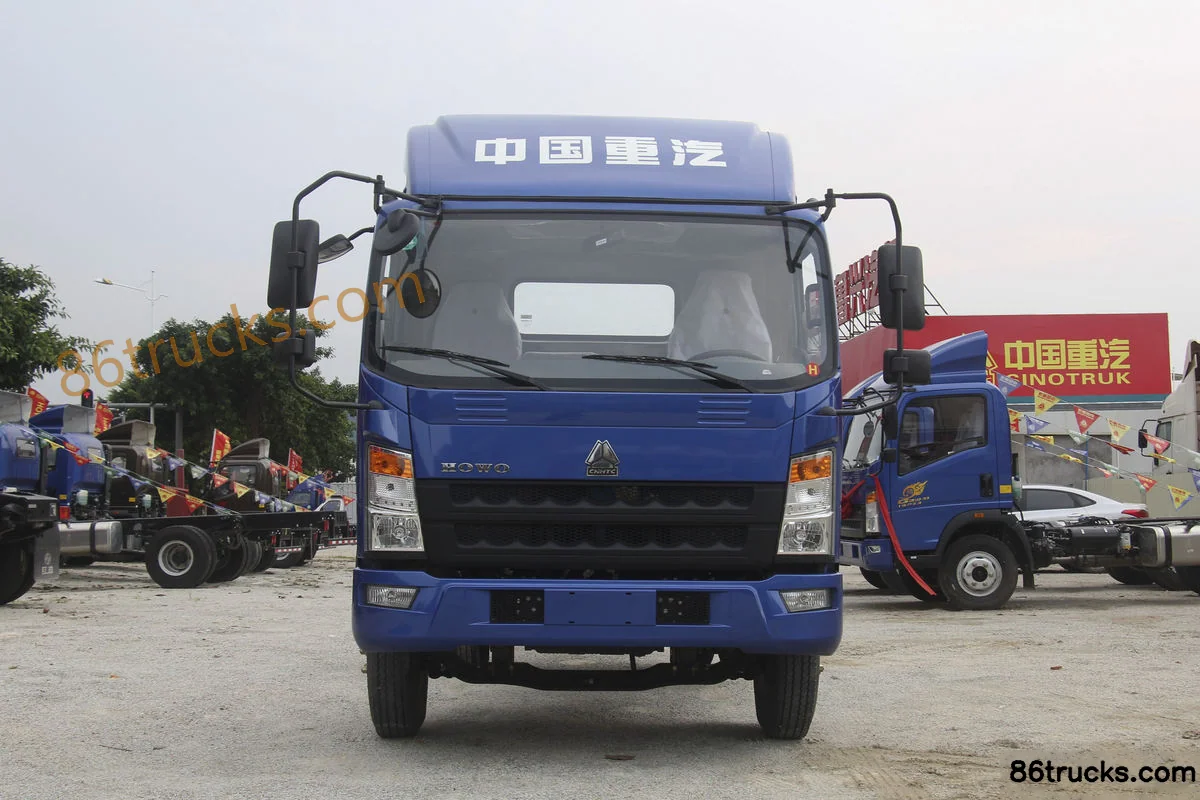

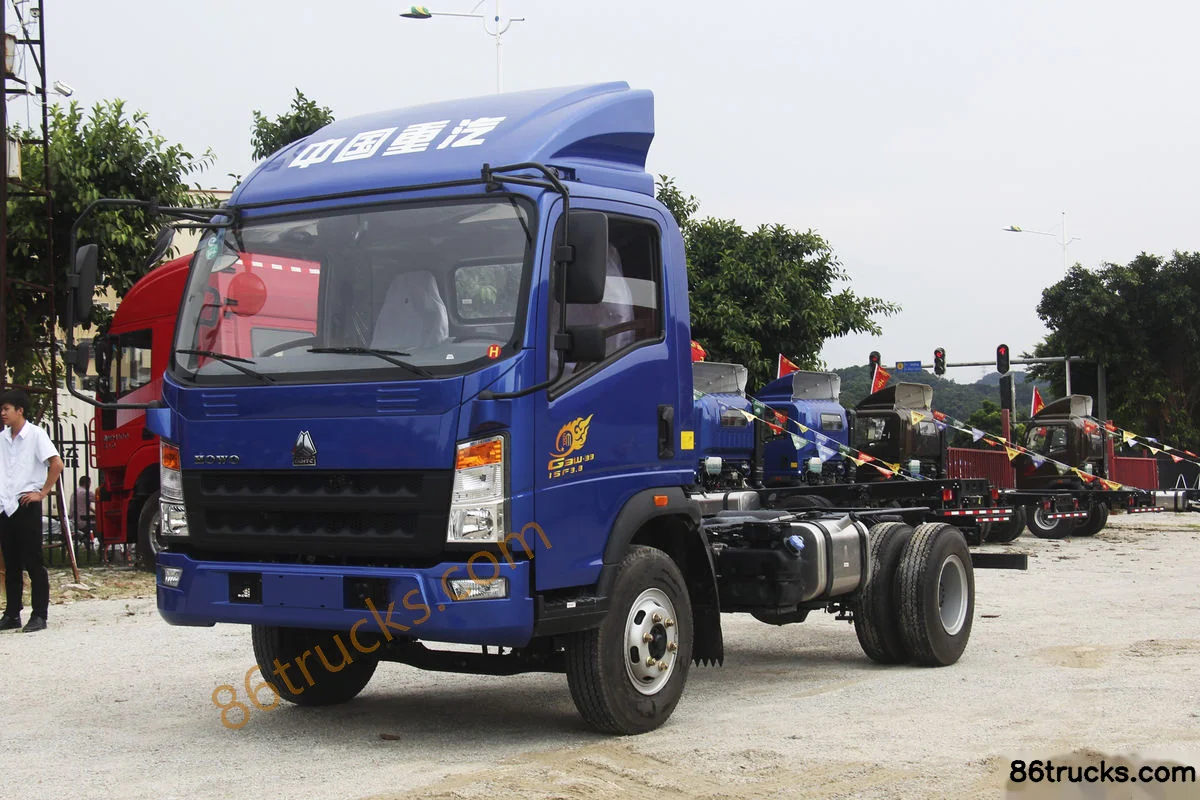

Exterior3

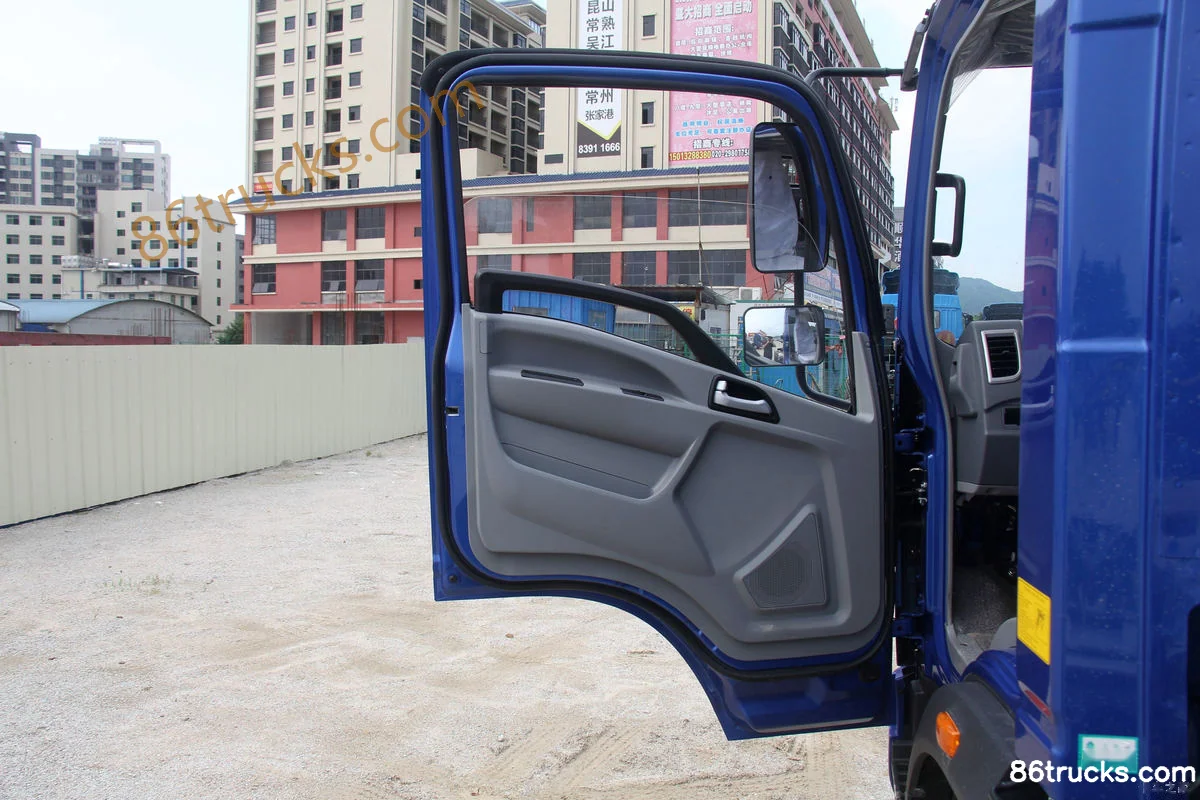

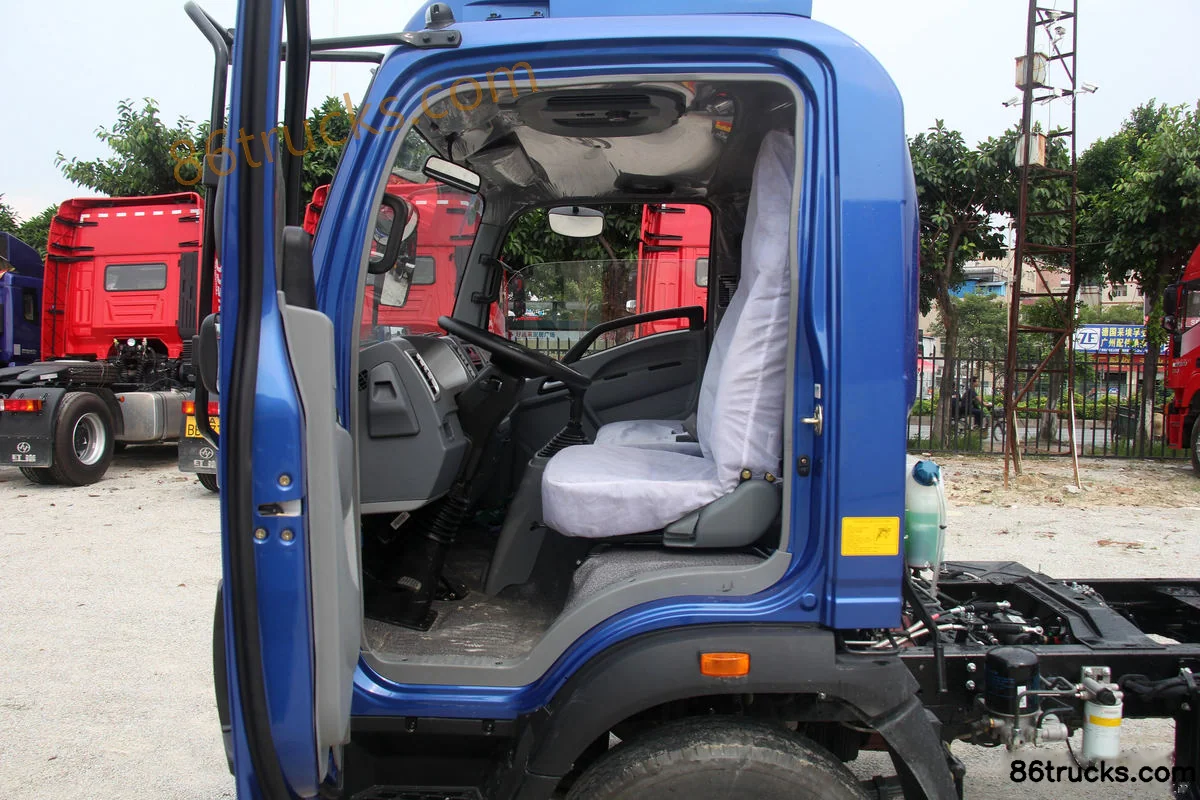

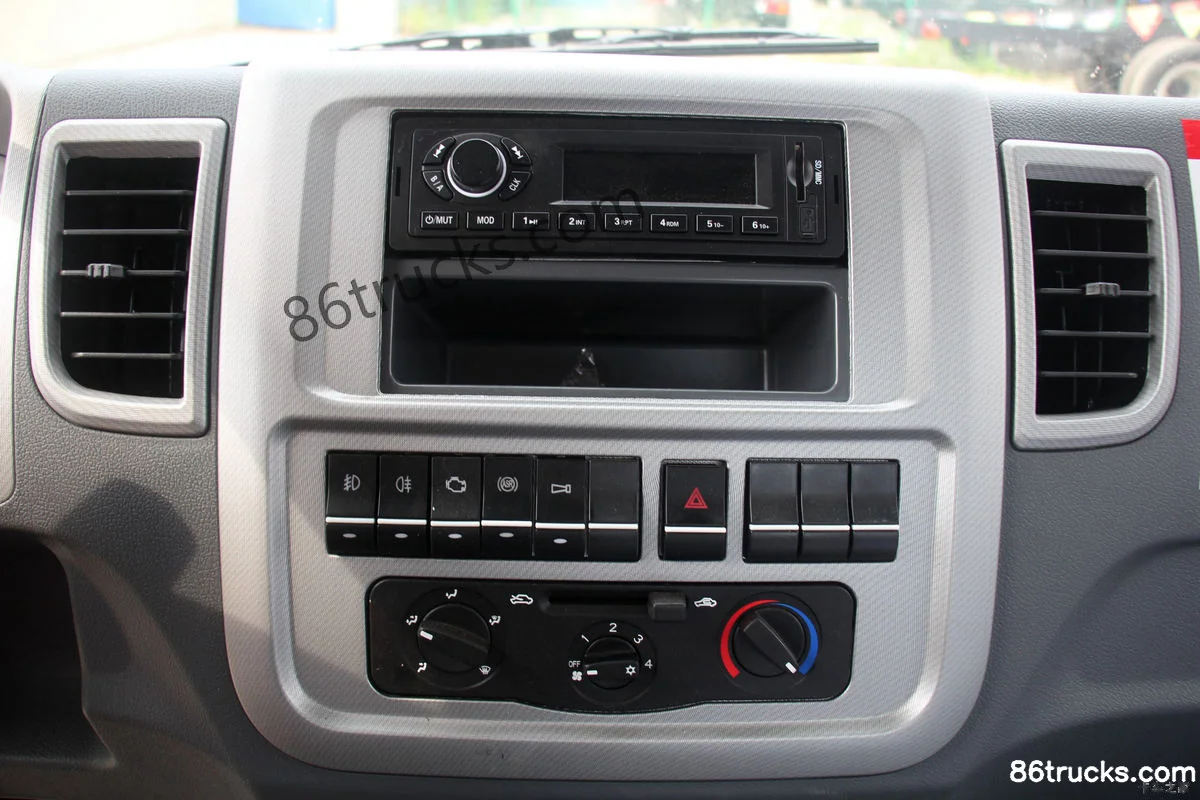

Cab3

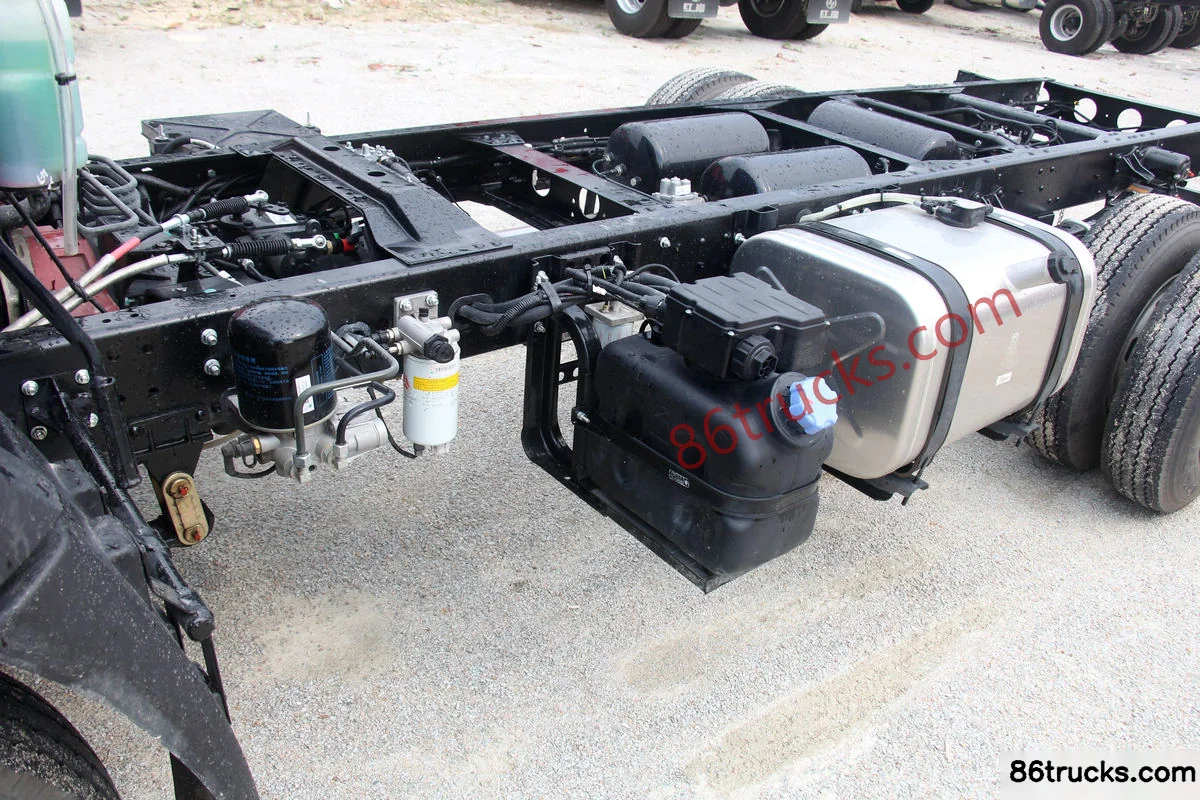

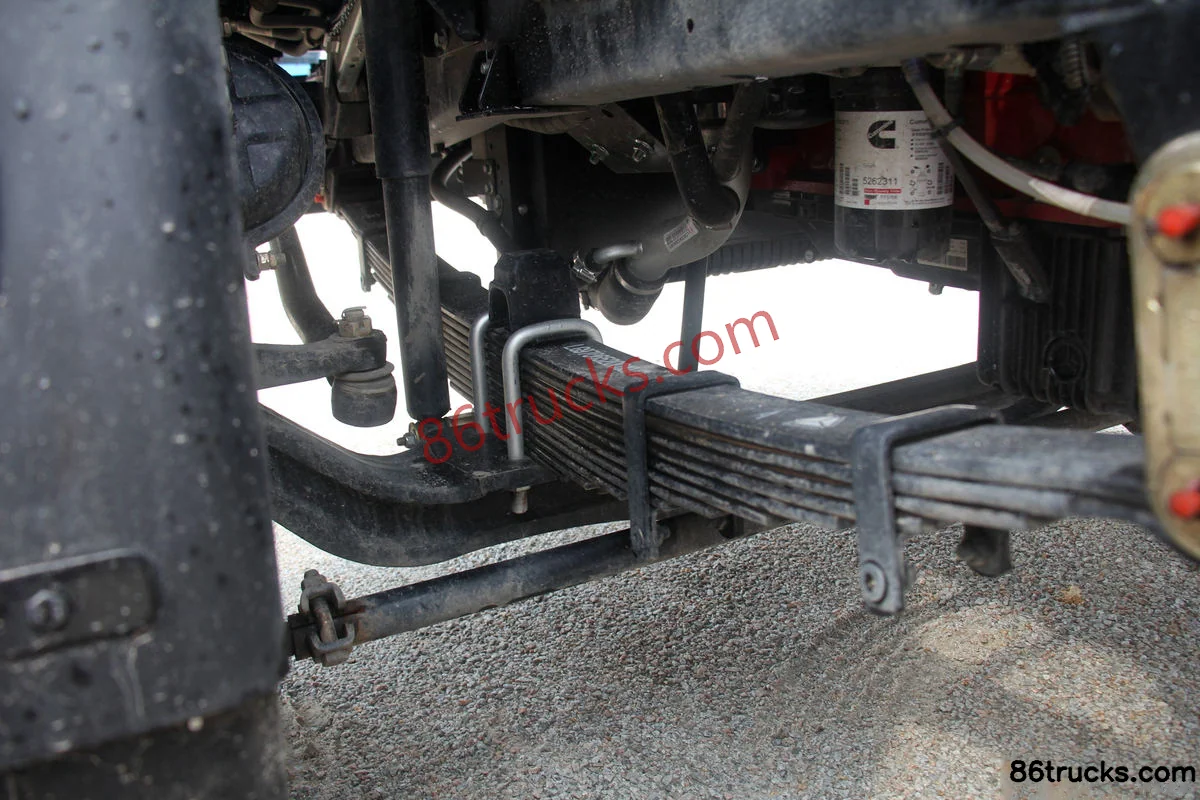

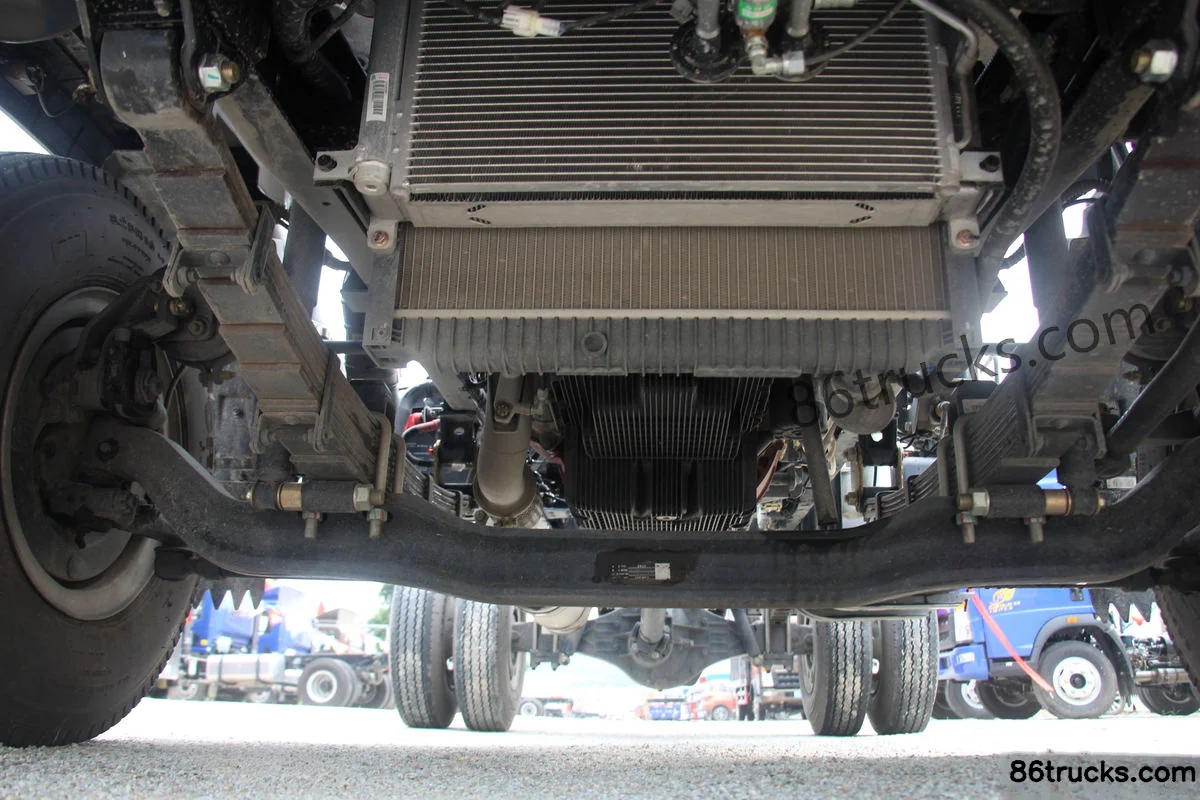

Chassis3

9 photos

FAQ

What is the export price of Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed), and what does it include?

Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed) export reference is about From $17,778; MSRP is ¥12.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed)?

Key specs of Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed): Drive: 4x2; Horsepower: 154 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed) suited for?

Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed) differ from other variants in the same series?

Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed) belongs to Sinotruk Tongshuai Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Tongshuai 154hp 4X2(6 wheels) 4.165m single-row flatbed light truck chassis (10-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
