Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 260
Emission: China V
Fuel: LNG (liquefied natural gas)
Engine: Yuchai8.4L
Transmission: Fast Gear
Curb Weight:: 11.2ton
seating capacity: 2Personnel
Rated payload: 13.67ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck is a Heavy truck featuring 9.4m cargo length, Van body cargo body, 2Personnel volume and 13.67t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai8.4L engine, 260 hp, 6X2 (8 wheels) drive and China V emissions.

China V 260 LNG (liquefied natural gas) 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR5252XXYN5T2
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1950+6000mm
Box length class: 9.4m
engine: YuchaiYC6L260N-52
transmission: Fast Gear9JS119TA
Rear Axle Ratio: 4.44
Cab length: 11.99m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2038/2038mm
rear track: 1860mm
Curb Weight: 11.2ton
Rated payload: 13.67ton
GVWR: 25ton
Max. speed: 130km/h
Origin: Wuhu, Anhui
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 10°
market segment: Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo
Front/rear suspension: 1.48/2.56m
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L260N-52
Engine info: Yuchai8.4L
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 8.424L
Emission standard: China V
Max output power: 191kW
Max hp: 260Horsepower
Max torque: 1000N·m
Max torque speed: 1200-1800rpm
Rated speed: 2200rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke
Transmission Parameters
Transmission Model: Fast Gear9JS119TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.4m
Cargo box width: 2.3m
Cargo box height: 2.5m
*Cargo box interior width: 2.3
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 900L
Chassis Specs
Front axle allowable load: 6750/6750kg
rear axle description: Union Axle 457 Stamped-Welded
rear axle allowable load: 11500kg
Axle ratio: 4.44
Leaf spring count: 3/3/10+6
Tire
Tire Size: 11R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

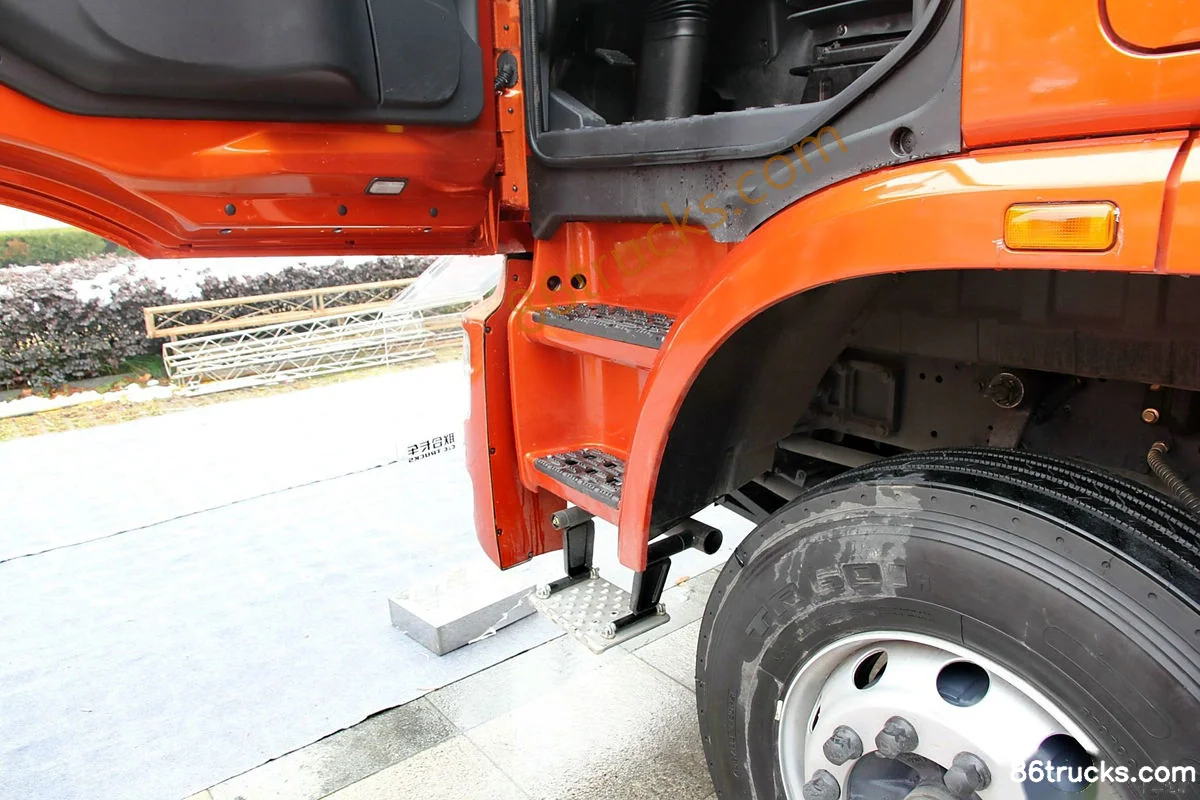

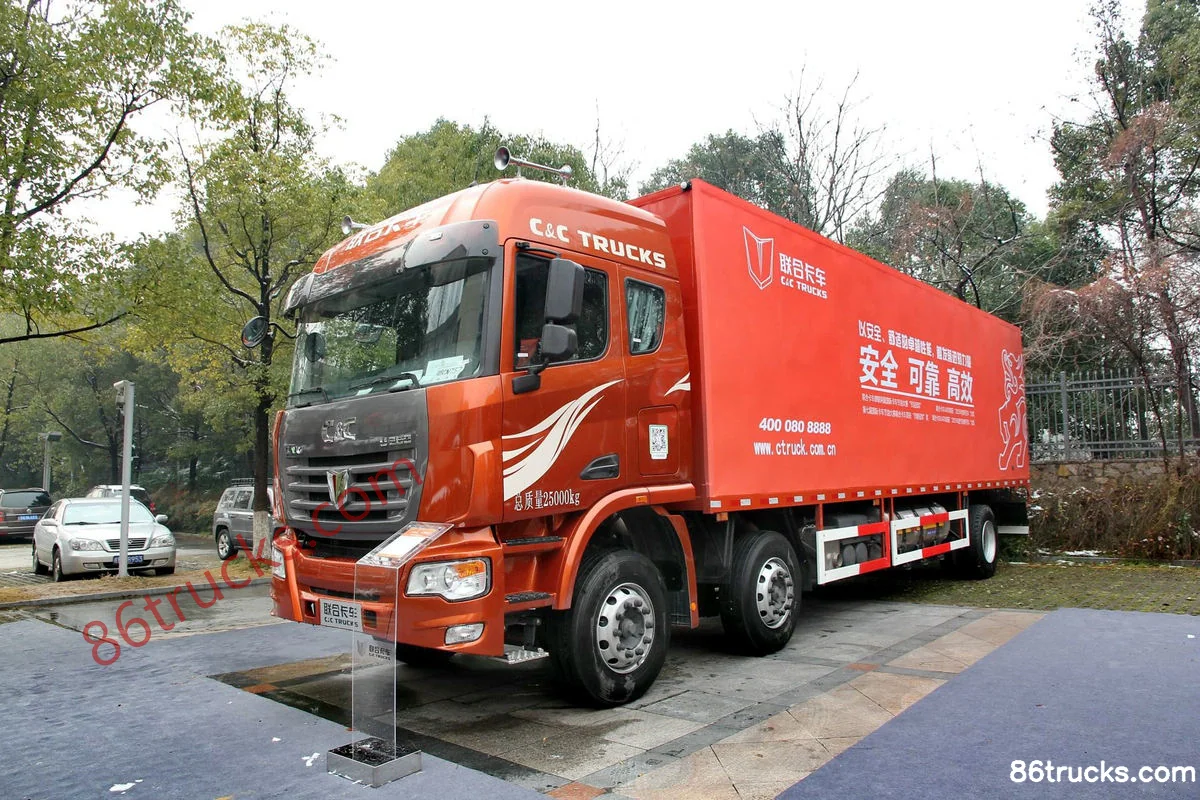

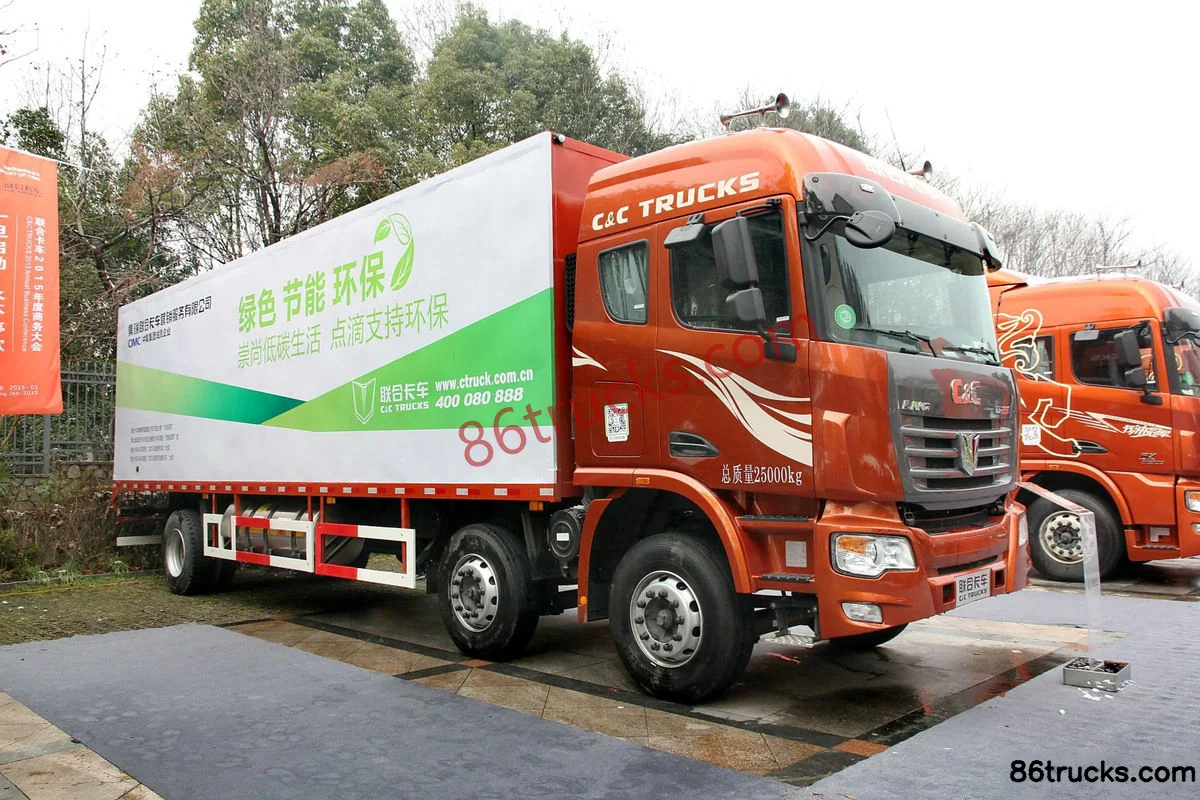

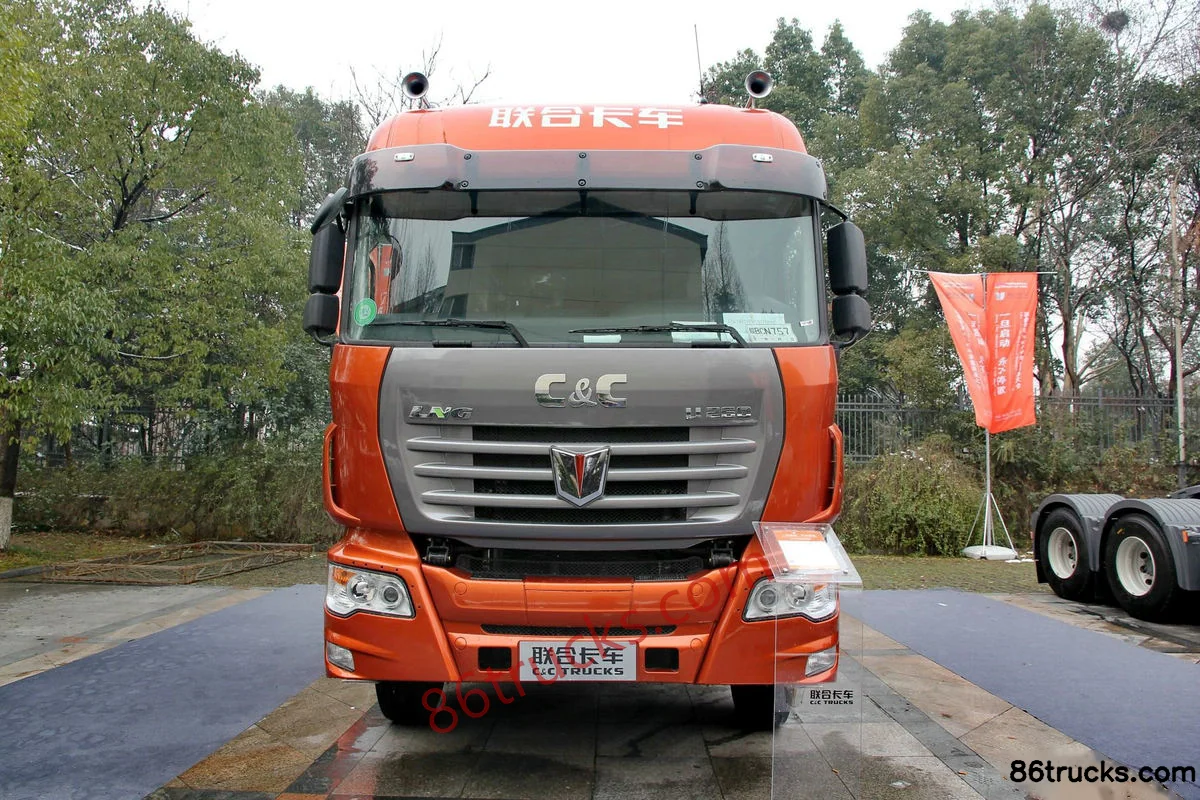

Exterior3

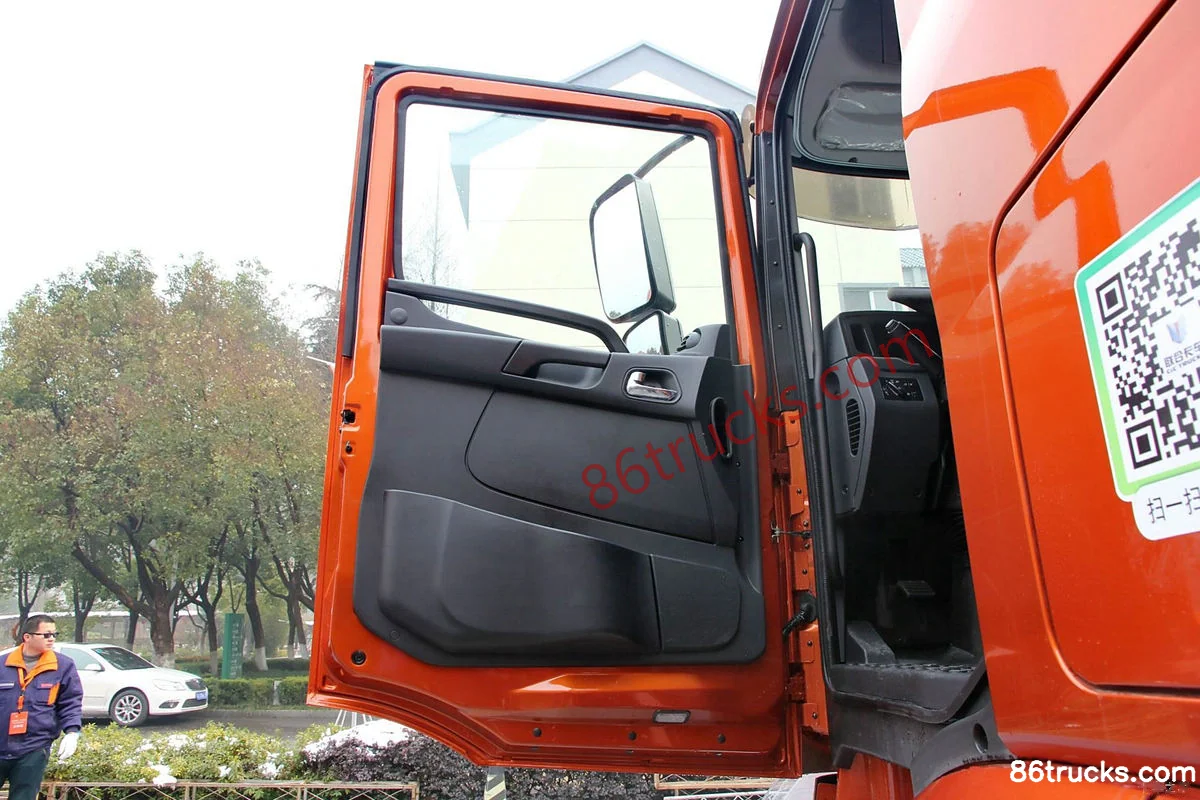

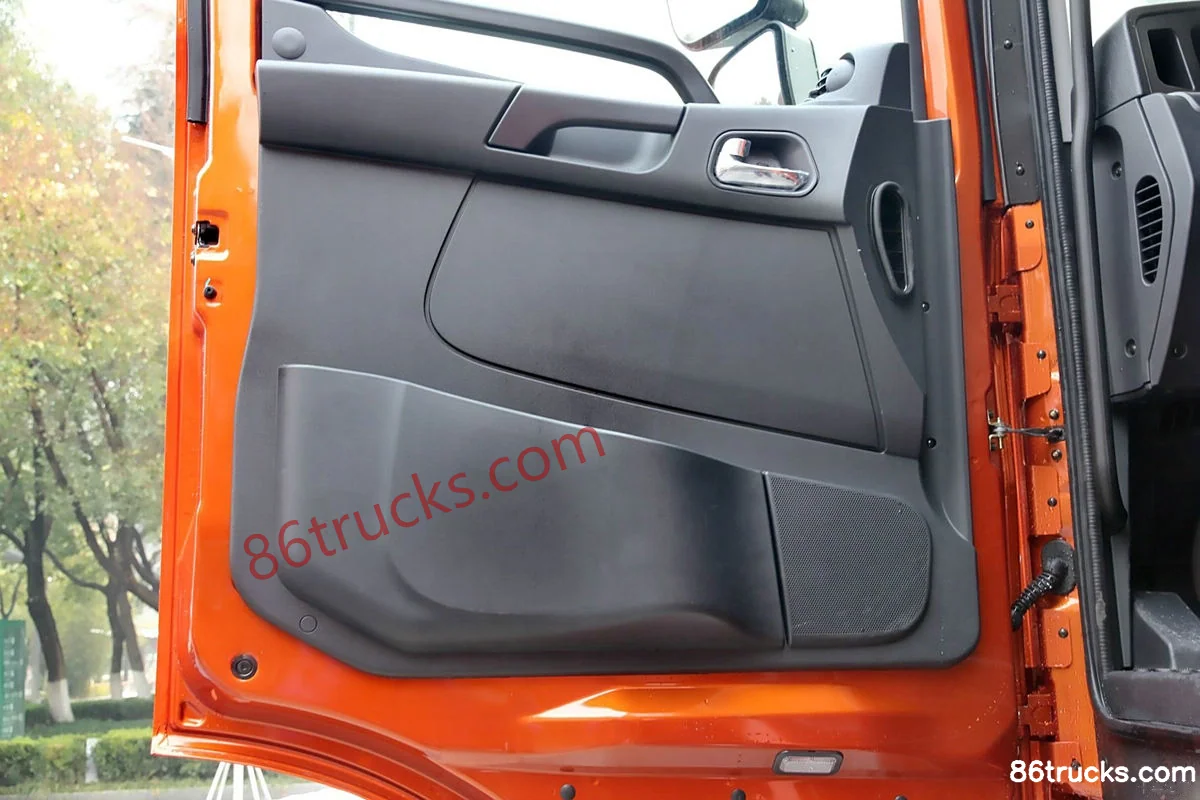

Cab3

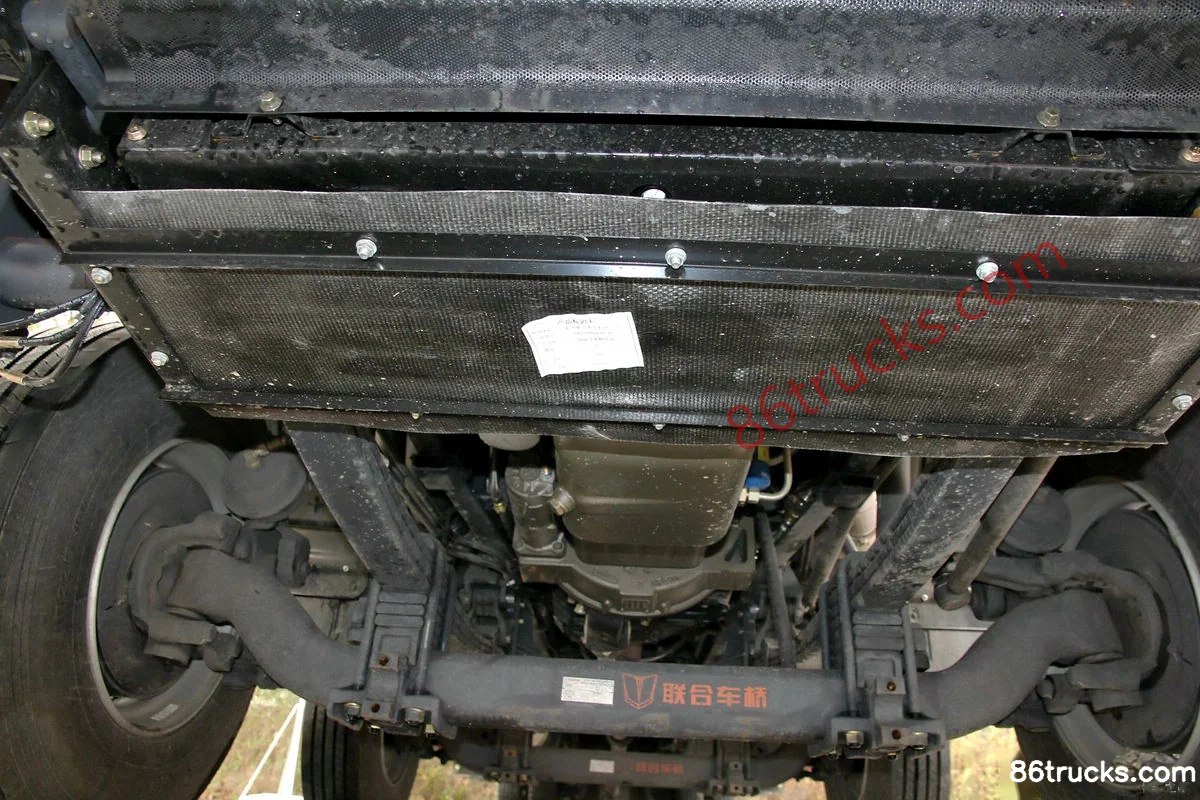

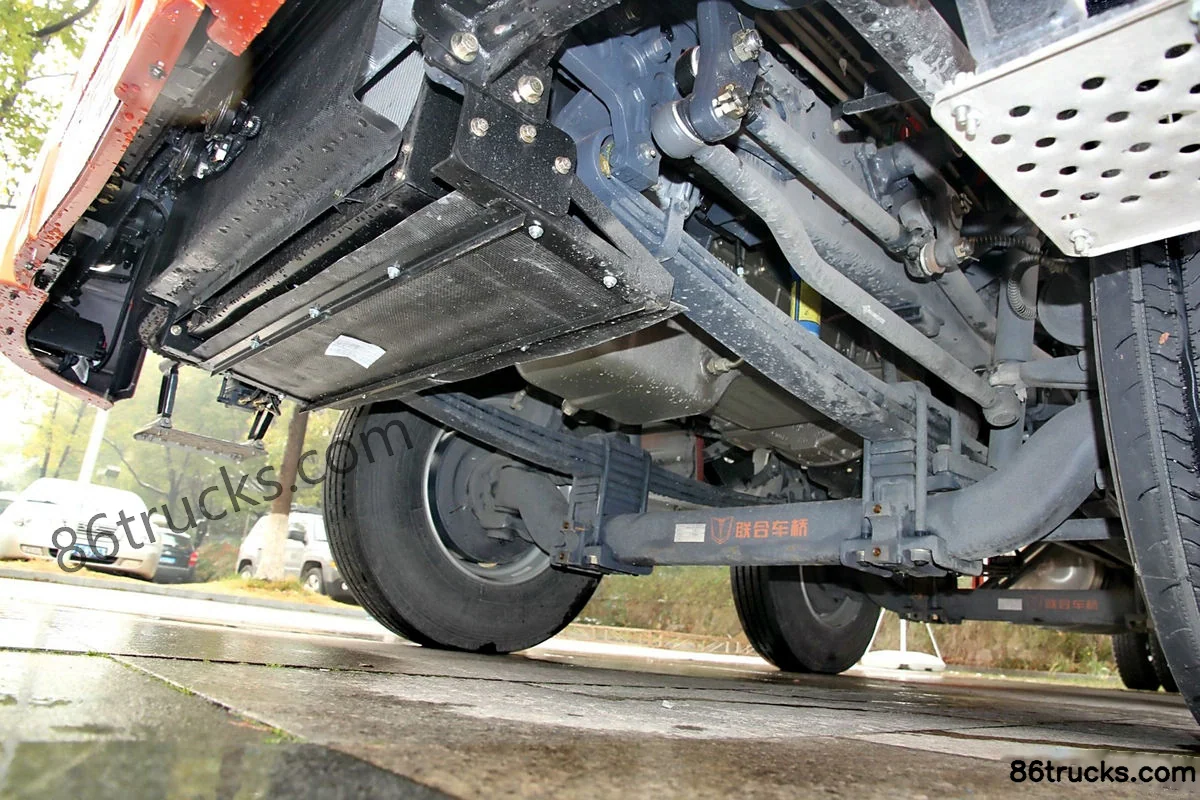

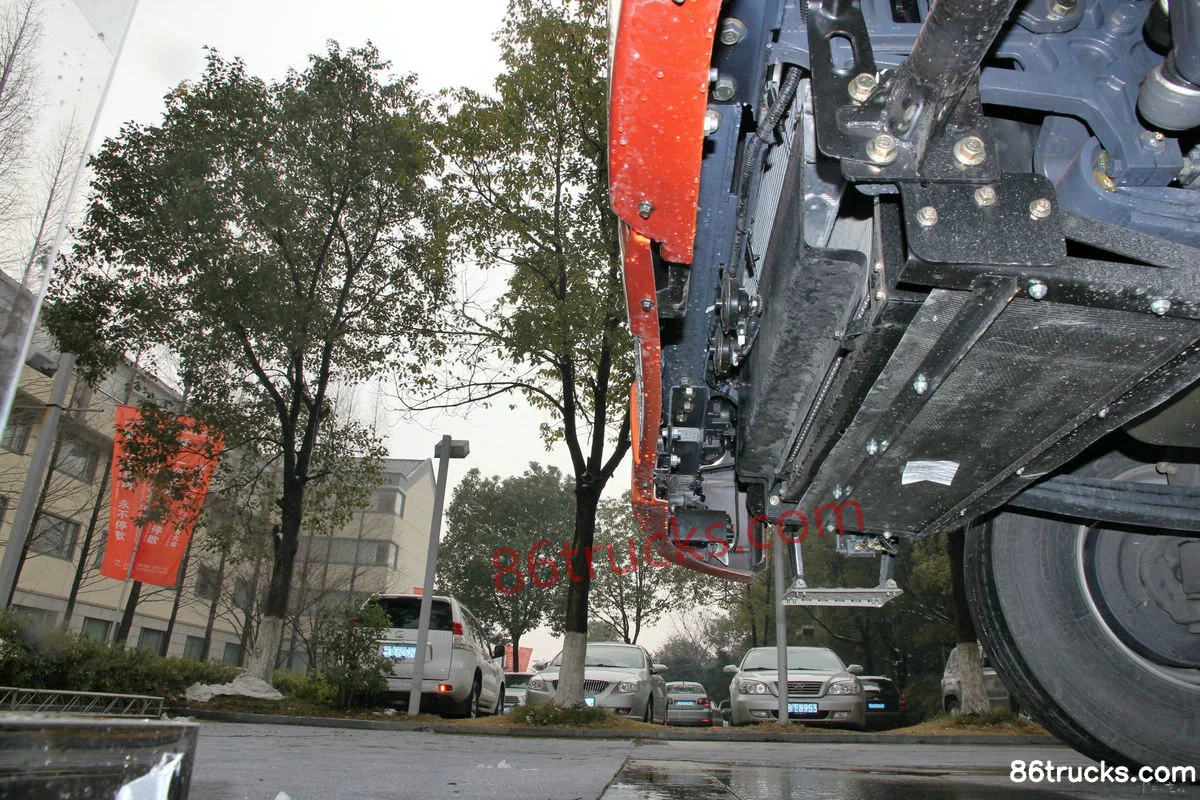

Chassis3

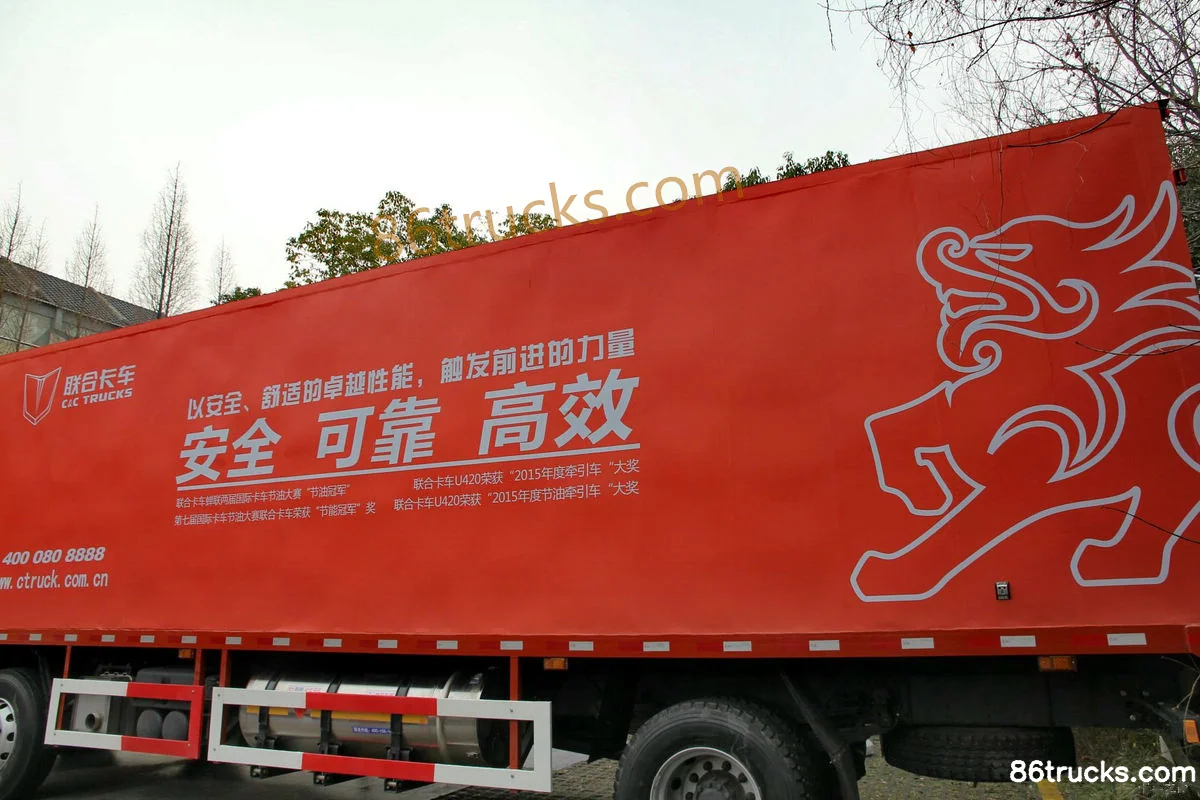

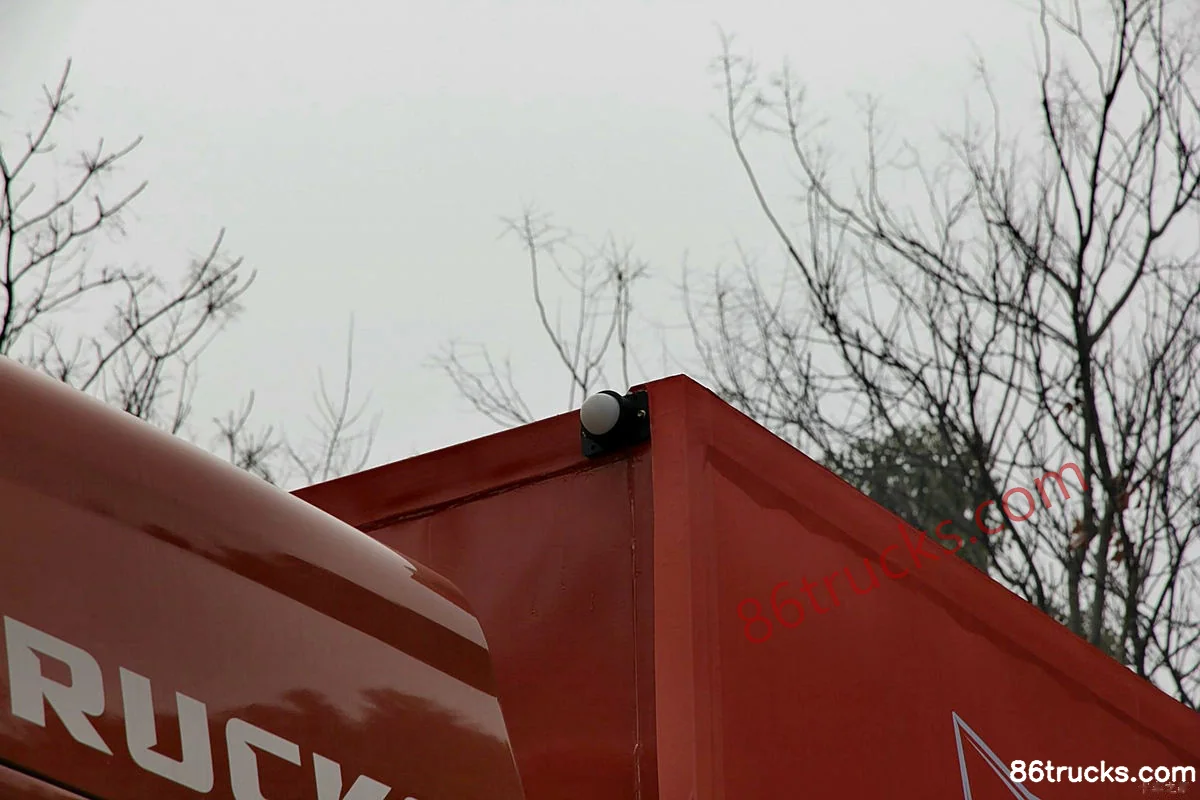

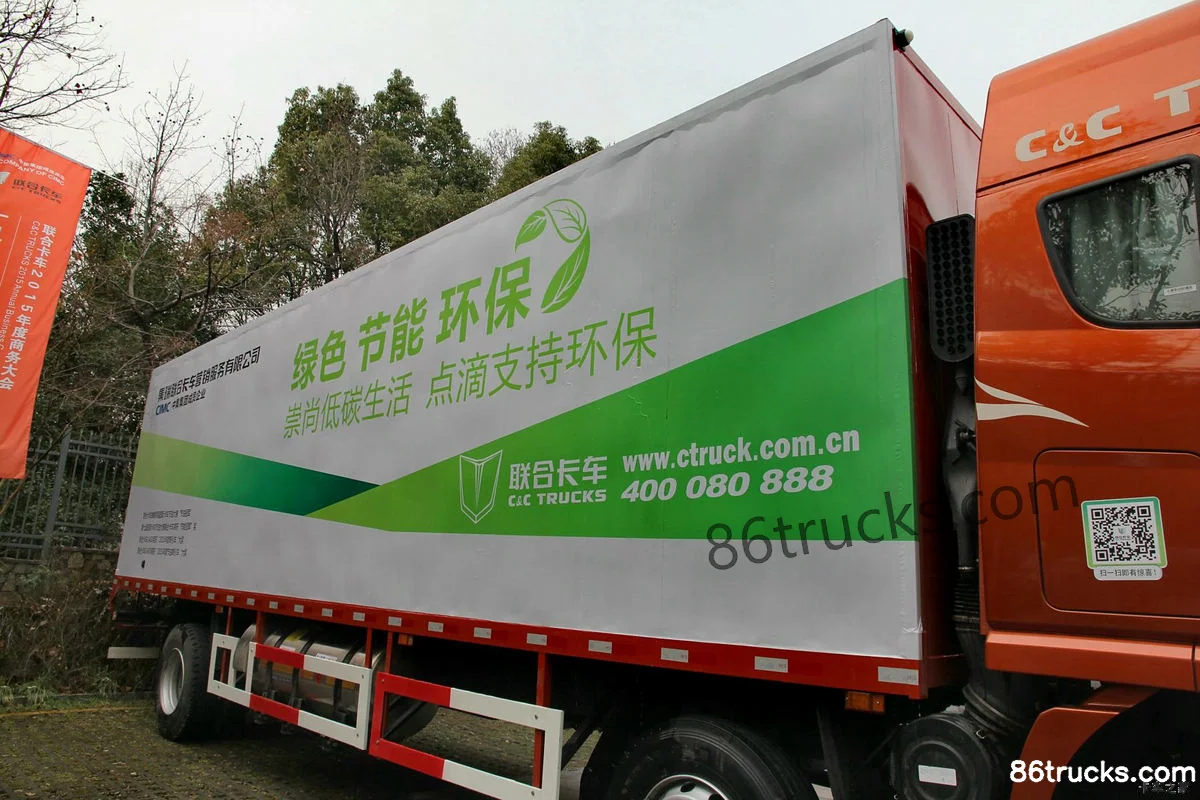

Body3

12 photos

FAQ

What emission standard does Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck?

Key specs of Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck: Drive: 6x2; Horsepower: 260 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Engine: Yuchai8.4L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck suited for?

Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck differ from other variants in the same series?

Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck belongs to Union Truck U-Series Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U260 Heavy Truck 260hp 6X2(8 wheels) LNG 9.4m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
