SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels)

Export reference
From $29,278
MSRP ¥21.08M CNY
Rated payload:: 1.045ton
Wheelbase:: 3360mm
Cargo box volume:: 18.3m³
Model code (announced):: SH5047XXYMFEVMZ5
Type:: enclosed cargo truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 350km
Motor 1 Brand: SAIC MAXUS
Curb Weight: 3.32ton

Overview

The Yuejin SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels) is a Light Truck featuring 350km battery/range, SAIC MAXUS motor, 4X2 (6 wheels) drive and 1.045t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH5047XXYMFEVMZ5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.13m
CLTC range: 350km
Curb Weight: 3.32ton
Rated payload: 1.045ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Version: Tianxing Edition
Energy Type: Electric
electric motor
Motor 1 Brand: SAIC MAXUS
Motor 1 Model: TZ210XS104
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 120kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 120.27kWh
Cargo box parameters
Cargo box volume: 18.3m³
Cargo box type: Van body
Cargo box length: 4.17m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 2050mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1760kg
rear axle description: 5T
rear axle allowable load: 2735kg

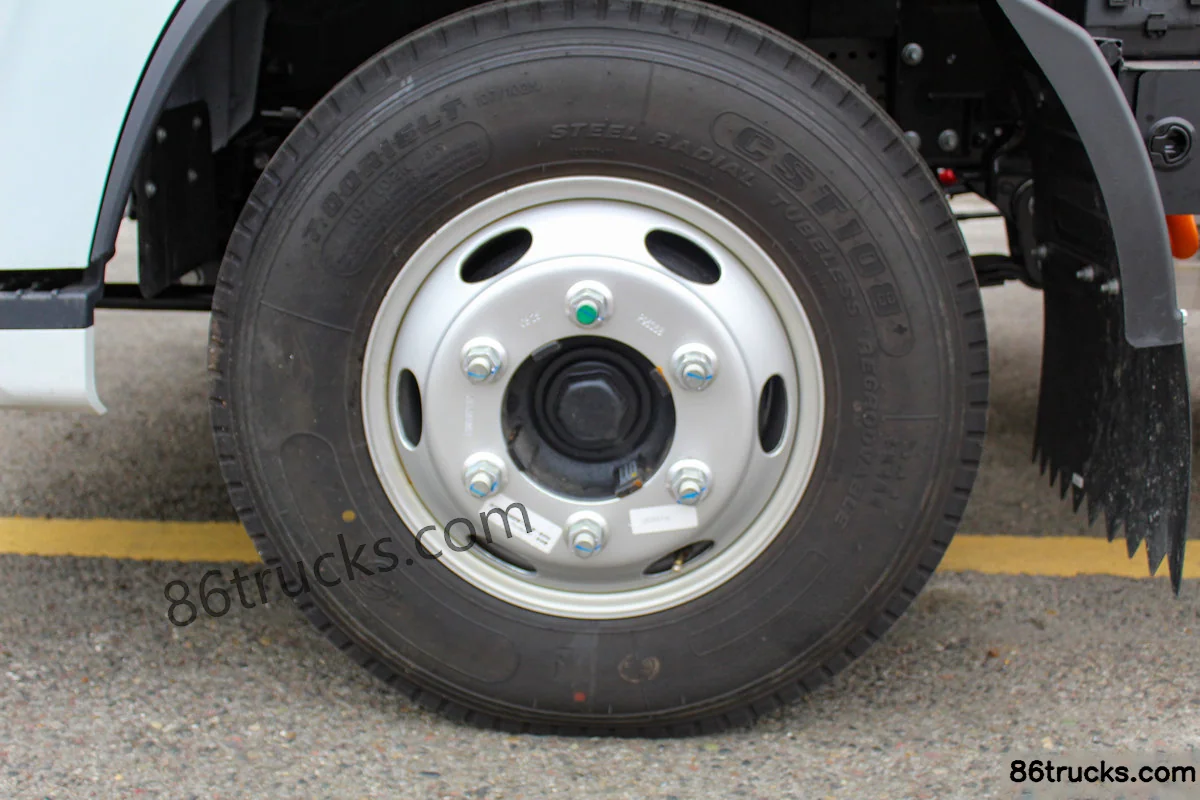

Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual

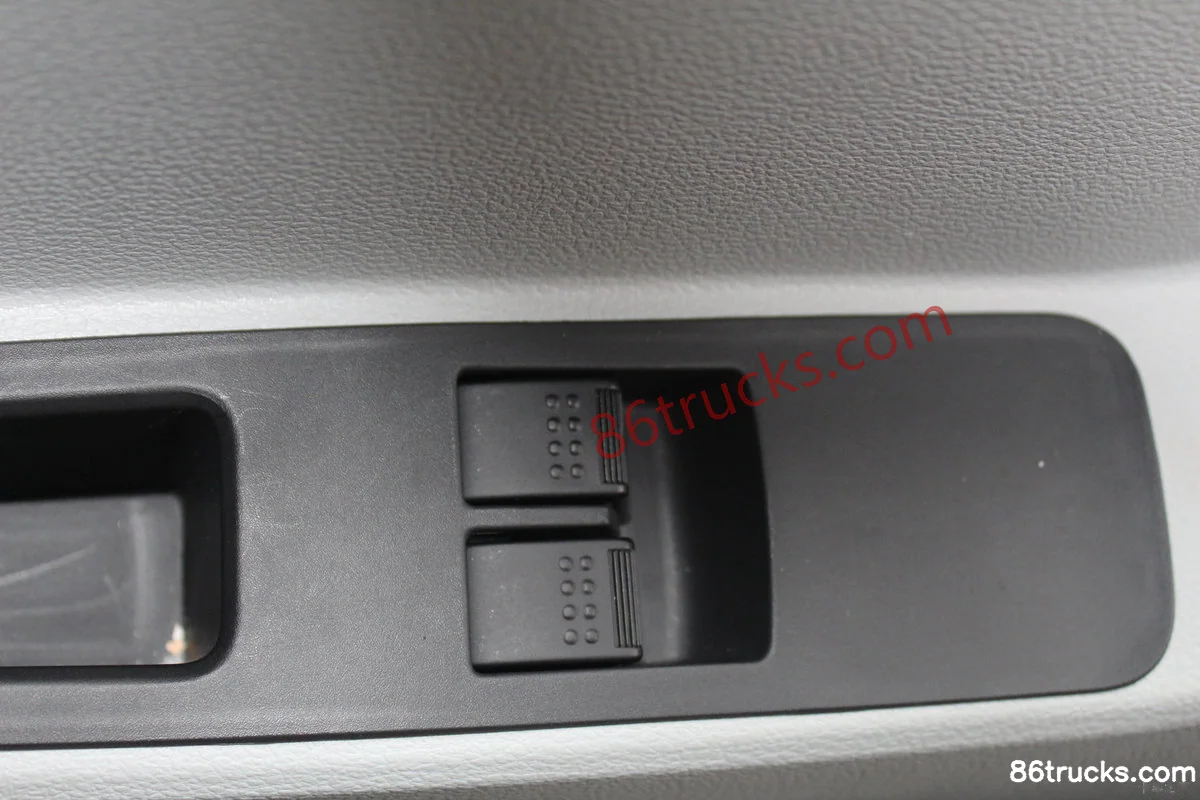

Power Windows:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

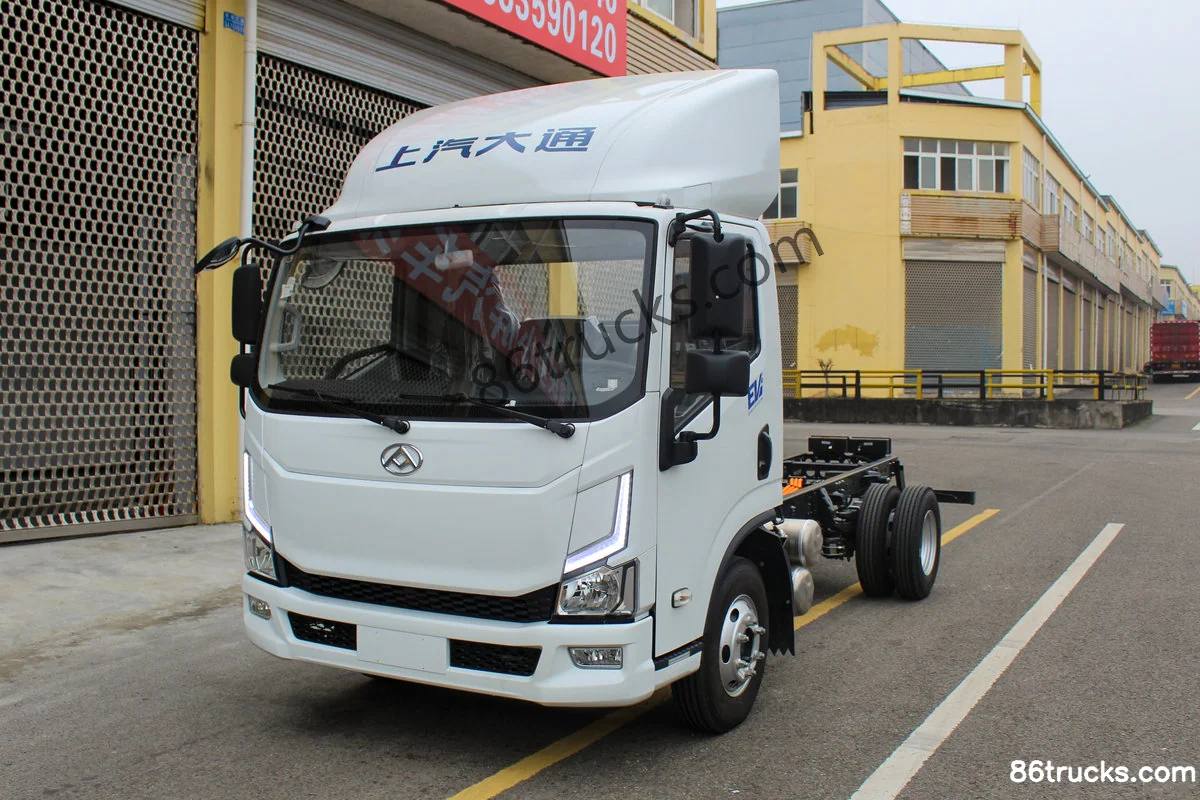

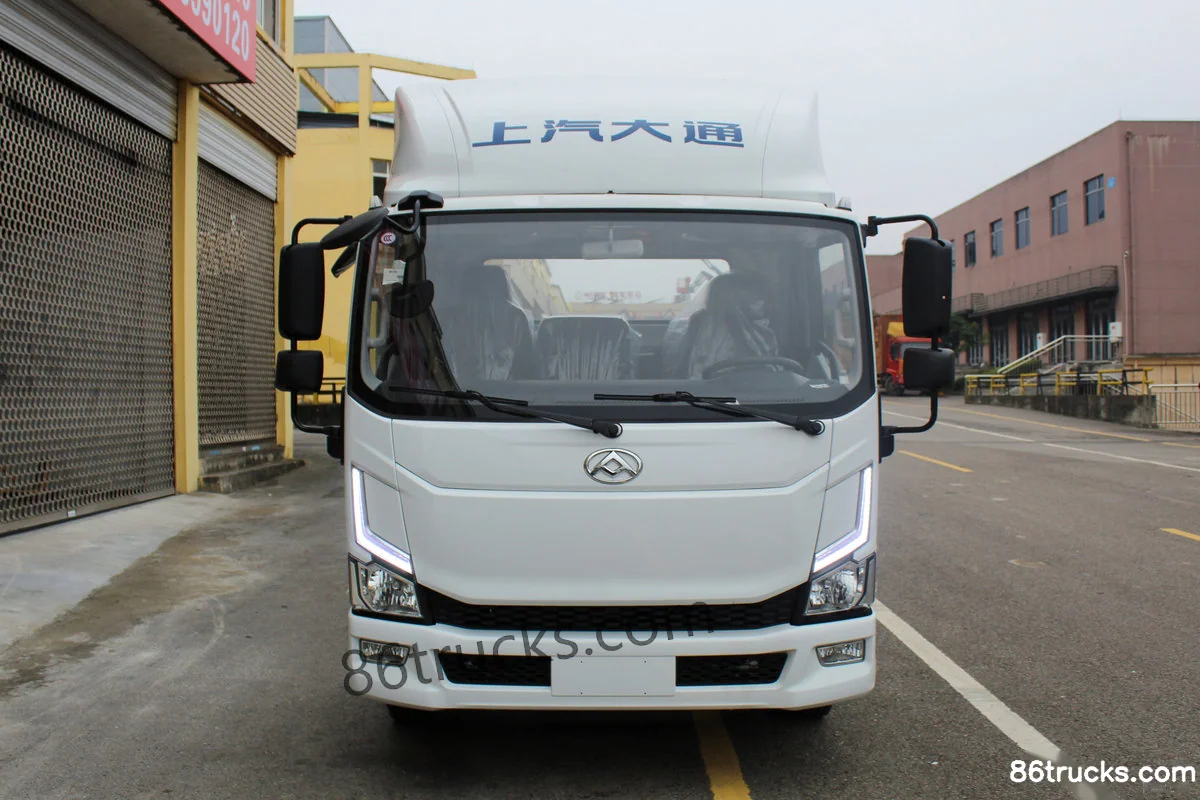

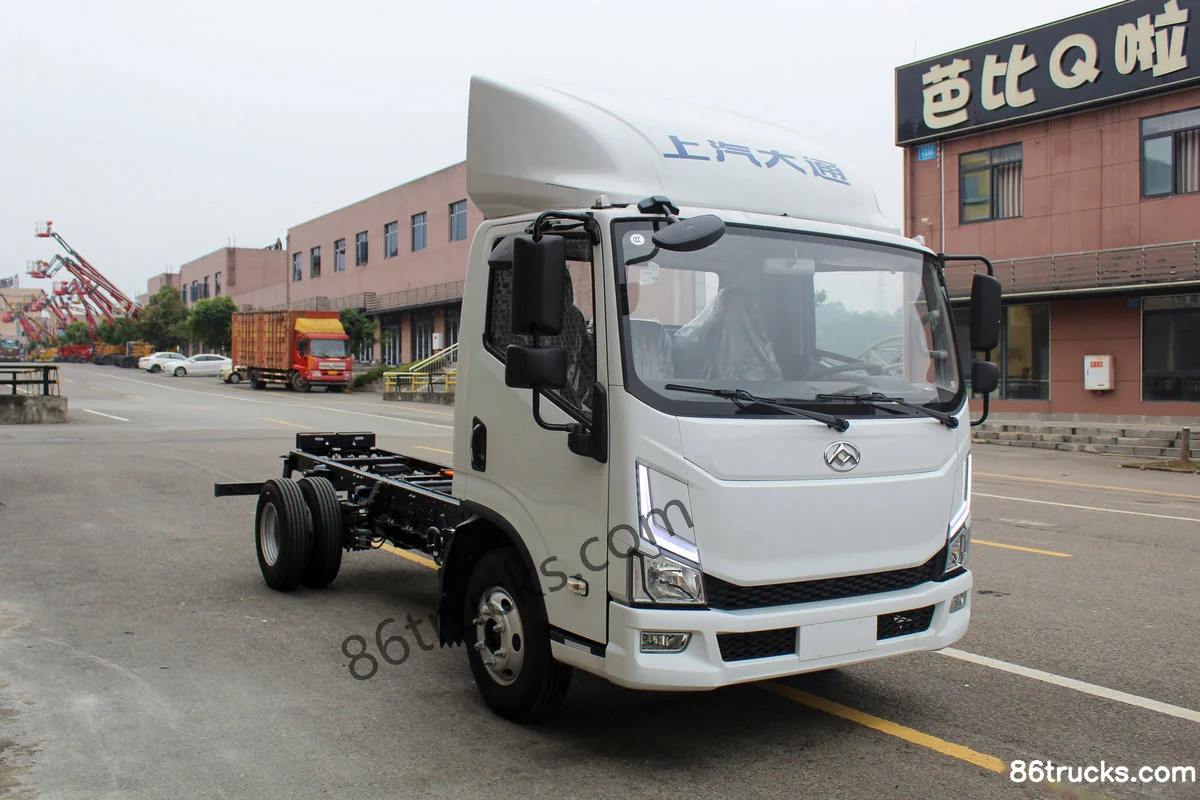

Exterior3

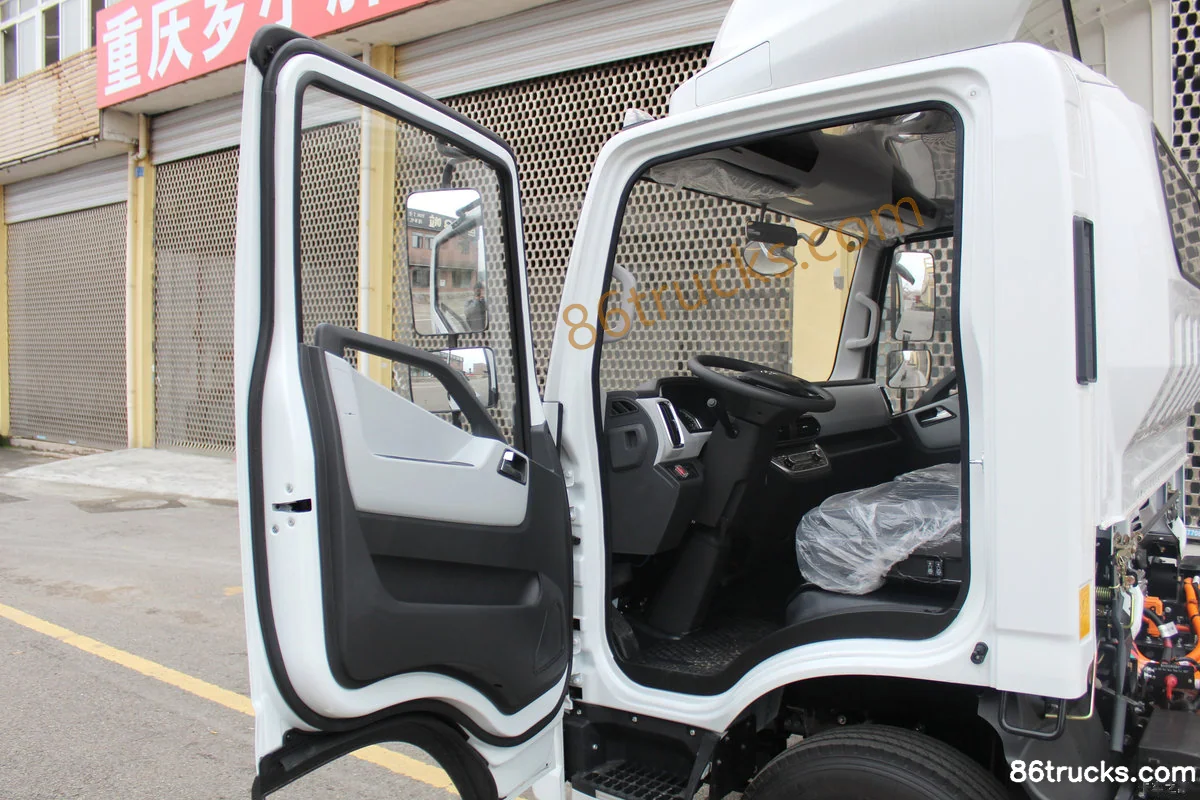

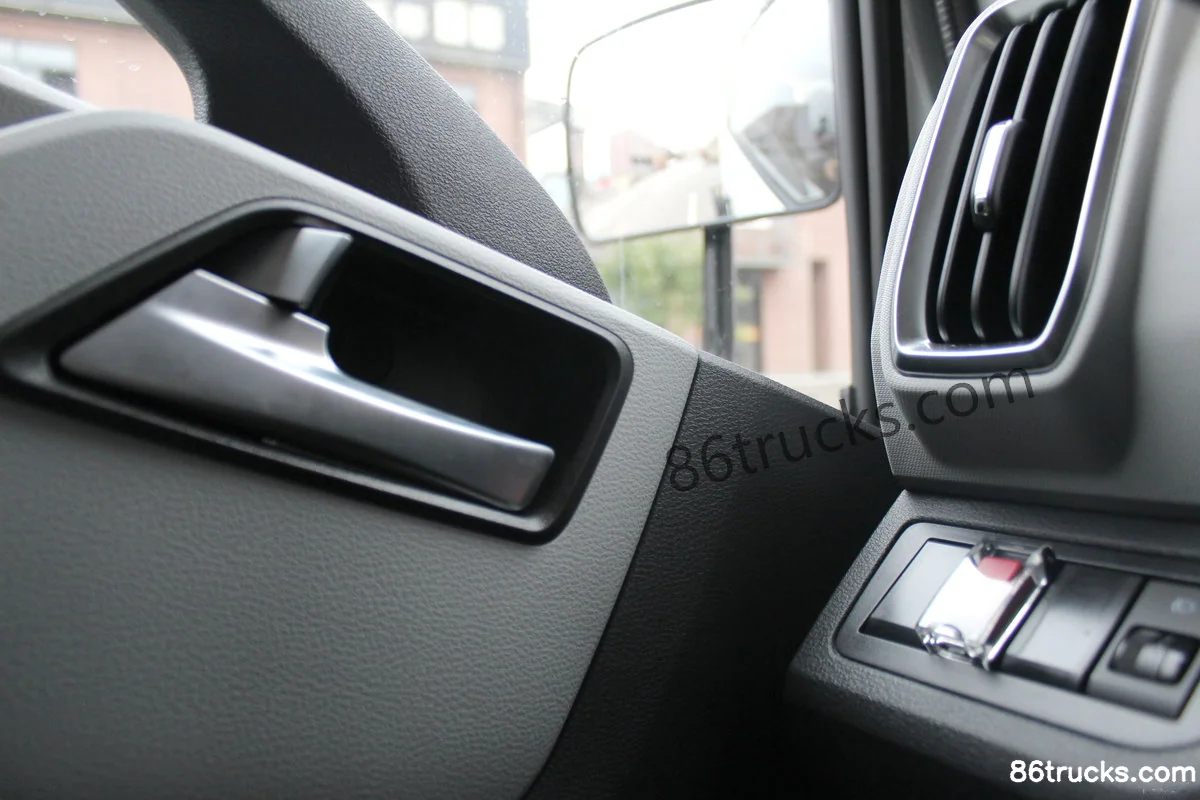

Cab3

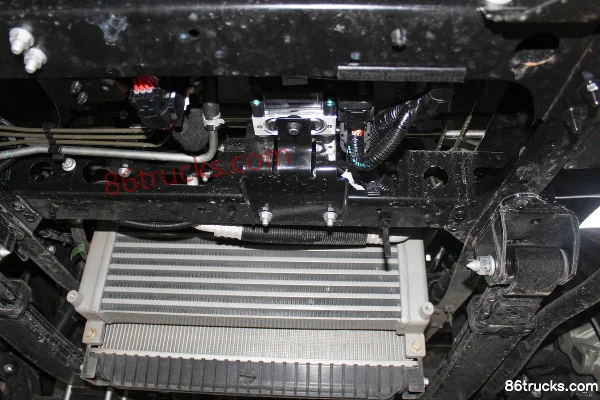

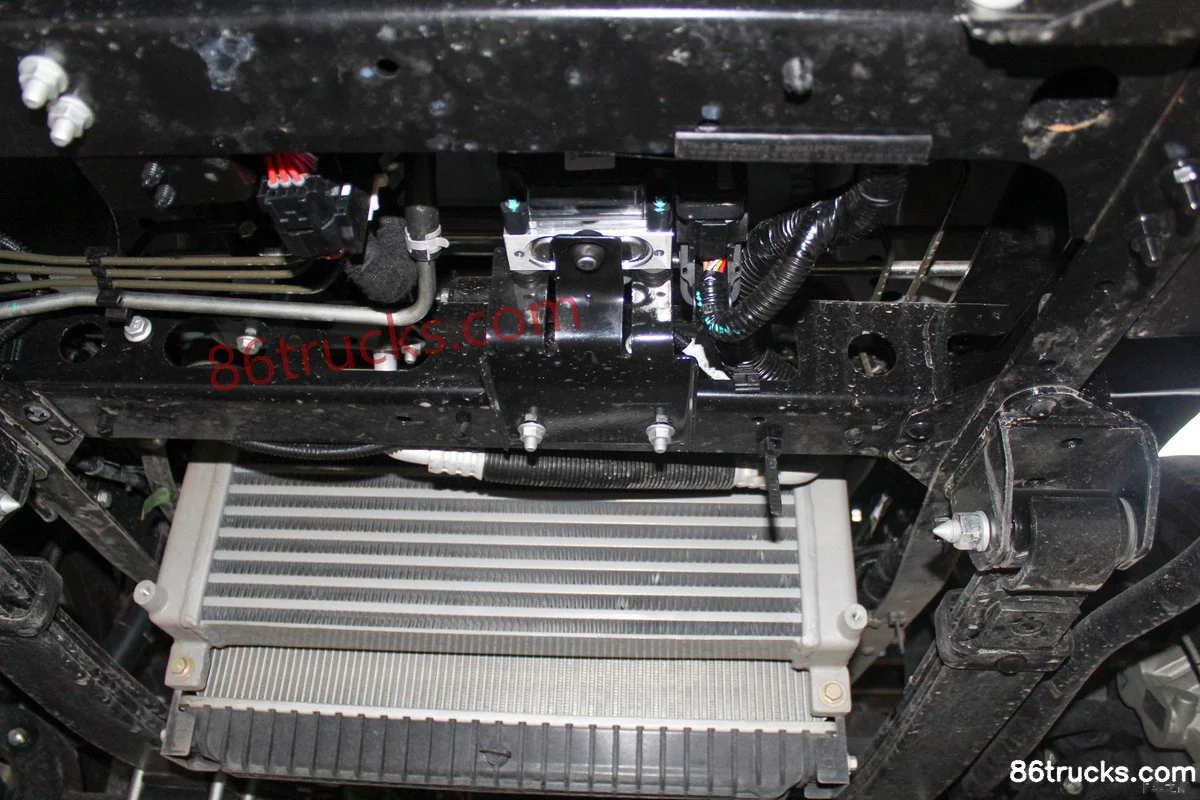

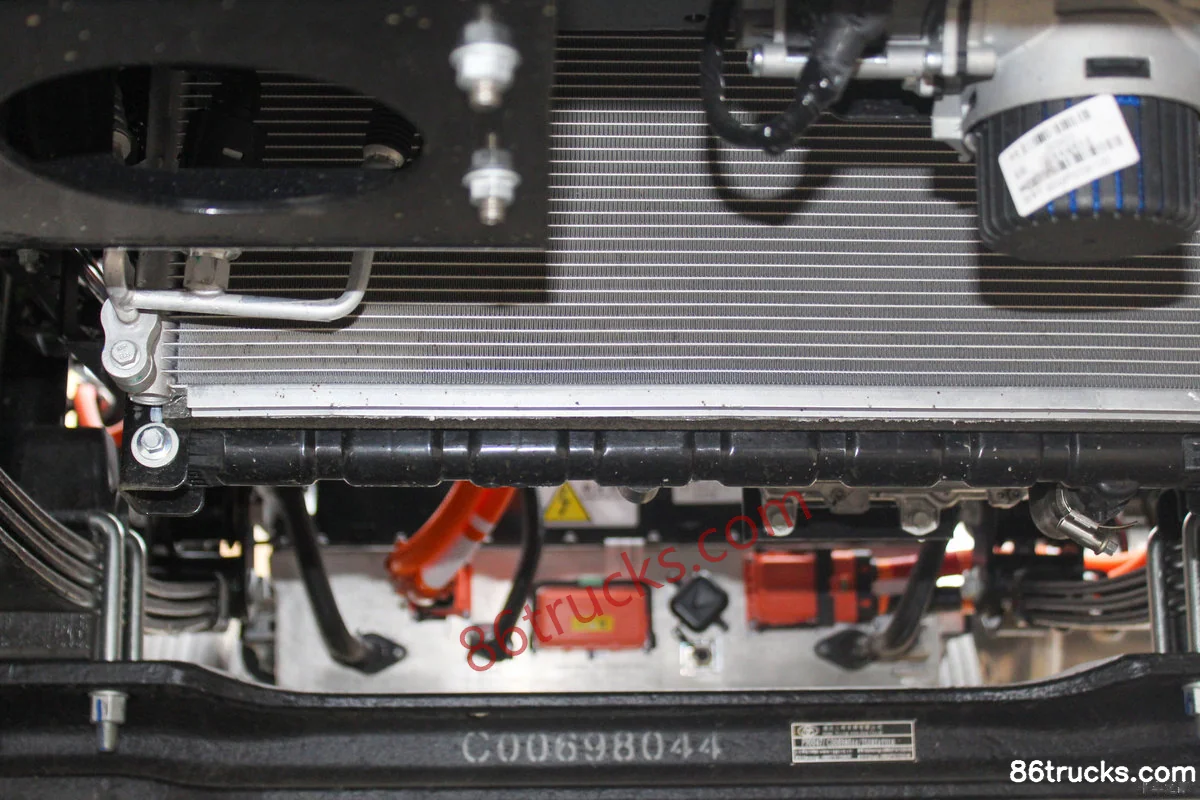

Chassis3

9 photos

FAQ

What is the export price of SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels), and what does it include?

SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels) export reference is about From $29,278; MSRP is ¥21.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels)?

Key specs of SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels) suited for?

SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels) differ from other variants in the same series?

SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels) belongs to SAIC MAXUS Dana T1 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Light Truck Dana T1 Tianxing Edition 4.5T 4.17m Single Row Van Light Truck CATL 120.27kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
