SRM Xinyuan Haoyun 1 III 2019 Chuangfu Edition 4.5m Electric Panel Van (Battery Heating 3.3km) 41.86kWh

Export reference
From $17,611
MSRP ¥12.68M CNY
Wheelbase:: 2925mm
Cargo box volume:: 5.28
Model code (announced):: JKC5031XXY-FXBEV
Cab length:: 4.495m
GVWR:: 2.51ton
Max. speed:: 90km/h
CLTC range: 270km
Motor 1 Model: TZ205XSFDM30C
Curb Weight: 1.36ton
Rated payload: 1.02ton

Overview

The SRM Xinyuan Haoyun 1 III 2019 Chuangfu Edition 4.5m Electric Panel Van (Battery Heating 3.3km) 41.86kWh is a Electric Panel Van featuring 270km battery/range, TZ205XSFDM30C motor, 1.02t payload and 5.28 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5031XXY-FXBEV
Wheelbase: 2925mm
Cab length: 4.495m
Cab width: 1.68m
Cab height: 1.99m
CLTC range: 270km
Curb Weight: 1.36ton
Rated payload: 1.02ton
GVWR: 2.51ton
Max. speed: 90km/h
Version: Chuangfuxing
Energy Type: Electric
electric motor
Motor 1 Model: TZ205XSFDM30C
Max torque: 220N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
Battery/Charging
Charging method: Fast charge, slow charge (3.3kW optional 6.6kW)
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 41.86kWh
Energy Density: 135
Body parameters
Cargo box volume: 5.28
Chassis Specs
steering assist type: vacuum booster
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
Number of Doors: 5
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 175/70 R14C
Rear Wheel Specification: 175/70 R14C
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Heated Rearview Mirror:
AC control type: Automatic
Seat material: Fabric
Reverse Camera: -/●
lighting configuration
Front fog lamp:

Photos

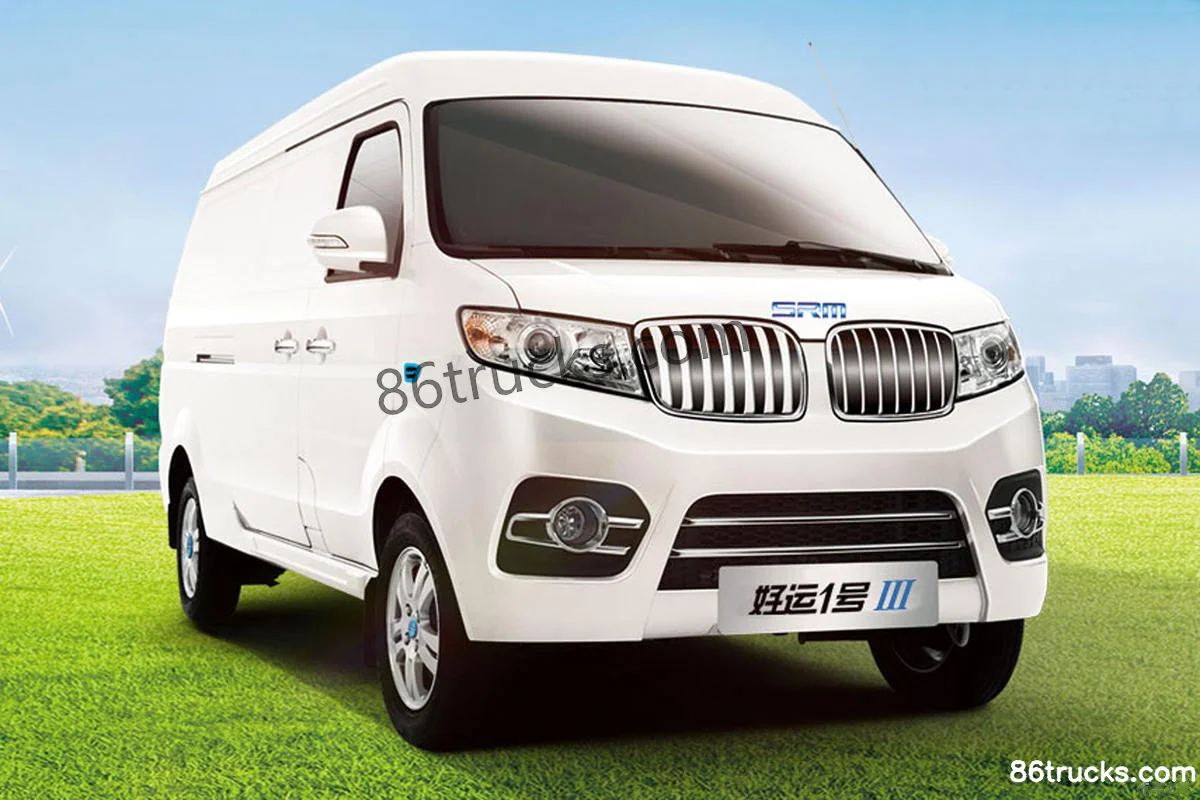

Exterior1

1 photos

FAQ

What is the export price of SRM Xinyuan Haoyun 1 III 2019 Chuangfu Edition 4.5m Electric Panel Van (Battery Heating 3.3km) 41.86kWh, and what does it include?

SRM Xinyuan Haoyun 1 III 2019 Chuangfu Edition 4.5m Electric Panel Van (Battery Heating 3.3km) 41.86kWh export reference is about From $17,611; MSRP is ¥12.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is SRM Xinyuan Haoyun 1 III 2019 Chuangfu Edition 4.5m Electric Panel Van (Battery Heating 3.3km) 41.86kWh suited for?

SRM Xinyuan Haoyun 1 III 2019 Chuangfu Edition 4.5m Electric Panel Van (Battery Heating 3.3km) 41.86kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan Haoyun 1 III 2019 Chuangfu Edition 4.5m Electric Panel Van (Battery Heating 3.3km) 41.86kWh differ from other variants in the same series?

SRM Xinyuan Haoyun 1 III 2019 Chuangfu Edition 4.5m Electric Panel Van (Battery Heating 3.3km) 41.86kWh belongs to Huajin Xinyuan Jinbei Good Luck 1 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan Haoyun 1 III 2019 Chuangfu Edition 4.5m Electric Panel Van (Battery Heating 3.3km) 41.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan Haoyun 1 III 2019 Chuangfu Edition 4.5m Electric Panel Van (Battery Heating 3.3km) 41.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
