Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck

Export reference
From $49,931
MSRP ¥35.95M CNY
Fuel: Diesel
Curb Weight:: 15.355ton
Wheelbase:: 1800+3400+1350mm
Tire Size:: 11.00R20
Cab dimensions:: 10.85×2.545×3.99m
Truck Type:: concrete mixer truck
Rated payload: 15.515ton
Drive 8X4 (12 wheels)
Horsepower 380
Emission China V

Overview

The Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck is a concrete mixer truck featuring 15.515t payload, 15.355ton GVW, 8X4 (12 wheels) drive and D13F Semi-high roof Full-floating cab. On the powertrain side, it comes with 380 hp, China V emissions and Diesel fuel.

China V 380 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.85×2.545×3.99m
Truck Type: concrete mixer truck
Drive type: 8X4
Wheelbase: 1800+3400+1350mm
Vehicle origin: Yong'an, Fujian
Front/rear track width: Front: 2020/2020mm; Rear: 1860/1860
Curb Weight: 15.355ton
Rated payload: 15.515ton
Max. speed: 85km/h
Front/rear suspension: 1.46/2.84m
Engine parameters
Injection System: Common Rail (China V)
Engine Model: SinotrukD10.38-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 276kW
Max hp: 380Horsepower
Rated speed: 2000rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Body Parameters
Mixing drum capacity: 7.1m³
Vehicle certification code: ZZ5318GJBN60EB0
Body Brand: Sinotruk
Chassis Specs
Chassis Series: HOWO MAN H5
Chassis Model: ZZ1318N60EB0
Front axle description: H153
Frame Dimensions: 300(8+8)mm
rear axle description: ST16 dual axle
Axle ratio: 5.73
Leaf spring count: 12/12/10,11/11/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW19710
Cab parameters
Cab: D13F Semi-high roof Full-floating
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

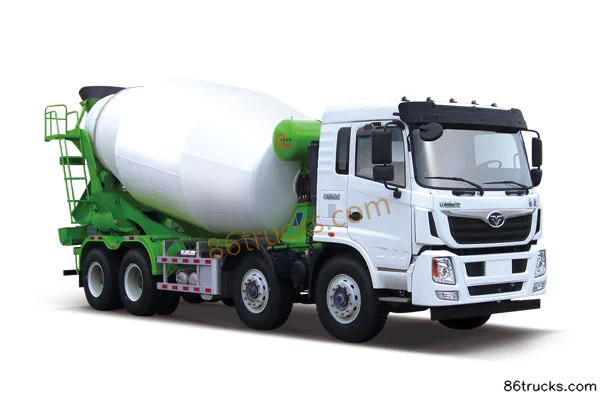

Photos

Exterior1

1 photos

FAQ

What is the export price of Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck, and what does it include?

Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck export reference is about From $49,931; MSRP is ¥35.95M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck?

Key specs of Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck: Drive: 8x4; Horsepower: 380 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck suited for?

Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck differ from other variants in the same series?

Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck belongs to Sinotruk H5 near-heavy truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MAN H5 380 hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
