Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh

Export reference
MSRP N/A
Gross Trailer Weight:: 38.07ton
Front axle allowable load:: 7000kg
Wheelbase:: 3825+1350mm
Emission: China VI
Fuel: Diesel
Model code (announced):: QCC4253D364SHEV
Drive 6X4 (10 wheels)
Battery Brand: CATL
Motor 1 Brand: Lv Kong
Horsepower 170

Overview

The Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh is a Heavy truck featuring CATL battery/range, Lv Kong motor, 6X4 (10 wheels) drive and 7000kg payload. On the powertrain side, it comes with 170 hp.

China VI 170 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QCC4253D364SHEV
Drive type: 6X4
Wheelbase: 3825+1350mm
Front/rear track width: Front track: 2080mm; Rear track: 1860/1860mm
Cab length: 7.435m
Cab width: 2.55m
Cab height: 3.9m
Gross Trailer Weight: 38.07ton
Curb Weight: 10.8ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Wuhu, Anhui
tonnage class: Heavy truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ460XS-LKM3101
Motor Type: Permanent magnet synchronous motor
total rated power: 270kW
Peak power: 450kW
total rated torque: 1450N·m
Motor 1 Peak Power: 450kW
Number of drive motors: Single motor
Engine parameters
Engine Brand: Yuchai
Engine Model: YCY25170-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 123kW
Max hp: 170Horsepower
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400.61kWh
Transmission Parameters
Transmission Model: J4S280
shift method: AMT manual/auto
Forward gears: 4Gear
Number of Reverse Gears:
Cab parameters
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 5.5T
Front axle allowable load: 7000kg
rear axle description: 11.5T
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Service brake
Brake Type: Air brake
hydraulic retarder:
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):

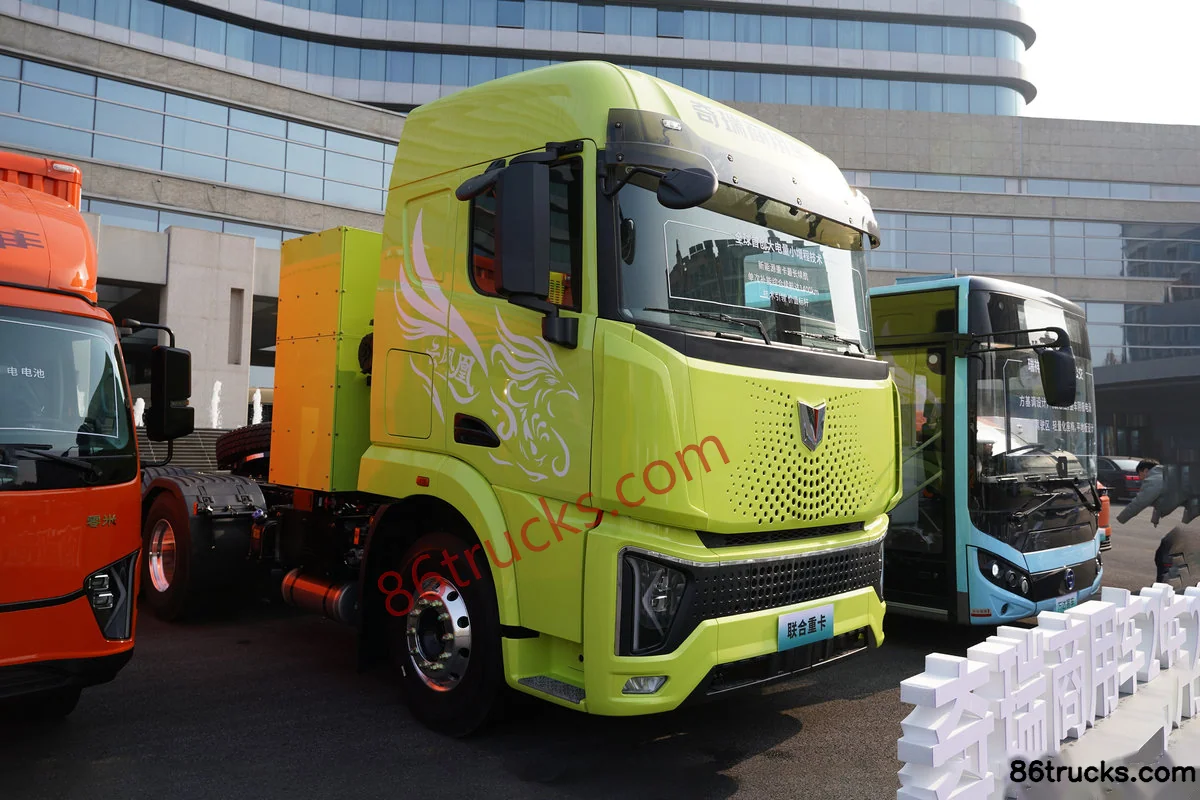

Photos

Exterior1

1 photos

FAQ

What emission standard does Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh?

Key specs of Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh: Drive: 6x4; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh suited for?

Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh differ from other variants in the same series?

Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh belongs to Chery Commercial Vehicle United Truck Yun Fenghuang Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chery Commercial Vehicle YunFenghuang 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 400.61kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
