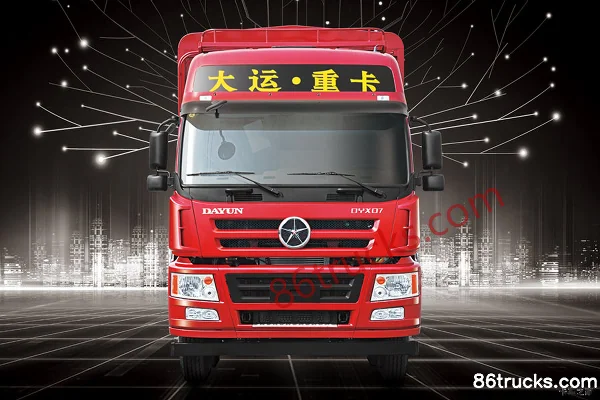

Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck

Export reference
MSRP N/A
Horsepower: 310
Emission: China V
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 12ton
seating capacity: 2Personnel
Rated payload: 18.87ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 2Personnel volume and 18.87t payload. Its segment focus covers Standard Load, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10 engine, 310 hp, 8X4 (12 wheels) drive and China V emissions.

China V 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CGC5310CCYD5DDHD
Type: stake truck
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
Box length class: 9.6m
engine: WeichaiWP10.310E53
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.44
Cab length: 12m
Cab width: 2.5m
Cab height: 3.8m
Front track width: 2017/2017mm
rear track: 1860/1860mm
Curb Weight: 12ton
Rated payload: 18.87ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Shanxi Yuncheng
tonnage class: Heavy-duty cargo trucks
Approach angle: 16°
departure angle: 11°
market segment: Standard Load
Front/rear suspension: 1.43/2.82m
Version: Lightweight
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.310E53
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1500N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 4.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300×80×8mm
rear axle description: 10T rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.44
Leaf spring count: 3/3/4
Tire
Tire Size: 12R22.5
Number of tires: 12pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck?

Key specs of Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck: Drive: 8x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck suited for?

Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck differ from other variants in the same series?

Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck belongs to Dayun New N8E quasi-heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun New N8E Lightweight 310 hp 8X4(12 wheels) 9.6m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
