JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis

Export reference
From $21,361
MSRP ¥15.38M CNY
Horsepower: 165
Emission: China IV
Fuel: Diesel
Engine: MaxxForce 4-cylinder
Transmission: WLY
Curb Weight:: 6.2ton
seating capacity: 3Personnel
Rated payload: 9.2ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis is a Medium-duty truck featuring 7.5m cargo length, Van body cargo body, 3Personnel volume and 9.2t payload. Its segment focus covers Express delivery, agricultural by-product transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a MaxxForce 4-cylinder engine, 165 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 165 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5162XXYP70K1E1
Type: Chassis
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 7.5m
engine: MaxxForce JND412D165-42
transmission: WLYWLY6G70
Rear Axle Ratio: 4.875
Cab length: 9.83m
Cab width: 2.54m
Cab height: 3.7m
Front track width: 1963mm
rear track: 1800mm
Curb Weight: 6.2ton
Rated payload: 9.2ton
GVWR: 15.595ton
Max. speed: 115km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 21.4°
departure angle: 13.8°
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport
Remarks: Frame: 230x75x6, standard: power steering, AC, clutch booster, exhaust brake, spring brake, air dryer, tachograph, air suspension seat, MP3, multifunction steering wheel, power windows, central door lock, ABS
Front/rear suspension: 1.29/2.545m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: MaxxForce JND412D165-42
Engine info: MaxxForce 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.748L
Emission standard: China IV
Max output power: 121kW
Max hp: 165Horsepower
Transmission Parameters
Transmission Model: WLYWLY6G70
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.5m
Cargo box width: 2.4m
Cargo box height: 2.4m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 210L
Chassis Specs
Front axle allowable load: 5600kg
rear axle description: 9T stamped axle
rear axle allowable load: 9995kg
Axle ratio: 4.875
Leaf spring count: 10/9+7
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

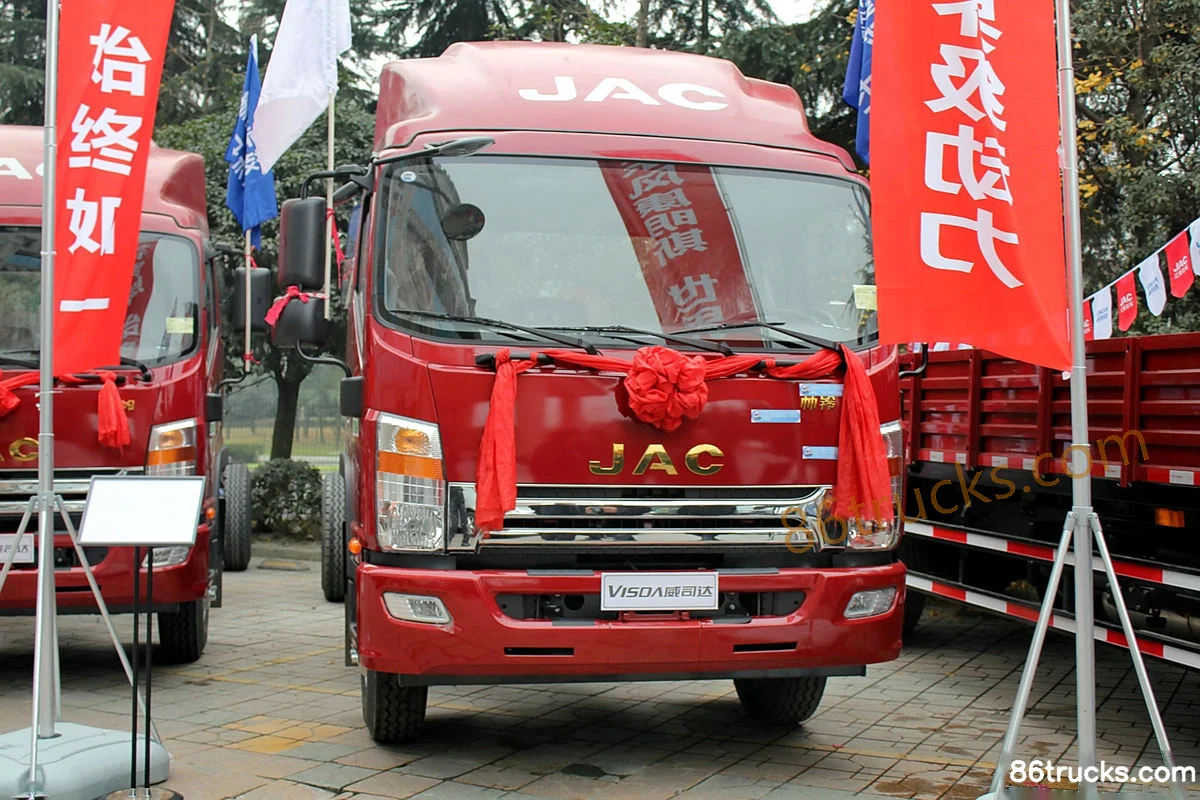

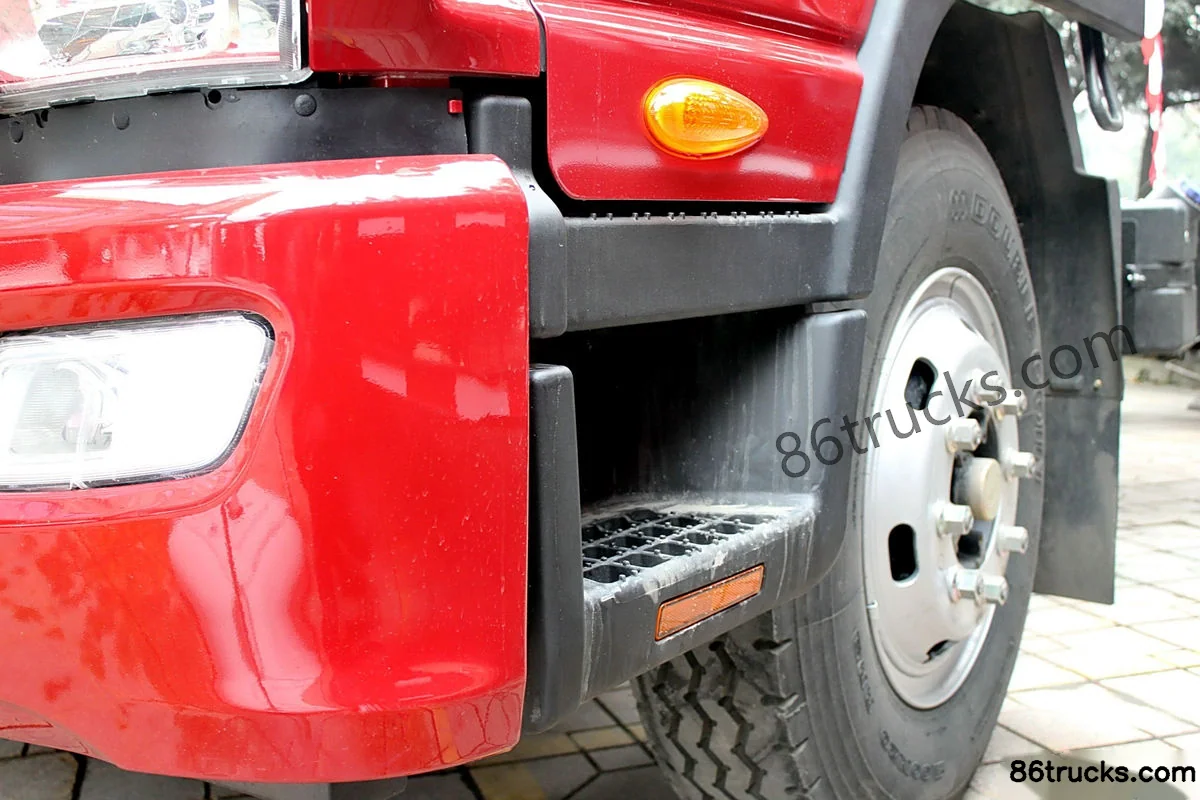

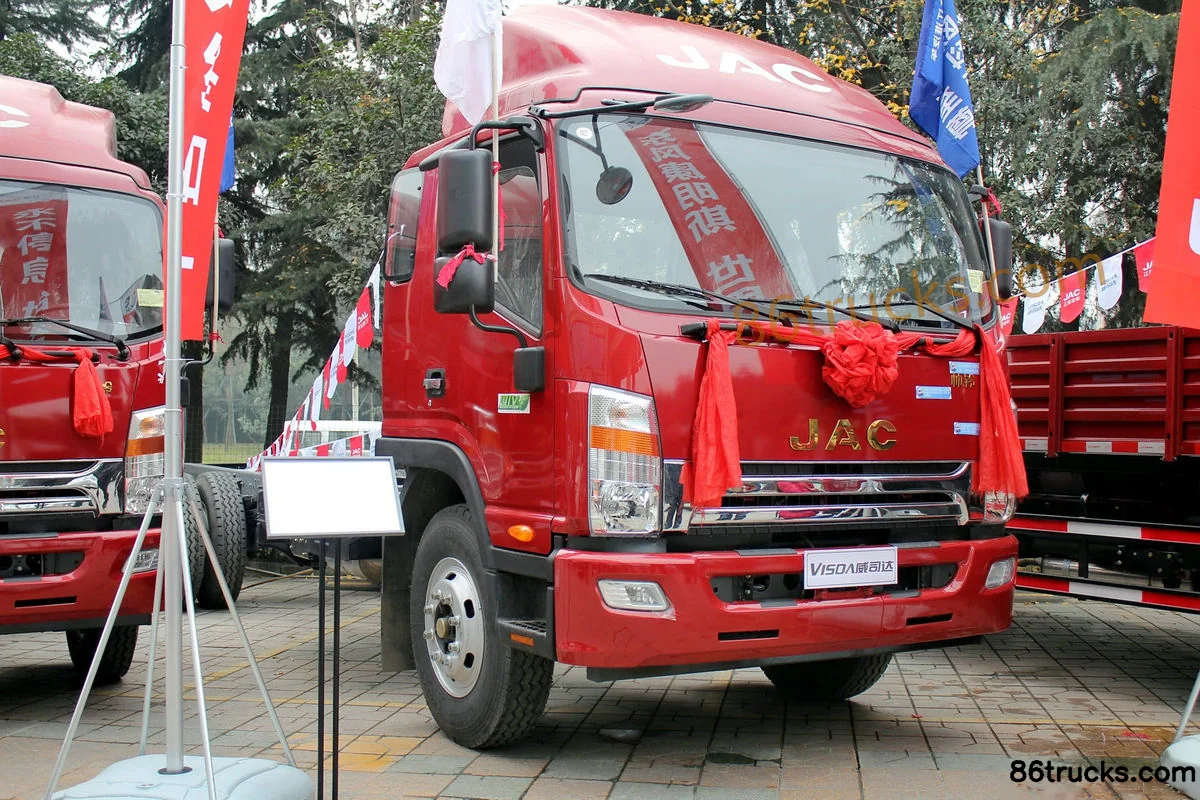

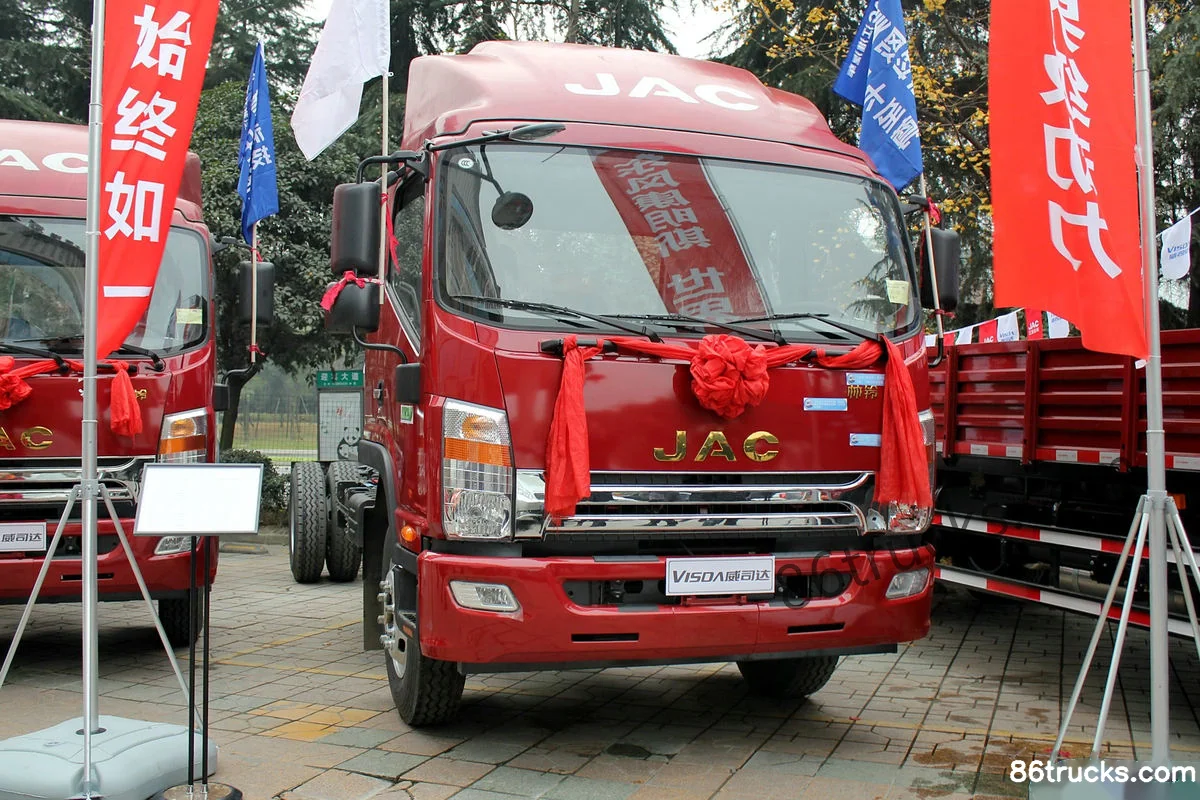

Exterior3

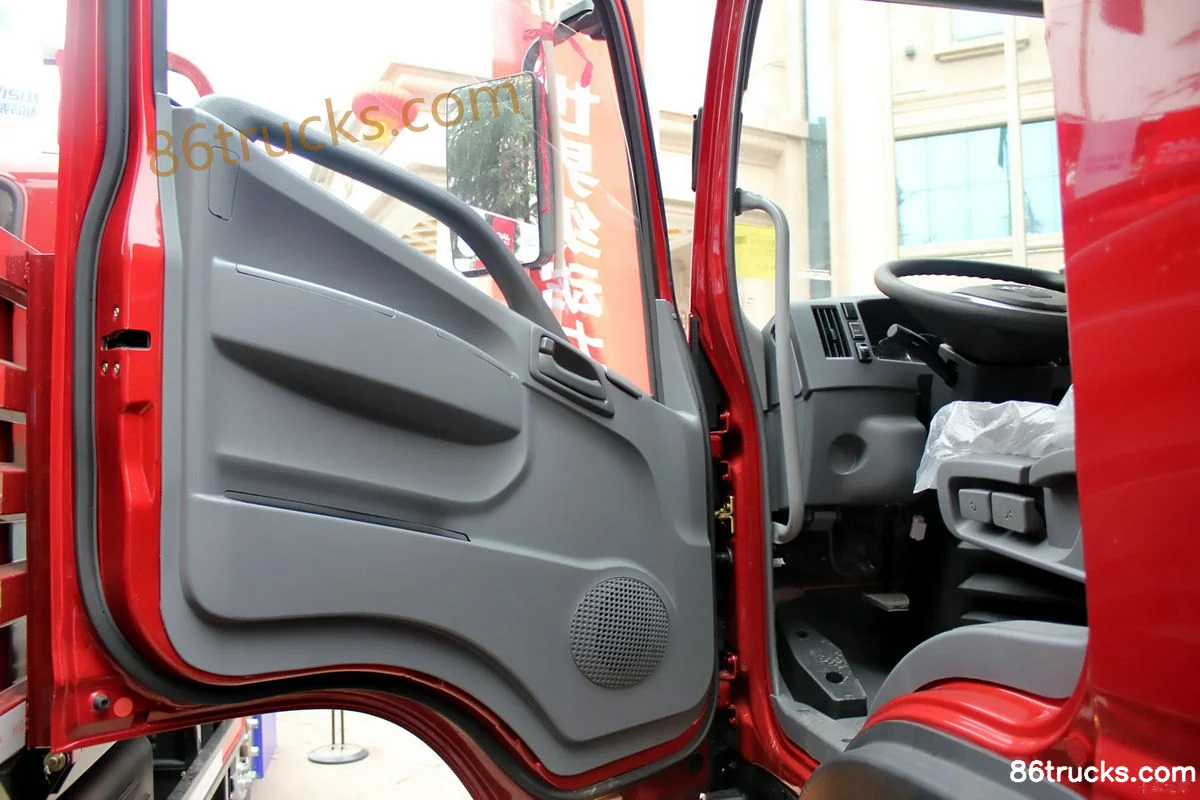

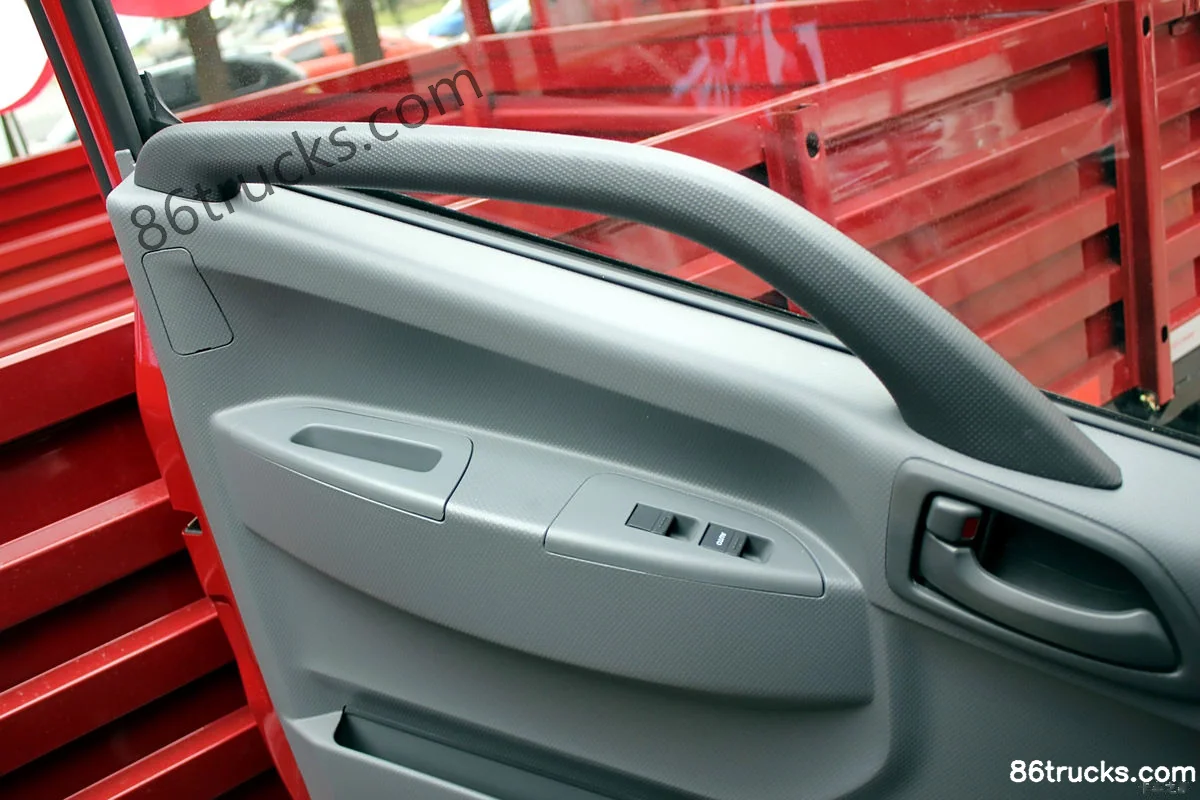

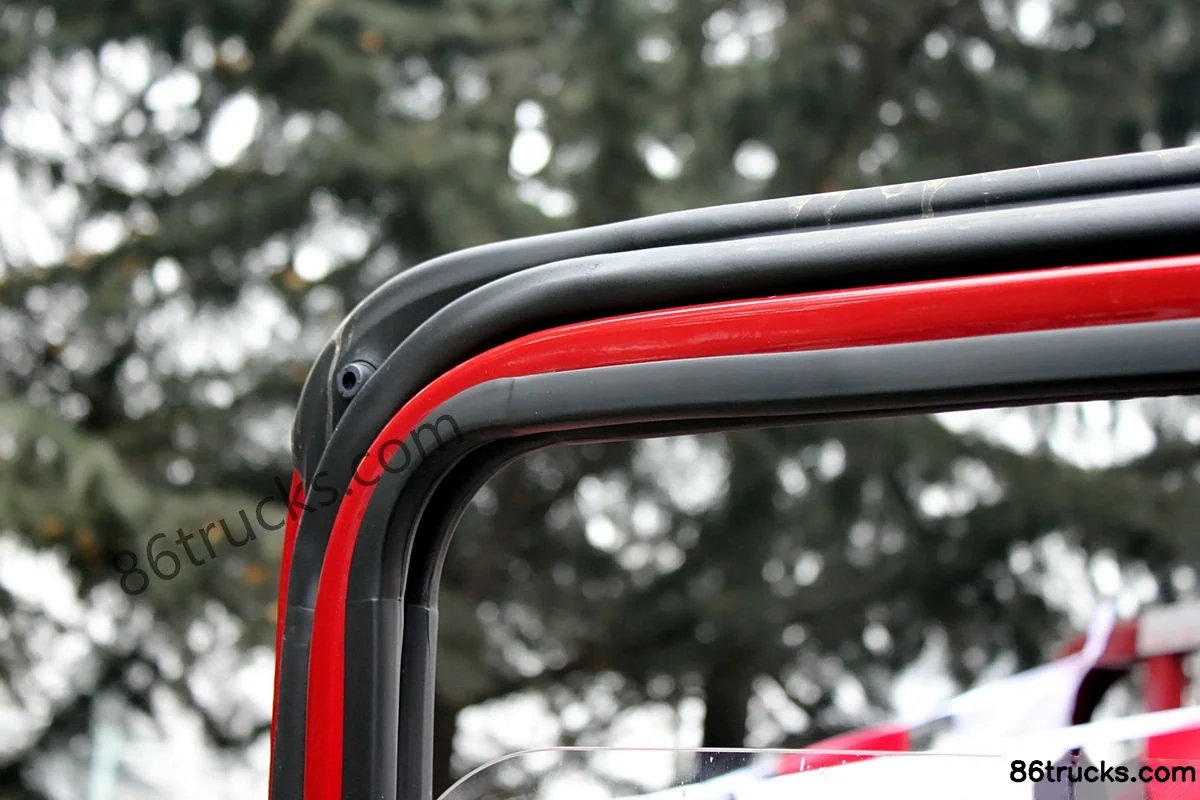

Cab3

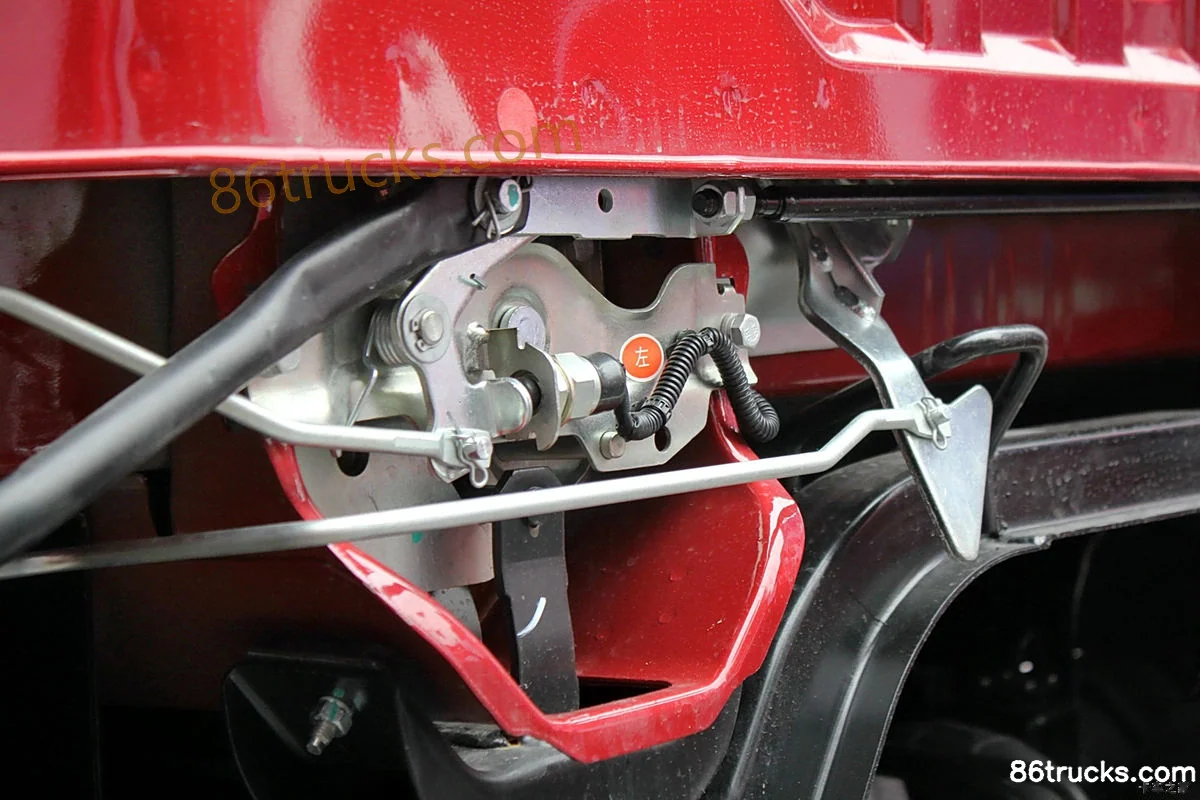

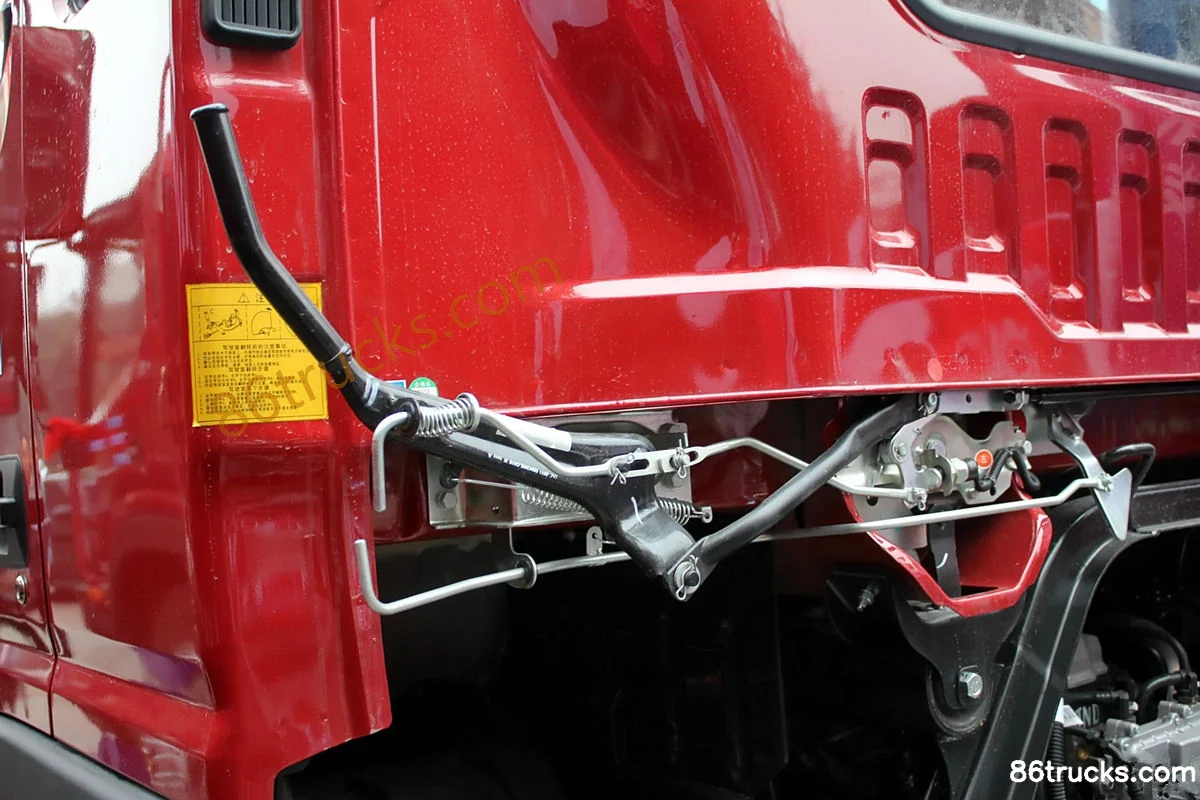

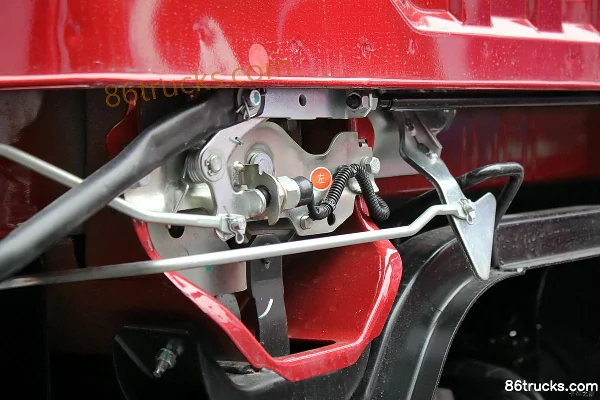

Chassis3

9 photos

FAQ

What is the export price of JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis, and what does it include?

JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis export reference is about From $21,361; MSRP is ¥15.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis?

Key specs of JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis: Drive: 4x2; Horsepower: 165 hp; Emission: China IV; Fuel: Diesel; Engine: MaxxForce 4-cylinder; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis suited for?

JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis differ from other variants in the same series?

JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis belongs to JAC Q9 medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Weisida W530 Medium Truck 165 hp 4X2(6 wheels) 7.5m Van Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
