IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 1875+2864+1400mm
Tire Size:: 315/80R22.5R
Displacement:: 12.8L
Model code (announced):: AT410T56
engine:: FiatF3BE3681B*R
Drive 8X8 (12 wheels)
Horsepower 500
Emission China IV
Transmission ZF

Overview

The IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck is a Heavy truck featuring 8X8 (12 wheels) drive, 500 hp, China IV emissions and 1875+2864+1400mm wheelbase. On the powertrain side, it comes with a FiatF3BE3681B*R engine, ZF transmission and Diesel fuel.

China IV 500 Diesel 8X8

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): AT410T56
Drive type: 8X8
Wheelbase: 1875+2864+1400mm
engine: FiatF3BE3681B*R
transmission: ZFZF16S25I
Rear Axle Ratio: 6.09
Origin: Italy
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Fiat
Engine Model: FiatF3BE3681B*R
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.8L
Emission standard: China IV
Max output power: 368kW
Max hp: 500Horsepower
Max torque: 2300N·m
Max torque speed: 1000-1525rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZFZF16S25I
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 770L
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
rear axle description: AK/DS320 Double Reduction
Axle ratio: 6.09
Tire
Tire Size: 315/80R22.5R
Number of tires: 12pcs

Photos

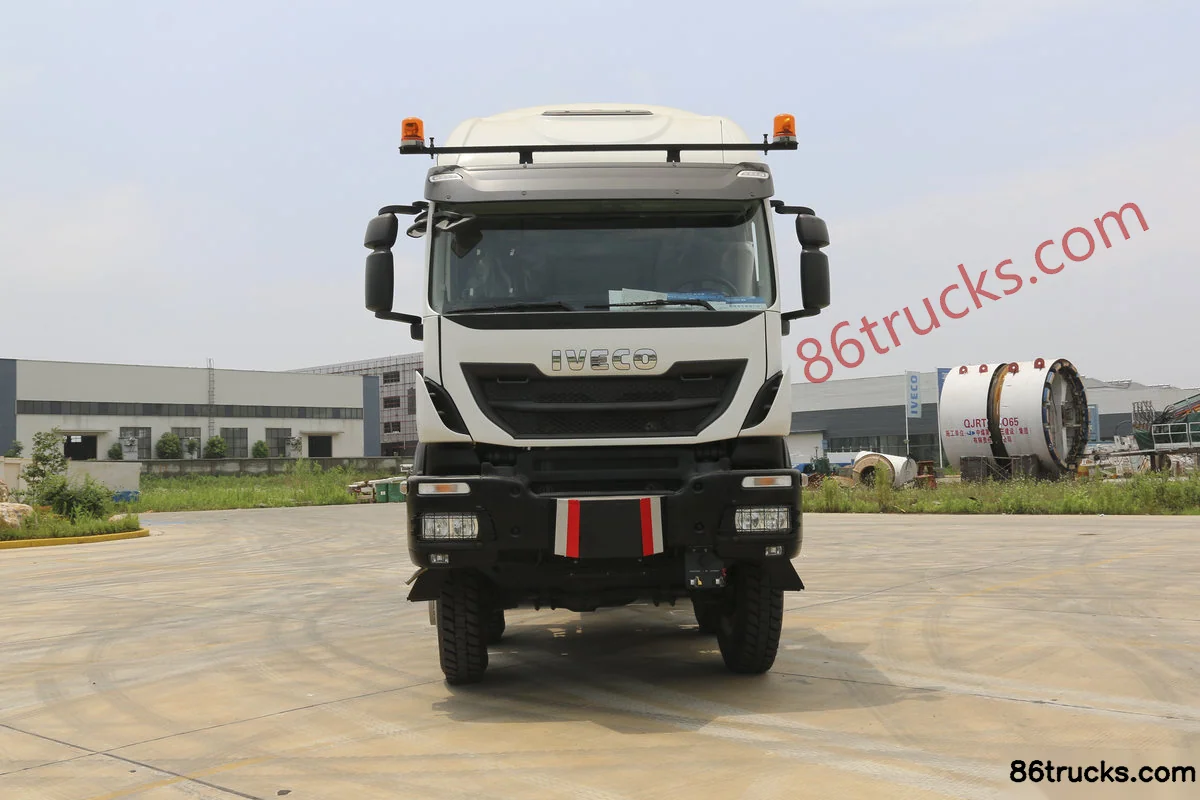

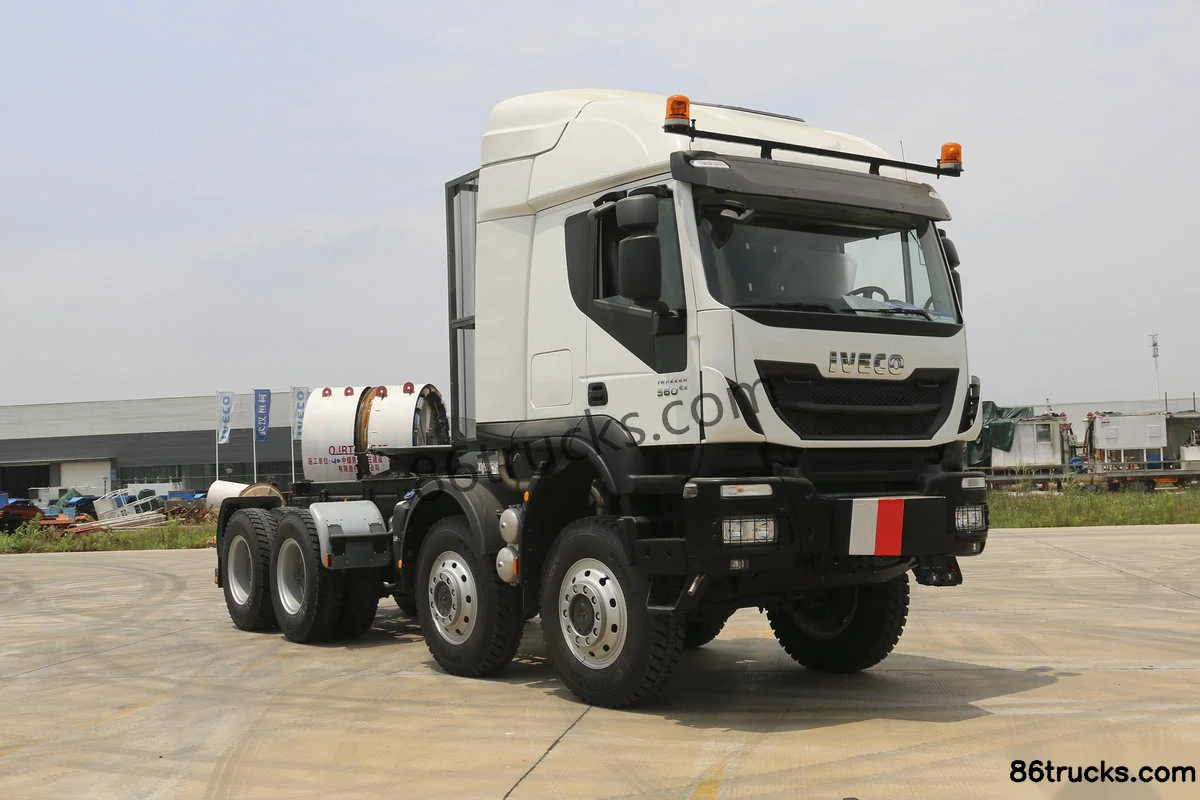

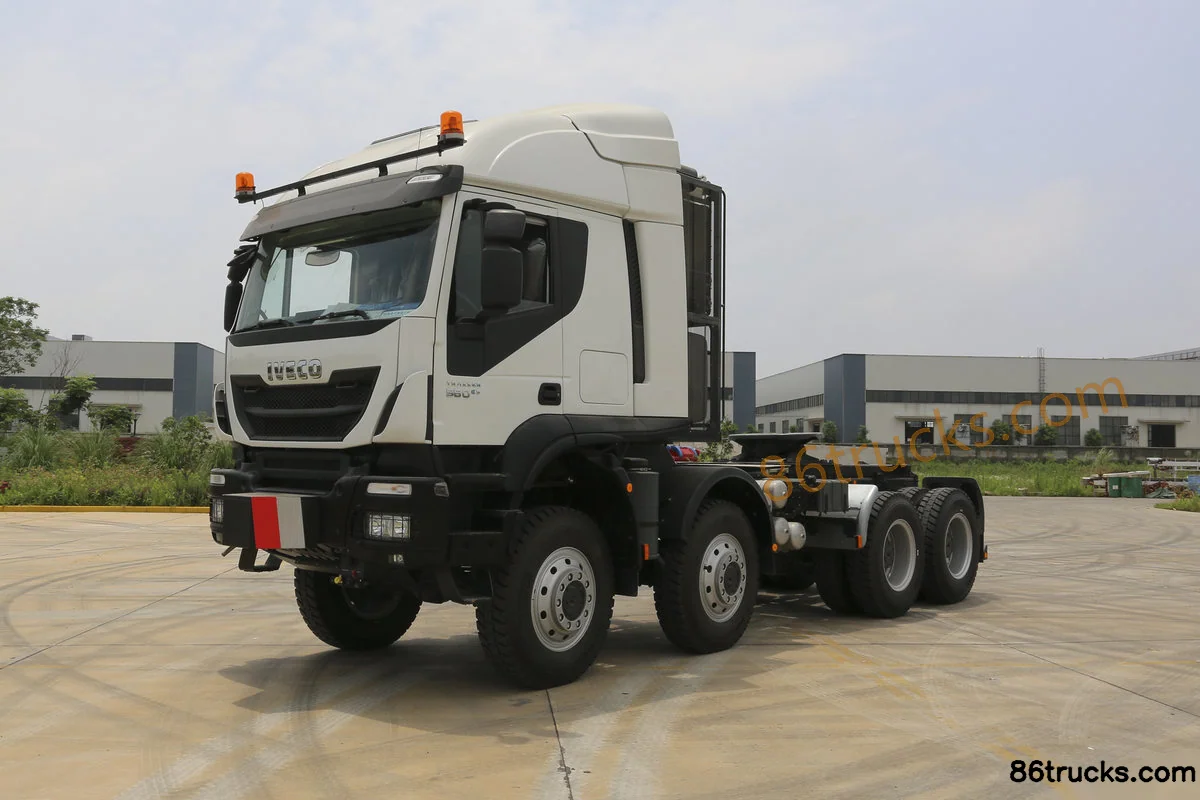

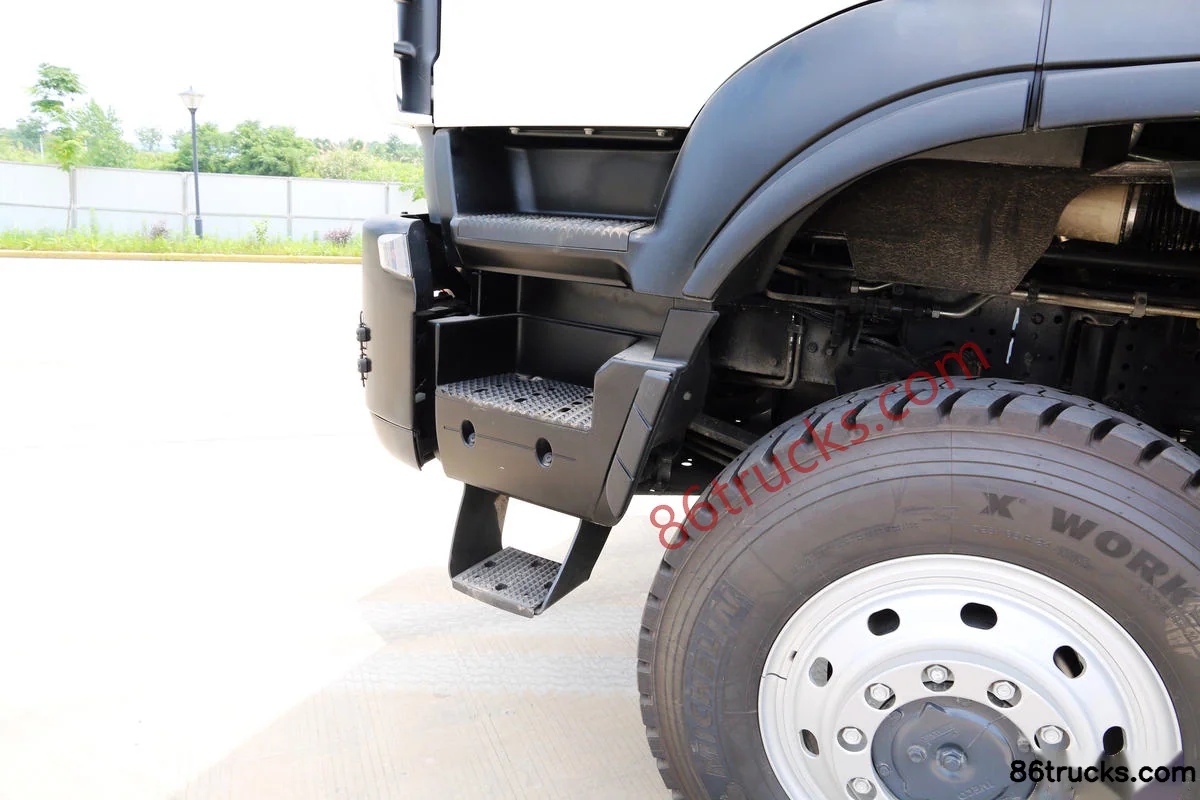

Exterior3

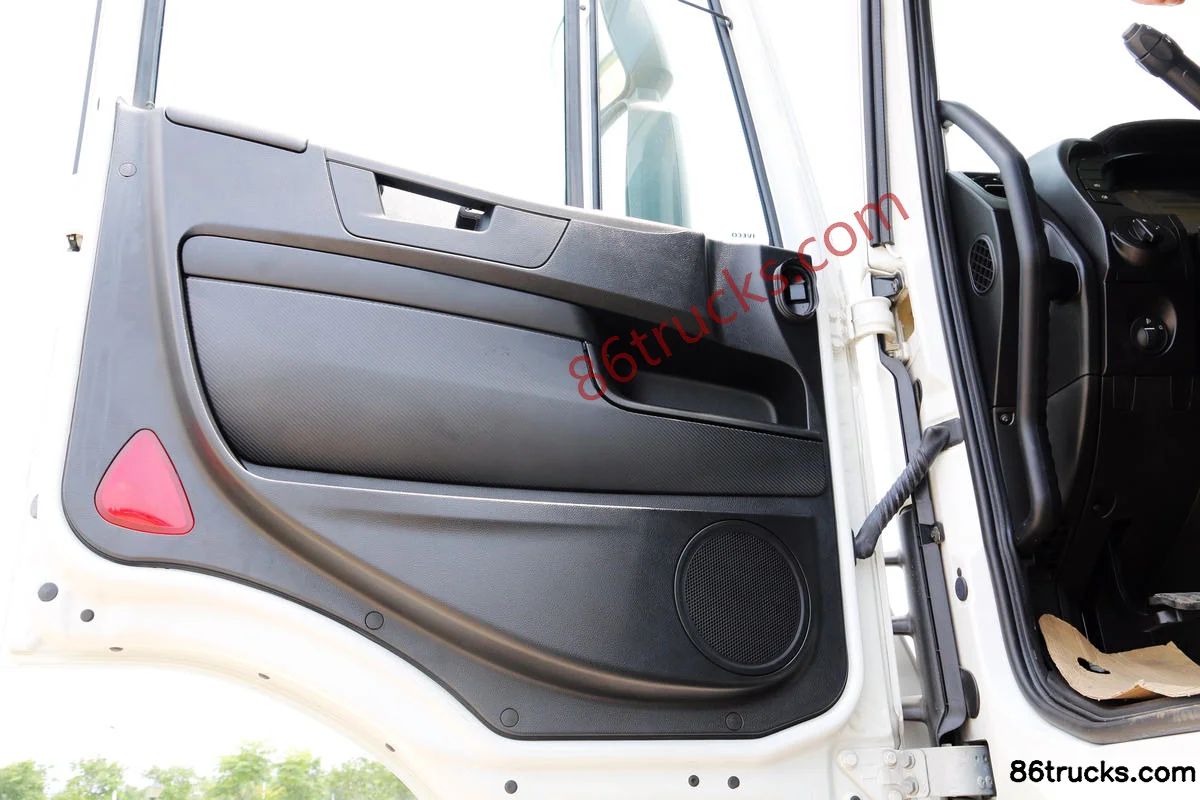

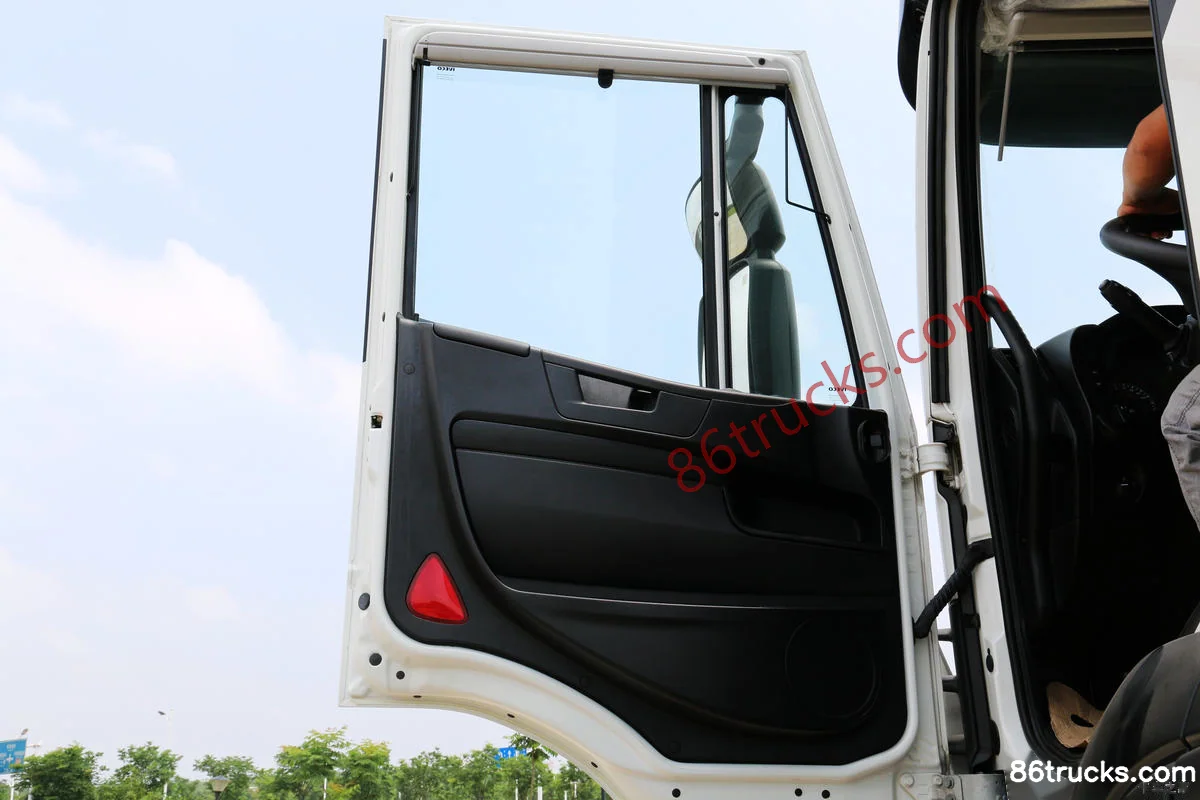

Cab3

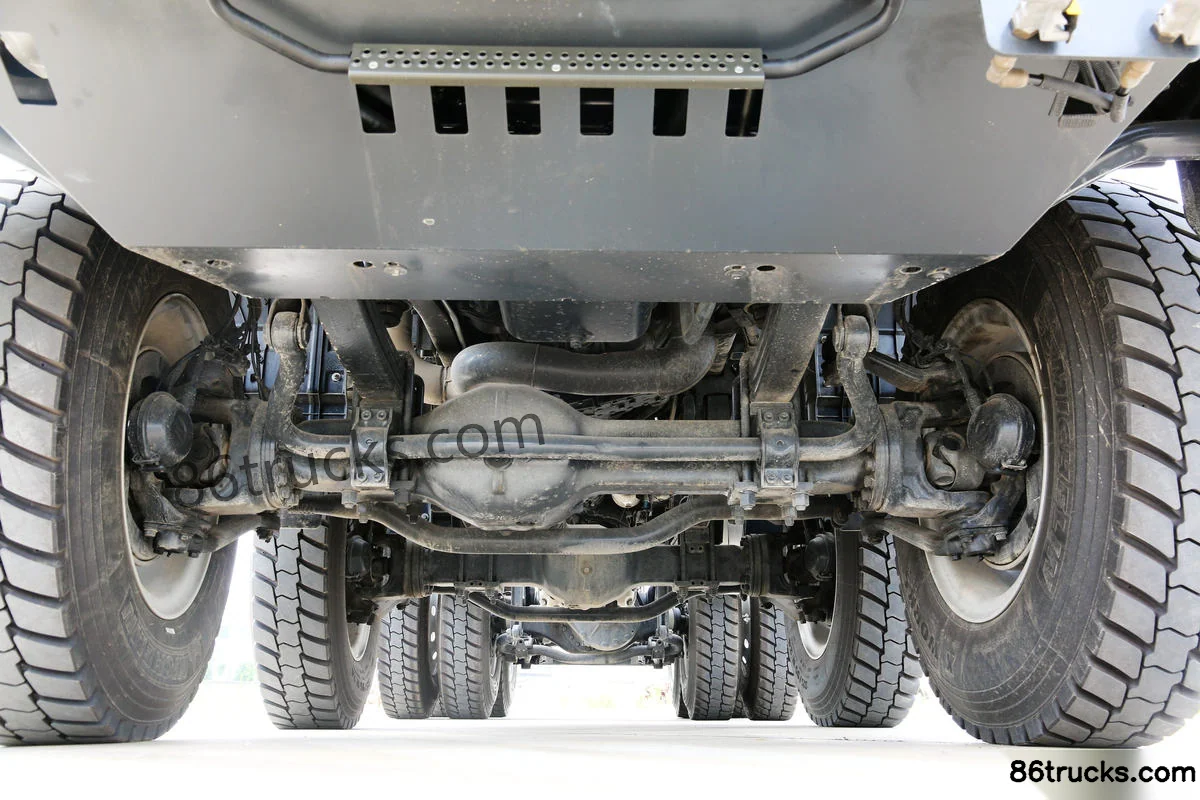

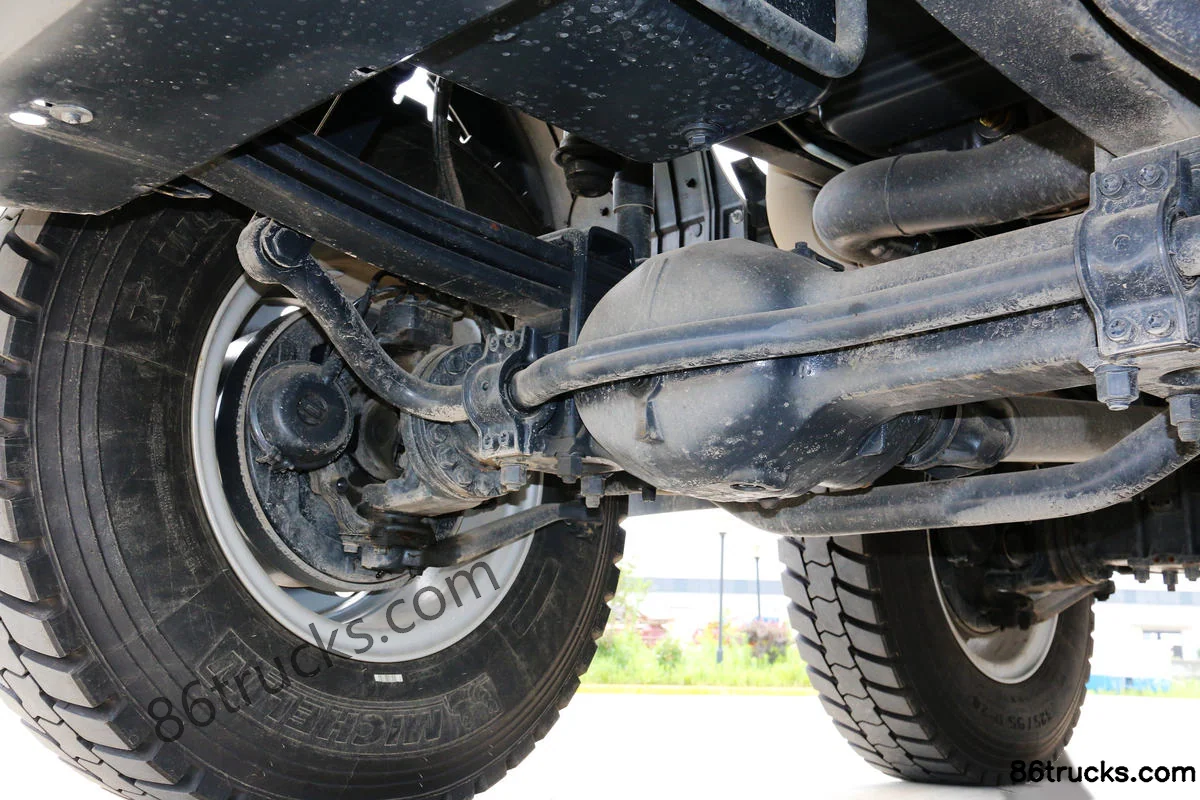

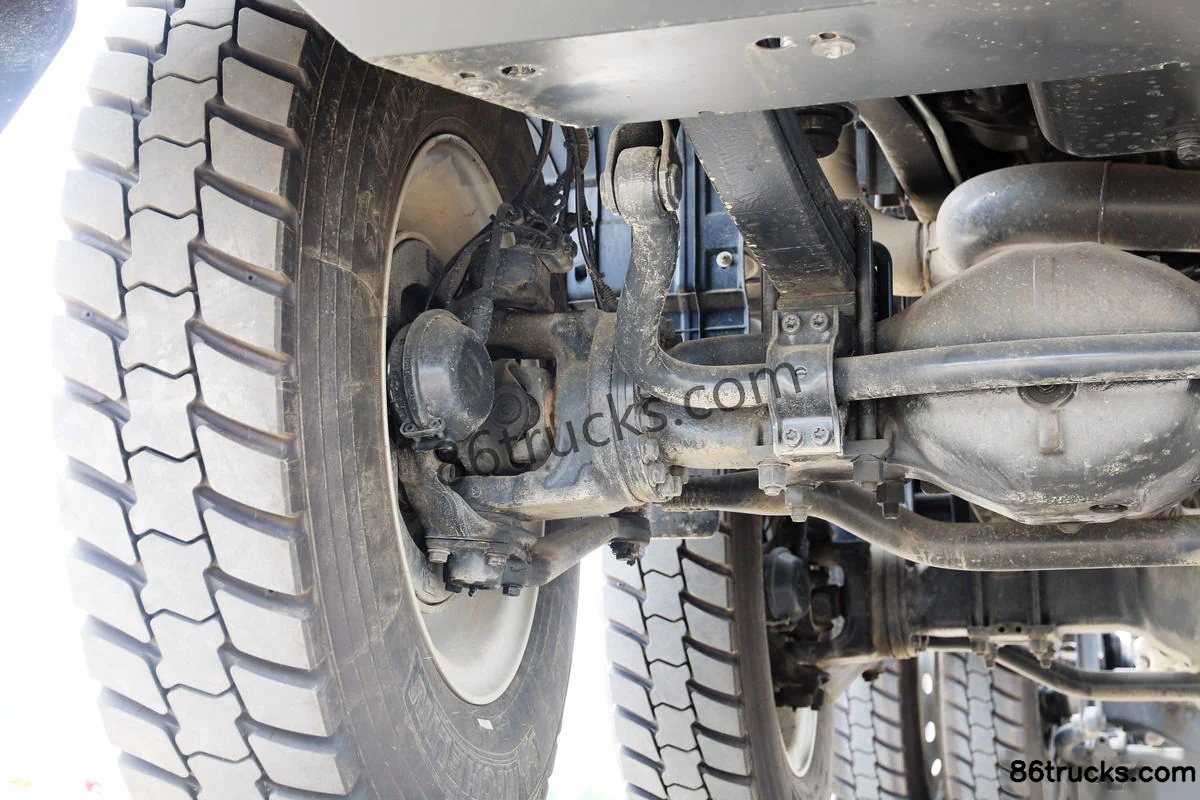

Chassis3

9 photos

FAQ

What emission standard does IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck?

Key specs of IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck: Drive: 8x8; Horsepower: 500 hp; Emission: China IV; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck suited for?

IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck differ from other variants in the same series?

IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck belongs to IVECO Trakker Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export IVECO Trakker Heavy Truck 500hp 8X8(12 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
