Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck

Export reference
From $24,528
MSRP ¥17.66M CNY
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D45
Transmission: WLY
Curb Weight:: 7.82ton
seating capacity: 3Personnel
Rated payload: 9.985ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck is a Medium-duty truck featuring 6.75m cargo length, Stake type cargo body, 3Personnel volume and 9.985t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D45 engine, 220 hp, 4X2 (6 wheels) drive and China V emissions.

China V 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5188CCYF10EB1
Type: stake truck
Drive type: 4X2
Wheelbase: 5200mm
Box length class: 6.8m
engine: Yunnei PowerD45TCIE1
transmission: WLYWLY9TS90
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.545m
Cab height: 3.98m
Front track width: 2020mm
rear track: 1860mm
Curb Weight: 7.82ton
Rated payload: 9.985ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Yong'an, Fujian
tonnage class: Medium-duty truck
Approach angle: 20.5°
departure angle: 16°
market segment: Agricultural product transport, green channel
Remarks: 4.33, 5.286, 5.833 rear axle ratio
Front/rear suspension: 1.43/2.37m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD45TCIE1
Engine info: Yunnei Dewei D45
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.46L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 820N·m
Max torque speed: 1200-2800rpm
Rated speed: 2400rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: WLYWLY9TS90
Transmission Brand: WLY
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.4m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: D13F Semi-floating
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 145
Front axle allowable load: 6500kg
Frame Dimensions: 232 single-layermm
rear axle description: 1118
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 11/9+8,9/11+8,8/10+8
Tire
Tire Size: 10.00R20,11R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

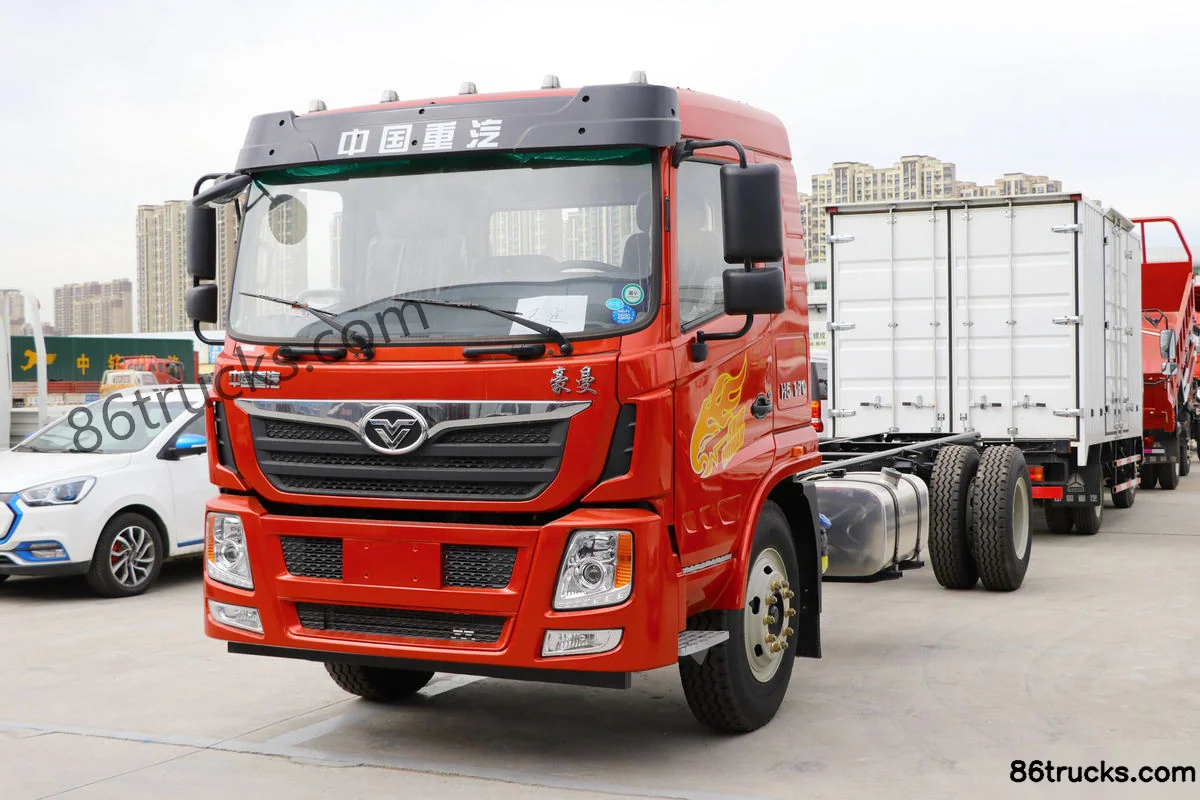

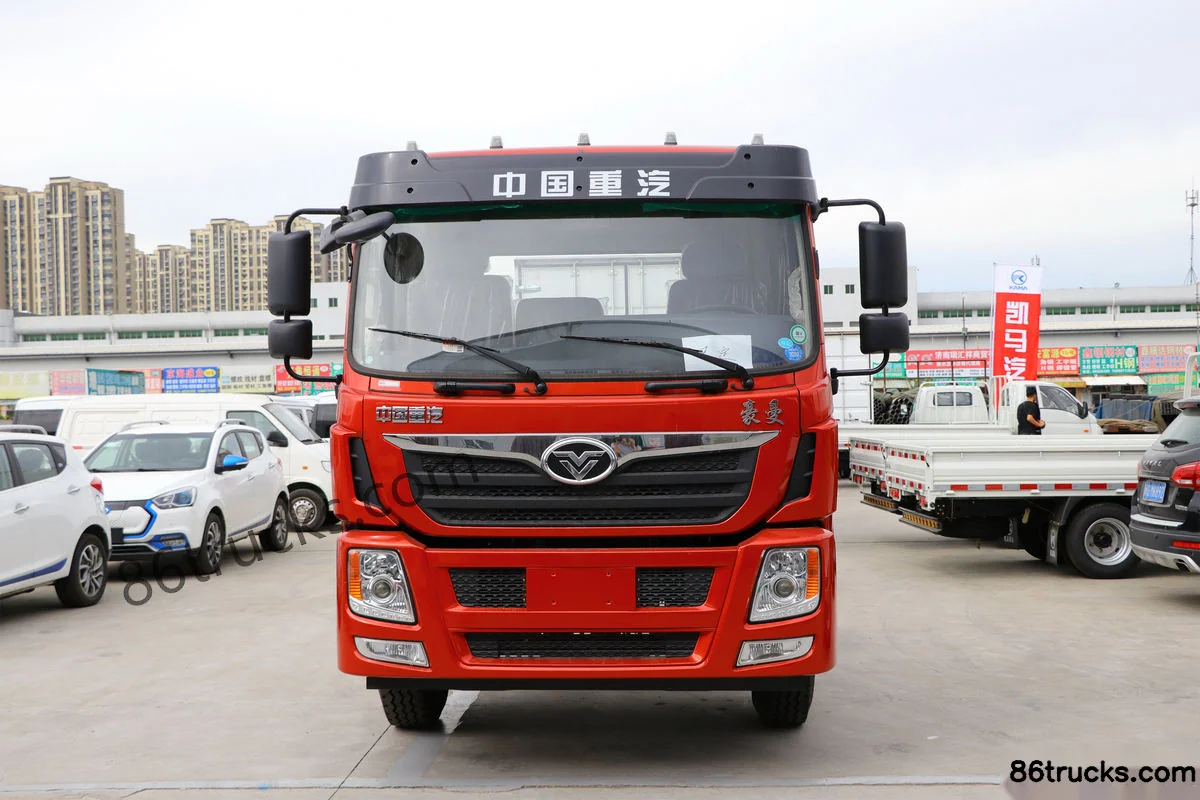

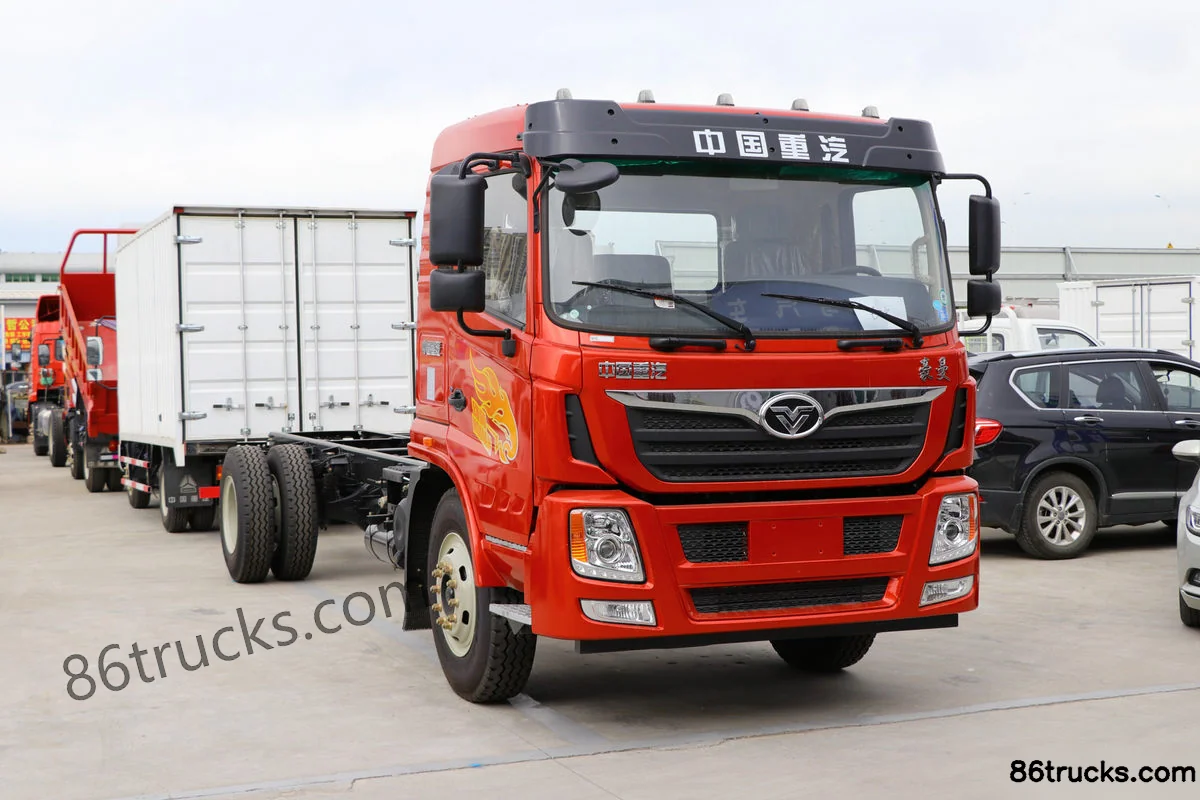

Exterior3

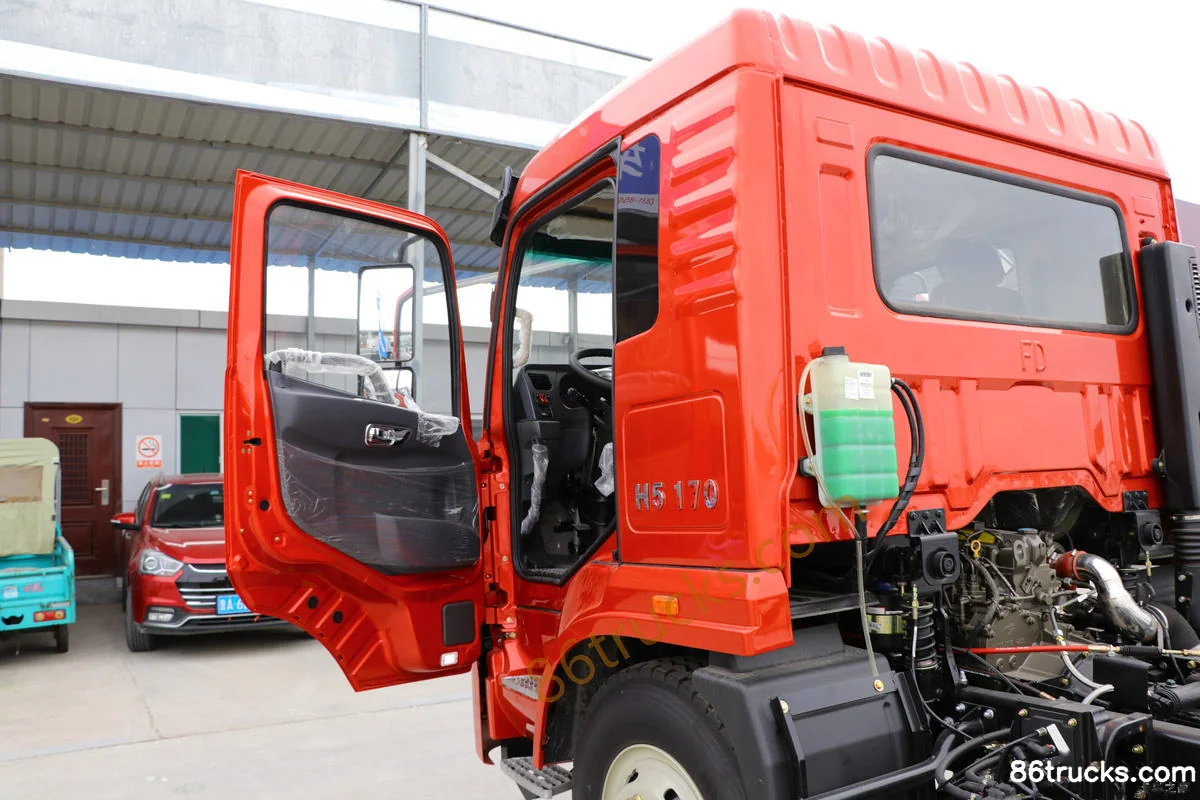

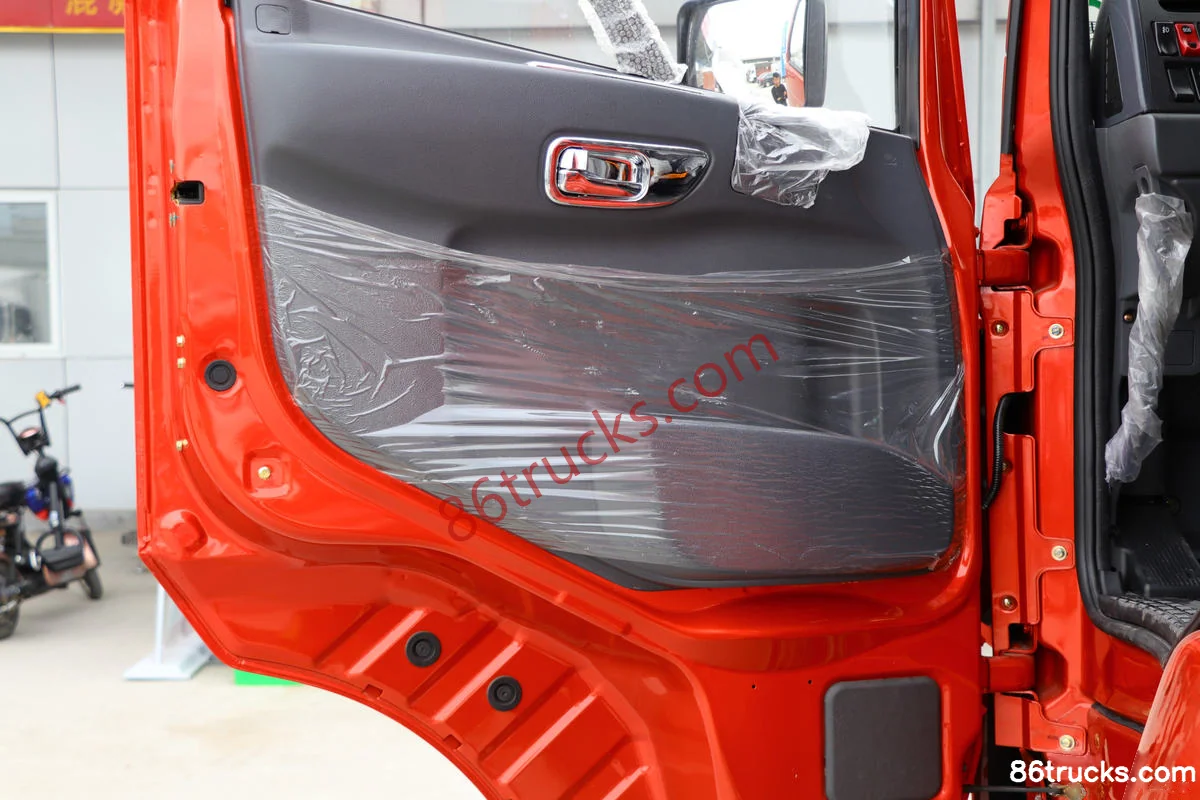

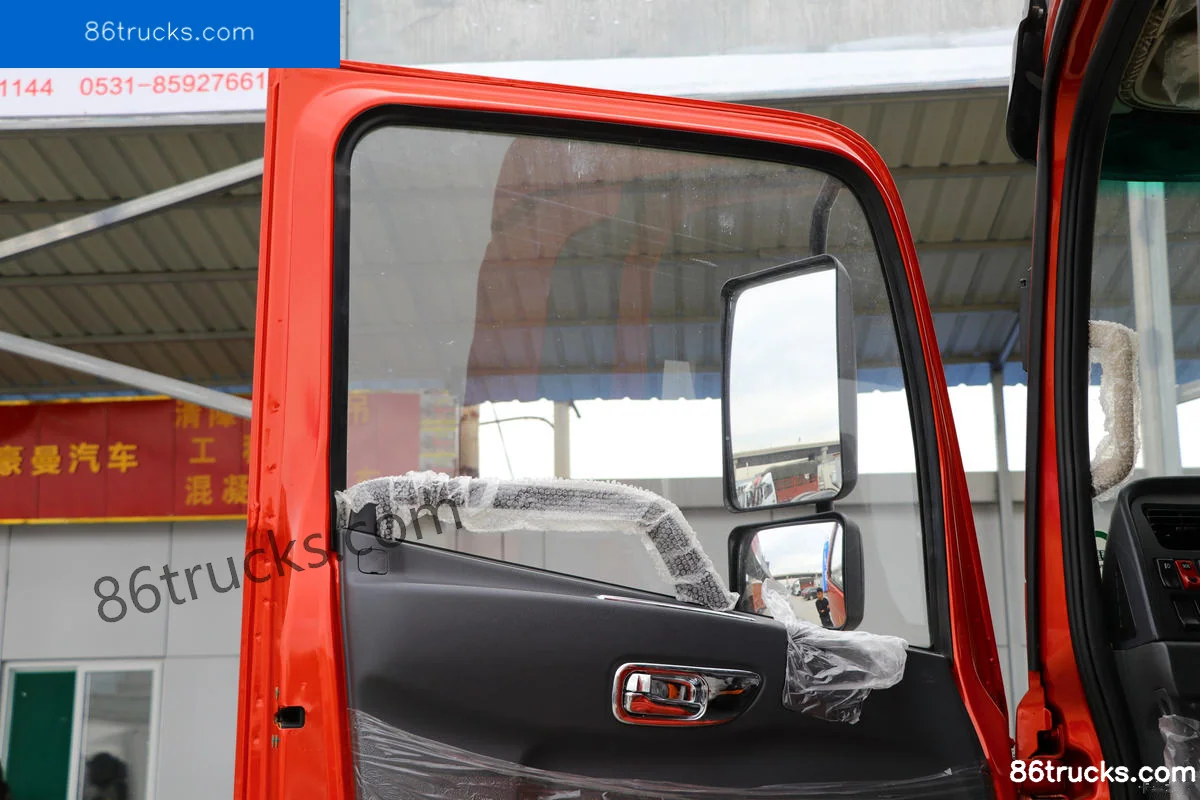

Cab3

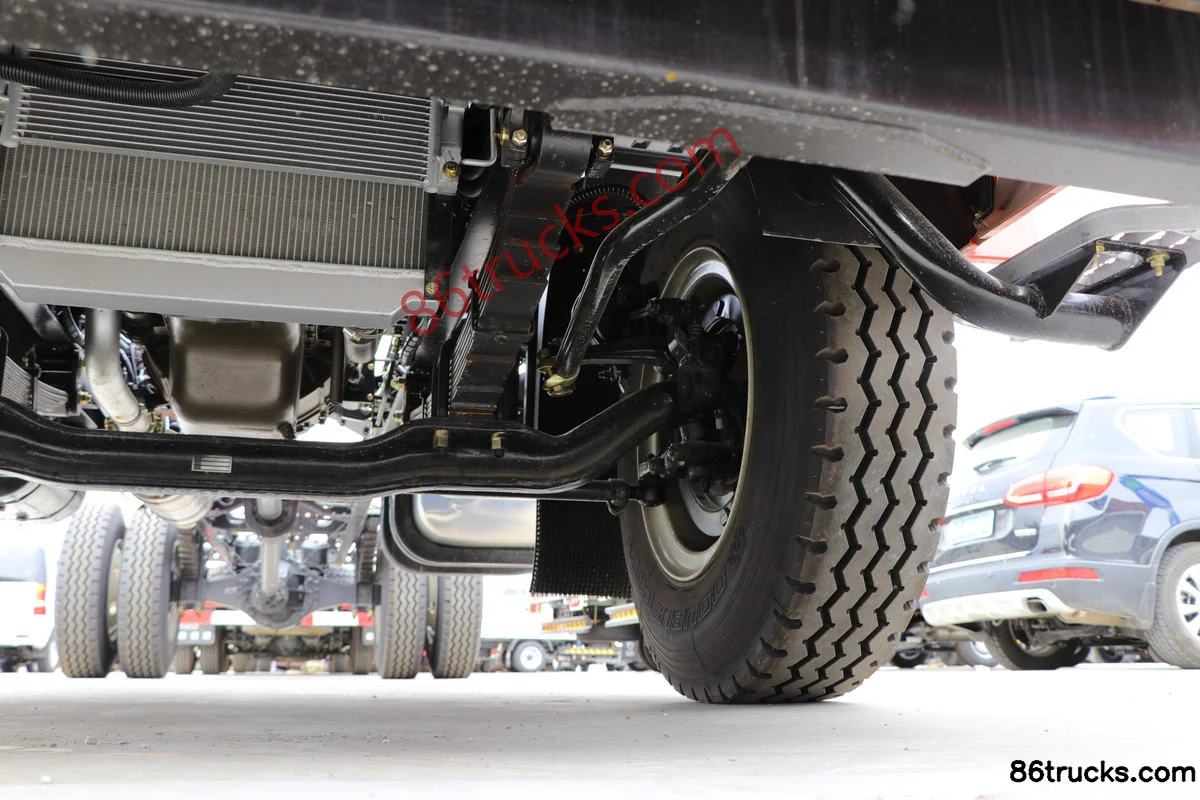

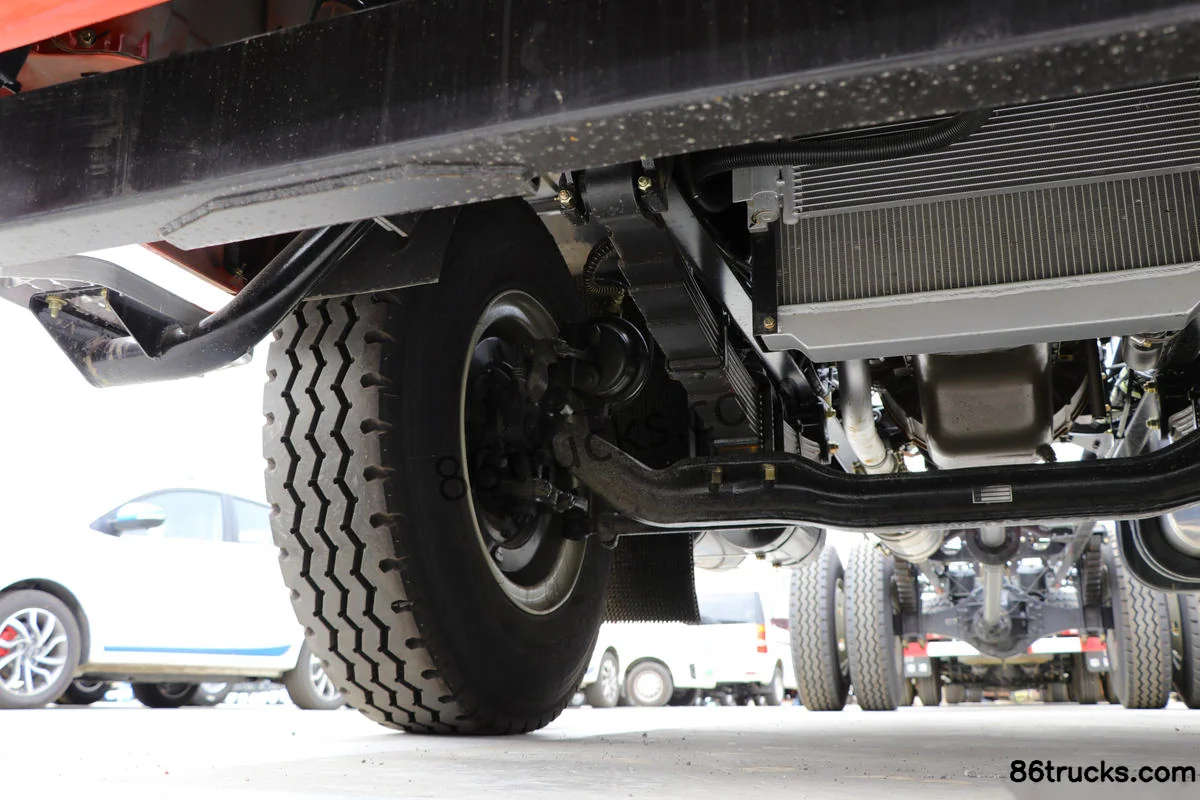

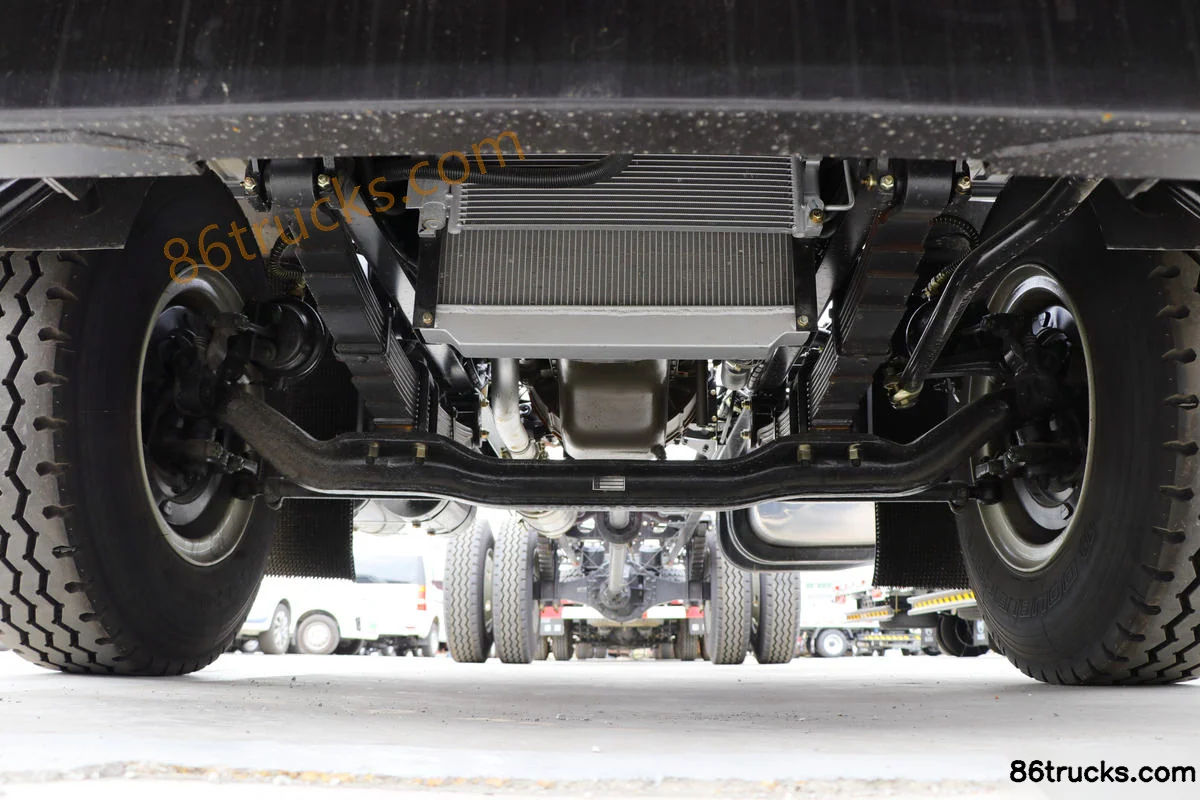

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck, and what does it include?

Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck export reference is about From $24,528; MSRP is ¥17.66M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck?

Key specs of Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck: Drive: 4x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D45; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck suited for?

Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck differ from other variants in the same series?

Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck belongs to Sinotruk H5 near-heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman H5 Medium Truck 220hp 4X2(6 wheels) 6.75m stake cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
