SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 270
Emission: China V
Fuel: Diesel
Engine: WeichaiWP7
Transmission: Fast Gear
Curb Weight:: 9.57ton
SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck exterior
View more photos (6)
seating capacity: 2Personnel
Rated payload: 9.3ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck is a Heavy-duty cargo trucks featuring 9.8m cargo length, Van body cargo body, 2Personnel volume and 9.3t payload. On the powertrain side, it comes with a WeichaiWP7 engine, 270 hp, 4X2 (6 wheels) drive and China V emissions.

China V 270 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SX5198XXYML701
Type: enclosed cargo truck
Drive type: 4X2
Box length class: 9.8m
engine: WeichaiWP7.270E51
transmission: Fast Gear10JSD160
Rear Axle Ratio: 3.083
Curb Weight: 9.57ton
Rated payload: 9.3ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy-duty cargo trucks
Version: Lightweight version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP7.270E51
Engine info: WeichaiWP7
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.47L
Emission standard: China V
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, electronic high-pressure common rail, SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD160
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.8m
Cargo box width: 2.45m
Cargo box height: 2.75m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: Van body
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: Hande 5.5T MAN technology
Frame Dimensions: 850x270(8+5)mm
rear axle description: Hande 11.5t MAN technology single axle
Axle ratio: 3.083
Tire
Tire Size: 295/80R22.5
Number of tires: 6pcs

Photos

Exterior3

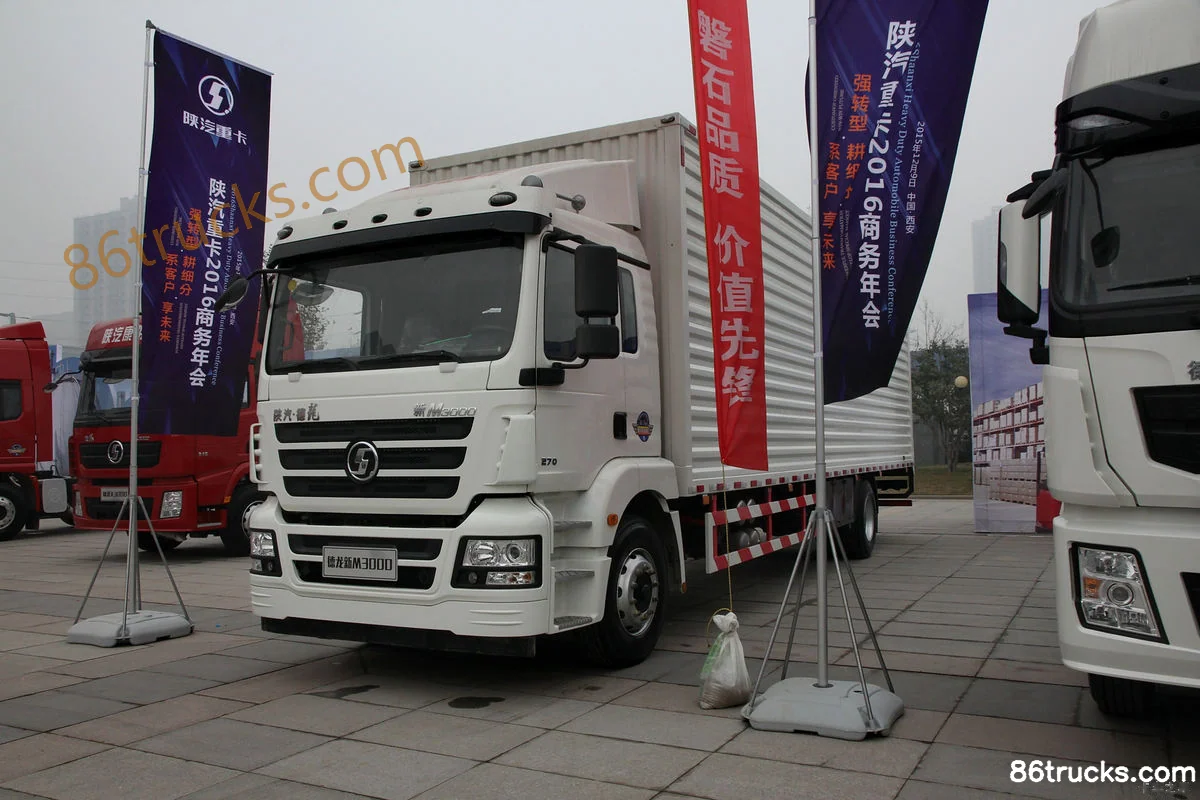

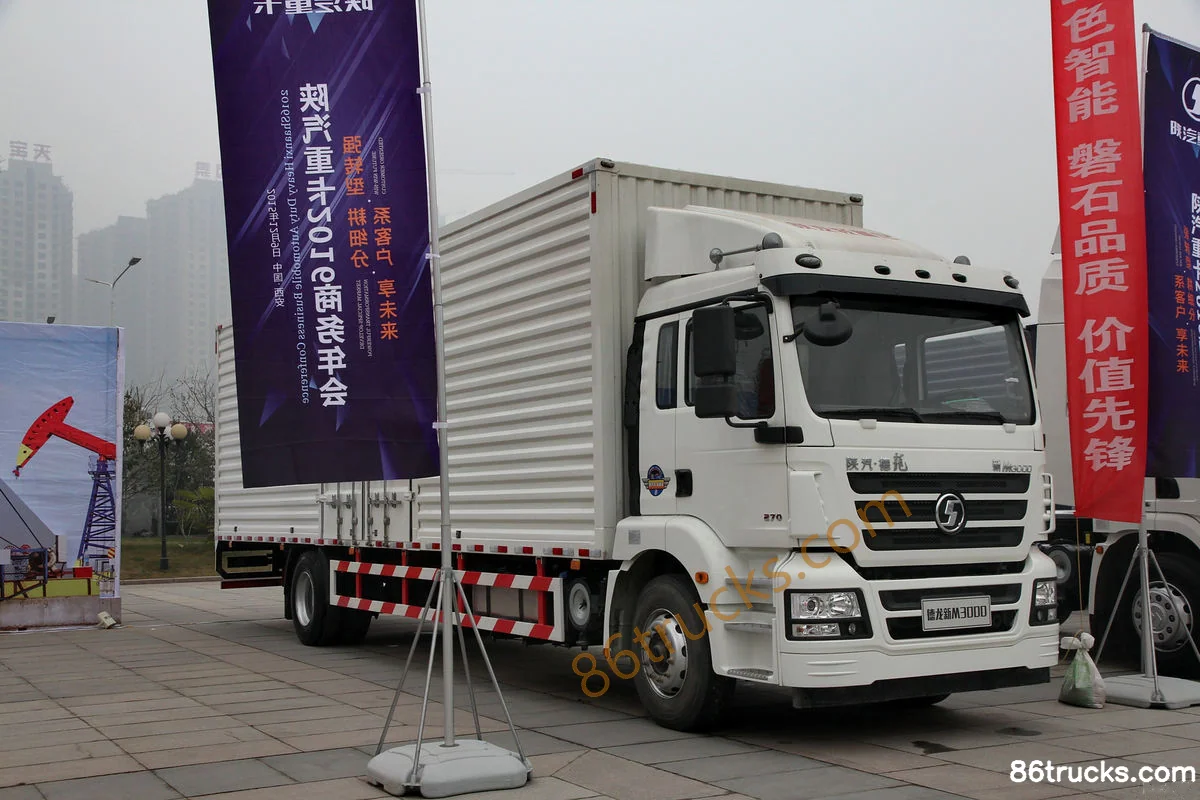

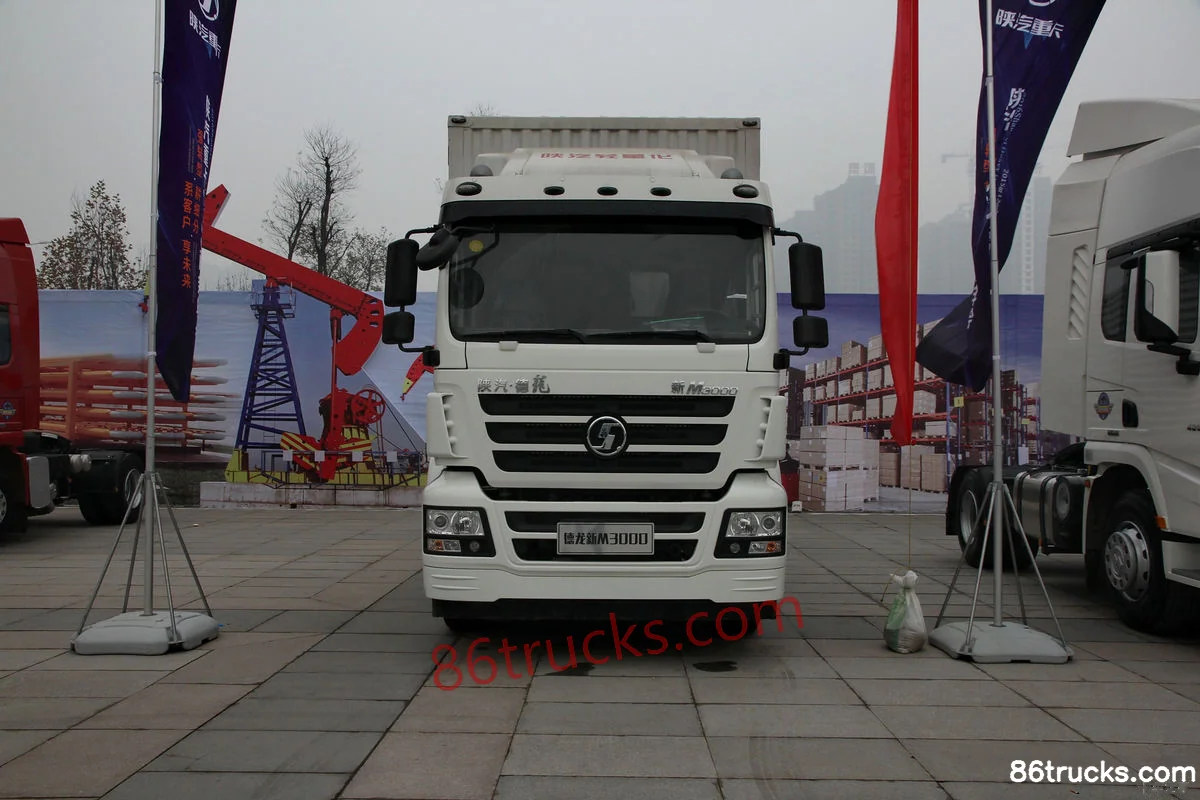

SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck Exterior (1) | 86Trucks SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck Exterior (2) | 86Trucks SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck Exterior (3) | 86Trucks

Chassis3

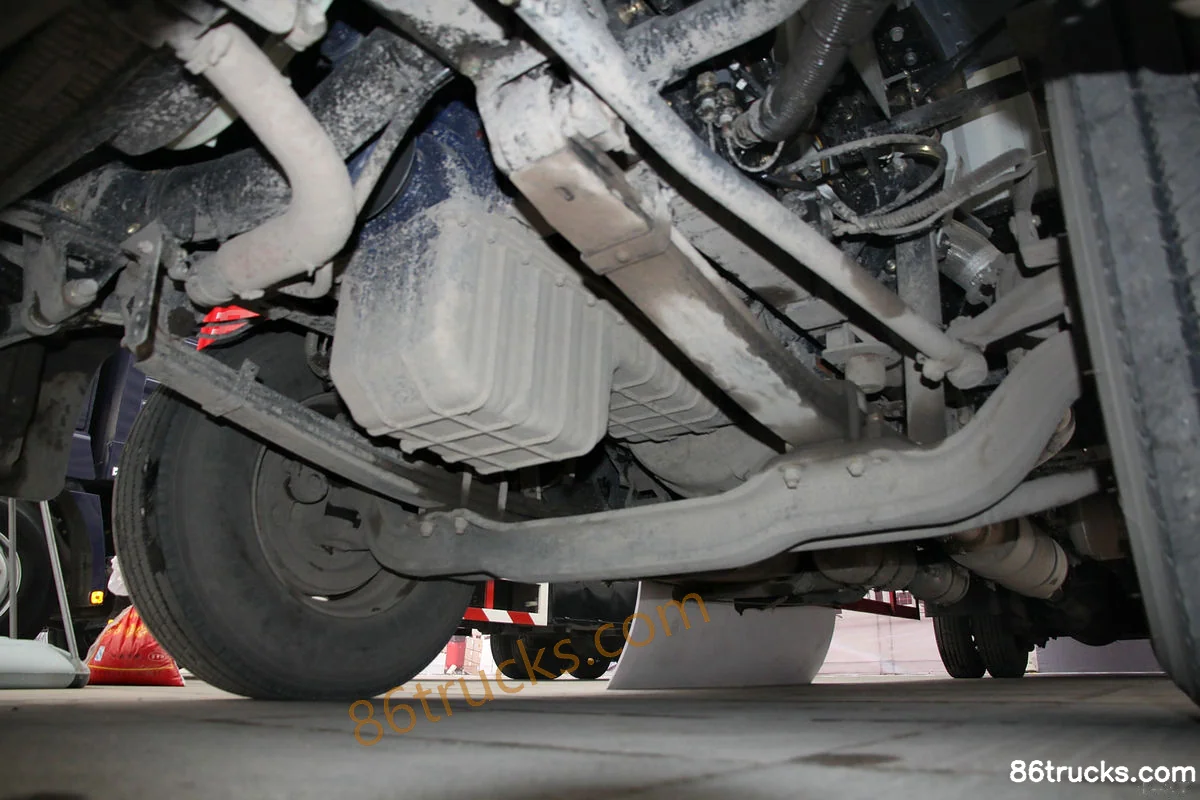

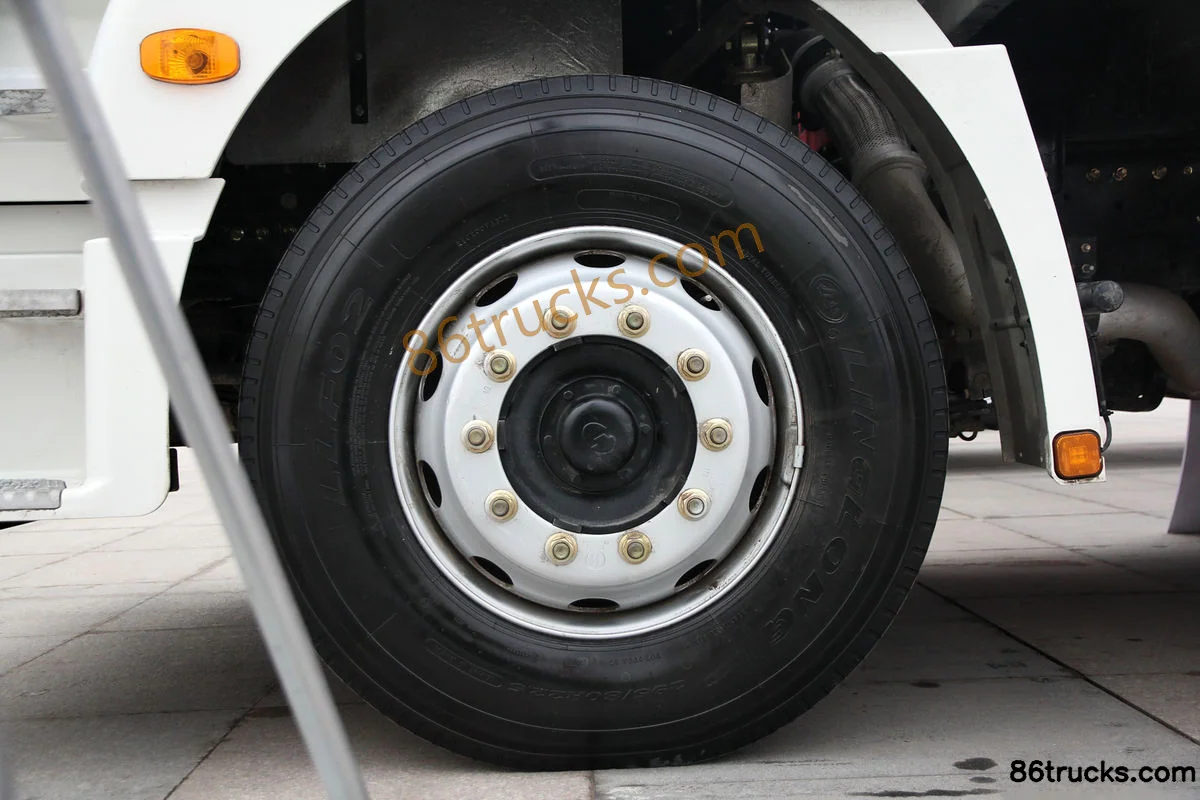

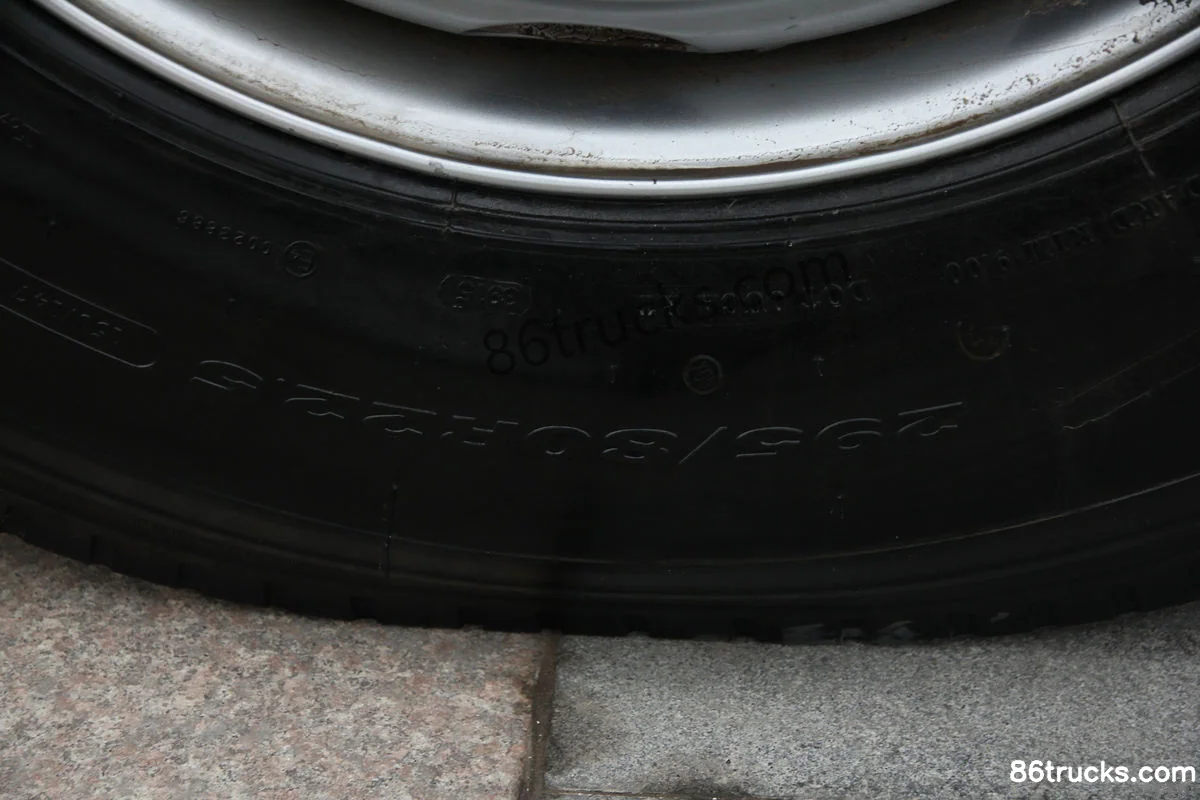

SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck Chassis (1) | 86Trucks SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck Chassis (2) | 86Trucks SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck Chassis (3) | 86Trucks

6 photos

FAQ

What emission standard does SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck?

Key specs of SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck: Drive: 4x2; Horsepower: 270 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP7; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck suited for?

SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck differ from other variants in the same series?

SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck belongs to SHACMAN Delong New M3000 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 Lightweight Version 270hp 4X2(6 wheels) 9.8m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
