Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels)

Export reference
From $30,528
MSRP ¥21.98M CNY
Curb Weight:: 2.935ton
Rated payload:: 1.43ton
Wheelbase:: 3360mm
Cargo box type:: Stake type
Emission: China VI
Model code (announced):: FD5040CCYW17SHEV-1
Drive 4X2 (6 wheels)
CLTC range: 100km
Motor 1 Brand: Hande
Horsepower 122

Overview

The Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels) is a Light Truck featuring 100km battery/range, Hande motor, 4X2 (6 wheels) drive and 1.43t payload. On the powertrain side, it comes with 122 hp.

China VI 122 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD5040CCYW17SHEV-1
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.16m
Cab height: 2.95m
CLTC range: 100km
Curb Weight: 2.935ton
Rated payload: 1.43ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Rizhao, Shandong
tonnage class: Light Truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Hande
Motor 1 Model: TZ220XS-HD003
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hybrid
total rated power: 60kW
Peak power: 120kW
Battery/Charging
Battery Brand: Lishen
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 41.6kWh
Engine parameters
Engine Model: Chongqing Sokon Power H15RT
Number of cylinders: 4cylinder
Displacement: 1.5L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.15m
Cargo box width: 2.1m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1840kg
rear axle allowable load: 2655kg
Tire
Tire Size: 7.00R16LT 8PR,7.00R16 10PR,7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
smart configuration
Cruise control (CCS):

Photos

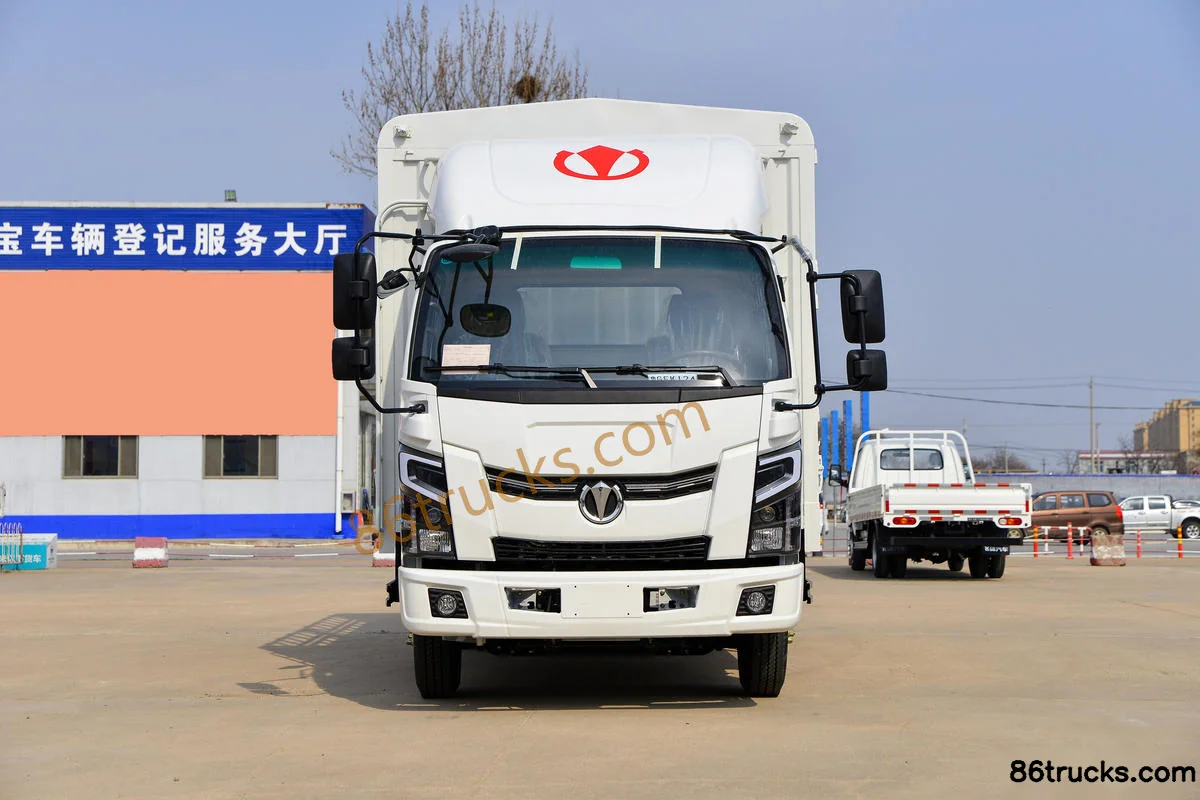

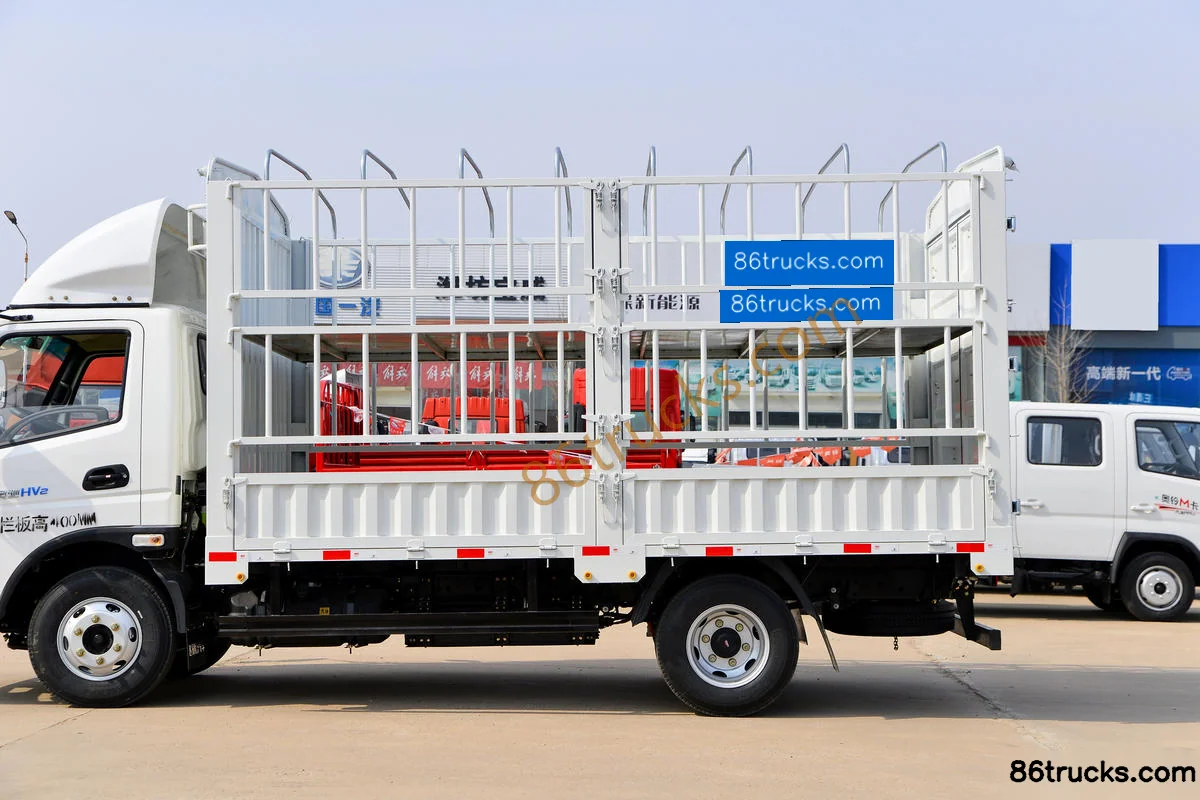

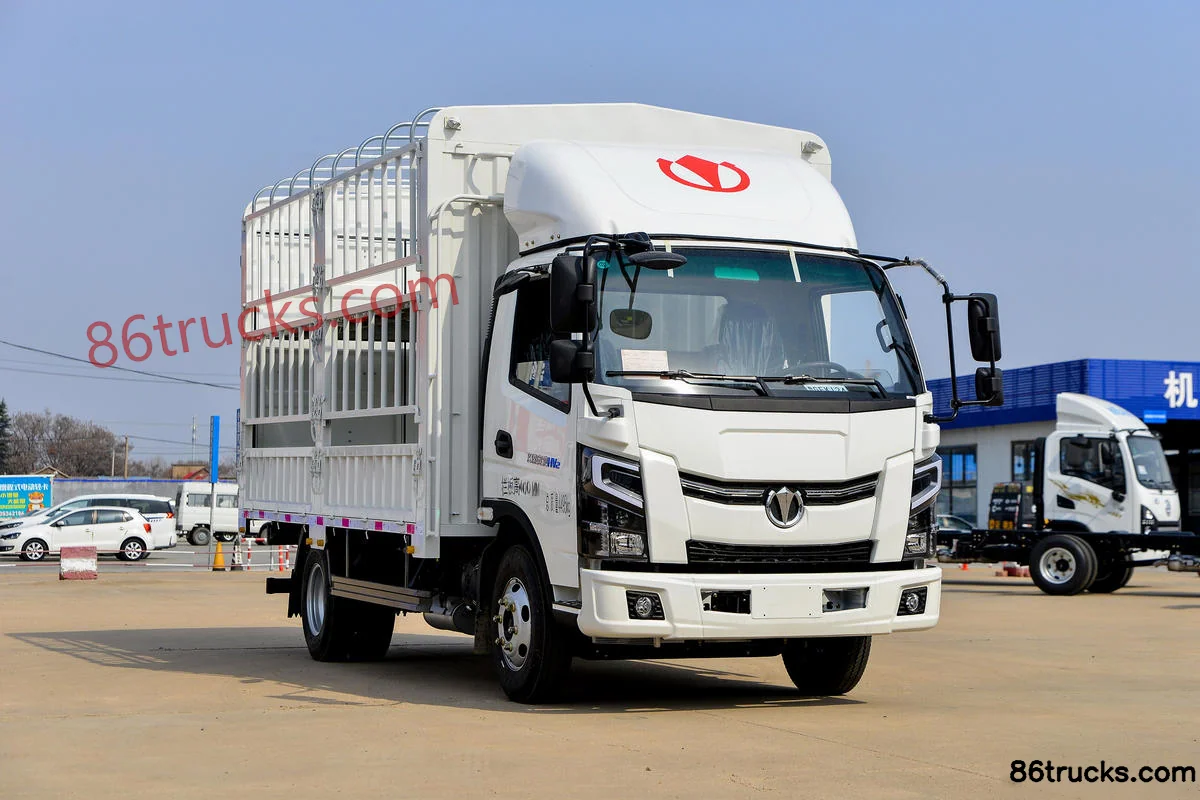

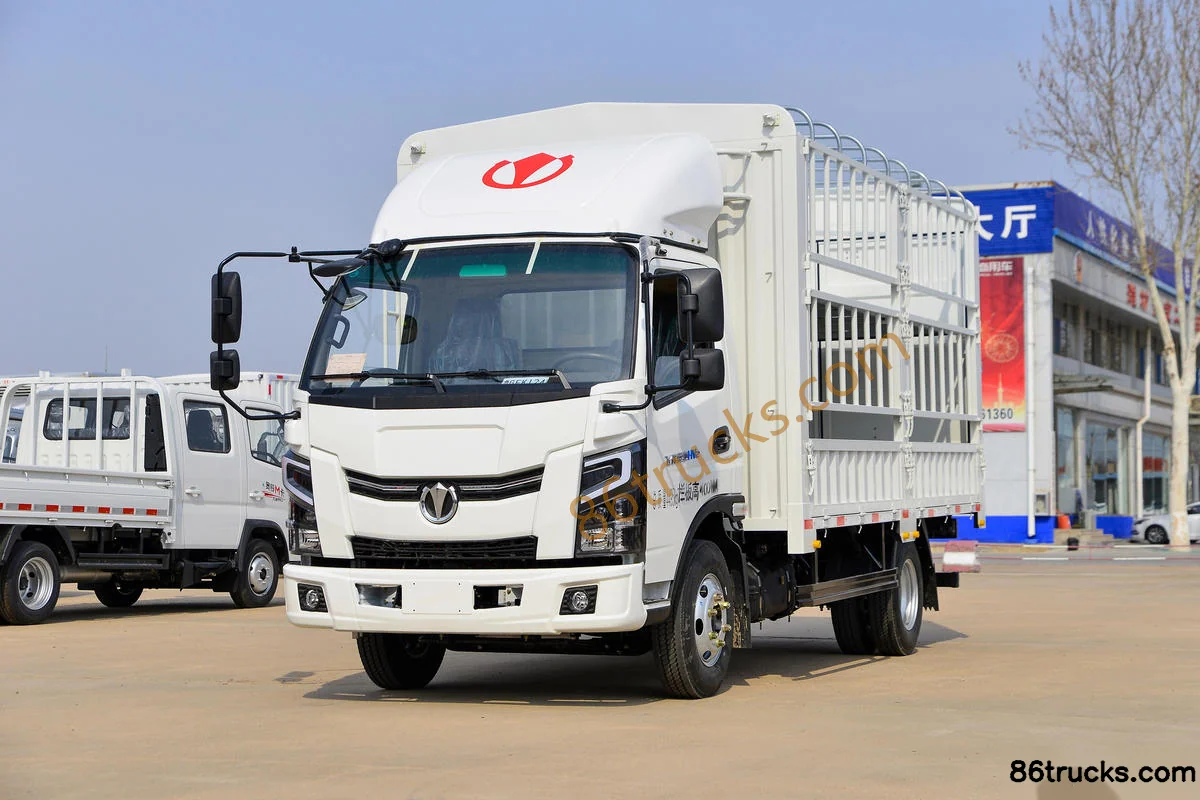

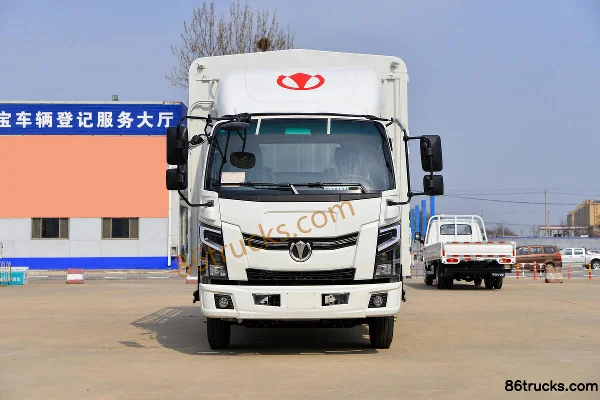

Exterior3

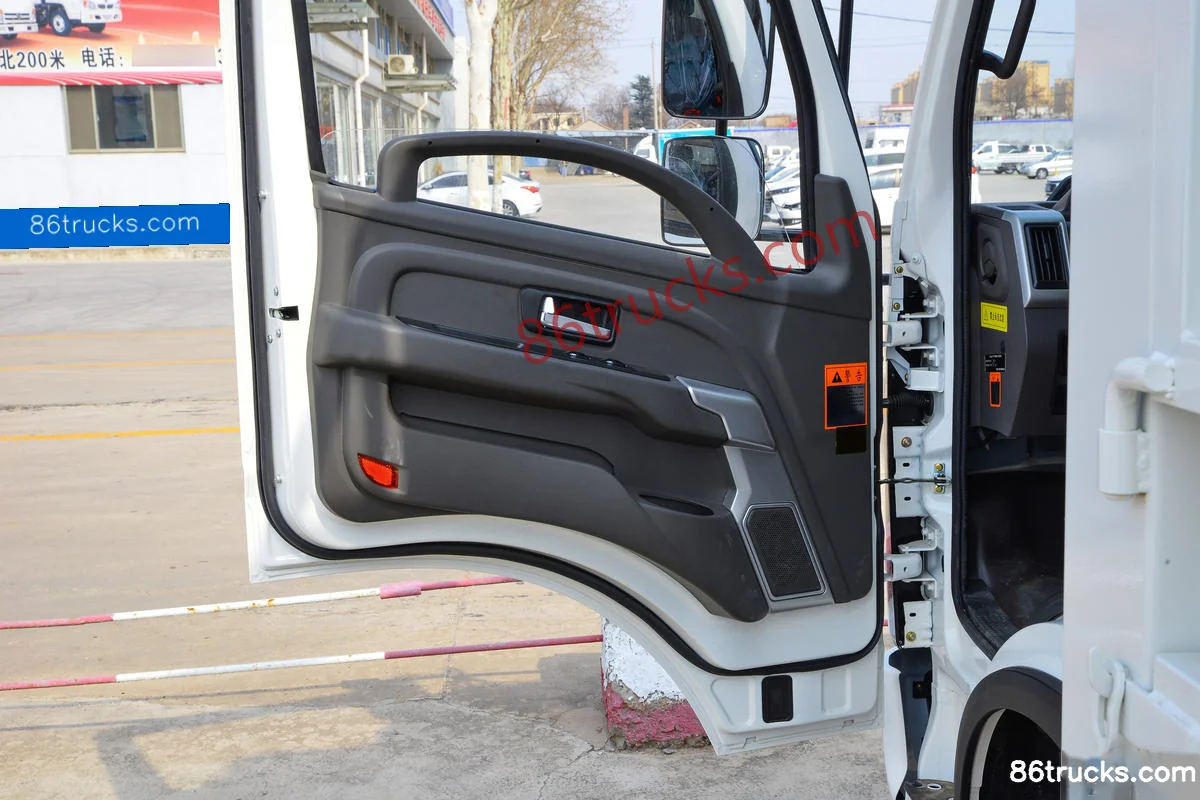

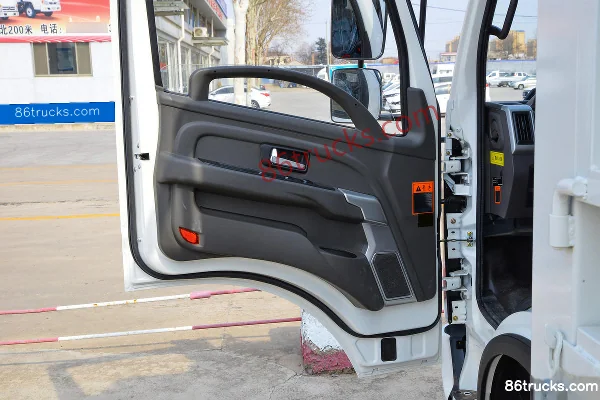

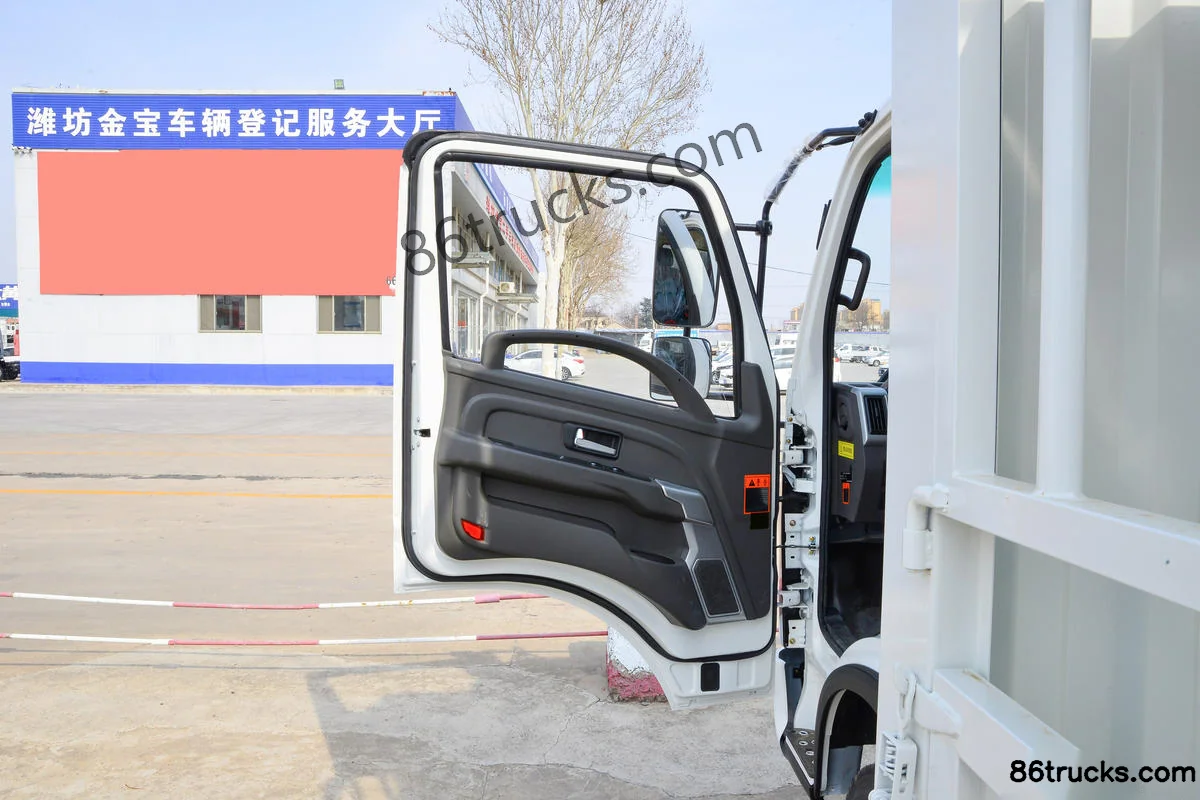

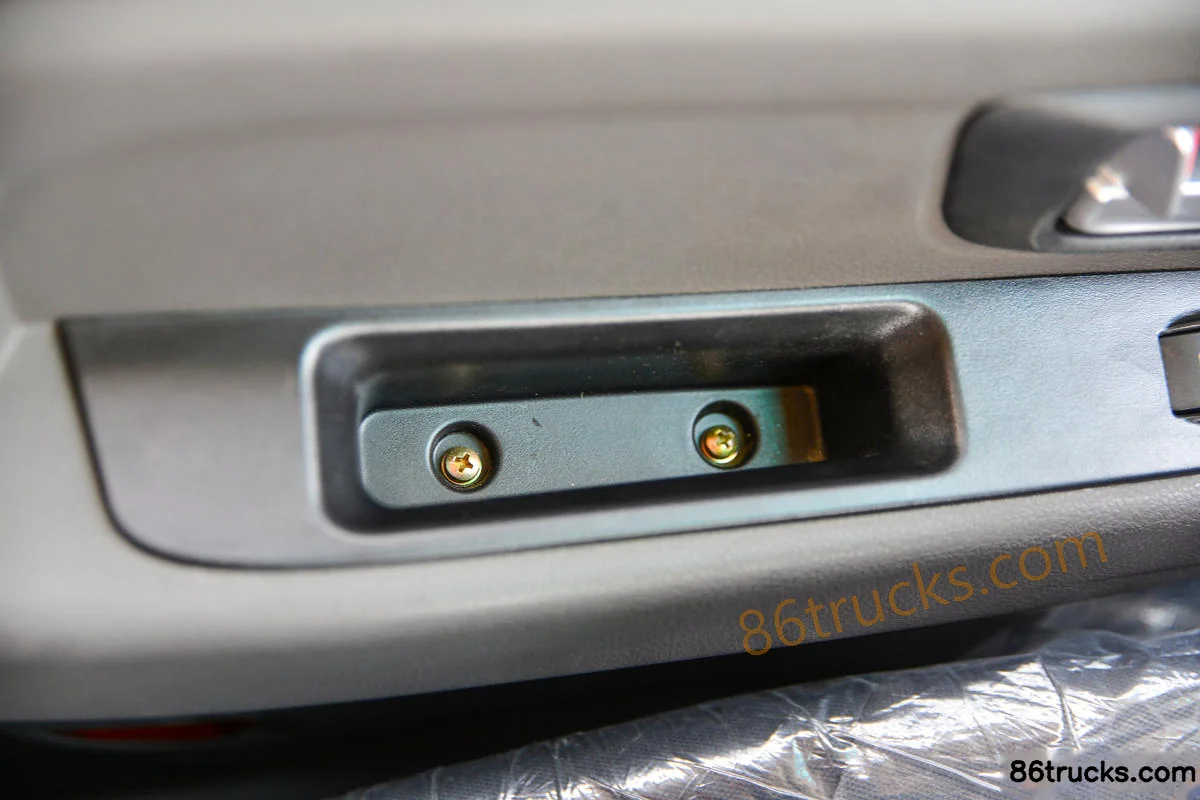

Interior3

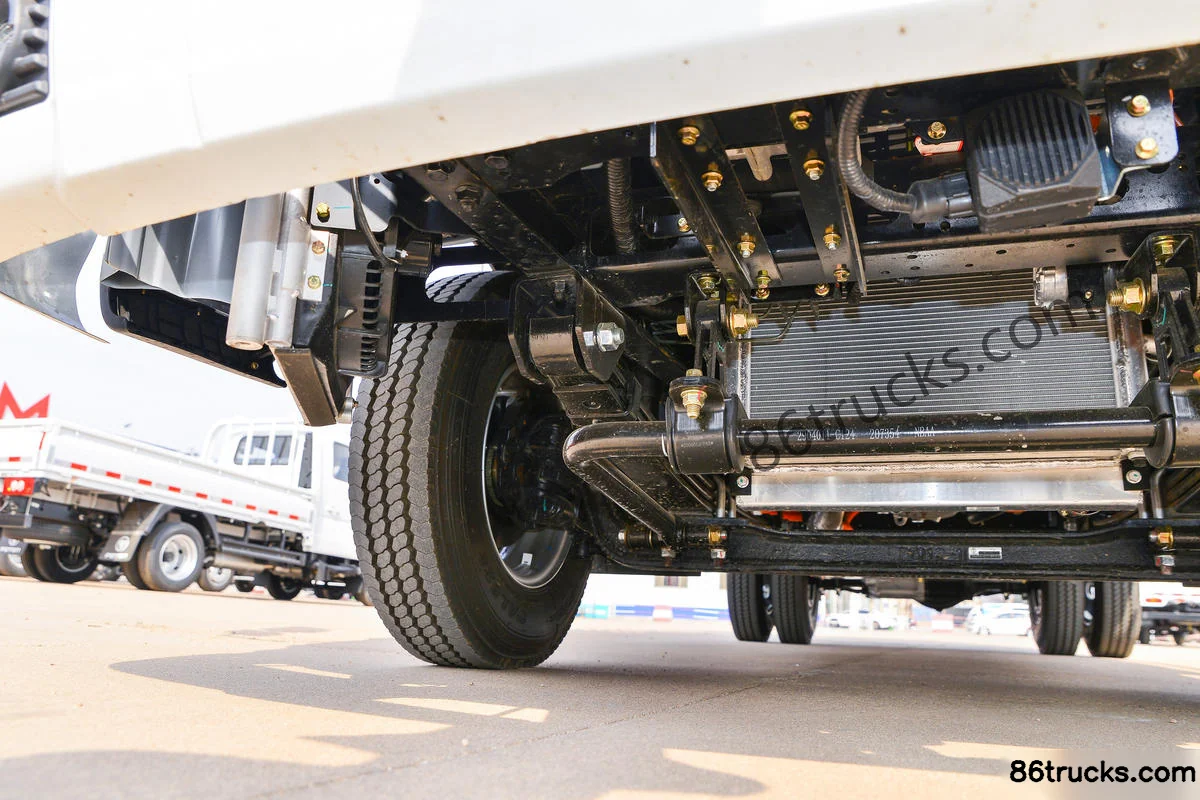

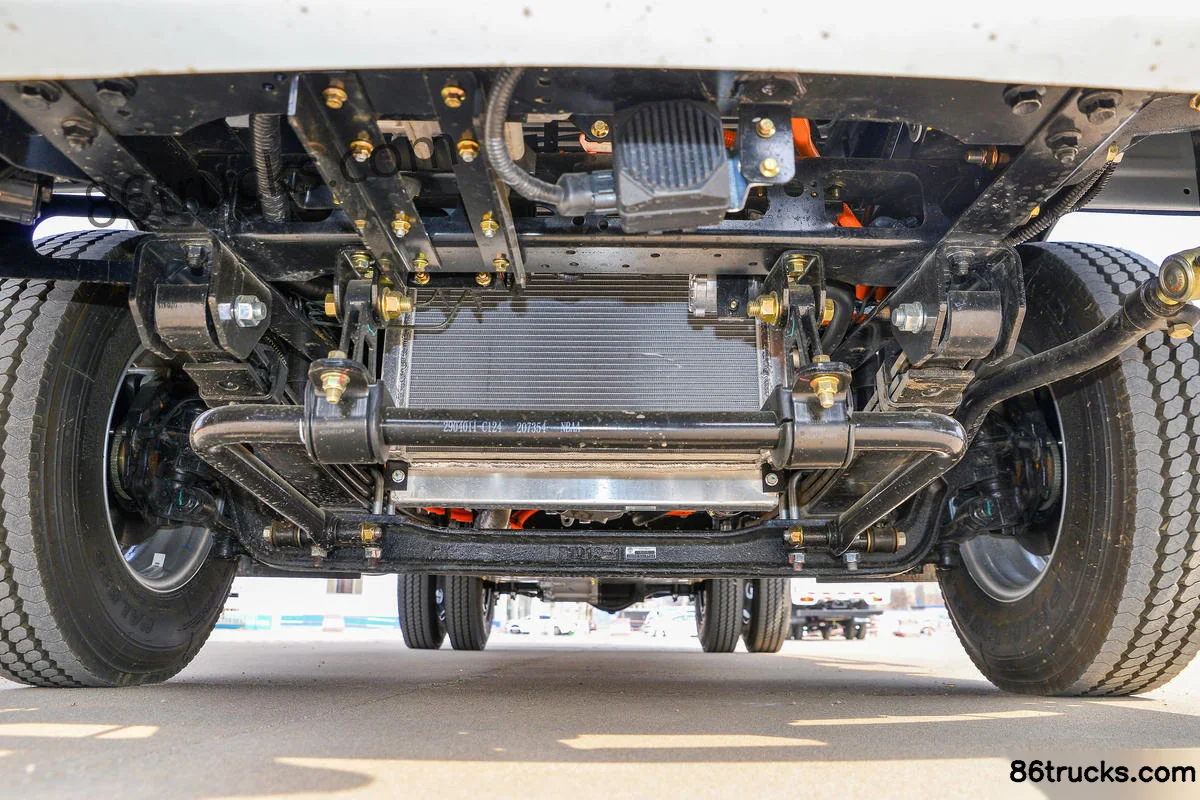

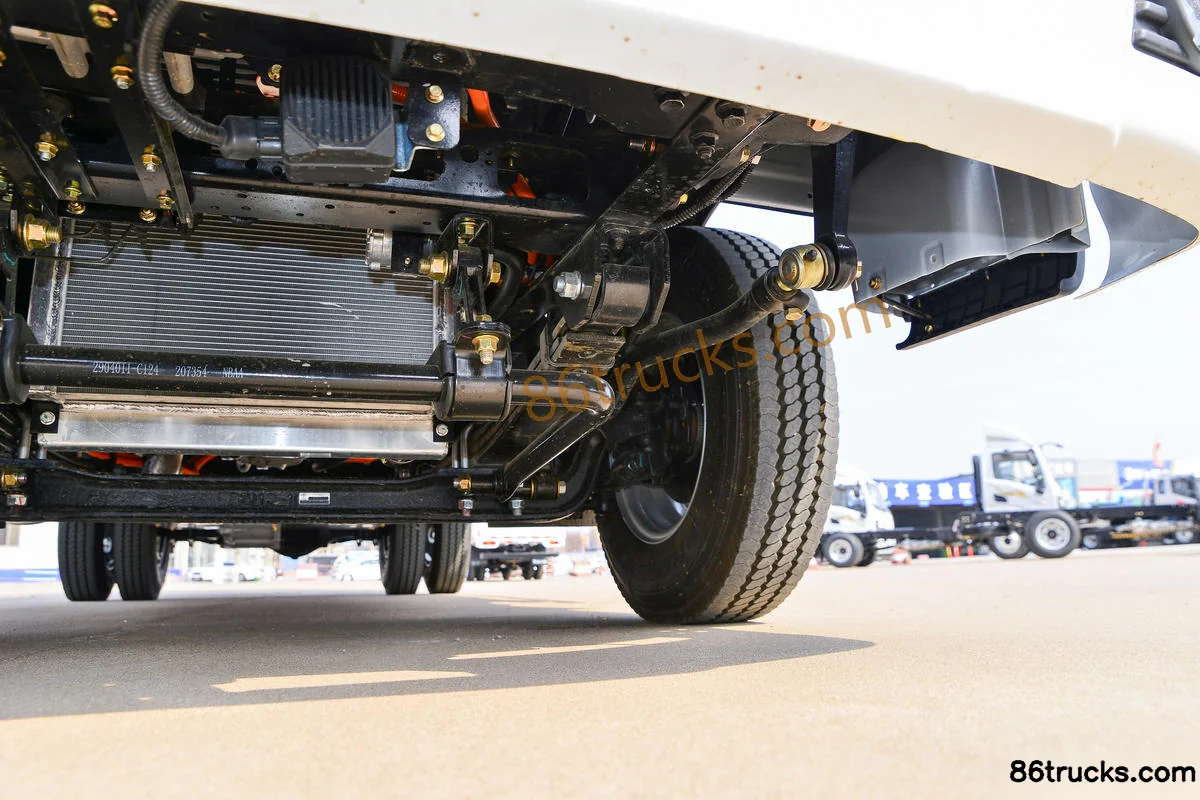

Chassis3

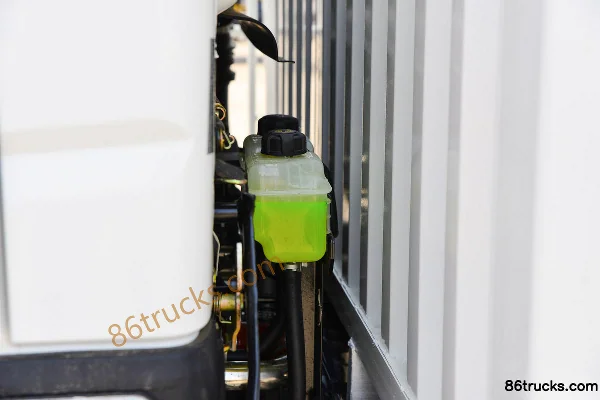

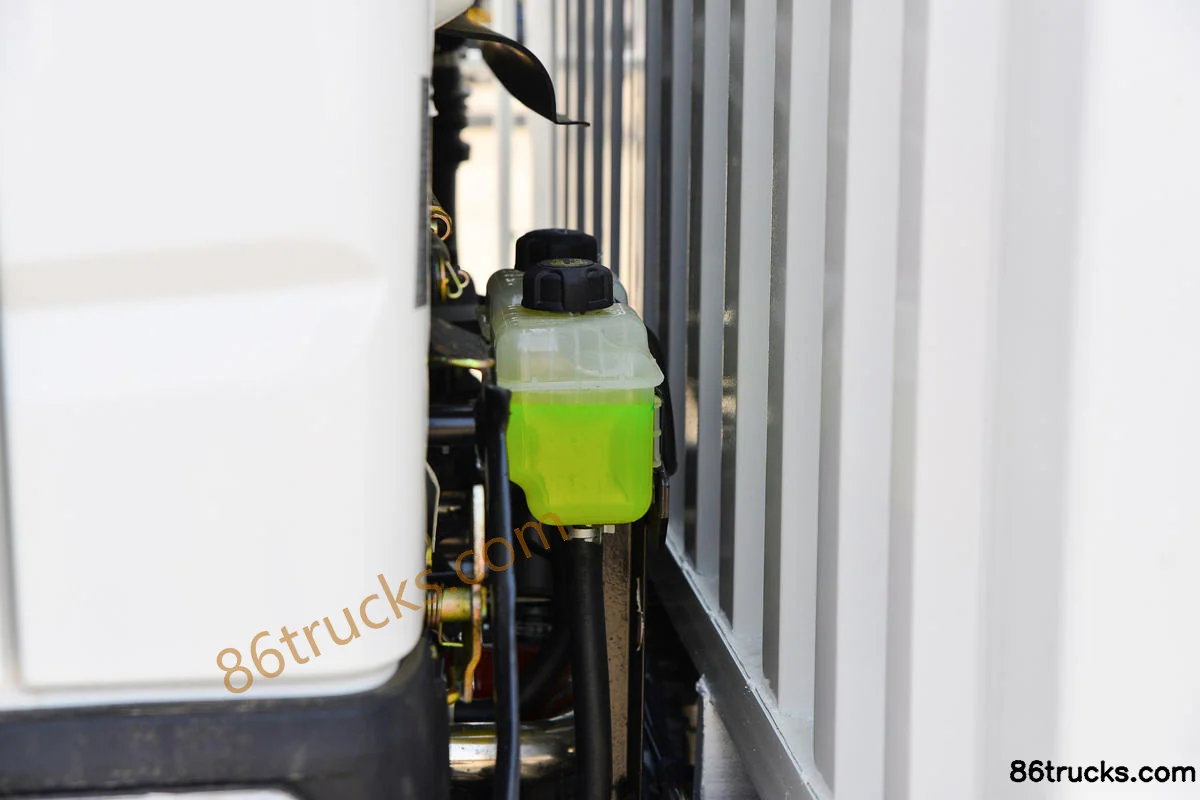

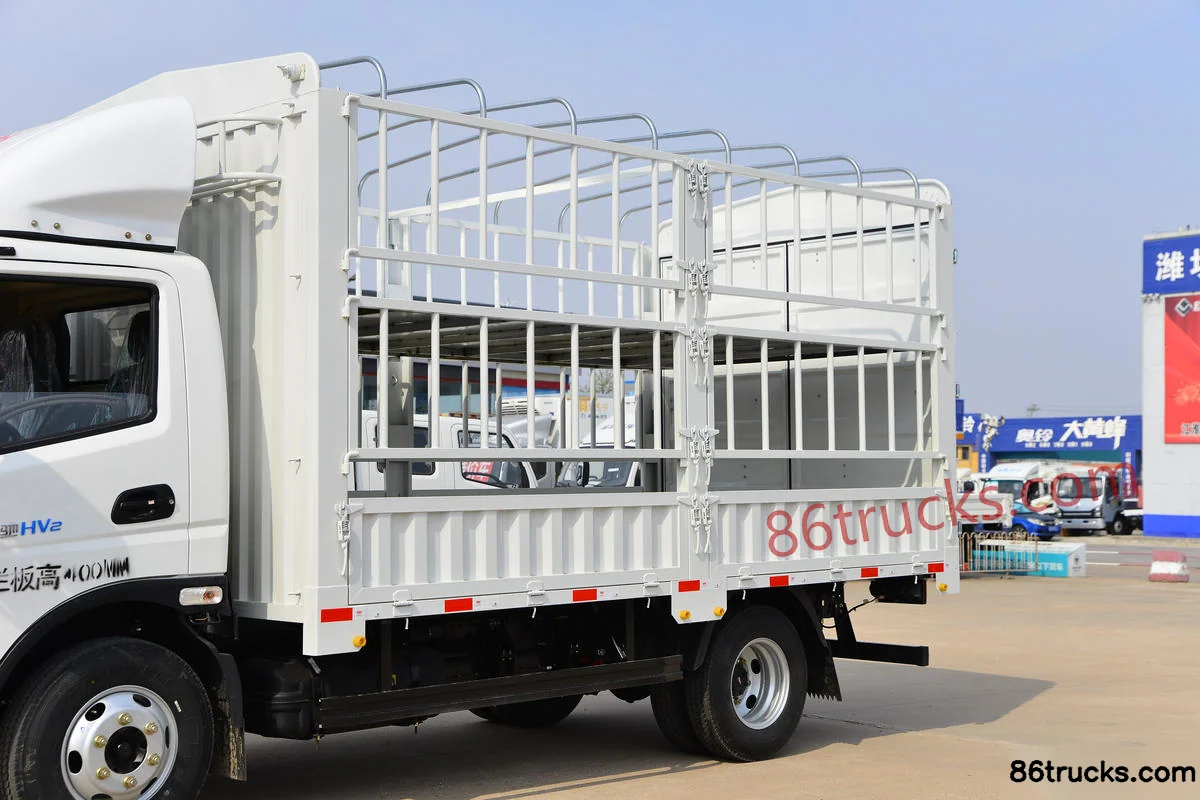

Body3

12 photos

FAQ

What is the export price of Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels), and what does it include?

Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels) export reference is about From $30,528; MSRP is ¥21.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels)?

Key specs of Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 122 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels) suited for?

Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels) differ from other variants in the same series?

Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels) belongs to FeidiHV5 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi HV5 4.5T 4.15m Single Row Plug-in Hybrid Range-Extender Stake Light Truck 41.6kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
