FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck

Export reference
From $37,194
MSRP ¥26.78M CNY
Horsepower: 260
Emission: China V
Fuel: Diesel
Engine: Xichai8L
Transmission: Fast Gear
Curb Weight:: 10.81ton
seating capacity: 3Personnel
Rated payload: 19.995ton
Drive 8X2 (10 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, stake body cargo body, 3Personnel volume and 19.995t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Xichai8L engine, 260 hp, 8X2 (10 wheels) drive and China V emissions.

China V 260 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1310P1K2L7T10E5A80
Type: Cargo Trucks
Drive type: 8X2
Wheelbase: 1900+4500+1350mm
Box length class: 9.5m
engine: XichaiCA6DL1-26E5
transmission: Fast Gear9JS119A
Rear Axle Ratio: 4.444
Cab length: 11.995m
Cab width: 2.49m
Cab height: 3.39m
Front track width: 1964/1964mm
rear track: 1960/1847mm
Curb Weight: 10.81ton
Rated payload: 19.995ton
GVWR: 31ton
Max. speed: 93km/h
Origin: Qingdao/Chengdu
tonnage class: Heavy-duty cargo trucks
Approach angle: 18°
departure angle: 10°
market segment: Building materials, agricultural products
Remarks: Cargo box height optional: 0.8; front underrun protection, 220V power supply, Bosch DeNOx 2.2 urea system
Front/rear suspension: 1.375/2.87m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-26E5
Engine info: Xichai8L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.7L
Emission standard: China V
Max output power: 195kW
Max hp: 260Horsepower
Max torque: 1050N·m
Max torque speed: 1300-1600rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear9JS119A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.5m
Cargo box width: 2.46/2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: HanV flat-floor high-roof cab extended 150 full-floating sunroof
seating capacity: 3Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Chassis Specs
Front axle description: A5S
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×80×(8+5)mm
rear axle description: 457 stamped-welded axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.444
Leaf spring count: 12/12/6+-/10+9
clutch: Φ430
Tire
Tire Size: 11.00R20
Tire Type: 16-ply
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Cruise control (CCS):

Photos

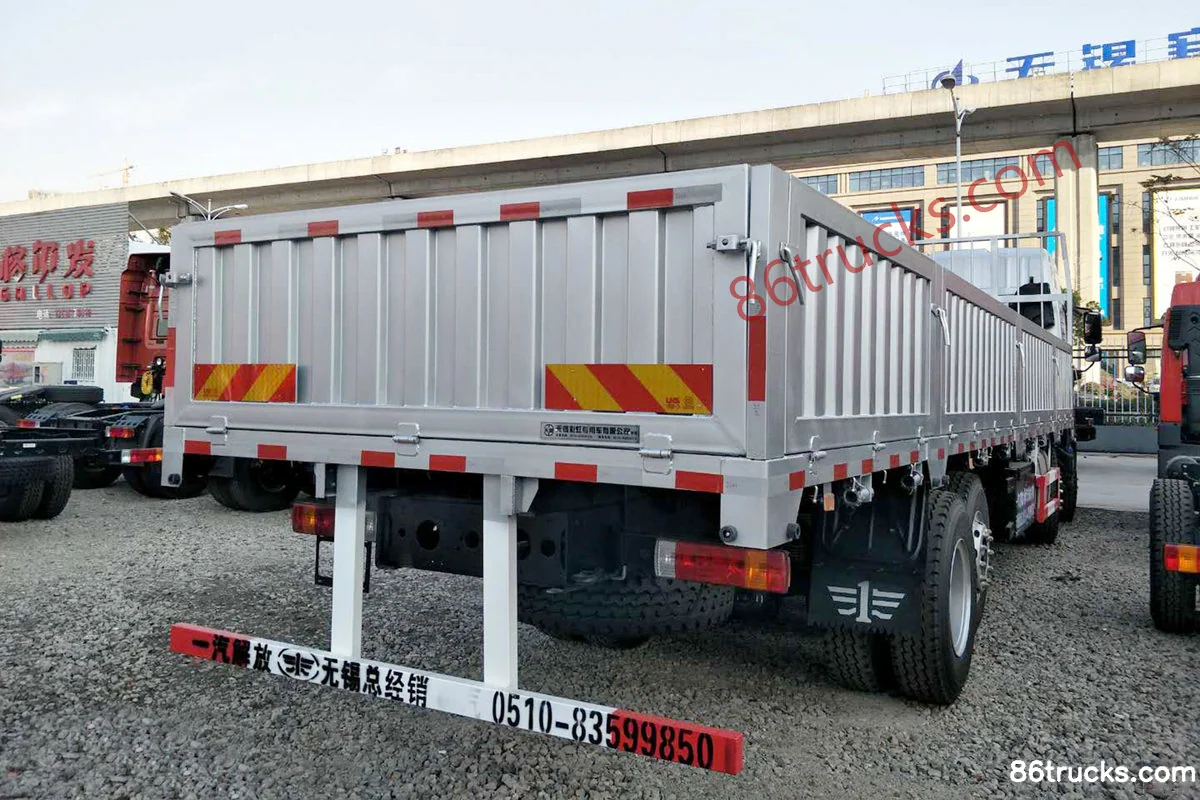

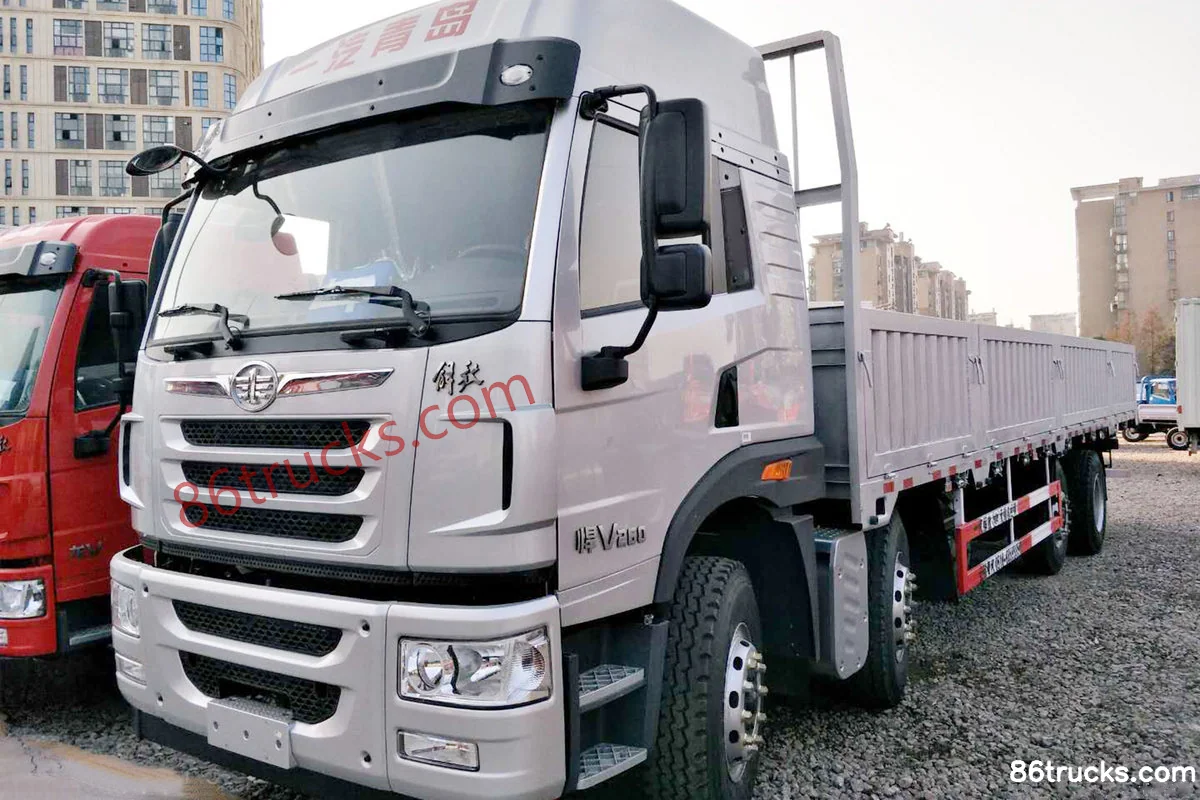

Exterior2

2 photos

FAQ

What is the export price of FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck, and what does it include?

FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck export reference is about From $37,194; MSRP is ¥26.78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck?

Key specs of FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck: Drive: 8x2; Horsepower: 260 hp; Emission: China V; Fuel: Diesel; Engine: Xichai8L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck suited for?

FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck differ from other variants in the same series?

FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck belongs to FAW Jiefang Qingdao HanV heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Han V Heavy Truck 260hp 8X2(10 wheels) 9.5m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
