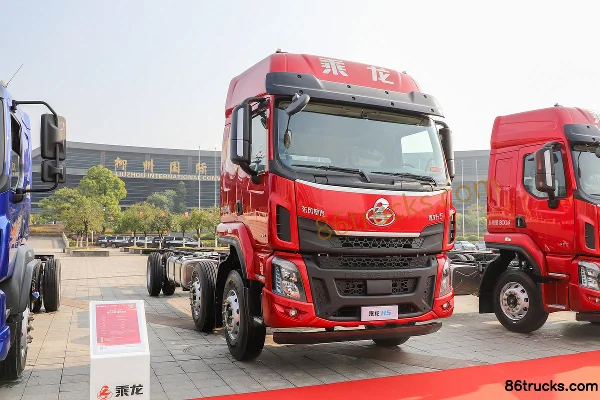

Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck

Export reference
From $34,833
MSRP ¥25.08M CNY
Horsepower: 290
Emission: China VI
Fuel: Diesel
Engine: Dongkang 6.7L
Transmission: Fast Gear
Curb Weight:: 10.78ton
seating capacity: 2Personnel
Rated payload: 14.09ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck is a Heavy truck featuring 9.5m cargo length, Stake type cargo body, 2Personnel volume and 14.09t payload. On the powertrain side, it comes with a Dongkang 6.7L engine, 290 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 290 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5252CCYH5CC1
Type: stake truck
Drive type: 6X2
Wheelbase: 2050+5350mm
Box length class: 9.5m
engine: DongfengD6.7NS6B290
transmission: Fast Gear8JSX110TC
Rear Axle Ratio: 4.111
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Front track width: 2040/2040mm
rear track: 1860mm
Curb Weight: 10.78ton
Rated payload: 14.09ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 10°
Front/rear suspension: 1.445/3.155m
Version: Fortune Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengD6.7NS6B290
Engine info: Dongkang 6.7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.7L
Emission standard: China VI
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1100N·m
Max torque speed: 1000-1600rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear8JSX110TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.46m
Cab parameters
Cab: H57S
Cab suspension: 4-point mechanical suspension
seating capacity: 2Personnel
Cab tilting: Manual
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 2*5.5T
Front axle allowable load: 6750/6750kg
Frame Dimensions: 264(6)mm
rear axle description: 400
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/3/4+3
clutch: Φ395
Tire
Tire Size: 12R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
automatic slack adjuster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck, and what does it include?

Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck export reference is about From $34,833; MSRP is ¥25.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck?

Key specs of Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck: Drive: 6x2; Horsepower: 290 hp; Emission: China VI; Fuel: Diesel; Engine: Dongkang 6.7L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck suited for?

Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck differ from other variants in the same series?

Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck belongs to Dongfeng H5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng H5 Chuangfu Edition 6.7L Diesel 290hp 6X2(8 wheels) Fast Gear 8-Speed 9.5m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
