Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 37ton
Wheelbase:: 3400+1370mm
Tire Size:: 295/80R22.5
Front axle allowable load:: 7000kg
Displacement:: 12.777L
Drive 6X4 (10 wheels)
Horsepower 500
Emission China V
Transmission Volvo

Overview

The Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B) is a Heavy truck featuring 6X4 (10 wheels) drive, 500 hp, 26t GVW and China V emissions. On the powertrain side, it comes with a VolvoD13C500S EUV engine, Volvo transmission and Diesel fuel.

China V 500 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FM50062TB
Drive type: 6X4
Wheelbase: 3400+1370mm
engine: VolvoD13C500S EUV
transmission: Volvo I-Shift automated manual
Rear Axle Ratio: 2.64
Cab length: 6.94m
Cab width: 2.5m
Cab height: 3.9m
Front track width: 2028mm
rear track: 1837/1837mm
Gross Trailer Weight: 37ton
Curb Weight: 8.87ton
GVWR: 26ton
Max. speed: 125km/h
Origin: Sweden
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Volvo
Engine Model: VolvoD13C500S EUV
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.777L
Emission standard: China V
Max output power: 369kW
Max hp: 500Horsepower
Max torque: 2550N·m
Max torque speed: 1200rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: Volvo I-Shift automated manual
Transmission Brand: Volvo
shift method: AMT manual/auto
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 11500/7500kg
Axle ratio: 2.64
Leaf spring count: 2/0/0
Tire
Tire Size: 295/80R22.5
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic

Photos

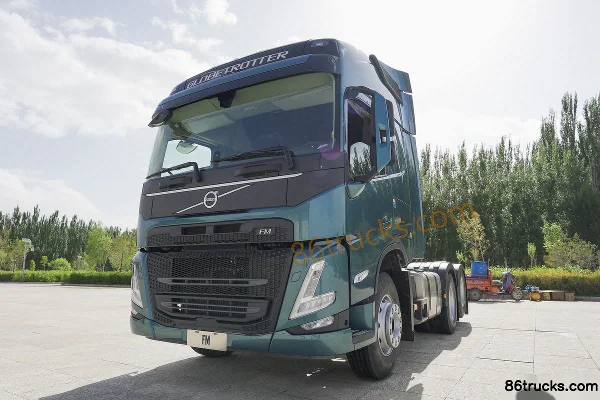

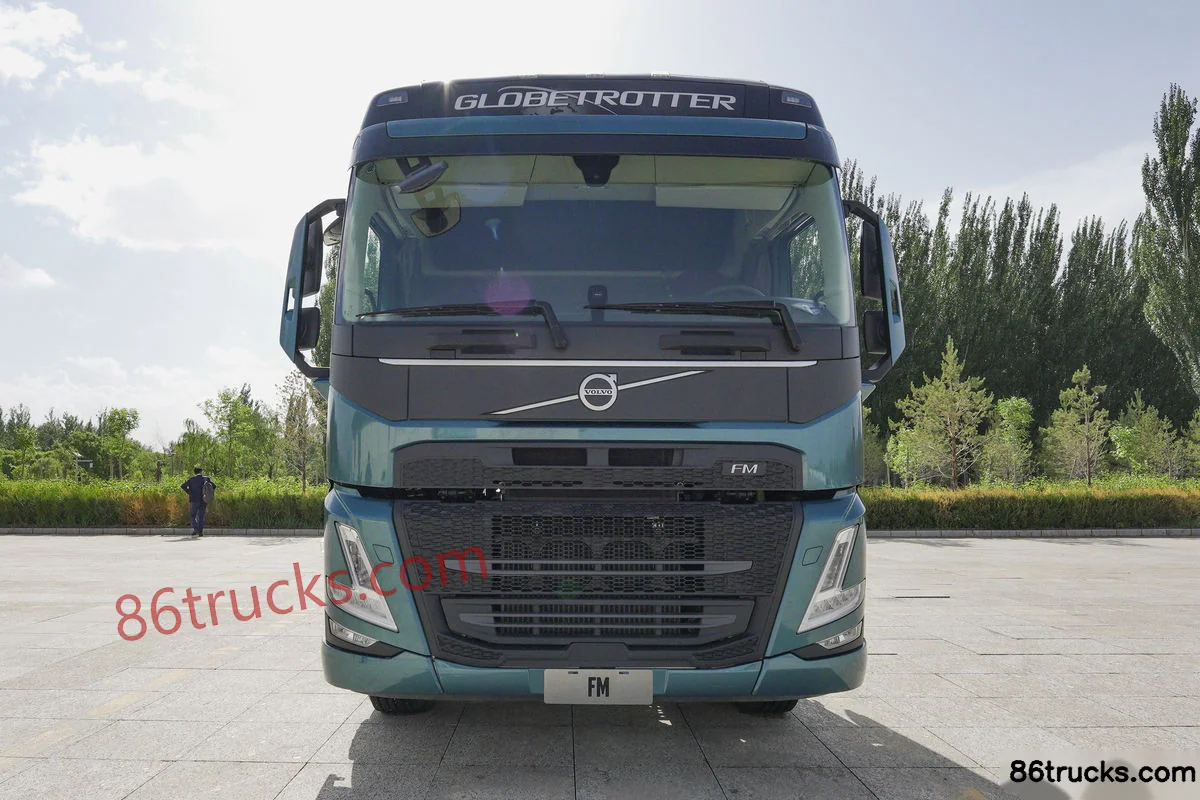

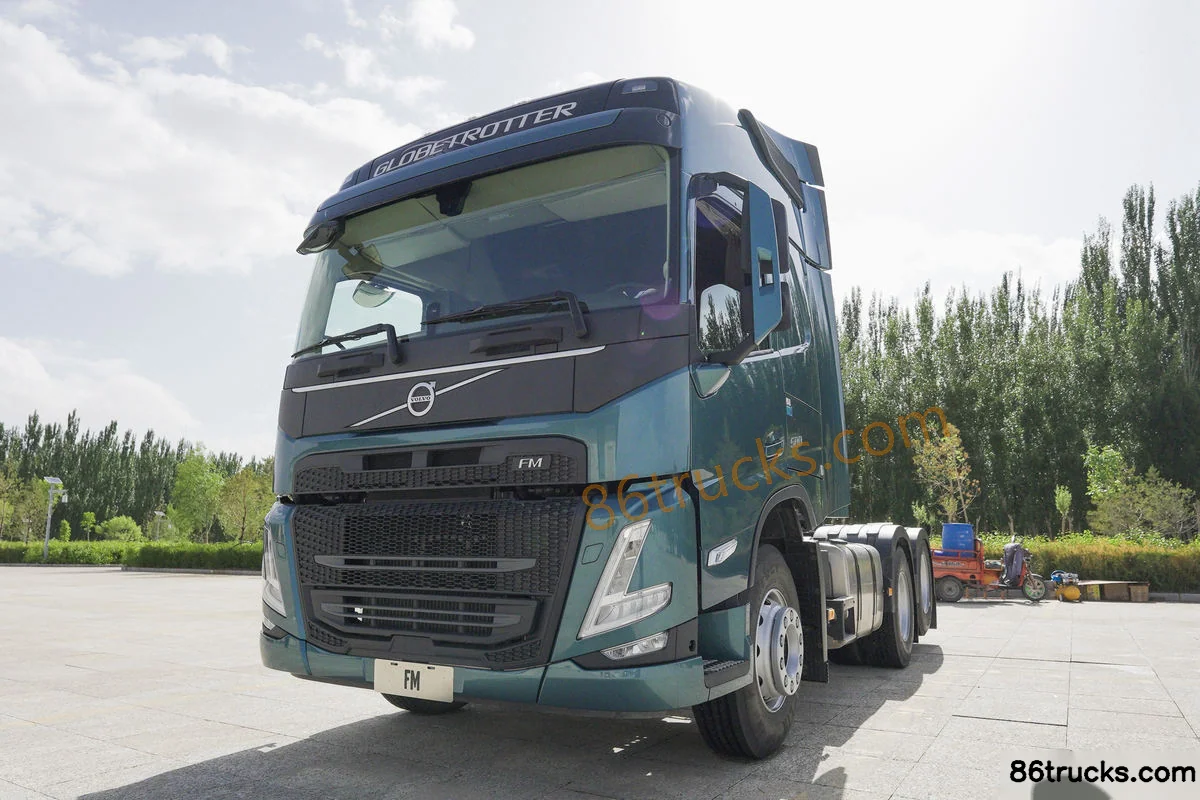

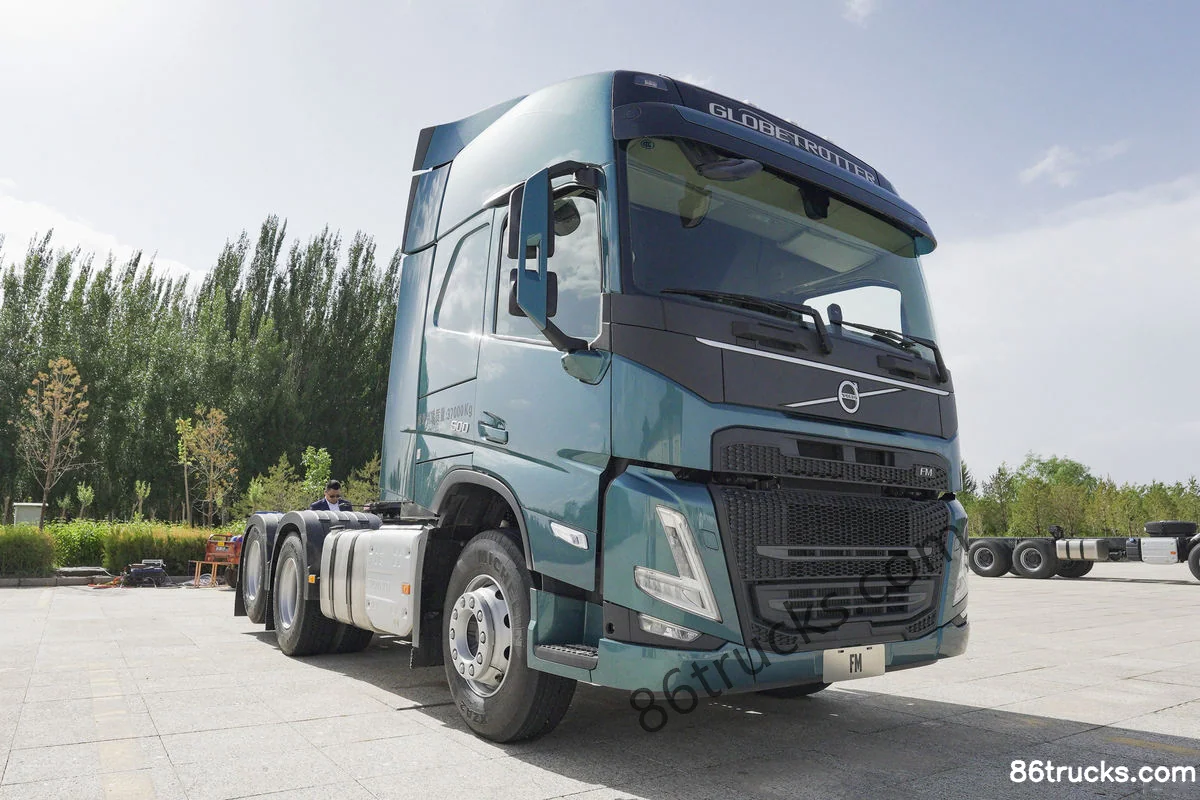

Exterior3

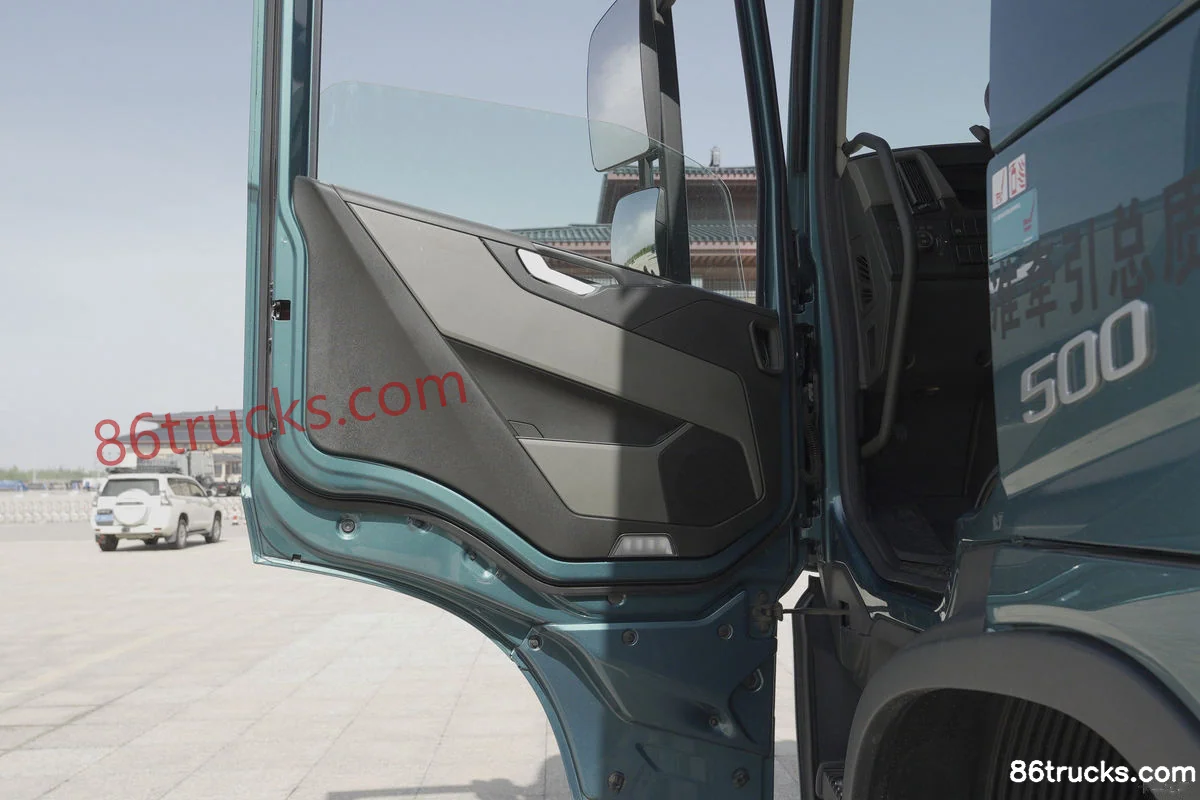

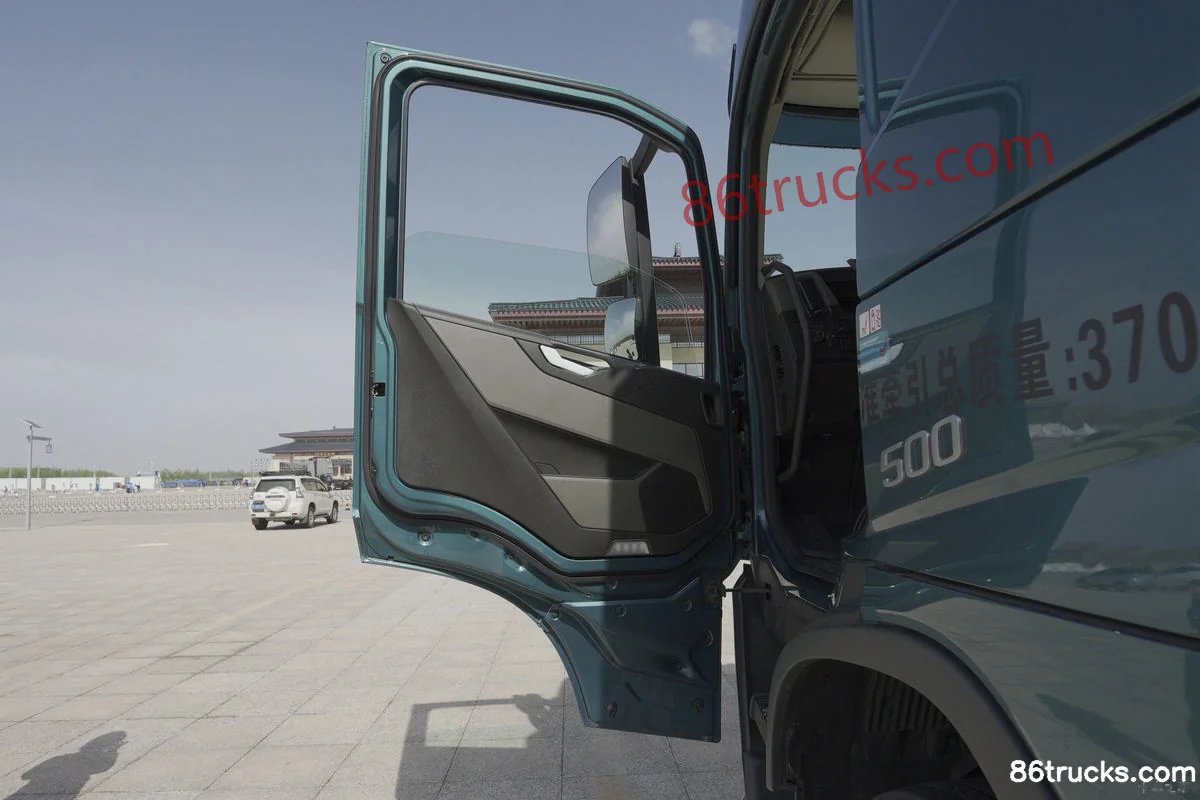

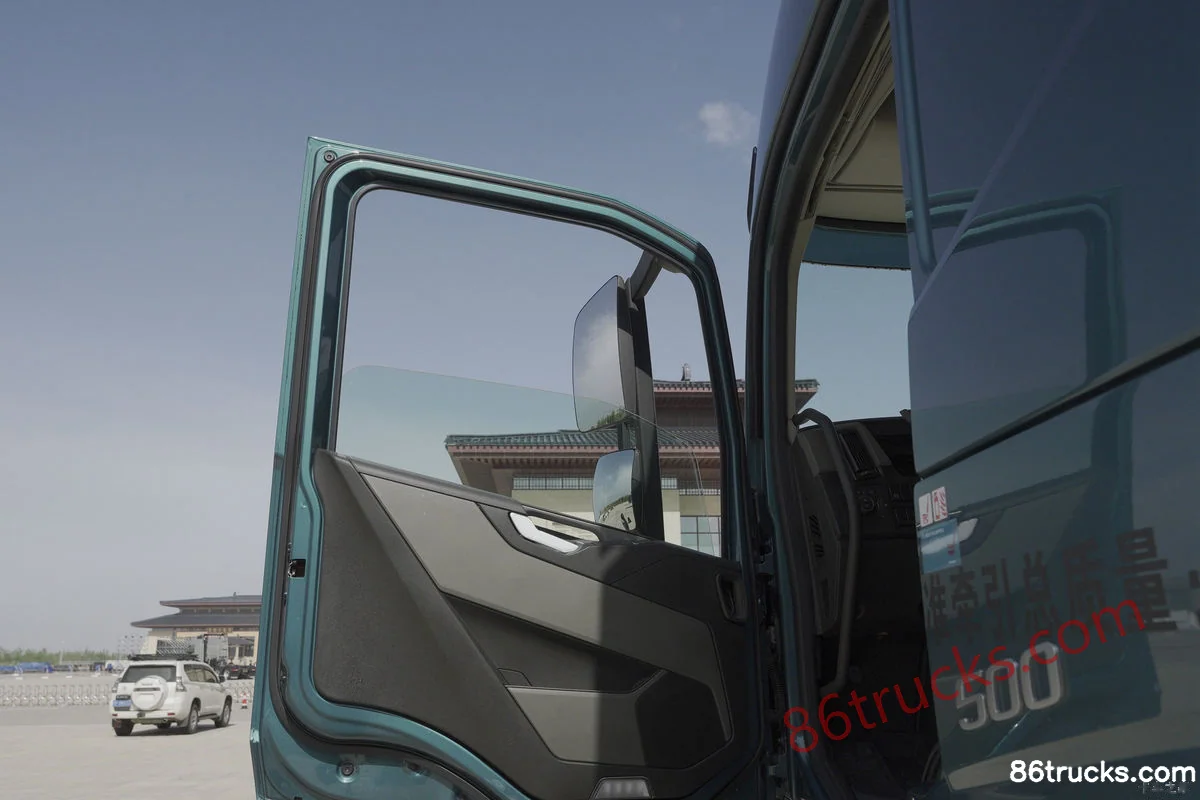

Cab3

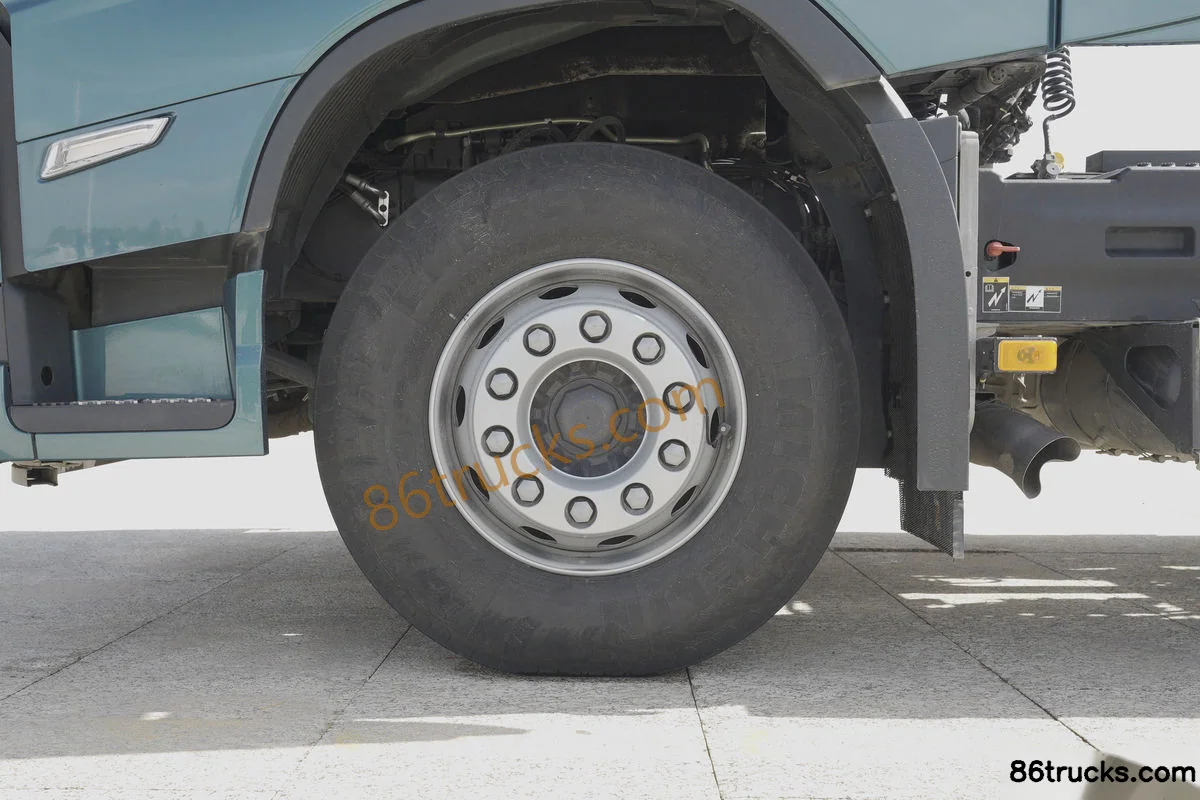

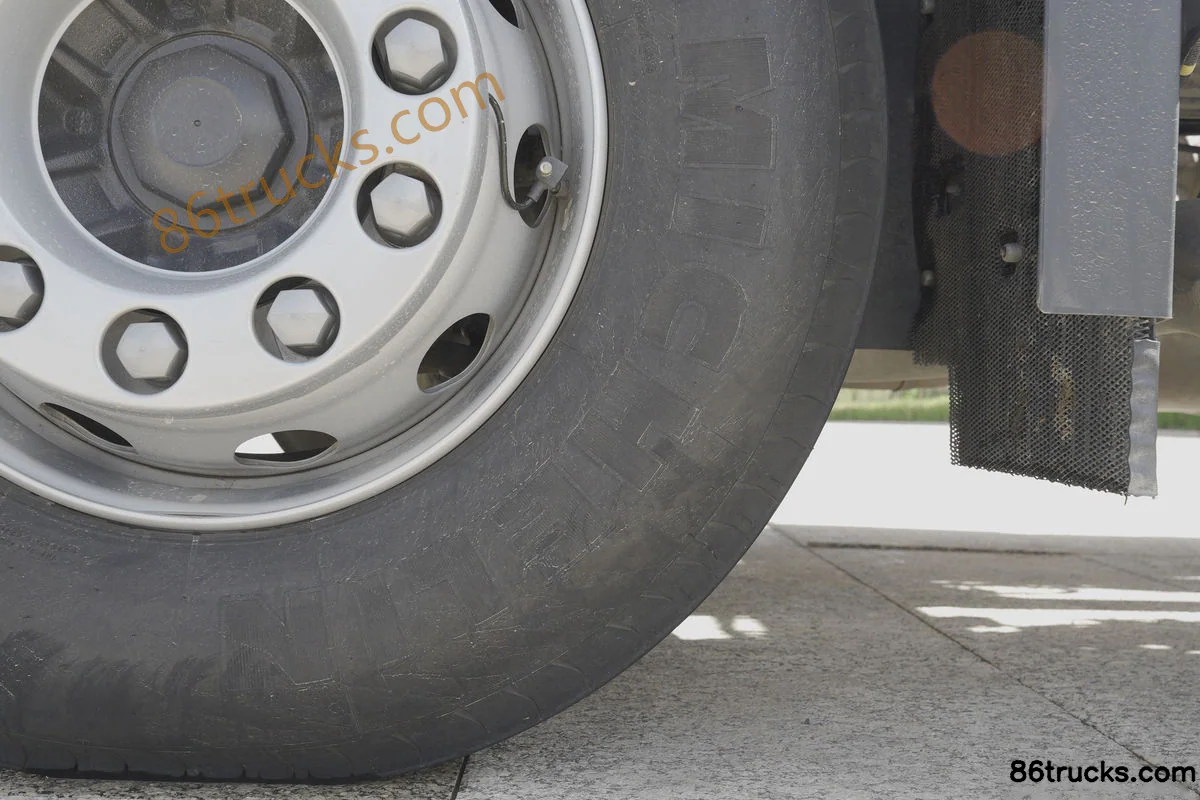

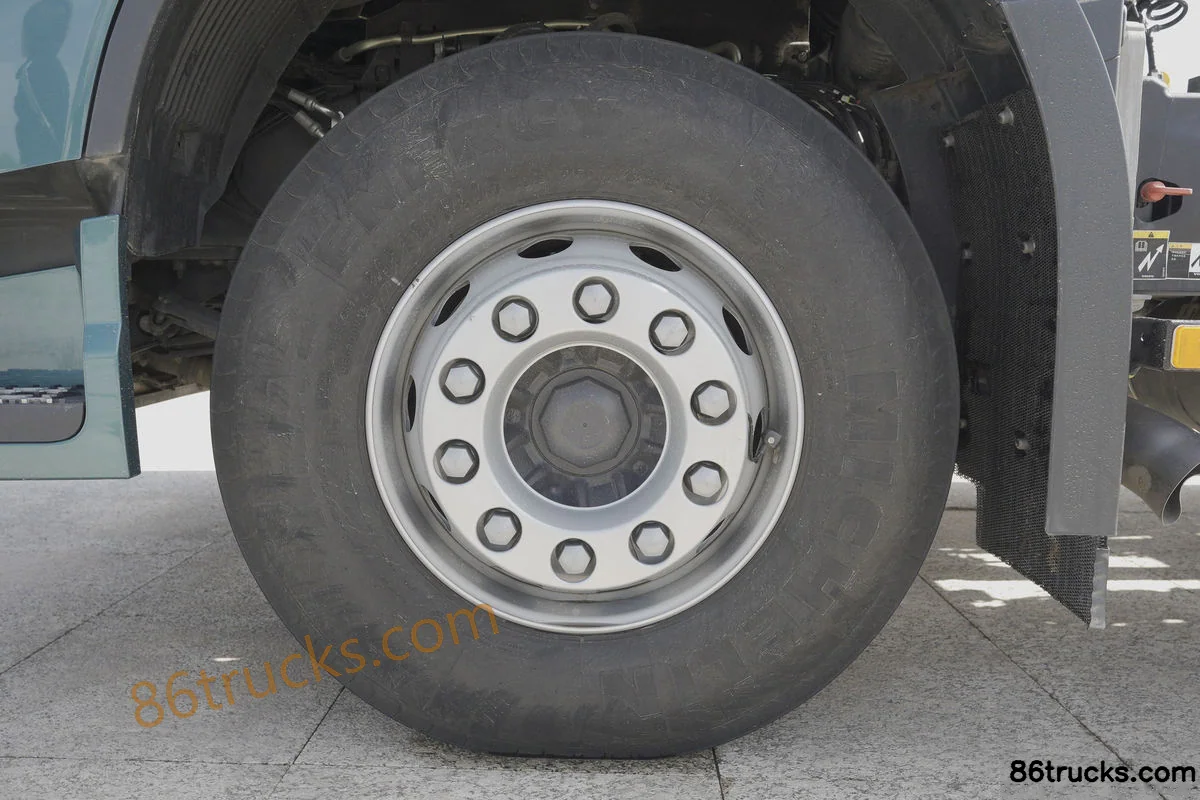

Chassis3

9 photos

FAQ

What emission standard does Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B)?

Key specs of Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B): Drive: 6x4; Horsepower: 500 hp; Emission: China V; Fuel: Diesel; Transmission: Volvo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B) suited for?

Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B) differ from other variants in the same series?

Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B) belongs to Volvo new FM heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Volvo New FM Heavy Truck 500 hp 6X4(10 wheels) Tractor Truck (FM500 62T B)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
