Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI)

Export reference
MSRP N/A
Horsepower: 156
Emission: China VI
Fuel: Diesel
Engine: Fukang F2.8
Curb Weight:: 4.1ton
Wheelbase:: 3360mm
seating capacity: 3Personnel
Rated payload: 7.625ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI) is a Light Truck featuring 4.17m cargo length, Stake type cargo body, 3Personnel volume and 7.625t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Fukang F2.8 engine, 156 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5128CCYGJFA-AB1
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: FotonF2.8NS6B156
transmission: 6-speed transmission
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.47m
Cab height: 3.67m
Front track width: 1705mm
rear track: 1680mm
Curb Weight: 4.1ton
Rated payload: 7.625ton
GVWR: 11.92ton
Max. speed: 110km/h
Origin: Beijing Changping
tonnage class: Light Truck
Approach angle: 16°
departure angle: 11°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonF2.8NS6B156
Engine info: Fukang F2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China VI
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 440N·m
Max torque speed: 1500-2400rpm
Rated speed: 2900rpm
Transmission Parameters
Transmission Model: 6-speed transmission
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.17m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 4120kg
rear axle allowable load: 7800kg
Leaf spring count: 3/7+6
Tire
Tire Size: 9.5R17.5 16PR
Number of tires: 6pcs
Control configuration
ABS:

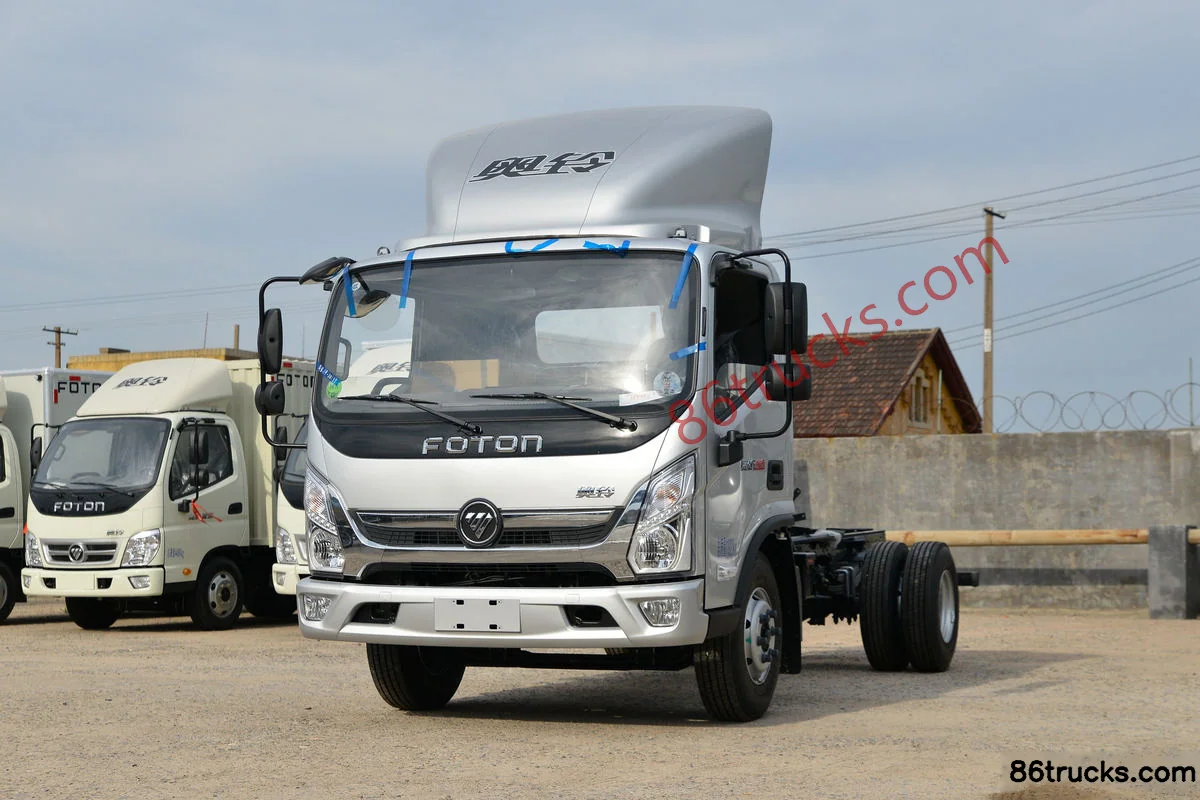

Photos

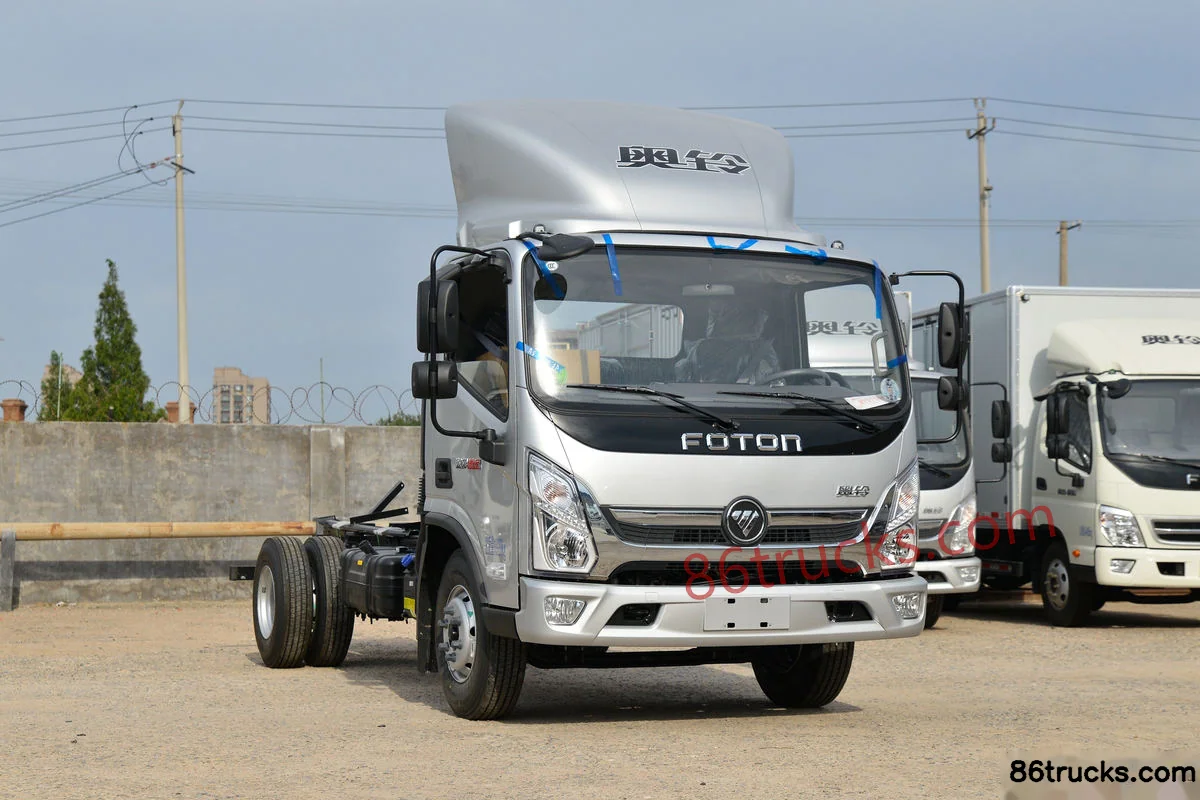

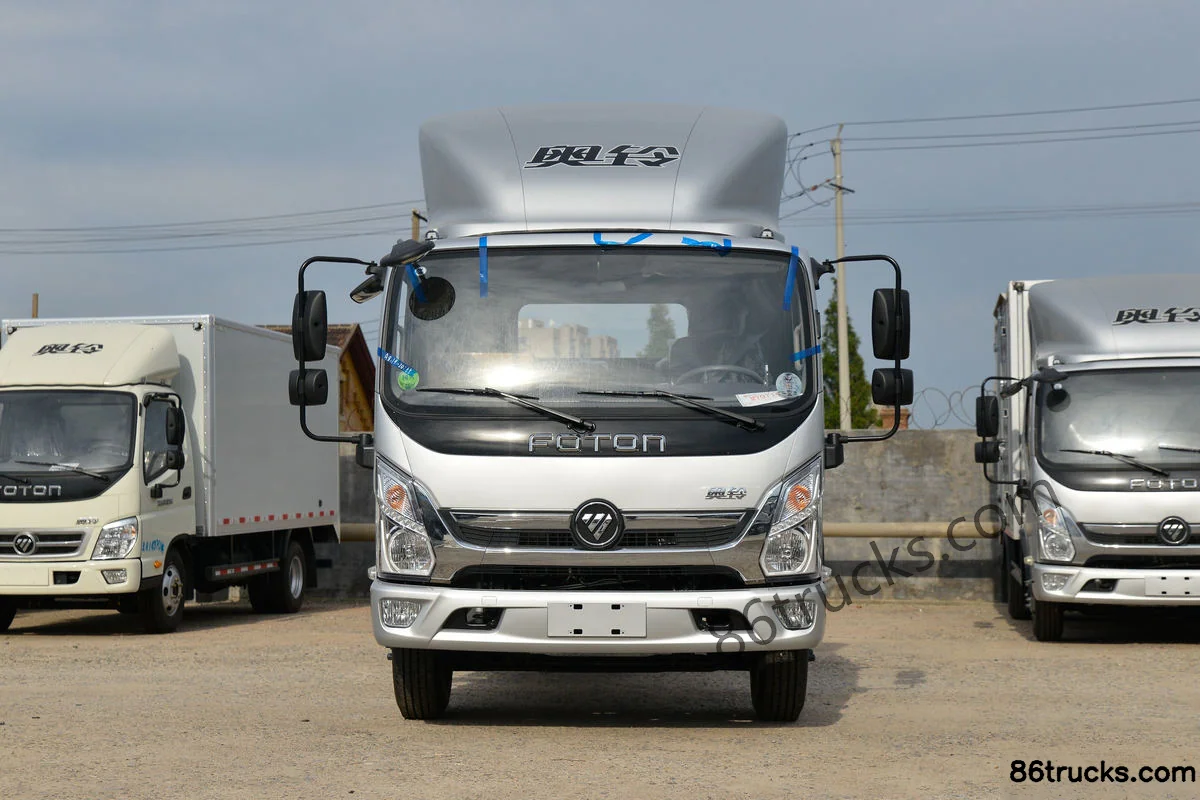

Exterior3

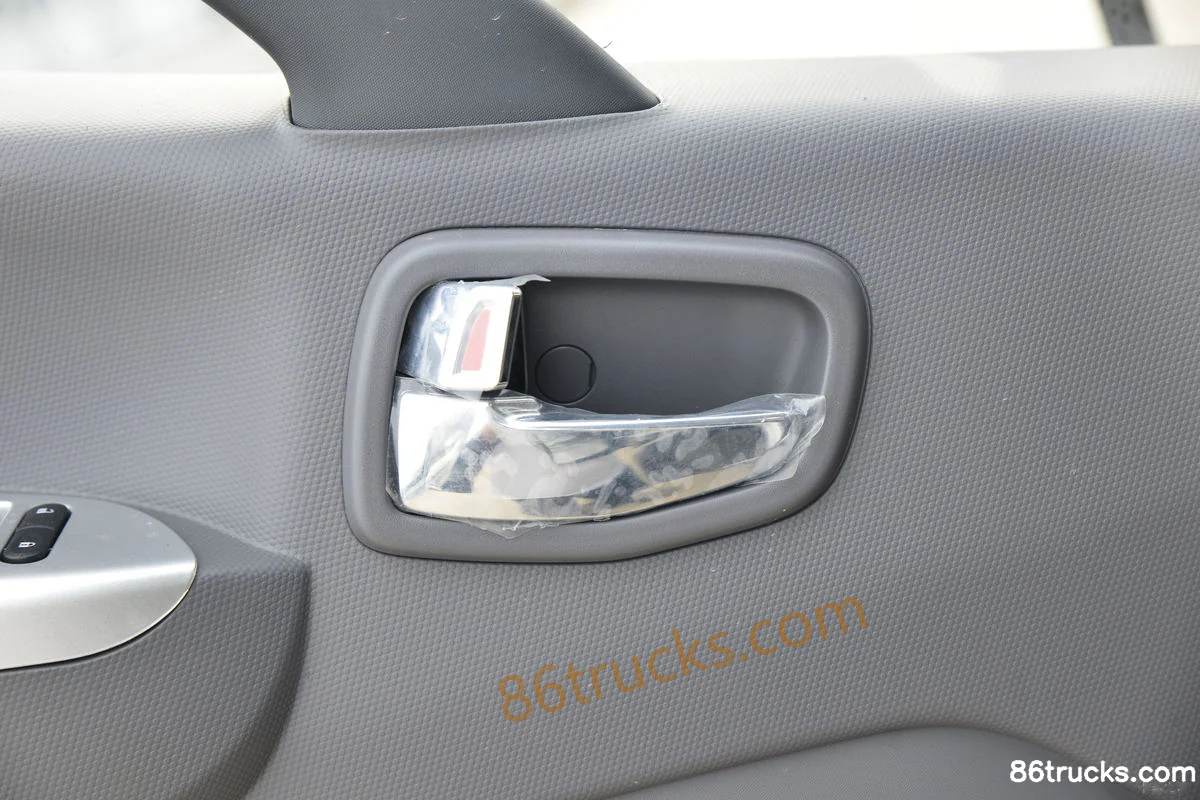

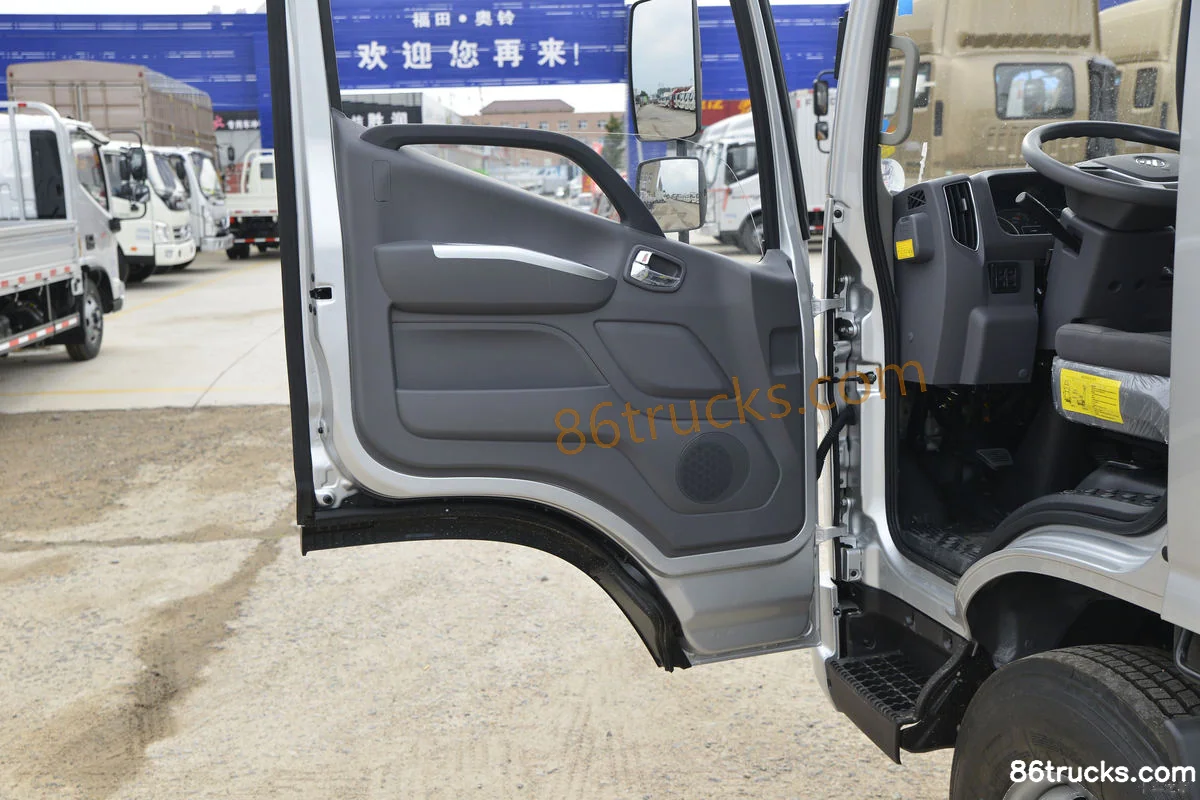

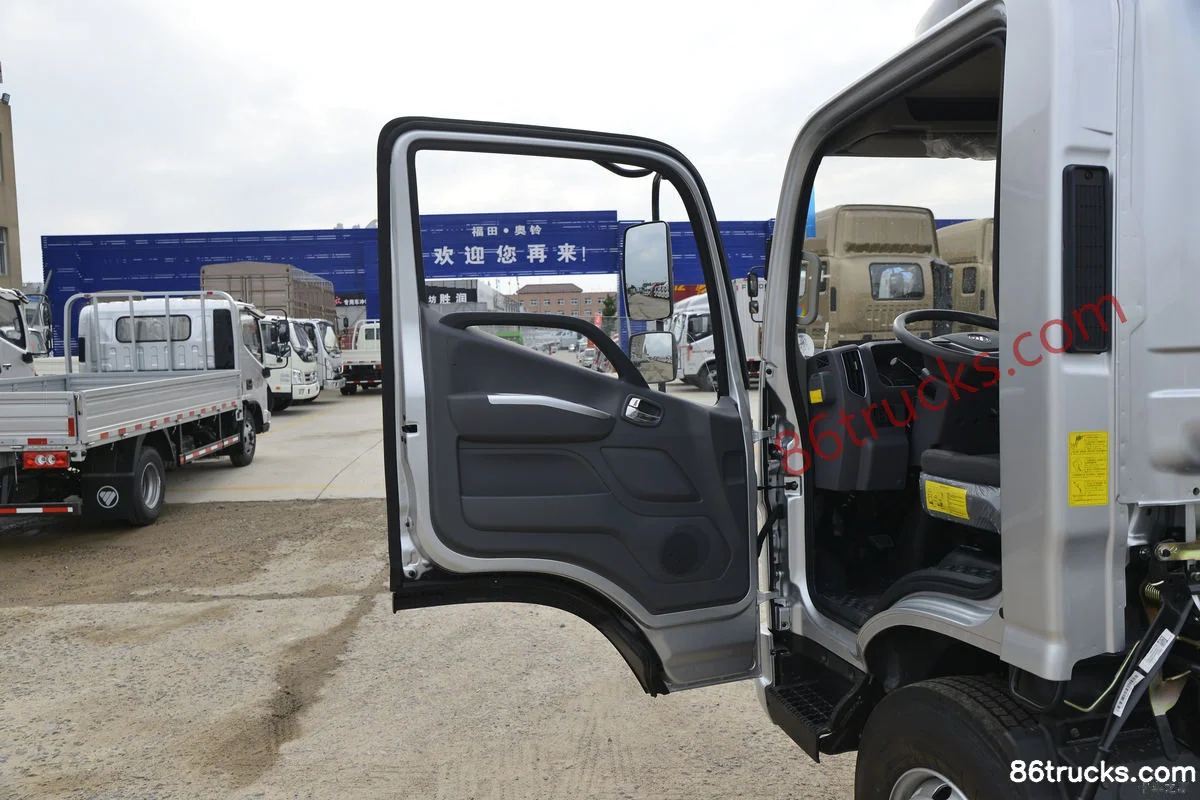

Cab3

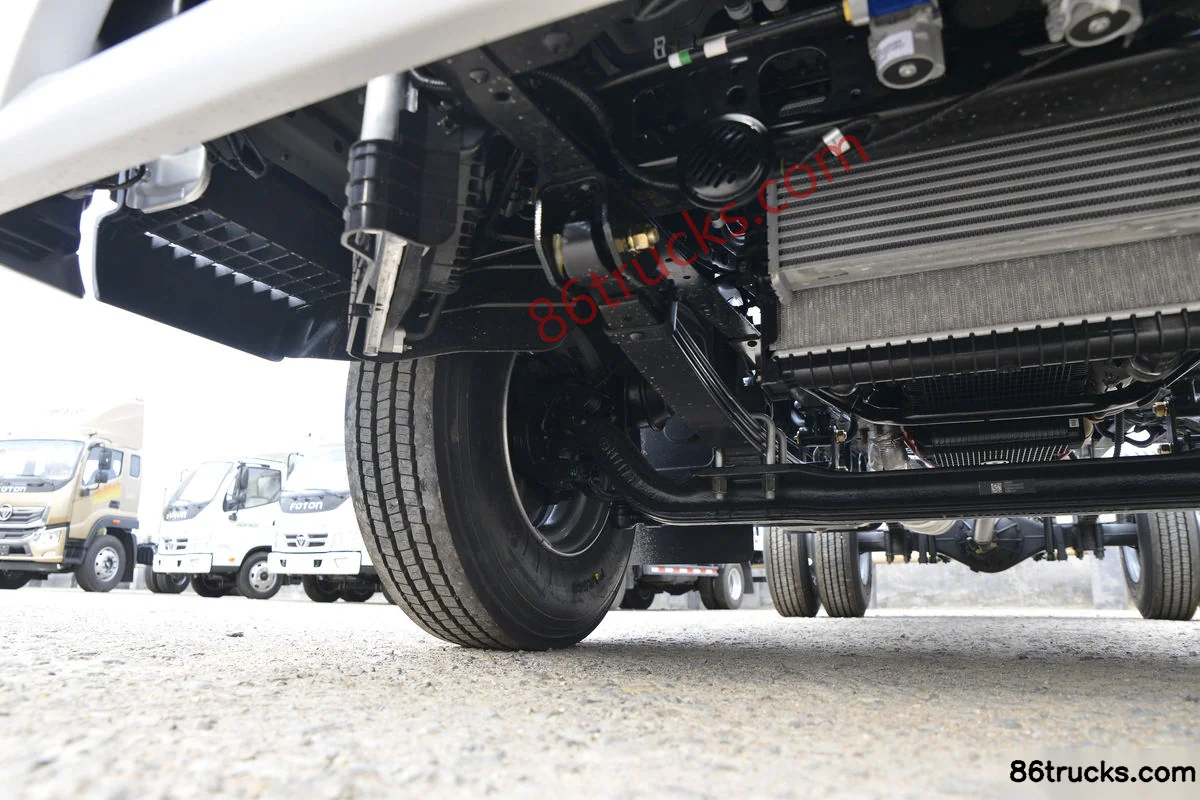

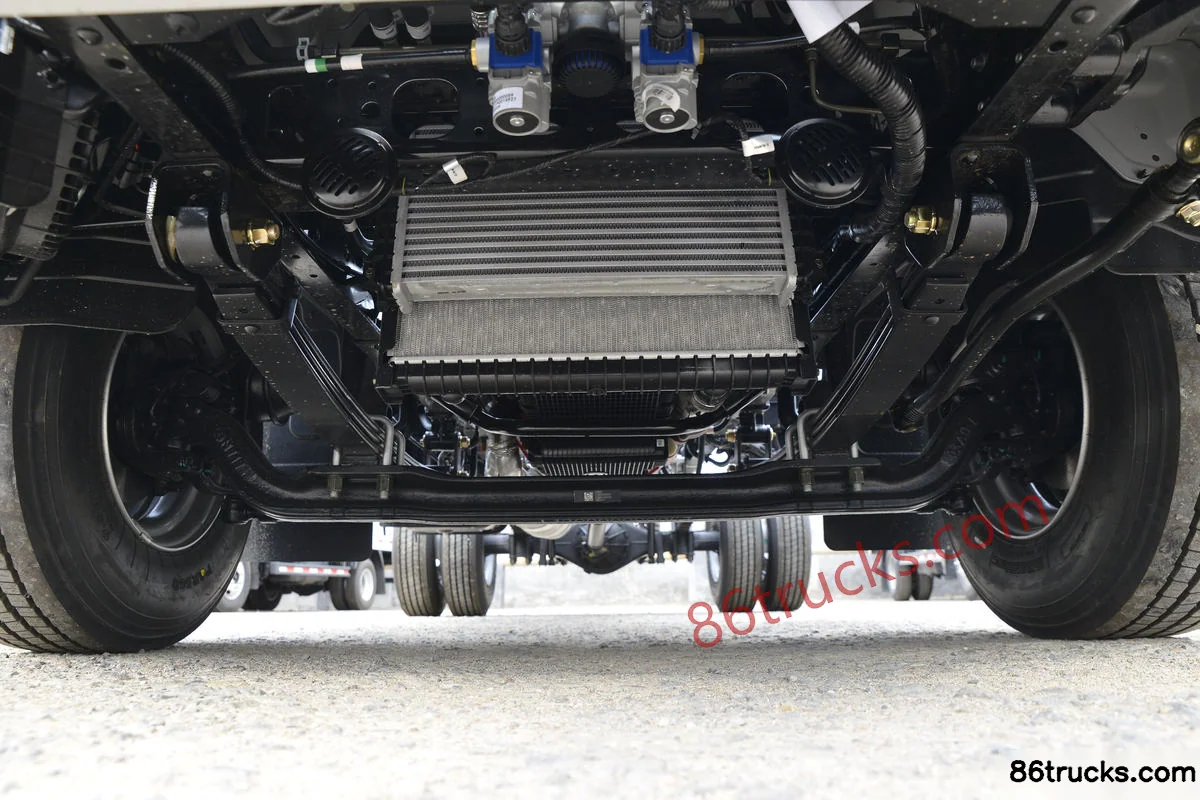

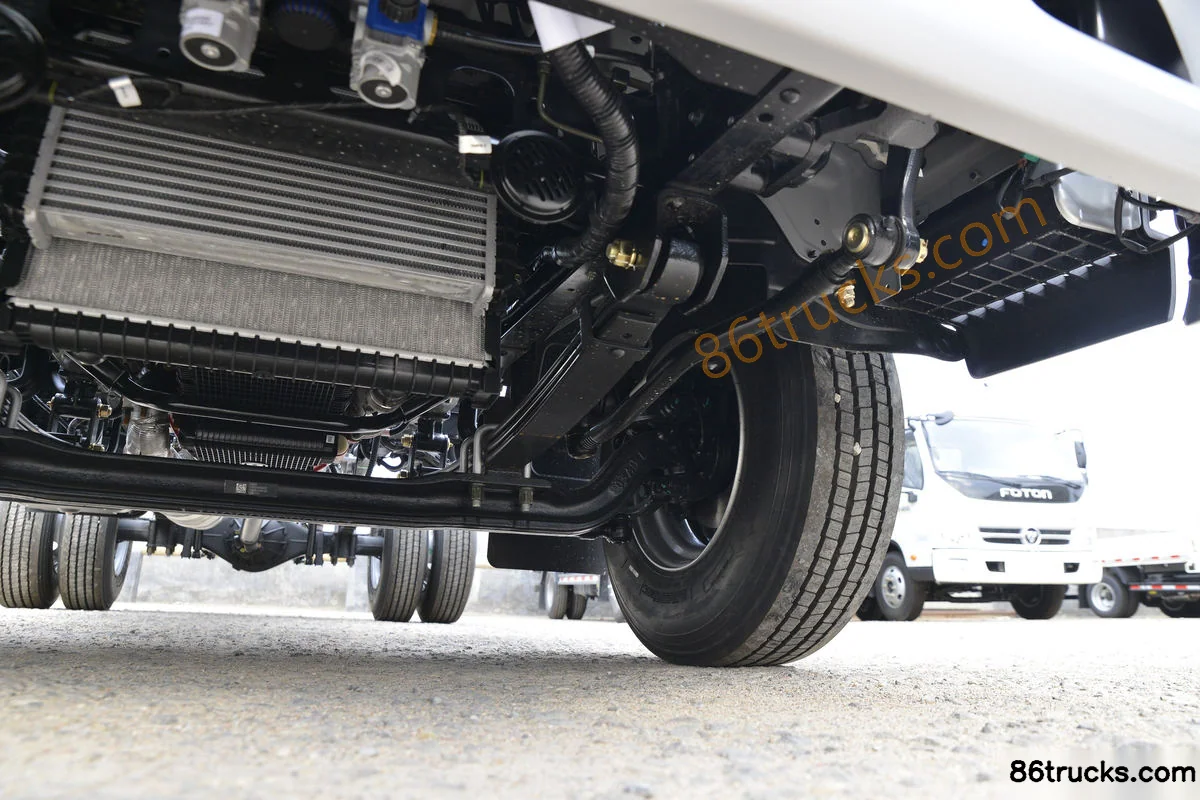

Chassis3

9 photos

FAQ

What emission standard does Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI)?

Key specs of Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI): Drive: 4x2; Horsepower: 156 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang F2.8. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI) suited for?

Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI) differ from other variants in the same series?

Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI) belongs to Foton Suyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark Speed 156hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
