Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3400+1350mm
Tire Size:: 12R22.5
Front axle allowable load:: 7000kg
Displacement:: 11.813L
Drive 6X4 (10 wheels)
Horsepower 480
Emission China V
Transmission Hanma

Overview

The Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 480 hp, 25t GVW and China V emissions. Its segment focus covers Standard, matching those duty cycles. On the powertrain side, it comes with a HanmaCM6D28.480 50 engine, Hanma transmission and Diesel fuel.

China V 480 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN4250A46C4M5
Drive type: 6X4
Wheelbase: 3400+1350mm
engine: HanmaCM6D28.480 50
transmission: Hanma16SOB2201
Rear Axle Ratio: 3.42
Cab length: 6.94m
Cab width: 2.495m
Cab height: 3.85m
Front track width: 2065mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
market segment:
Remarks: Standard: High-roof all-steel cab, spoiler, laminated front windshield, digital instrument cluster, electric cab tilt, oil-lubricated axles, 35mm fifth wheel base plate, GPS lock device, 140 balance shaft; Optional: engine compression brake, maintenance-free hub axles, 650L aluminum fuel tank, aluminum alloy transmission, 315/80R22.5 tires, #90 fifth wheel.
Energy Type: Diesel
Engine parameters
Engine Brand: Hanma
Engine Model: HanmaCM6D28.480 50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.813L
Emission standard: China V
Max output power: 353kW
Max hp: 480Horsepower
Max torque: 2250N·m
Max torque speed: 1100-1450rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Hanma16SOB2201
Transmission Brand: Hanma
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs

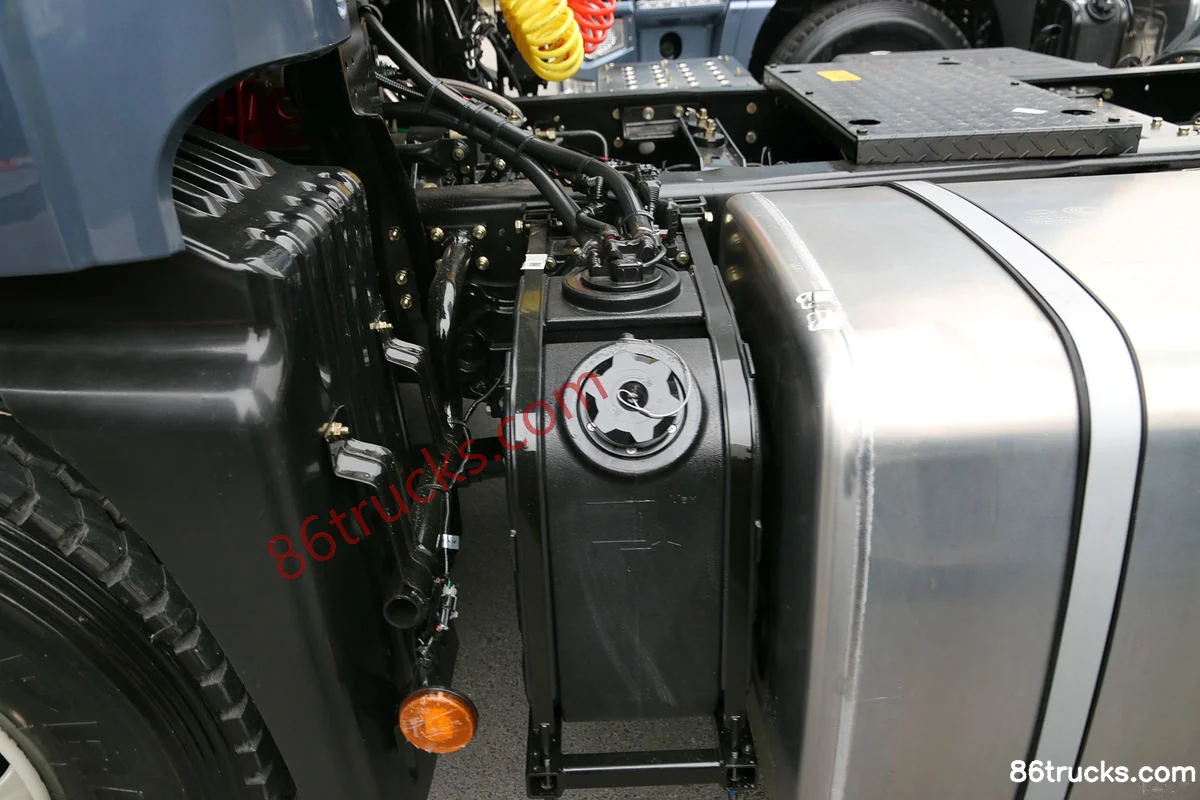

fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 500L
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Driver seat type: air suspension seat
Lower Bunk Width: 750mm
Chassis Specs
Suspension type: Leaf spring
Front axle description: 7T
Front axle allowable load: 7000kg
Fifth wheel: 50#
Frame Dimensions: 290(10)mm
rear axle description: HL460
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 3.42
Leaf spring count: 3/4

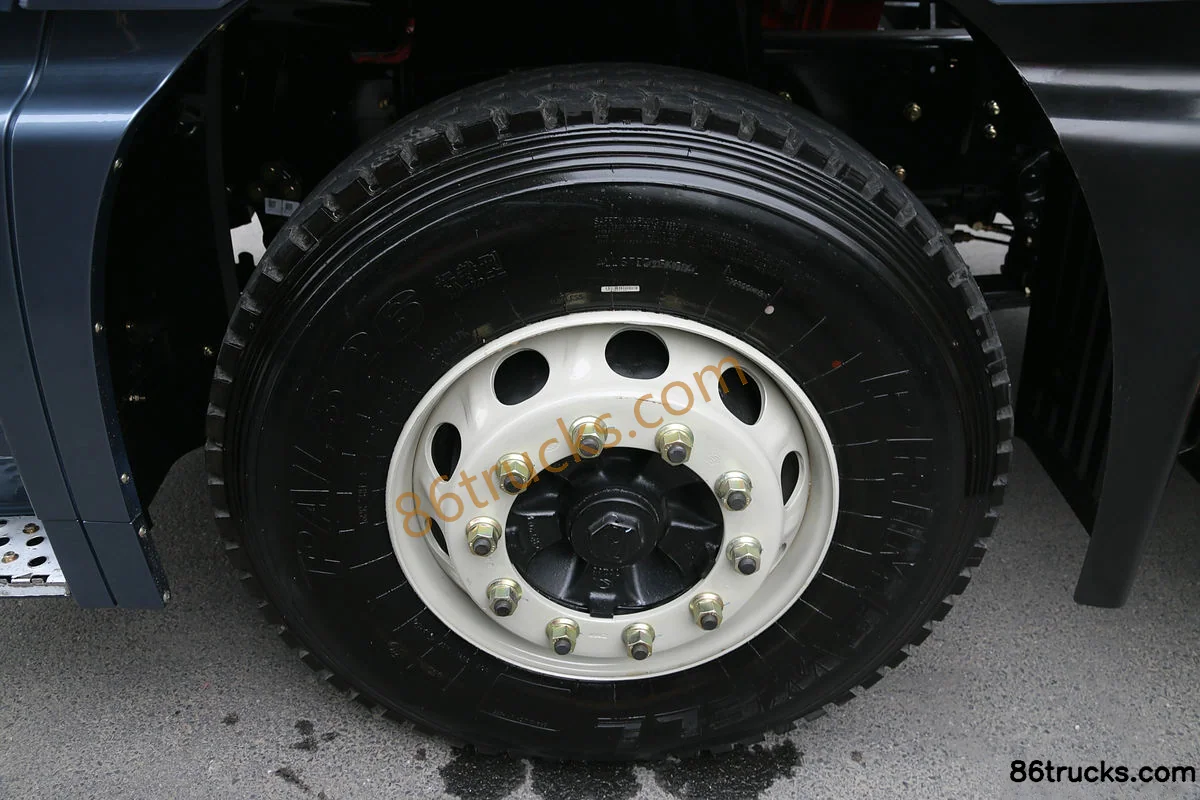

Tire
Tire Size: 12R22.5
Tire Type: tubeless tire
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
Radio:

Photos

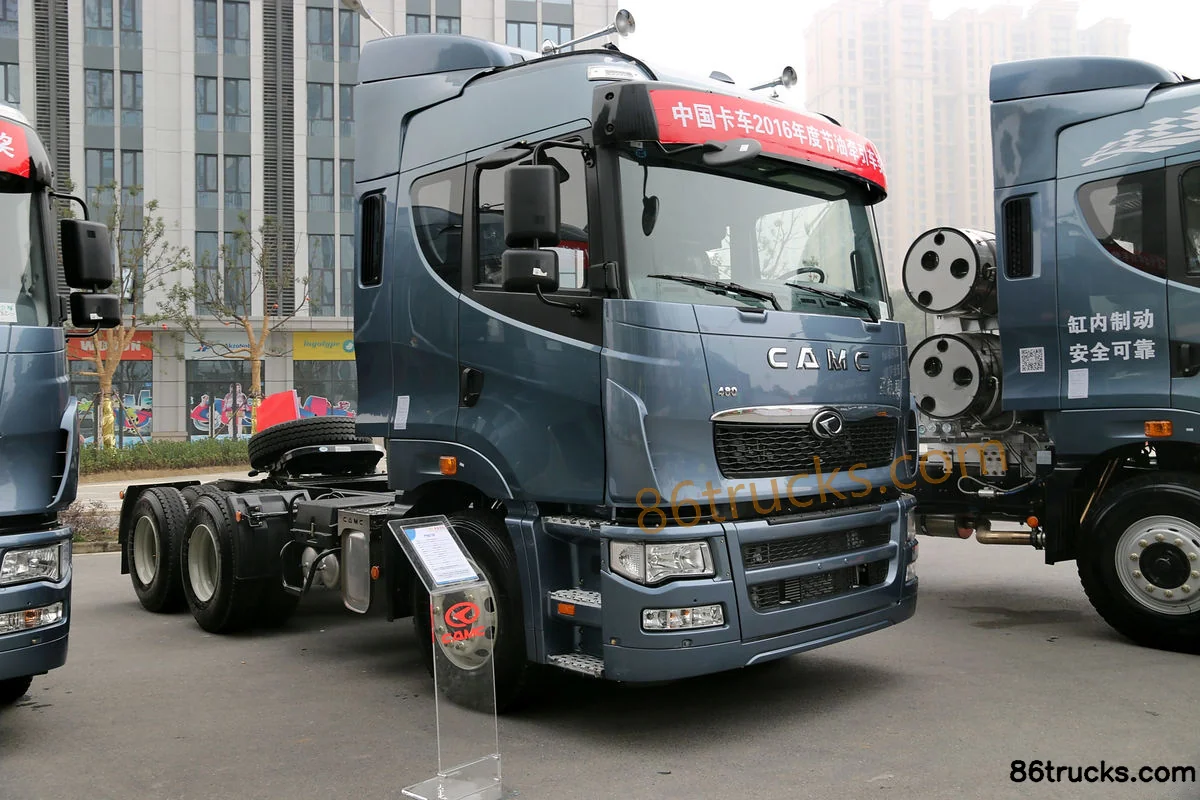

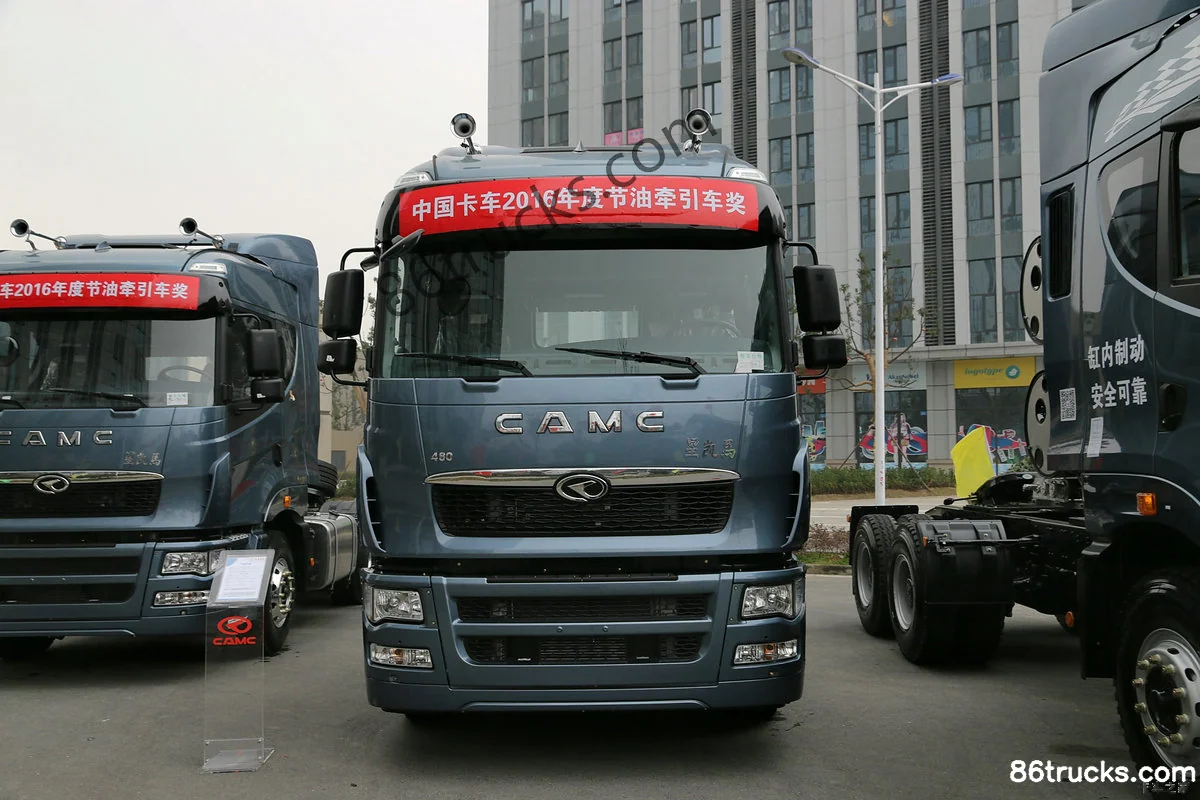

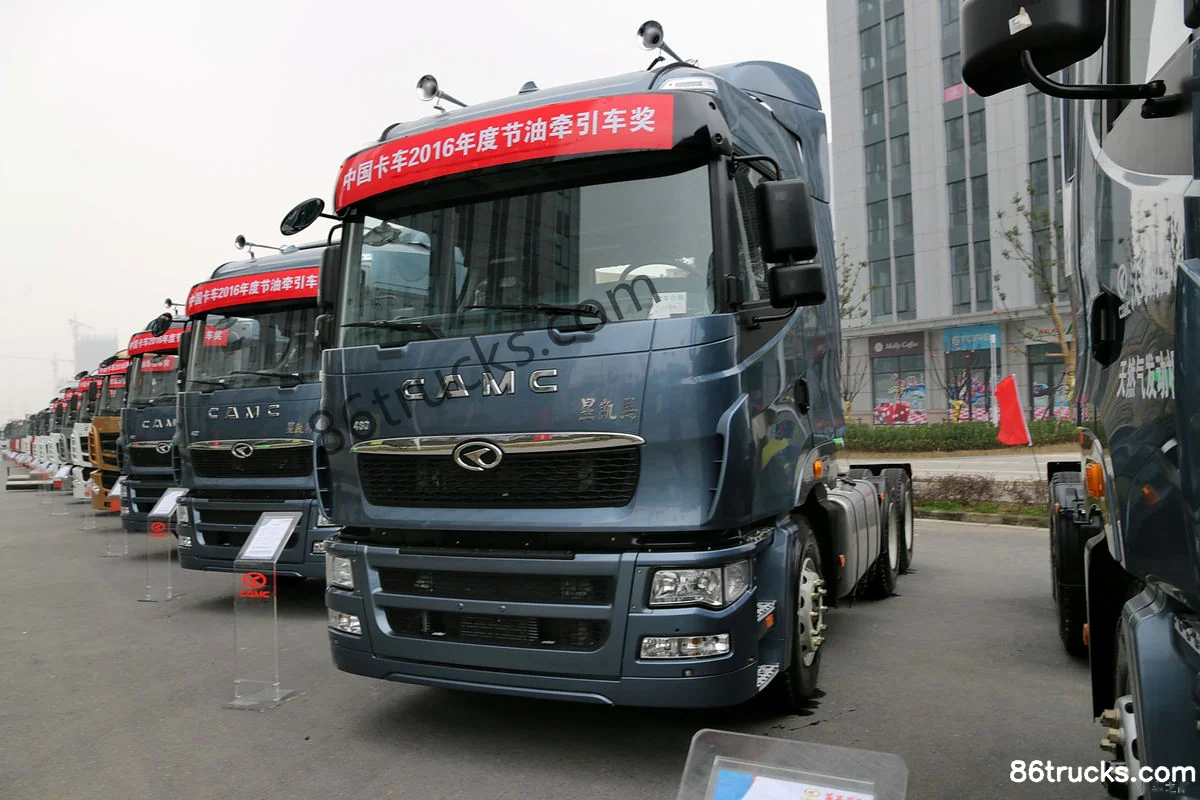

Exterior3

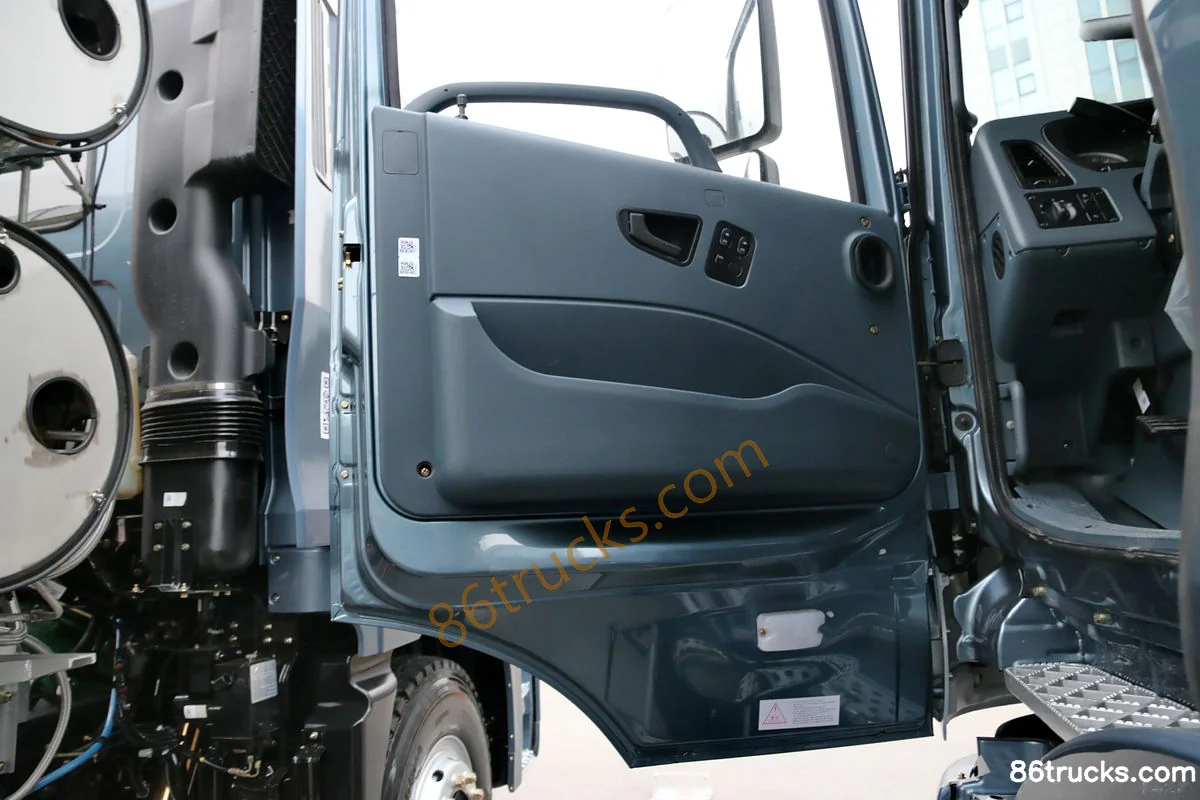

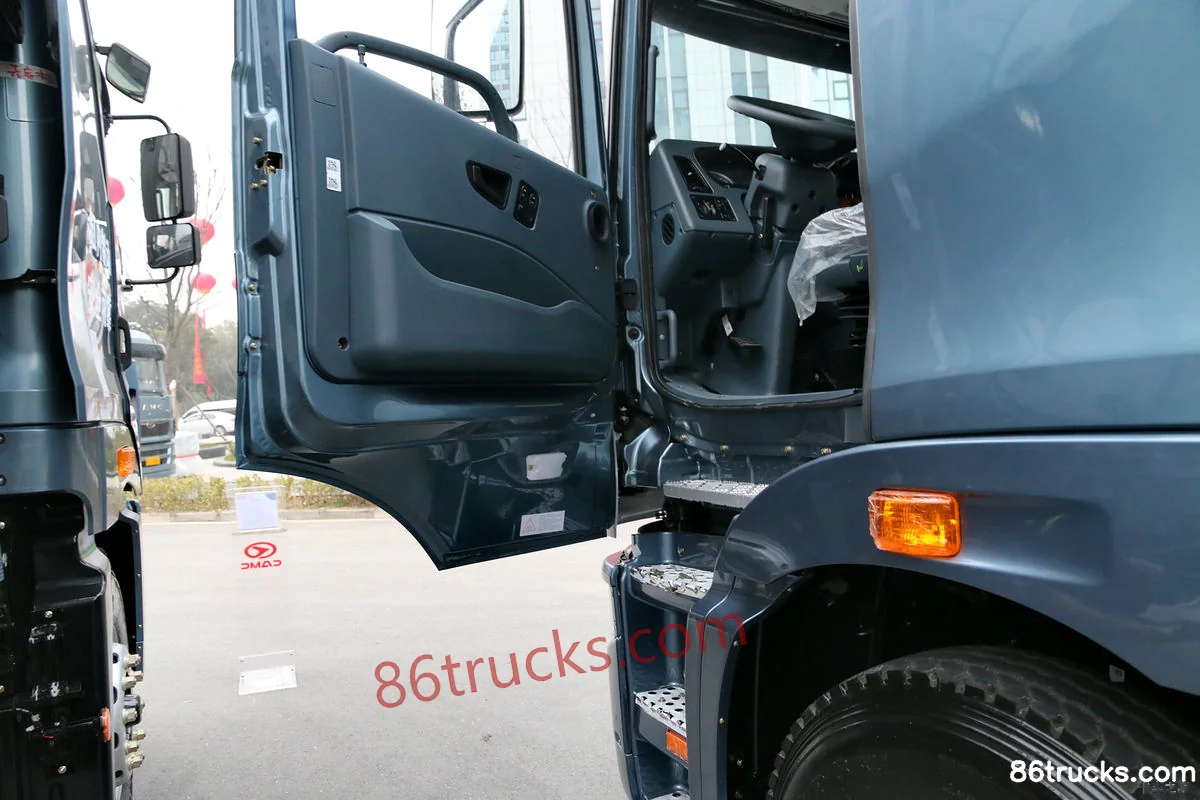

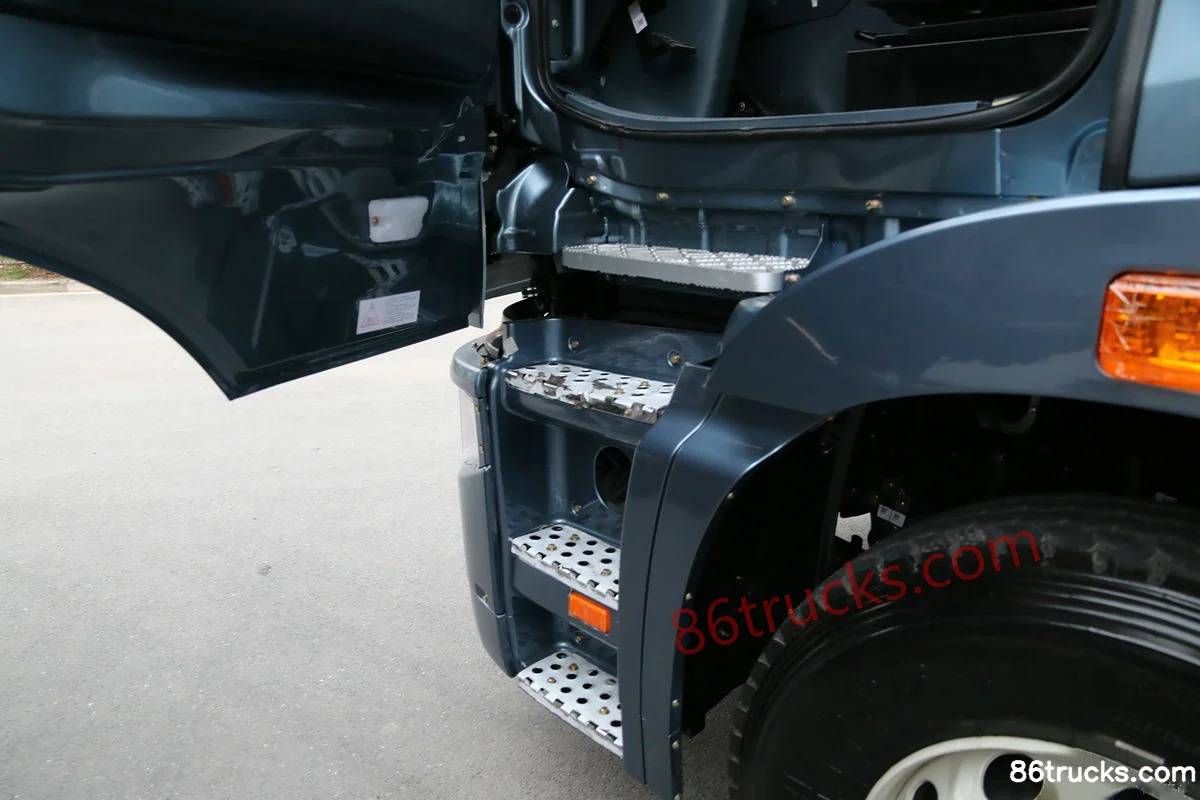

Cab3

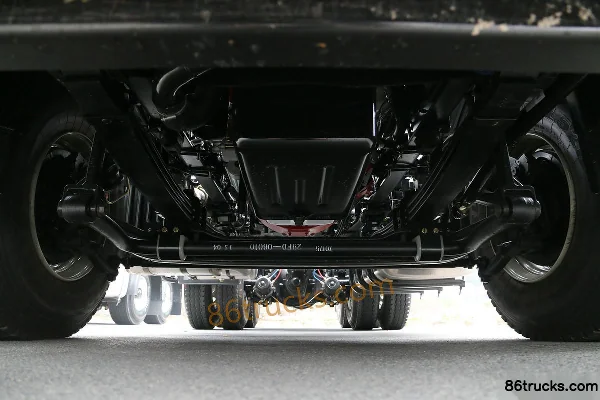

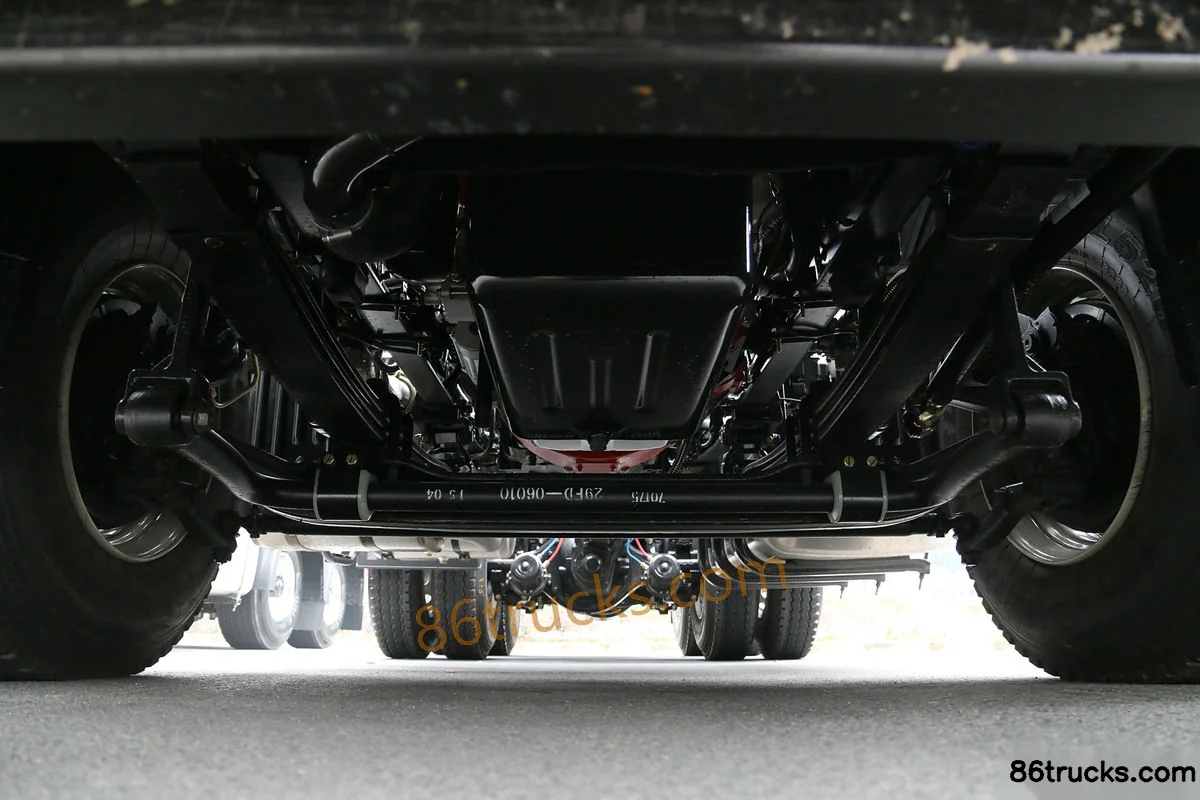

Chassis3

9 photos

FAQ

What emission standard does Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck?

Key specs of Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck: Drive: 6x4; Horsepower: 480 hp; Emission: China V; Fuel: Diesel; Transmission: Hanma. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck suited for?

Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck differ from other variants in the same series?

Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck belongs to HualingHanma H9 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing XingKama Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
